Vehicle specifications
Honda Civic IV Shuttle
Compare all 3 engine versions of the Honda Civic Civic IV Shuttle, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Civic IV Shuttle? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Honda Civic IV Shuttle?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), right side · less certain (little data)

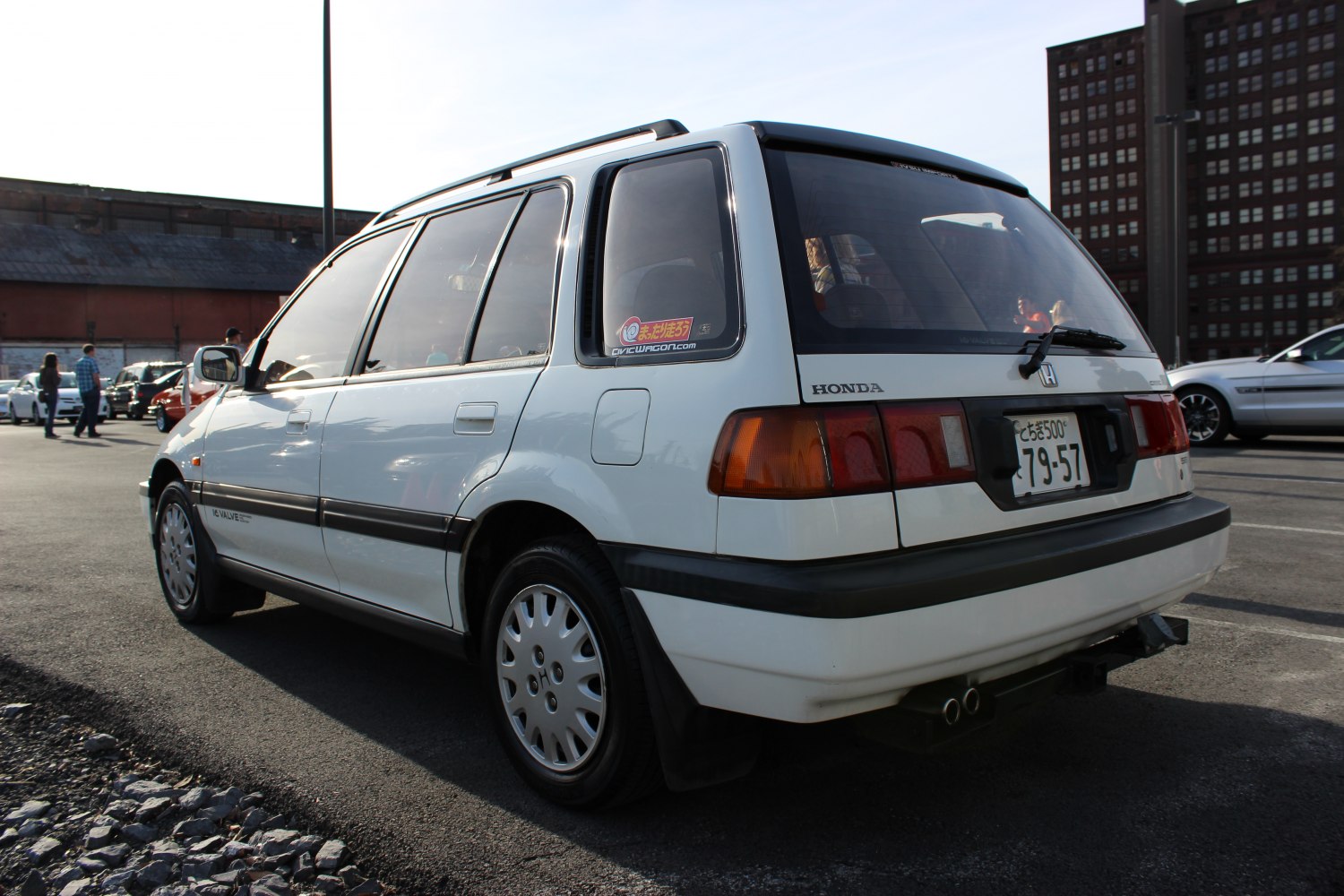

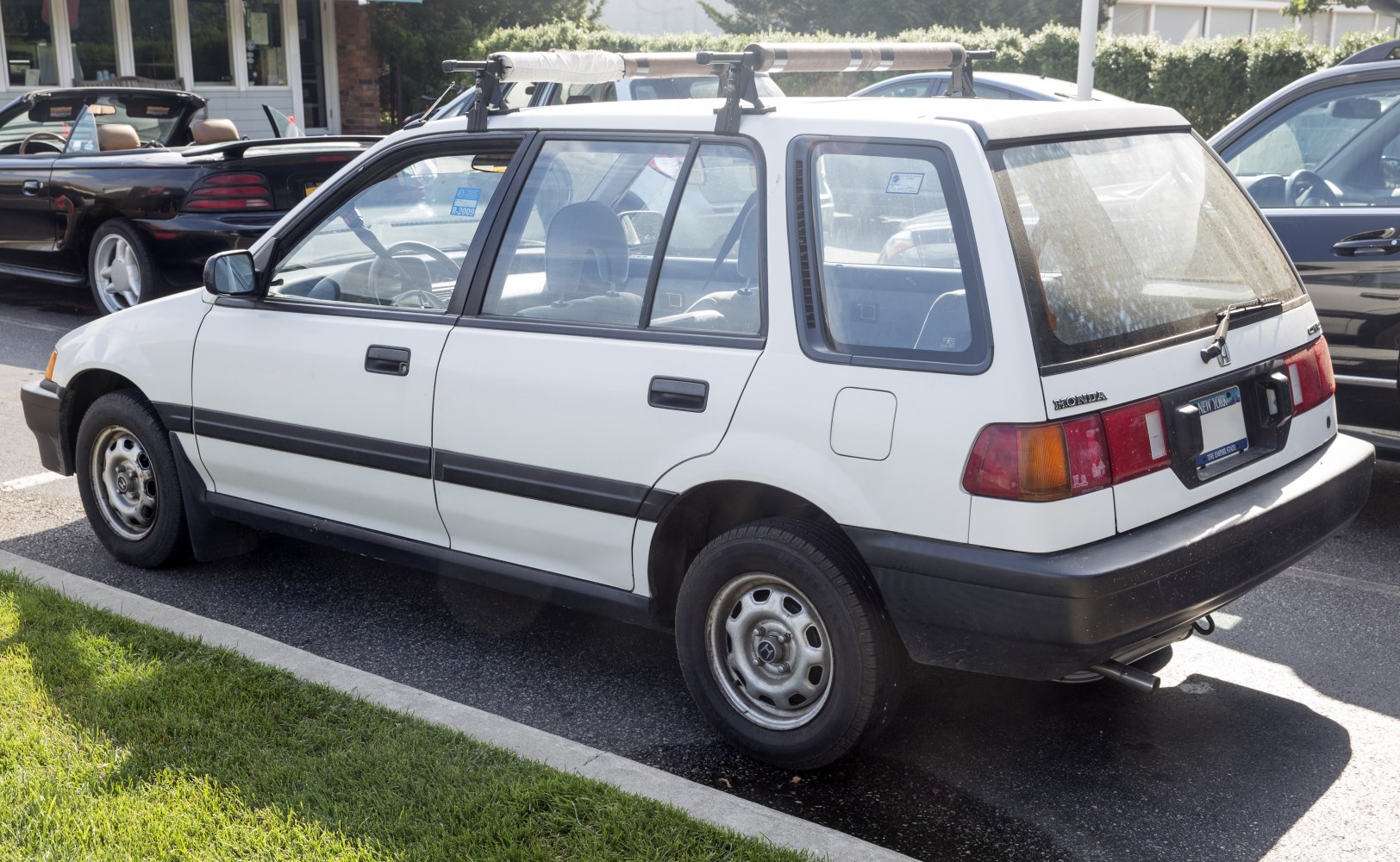

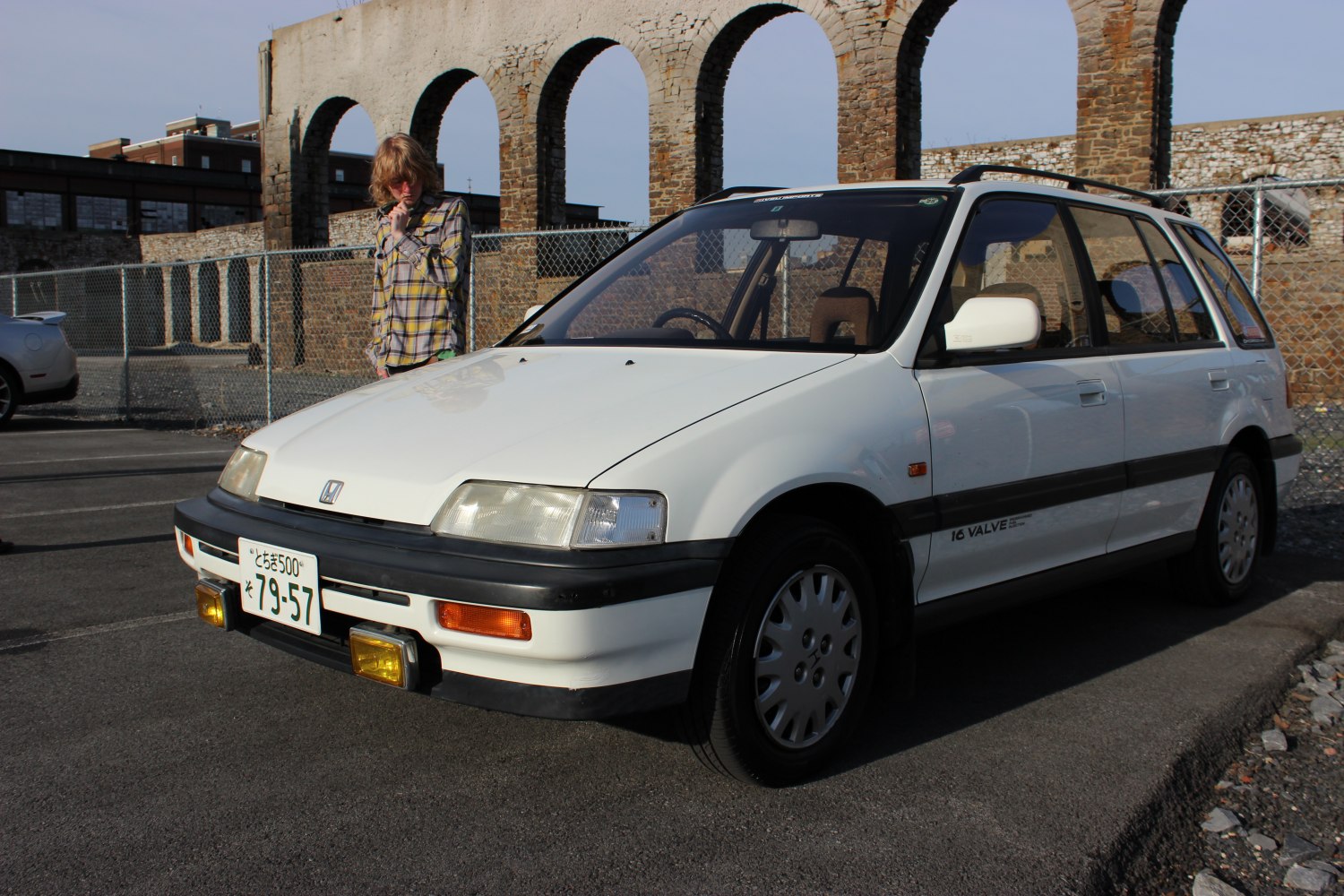

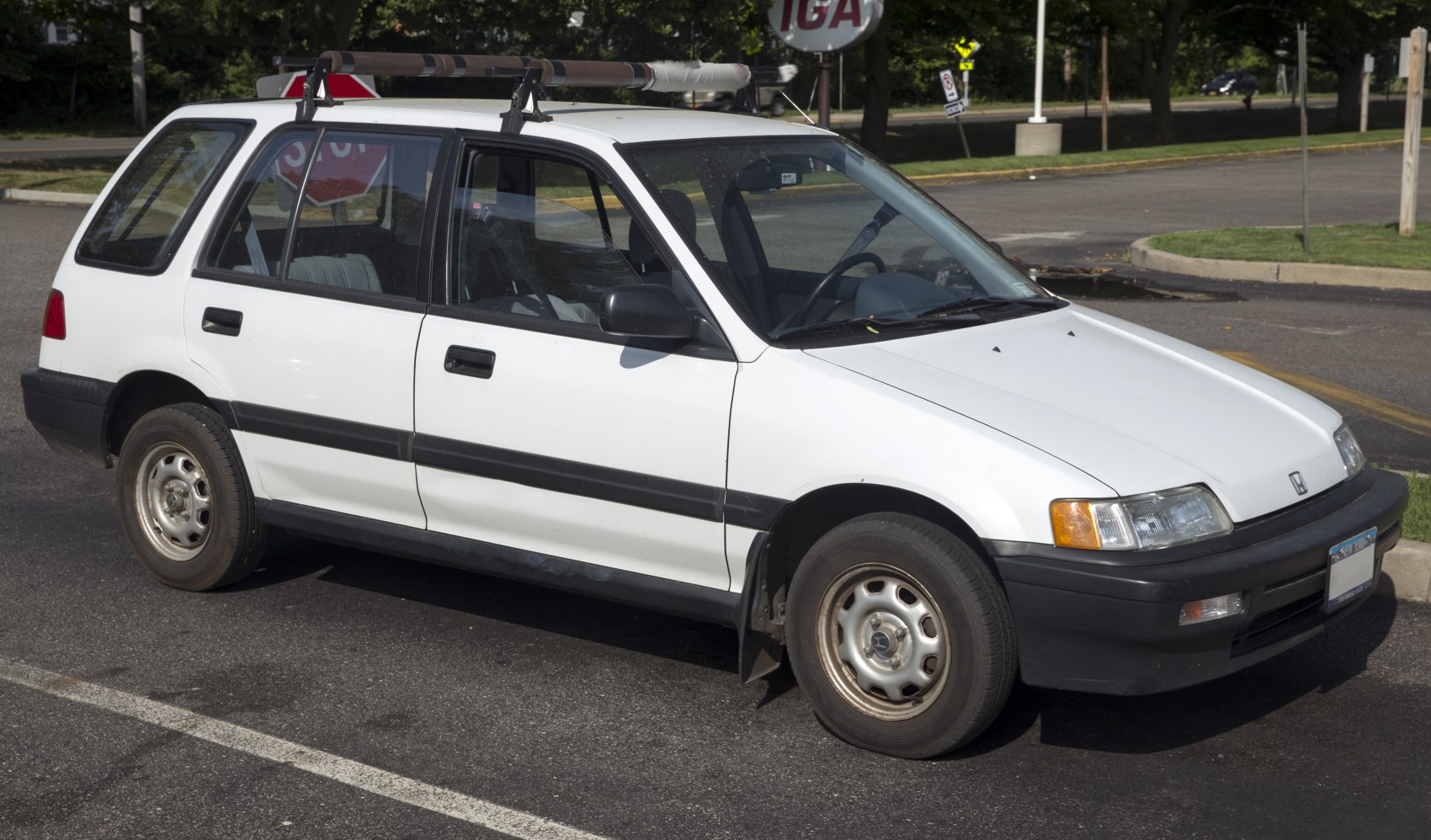

Vehicle photos
1 of 6
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.5 i 16V (EE2) (90 KM) Selected | Gasoline | 90 KM | 1988–1989 |
| 1.6 i 16V 4WD (EE4) (109 KM) Selected | Gasoline | 109 KM | 1988–1991 |
| 1.6 i 16V 4WD (EE4) (110 KM) Selected | Gasoline | 110 KM | 1988–1991 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.5 i 16V (EE2) (90 KM)
Gasoline · 1988–1989
- Engine power
- 90 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Shuttle- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Shuttle
- Engine
- 1.5 i 16V (EE2) (90 KM)
- Engine type
- Combustion engine
- Start of production
- 1988
- End of production
- 1989
- Body type
- Station wagon
- Fuel type
- Gasoline
Engine
- Engine model / code
- D15B2
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 3.3 l
- Coolant capacity
- 5.7 l
- Power
- 90 KM
Volume and weight
- Curb weight
- kg
Vehicle dimensions
- Length
- 4105 mm
- Width
- 1690 mm
- Height
- 1470 mm
- Wheelbase
- 2500 mm
- Front track
- 1445 mm
- Rear track
- 1455 mm
- Ground clearance
- 165 mm
Drivetrain, Brakes and suspension
- Tire size
- 175/70 R13
- Rim size
- 5J x 13
- ABS
- no
Selected engine version
1.6 i 16V 4WD (EE4) (109 KM)
Gasoline · 1988–1991
- Engine power
- 109 KM
- Engine displacement
- 1,590 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Shuttle- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Shuttle
- Engine
- 1.6 i 16V 4WD (EE4) (109 KM)
- Engine type
- Combustion engine
- Start of production
- 1988
- End of production
- 1991
- Body type
- Station wagon
- Fuel type
- Gasoline
Engine
- Engine model / code
- D16A6
- Engine displacement
- 1590 cm³
- Engine type
- Naturally aspirated engine
- Cylinder bore
- 75 mm
- Piston stroke
- 90 mm
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.7 l
- Power
- 109 KM
Volume and weight
- Curb weight
- kg
Vehicle dimensions
- Length
- 4105 mm
- Width
- 1690 mm
- Height
- 1515 mm
- Wheelbase
- 2500 mm
- Front track
- 1440 mm
- Rear track
- 1450 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Tire size
- 165/80 R13; 175/65 R14
- Rim size
- 5J x 13; 5J x 14
- ABS
- no
Selected engine version
1.6 i 16V 4WD (EE4) (110 KM)
Gasoline · 1988–1991
- Engine power
- 110 KM
- Torque
- 135 Nm
- Engine displacement
- 1,590 cm³
- Fuel type
- Gasoline
- Maximum speed
- 173 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Shuttle- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Shuttle
- Engine
- 1.6 i 16V 4WD (EE4) (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1988
- End of production
- 1991
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 173 km/h
Engine
- Engine model / code
- D16Z2
- Engine position
- Front, Transverse
- Engine displacement
- 1590 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 90 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.7 l
- Power
- 110 KM @ 6300 obr./min
- Torque
- 135 Nm
Volume and weight
- Fuel tank
- 45 l
- Curb weight
- 1160 kg
Vehicle dimensions
- Length
- 4105 mm
- Width
- 1690 mm
- Height
- 1515 mm
- Wheelbase
- 2500 mm
- Front track
- 1440 mm
- Rear track
- 1450 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front brakes
- Disc
- Rear brakes
- Drum
- Power steering
- Hydraulic power steering
- Tire size
- 165/80 R13; 175/65 R14
- Rim size
- 5J x 13; 5J x 14
- ABS
- no
