Vehicle specifications
Honda Civic IV Hatchback
Compare all 7 engine versions of the Honda Civic Civic IV Hatchback, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Civic IV Hatchback? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Honda Civic IV Hatchback?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), right side
- Identification plate
- Firewall (bulkhead) · less certain (little data)

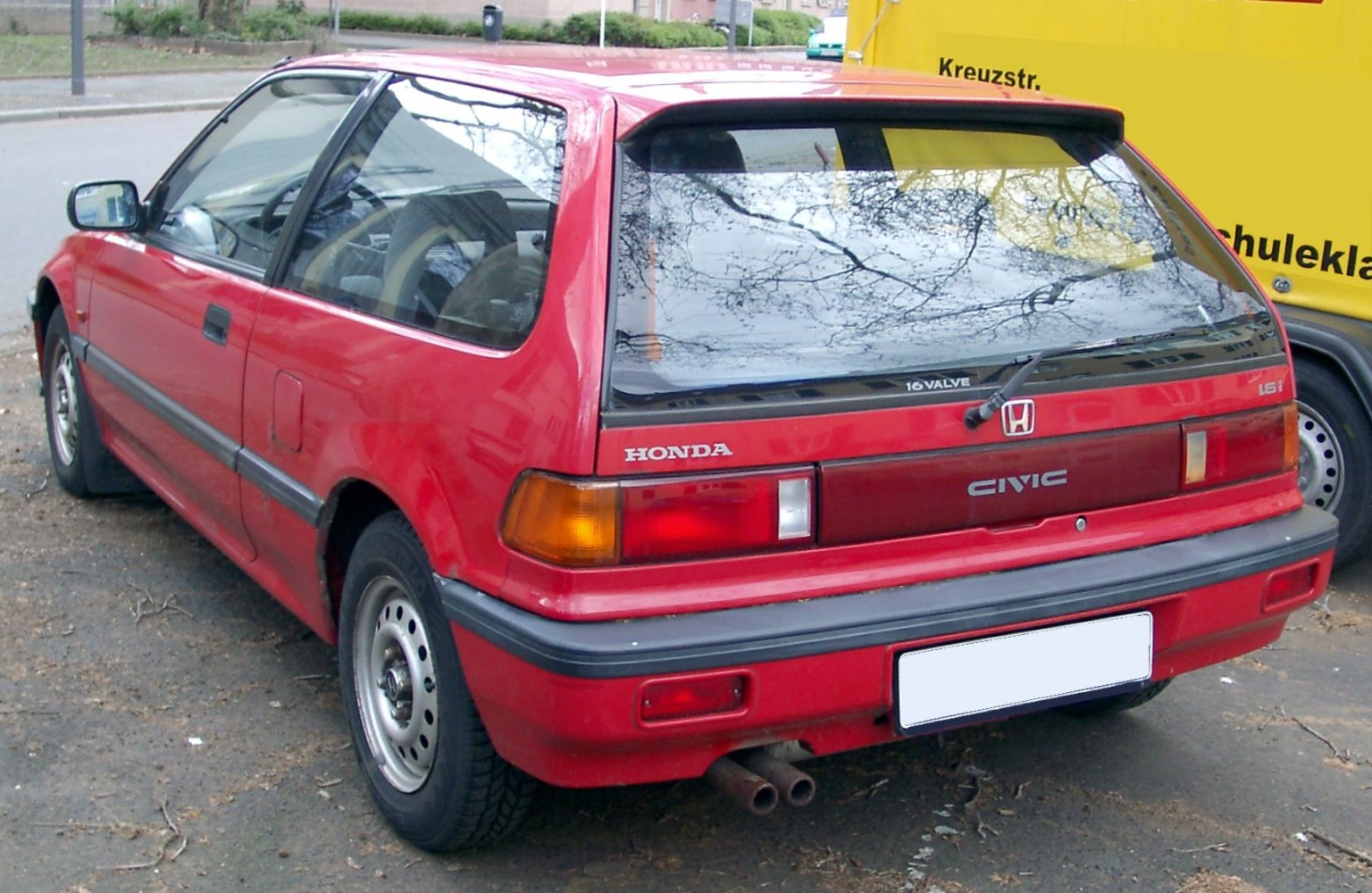

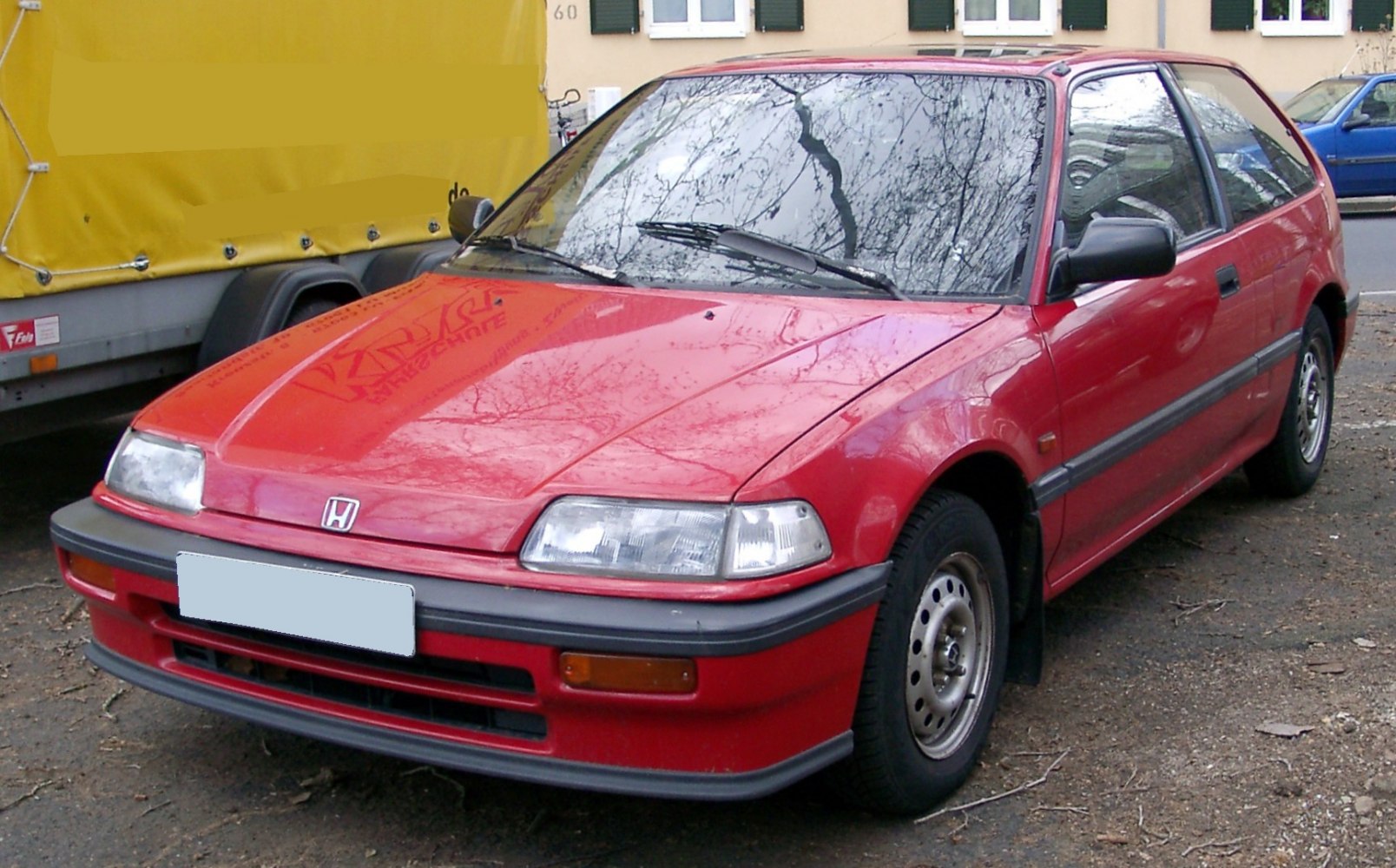

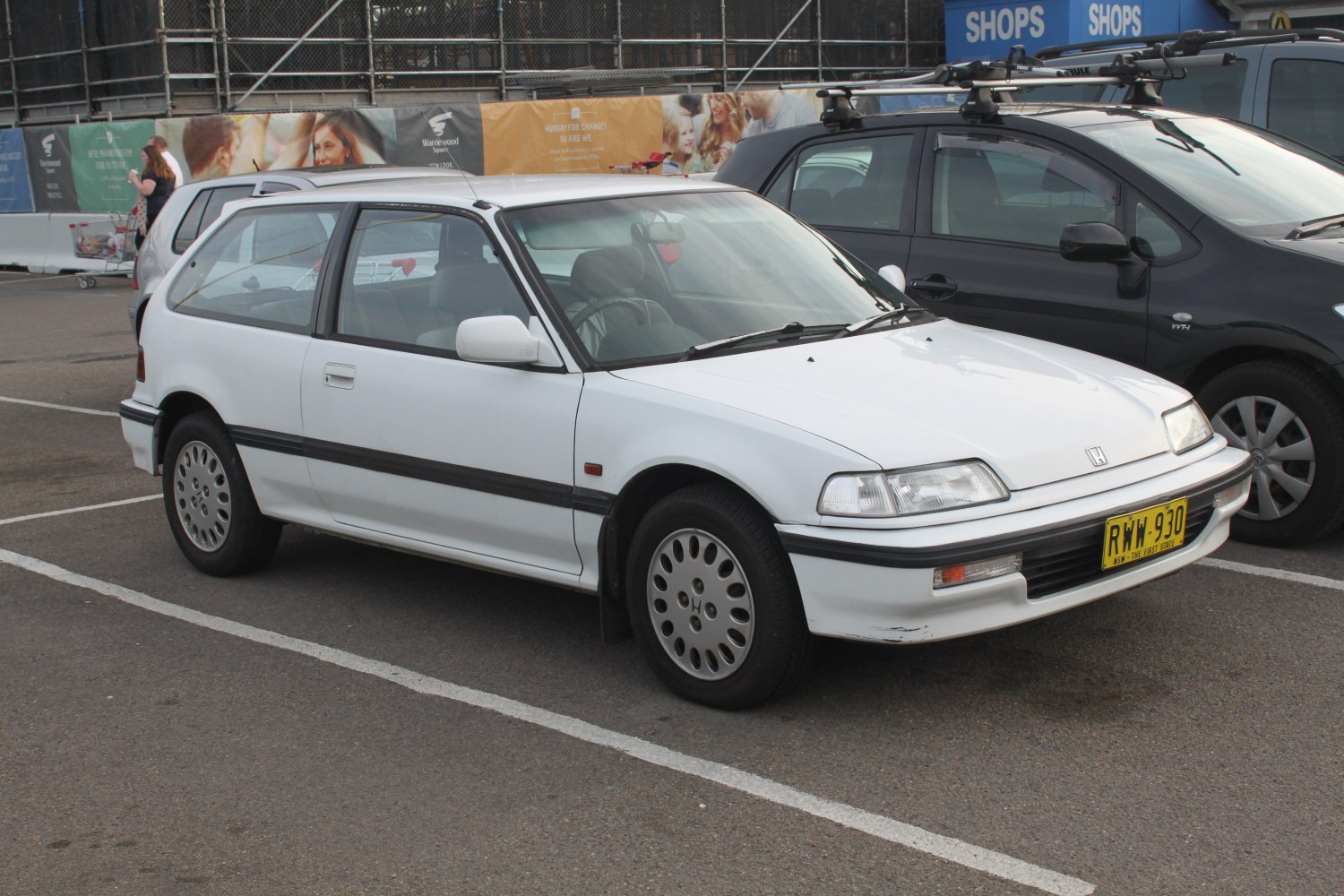

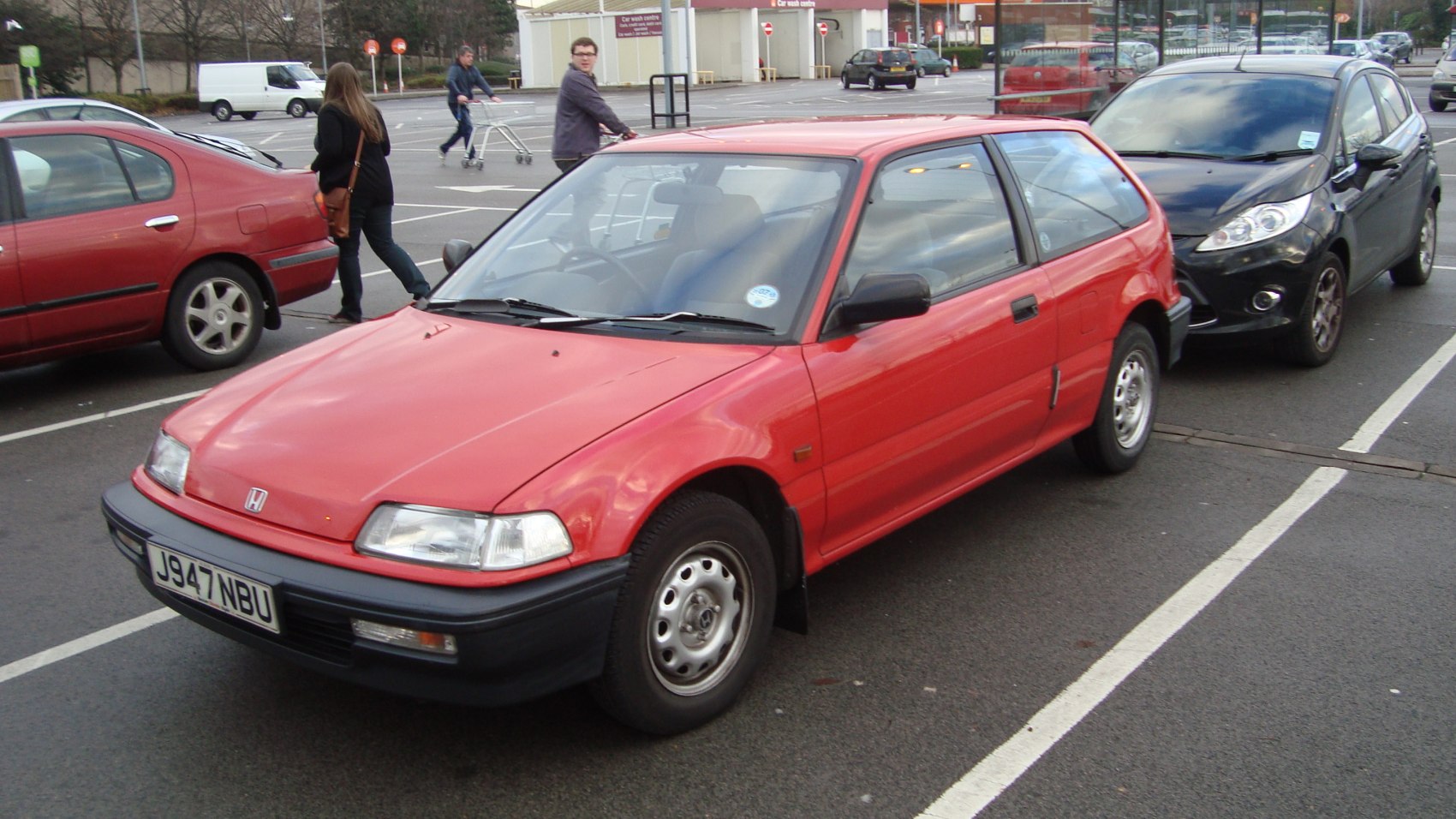

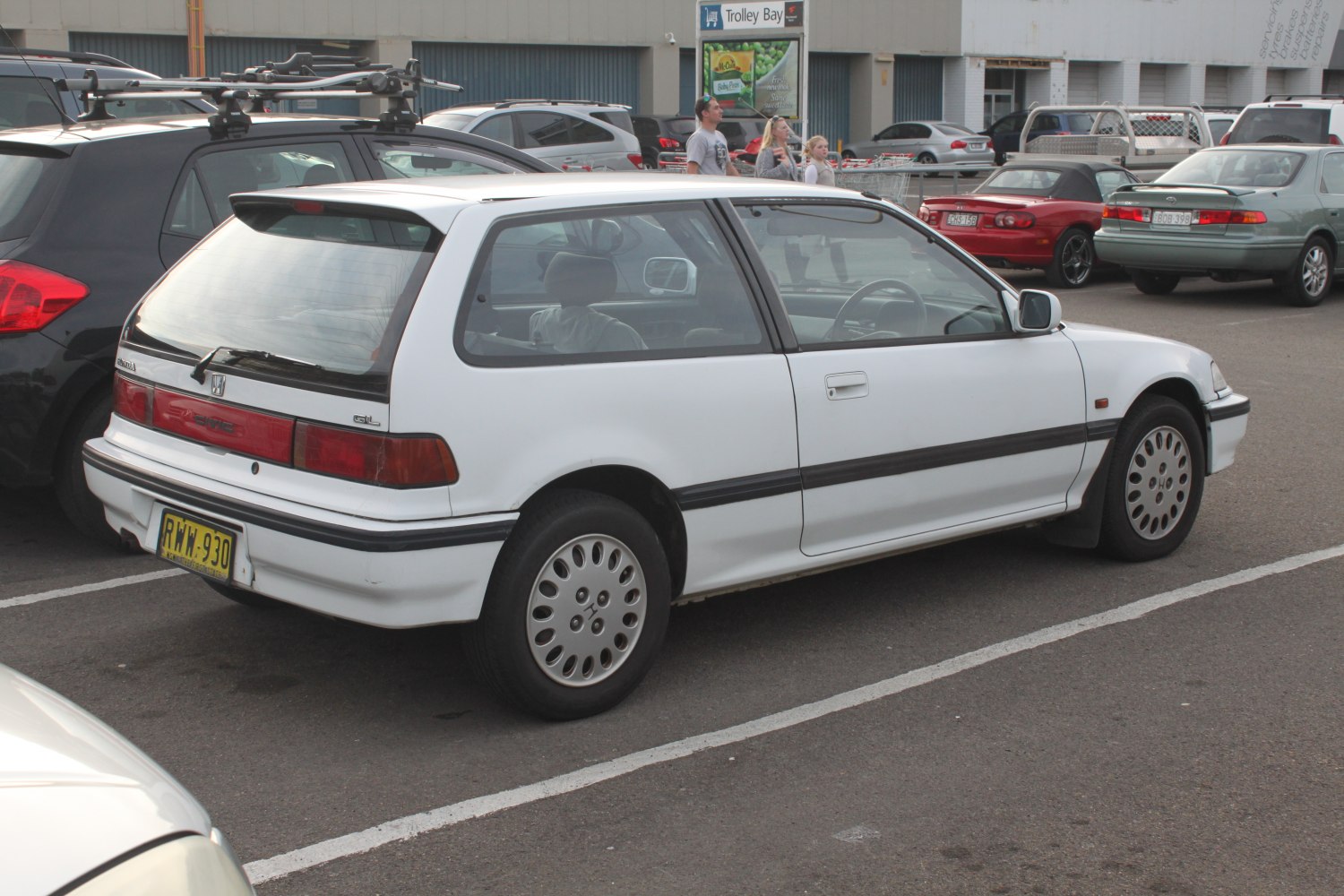

Vehicle photos
1 of 6
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
7 versions · 7 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.3 (75 KM) Selected | Gasoline | 75 KM | 1987–1989 |
| 1.3 (75 KM) Cat Selected | Gasoline | 75 KM | 1989–1991 |
| 1.4 L (90 KM) Selected | Gasoline | 90 KM | 1987–1991 |
| 1.5 i 16V (90 KM) Selected | Gasoline | 90 KM | 1987–1991 |
| 1.6 i 16V (109 KM) Selected | Gasoline | 109 KM | 1987–1989 |
| 1.6 i 16V (110 KM) Selected | Gasoline | 110 KM | 1987–1991 |
| 1.6 i 16V Vtec (110 KM) Selected | Gasoline | 110 KM | 1987–1991 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.3 (75 KM)
Gasoline · 1987–1989
- Engine power
- 75 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.3 (75 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1989
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- D13B1
- Engine type
- Naturally aspirated engine
- Power
- 75 KM
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 700 kg
- Trailer load without brakes
- 410 kg
- Trailer nose weight
- 50 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- Tire size
- 155/80 R13; 165/70 R13; 175/70 R13
- Rim size
- 4.5J x 13; 5J x 13
- ABS
- no
Selected engine version
1.3 (75 KM) Cat
Gasoline · 1989–1991
- Engine power
- 75 KM
- Torque
- 102 Nm
- Engine displacement
- 1,343 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.3 (75 KM) Cat
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1989
- End of production
- 1991
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 6.4 l/100 km
Engine
- Engine model / code
- D13B2
- Engine position
- Front, Longitudinal
- Engine displacement
- 1343 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 76 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 4
- Power
- 75 KM @ 6300 obr./min
- Torque
- 102 Nm @ 3100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 700 kg
- Trailer load without brakes
- 410 kg
- Trailer nose weight
- 50 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Steering system
- Rack-and-pinion
- Tire size
- 155/80 R13; 165/70 R13; 175/70 R13
- Rim size
- 4.5J x 13; 5J x 13
- ABS
- no
Selected engine version
1.4 L (90 KM)
Gasoline · 1987–1991
- Engine power
- 90 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.4 L (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1991
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- D14A1
- Engine type
- Naturally aspirated engine
- Power
- 90 KM
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- ABS
- no
Selected engine version
1.5 i 16V (90 KM)
Gasoline · 1987–1991
- Engine power
- 90 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.5 i 16V (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1991
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- D15B2
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 3.3 l
- Coolant capacity
- 5.7 l
- Power
- 90 KM
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 700 kg
- Trailer load without brakes
- 410 kg
- Trailer nose weight
- 50 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- Tire size
- 175/70 R13
- Rim size
- 5J x 13
- ABS
- no
Selected engine version
1.6 i 16V (109 KM)
Gasoline · 1987–1989
- Engine power
- 109 KM
- Torque
- 136 Nm
- Engine displacement
- 1,590 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.9 s
- Maximum speed
- 192 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.6 i 16V (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1989
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 192 km/h
- Acceleration 0-100 km/h
- 8.9 s
Engine
- Engine model / code
- D16A6
- Engine position
- Front, Transverse
- Engine displacement
- 1590 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 9.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 5.5 l
- Power
- 109 KM @ 6000 obr./min
- Torque
- 136 Nm @ 5000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Minimum trunk capacity
- 340 l
- Maximum trunk capacity
- 708 l
- Curb weight
- 1007 kg
- Gross weight
- 1455 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 700 kg
- Trailer load without brakes
- 410 kg
- Trailer nose weight
- 50 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
- Turning circle
- 9.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/60 R14
- Rim size
- 5J x 14; 5.5J x 14
- ABS
- no
Selected engine version
1.6 i 16V (110 KM)
Gasoline · 1987–1991
- Engine power
- 110 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.6 i 16V (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1991
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- D16Z2
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.7 l
- Power
- 110 KM
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 700 kg
- Trailer load without brakes
- 410 kg
- Trailer nose weight
- 50 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/60 R14
- Rim size
- 5J x 14; 5.5J x 14
- ABS
- no
Selected engine version
1.6 i 16V Vtec (110 KM)
Gasoline · 1987–1991
- Engine power
- 110 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IV Hatchback- Brand
- Honda
- Model
- Civic
- Version
- Civic IV Hatchback
- Engine
- 1.6 i 16V Vtec (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1987
- End of production
- 1991
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- D16Z2
- Engine type
- Naturally aspirated engine
- Number of cylinders
- 4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.7 l
- Power
- 110 KM
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.33
- Curb weight
- kg
- Roof load
- 75 kg
Vehicle dimensions
- Length
- 3991 mm
- Width
- 1686 mm
- Height
- 1330 mm
- Wheelbase
- 2500 mm
- Front track
- 1450 mm
- Rear track
- 1450 mm
Drivetrain, Brakes and suspension
- ABS
- no
