Vehicle specifications
GMC Terrain I
Compare all 6 engine versions of the GMC Terrain Terrain I, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used GMC Terrain I? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

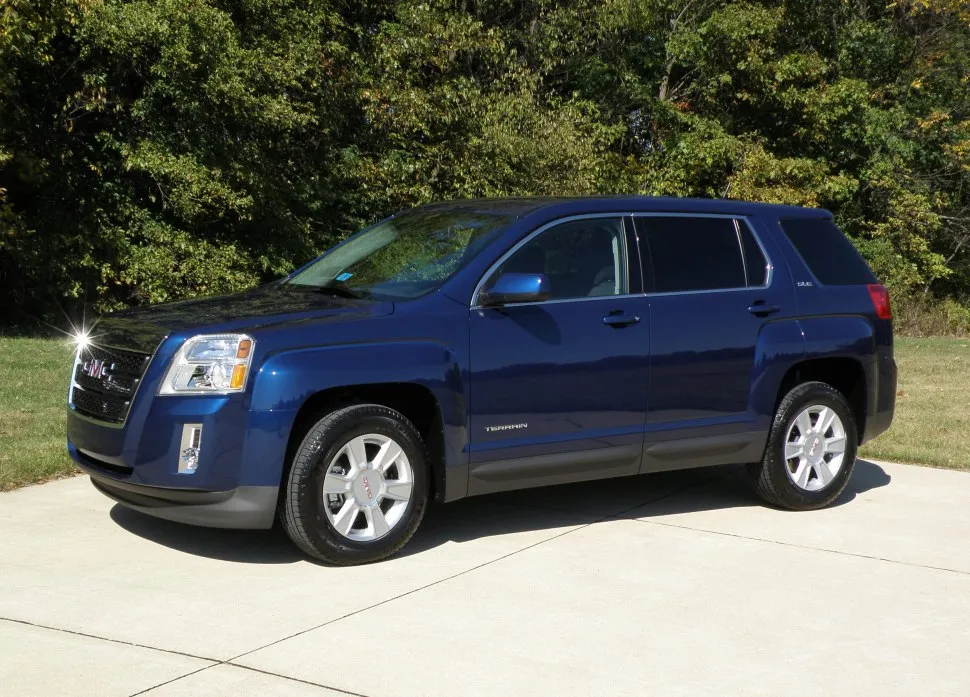

Vehicle photos
1 of 5
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 6 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.6 V6 (301 KM) Automatic Selected | Gasoline | 301 KM | 2010–2015 |
| 2.4 (182 KM) Automatic Selected | Gasoline | 182 KM | 2010–2015 |
| 3.0 V6 (264 KM) Automatic Selected | Gasoline | 264 KM | 2010–2015 |
| 2.4 (182 KM) AWD Automatic Selected | Gasoline | 182 KM | 2010–2015 |
| 3.0 V6 (264 KM) AWD Automatic Selected | Gasoline | 264 KM | 2010–2015 |
| 3.6 V6 (301 KM) AWD Automatic Selected | Gasoline | 301 KM | 2010–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.6 V6 (301 KM) Automatic
Gasoline · 2010–2015
- Engine power
- 301 KM
- Torque
- 369 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 3.6 V6 (301 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 12.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
- Fuel consumption - Combined cycle
- 11.8 l/100 km
Engine
- Engine model / code
- LFX
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 10.2 l
- Power
- 301 KM @ 6950 obr./min
- Torque
- 369 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 79 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1723 kg
- Gross weight
- 2359 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.4 (182 KM) Automatic
Gasoline · 2010–2015
- Engine power
- 182 KM
- Torque
- 233 Nm
- Engine displacement
- 2,384 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 2.4 (182 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 11.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
- Fuel consumption - Combined cycle
- 9 l/100 km
Engine
- Engine model / code
- LAF
- Engine position
- Front, Transverse
- Engine displacement
- 2384 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 98 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 7.8 l
- Power
- 182 KM @ 6700 obr./min
- Torque
- 233 Nm @ 4900 obr./min
Volume and weight
- Fuel tank
- 71 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1723 kg
- Gross weight
- 2250 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
3.0 V6 (264 KM) Automatic
Gasoline · 2010–2015
- Engine power
- 264 KM
- Torque
- 301 Nm
- Engine displacement
- 2,997 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 3.0 V6 (264 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
- Fuel consumption - Combined cycle
- 11.8 l/100 km
Engine
- Engine model / code
- LF1
- Engine position
- Front, Transverse
- Engine displacement
- 2997 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 10.2 l
- Power
- 264 KM @ 6950 obr./min
- Torque
- 301 Nm @ 5100 obr./min
Volume and weight
- Fuel tank
- 79 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1769 kg
- Gross weight
- 2404 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.4 (182 KM) AWD Automatic
Gasoline · 2010–2015
- Engine power
- 182 KM
- Torque
- 233 Nm
- Engine displacement
- 2,384 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 2.4 (182 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.1 l/100 km
- Fuel consumption - Combined cycle
- 11.8 l/100 km
Engine
- Engine model / code
- LAF
- Engine position
- Front, Transverse
- Engine displacement
- 2384 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 98 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 7.8 l
- Power
- 182 KM @ 6700 obr./min
- Torque
- 233 Nm @ 4900 obr./min
Volume and weight
- Fuel tank
- 71 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1823 kg
- Gross weight
- 2300 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
3.0 V6 (264 KM) AWD Automatic
Gasoline · 2010–2015
- Engine power
- 264 KM
- Torque
- 301 Nm
- Engine displacement
- 2,997 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 3.0 V6 (264 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
- Fuel consumption - Combined cycle
- 12.4 l/100 km
Engine
- Engine model / code
- LF1
- Engine position
- Front, Transverse
- Engine displacement
- 2997 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 10.2 l
- Power
- 264 KM @ 6950 obr./min
- Torque
- 301 Nm @ 5100 obr./min
Volume and weight
- Fuel tank
- 79 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1856 kg
- Gross weight
- 2360 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
3.6 V6 (301 KM) AWD Automatic
Gasoline · 2010–2015
- Engine power
- 301 KM
- Torque
- 369 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Terrain Terrain I- Brand
- GMC
- Model
- Terrain
- Version
- Terrain I
- Engine
- 3.6 V6 (301 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2015
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
- Fuel consumption - Combined cycle
- 11.8 l/100 km
Engine
- Engine model / code
- LFX
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 10.2 l
- Power
- 301 KM @ 6950 obr./min
- Torque
- 369 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 79 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 895 l
- Curb weight
- 1900 kg
- Gross weight
- 2404 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1849 mm
- Height
- 1684 mm
- Wheelbase
- 2858 mm
- Front track
- 1598 mm
- Rear track
- 1578 mm
- Ground clearance
- 175 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/65 R17
- Rim size
- 17
- ABS
- yes
