GMC Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
Compare all 8 engine versions of the GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used GMC Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

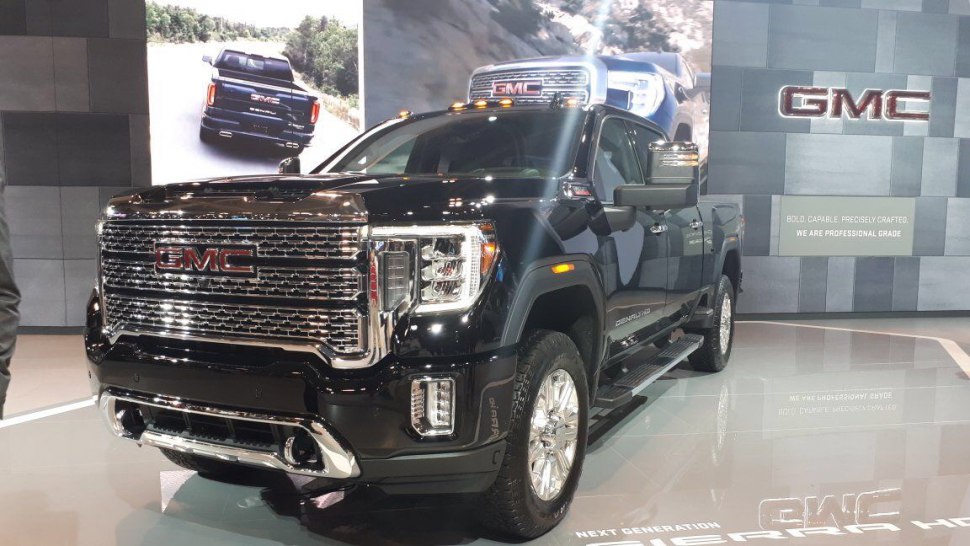

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 2 Gasoline · 4 Diesel fuel · 2 Gasoline / CNG
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 6.0 V8 (360 KM) Automatic Selected | Gasoline | 360 KM | 2015–2019 |
| 6.0 V8 (360 KM) 4WD Automatic Selected | Gasoline | 360 KM | 2015–2019 |
| 6.6 Duramax TD V8 (445 KM) Automatic Selected | Diesel fuel | 445 KM | 2017–2019 |
| 6.6 Duramax TD V8 (445 KM) 4WD Automatic Selected | Diesel fuel | 445 KM | 2017–2019 |
| 6.6 Duramax TD V8 (397 KM) Automatic Selected | Diesel fuel | 397 KM | 2015–2017 |
| 6.6 Duramax TD V8 (397 KM) 4WD Automatic Selected | Diesel fuel | 397 KM | 2015–2017 |
| 6.0 V8 (301 KM) Automatic CNG Selected | Gasoline / CNG | 301 KM | 2015–2016 |
| 6.0 V8 (301 KM) 4WD Automatic CNG Selected | Gasoline / CNG | 301 KM | 2015–2016 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
6.0 V8 (360 KM) Automatic
Gasoline · 2015–2019
- Engine power
- 360 KM
- Torque
- 515 Nm
- Engine displacement
- 5,965 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.0 V8 (360 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- VortecL96
- Engine position
- Front, Longitudinal
- Engine displacement
- 5965 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV, VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 92 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 16.1 l
- Power
- 360 KM @ 5400 obr./min
- Torque
- 515 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 2763 kg
- Gross weight
- 4309 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1984 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 218 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18
- Rim size
- 7.5J x 17; 8J x 18
- ABS
- yes
Selected engine version
6.0 V8 (360 KM) 4WD Automatic
Gasoline · 2015–2019
- Engine power
- 360 KM
- Torque
- 515 Nm
- Engine displacement
- 5,965 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.0 V8 (360 KM) 4WD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- VortecL96
- Engine position
- Front, Longitudinal
- Engine displacement
- 5965 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV, VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 92 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 16.1 l
- Power
- 360 KM @ 5400 obr./min
- Torque
- 515 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 2894 kg
- Gross weight
- 4309 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1983 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 216 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18
- Rim size
- 7.5J x 17; 8J x 18
- ABS
- yes
Selected engine version
6.6 Duramax TD V8 (445 KM) Automatic
Diesel fuel · 2017–2019
- Engine power
- 445 KM
- Torque
- 1,234 Nm
- Engine displacement
- 6,604 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.6 Duramax TD V8 (445 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DuramaxL5P
- Engine position
- Front, Longitudinal
- Engine displacement
- 6604 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 99 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 29.7 l
- Power
- 445 KM @ 2800 obr./min
- Torque
- 1234 Nm @ 1600 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 3186 kg
- Gross weight
- 4536 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1984 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 218 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Allison
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
Selected engine version
6.6 Duramax TD V8 (445 KM) 4WD Automatic
Diesel fuel · 2017–2019
- Engine power
- 445 KM
- Torque
- 1,234 Nm
- Engine displacement
- 6,604 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.6 Duramax TD V8 (445 KM) 4WD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DuramaxL5P
- Engine position
- Front, Longitudinal
- Engine displacement
- 6604 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 99 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 29.7 l
- Power
- 445 KM @ 2800 obr./min
- Torque
- 1234 Nm @ 1600 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 3317 kg
- Gross weight
- 4536 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1983 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 216 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Allison
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 235/80 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
Selected engine version
6.6 Duramax TD V8 (397 KM) Automatic
Diesel fuel · 2015–2017
- Engine power
- 397 KM
- Torque
- 1,037 Nm
- Engine displacement
- 6,599 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.6 Duramax TD V8 (397 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2017
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DuramaxLML
- Engine position
- Front, Longitudinal
- Engine displacement
- 6599 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 99 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 22.4 l
- Power
- 397 KM @ 3000 obr./min
- Torque
- 1037 Nm @ 1600 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 3153 kg
- Gross weight
- 4536 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1984 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 218 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Allison
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
Selected engine version
6.6 Duramax TD V8 (397 KM) 4WD Automatic
Diesel fuel · 2015–2017
- Engine power
- 397 KM
- Torque
- 1,037 Nm
- Engine displacement
- 6,599 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.6 Duramax TD V8 (397 KM) 4WD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2017
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DuramaxLML
- Engine position
- Front, Longitudinal
- Engine displacement
- 6599 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 99 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 22.4 l
- Power
- 397 KM @ 3000 obr./min
- Torque
- 1037 Nm @ 1600 obr./min
Volume and weight
- Fuel tank
- 136 l
- Maximum trunk capacity
- 1728 l
- Curb weight
- 3284 kg
- Gross weight
- 4536 kg
- Braked trailer load (12% slope start)
- 5897 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1983 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 216 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Allison
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
Selected engine version
6.0 V8 (301 KM) Automatic CNG
Gasoline / CNG · 2015–2016
- Engine power
- 301 KM
- Torque
- 452 Nm
- Engine displacement
- 5,967 cm³
- Fuel type
- Gasoline / CNG
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.0 V8 (301 KM) Automatic CNG
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2016
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Gasoline / CNG
Engine
- Engine model / code
- VortecLC8
- Engine position
- Front, Longitudinal
- Engine displacement
- 5967 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV, VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 92 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 15.5 l
- Power
- 301 KM @ 5000 obr./min
- Torque
- 452 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 136 l
- CNG tank capacity
- 67 kg
- Curb weight
- kg
- Braked trailer load (12% slope start)
- 4218 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1984 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 218 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
Selected engine version
6.0 V8 (301 KM) 4WD Automatic CNG
Gasoline / CNG · 2015–2016
- Engine power
- 301 KM
- Torque
- 452 Nm
- Engine displacement
- 5,967 cm³
- Fuel type
- Gasoline / CNG
On this page
Check vehicle history
Basic version information
GMC Sierra 2500HD Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box- Brand
- GMC
- Model
- Sierra 2500HD
- Version
- Sierra 2500HD IV (GMTK2XX) Double Cab Standard Box
- Engine
- 6.0 V8 (301 KM) 4WD Automatic CNG
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2016
- Body type
- Pick-up
- Number of seats
- 5
- Fuel type
- Gasoline / CNG
Engine
- Engine model / code
- VortecLC8
- Engine position
- Front, Longitudinal
- Engine displacement
- 5967 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV, VVT
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 92 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 15.5 l
- Power
- 301 KM @ 5000 obr./min
- Torque
- 452 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 136 l
- CNG tank capacity
- 67 kg
- Curb weight
- kg
- Braked trailer load (12% slope start)
- 4218 kg
Vehicle dimensions
- Length
- 5842 mm
- Width with unfolded mirrors
- 2045 mm
- Height
- 1983 mm
- Wheelbase
- 3662 mm
- Front track
- 1748 mm
- Rear track
- 1709 mm
- Ground clearance
- 216 mm
- Turning circle
- 15 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Coil spring, Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 350 mm
- Front brake disc thickness
- 40 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Rear brake disc thickness
- 34 mm
- Steering system
- Worm and roller steering
- Tire size
- 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20
- Rim size
- 7.5J x 17; 8J x 18; 8.5J x 20
- ABS
- yes
