Vehicle specifications

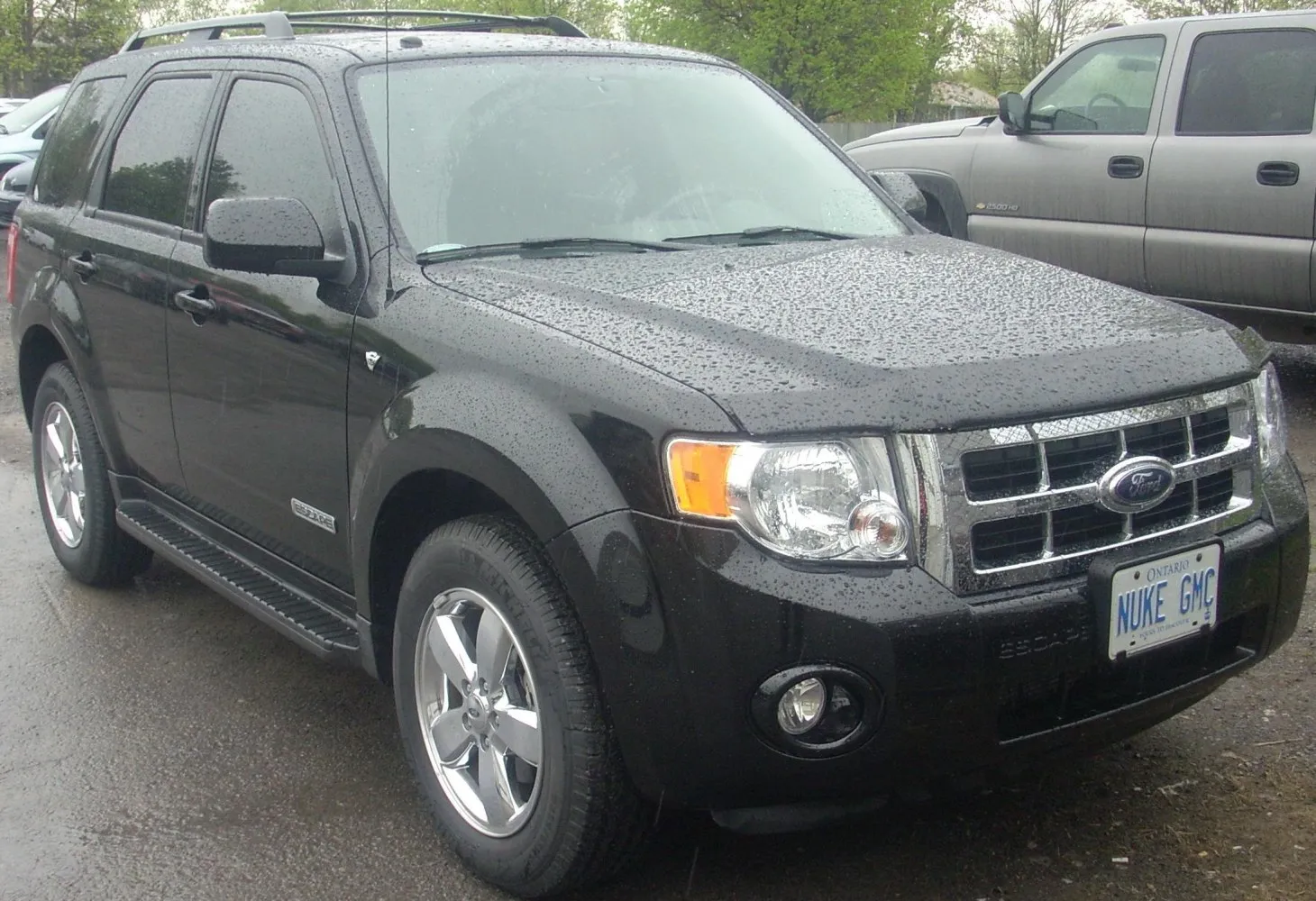

Ford Escape II
Compare all 8 engine versions of the Ford Escape Escape II, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Ford Escape II? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 8 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.3 L (145 KM) AWD Selected | Gasoline | 145 KM | 2008–2012 |
| 2.3 L (145 KM) Selected | Gasoline | 145 KM | 2008–2012 |
| 2.5 (177 KM) Hybrid 4WD eCVT Selected | Gasoline | 153 KM | 2008–2012 |
| 2.5 (177 KM) Hybrid eCVT Selected | Gasoline | 153 KM | 2008–2012 |
| 2.5 L (173 KM) AWD Selected | Gasoline | 173 KM | 2008–2012 |
| 2.5 L (173 KM) Selected | Gasoline | 173 KM | 2008–2012 |
| 3.0 L (240 KM) AWD Selected | Gasoline | 240 KM | 2008–2012 |
| 3.0 L (240 KM) Selected | Gasoline | 240 KM | 2008–2012 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.3 L (145 KM) AWD
Gasoline · 2008–2012
- Engine power
- 145 KM
- Torque
- 200 Nm
- Engine displacement
- 2,261 cm³
- Fuel type
- Gasoline
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.3 L (145 KM) AWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2261 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 94 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Power
- 145 KM @ 6000 obr./min
- Torque
- 200 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
2.3 L (145 KM)
Gasoline · 2008–2012
- Engine power
- 145 KM
- Torque
- 200 Nm
- Engine displacement
- 2,261 cm³
- Fuel type
- Gasoline
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.3 L (145 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2261 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 94 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Power
- 145 KM @ 6000 obr./min
- Torque
- 200 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
2.5 (177 KM) Hybrid 4WD eCVT
Gasoline · 2008–2012
- Engine power
- 153 KM
- Torque
- 184 Nm
- Engine displacement
- 2,495 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.5 (177 KM) Hybrid 4WD eCVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 8.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.7 l/100 km
- Emission standard
- Euro 4
Engine
- Max electric motor power
- 94 KM @ 5000 obr./min
- System power
- 177 KM
- Engine position
- Front, Transverse
- Engine displacement
- 2495 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81.6 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7 l
- Power
- 153 KM @ 6000 obr./min
- Torque
- 184 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 787 l
- Maximum trunk capacity
- 1872 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4437 mm
- Width
- 1806 mm
- Width with folded mirrors
- 1979 mm
- Width with unfolded mirrors
- 2065 mm
- Height
- 1778 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
- Ground clearance
- 211 mm
- Approach angle
- 19.6 °
- Departure angle
- 27.7 °
- Ramp angle
- 18.7 °
- Front overhang
- 856 mm
- Rear overhang
- 960 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Type of automatic gearbox
- eCVT
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Rim size
- 16
- ABS
- no
Selected engine version
2.5 (177 KM) Hybrid eCVT
Gasoline · 2008–2012
- Engine power
- 153 KM
- Torque
- 184 Nm
- Engine displacement
- 2,495 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.5 (177 KM) Hybrid eCVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 6.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
Engine
- Max electric motor power
- 94 KM @ 5000 obr./min
- System power
- 177 KM
- Engine position
- Front, Transverse
- Engine displacement
- 2495 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81.6 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7 l
- Power
- 153 KM @ 6000 obr./min
- Torque
- 184 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 57 l
- Minimum trunk capacity
- 787 l
- Maximum trunk capacity
- 1872 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4437 mm
- Width
- 1806 mm
- Width with folded mirrors
- 1979 mm
- Width with unfolded mirrors
- 2065 mm
- Height
- 1778 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
- Ground clearance
- 211 mm
- Approach angle
- 19.5 °
- Departure angle
- 27.8 °
- Ramp angle
- 18.7 °
- Front overhang
- 856 mm
- Rear overhang
- 960 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- eCVT
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Rim size
- 16
- ABS
- no
Selected engine version
2.5 L (173 KM) AWD
Gasoline · 2008–2012
- Engine power
- 173 KM
- Torque
- 220 Nm
- Engine displacement
- 2,495 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.5 L (173 KM) AWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 12.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.4 l/100 km
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2495 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81.6 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7 l
- Power
- 173 KM @ 6000 obr./min
- Torque
- 220 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
2.5 L (173 KM)
Gasoline · 2008–2012
- Engine power
- 173 KM
- Torque
- 220 Nm
- Engine displacement
- 2,495 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 2.5 L (173 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 11.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.4 l/100 km
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2495 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81.6 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7 l
- Power
- 173 KM @ 6000 obr./min
- Torque
- 220 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
3.0 L (240 KM) AWD
Gasoline · 2008–2012
- Engine power
- 240 KM
- Torque
- 223 Nm
- Engine displacement
- 2,966 cm³
- Fuel type
- Gasoline
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 3.0 L (240 KM) AWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2966 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 9 l
- Power
- 240 KM @ 6550 obr./min
- Torque
- 223 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
3.0 L (240 KM)
Gasoline · 2008–2012
- Engine power
- 240 KM
- Torque
- 223 Nm
- Engine displacement
- 2,966 cm³
- Fuel type
- Gasoline
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Ford Escape Escape II- Brand
- Ford
- Model
- Escape
- Version
- Escape II
- Engine
- 3.0 L (240 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2008
- End of production
- 2012
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
- Emission standard
- Euro 4
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2966 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 9 l
- Power
- 240 KM @ 6550 obr./min
- Torque
- 223 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 934 l
- Maximum trunk capacity
- 1792 l
- Curb weight
- 1605 kg
- Gross weight
- 1986 kg
Vehicle dimensions
- Length
- 4480 mm
- Width
- 1845 mm
- Height
- 1730 mm
- Wheelbase
- 2620 mm
- Front track
- 1545 mm
- Rear track
- 1535 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- ABS
- no
