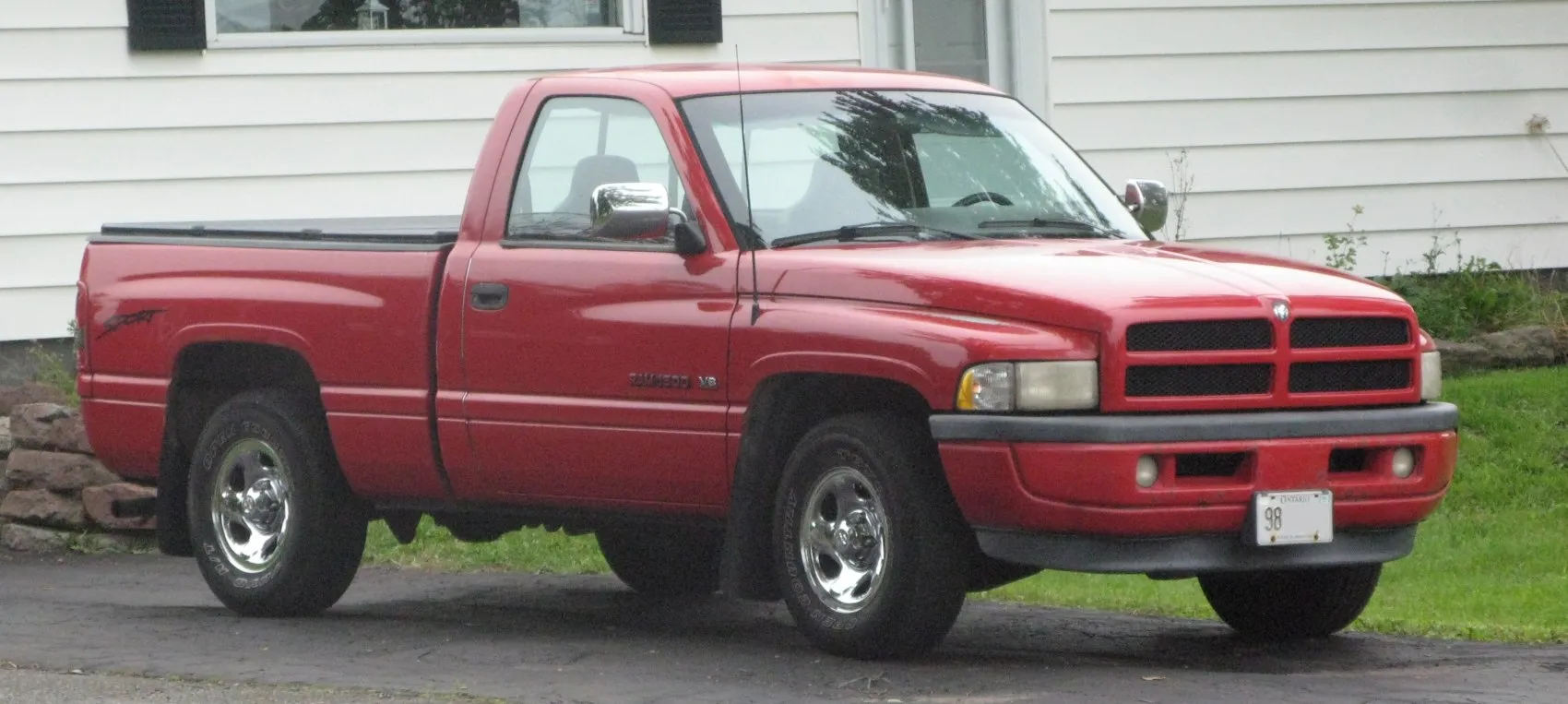

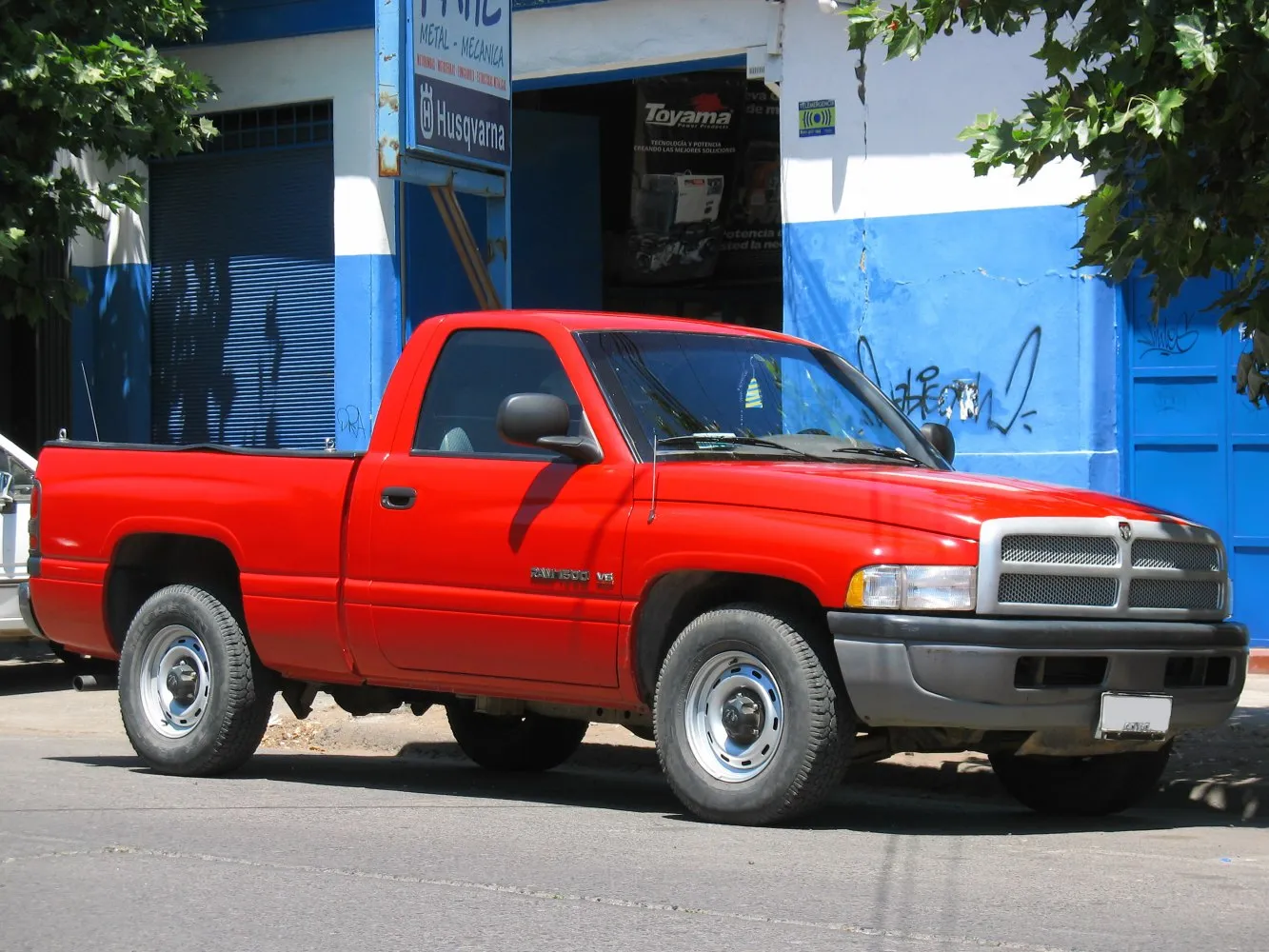

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 8 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 5.2 V8 (220 KM) Selected | Gasoline | 220 KM | 1994–1998 |
| 3.9 V6 (175 KM) Selected | Gasoline | 175 KM | 1994–1998 |
| 3.9 V6 (175 KM) Automatic Selected | Gasoline | 175 KM | 1994–1998 |
| 5.9 V8 (230 KM) Automatic Selected | Gasoline | 230 KM | 1994–1998 |
| 5.2 V8 (220 KM) Automatic Selected | Gasoline | 220 KM | 1994–1998 |
| 5.9 V8 (230 KM) 4x4 Automatic Selected | Gasoline | 230 KM | 1994–1998 |
| 5.2 V8 (220 KM) 4x4 Selected | Gasoline | 220 KM | 1994–1998 |
| 5.2 V8 (220 KM) 4x4 Automatic Selected | Gasoline | 220 KM | 1994–1998 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
5.2 V8 (220 KM)
Gasoline · 1994–1998
- Engine power
- 220 KM
- Torque
- 407 Nm
- Engine displacement
- 5,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.2 V8 (220 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 318Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 220 KM @ 4400 obr./min
- Torque
- 407 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 2585 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1826 mm
- Wheelbase
- 3023 mm
- Approach angle
- 25.2 °
- Departure angle
- 23.8 °
- Ramp angle
- 18.4 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
3.9 V6 (175 KM)
Gasoline · 1994–1998
- Engine power
- 175 KM
- Torque
- 312 Nm
- Engine displacement
- 3,917 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 3.9 V6 (175 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 239Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 3917 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 19 l
- Power
- 175 KM @ 4800 obr./min
- Torque
- 312 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2726 kg
- Braked trailer load (12% slope start)
- 1633 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1826 mm
- Wheelbase
- 3023 mm
- Approach angle
- 25.2 °
- Departure angle
- 23.8 °
- Ramp angle
- 18.4 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
3.9 V6 (175 KM) Automatic
Gasoline · 1994–1998
- Engine power
- 175 KM
- Torque
- 312 Nm
- Engine displacement
- 3,917 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 3.9 V6 (175 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 239Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 3917 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 19 l
- Power
- 175 KM @ 4800 obr./min
- Torque
- 312 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2726 kg
- Braked trailer load (12% slope start)
- 1542 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1826 mm
- Wheelbase
- 3023 mm
- Approach angle
- 25.2 °
- Departure angle
- 23.8 °
- Ramp angle
- 18.4 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
5.9 V8 (230 KM) Automatic
Gasoline · 1994–1998
- Engine power
- 230 KM
- Torque
- 447 Nm
- Engine displacement
- 5,899 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.9 V8 (230 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 360Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5899 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 90.93 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 230 KM @ 4000 obr./min
- Torque
- 447 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 3674 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1826 mm
- Wheelbase
- 3023 mm
- Approach angle
- 25.2 °
- Departure angle
- 23.8 °
- Ramp angle
- 18.4 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
5.2 V8 (220 KM) Automatic
Gasoline · 1994–1998
- Engine power
- 220 KM
- Torque
- 407 Nm
- Engine displacement
- 5,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.2 V8 (220 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 318Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 220 KM @ 4400 obr./min
- Torque
- 407 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 3674 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1826 mm
- Wheelbase
- 3023 mm
- Approach angle
- 25.2 °
- Departure angle
- 23.8 °
- Ramp angle
- 18.4 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
5.9 V8 (230 KM) 4x4 Automatic
Gasoline · 1994–1998
- Engine power
- 230 KM
- Torque
- 447 Nm
- Engine displacement
- 5,899 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.9 V8 (230 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 360Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5899 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 90.93 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 230 KM @ 4000 obr./min
- Torque
- 447 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 3493 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1897 mm
- Wheelbase
- 3023 mm
- Approach angle
- 30.4 °
- Departure angle
- 27.2 °
- Ramp angle
- 20.8 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
5.2 V8 (220 KM) 4x4
Gasoline · 1994–1998
- Engine power
- 220 KM
- Torque
- 407 Nm
- Engine displacement
- 5,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.2 V8 (220 KM) 4x4
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 318Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 220 KM @ 4400 obr./min
- Torque
- 407 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 2404 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1897 mm
- Wheelbase
- 3023 mm
- Approach angle
- 30.4 °
- Departure angle
- 27.2 °
- Ramp angle
- 20.8 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 5
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
5.2 V8 (220 KM) 4x4 Automatic
Gasoline · 1994–1998
- Engine power
- 220 KM
- Torque
- 407 Nm
- Engine displacement
- 5,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge RAM Ram 1500 Regular Cab Short Bed (BR/BE)- Brand
- Dodge
- Model
- RAM
- Version
- Ram 1500 Regular Cab Short Bed (BR/BE)
- Engine
- 5.2 V8 (220 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1998
- Body type
- Pick-up
- Number of seats
- 3
- Fuel type
- Gasoline
Engine
- Engine model / code
- 318Magnum
- Engine position
- Front, Longitudinal
- Engine displacement
- 5211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.31 mm
- Piston stroke
- 84.07 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 19 l
- Power
- 220 KM @ 4400 obr./min
- Torque
- 407 Nm @ 3200 obr./min
Volume and weight
- Fuel tank
- 98 l
- Curb weight
- kg
- Gross weight
- 2903 kg
- Braked trailer load (12% slope start)
- 3538 kg
Vehicle dimensions
- Length
- 5077 mm
- Width
- 2017 mm
- Height
- 1897 mm
- Wheelbase
- 3023 mm
- Approach angle
- 30.4 °
- Departure angle
- 27.2 °
- Ramp angle
- 20.8 °
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/75 R16
- Rim size
- 7J x 16
- ABS
- yes
