Specifications Dodge Ram 1500 Regular Cab Short Bed (BR/BE)

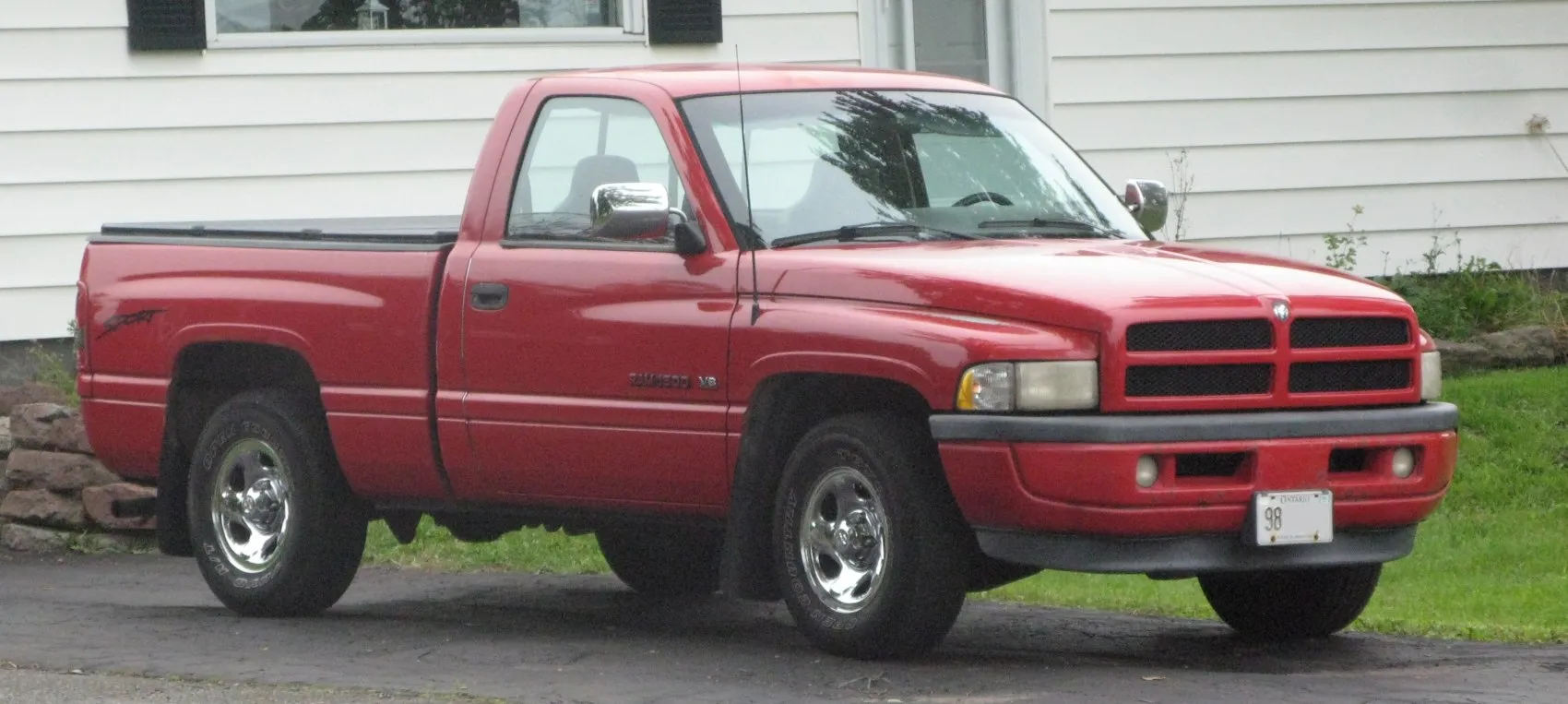

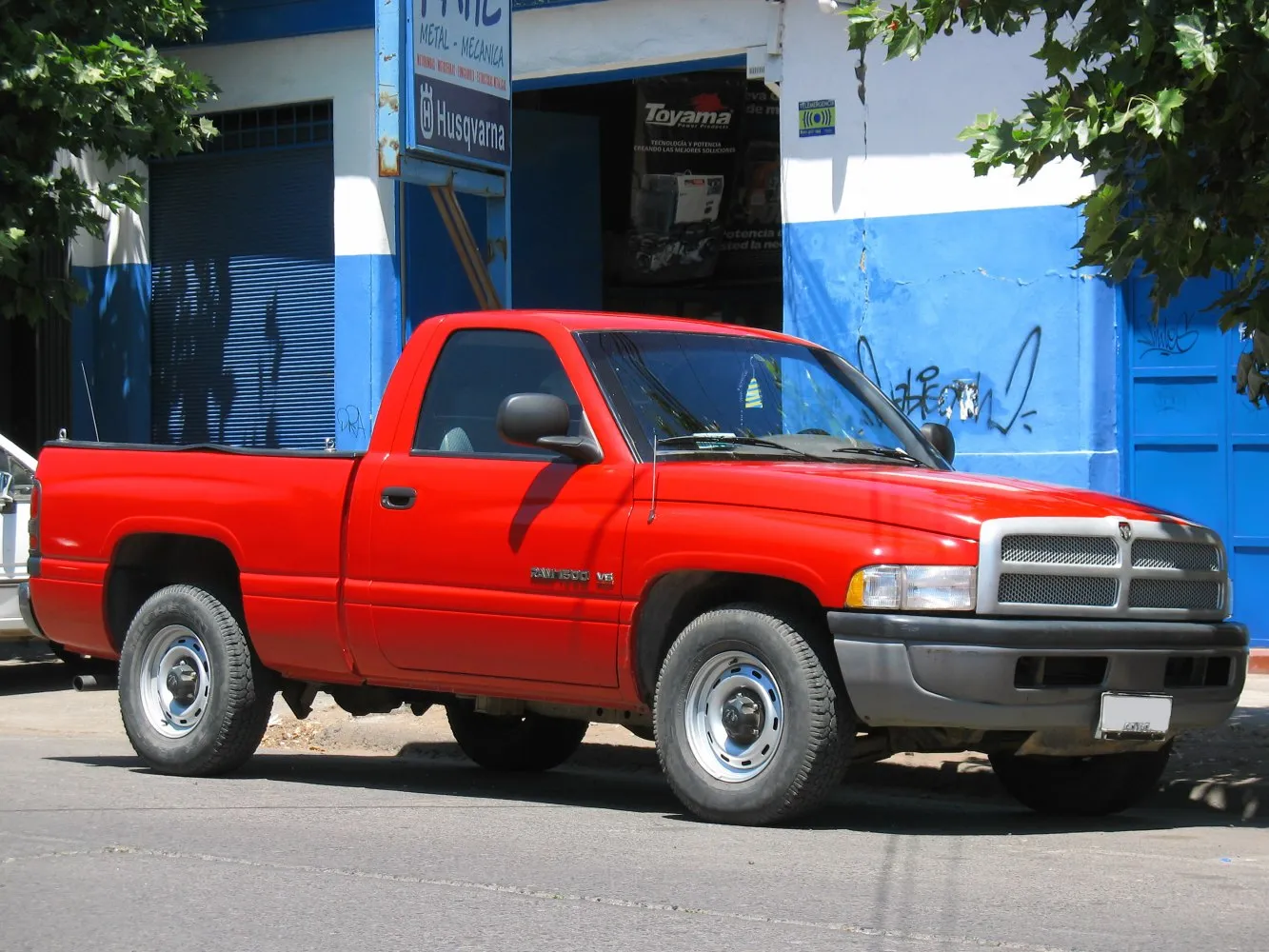

Vehicle photos

Basic information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine power	175 KM – 230 KM
Years of production	1994 r. – 1998 r.
Body type	Pick-up
Number of doors	2
Number of seats	3

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.2 V8 (220 KM)
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	318Magnum
Engine position	Front, Longitudinal
Engine displacement	5211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	2585 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1826 mm
Wheelbase	3023 mm
Approach angle	25.2 °
Departure angle	23.8 °
Ramp angle	18.4 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent coil spring suspension, Anti-roll bar
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	3.9 V6 (175 KM)
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	239Magnum
Engine position	Front, Longitudinal
Engine displacement	3917 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2726 kg
Braked trailer load (12% slope start)	1633 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1826 mm
Wheelbase	3023 mm
Approach angle	25.2 °
Departure angle	23.8 °
Ramp angle	18.4 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent coil spring suspension, Anti-roll bar
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	3.9 V6 (175 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	239Magnum
Engine position	Front, Longitudinal
Engine displacement	3917 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2726 kg
Braked trailer load (12% slope start)	1542 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1826 mm
Wheelbase	3023 mm
Approach angle	25.2 °
Departure angle	23.8 °
Ramp angle	18.4 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Independent coil spring suspension, Anti-roll bar
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.9 V8 (230 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	360Magnum
Engine position	Front, Longitudinal
Engine displacement	5899 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	101.6 mm
Piston stroke	90.93 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	3674 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1826 mm
Wheelbase	3023 mm
Approach angle	25.2 °
Departure angle	23.8 °
Ramp angle	18.4 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Independent coil spring suspension, Anti-roll bar
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.2 V8 (220 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	318Magnum
Engine position	Front, Longitudinal
Engine displacement	5211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	3674 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1826 mm
Wheelbase	3023 mm
Approach angle	25.2 °
Departure angle	23.8 °
Ramp angle	18.4 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Independent coil spring suspension, Anti-roll bar
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.9 V8 (230 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	360Magnum
Engine position	Front, Longitudinal
Engine displacement	5899 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	101.6 mm
Piston stroke	90.93 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	3493 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1897 mm
Wheelbase	3023 mm
Approach angle	30.4 °
Departure angle	27.2 °
Ramp angle	20.8 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.2 V8 (220 KM) 4x4
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	318Magnum
Engine position	Front, Longitudinal
Engine displacement	5211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	2404 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1897 mm
Wheelbase	3023 mm
Approach angle	30.4 °
Departure angle	27.2 °
Ramp angle	20.8 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16

Basic version information

Brand	Dodge
Model	RAM
Version	Ram 1500 Regular Cab Short Bed (BR/BE)
Engine	5.2 V8 (220 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	1994 r.
End of production	1998 r.
Body type	Pick-up
Number of seats	3
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	318Magnum
Engine position	Front, Longitudinal
Engine displacement	5211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.31 mm
Piston stroke	84.07 mm
Compression ratio	9.1
Number of valves per cylinder	2
Engine oil capacity	4.7 l
Coolant capacity	19 l

Volume and weight

Fuel tank	98 l
Curb weight	kg
Gross weight	2903 kg
Braked trailer load (12% slope start)	3538 kg

Vehicle dimensions

Length	5077 mm
Width	2017 mm
Height	1897 mm
Wheelbase	3023 mm
Approach angle	30.4 °
Departure angle	27.2 °
Ramp angle	20.8 °
Turning circle	12.4 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/75 R16
Rim size	7J x 16
