Vehicle specifications
Citroen Dyane I (Phase I)
Compare all 4 engine versions of the Citroen Dyane Dyane I (Phase I), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Citroen Dyane I (Phase I)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

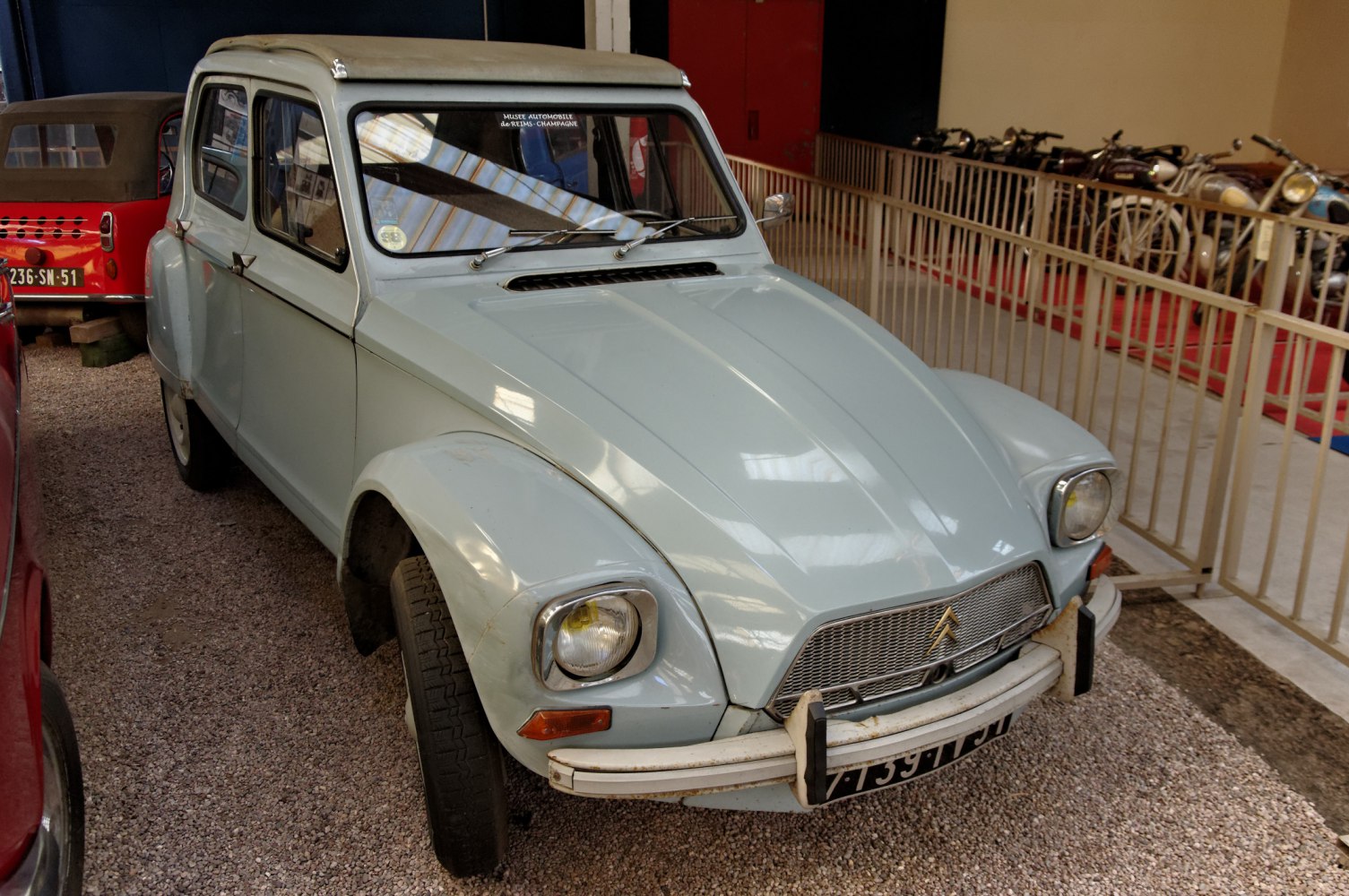

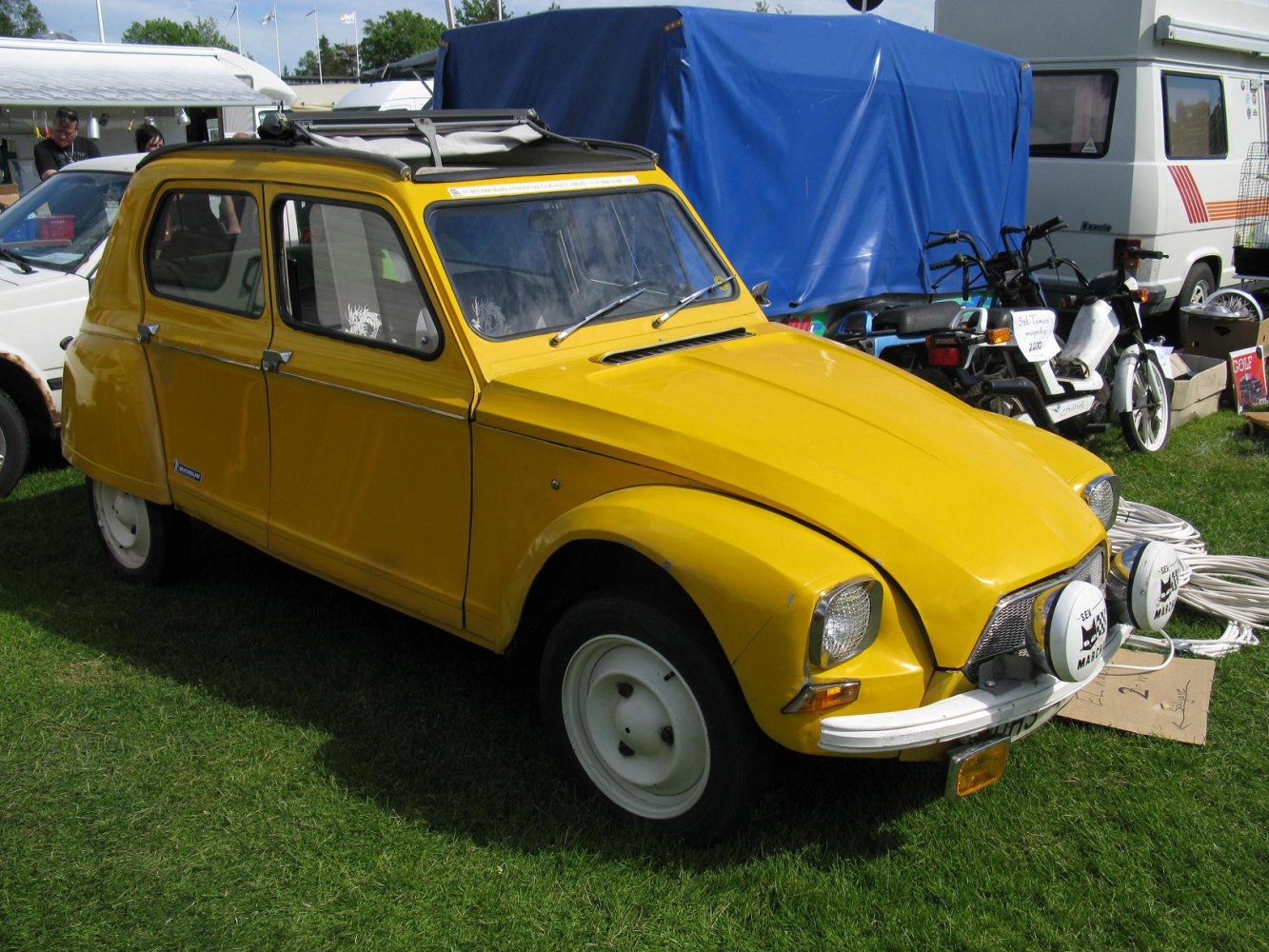

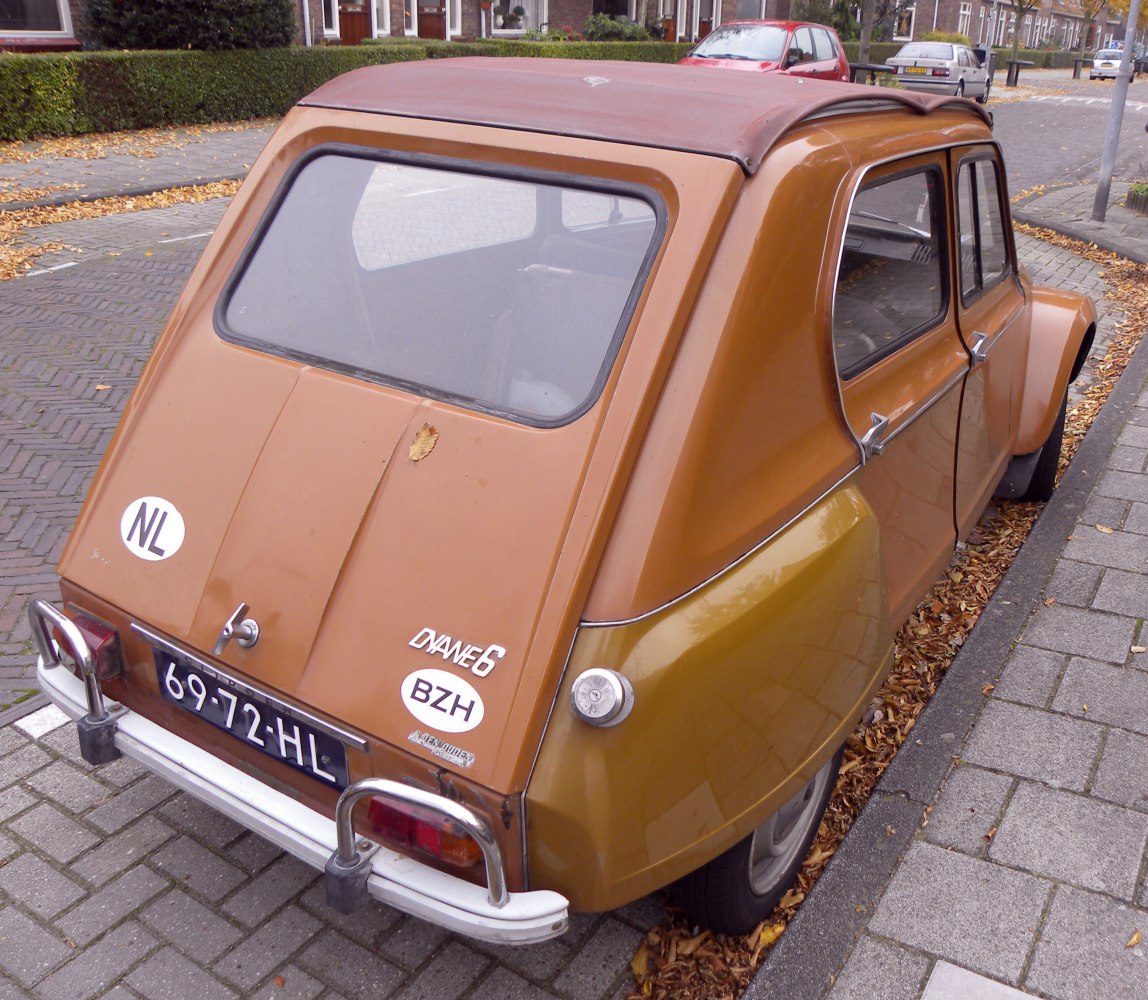

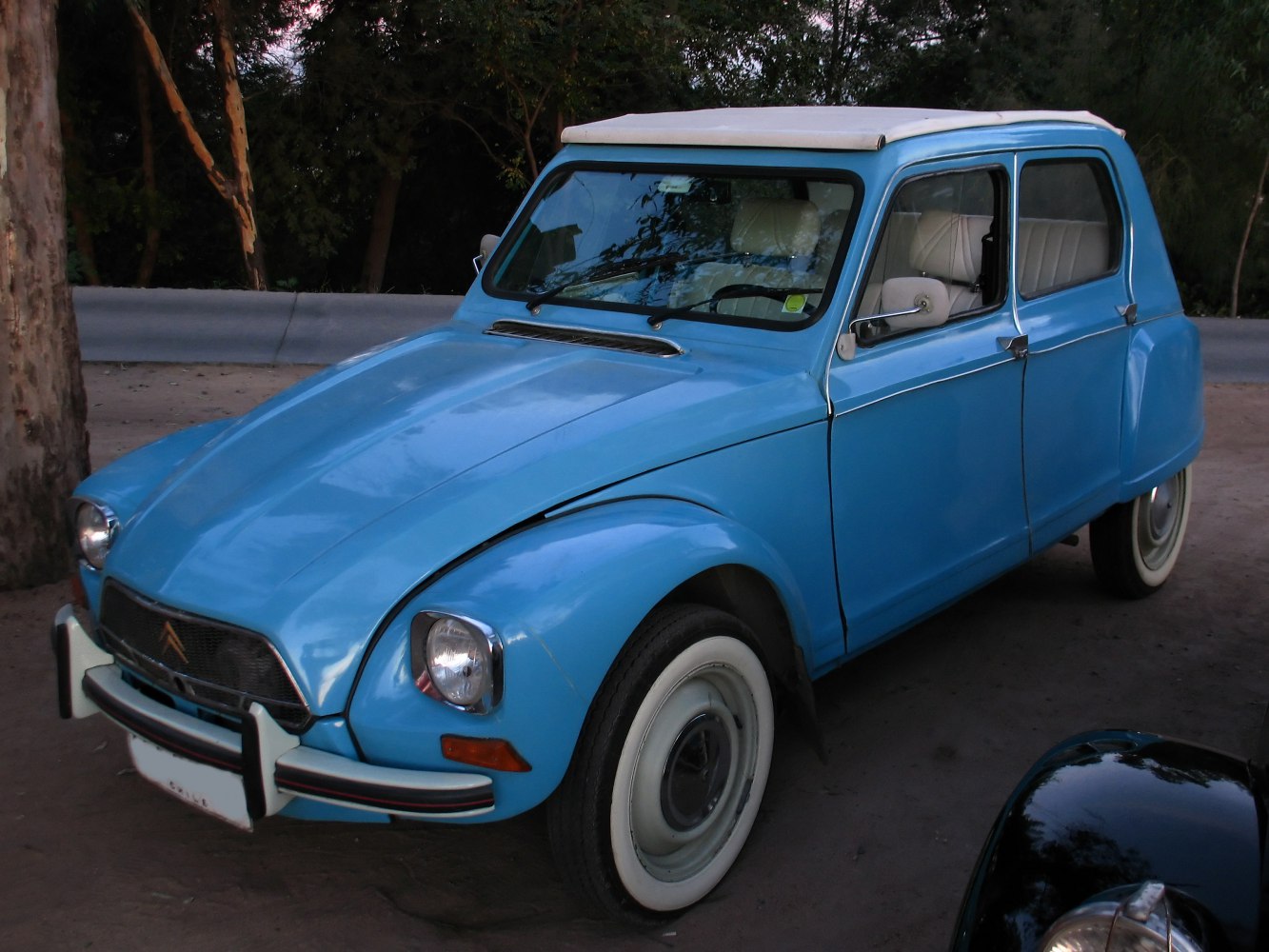

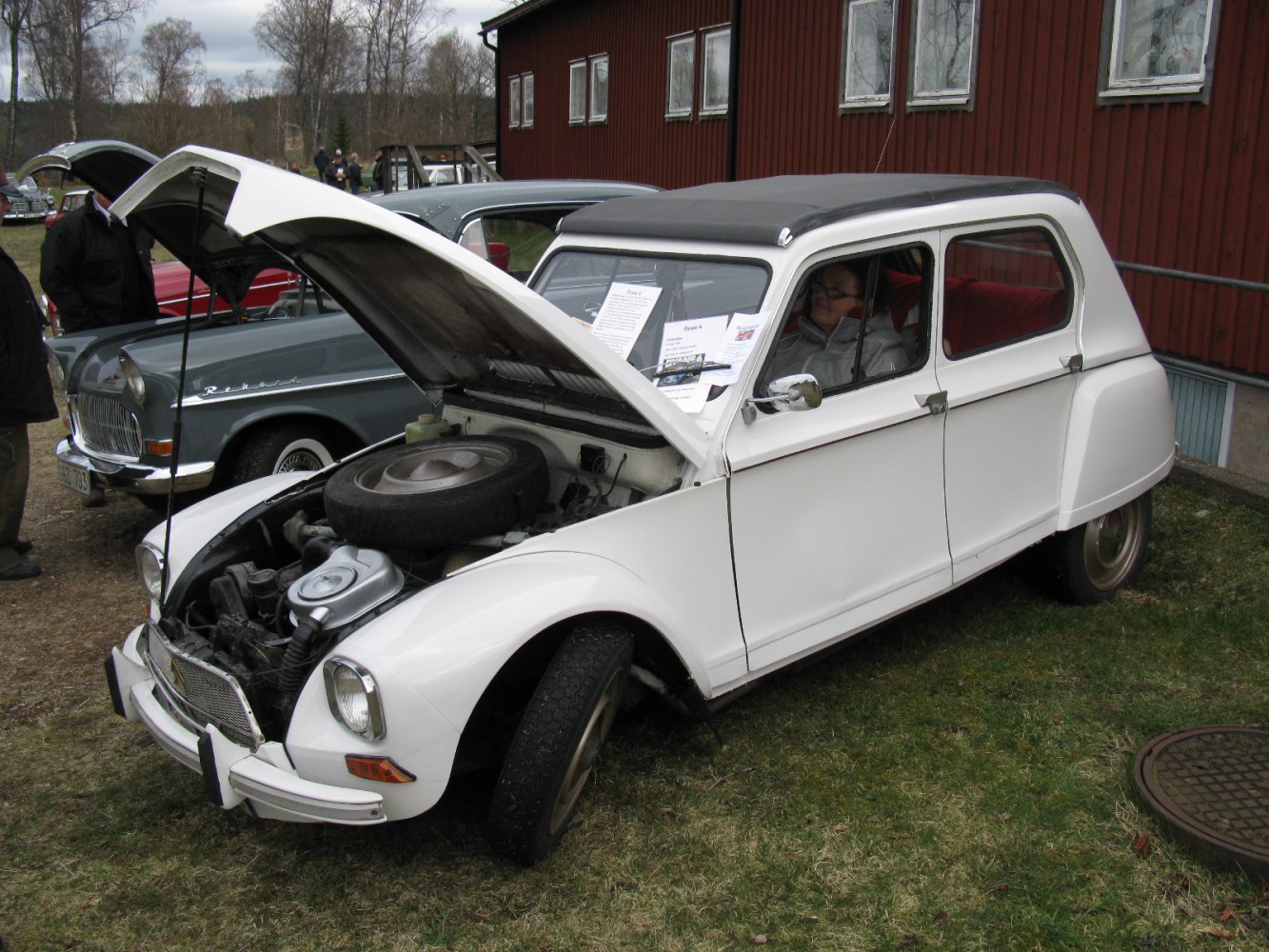

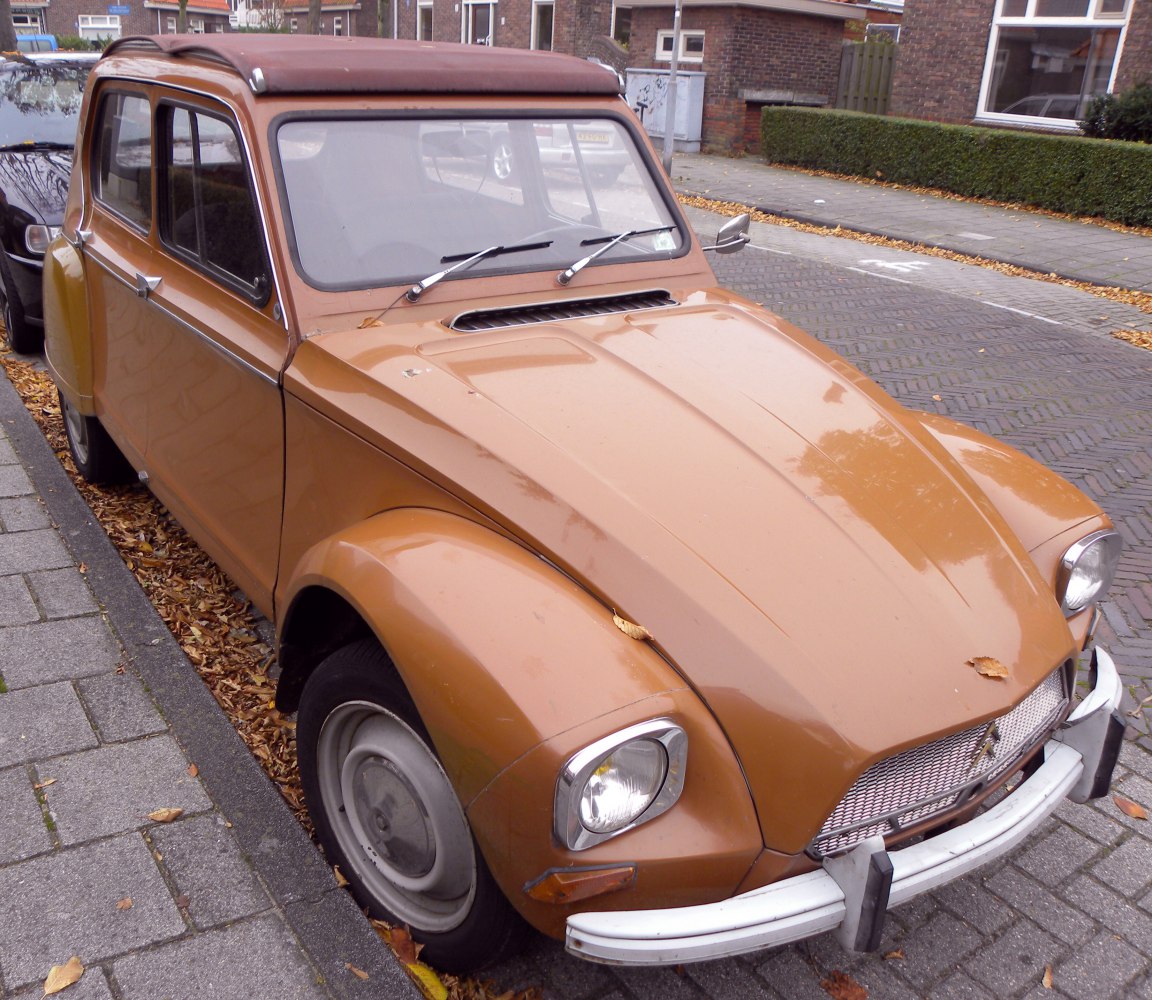

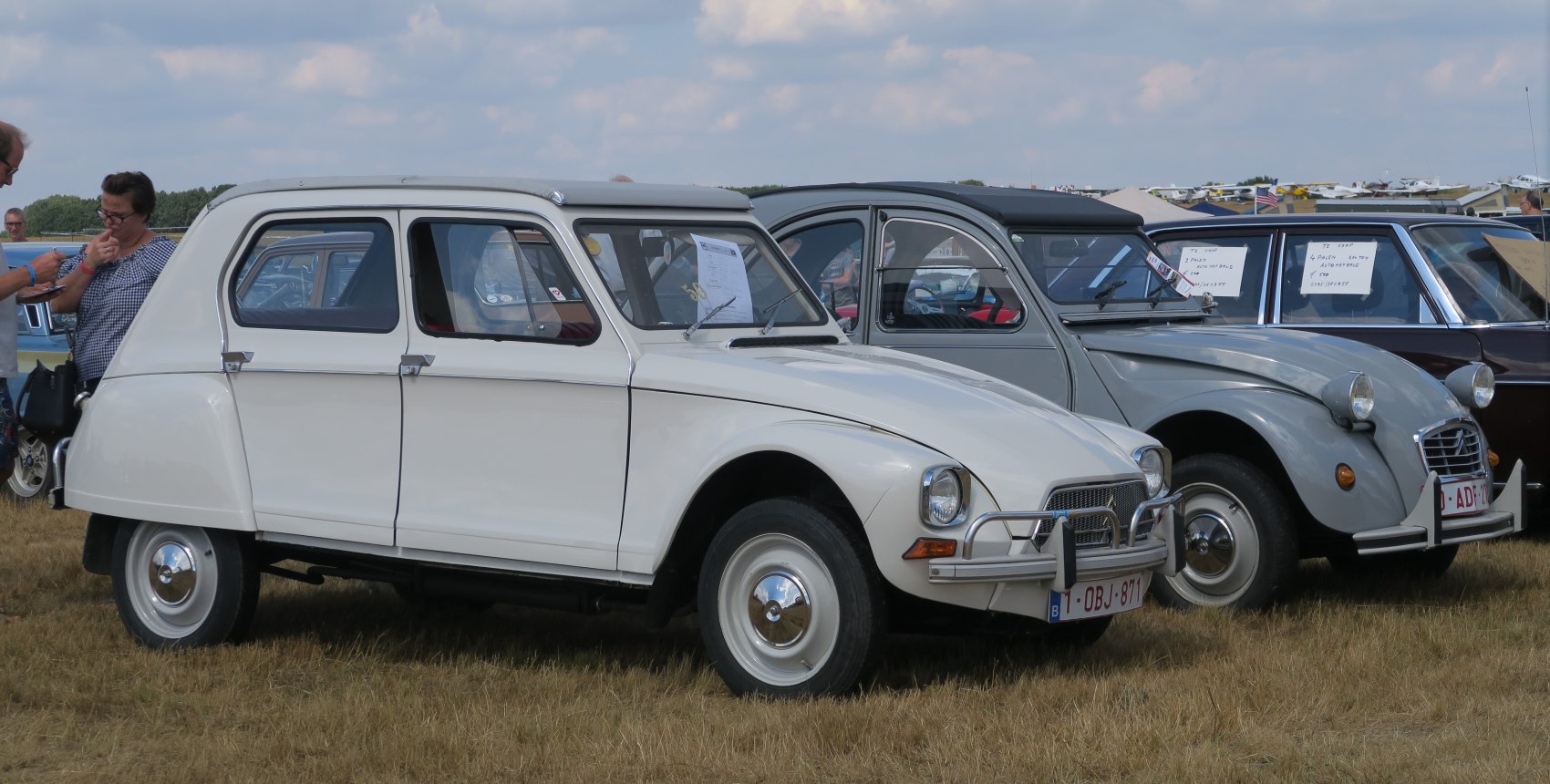

Vehicle photos
1 of 9
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 0.4 (21 KM) Selected | Gasoline | 21 KM | 1967–1968 |
| Dyane 4 (24 KM) Selected | Gasoline | 24 KM | 1968–1970 |
| Dyane 6 (28 KM) Selected | Gasoline | 28 KM | 1968–1969 |
| Dyane 6 (33 KM) Selected | Gasoline | 33 KM | 1967–1970 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
0.4 (21 KM)
Gasoline · 1967–1968
- Engine power
- 21 KM
- Torque
- 29 Nm
- Engine displacement
- 425 cm³
- Fuel type
- Gasoline
- Maximum speed
- 95 km/h
On this page
Check vehicle history
Basic version information
Citroen Dyane Dyane I (Phase I)- Brand
- Citroen
- Model
- Dyane
- Version
- Dyane I (Phase I)
- Engine
- 0.4 (21 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1967
- End of production
- 1968
- Body type
- Sedan, Fastback
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 95 km/h
- Fuel consumption - Combined cycle
- 5-6.5 l/100 km
Engine
- Engine model / code
- AYA, A79/0
- Engine displacement
- 425 cm³
- Engine type
- Naturally aspirated engine
- Engine configuration
- Boxer
- Number of cylinders
- 2
- Cylinder bore
- 66 mm
- Piston stroke
- 62 mm
- Compression ratio
- 7.9
- Engine oil capacity
- 2.5 l
- Power
- 21 KM @ 5500-6000 obr./min
- Torque
- 29 Nm @ 4750 obr./min
Volume and weight
- Fuel tank
- 20 l
- Aerodynamic drag coefficient (Cx)
- 0.41
- Minimum trunk capacity
- 250 l
- Maximum trunk capacity
- 1340 l
- Curb weight
- 555 kg
- Gross weight
- 875 kg
Vehicle dimensions
- Length
- 3905 mm
- Width
- 1500 mm
- Height
- 1540 mm
- Wheelbase
- 2400 mm
- Front track
- 1260 mm
- Rear track
- 1260 mm
- Ground clearance
- 155 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Drum
- Rear brakes
- Drum
- ABS
- no
Selected engine version
Dyane 4 (24 KM)
Gasoline · 1968–1970
- Engine power
- 24 KM
- Torque
- 28 Nm
- Engine displacement
- 435 cm³
- Fuel type
- Gasoline
- Maximum speed
- 105 km/h
On this page
Check vehicle history
Basic version information
Citroen Dyane Dyane I (Phase I)- Brand
- Citroen
- Model
- Dyane
- Version
- Dyane I (Phase I)
- Engine
- Dyane 4 (24 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1968
- End of production
- 1970
- Body type
- Sedan, Fastback
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 105 km/h
- Fuel consumption - Combined cycle
- 5.4 l/100 km
Engine
- Engine model / code
- AYA2, A79/1
- Engine displacement
- 435 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Engine configuration
- Boxer
- Number of cylinders
- 2
- Cylinder bore
- 68.5 mm
- Piston stroke
- 59 mm
- Compression ratio
- 8.5
- Engine oil capacity
- 2.25 l
- Power
- 24 KM @ 6750 obr./min
- Torque
- 28 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 25 l
- Minimum trunk capacity
- 250 l
- Curb weight
- 610 kg
- Gross weight
- 1000 kg
Vehicle dimensions
- Length
- 3905 mm
- Width
- 1500 mm
- Height
- 1540 mm
- Wheelbase
- 2400 mm
- Front track
- 1260 mm
- Rear track
- 1260 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Drum
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
Dyane 6 (28 KM)
Gasoline · 1968–1969
- Engine power
- 28 KM
- Torque
- 43 Nm
- Engine displacement
- 602 cm³
- Fuel type
- Gasoline
- Maximum speed
- 110 km/h
On this page
Check vehicle history
Basic version information
Citroen Dyane Dyane I (Phase I)- Brand
- Citroen
- Model
- Dyane
- Version
- Dyane I (Phase I)
- Engine
- Dyane 6 (28 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1968
- End of production
- 1969
- Body type
- Sedan, Fastback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 110 km/h
- Fuel consumption - Combined cycle
- 5.5 l/100 km
Engine
- Engine displacement
- 602 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Engine configuration
- Boxer
- Number of cylinders
- 2
- Cylinder bore
- 74 mm
- Piston stroke
- 70 mm
- Compression ratio
- 7.75
- Engine oil capacity
- 2.5 l
- Power
- 28 KM @ 4750 obr./min
- Torque
- 43 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 25 l
- Minimum trunk capacity
- 250 l
- Curb weight
- 585-600 kg
- Gross weight
- 925 kg
Vehicle dimensions
- Length
- 3905 mm
- Width
- 1500 mm
- Height
- 1540 mm
- Wheelbase
- 2400 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Drum
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- ABS
- no
Selected engine version
Dyane 6 (33 KM)
Gasoline · 1967–1970
- Engine power
- 33 KM
- Torque
- 42 Nm
- Engine displacement
- 602 cm³
- Fuel type
- Gasoline
- Maximum speed
- 115 km/h
On this page
Check vehicle history
Basic version information
Citroen Dyane Dyane I (Phase I)- Brand
- Citroen
- Model
- Dyane
- Version
- Dyane I (Phase I)
- Engine
- Dyane 6 (33 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1967
- End of production
- 1970
- Body type
- Sedan, Fastback
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 115 km/h
- Fuel consumption - Combined cycle
- 5.6 l/100 km
Engine
- Engine model / code
- AK2, M28/1
- Engine displacement
- 602 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Number of cylinders
- 2
- Cylinder bore
- 74 mm
- Piston stroke
- 70 mm
- Compression ratio
- 8.5
- Engine oil capacity
- 2 l
- Power
- 33 KM @ 7000 obr./min
- Torque
- 42 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 25 l
- Minimum trunk capacity
- 250 l
- Maximum trunk capacity
- 1340 l
- Curb weight
- 585-600 kg
- Gross weight
- 930 kg
Vehicle dimensions
- Length
- 3905 mm
- Width
- 1500 mm
- Height
- 1540 mm
- Wheelbase
- 2400 mm
- Front track
- 1260 mm
- Rear track
- 1260 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Drum
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- ABS
- no
