Vehicle specifications
Citroen C5 I Break (Phase II, 2004)
Compare all 14 engine versions of the Citroen C5 C5 I Break (Phase II, 2004), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Citroen C5 I Break (Phase II, 2004)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

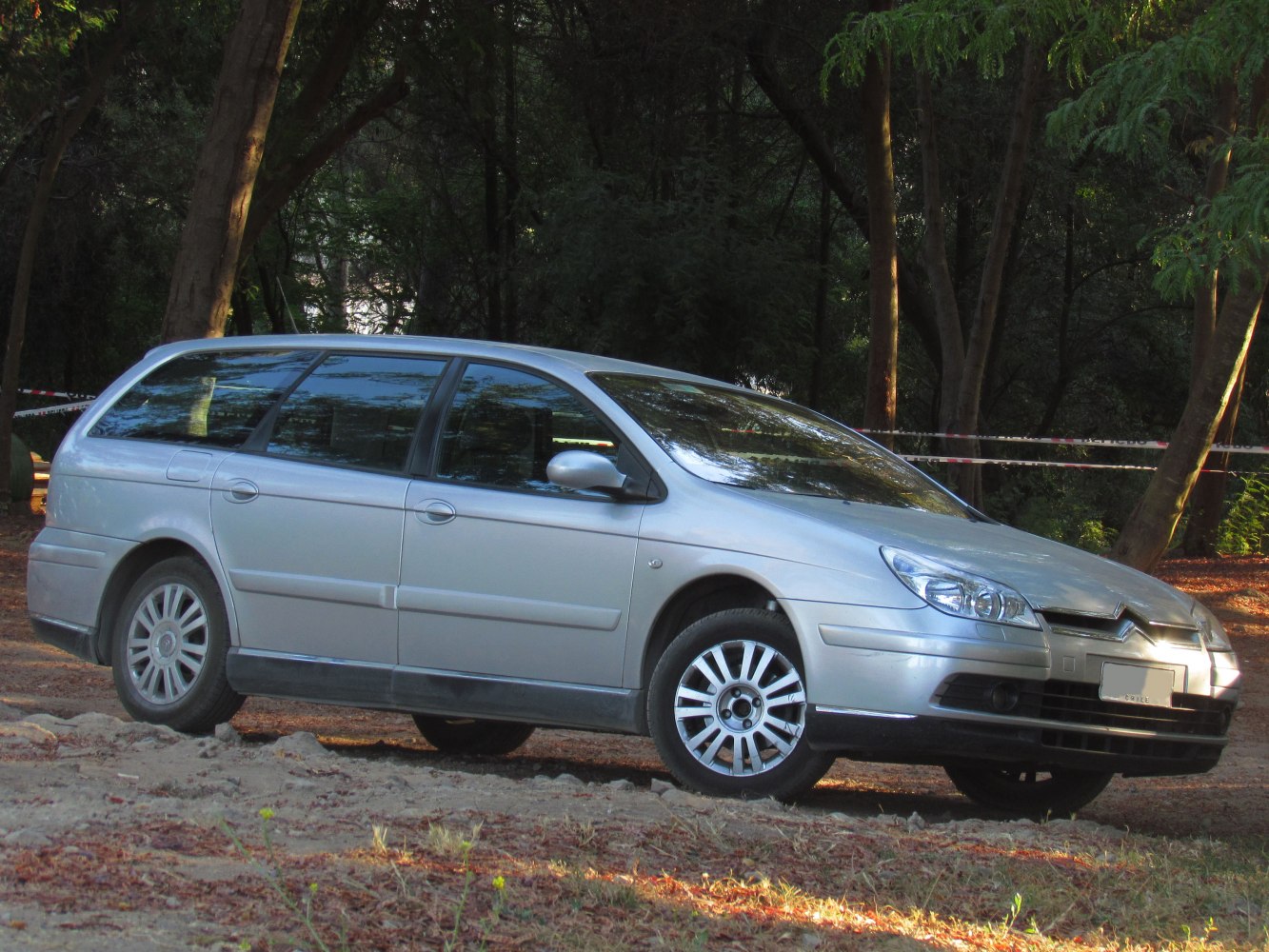

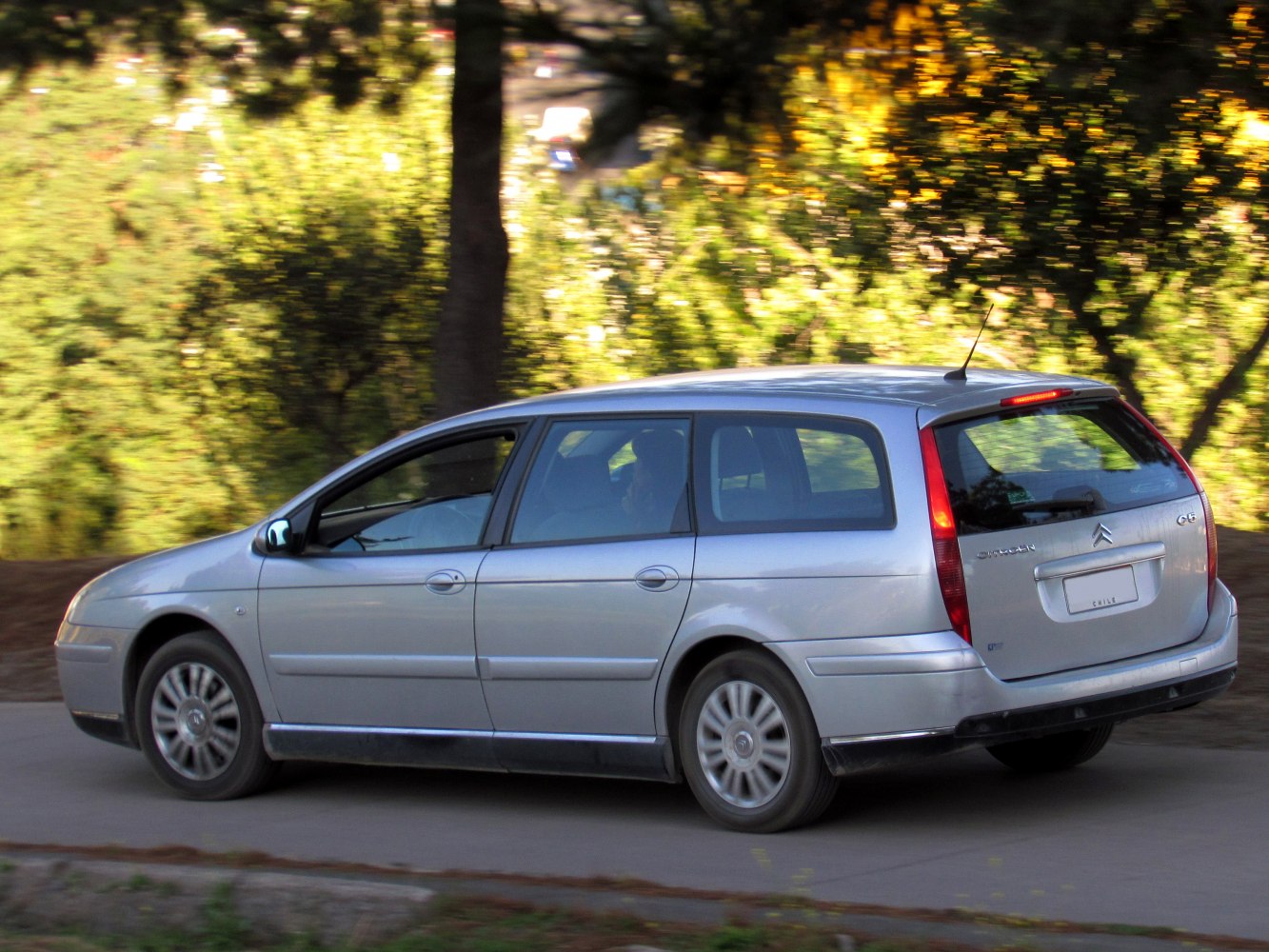

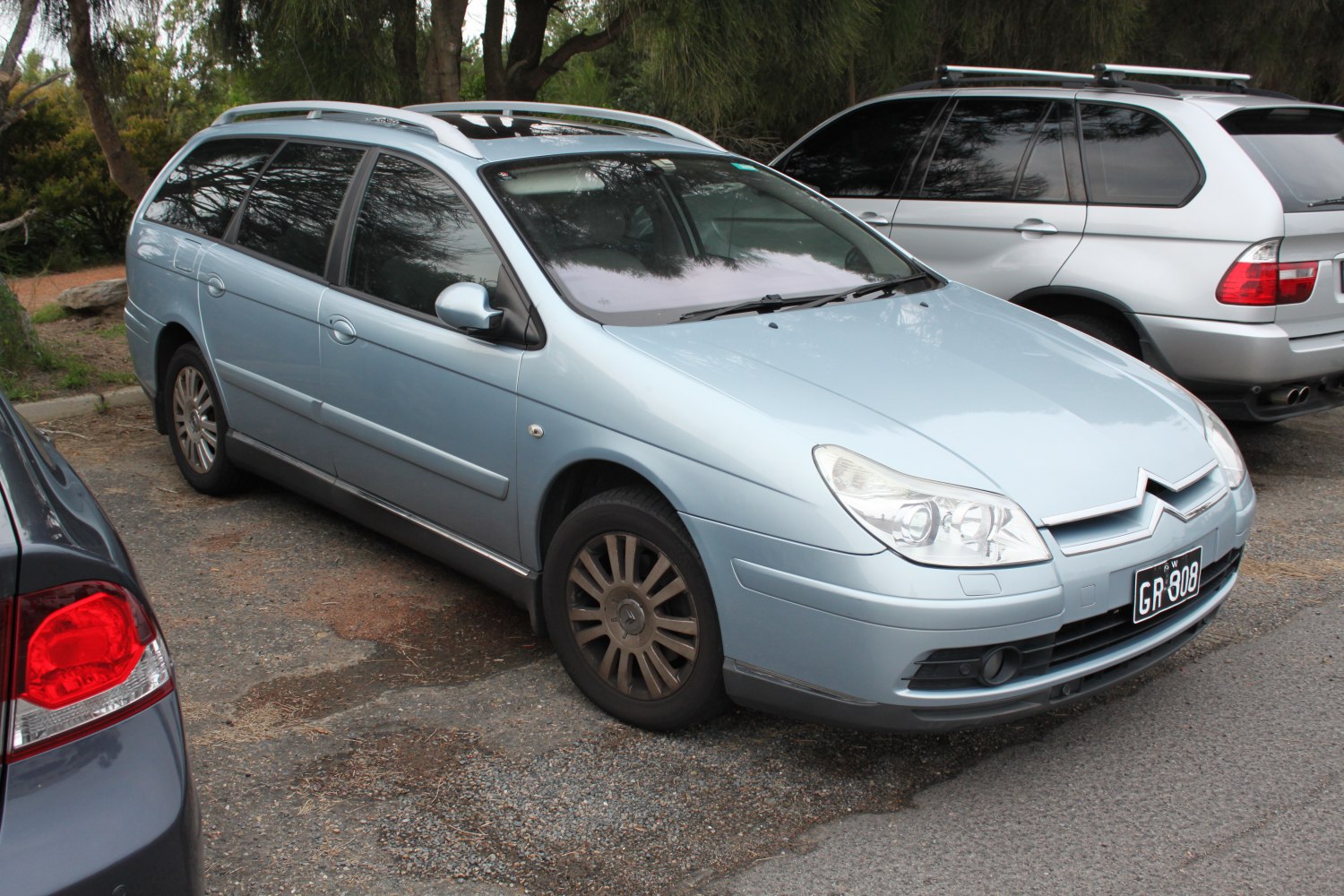

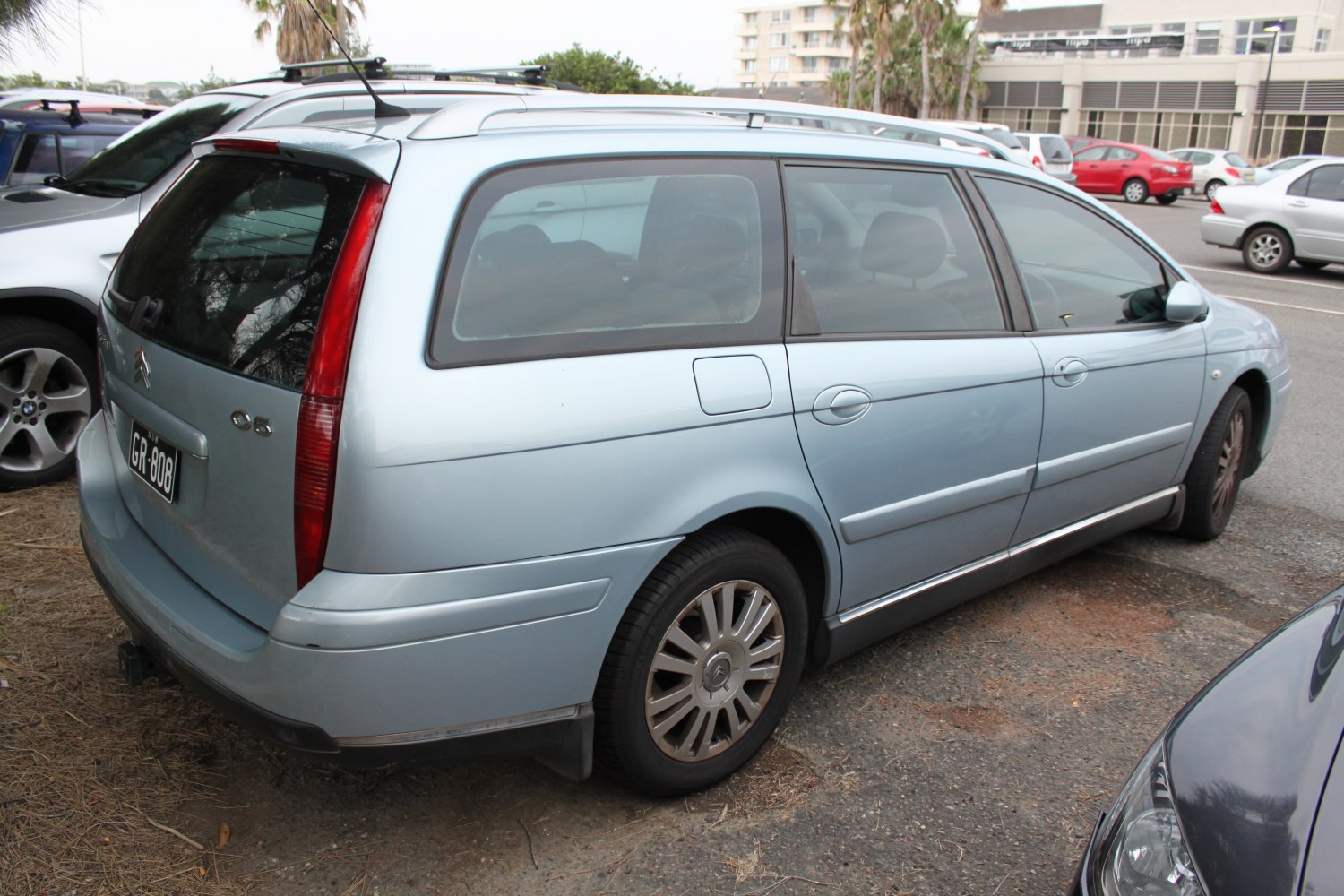

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
14 versions · 7 Diesel fuel · 7 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 HDI (109 KM) FAP Selected | Diesel fuel | 109 KM | 2004–2005 |
| 1.8 16V (125 KM) Selected | Gasoline | 125 KM | 2005–2008 |
| 2.2 HDi Biturbo (170 KM) FAP Selected | Diesel fuel | 170 KM | 2006–2008 |
| 3.0i V6 24V (207 KM) Automatic Selected | Gasoline | 207 KM | 2004–2008 |
| 2.0i 16V (140 KM) Automatic Selected | Gasoline | 140 KM | 2004–2008 |
| 1.8i 16V (116 KM) Selected | Gasoline | 116 KM | 2004–2005 |
| 2.2 HDi (133 KM) FAP Automatic Selected | Diesel fuel | 133 KM | 2004–2005 |
| 2.0i 16V (140 KM) Selected | Gasoline | 140 KM | 2004–2008 |
| 3.0i V6 24V Carlsson (235 KM) Automatic Selected | Gasoline | 235 KM | 2004–2008 |
| 1.6 HDi (109 KM) FAP Selected | Diesel fuel | 109 KM | 2005–2008 |
| 2.0 HDi (136 KM) FAP Automatic Selected | Diesel fuel | 136 KM | 2005–2008 |
| 2.0 HDi (136 KM) FAP Selected | Diesel fuel | 136 KM | 2004–2008 |
| 1.8i 16V (116 KM) Selected | Gasoline | 116 KM | 2005–2008 |
| 2.2 HDi Biturbo (170 KM) FAP Automatic Selected | Diesel fuel | 170 KM | 2007–2008 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 HDI (109 KM) FAP
Diesel fuel · 2004–2005
- Engine power
- 109 KM
- Torque
- 240 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.5 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 1.6 HDI (109 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 11.5 s
- Fuel consumption - Urban cycle
- 6.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.6 l/100 km
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 3
- CO2 emissions
- 145 g/km
Engine
- Engine model / code
- 9HZDV6TED4
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 17.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 109 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1442 kg
- Gross weight
- 2056 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 745 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.8 16V (125 KM)
Gasoline · 2005–2008
- Engine power
- 125 KM
- Torque
- 170 Nm
- Engine displacement
- 1,749 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.7 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 1.8 16V (125 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2005
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 10.7 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.6 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- 6FYEW7A
- Engine position
- Front, Transverse
- Engine displacement
- 1749 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.7 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.8 l
- Power
- 125 KM @ 6000 obr./min
- Torque
- 170 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1415 kg
- Gross weight
- 2015 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
2.2 HDi Biturbo (170 KM) FAP
Diesel fuel · 2006–2008
- Engine power
- 170 KM
- Torque
- 370 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.7 s
- Maximum speed
- 217 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.2 HDi Biturbo (170 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 217 km/h
- Acceleration 0-100 km/h
- 8.7 s
- Fuel consumption - Urban cycle
- 8.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- 4HTDW12BTED4
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 10.7 l
- Power
- 170 KM @ 4000 obr./min
- Torque
- 370 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1610 kg
- Gross weight
- 2170 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
3.0i V6 24V (207 KM) Automatic
Gasoline · 2004–2008
- Engine power
- 207 KM
- Torque
- 285 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.8 s
- Maximum speed
- 227 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 3.0i V6 24V (207 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 227 km/h
- Acceleration 0-100 km/h
- 8.8 s
- Fuel consumption - Urban cycle
- 14.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.2 l/100 km
- Fuel consumption - Combined cycle
- 10 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- XFUES9A
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 14 l
- Power
- 207 KM @ 6000 obr./min
- Torque
- 285 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1620 kg
- Gross weight
- 2180 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0i 16V (140 KM) Automatic
Gasoline · 2004–2008
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.4 s
- Maximum speed
- 203 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.0i 16V (140 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 203 km/h
- Acceleration 0-100 km/h
- 10.4 s
- Fuel consumption - Urban cycle
- 12.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 8.6 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- RFJEW10A
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 9.3 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 200 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1479 kg
- Gross weight
- 2079 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.8i 16V (116 KM)
Gasoline · 2004–2005
- Engine power
- 116 KM
- Torque
- 160 Nm
- Engine displacement
- 1,749 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 193 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 1.8i 16V (116 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 193 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 11.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 6 l/100 km
- Fuel consumption - Combined cycle
- 8 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- 6FZEW7J4
- Engine position
- Front, Transverse
- Engine displacement
- 1749 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.7 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Coolant capacity
- 8.8 l
- Power
- 116 KM @ 5500 obr./min
- Torque
- 160 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1416 kg
- Gross weight
- 2016 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
2.2 HDi (133 KM) FAP Automatic
Diesel fuel · 2004–2005
- Engine power
- 133 KM
- Torque
- 320 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.2 HDi (133 KM) FAP Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 9.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 7.1 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 186 g/km
Engine
- Engine model / code
- 4HXDW12TED4
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.75 l
- Coolant capacity
- 8.8 l
- Power
- 133 KM @ 4000 obr./min
- Torque
- 320 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1591 kg
- Gross weight
- 2171 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0i 16V (140 KM)
Gasoline · 2004–2008
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.0i 16V (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption - Urban cycle
- 11.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.3 l/100 km
- Fuel consumption - Combined cycle
- 8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 190 g/km
Engine
- Engine model / code
- RFJEW10A
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.8 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 200 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1427 kg
- Gross weight
- 2027 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 720 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
3.0i V6 24V Carlsson (235 KM) Automatic
Gasoline · 2004–2008
- Engine power
- 235 KM
- Torque
- 320 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Maximum speed
- 235 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 3.0i V6 24V Carlsson (235 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 235 km/h
- Fuel consumption - Urban cycle
- 15 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.4 l/100 km
- Fuel consumption - Combined cycle
- 10.9 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- XFXES9J4S
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 14 l
- Power
- 235 KM @ 6000 obr./min
- Torque
- 320 Nm @ 3650 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1619 kg
- Gross weight
- 2179 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/40 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
1.6 HDi (109 KM) FAP
Diesel fuel · 2005–2008
- Engine power
- 109 KM
- Torque
- 260 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.5 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 1.6 HDi (109 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2005
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 11.5 s
- Fuel consumption - Urban cycle
- 6.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.6 l/100 km
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 145 g/km
Engine
- Engine model / code
- 9HZDV6TED4
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 17.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 109 KM @ 4000 obr./min
- Torque
- 260 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1442 kg
- Gross weight
- 2056 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 745 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 HDi (136 KM) FAP Automatic
Diesel fuel · 2005–2008
- Engine power
- 136 KM
- Torque
- 340 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 201 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.0 HDi (136 KM) FAP Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2005
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 201 km/h
- Acceleration 0-100 km/h
- 10.6 s
- Fuel consumption - Urban cycle
- 10 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 7.1 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- RHRDW10BTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 17.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 10.7 l
- Power
- 136 KM @ 4000 obr./min
- Torque
- 340 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1574 kg
- Gross weight
- 2160 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 HDi (136 KM) FAP
Diesel fuel · 2004–2008
- Engine power
- 136 KM
- Torque
- 320 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.0 HDi (136 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption - Urban cycle
- 7.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 158 g/km
Engine
- Engine model / code
- RHRDW10BTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 17.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 10.7 l
- Power
- 136 KM @ 4000 obr./min
- Torque
- 320 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1520 kg
- Gross weight
- 2120 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.8i 16V (116 KM)
Gasoline · 2005–2008
- Engine power
- 116 KM
- Torque
- 170 Nm
- Engine displacement
- 1,749 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 193 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 1.8i 16V (116 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2005
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 193 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 10.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.6 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- 6FZEW7J4
- Engine position
- Front, Transverse
- Engine displacement
- 1749 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.7 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Coolant capacity
- 8.8 l
- Power
- 116 KM @ 6000 obr./min
- Torque
- 170 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 66 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1416 kg
- Gross weight
- 2016 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
2.2 HDi Biturbo (170 KM) FAP Automatic
Diesel fuel · 2007–2008
- Engine power
- 170 KM
- Torque
- 370 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.5 s
- Maximum speed
- 217 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 I Break (Phase II, 2004)- Brand
- Citroen
- Model
- C5
- Version
- C5 I Break (Phase II, 2004)
- Engine
- 2.2 HDi Biturbo (170 KM) FAP Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2007
- End of production
- 2008
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 217 km/h
- Acceleration 0-100 km/h
- 10.5 s
- Fuel consumption - Urban cycle
- 10.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.5 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- 4HTDW12BTED4
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 10.7 l
- Power
- 170 KM @ 4000 obr./min
- Torque
- 370 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 67 l
- Minimum trunk capacity
- 563 l
- Maximum trunk capacity
- 1658 l
- Curb weight
- 1640 kg
- Gross weight
- 2180 kg
- Roof load
- 75 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4839 mm
- Width
- 1780 mm
- Height
- 1511 mm
- Wheelbase
- 2750 mm
- Front track
- 1528 mm
- Rear track
- 1495 mm
- Front overhang
- 1033 mm
- Rear overhang
- 1056 mm
- Turning circle
- 12.43 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
