Vehicle specifications
Citroen C5 Cross tourer
Compare all 5 engine versions of the Citroen C5 C5 Cross tourer, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Citroen C5 Cross tourer? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

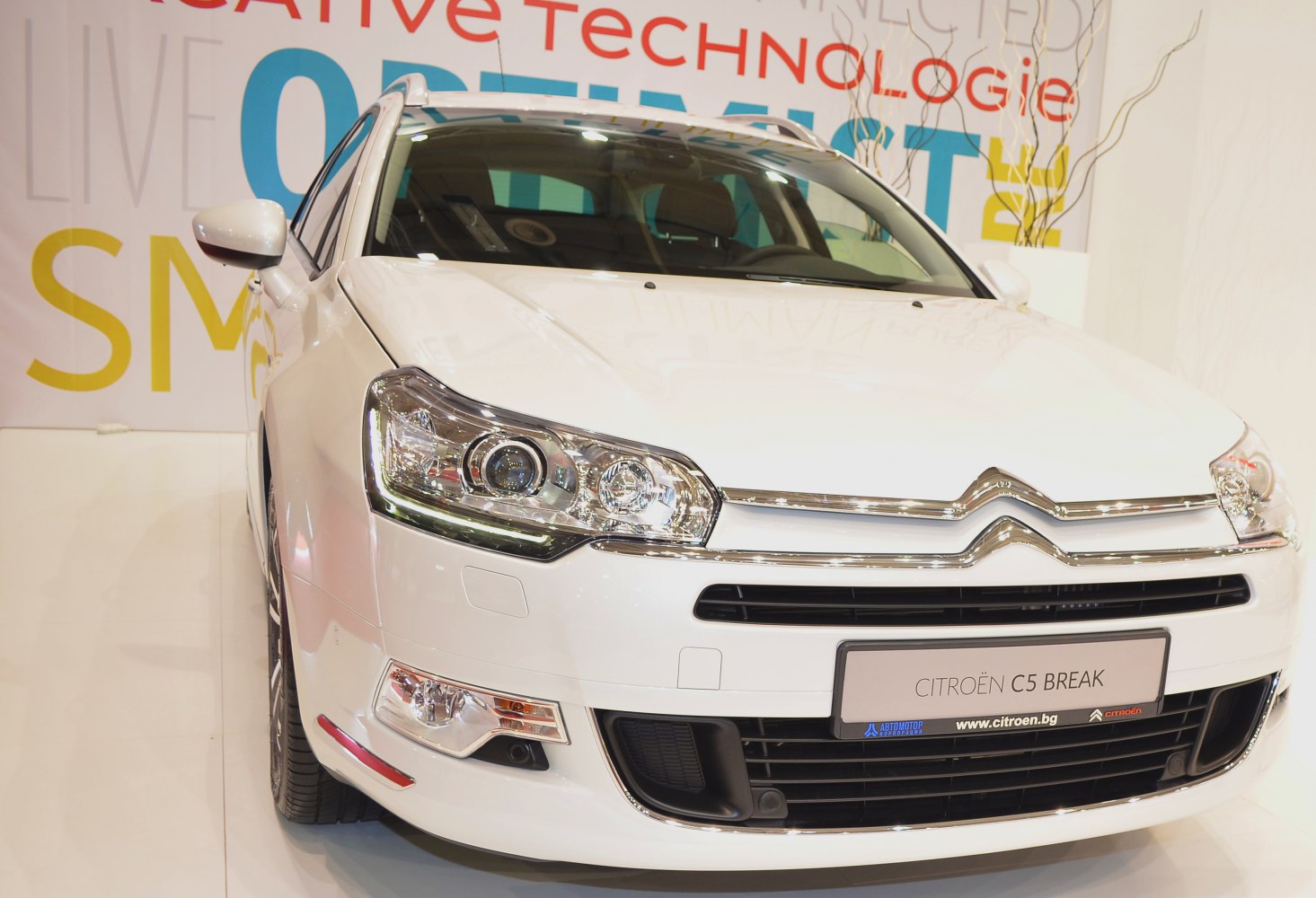

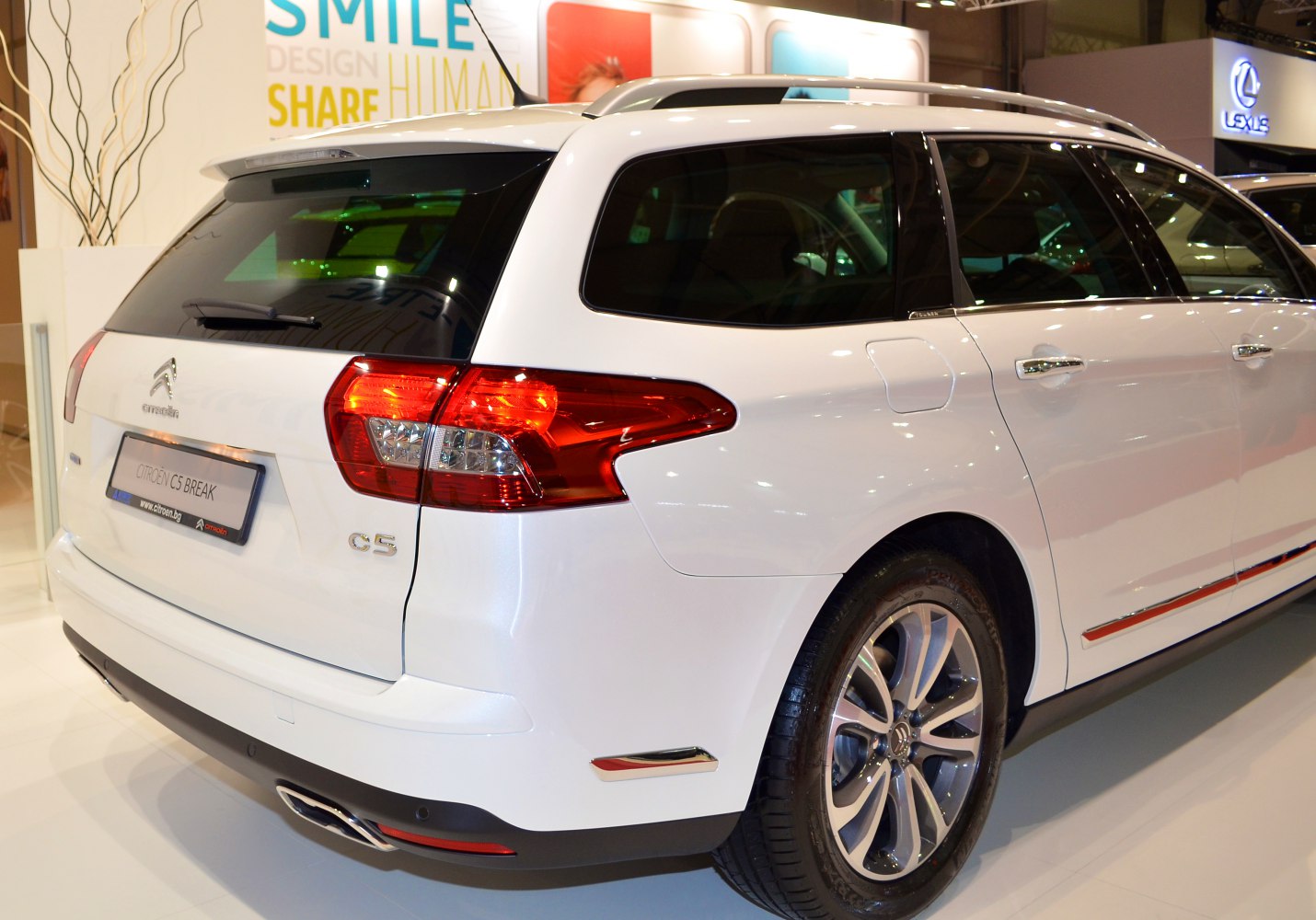

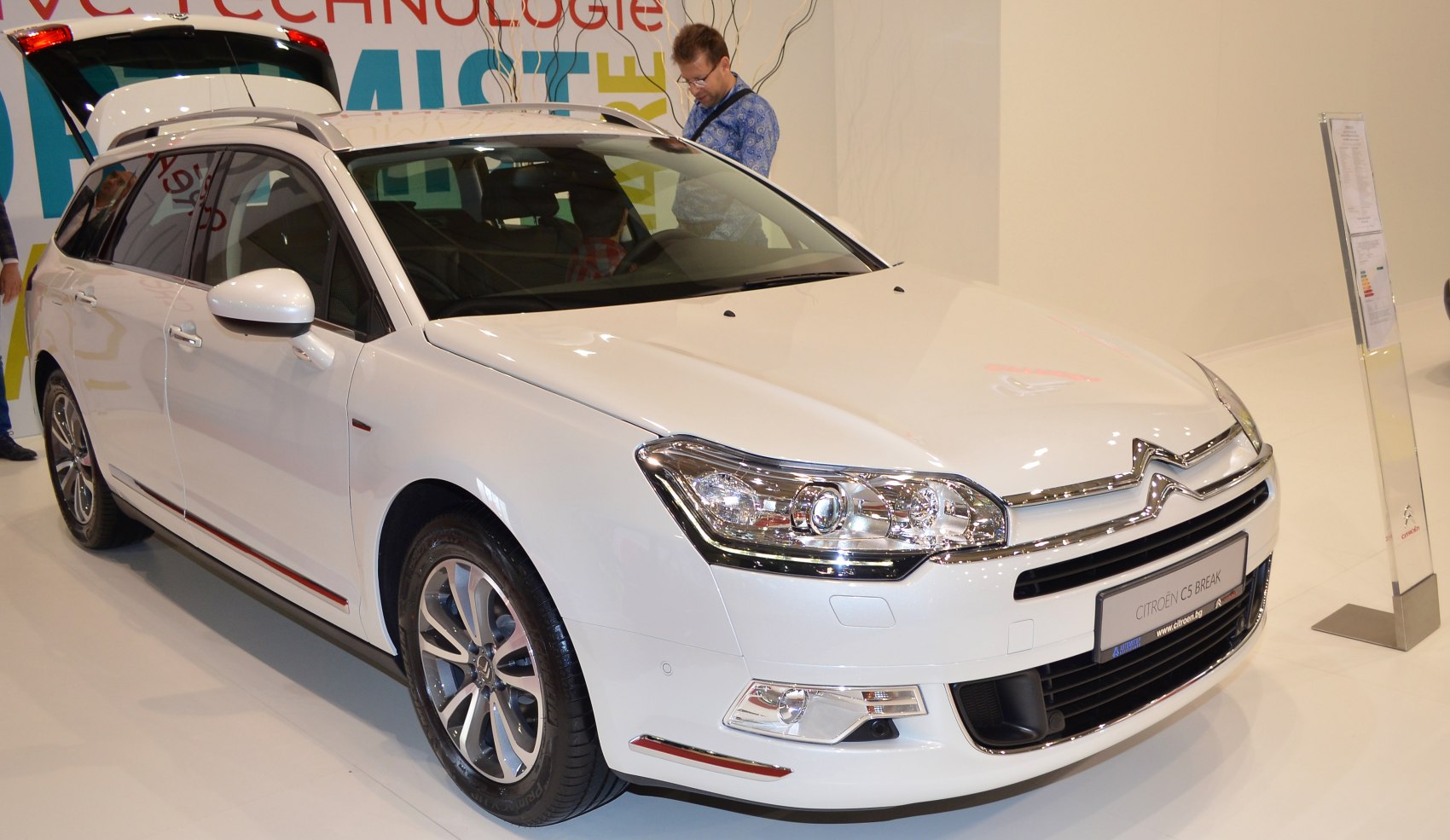

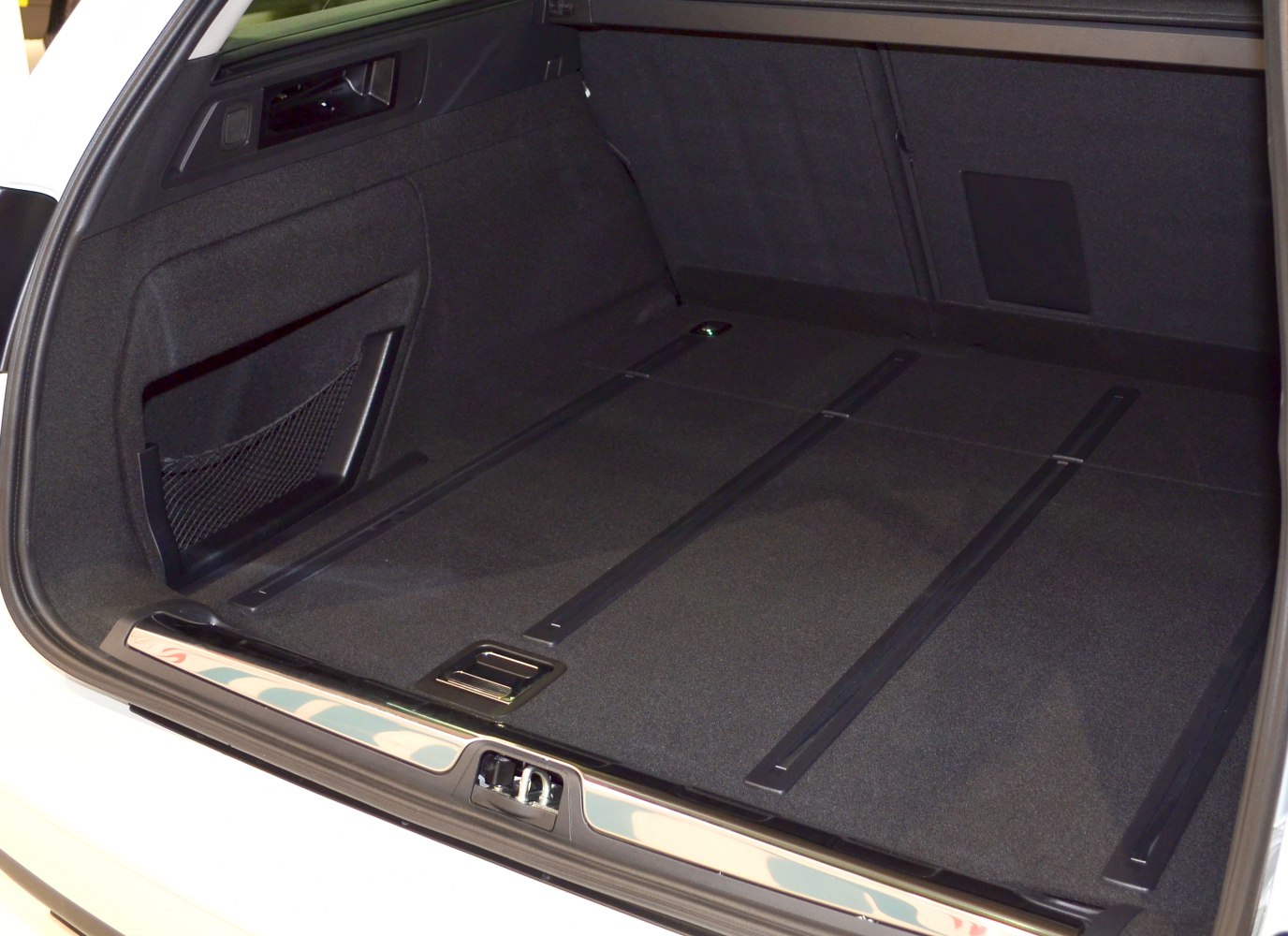

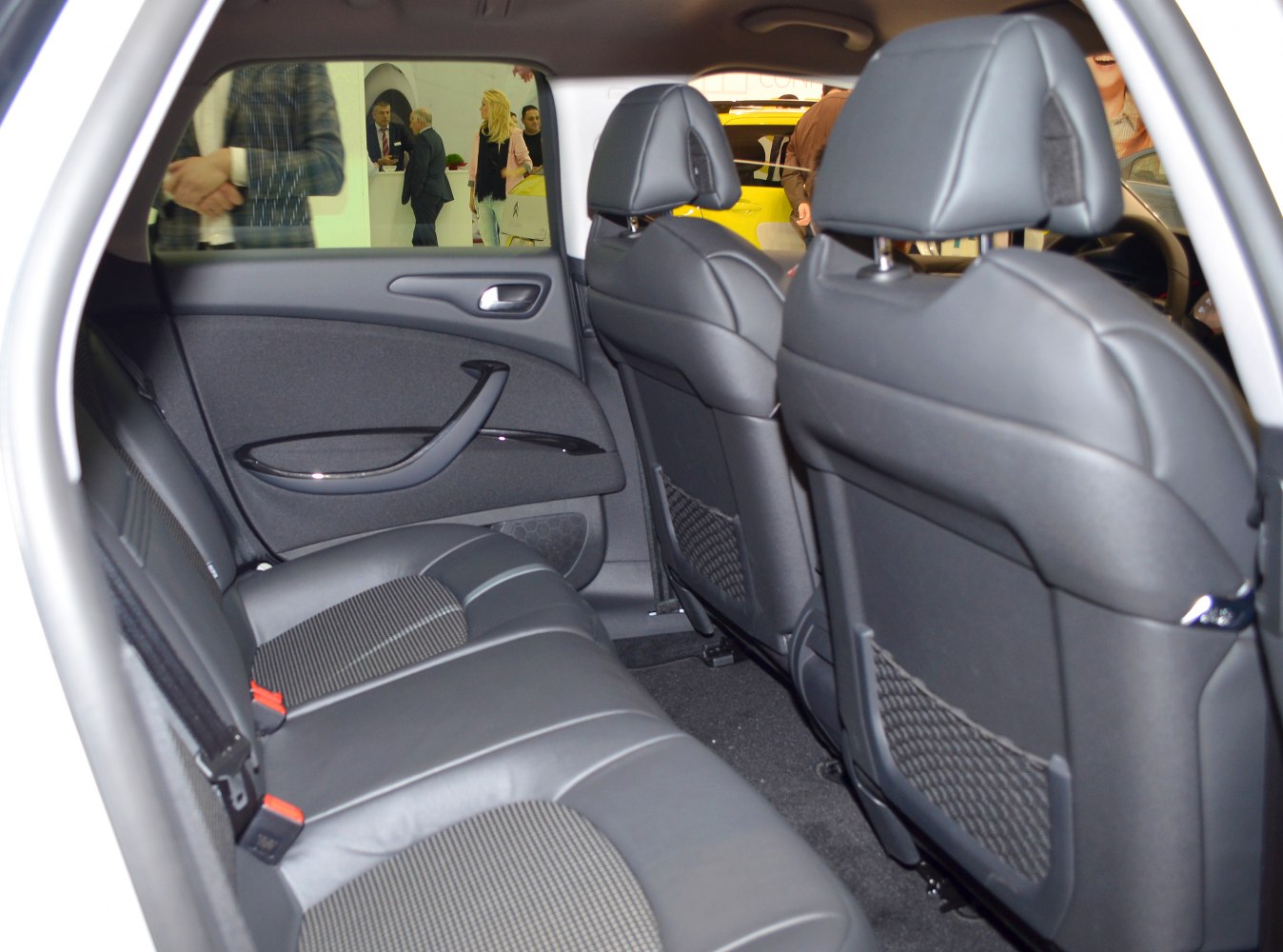

Vehicle photos
1 of 5
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 5 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 BlueHDi (150 KM) S&S Selected | Diesel fuel | 150 KM | 2015–2017 |
| 2.0 BlueHDi (180 KM) S&S Automatic Selected | Diesel fuel | 180 KM | 2015–2017 |
| 2.0 HDi (163 KM) Automatic Selected | Diesel fuel | 163 KM | 2014–2015 |
| 2.0 HDi (163 KM) Selected | Diesel fuel | 163 KM | 2014–2015 |
| 2.2 HDi (204 KM) Automatic Selected | Diesel fuel | 204 KM | 2014–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 BlueHDi (150 KM) S&S
Diesel fuel · 2015–2017
- Engine power
- 150 KM
- Torque
- 370 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.6 s
- Maximum speed
- 211 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 Cross tourer- Brand
- Citroen
- Model
- C5
- Version
- C5 Cross tourer
- Engine
- 2.0 BlueHDi (150 KM) S&S
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2017
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 211 km/h
- Acceleration 0-100 km/h
- 9.6 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 115 g/km
Engine
- Engine model / code
- AHRDW10FD
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6 l
- Power
- 150 KM @ 4000 obr./min
- Torque
- 370 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1462 l
- Curb weight
- 1575 kg
- Gross weight
- 2235 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 67 kg
Vehicle dimensions
- Length
- 4840 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1479-1483 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1065 mm
- Rear overhang
- 960 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.0 BlueHDi (180 KM) S&S Automatic
Diesel fuel · 2015–2017
- Engine power
- 180 KM
- Torque
- 400 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.8 s
- Maximum speed
- 219 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 Cross tourer- Brand
- Citroen
- Model
- C5
- Version
- C5 Cross tourer
- Engine
- 2.0 BlueHDi (180 KM) S&S Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2017
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 219 km/h
- Acceleration 0-100 km/h
- 8.8 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.8 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 114 g/km
Engine
- Engine model / code
- AHWDW10FC
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Power
- 180 KM @ 3750 obr./min
- Torque
- 400 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1462 l
- Curb weight
- 1655 kg
- Gross weight
- 2290 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 51 kg
Vehicle dimensions
- Length
- 4840 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1479-1483 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1065 mm
- Rear overhang
- 960 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.0 HDi (163 KM) Automatic
Diesel fuel · 2014–2015
- Engine power
- 163 KM
- Torque
- 340 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 208 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 Cross tourer- Brand
- Citroen
- Model
- C5
- Version
- C5 Cross tourer
- Engine
- 2.0 HDi (163 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 208 km/h
- Acceleration 0-100 km/h
- 10.2 s
- Fuel consumption - Urban cycle
- 8.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 163 g/km
Engine
- Engine model / code
- RHHDW10CTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 11.5 l
- Power
- 163 KM @ 3750 obr./min
- Torque
- 340 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1462 l
- Curb weight
- 1801 kg
- Gross weight
- 2286 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1290 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4840 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1479-1483 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1065 mm
- Rear overhang
- 960 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.0 HDi (163 KM)
Diesel fuel · 2014–2015
- Engine power
- 163 KM
- Torque
- 340 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 Cross tourer- Brand
- Citroen
- Model
- C5
- Version
- C5 Cross tourer
- Engine
- 2.0 HDi (163 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption - Urban cycle
- 6.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.3 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 133 g/km
Engine
- Engine model / code
- RHHDW10CTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 10.8 l
- Power
- 163 KM @ 3750 obr./min
- Torque
- 340 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1462 l
- Curb weight
- 1789 kg
- Gross weight
- 2238 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1670 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4840 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1479-1483 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1065 mm
- Rear overhang
- 960 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.2 HDi (204 KM) Automatic
Diesel fuel · 2014–2015
- Engine power
- 204 KM
- Torque
- 440 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.6 s
- Maximum speed
- 225 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 Cross tourer- Brand
- Citroen
- Model
- C5
- Version
- C5 Cross tourer
- Engine
- 2.2 HDi (204 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 225 km/h
- Acceleration 0-100 km/h
- 8.6 s
- Fuel consumption - Urban cycle
- 8.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption - Combined cycle
- 6.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 159 g/km
Engine
- Engine model / code
- DW12C
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 10.7 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 440 Nm @ 1900 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1462 l
- Curb weight
- 1885 kg
- Gross weight
- 2367 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1890 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4840 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1479-1483 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1065 mm
- Rear overhang
- 960 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 18; 19
- ABS
- yes
