Vehicle specifications
Chevrolet Trax I (facelift 2017)
Compare all 2 engine versions of the Chevrolet Trax Trax I (facelift 2017), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Chevrolet Trax I (facelift 2017)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

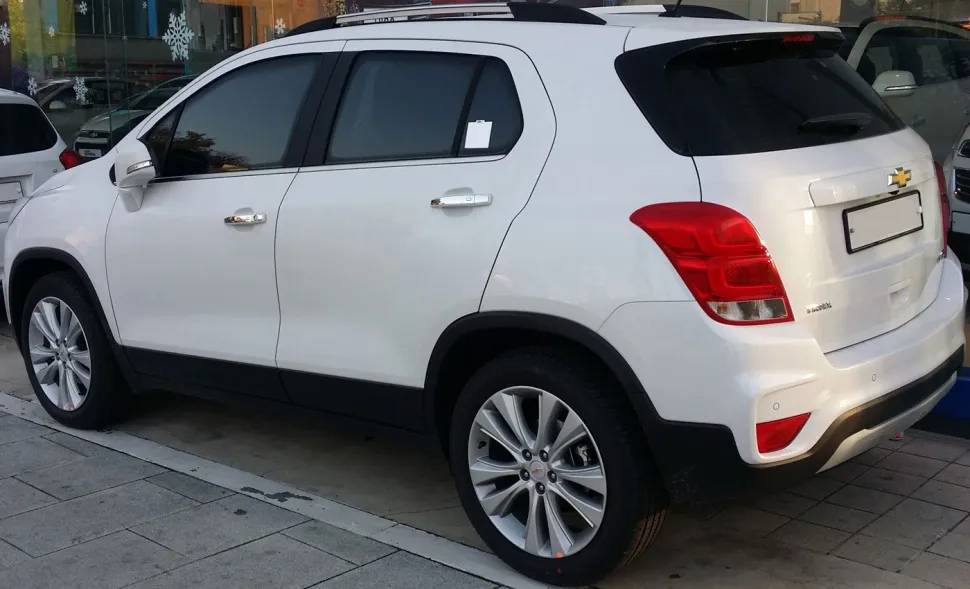

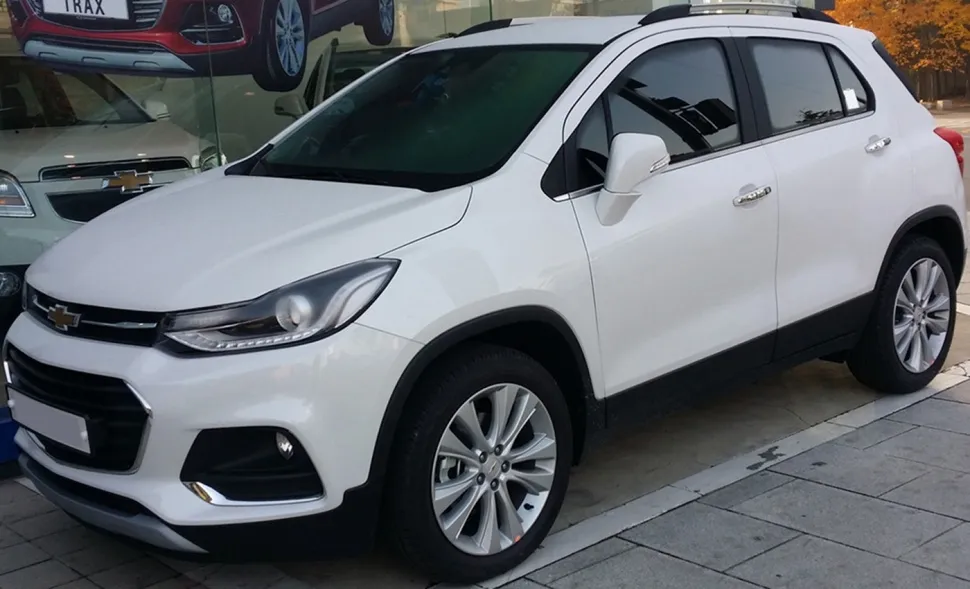

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 (140 KM) Automatic Selected | Gasoline | 140 KM | 2017–2022 |
| 1.4 (140 KM) AWD Automatic Selected | Gasoline | 140 KM | 2017–2022 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 (140 KM) Automatic
Gasoline · 2017–2022
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,364 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.7 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Chevrolet Trax Trax I (facelift 2017)- Brand
- Chevrolet
- Model
- Trax
- Version
- Trax I (facelift 2017)
- Engine
- 1.4 (140 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2017
- End of production
- 2022
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 9.7 s
- Fuel consumption - Urban cycle
- 9.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.1 l/100 km
- Fuel consumption - Combined cycle
- 8.4 l/100 km
Engine
- Engine model / code
- LUV
- Engine position
- Front, Transverse
- Engine displacement
- 1364 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DCVDP
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73.4 mm
- Piston stroke
- 80.6 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 7.3 l
- Power
- 140 KM @ 4900-6000 obr./min
- Torque
- 200 Nm @ 1850-4850 obr./min
Volume and weight
- Fuel tank
- 53 l
- Minimum trunk capacity
- 530 l
- Maximum trunk capacity
- 1371 l
- Curb weight
- 1272 kg
Vehicle dimensions
- Length
- 4257 mm
- Width
- 1775 mm
- Height
- 1646 mm
- Wheelbase
- 2555 mm
- Front track
- 1539 mm
- Rear track
- 1539 mm
- Ground clearance
- 157 mm
- Turning circle
- 10.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/70 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.4 (140 KM) AWD Automatic
Gasoline · 2017–2022
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,364 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Chevrolet Trax Trax I (facelift 2017)- Brand
- Chevrolet
- Model
- Trax
- Version
- Trax I (facelift 2017)
- Engine
- 1.4 (140 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2017
- End of production
- 2022
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 10.6 s
- Fuel consumption - Urban cycle
- 9.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
- Fuel consumption - Combined cycle
- 8.7 l/100 km
Engine
- Engine model / code
- LUV
- Engine position
- Front, Transverse
- Engine displacement
- 1364 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DCVDP
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73.4 mm
- Piston stroke
- 80.6 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 7.3 l
- Power
- 140 KM @ 4900-6000 obr./min
- Torque
- 200 Nm @ 1850-4850 obr./min
Volume and weight
- Fuel tank
- 53 l
- Minimum trunk capacity
- 530 l
- Maximum trunk capacity
- 1371 l
- Curb weight
- 1455 kg
Vehicle dimensions
- Length
- 4257 mm
- Width
- 1775 mm
- Height
- 1646 mm
- Wheelbase
- 2555 mm
- Front track
- 1539 mm
- Rear track
- 1539 mm
- Ground clearance
- 157 mm
- Turning circle
- 10.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/70 R16
- Rim size
- 16
- ABS
- yes
