BMW Seria 2 Gran Tourer (F46)

Compare all 15 engine versions of the BMW Seria 2 Seria 2 Gran Tourer (F46), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used BMW Seria 2 Gran Tourer (F46)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of BMW Seria 2 Gran Tourer (F46)?

See the places on a 3D model →
VIN number
Engine compartment, right side
1 of 13

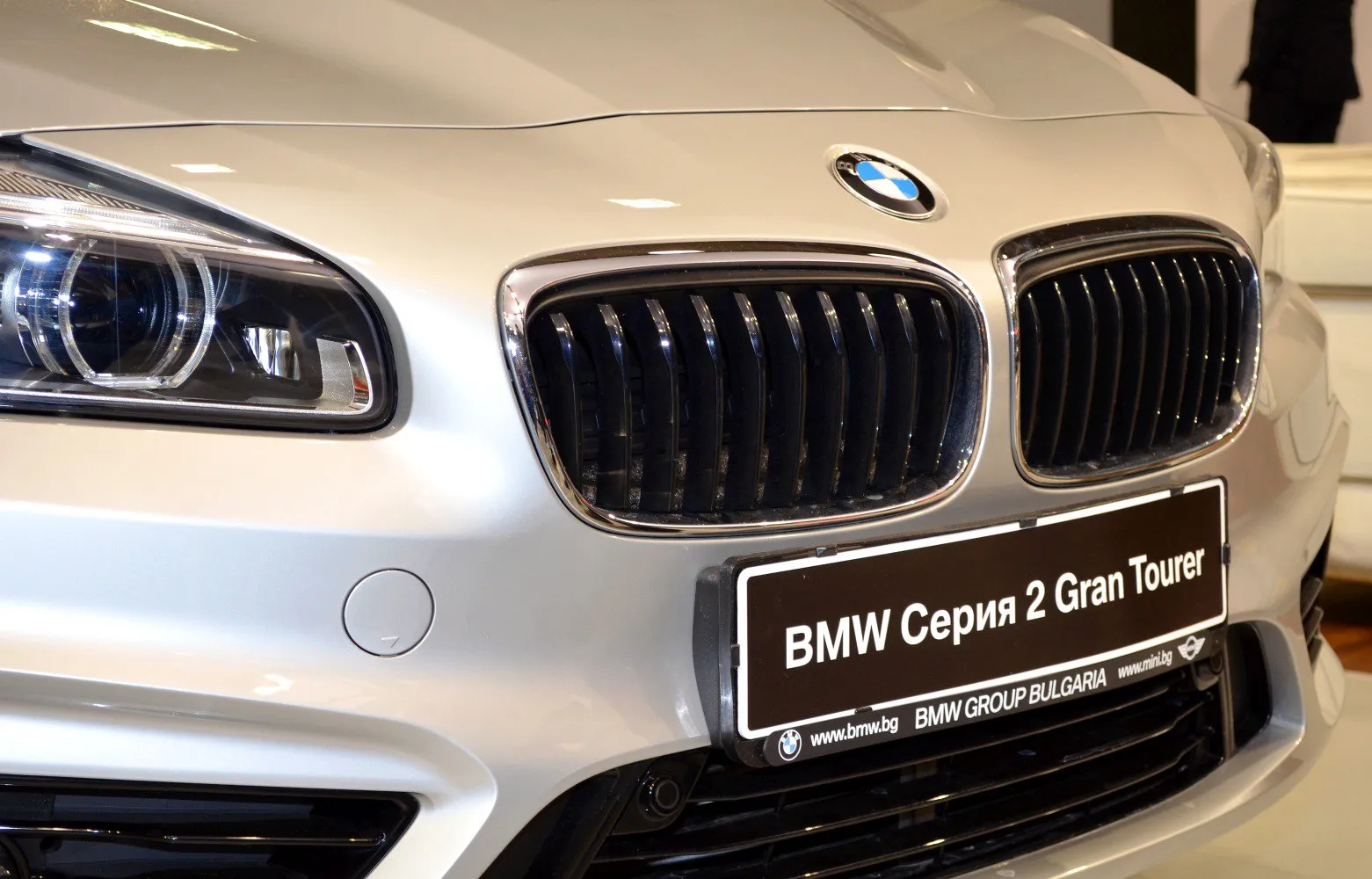

BMW Seria 2 Seria 2 Gran Tourer (F46) View larger
Photo: © www.Auto-Data.net

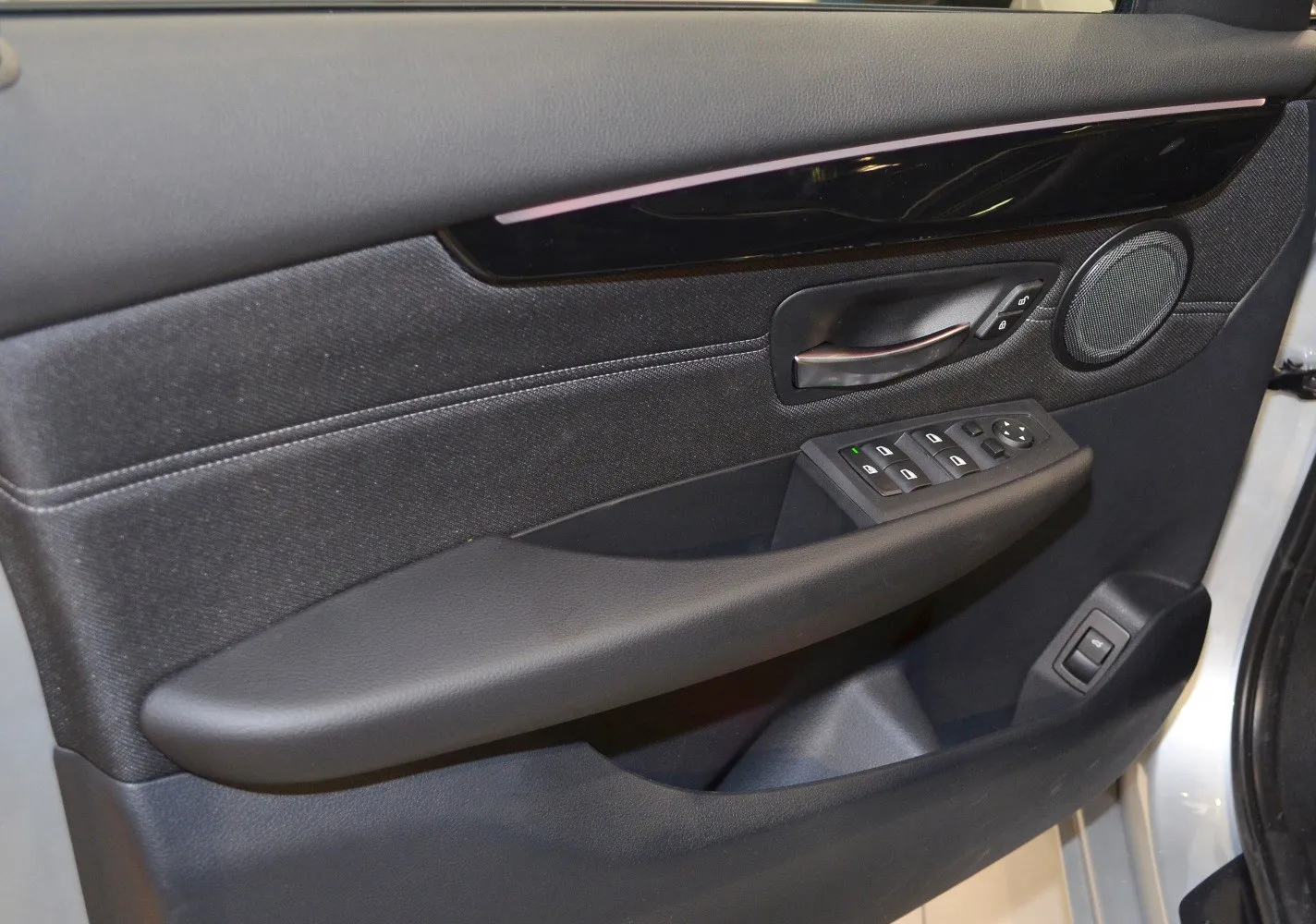

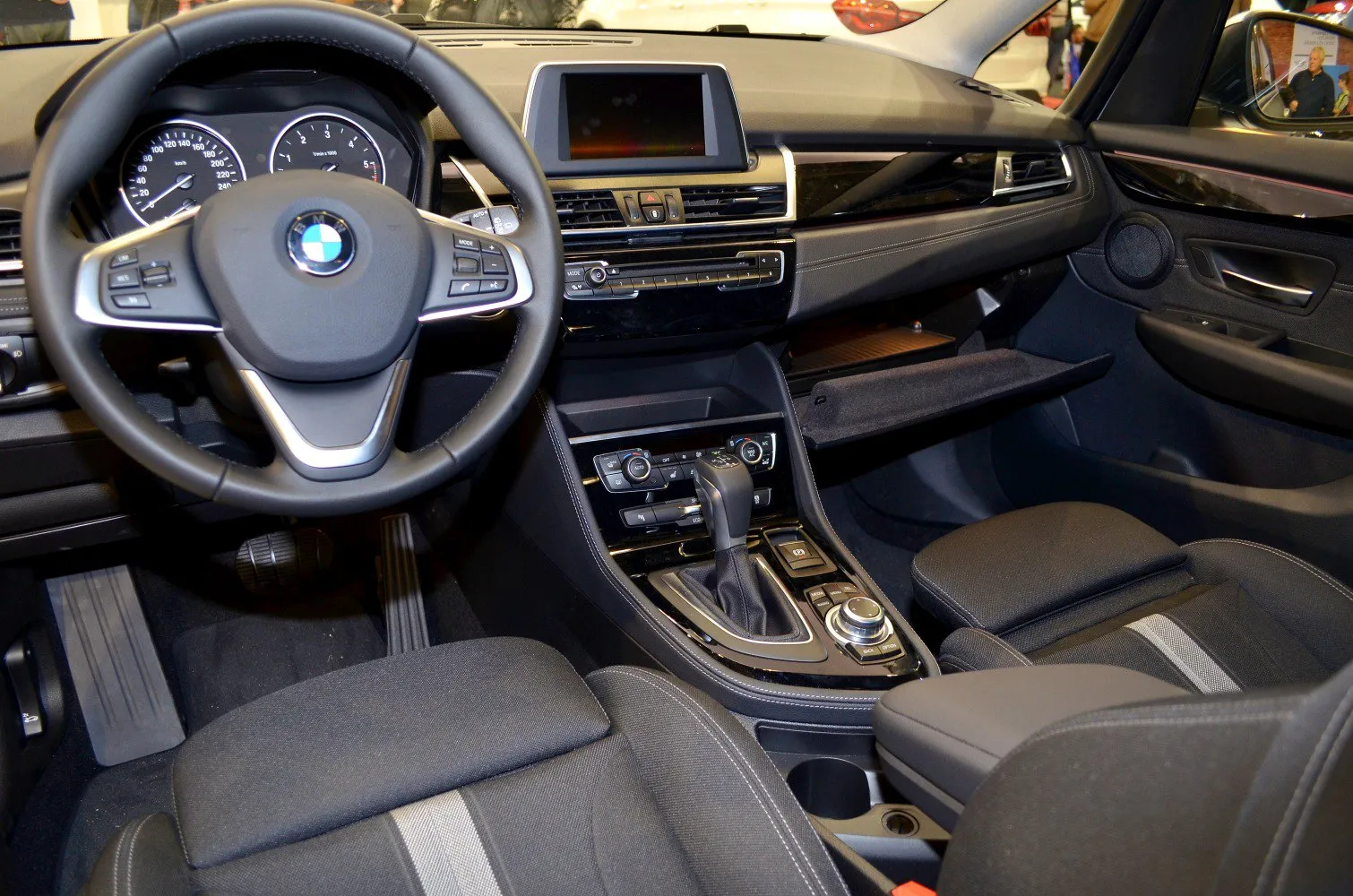

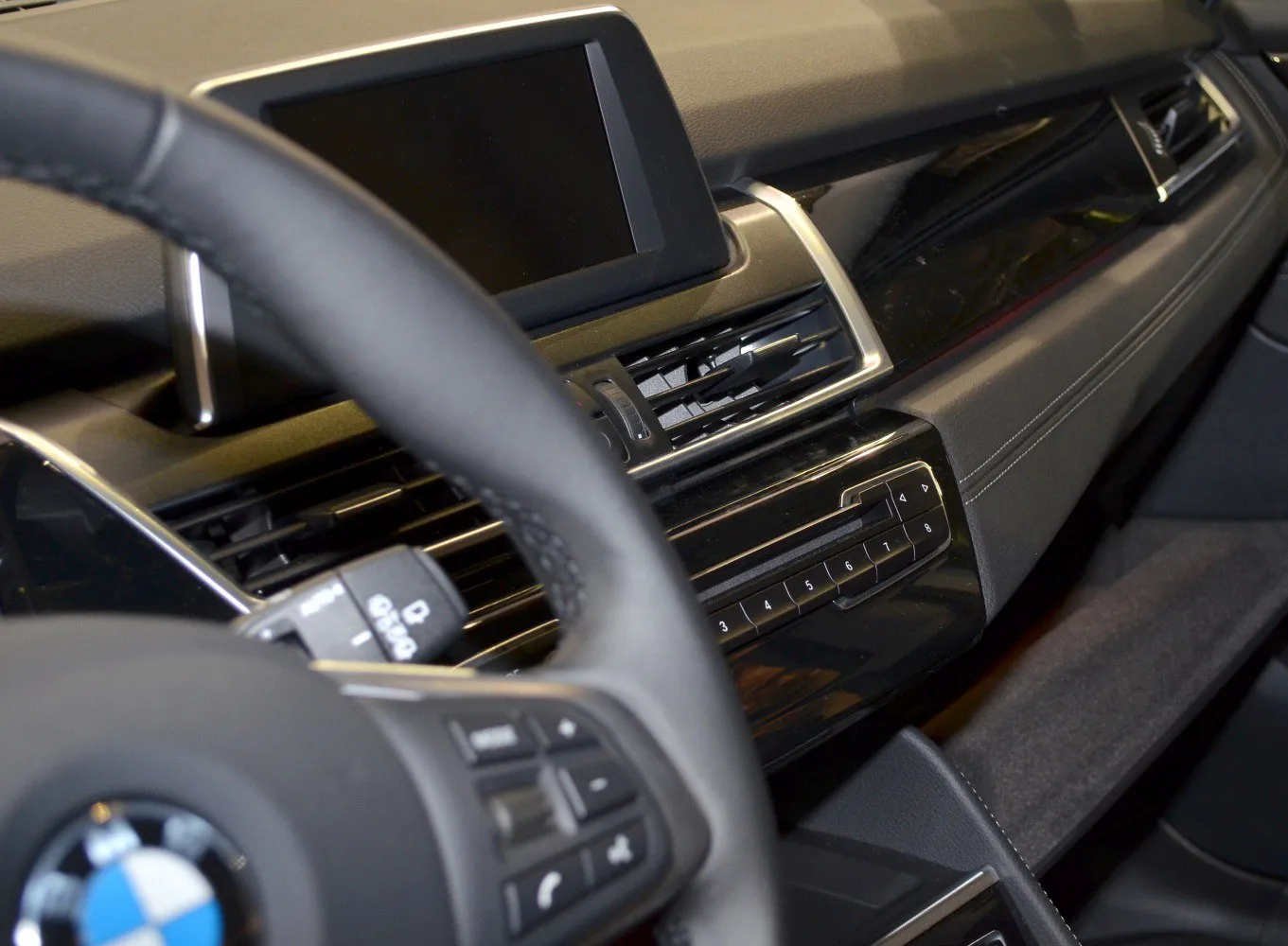

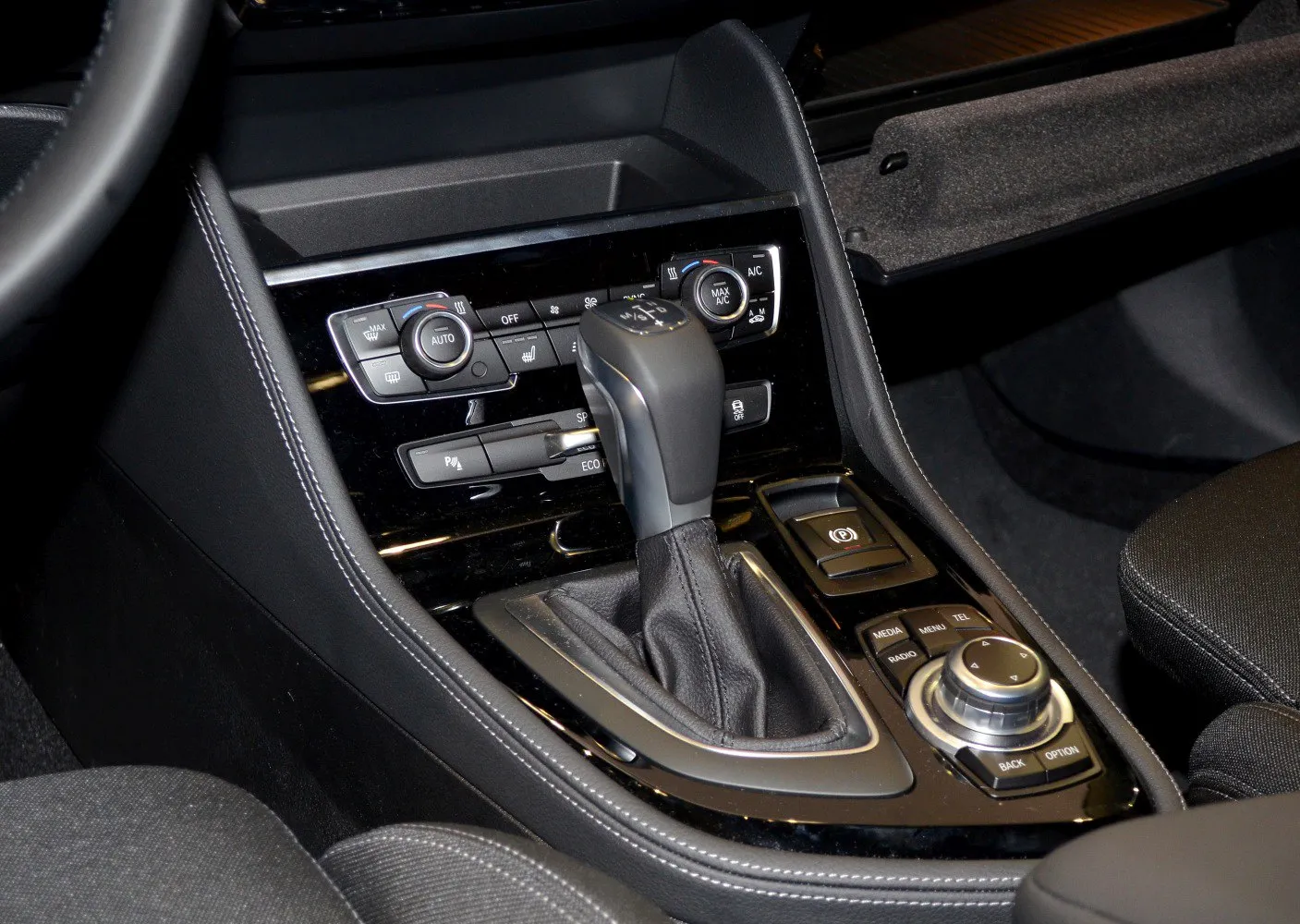

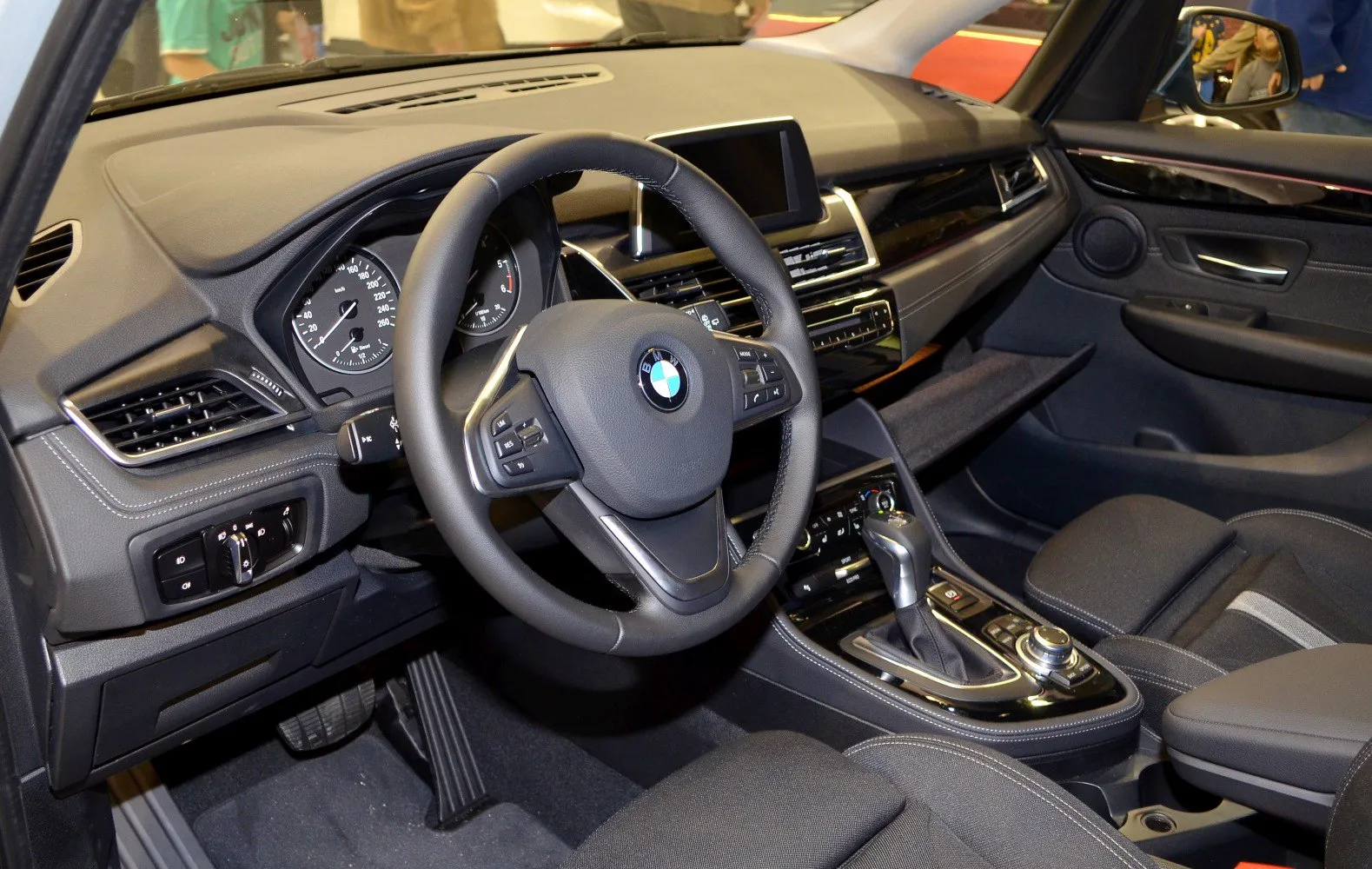

Vehicle gallery

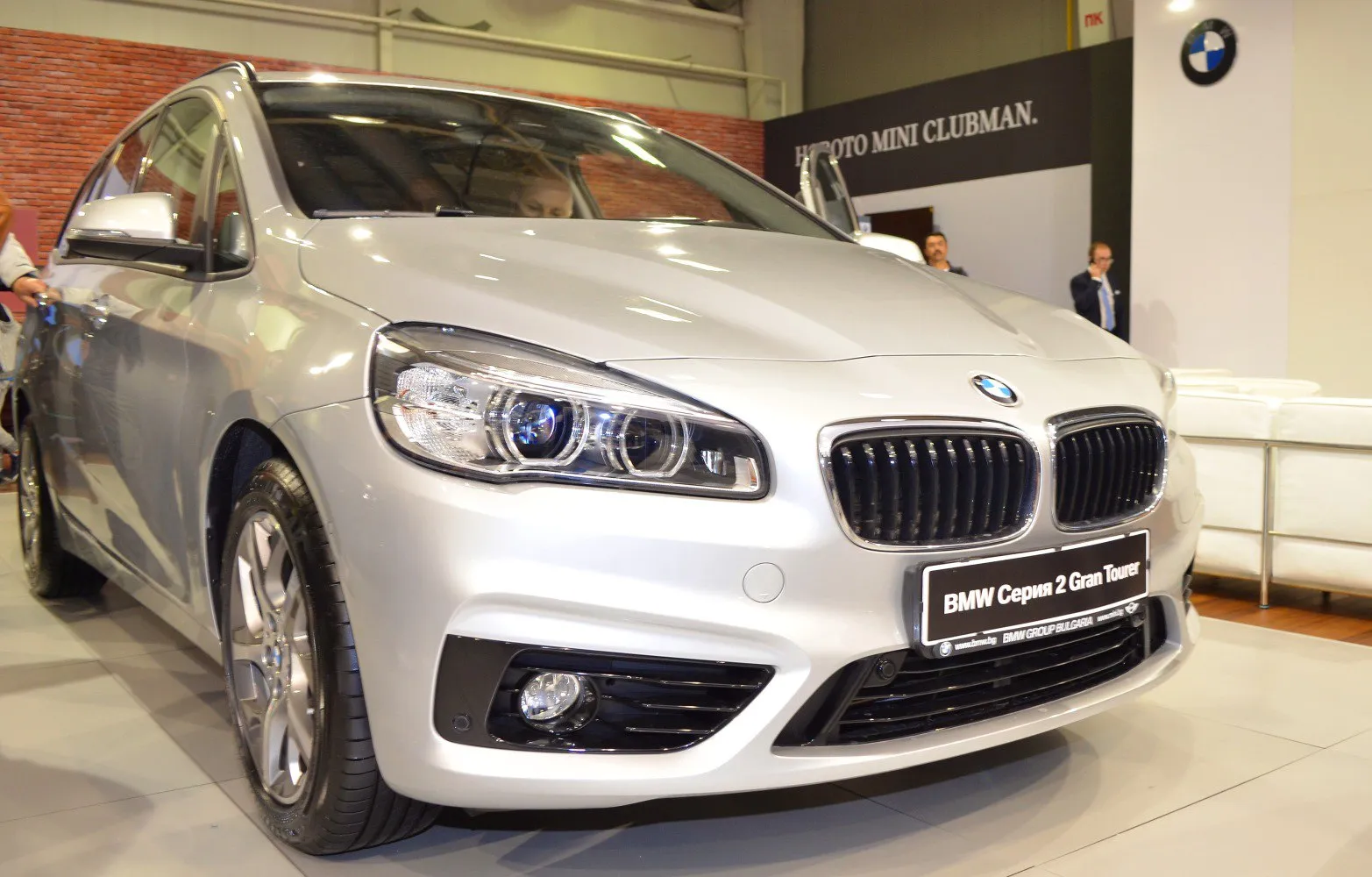

BMW Seria 2 Seria 2 Gran Tourer (F46)

Photo: © www.Auto-Data.net

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

15 versions · 5 Gasoline · 10 Diesel fuel

Engine Fuel Power Production
218i (136 KM) Selected Gasoline 136 KM 2015–2018
218i (136 KM) Steptronic Selected Gasoline 136 KM 2015–2018
220i (192 KM) Selected Gasoline 192 KM 2015–2018
220i (192 KM) Steptronic Selected Gasoline 192 KM 2015–2018
216d (116 KM) Selected Diesel fuel 116 KM 2015–2018
216d (116 KM) Steptronic Selected Diesel fuel 116 KM 2015–2018
218d (150 KM) Selected Diesel fuel 150 KM 2015–2018
218d (150 KM) Steptronic Selected Diesel fuel 150 KM 2015–2018
220d (190 KM) xDrive Steptronic Selected Diesel fuel 190 KM 2015–2018
216i (102 KM) Selected Gasoline 102 KM 2015–2018
214d (95 KM) Selected Diesel fuel 95 KM 2015–2016
220d (190 KM) Selected Diesel fuel 190 KM 2015–2018
220d (190 KM) Steptronic Selected Diesel fuel 190 KM 2015–2018
218d (150 KM) xDrive Selected Diesel fuel 150 KM 2016–2018
218d (150 KM) xDrive Steptronic Selected Diesel fuel 150 KM 2016–2018

Selected engine version

218i (136 KM)

Gasoline · 2015–2018

Engine power
136 KM
Torque
220 Nm
Engine displacement
1,499 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218i (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
6.3-6.6 l/100 km
Fuel consumption - Extra-urban cycle
4.4-4.7 l/100 km
Fuel consumption - Combined cycle
5.1-5.4 l/100 km
Emission standard
Euro 6
CO2 emissions
119-125 g/km

Engine

Engine model / code
B38B15
Engine position
Front, Transverse
Engine displacement
1499 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
6.4 l
Power
136 KM @ 4400 obr./min
Torque
220 Nm @ 1250 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1395 kg
Gross weight
2040 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
735 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

218i (136 KM) Steptronic

Gasoline · 2015–2018

Engine power
136 KM
Torque
220 Nm
Engine displacement
1,499 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218i (136 KM) Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
6.4-6.7 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.8 l/100 km
Fuel consumption - Combined cycle
5.2-5.5 l/100 km
Emission standard
Euro 6
CO2 emissions
122-128 g/km

Engine

Engine model / code
B38B15
Engine position
Front, Transverse
Engine displacement
1499 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
6.4 l
Power
136 KM @ 4400 obr./min
Torque
220 Nm @ 1250 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1425 kg
Gross weight
2065 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
735 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

220i (192 KM)

Gasoline · 2015–2018

Engine power
192 KM
Torque
280 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.7 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
220i (192 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
7.9-8.1 l/100 km
Fuel consumption - Extra-urban cycle
5.2-5.4 l/100 km
Fuel consumption - Combined cycle
6.2-6.4 l/100 km
Emission standard
Euro 6
CO2 emissions
144-149 g/km

Engine

Engine model / code
B48B20
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.8 l
Power
192 KM @ 5000 obr./min
Torque
280 Nm @ 1250 obr./min

Volume and weight

Fuel tank
61 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1455 kg
Gross weight
2100 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1557 mm
Rear track
1558 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R17 91W
Rim size
7.5J x 17
ABS
yes

Selected engine version

220i (192 KM) Steptronic

Gasoline · 2015–2018

Engine power
192 KM
Torque
280 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.6 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
220i (192 KM) Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
7.6 s
Fuel consumption - Urban cycle
7.3-7.5 l/100 km
Fuel consumption - Extra-urban cycle
5.1-5.3 l/100 km
Fuel consumption - Combined cycle
5.9-6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
137-142 g/km

Engine

Engine model / code
B48B20
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.8 l
Power
192 KM @ 5000 obr./min
Torque
280 Nm @ 1250-4600 obr./min

Volume and weight

Fuel tank
61 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1495 kg
Gross weight
2130 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1557 mm
Rear track
1558 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R17 91W
Rim size
7.5J x 17
ABS
yes

Selected engine version

216d (116 KM)

Diesel fuel · 2015–2018

Engine power
116 KM
Torque
270 Nm
Engine displacement
1,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.1 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
216d (116 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
11.1 s
Fuel consumption - Urban cycle
4.5-4.7 l/100 km
Fuel consumption - Extra-urban cycle
3.6-3.8 l/100 km
Fuel consumption - Combined cycle
3.9-4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
104-109 g/km

Engine

Engine model / code
B37D15
Engine position
Front, Transverse
Engine displacement
1496 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.4 l
Coolant capacity
6 l
Power
116 KM @ 4000 obr./min
Torque
270 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28

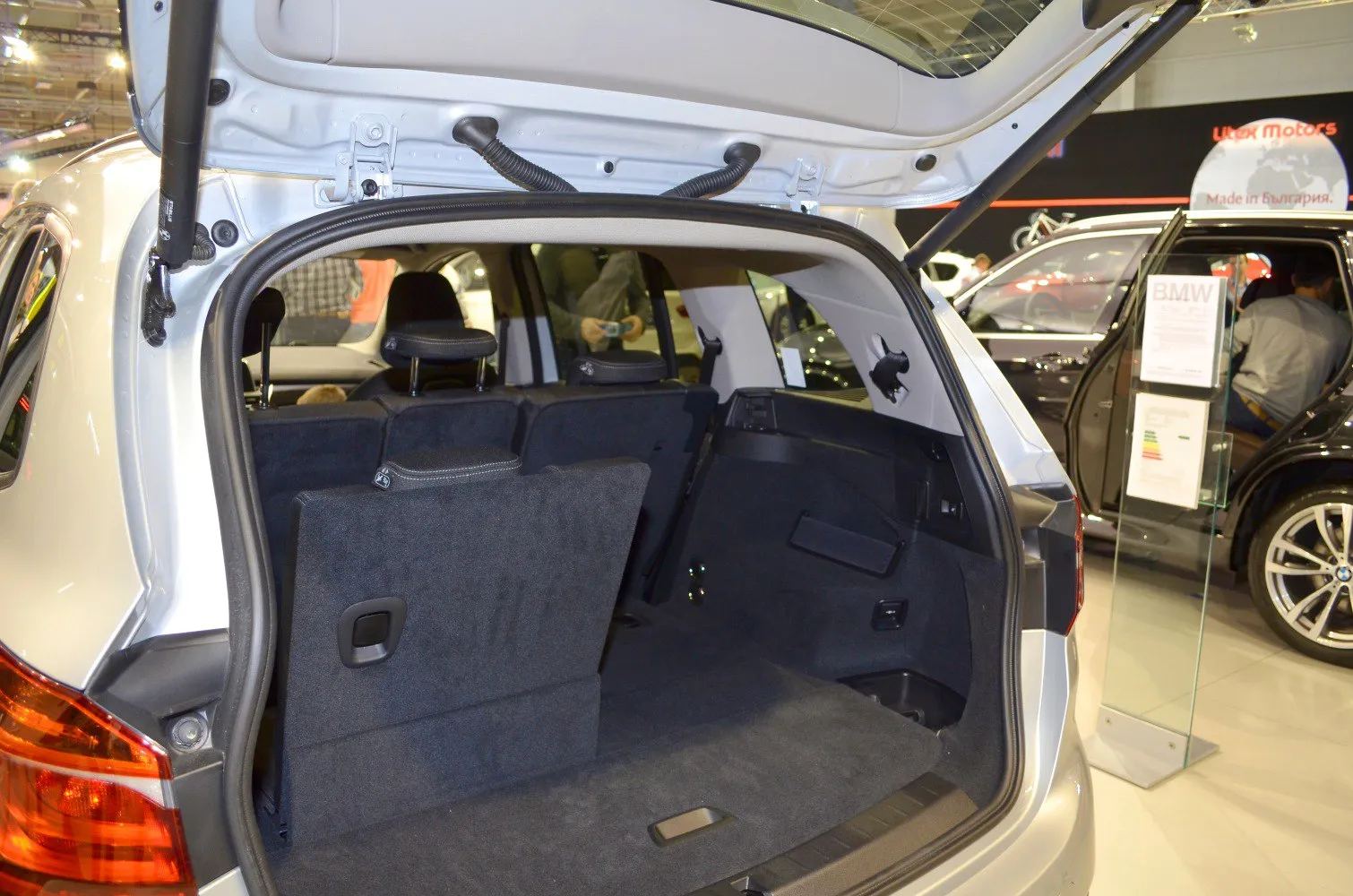

Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1420 kg
Gross weight
2070 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

216d (116 KM) Steptronic

Diesel fuel · 2015–2018

Engine power
116 KM
Torque
270 Nm
Engine displacement
1,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
216d (116 KM) Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
4.5-4.7 l/100 km
Fuel consumption - Extra-urban cycle
3.8-4.0 l/100 km
Fuel consumption - Combined cycle
4.0-4.3 l/100 km
Emission standard
Euro 6
CO2 emissions
106-112 g/km

Engine

Engine model / code
B37D15
Engine position
Front, Transverse
Engine displacement
1496 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.4 l
Coolant capacity
6 l
Power
116 KM @ 4000 obr./min
Torque
270 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1430 kg
Gross weight
2090 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6

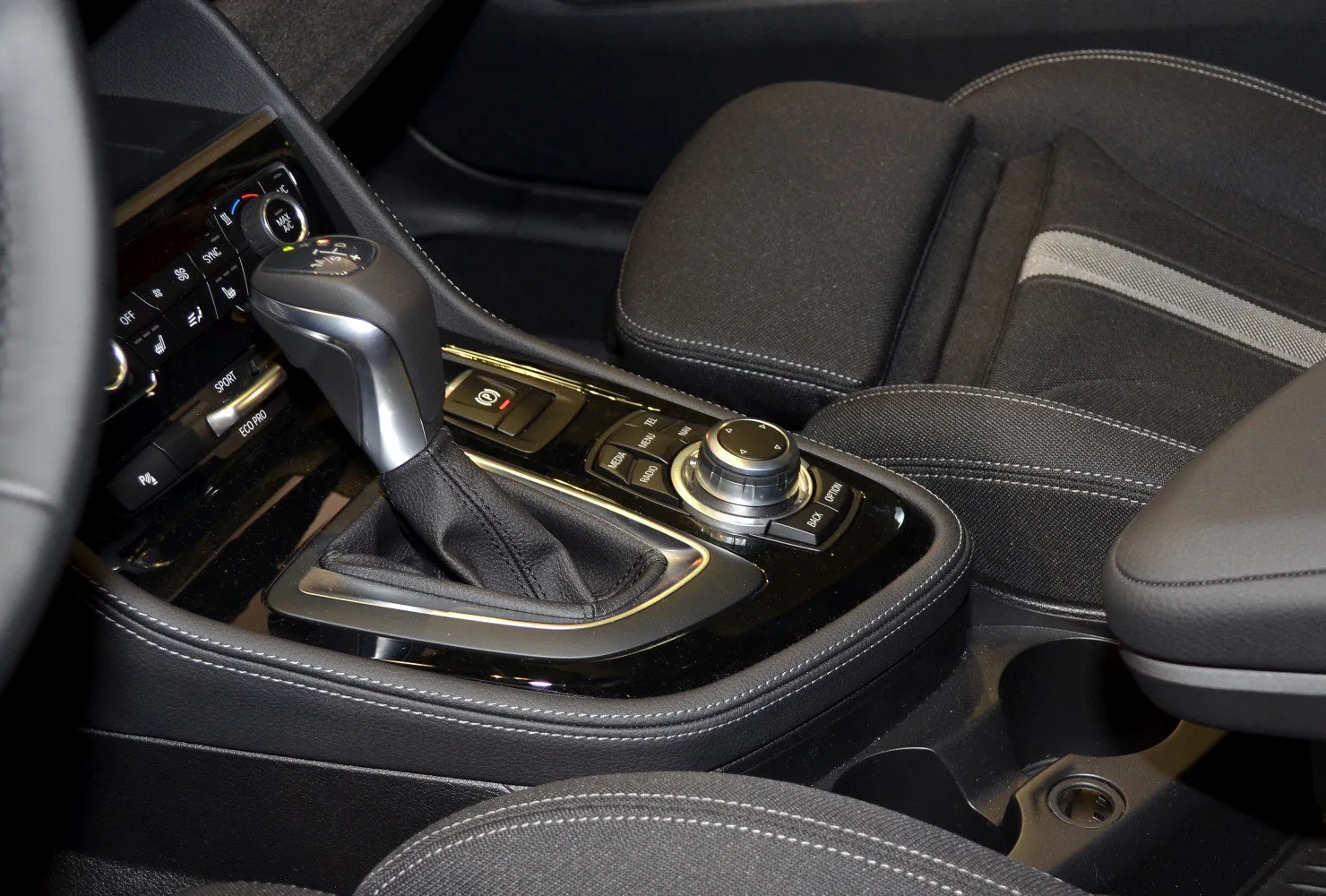

Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

218d (150 KM)

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
330 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.3 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218d (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.3 s
Fuel consumption - Urban cycle
5.1-5.3 l/100 km
Fuel consumption - Extra-urban cycle
3.9-4.1 l/100 km
Fuel consumption - Combined cycle
4.3-4.5 l/100 km
Emission standard
Euro 6
CO2 emissions
114-119 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
150 KM @ 4000 obr./min
Torque
330 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1450 kg
Gross weight
2090 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

218d (150 KM) Steptronic

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
330 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.3 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218d (150 KM) Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
9.3 s
Fuel consumption - Urban cycle
4.9-5.1 l/100 km
Fuel consumption - Extra-urban cycle
4.0-4.2 l/100 km
Fuel consumption - Combined cycle
4.3-4.5 l/100 km
Emission standard
Euro 6
CO2 emissions
114-119 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
150 KM @ 4000 obr./min
Torque
330 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1480 kg
Gross weight
2120 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

220d (190 KM) xDrive Steptronic

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.6 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
220d (190 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
7.6 s
Fuel consumption - Urban cycle
5.5-5.7 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.7 l/100 km
Fuel consumption - Combined cycle
4.9-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
128-133 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
190 KM @ 4000 obr./min
Torque
400 Nm @ 1750 obr./min

Volume and weight

Fuel tank
61 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1565 kg
Gross weight
2210 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1557 mm
Rear track
1558 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R17 91W
Rim size
7.5J x 17
ABS
yes

Selected engine version

216i (102 KM)

Gasoline · 2015–2018

Engine power
102 KM
Torque
180 Nm
Engine displacement
1,499 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.9 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
216i (102 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
11.9 s
Fuel consumption - Urban cycle
6.5-6.8 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.9 l/100 km
Fuel consumption - Combined cycle
5.3-5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
124-129 g/km

Engine

Engine model / code
B38B15
Engine position
Front, Transverse
Engine displacement
1499 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
6.4 l
Power
102 KM @ 4100 obr./min
Torque
180 Nm @ 1200 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1400 kg
Gross weight
2040 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1100 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

214d (95 KM)

Diesel fuel · 2015–2016

Engine power
95 KM
Torque
220 Nm
Engine displacement
1,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.5 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
214d (95 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2016
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
13.5 s
Fuel consumption - Urban cycle
4.5-4.7 l/100 km
Fuel consumption - Extra-urban cycle
3.6-3.8 l/100 km
Fuel consumption - Combined cycle
3.9-4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
104-109 g/km

Engine

Engine model / code
B37D15
Engine position
Front, Transverse
Engine displacement
1496 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.4 l
Coolant capacity
6 l
Power
95 KM @ 4000 obr./min
Torque
220 Nm @ 1500 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1420 kg
Gross weight
2060 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V
Rim size
7.0J x 16
ABS
yes

Selected engine version

220d (190 KM)

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
220d (190 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
5.3-5.5 l/100 km
Fuel consumption - Extra-urban cycle
4.1-4.3 l/100 km
Fuel consumption - Combined cycle
4.5-4.7 l/100 km
Emission standard
Euro 6
CO2 emissions
119-124 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
190 KM @ 4000 obr./min
Torque
400 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1475 kg
Gross weight
2120 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1557 mm
Rear track
1558 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R17 91W
Rim size
7.5J x 17
ABS
yes

Selected engine version

220d (190 KM) Steptronic

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.8 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
220d (190 KM) Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
7.8 s
Fuel consumption - Urban cycle
5.0-5.2 l/100 km
Fuel consumption - Extra-urban cycle
4.1-4.3 l/100 km
Fuel consumption - Combined cycle
4.4-4.6 l/100 km
Emission standard
Euro 6
CO2 emissions
117-122 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
190 KM @ 4000 obr./min
Torque
400 Nm @ 1750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1495 kg
Gross weight
2140 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1557 mm
Rear track
1558 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R17 91W
Rim size
7.5J x 17
ABS
yes

Selected engine version

218d (150 KM) xDrive

Diesel fuel · 2016–2018

Engine power
150 KM
Torque
330 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218d (150 KM) xDrive
Engine type
Combustion engine
Number of doors
5
Start of production
2016
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.0-6.2 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.4 l/100 km
Fuel consumption - Combined cycle
4.9-5.2 l/100 km
Emission standard
Euro 6
CO2 emissions
128-136 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
150 KM @ 4000 obr./min
Torque
330 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1530 kg
Gross weight
2175 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V; 225/45 R18
Rim size
7J x 16; 8J x 18
ABS
yes

Selected engine version

218d (150 KM) xDrive Steptronic

Diesel fuel · 2016–2018

Engine power
150 KM
Torque
330 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.1 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 2
Version
Seria 2 Gran Tourer (F46)
Engine
218d (150 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2016
End of production
2018
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.1 s
Fuel consumption - Urban cycle
5.3-5.5 l/100 km
Fuel consumption - Extra-urban cycle
4.4-4.6 l/100 km
Fuel consumption - Combined cycle
4.7-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
124-133 g/km

Engine

Engine model / code
B47D20
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.7 l
Power
150 KM @ 4000 obr./min
Torque
330 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
51 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
645 l
Maximum trunk capacity
1905 l
Curb weight
1540 kg
Gross weight
2195 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4556 mm
Width
1800 mm
Height
1608 mm
Wheelbase
2780 mm
Front track
1561 mm
Rear track
1562 mm
Ground clearance
165 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Independent coil spring suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16 92V; 225/45 R18
Rim size
7J x 16; 8J x 18
ABS
yes

About BMW Seria 2 Seria 2 Gran Tourer (F46)

The BMW 2 Series Gran Tourer (F46), produced from 2015 to 2018, is a five-door minivan designed for families requiring a spacious and functional vehicle. Its elegant yet discreet design combines practicality with German precision in craftsmanship. This model is an ideal choice for those looking for a car that blends comfort with the ability to transport more passengers or luggage, excelling in both daily commutes and weekend getaways.

The 2 Series Gran Tourer offers a wide range of powertrains, including both petrol and diesel engines, with power outputs ranging from 95 to 192 hp. This allows everyone to tailor the car to their needs, choosing between the fuel efficiency of the 214d (95 hp) and the dynamic performance of the 220i (192 hp) version. Both manual and automatic (Steptronic) transmissions are offered, providing a smooth and comfortable driving experience. Front-wheel drive is standard, while xDrive versions feature all-wheel drive, contributing to the model's versatility.

The BMW 2 Series Gran Tourer is characterized by very good ride comfort and stability in handling. Thanks to its front-wheel drive and optional xDrive, the car delivers confidence in various driving conditions. It performs excellently in urban areas, owing to its good maneuverability and visibility. On highways, it impresses with comfort and solid suspension. Among the available driver-assistance technologies, there are systems such as parking assist, a navigation system integrated with multimedia, and numerous safety systems that enhance travel comfort.

Like any model, this one is not without its flaws. Users may encounter issues with electronics, particularly regarding the functionality of multimedia systems. Some powertrains may prove to be slightly more expensive to maintain, especially when it comes to servicing the technologically advanced xDrive versions. Additionally, while the spaciousness of the interior is one of this model's strengths, its compactness may not satisfy those who require a truly large cargo space.

In summary, the BMW 2 Series Gran Tourer (F46) is an excellent option for those seeking a family minivan with exceptional comfort and functionality. It stands out with its modern design, a wide range of engines, and advanced technologies, making it an attractive choice in its segment. By combining space, efficiency, and performance, it offers a unique proposition for families who do not want to compromise on driving pleasure for the sake of practicality.
