Audi A4 Avant (B9 8W)

Compare all 22 engine versions of the Audi A4 A4 Avant (B9 8W), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Audi A4 Avant (B9 8W)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 10

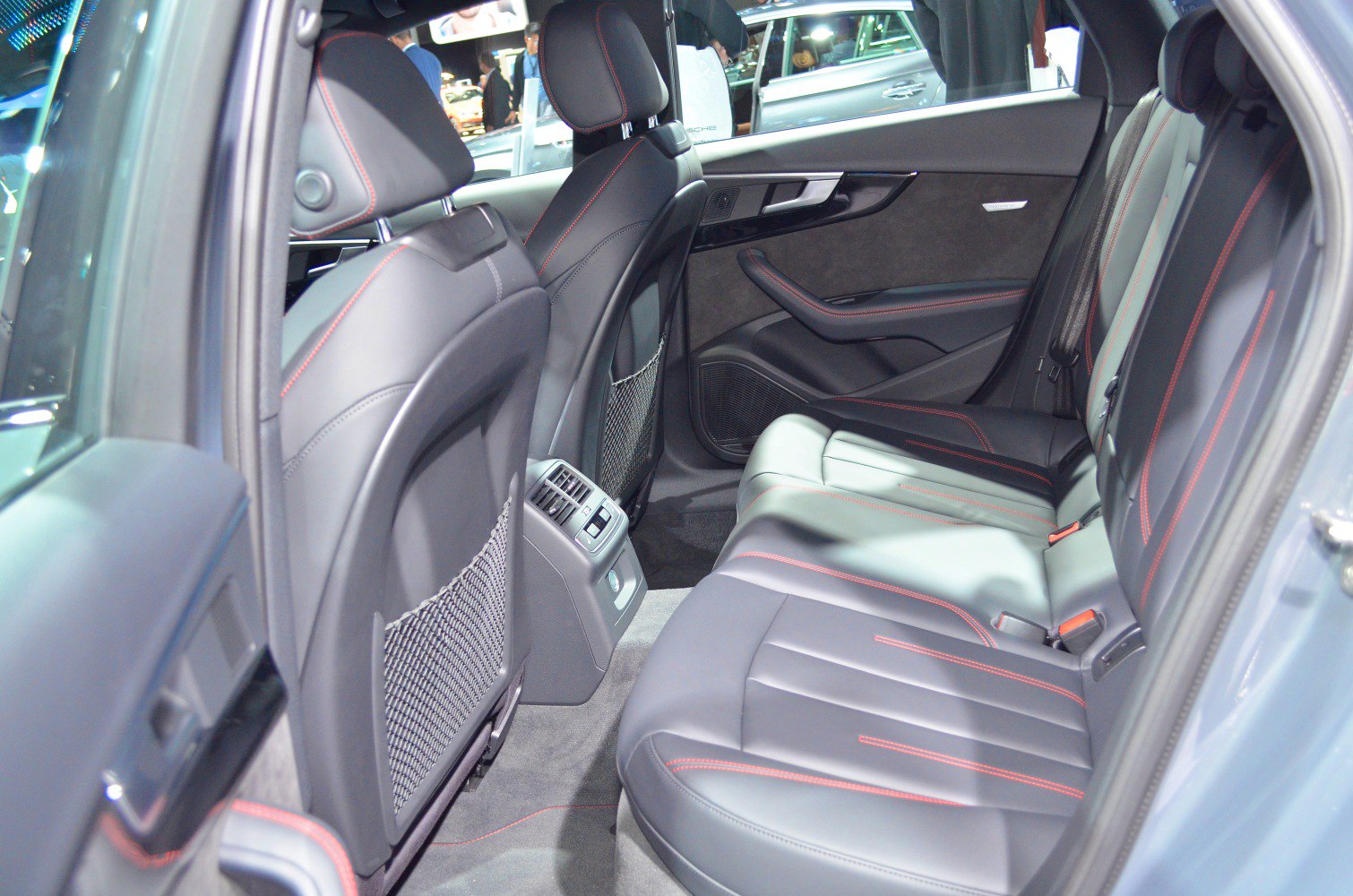

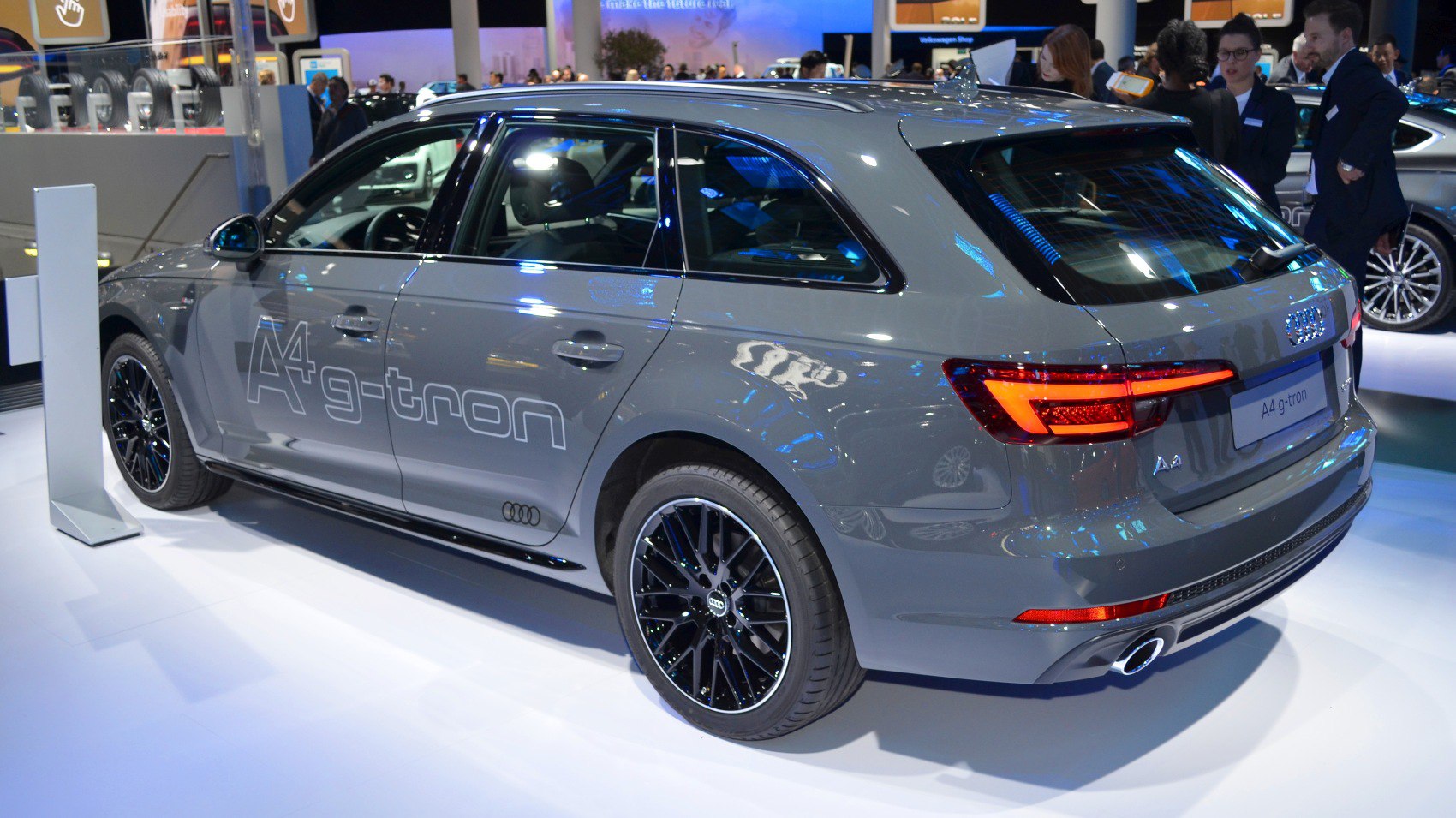

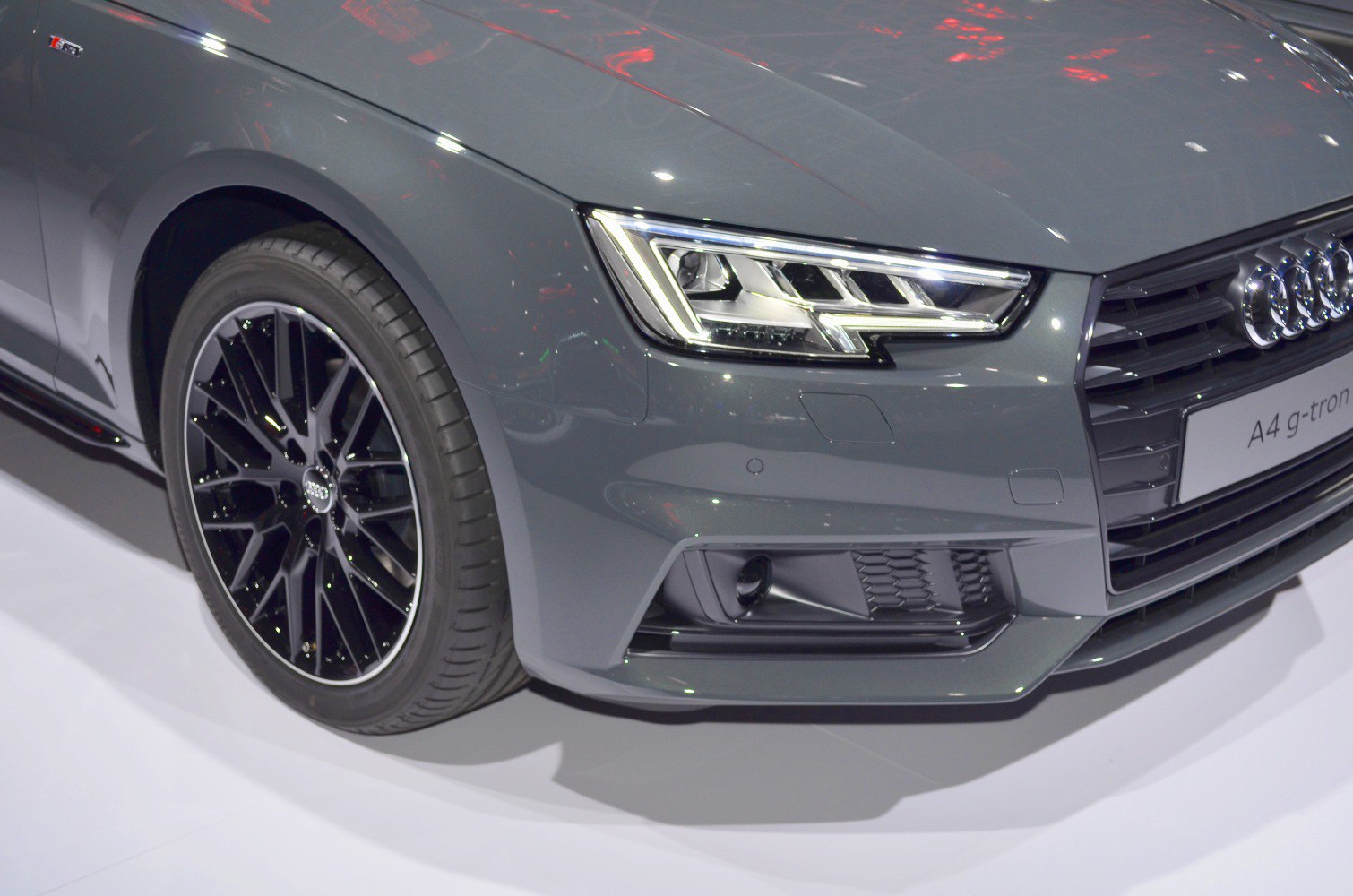

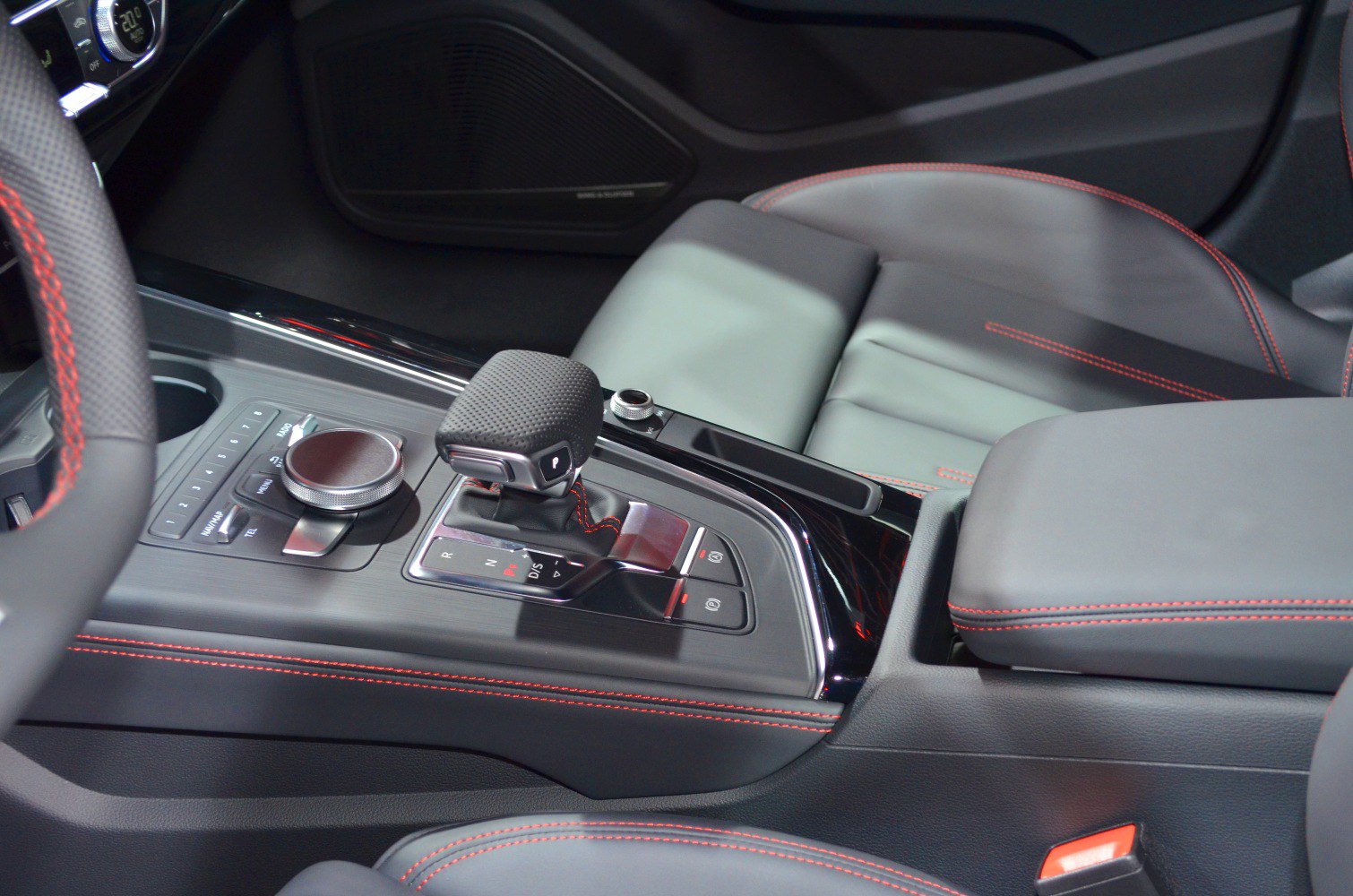

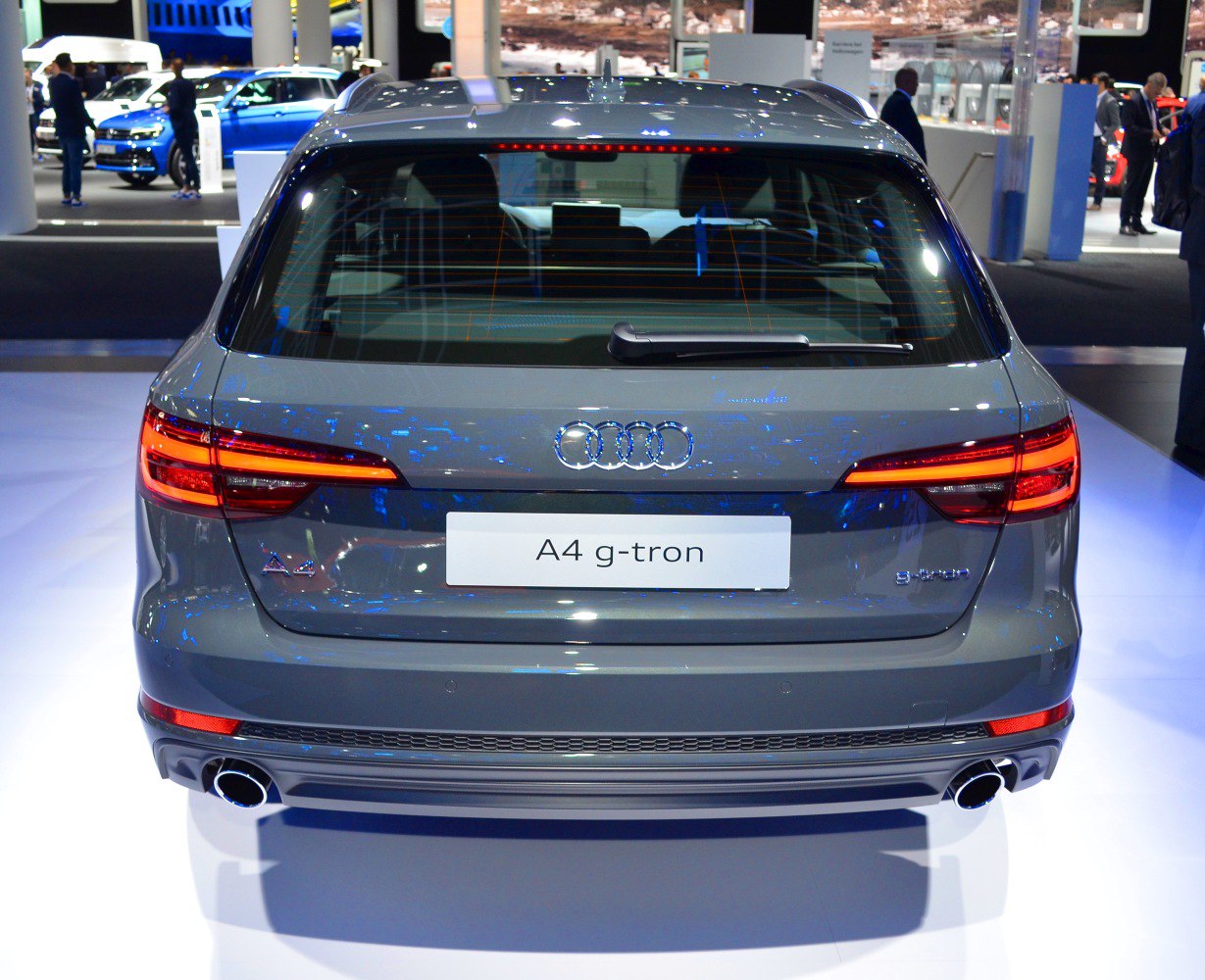

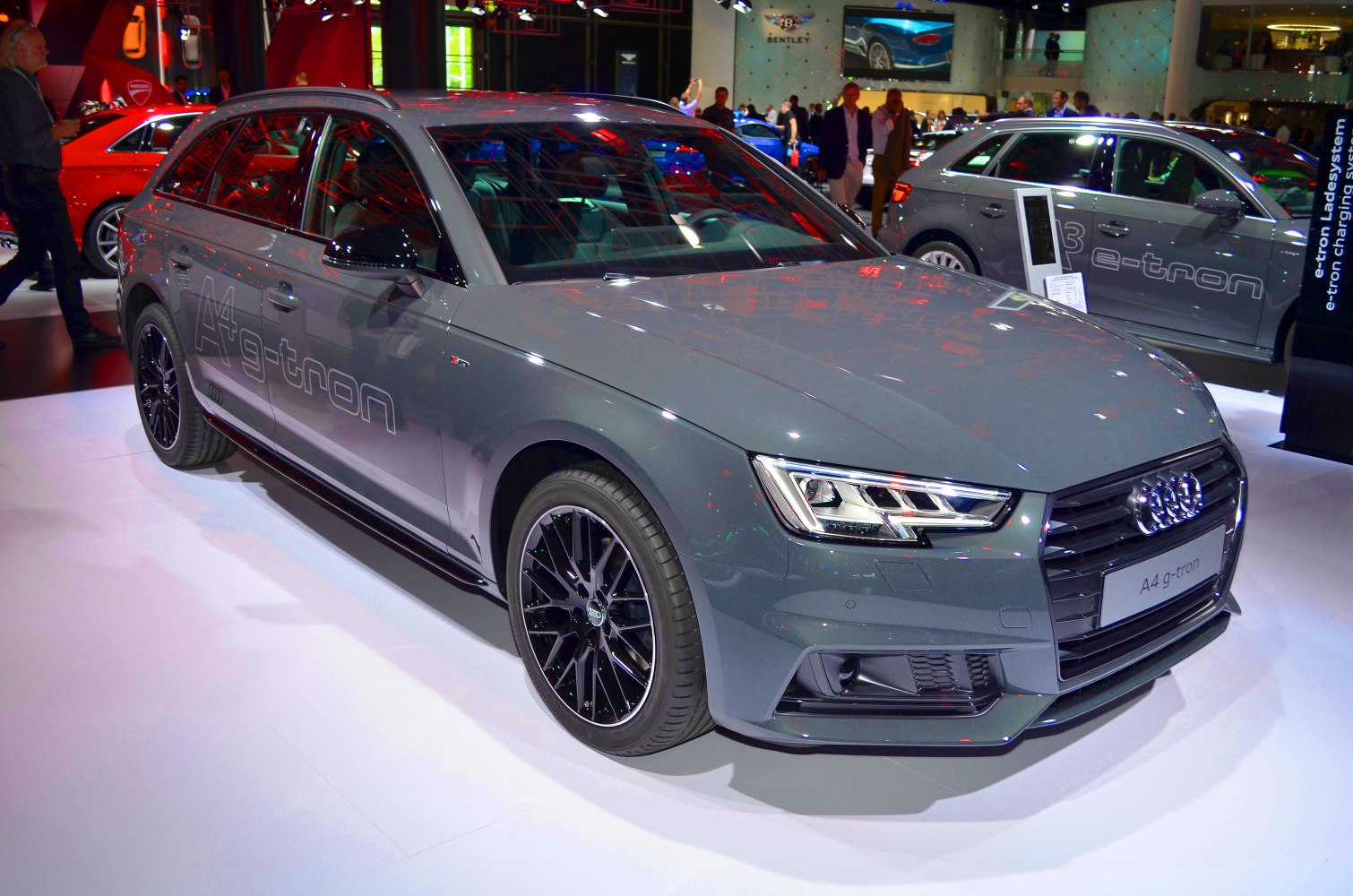

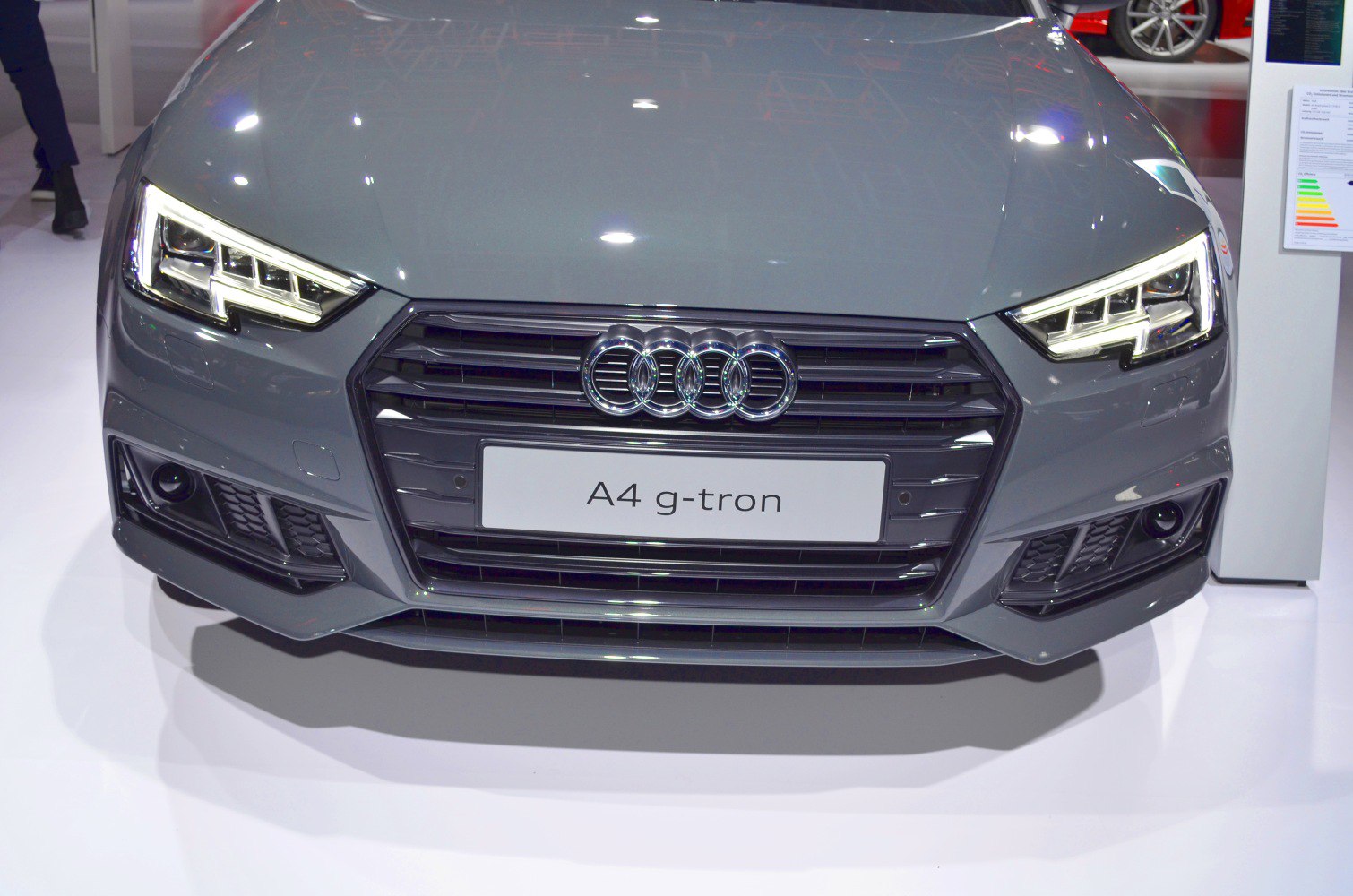

Audi A4 A4 Avant (B9 8W) View larger
Photo: © www.Auto-Data.net

Vehicle gallery

Audi A4 A4 Avant (B9 8W)

Photo: © www.Auto-Data.net

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

22 versions · 14 Diesel fuel · 6 Gasoline · 2 Gasoline / CNG

Engine Fuel Power Production
3.0 TDI V6 (272 KM) quattro Tiptronic Selected Diesel fuel 272 KM 2015–2018
2.0 TDI (150 KM) S tronic Selected Diesel fuel 150 KM 2015–2018
2.0 TFSI ultra (190 KM) S tronic Selected Gasoline 190 KM 2015–2018
2.0 TFSI (252 KM) quattro S tronic Selected Gasoline 252 KM 2015–2018
2.0 TDI (190 KM) quattro S tronic Selected Diesel fuel 190 KM 2015–2017
3.0 TDI V6 (218 KM) S tronic Selected Diesel fuel 218 KM 2015–2018
2.0 TDI (150 KM) Selected Diesel fuel 150 KM 2015–2018
2.0 TDI (190 KM) S tronic Selected Diesel fuel 190 KM 2015–2018
2.0 TDI ultra (150 KM) Selected Diesel fuel 150 KM 2015–2018
3.0 TDI V6 (218 KM) quattro S tronic Selected Diesel fuel 218 KM 2015–2018
2.0 TDI ultra (190 KM) S-tronic Selected Diesel fuel 190 KM 2015–2018
2.0 TDI ultra (190 KM) Selected Diesel fuel 190 KM 2015–2018
2.0 TDI ultra (150 KM) S tronic Selected Diesel fuel 150 KM 2015–2018
2.0 TFSI ultra (190 KM) Selected Gasoline 190 KM 2015–2018
2.0 TDI (190 KM) Selected Diesel fuel 190 KM 2015–2018
1.4 TFSI (150 KM) S-tronic Selected Gasoline 150 KM 2015–2018
1.4 TFSI (150 KM) Selected Gasoline 150 KM 2015–2018
2.0 TDI (122 KM) Selected Diesel fuel 122 KM 2016–2018
2.0 TFSI (252 KM) S tronic Selected Gasoline 252 KM 2015–2018
2.0 TDI (122 KM) S tronic Selected Diesel fuel 122 KM 2016–2018
g-tron 2.0 TFSI (170 KM) Selected Gasoline / CNG 170 KM 2017–2018
g-tron 2.0 TFSI (170 KM) S tronic Selected Gasoline / CNG 170 KM 2017–2018

Selected engine version

3.0 TDI V6 (272 KM) quattro Tiptronic

Diesel fuel · 2015–2018

Engine power
272 KM
Torque
600 Nm
Engine displacement
2,967 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
5.4 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
3.0 TDI V6 (272 KM) quattro Tiptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.4 s
Fuel consumption - Urban cycle
5.6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
134 g/km

Engine

Engine model / code
CRTC
Engine position
Front, Longitudinal
Engine displacement
2967 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
83 mm
Piston stroke
91.4 mm
Number of valves per cylinder
4
Engine oil capacity
6.1 l
Power
272 KM @ 3250-4250 obr./min
Torque
600 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
58 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1695 kg
Gross weight
2285 kg
Roof load
90 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
1900 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
tiptronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (150 KM) S tronic

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (150 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption - Urban cycle
5 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
DEUA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3250-4200 obr./min
Torque
320 Nm @ 1500-3250 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1525 kg
Gross weight
2145 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TFSI ultra (190 KM) S tronic

Gasoline · 2015–2018

Engine power
190 KM
Torque
320 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.5 s
Maximum speed
238 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TFSI ultra (190 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
238 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
6.4-6.8 l/100 km
Fuel consumption - Extra-urban cycle
4.3-4.9 l/100 km
Fuel consumption - Combined cycle
5-5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
114-128 g/km

Engine

Engine model / code
EA888/CVKB
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
11.65
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Coolant capacity
7.8 l
Power
190 KM @ 4200-6000 obr./min
Torque
320 Nm @ 1450-4200 obr./min

Volume and weight

Fuel tank
54 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1460 kg
Gross weight
2060 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TFSI (252 KM) quattro S tronic

Gasoline · 2015–2018

Engine power
252 KM
Torque
370 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TFSI (252 KM) quattro S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
6 s
Fuel consumption - Urban cycle
7.7-7.9 l/100 km
Fuel consumption - Extra-urban cycle
5.1-5.5 l/100 km
Fuel consumption - Combined cycle
6.1-6.4 l/100 km
Emission standard
Euro 6
CO2 emissions
139-147 g/km

Engine

Engine model / code
EA888/CYRB
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
252 KM @ 5000-6000 obr./min
Torque
370 Nm @ 1600-4500 obr./min

Volume and weight

Fuel tank
58 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1540 kg
Gross weight
2130 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension, Anti-roll bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (190 KM) quattro S tronic

Diesel fuel · 2015–2017

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.4 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (190 KM) quattro S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2017
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
7.4 s
Fuel consumption - Urban cycle
5.2 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.5 l/100 km
Emission standard
Euro 6
CO2 emissions
116 g/km

Engine

Engine model / code
DETA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3800-4200 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
58 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1615 kg
Gross weight
2220 kg
Roof load
90 kg
Braked trailer load (8% slope start)
2000 kg
Braked trailer load (12% slope start)
1800 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

3.0 TDI V6 (218 KM) S tronic

Diesel fuel · 2015–2018

Engine power
218 KM
Torque
400 Nm
Engine displacement
2,967 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.7 s
Maximum speed
245 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
3.0 TDI V6 (218 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
245 km/h
Acceleration 0-100 km/h
6.7 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.4 l/100 km
Emission standard
Euro 6
CO2 emissions
114 g/km

Engine

Engine model / code
CSWB
Engine position
Front, Longitudinal
Engine displacement
2967 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
83 mm
Piston stroke
91.4 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
6.1 l
Power
218 KM @ 4000-5000 obr./min
Torque
400 Nm @ 1250-3750 obr./min

Volume and weight

Fuel tank
54 l
AdBlue tank
12 l
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1595 kg
Gross weight
2185 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (150 KM)

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.2 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
DEUA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3250-4200 obr./min
Torque
320 Nm @ 1500-3250 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1475 kg
Gross weight
2095 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (190 KM) S tronic

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
231 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (190 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
231 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
DETA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3800-4200 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1530 kg
Gross weight
2145 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI ultra (150 KM)

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.2 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI ultra (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
4.7 l/100 km
Fuel consumption - Extra-urban cycle
3.6 l/100 km
Fuel consumption - Combined cycle
4 l/100 km
Emission standard
Euro 6
CO2 emissions
104 g/km

Engine

Engine model / code
DEUA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3250-4200 obr./min
Torque
320 Nm @ 1500-3250 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1480 kg
Gross weight
2100 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1600 kg
Braked trailer load (12% slope start)
1400 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

3.0 TDI V6 (218 KM) quattro S tronic

Diesel fuel · 2015–2018

Engine power
218 KM
Torque
400 Nm
Engine displacement
2,967 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.4 s
Maximum speed
245 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
3.0 TDI V6 (218 KM) quattro S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
245 km/h
Acceleration 0-100 km/h
6.4 s
Fuel consumption - Urban cycle
5.2-5.0 l/100 km
Fuel consumption - Extra-urban cycle
4.8-4.4 l/100 km
Fuel consumption - Combined cycle
4.9-4.7 l/100 km
Emission standard
Euro 6
CO2 emissions
129-123 g/km

Engine

Engine model / code
CSWB
Engine position
Front, Longitudinal
Engine displacement
2967 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
83 mm
Piston stroke
91.4 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
6.1 l
Power
218 KM @ 4000-5000 obr./min
Torque
400 Nm @ 1250-3750 obr./min

Volume and weight

Fuel tank
58 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1660 kg
Gross weight
2250 kg
Roof load
90 kg
Braked trailer load (8% slope start)
2000 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI ultra (190 KM) S-tronic

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI ultra (190 KM) S-tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
4.7-5.0 l/100 km
Fuel consumption - Extra-urban cycle
3.5-3.9 l/100 km
Fuel consumption - Combined cycle
4.0-4.3 l/100 km
Emission standard
Euro 6
CO2 emissions
104-112 g/km

Engine

Engine model / code
DETA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
15.5
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3800-4200 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1530 kg
Gross weight
2150 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1600 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI ultra (190 KM)

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI ultra (190 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
4.9-5.1 l/100 km
Fuel consumption - Extra-urban cycle
3.6-3.8 l/100 km
Fuel consumption - Combined cycle
4.0-4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
104-111 g/km

Engine

Engine model / code
DETA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
15.5
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3800-4200 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1500 kg
Gross weight
2120 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1600 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI ultra (150 KM) S tronic

Diesel fuel · 2015–2018

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI ultra (150 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption - Urban cycle
4.7-5.0 l/100 km
Fuel consumption - Extra-urban cycle
3.5-3.8 l/100 km
Fuel consumption - Combined cycle
3.9-4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
102-110 g/km

Engine

Engine model / code
DEUA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3250-4200 obr./min
Torque
320 Nm @ 1500-3250 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1525 kg
Gross weight
2145 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1600 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TFSI ultra (190 KM)

Gasoline · 2015–2018

Engine power
190 KM
Torque
320 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.5 s
Maximum speed
236 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TFSI ultra (190 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
236 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
7.3-7.7 l/100 km
Fuel consumption - Extra-urban cycle
4.6-5.2 l/100 km
Fuel consumption - Combined cycle
5.6-6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
127-139 g/km

Engine

Engine model / code
EA888/CVKB
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
11.65
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Coolant capacity
7.8 l
Power
190 KM @ 4200-6000 obr./min
Torque
320 Nm @ 1450-4200 obr./min

Volume and weight

Fuel tank
54 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1430 kg
Gross weight
2035 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension, Anti-roll bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (190 KM)

Diesel fuel · 2015–2018

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (190 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
5.1-5.4 l/100 km
Fuel consumption - Extra-urban cycle
3.9-4.1 l/100 km
Fuel consumption - Combined cycle
4.4-4.6 l/100 km
Emission standard
Euro 6
CO2 emissions
114-121 g/km

Engine

Engine model / code
DETA
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
15.5
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3800-4200 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1515 kg
Gross weight
2130 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

1.4 TFSI (150 KM) S-tronic

Gasoline · 2015–2018

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
1.4 TFSI (150 KM) S-tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.7-7.2 l/100 km
Fuel consumption - Extra-urban cycle
4.3-4.8 l/100 km
Fuel consumption - Combined cycle
5.2-5.7 l/100 km
Emission standard
Euro 6
CO2 emissions
119-131 g/km

Engine

Engine model / code
CVNA
Engine position
Front, Longitudinal
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
54 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1415 kg
Gross weight
2005 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
740 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

1.4 TFSI (150 KM)

Gasoline · 2015–2018

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
1.4 TFSI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption - Urban cycle
6.8-7.3 l/100 km
Fuel consumption - Extra-urban cycle
4.5-5.0 l/100 km
Fuel consumption - Combined cycle
5.3-5.8 l/100 km
Emission standard
Euro 6
CO2 emissions
124-139 g/km

Engine

Engine model / code
CVNA
Engine position
Front, Longitudinal
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
54 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1370 kg
Gross weight
1960 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1600 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
720 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (122 KM)

Diesel fuel · 2016–2018

Engine power
122 KM
Torque
270 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (122 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2016
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
4.6-5.0 l/100 km
Fuel consumption - Extra-urban cycle
3.5-4.0 l/100 km
Fuel consumption - Combined cycle
3.9-4.3 l/100 km
Emission standard
Euro 6
CO2 emissions
102-115 g/km

Engine

Engine model / code
DEUC
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
122 KM @ 3500-4000 obr./min
Torque
270 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1475 kg
Gross weight
2095 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1500 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TFSI (252 KM) S tronic

Gasoline · 2015–2018

Engine power
252 KM
Torque
370 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.5 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TFSI (252 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
6.5 s
Fuel consumption - Urban cycle
7.5-7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.9-5.2 l/100 km
Fuel consumption - Combined cycle
5.9-6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
134-142 g/km

Engine

Engine model / code
EA888/CYRB
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
252 KM @ 5000-6000 obr./min
Torque
370 Nm @ 1600-4500 obr./min

Volume and weight

Fuel tank
54 l
Aerodynamic drag coefficient (Cx)
0.26
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1500 kg
Gross weight
2090 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension, Anti-roll bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/50 R17; 245/40 R18; 245/35 R19
Rim size
7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

2.0 TDI (122 KM) S tronic

Diesel fuel · 2016–2018

Engine power
122 KM
Torque
270 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.6 s
Maximum speed
198 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
2.0 TDI (122 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2016
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
198 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
4.8-5.2 l/100 km
Fuel consumption - Extra-urban cycle
3.6-4.0 l/100 km
Fuel consumption - Combined cycle
4.0-4.4 l/100 km
Emission standard
Euro 6
CO2 emissions
104-115 g/km

Engine

Engine model / code
DEUC
Engine position
Front, Longitudinal
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
122 KM @ 3500-4000 obr./min
Torque
270 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
40 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
505 l
Maximum trunk capacity
1510 l
Curb weight
1525 kg
Gross weight
2145 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1434 mm
Wheelbase
2820 mm
Front track
1572 mm
Rear track
1555 mm
Front overhang
880 mm
Rear overhang
1025 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

g-tron 2.0 TFSI (170 KM)

Gasoline / CNG · 2017–2018

Engine power
170 KM
Torque
270 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline / CNG
Acceleration 0-100 km/h
8.5 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
g-tron 2.0 TFSI (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline / CNG

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
8.5 s
Fuel consumption - Urban cycle
8-8.3/5.5-5.7 l/100 km
Fuel consumption - Urban cycle (CNG)
5.5-5.7 kg/100 km
Fuel consumption - Extra-urban cycle
4.9-5.4/3.3-3.6 l/100 km
Fuel consumption - Extra-urban cycle (CNG)
3.3-3.6 kg/100 km
Fuel consumption - Combined cycle
6-6.5/4-4.4 l/100 km
Fuel consumption - Combined cycle (CNG)
4-4.4 kg/100 km
Emission standard
Euro 6
CO2 emissions
136-147/109-117 g/km
CO2 emissions (CNG)
109-117 g/km

Engine

Engine model / code
EA888/CVLA
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
170 KM @ 4450-6000 obr./min
Torque
270 Nm @ 1650-4400 obr./min

Volume and weight

Fuel tank
25 l
CNG tank capacity
19 kg
Minimum trunk capacity
415 l
Maximum trunk capacity
1415 l
Curb weight
1560 kg
Gross weight
2100 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1442 mm
Wheelbase
2818 mm
Front track
1572 mm
Rear track
1553 mm
Front overhang
880 mm
Rear overhang
1027 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension, Anti-roll bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

Selected engine version

g-tron 2.0 TFSI (170 KM) S tronic

Gasoline / CNG · 2017–2018

Engine power
170 KM
Torque
270 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline / CNG
Acceleration 0-100 km/h
8.4 s
Maximum speed
221 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A4
Version
A4 Avant (B9 8W)
Engine
g-tron 2.0 TFSI (170 KM) S tronic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline / CNG

Performance

Maximum speed
221 km/h
Acceleration 0-100 km/h
8.4 s
Fuel consumption - Urban cycle
7.1-7.5/5.1-5.3 l/100 km
Fuel consumption - Urban cycle (CNG)
5.1-5.3 kg/100 km
Fuel consumption - Extra-urban cycle
4.6-5.2/3.1-3.5 l/100 km
Fuel consumption - Extra-urban cycle (CNG)
3.1-3.5 kg/100 km
Fuel consumption - Combined cycle
5.5-6/3.8-4.2 l/100 km
Fuel consumption - Combined cycle (CNG)
3.8-4.2 kg/100 km
Emission standard
Euro 6
CO2 emissions
126-137/102-111 g/km
CO2 emissions (CNG)
102-111 g/km

Engine

Engine model / code
EA888/CVLA
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
170 KM @ 4450-6000 obr./min
Torque
270 Nm @ 1650-4400 obr./min

Volume and weight

Fuel tank
25 l
CNG tank capacity
19 kg
Minimum trunk capacity
415 l
Maximum trunk capacity
1415 l
Curb weight
1595 kg
Gross weight
2135 kg
Roof load
90 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
80 kg

Vehicle dimensions

Length
4725 mm
Width
1842 mm
Width with unfolded mirrors
2022 mm
Height
1442 mm
Wheelbase
2818 mm
Front track
1572 mm
Rear track
1553 mm
Front overhang
880 mm
Rear overhang
1027 mm
Turning circle
11.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent multi-link suspension, Anti-roll bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 225/50 R17; 245/40 R18; 245/35 R19
Rim size
7J x 16; 7.5J x 17; 8J x 18; 8.5J x 19
ABS
yes

About Audi A4 A4 Avant (B9 8W)

The Audi A4 Avant (B9 8W) is an elegant estate car produced from 2015 to 2018, combining modern design with functionality. It is intended for drivers looking for a practical vehicle with a high standard of finish, which performs excellently as both a family car and an executive vehicle. The five-door configuration and spacious interior make it ideal for those who value style and comfort in their everyday life.

This model offers a rich selection of powertrains, including gasoline, diesel, and compressed natural gas (CNG) options. Power ranges from 122 to 272 hp, allowing performance to be tailored to individual preferences. The standout units are the 3.0 TDI V6 (272 hp) quattro Tiptronic and the 2.0 TFSI (252 hp) quattro S tronic, delivering dynamic experiences with all-wheel drive. Manual, automatic, and S tronic transmissions are also available, influencing the driving characteristics.

The Audi A4 Avant (B9 8W) offers a choice of front-wheel and all-wheel drive, significantly improving traction and stability in various conditions. The car is valued for its driving comfort thanks to the precise steering system and suspension that minimizes road imperfections. In urban conditions, it is noted for its maneuverability, while on long-distance routes, it excels in comfort and low noise levels. Rich equipment in supportive systems, such as adaptive cruise control, parking assistant, and MMI system, enhances comfort and safety levels.

However, potential buyers should be aware of a few issues. Some units may experience problems with electronics, particularly concerning multimedia systems. Maintenance costs, especially for versions equipped with advanced powertrains, may be higher compared to other models. Fuel consumption for the more powerful engines can also be greater than expected, which should be considered when planning an operating budget.

The Audi A4 Avant (B9 8W) stands out with its elegant design, high level of comfort, and advanced technology, making it a unique car in the premium estate segment. With a wide selection of powertrains and modern equipment, it is an attractive choice for those valuing a combination of prestige and functionality. It distinguishes itself from competitors as a practical yet luxurious vehicle.
