Vehicle specifications
Alfa Romeo Spider (916, facelift 2003)
Compare all 3 engine versions of the Alfa Romeo Spider Spider (916, facelift 2003), then open the technical data for the exact drivetrain and production year.

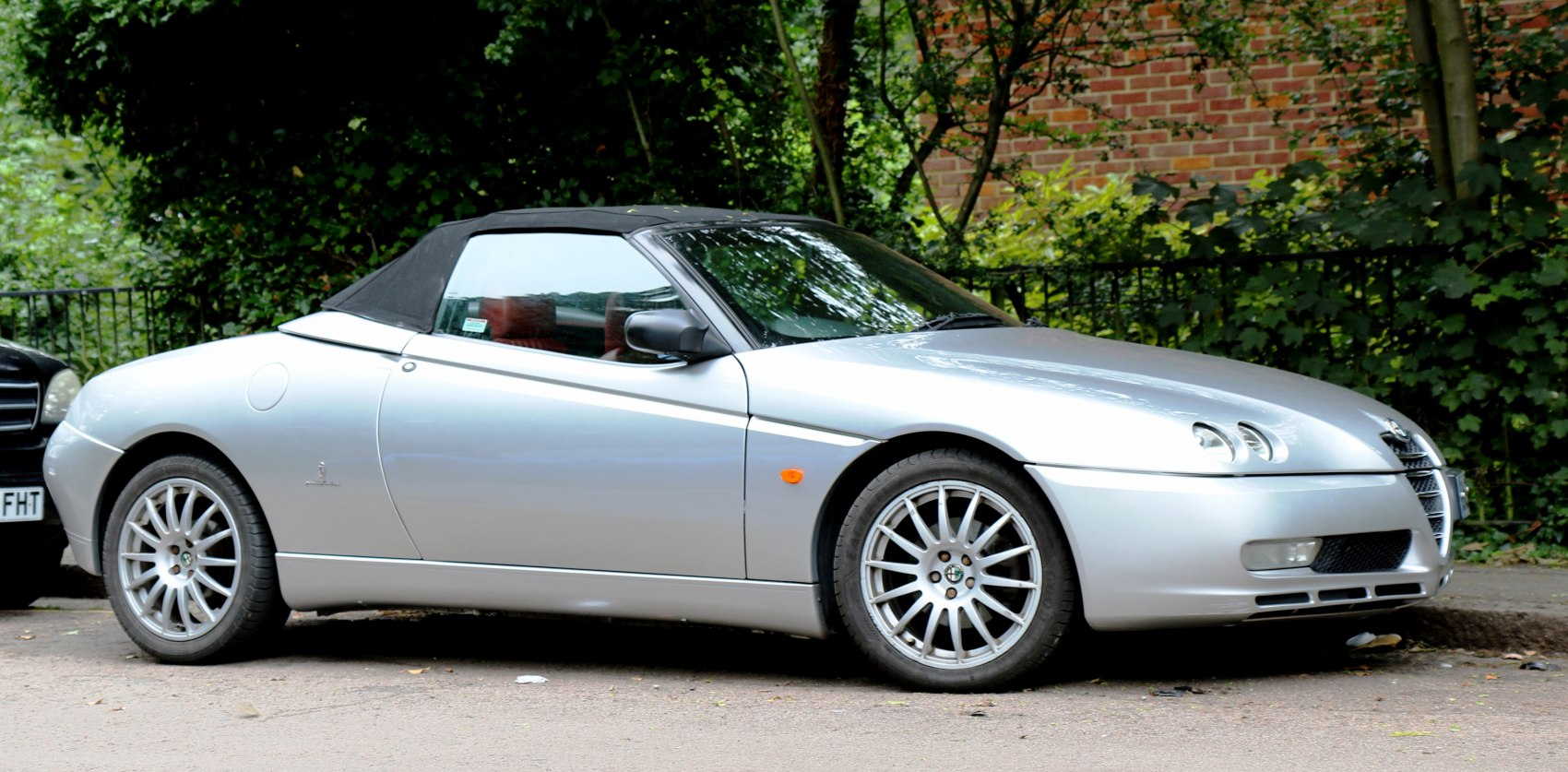

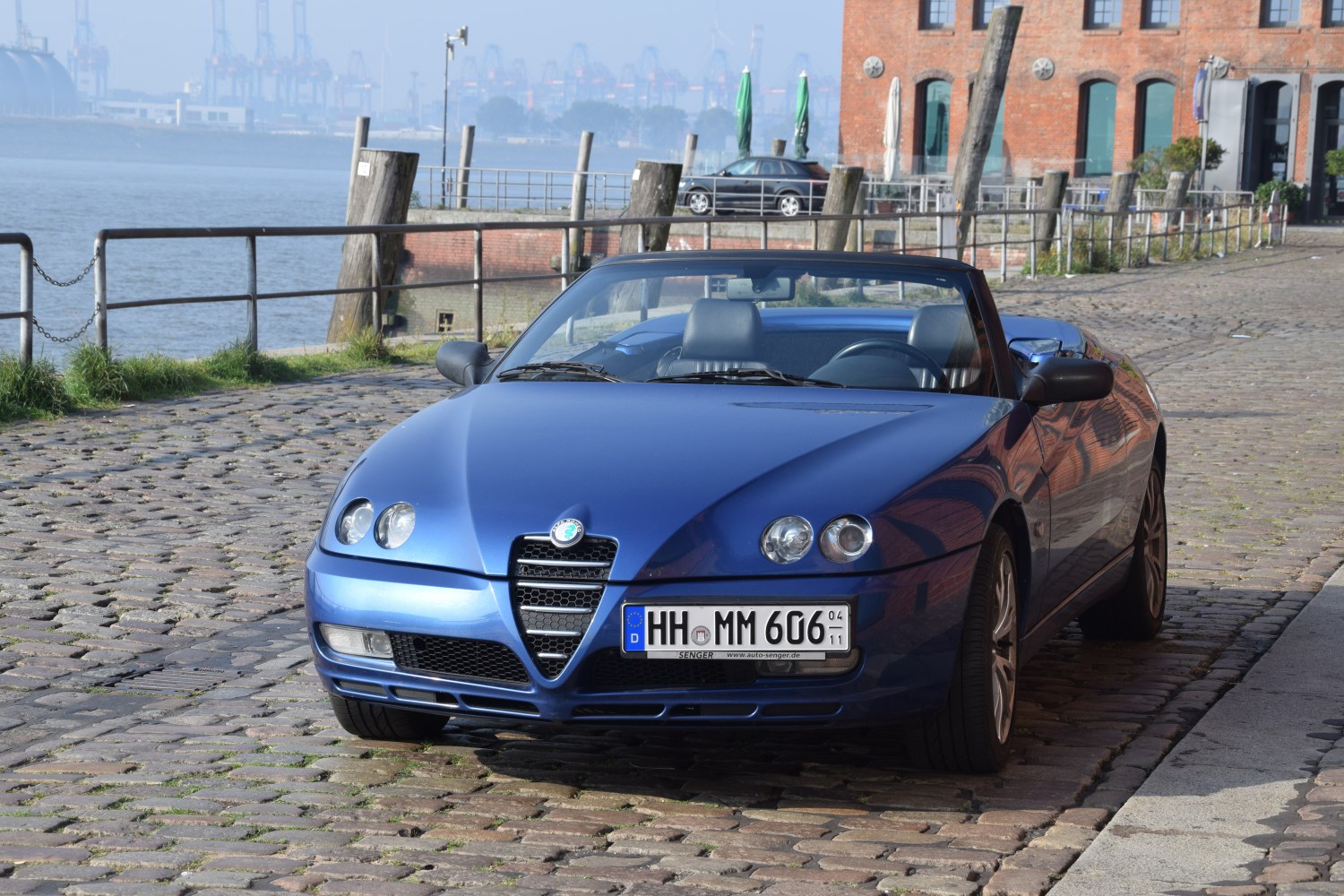

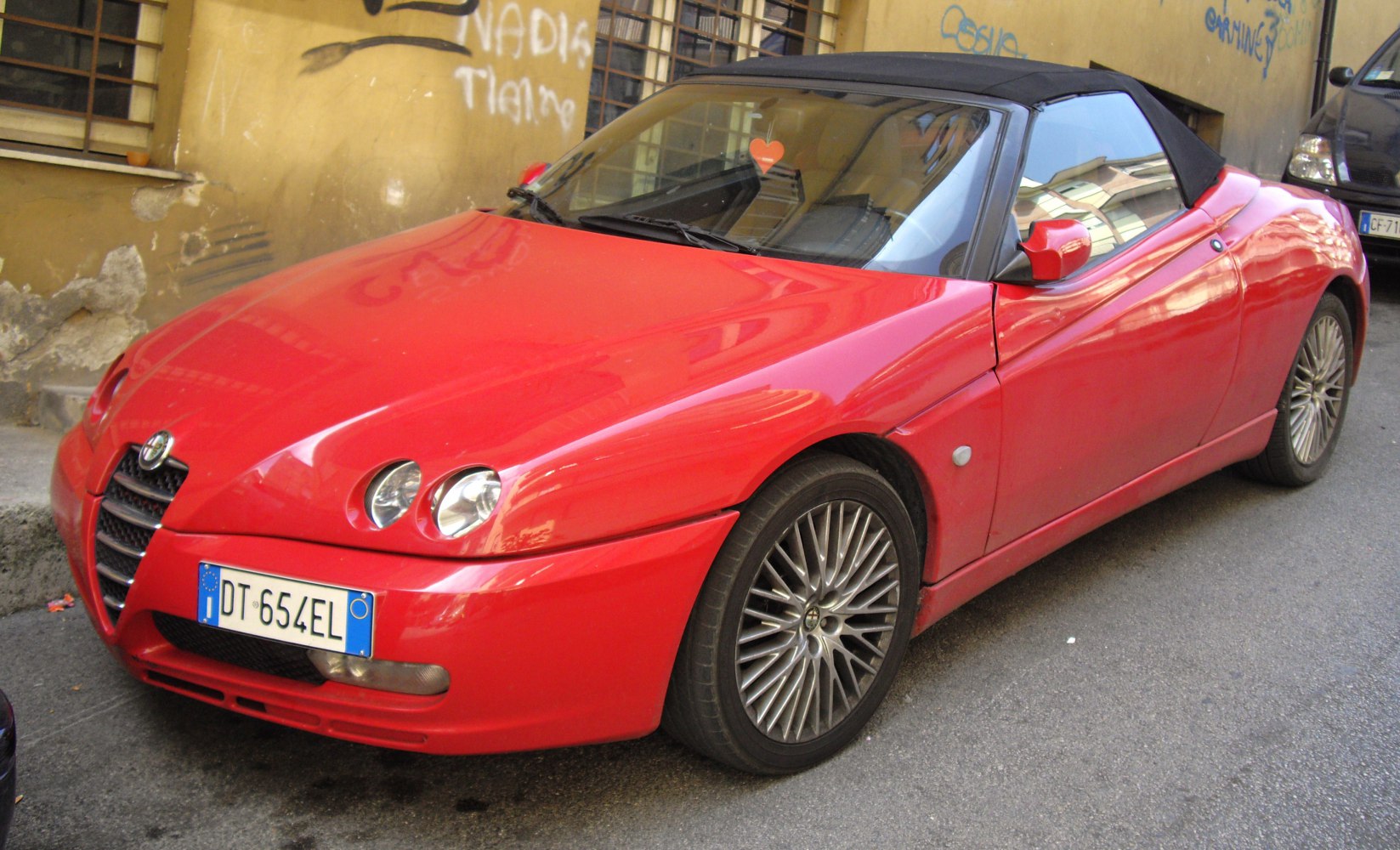

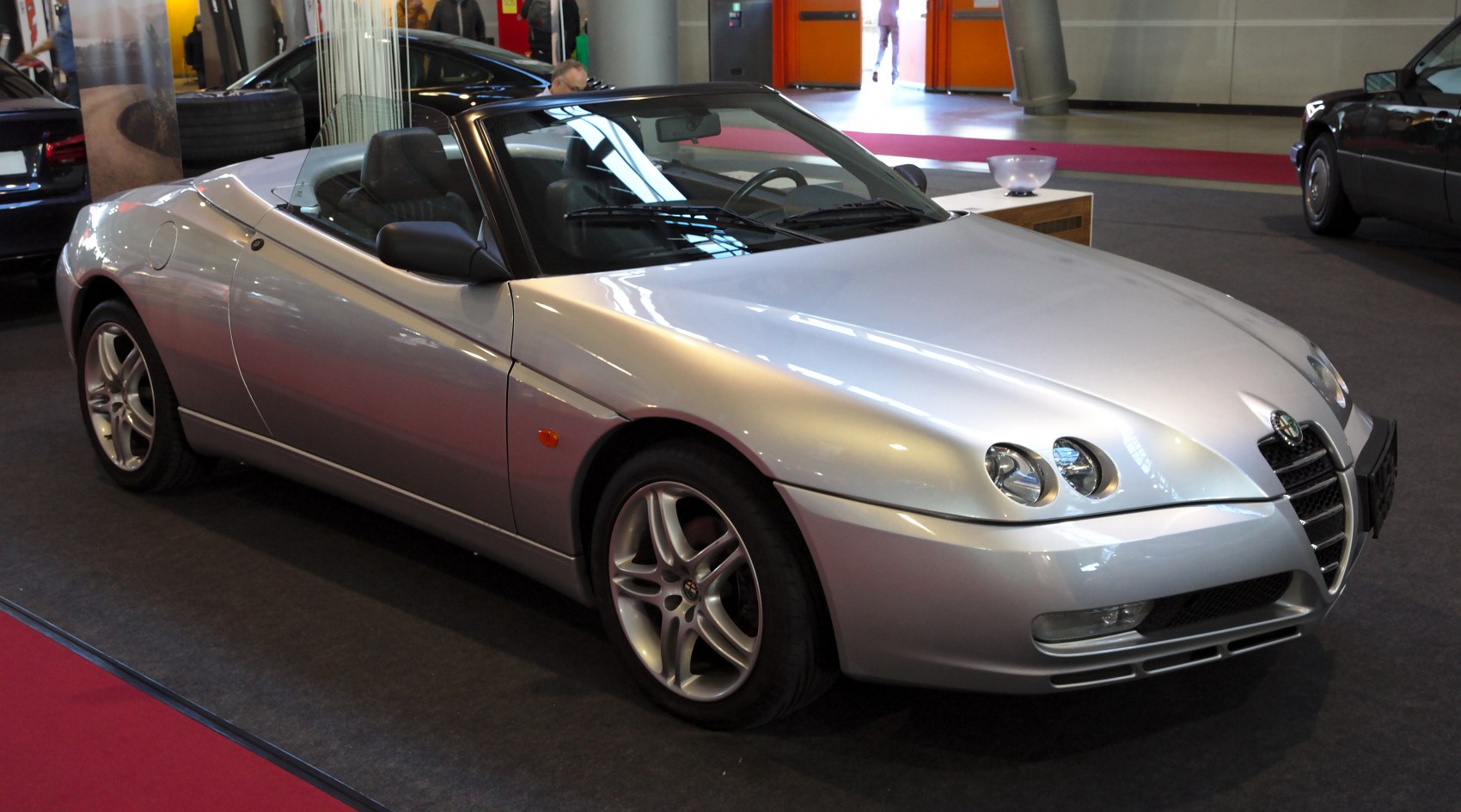

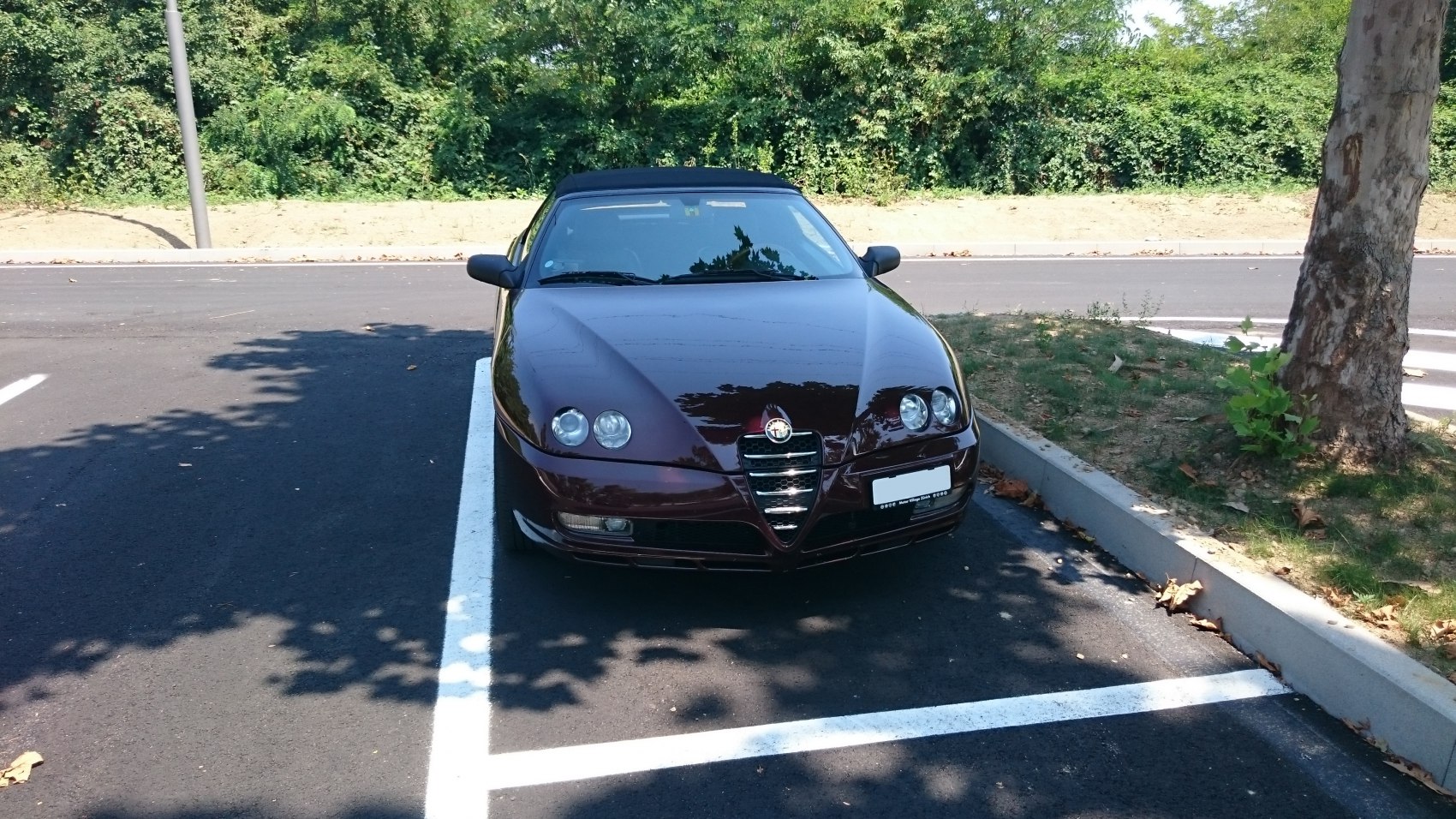

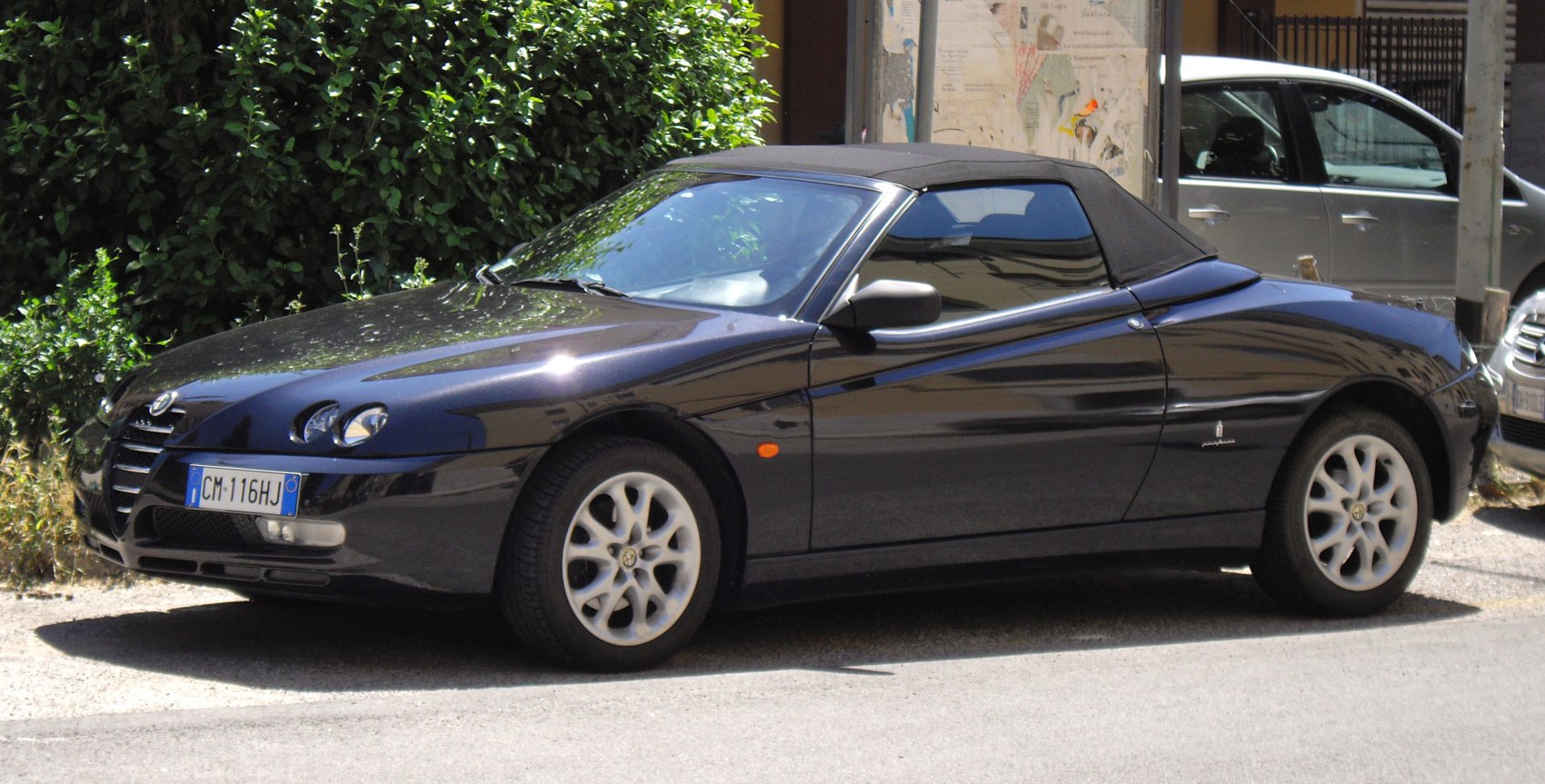

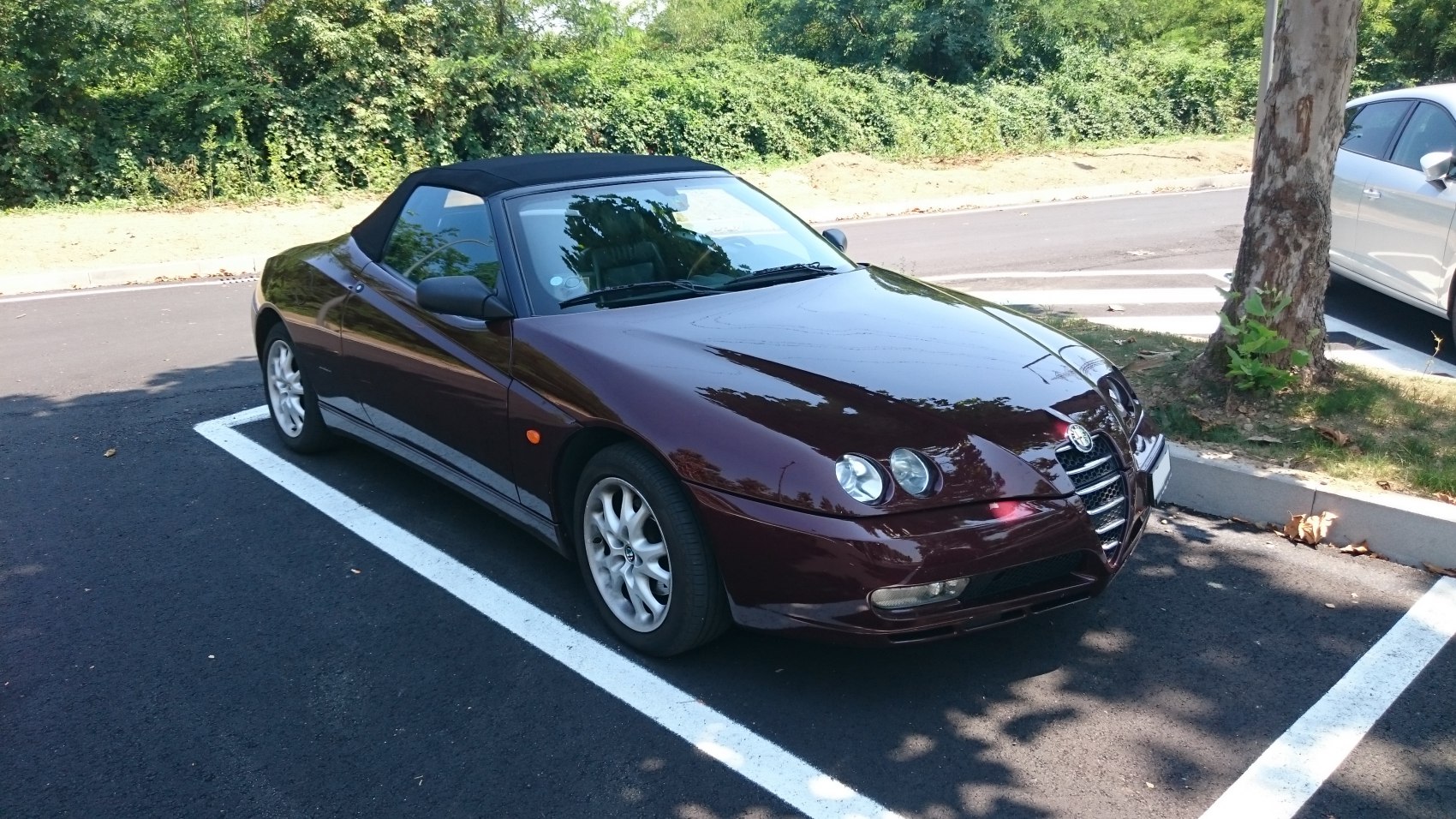

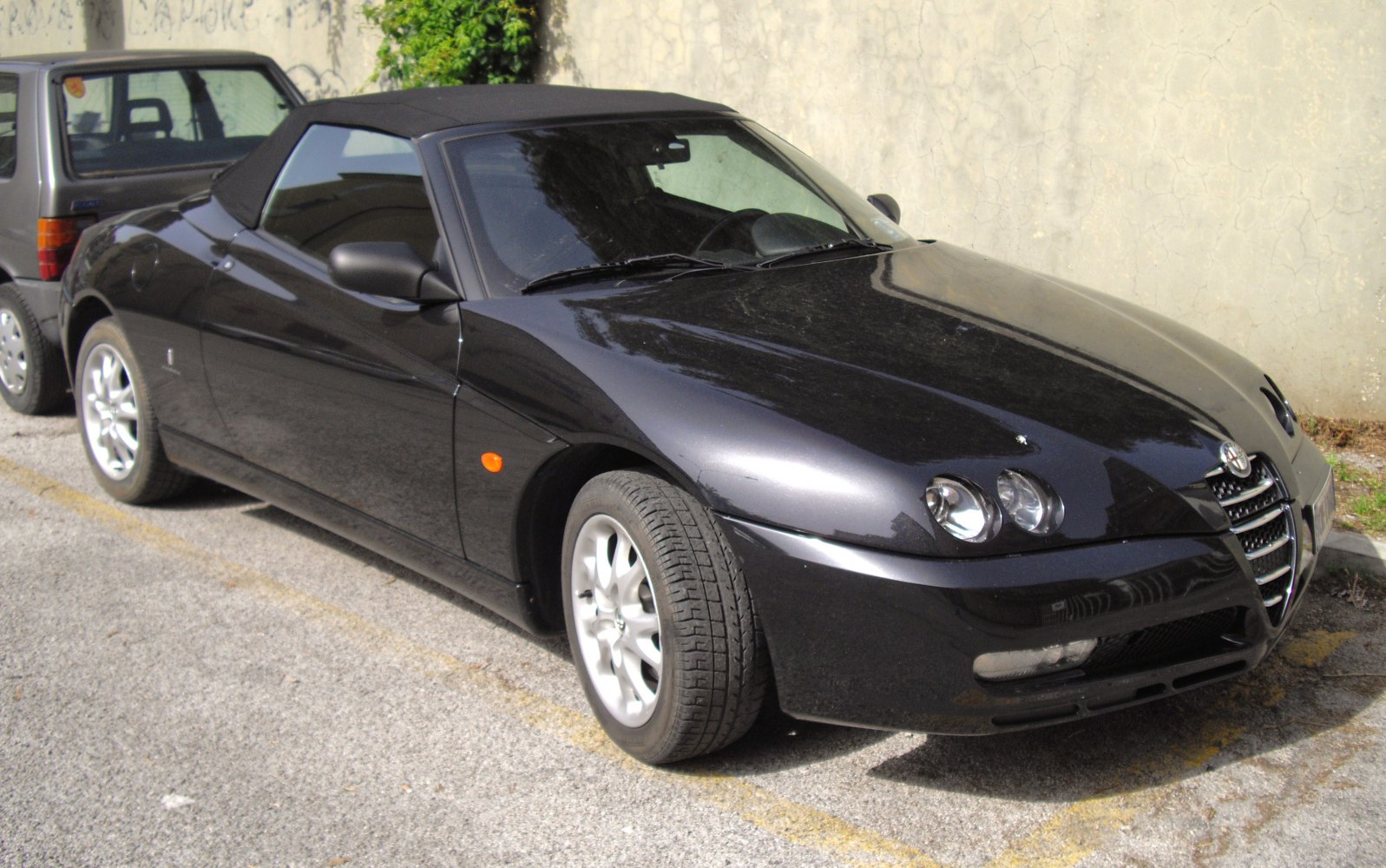

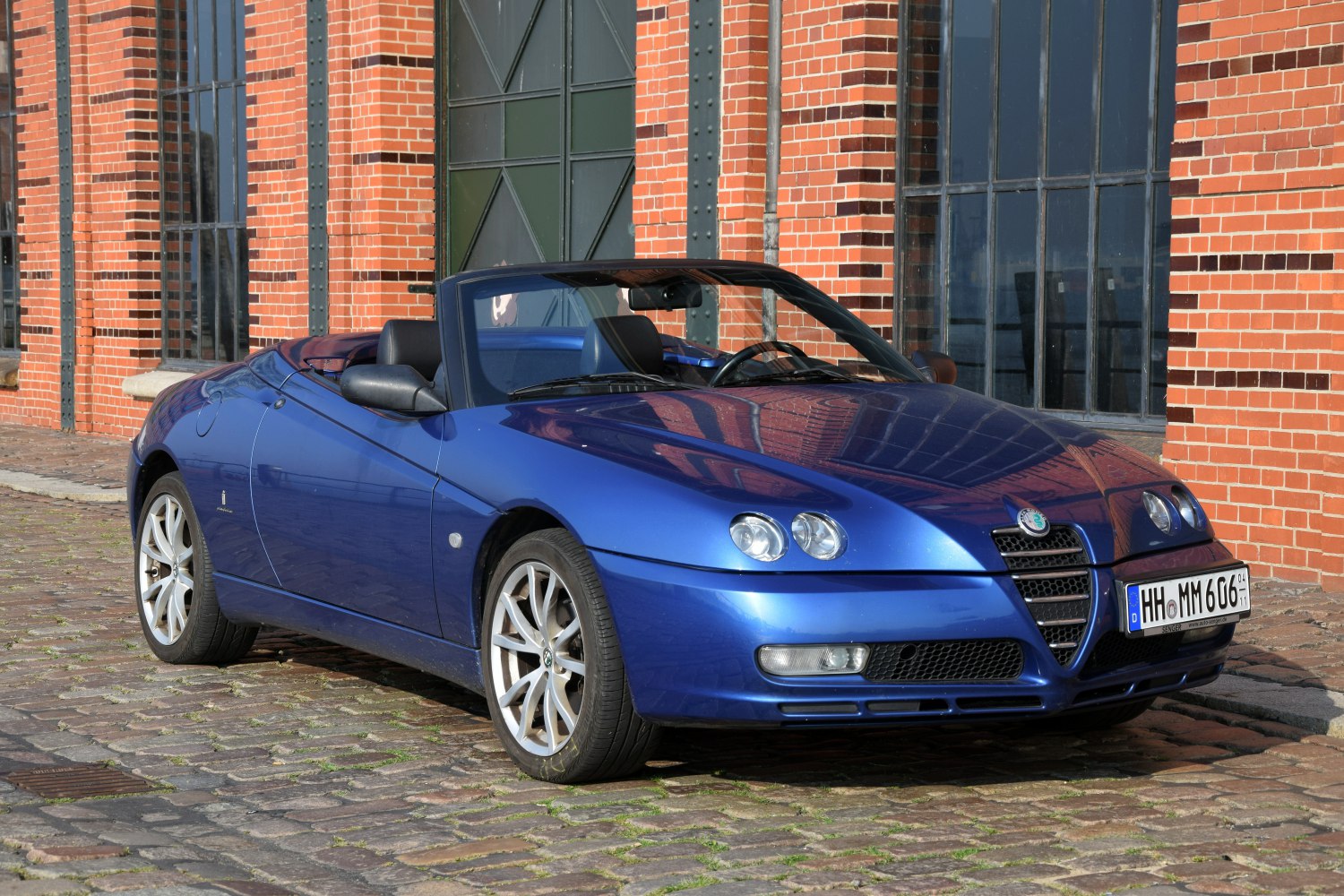

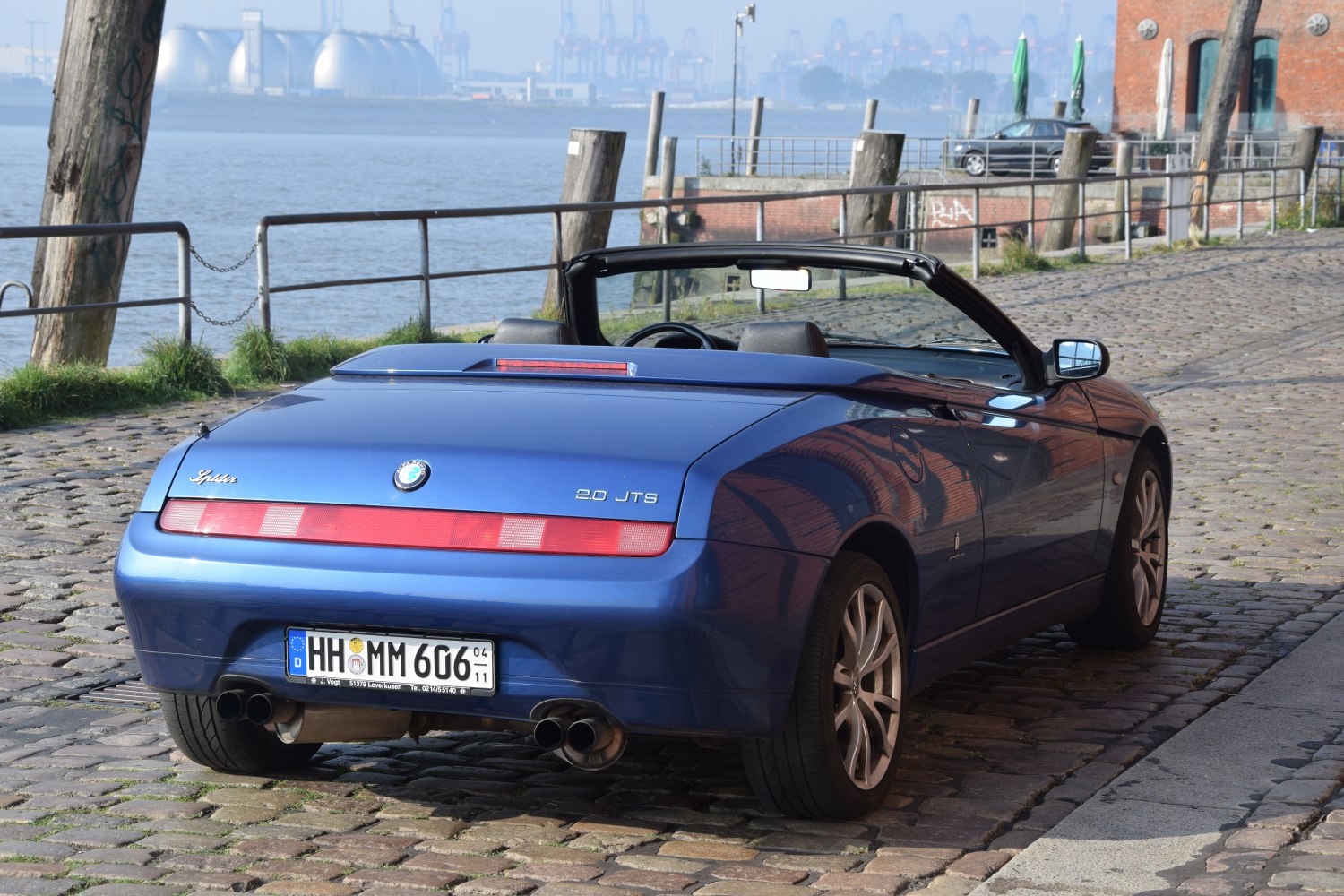

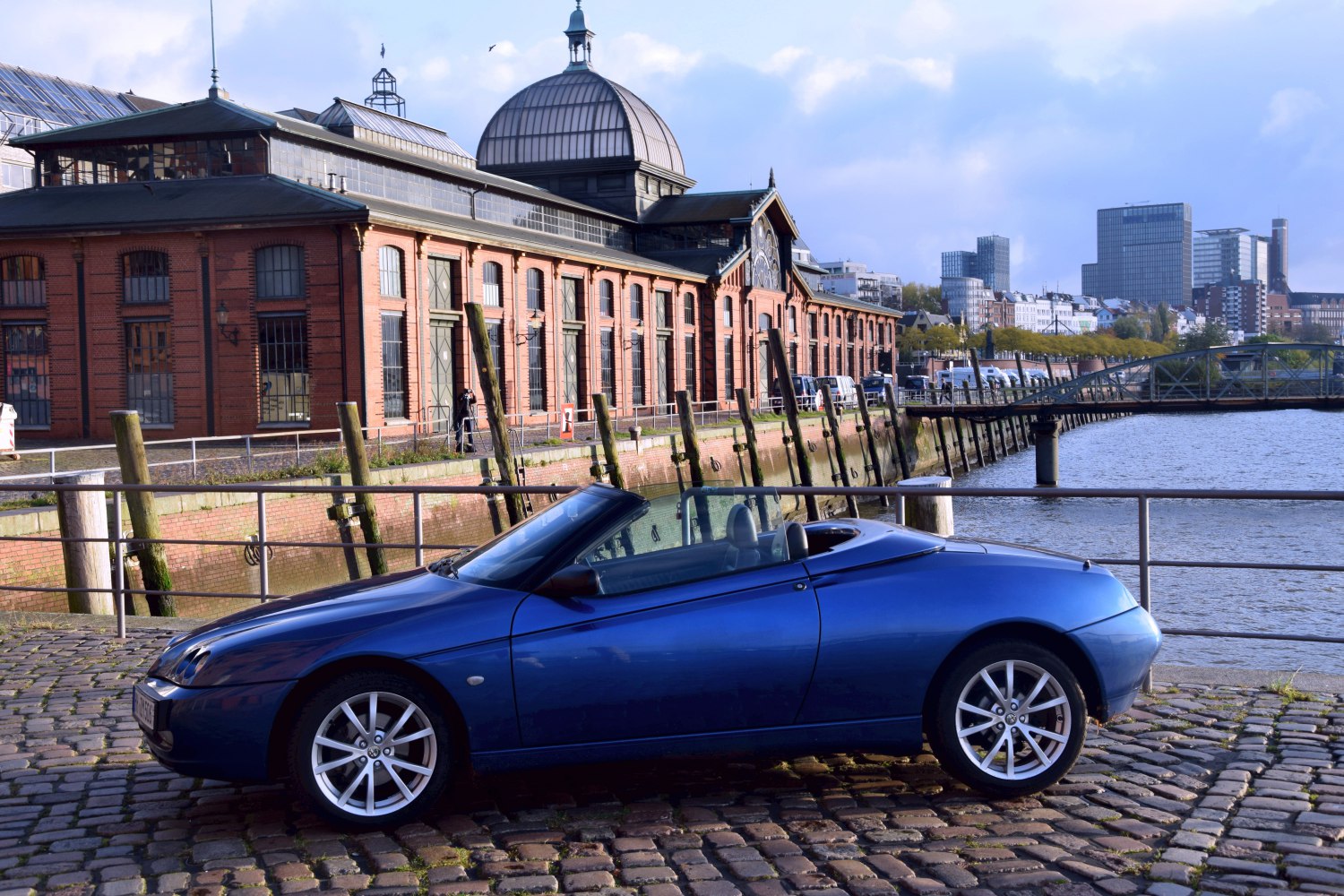

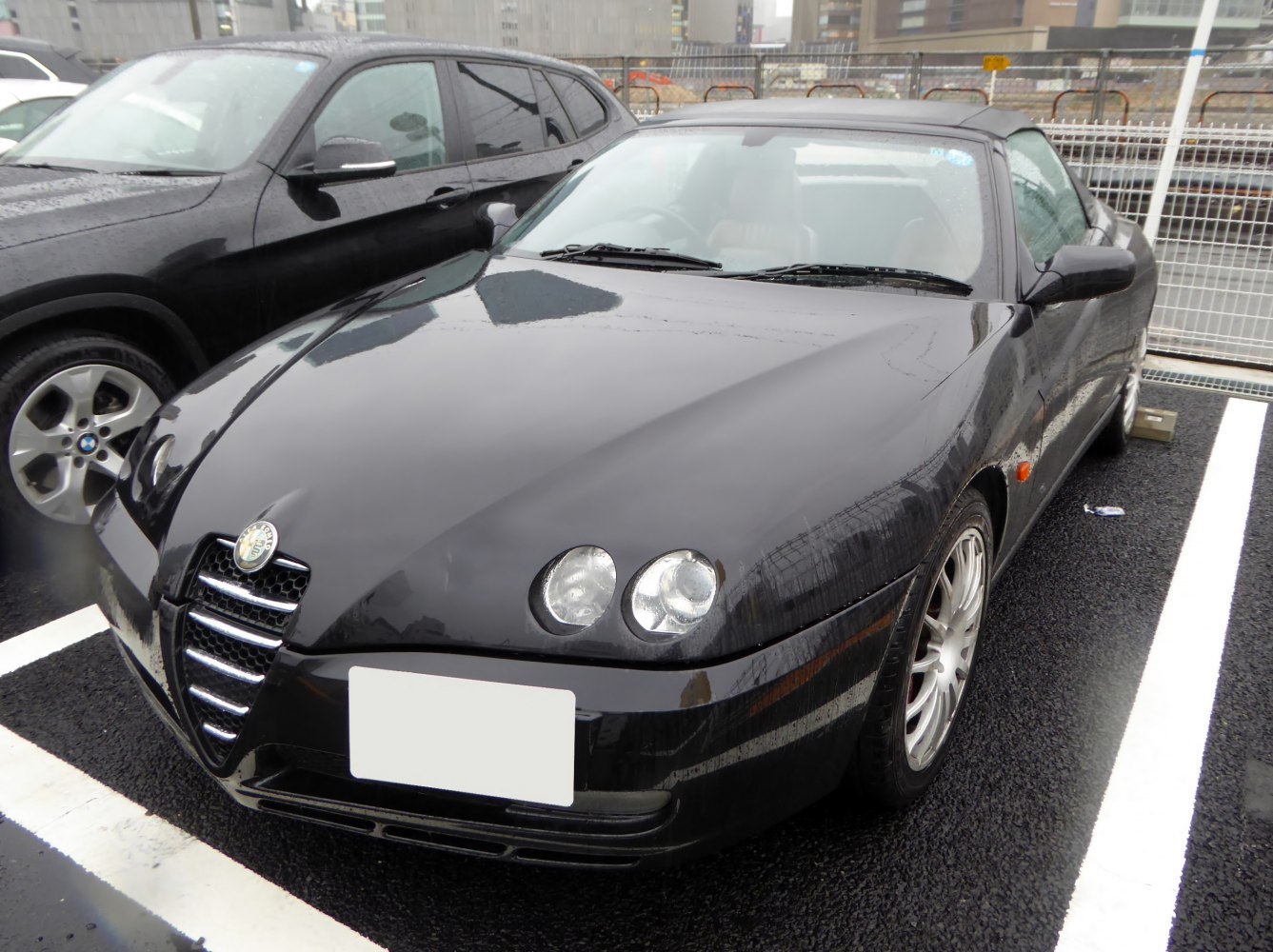

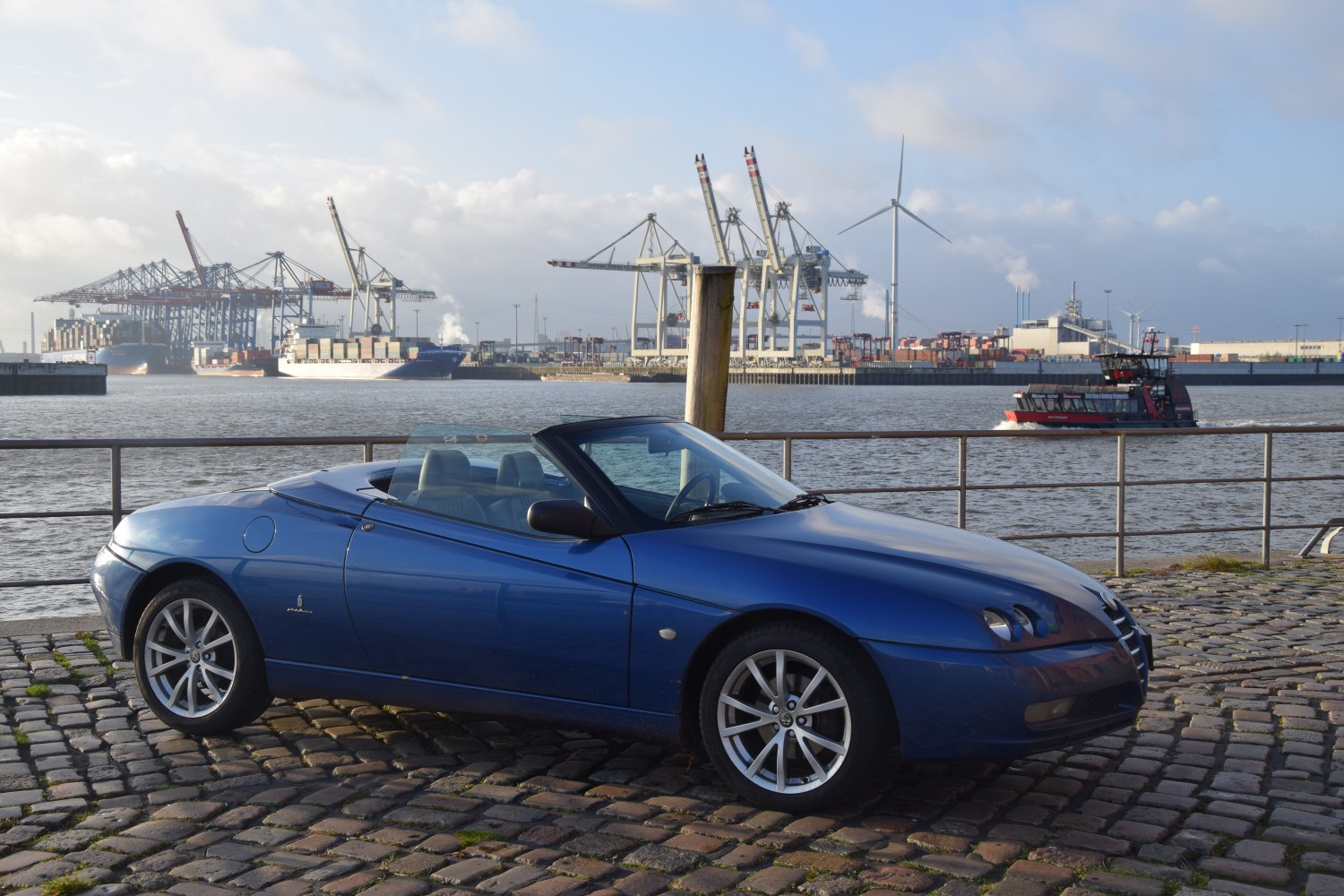

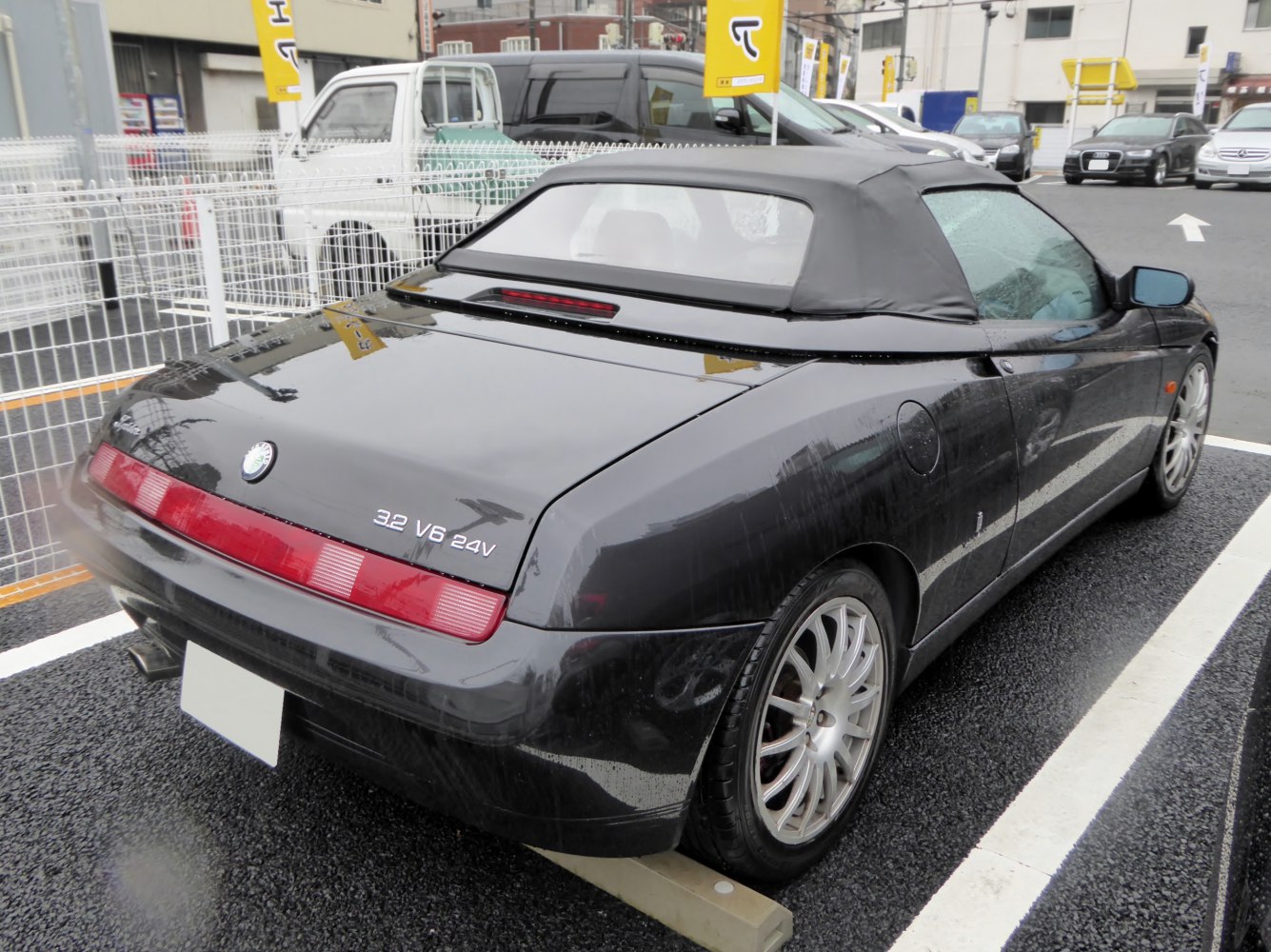

Vehicle photos
1 of 14
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 JTS (165 KM) Selected | Gasoline | 165 KM | 2003–2004 |
| 3.2 V6 (240 KM) Selected | Gasoline | 240 KM | 2003–2004 |
| 2.0 Twin Spark (150 KM) Selected | Gasoline | 150 KM | 2003–2004 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 JTS (165 KM)
Gasoline · 2003–2004
- Engine power
- 165KM
- Torque
- 206Nm
- Engine displacement
- 1,970cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.4s
- Maximum speed
- 215km/h
On this page
Basic version information
Alfa Romeo Spider Spider (916, facelift 2003)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (916, facelift 2003)
- Engine
- 2.0 JTS (165 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2004
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 215 km/h
- Acceleration 0-100 km/h
- 8.4 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 13.3 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 9.2 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 220 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- 937A1000
- Engine position
- Front, Transverse
- Engine displacement
- 1970 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 91 mm
- Compression ratio
- 11.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.4 l
- Coolant capacity
- 8.4 l
- Power
- 165 KM @ 6400 obr./min
- Torque
- 206 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 70 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 147 l
- Curb weight
- 1405 kg
- Gross weight
- 1665 kg
- Braked trailer load (12% slope start)
- 1000 kg
Vehicle dimensions
- Length
- 4299 mm
- Width
- 1776 mm
- Height
- 1315 mm
- Wheelbase
- 2540 mm
- Front track
- 1506 mm
- Rear track
- 1499 mm
- Front overhang
- 989 mm
- Rear overhang
- 770 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 284 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 240 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/50 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
3.2 V6 (240 KM)
Gasoline · 2003–2004
- Engine power
- 240KM
- Torque
- 289Nm
- Engine displacement
- 3,179cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.3s
- Maximum speed
- 242km/h
On this page
Basic version information
Alfa Romeo Spider Spider (916, facelift 2003)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (916, facelift 2003)
- Engine
- 3.2 V6 (240 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2004
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 242 km/h
- Acceleration 0-100 km/h
- 6.3 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 19.9 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 9.3 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 13.2 l/100 km
- Emission standard
- Euro 3
- CO2 measurement standard
- NEDC
- CO2 emissions
- 315 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- 936A000
- Engine position
- Front, Transverse
- Engine displacement
- 3179 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 93 mm
- Piston stroke
- 78 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Coolant capacity
- 9.2 l
- Power
- 240 KM @ 6200 obr./min
- Torque
- 289 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 70 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 147 l
- Curb weight
- 1470 kg
- Gross weight
- 1730 kg
- Braked trailer load (12% slope start)
- 1000 kg
Vehicle dimensions
- Length
- 4299 mm
- Width
- 1776 mm
- Height
- 1315 mm
- Wheelbase
- 2540 mm
- Front track
- 1530 mm
- Rear track
- 1508 mm
- Front overhang
- 989 mm
- Rear overhang
- 770 mm
- Turning circle
- 12 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 305 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 240 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/45 R17
- Rim size
- 7.5J X 17
- ABS
- yes
Selected engine version
2.0 Twin Spark (150 KM)
Gasoline · 2003–2004
- Engine power
- 150KM
- Torque
- 181Nm
- Engine displacement
- 1,970cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.5s
- Maximum speed
- 210km/h
On this page
Basic version information
Alfa Romeo Spider Spider (916, facelift 2003)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (916, facelift 2003)
- Engine
- 2.0 Twin Spark (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2004
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 13.3 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 9.2 l/100 km
- Emission standard
- Euro 3
- CO2 measurement standard
- NEDC
- CO2 emissions
- 220 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- AR32310
- Engine position
- Front, Transverse
- Engine displacement
- 1970 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 91 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.4 l
- Coolant capacity
- 8.4 l
- Power
- 150 KM @ 6300 obr./min
- Torque
- 181 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 70 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 147 l
- Curb weight
- 1405 kg
- Gross weight
- 1665 kg
- Braked trailer load (12% slope start)
- 1000 kg
Vehicle dimensions
- Length
- 4299 mm
- Width
- 1776 mm
- Height
- 1315 mm
- Wheelbase
- 2540 mm
- Front track
- 1506 mm
- Rear track
- 1499 mm
- Front overhang
- 989 mm
- Rear overhang
- 770 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 284 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 240 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/50 R16
- Rim size
- 7J x 16
- ABS
- yes
