Specifications Ford F-350 Super Duty IV Crew Cab Long box

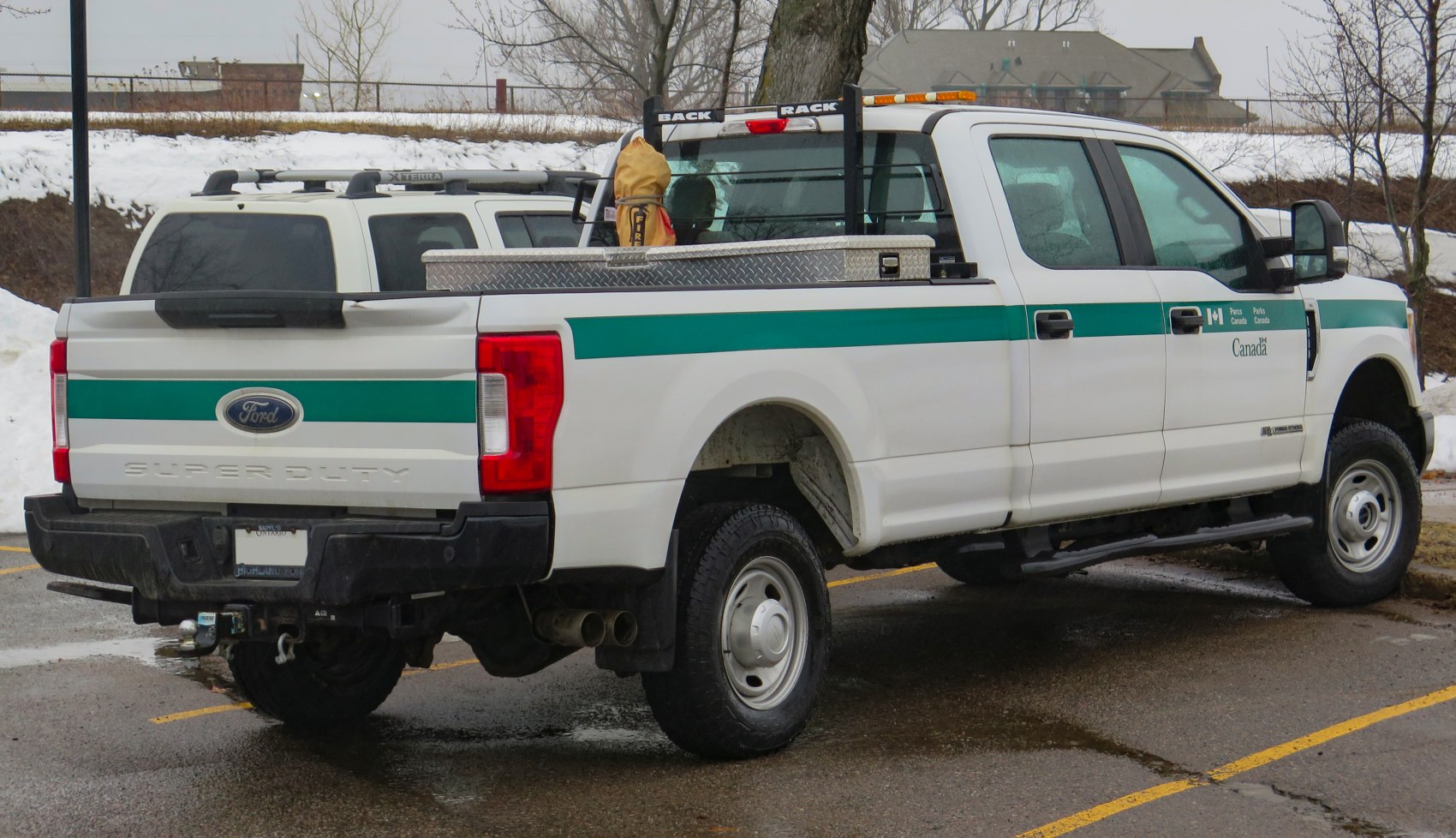

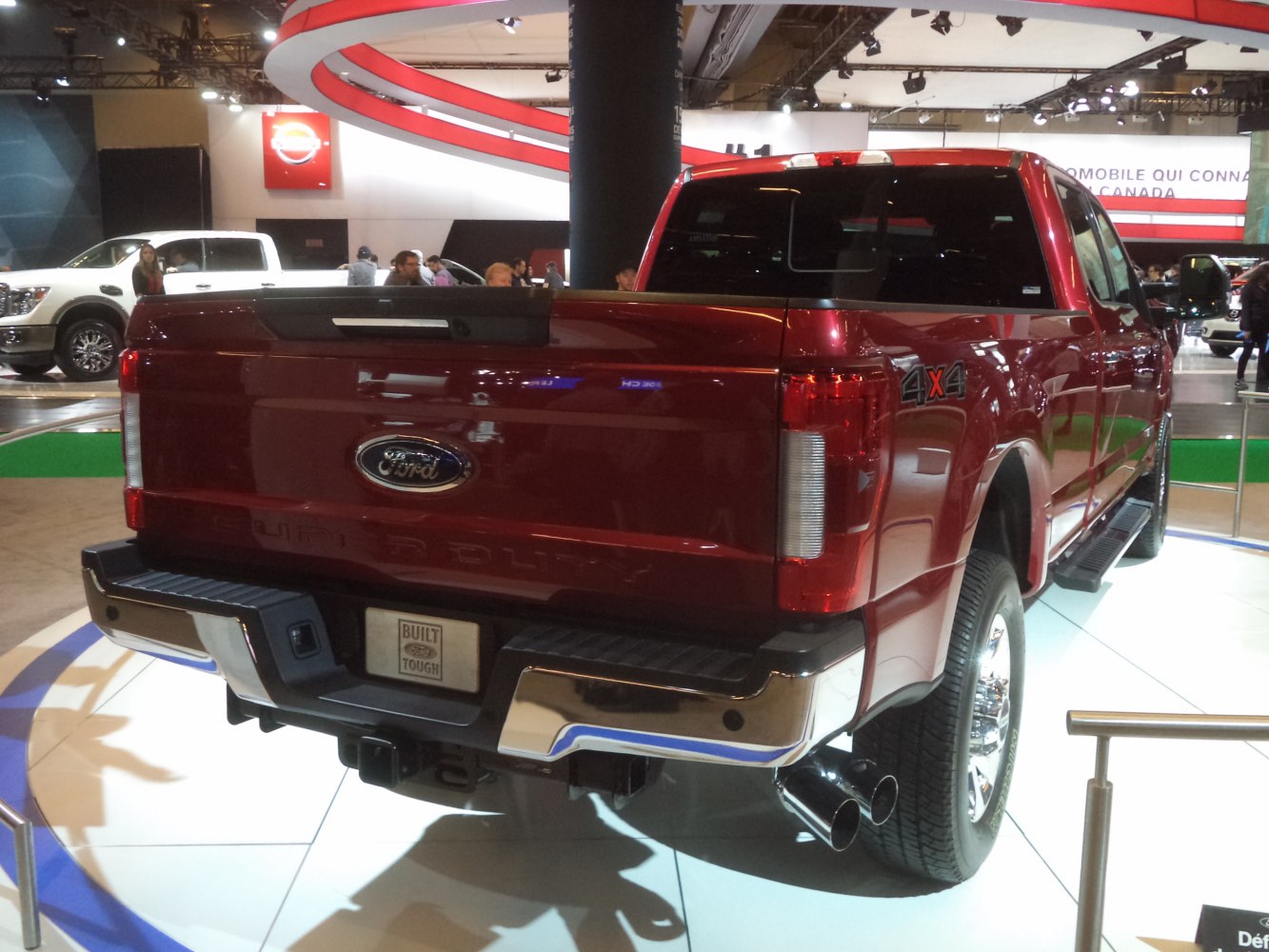

Vehicle photos

Basic information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine power	385 KM – 450 KM
Years of production	2017 r. – 2019 r.
Body type	Pick-up
Number of doors	4
Number of seats	6

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.2 V8 (385 KM) Automatic SRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	2956-2981 kg
Braked trailer load (12% slope start)	7348 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1981 mm
Wheelbase	4470 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	216 mm
Approach angle	17.9 °
Departure angle	17.6 °
Ramp angle	16.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.2 V8 (385 KM) Automatic DRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3163 kg
Braked trailer load (12% slope start)	7257 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1979 mm
Wheelbase	4470 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.5 °
Departure angle	17.2 °
Ramp angle	16.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.7d V8 (450 KM) 4x4 Automatic DRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3484-3673 kg
Braked trailer load (12% slope start)	14197 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2057 mm
Wheelbase	4470 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	19.1 °
Departure angle	20.1 °
Ramp angle	20.8 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.7d V8 (450 KM) Automatic DRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3301-3490 kg
Braked trailer load (12% slope start)	14378 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1979 mm
Wheelbase	4470 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.5 °
Departure angle	17.2 °
Ramp angle	16.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.2 V8 (385 KM) 4x4 Automatic SRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3142-3168 kg
Braked trailer load (12% slope start)	7121 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2060 mm
Wheelbase	4470 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	208 mm
Approach angle	18.1 °
Departure angle	20.9 °
Ramp angle	20.9 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.2 V8 (385 KM) 4x4 Automatic DRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3347 kg
Braked trailer load (12% slope start)	7031 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2057 mm
Wheelbase	4470 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	19.1 °
Departure angle	20.1 °
Ramp angle	20.8 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.7d V8 (450 KM) 4x4 Automatic SRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3482-3508 kg
Braked trailer load (12% slope start)	9344 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2060 mm
Wheelbase	4470 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	208 mm
Approach angle	18.1 °
Departure angle	20.9 °
Ramp angle	20.9 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Crew Cab Long box
Engine	6.7d V8 (450 KM) Automatic SRW
Engine type	Combustion engine
Number of doors	4
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	182 l
Minimum trunk capacity	2222 l
Curb weight	3293-3319 kg
Braked trailer load (12% slope start)	9525 kg

Vehicle dimensions

Length	6761 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1981 mm
Wheelbase	4470 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	216 mm
Approach angle	17.9 °
Departure angle	17.6 °
Ramp angle	16.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
