Specifications Citroen C5 II (Phase II, 2012)

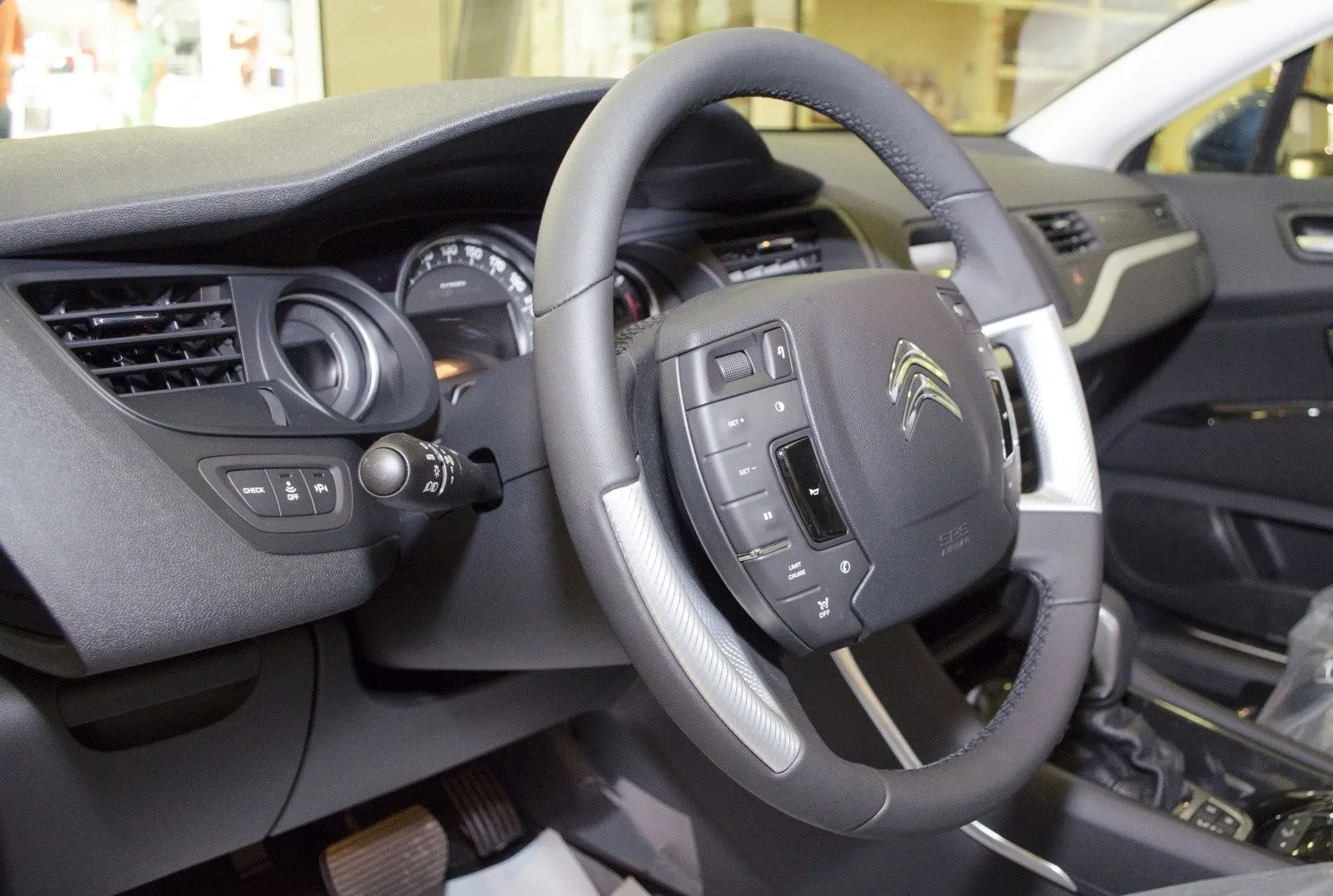

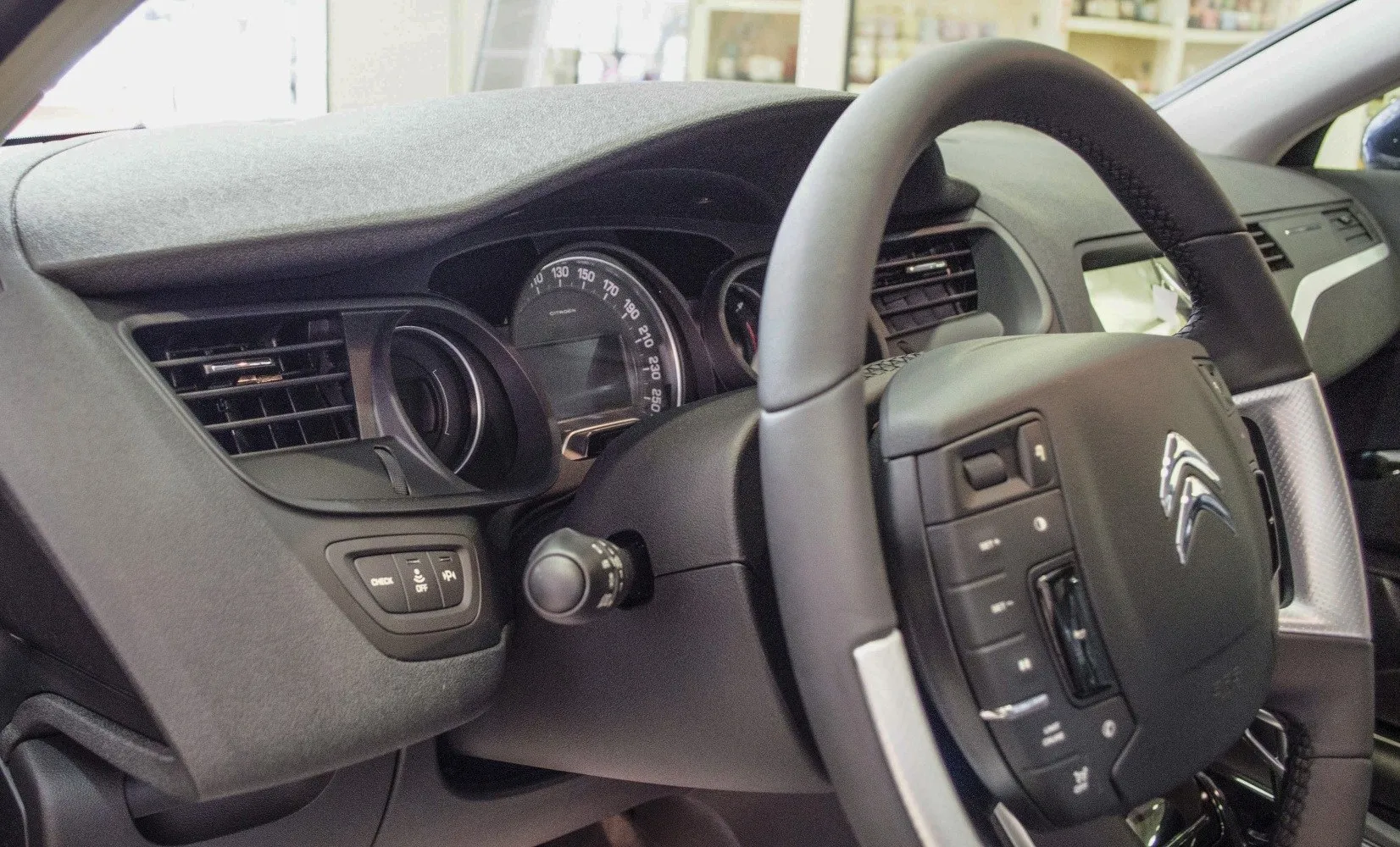

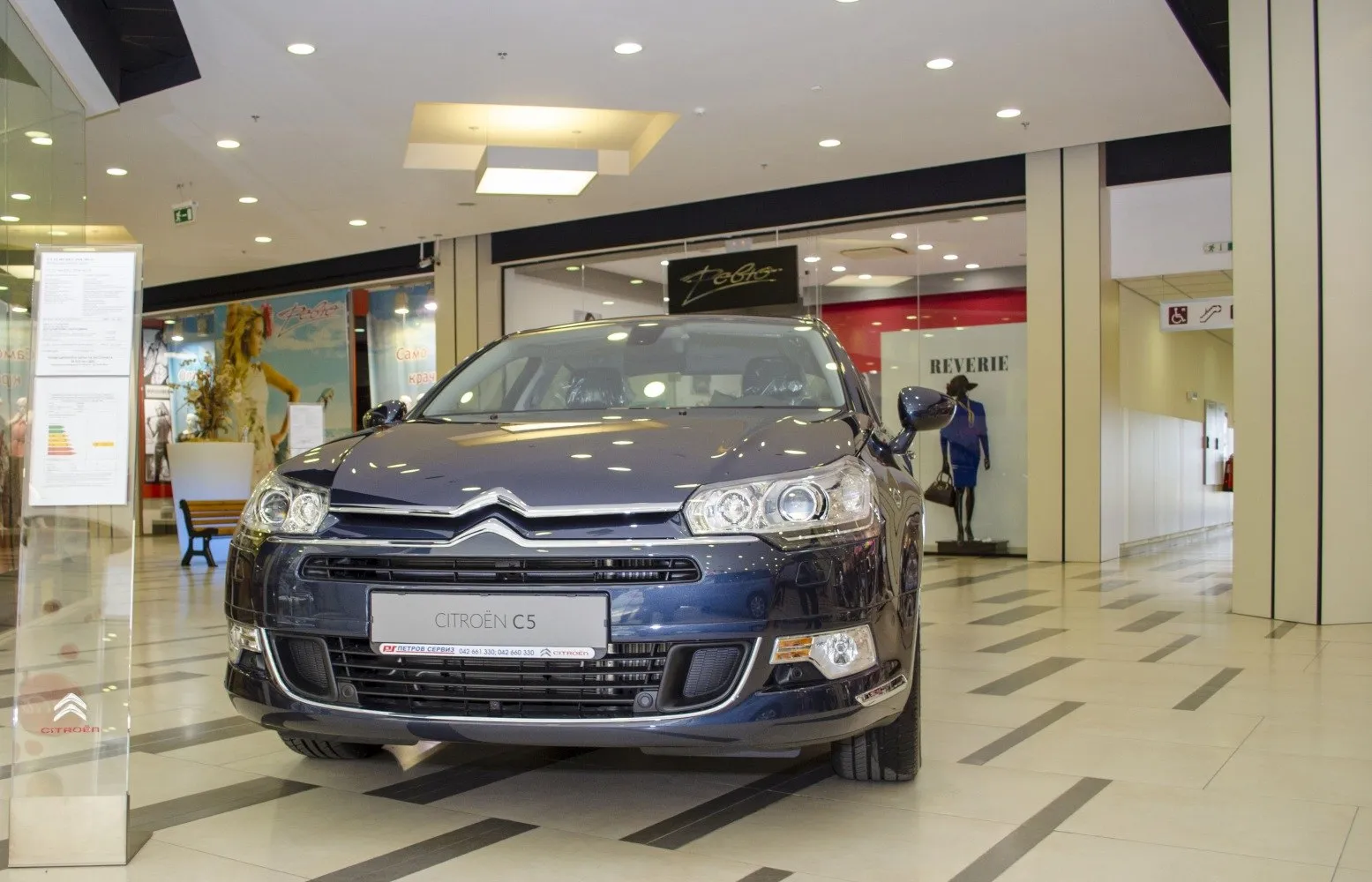

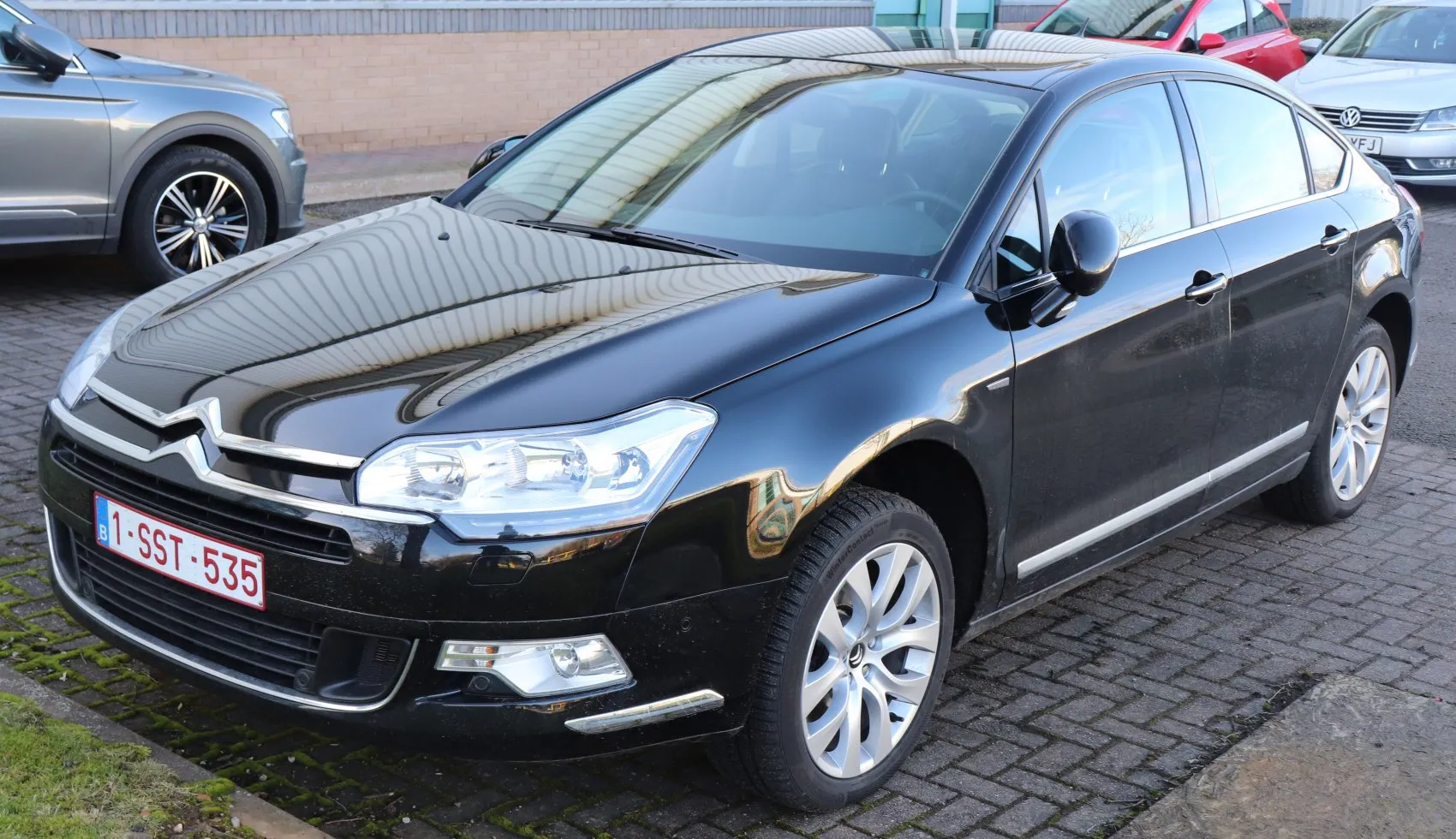

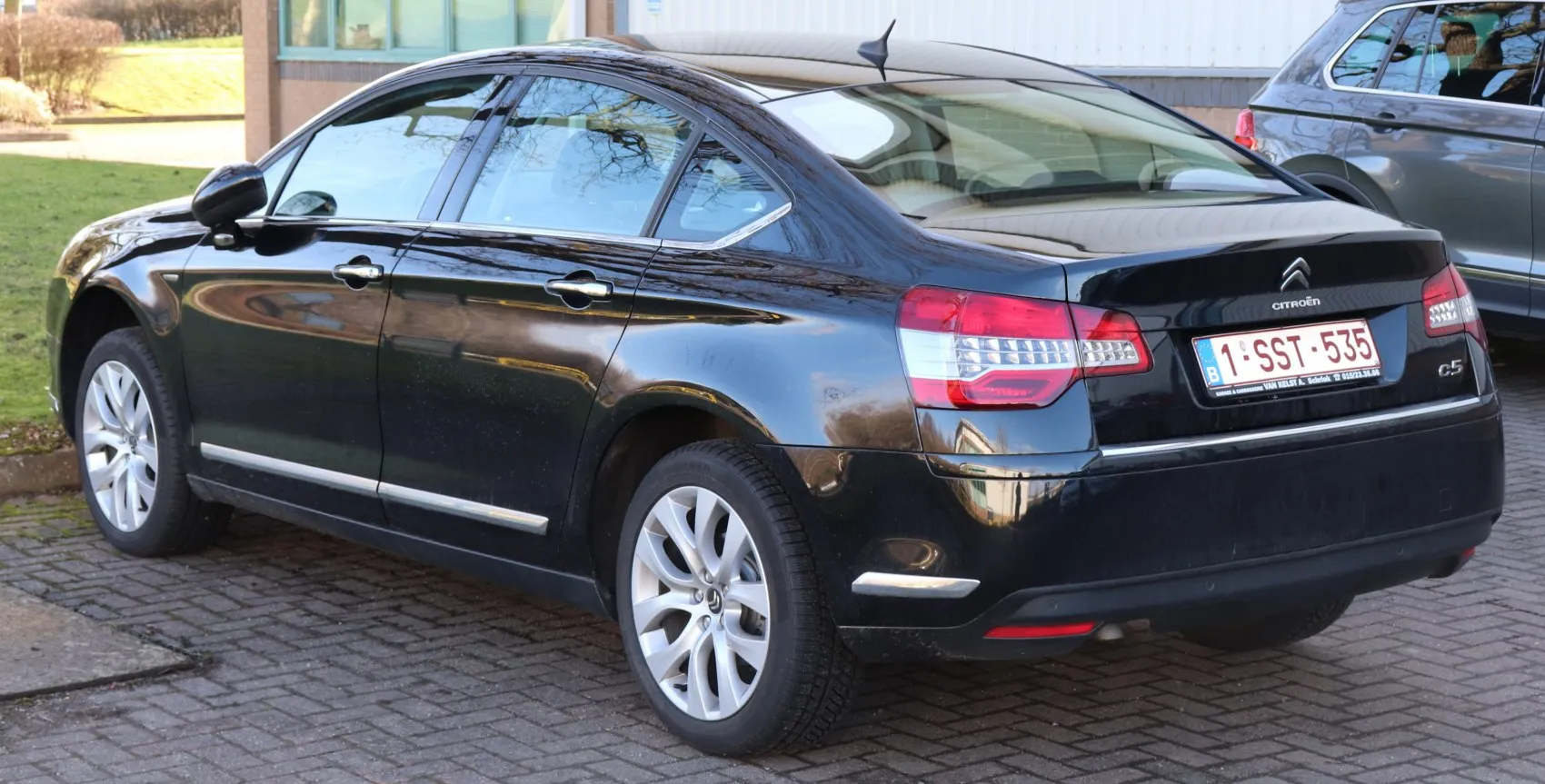

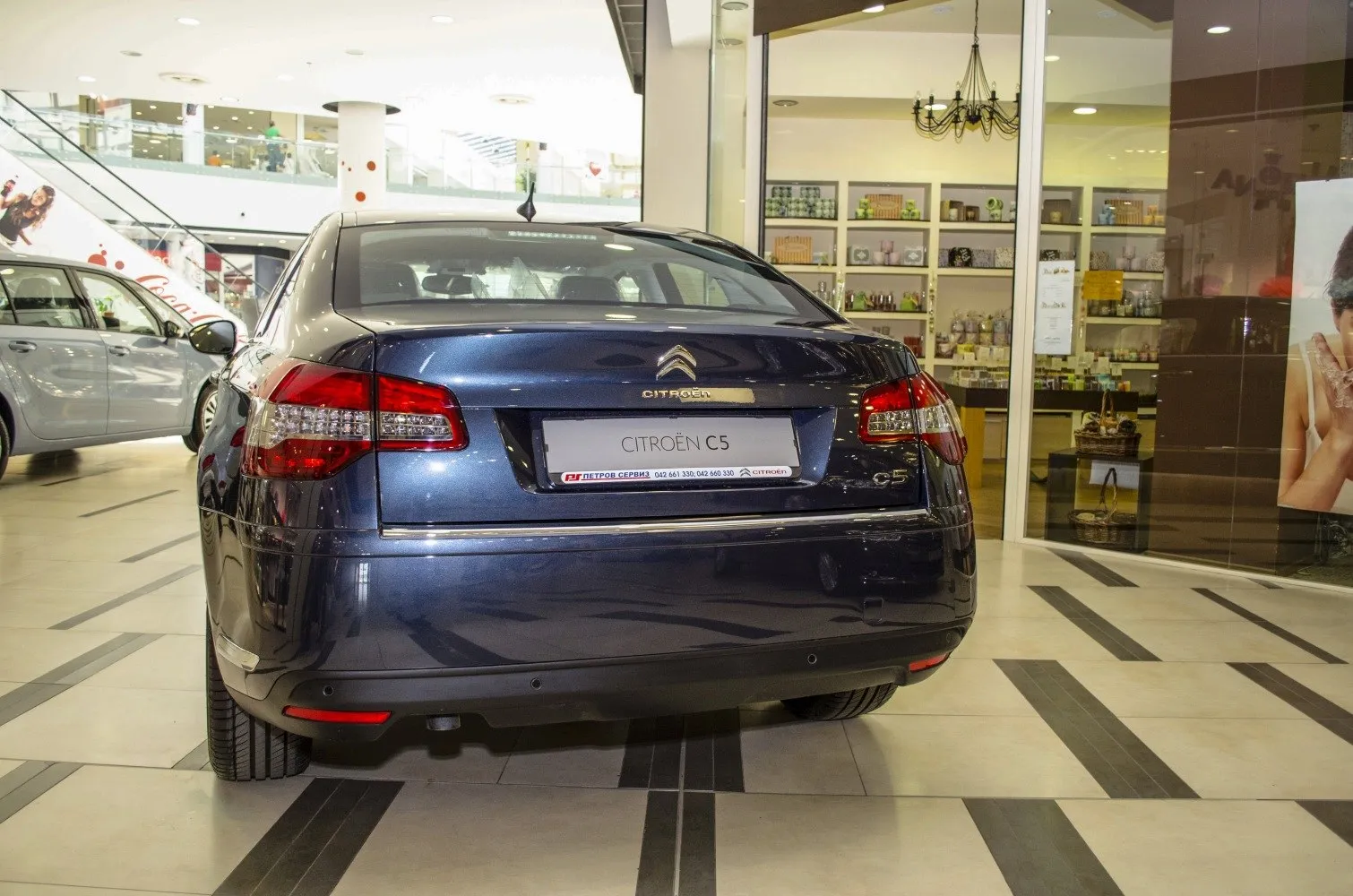

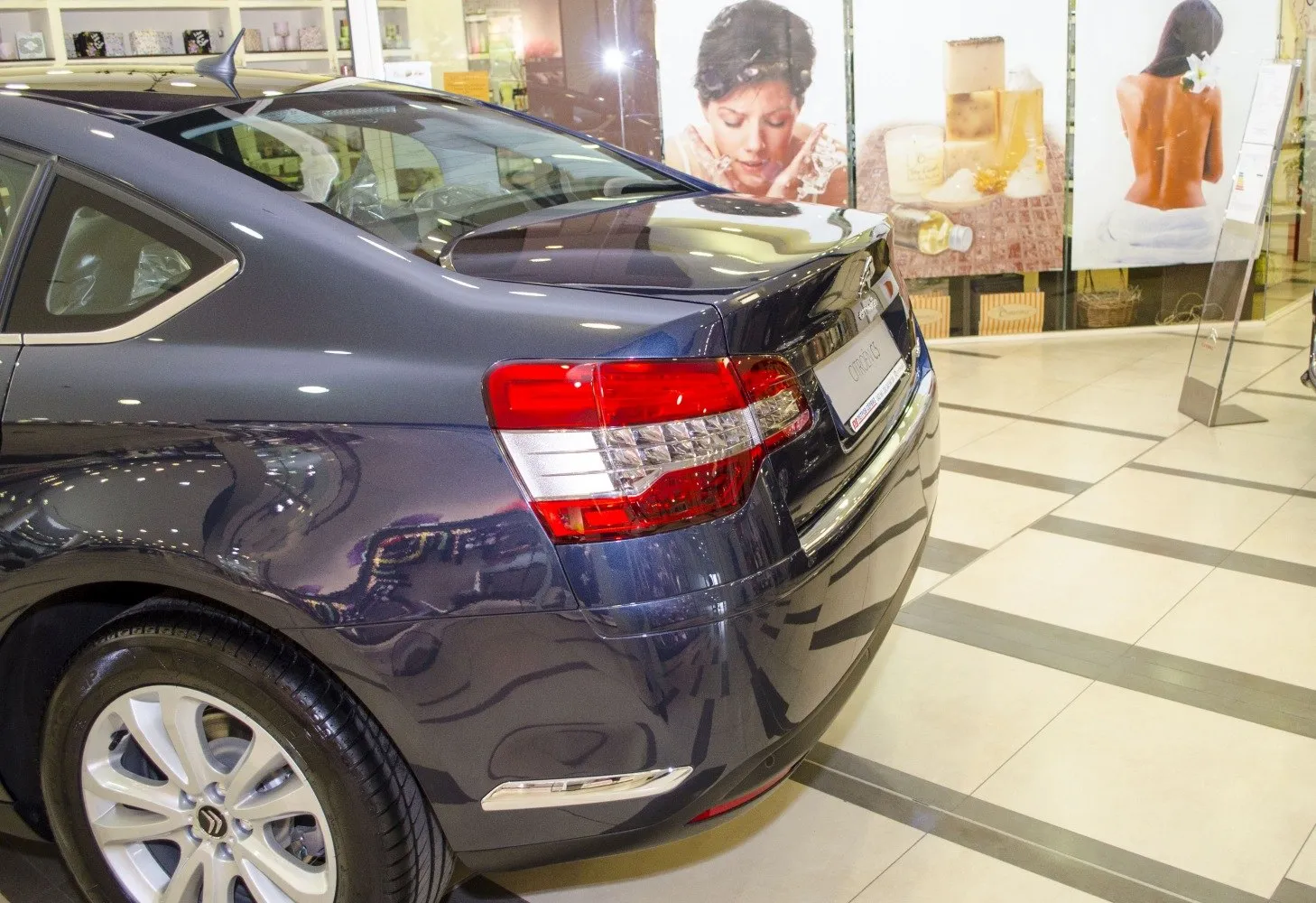

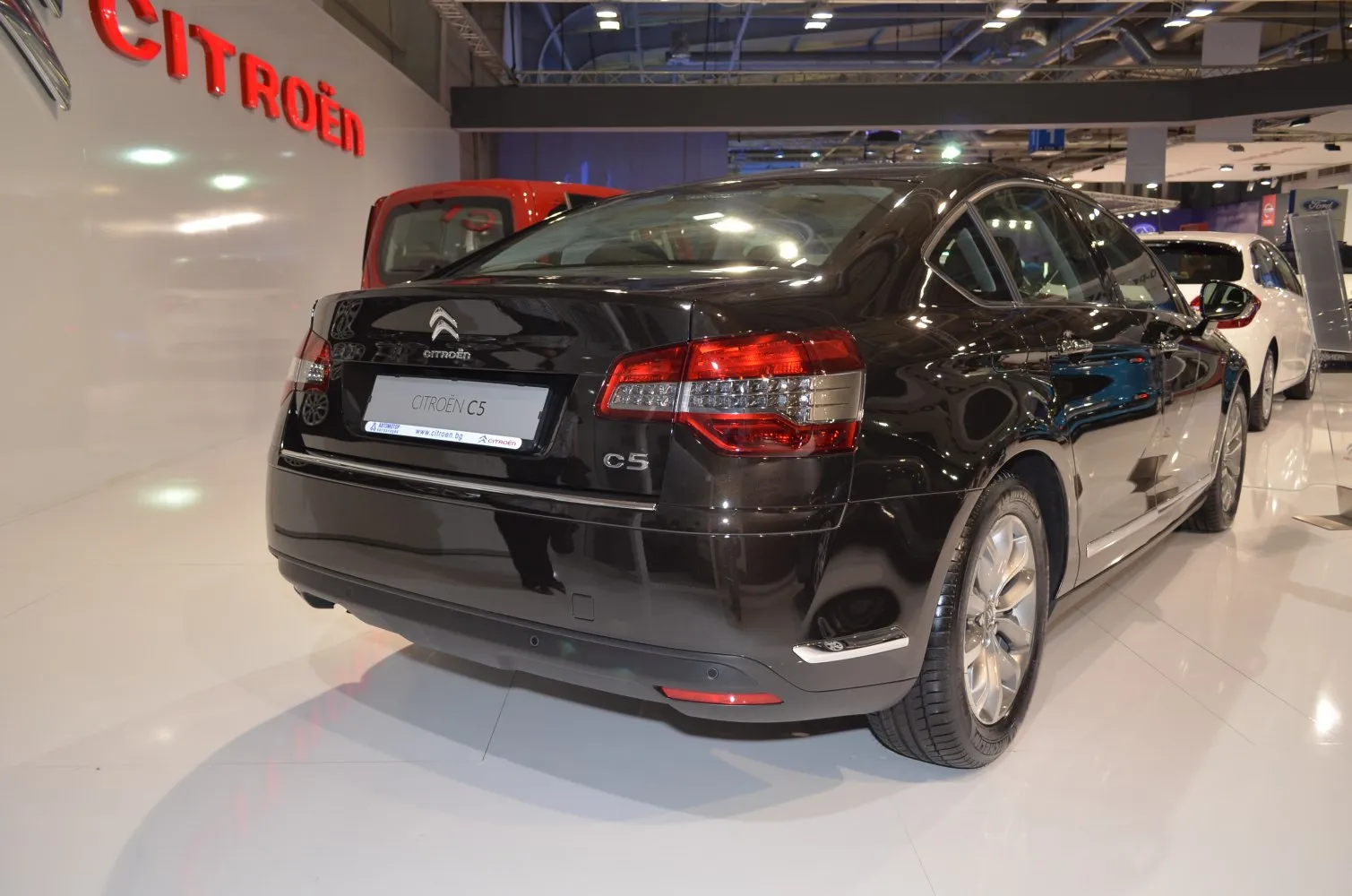

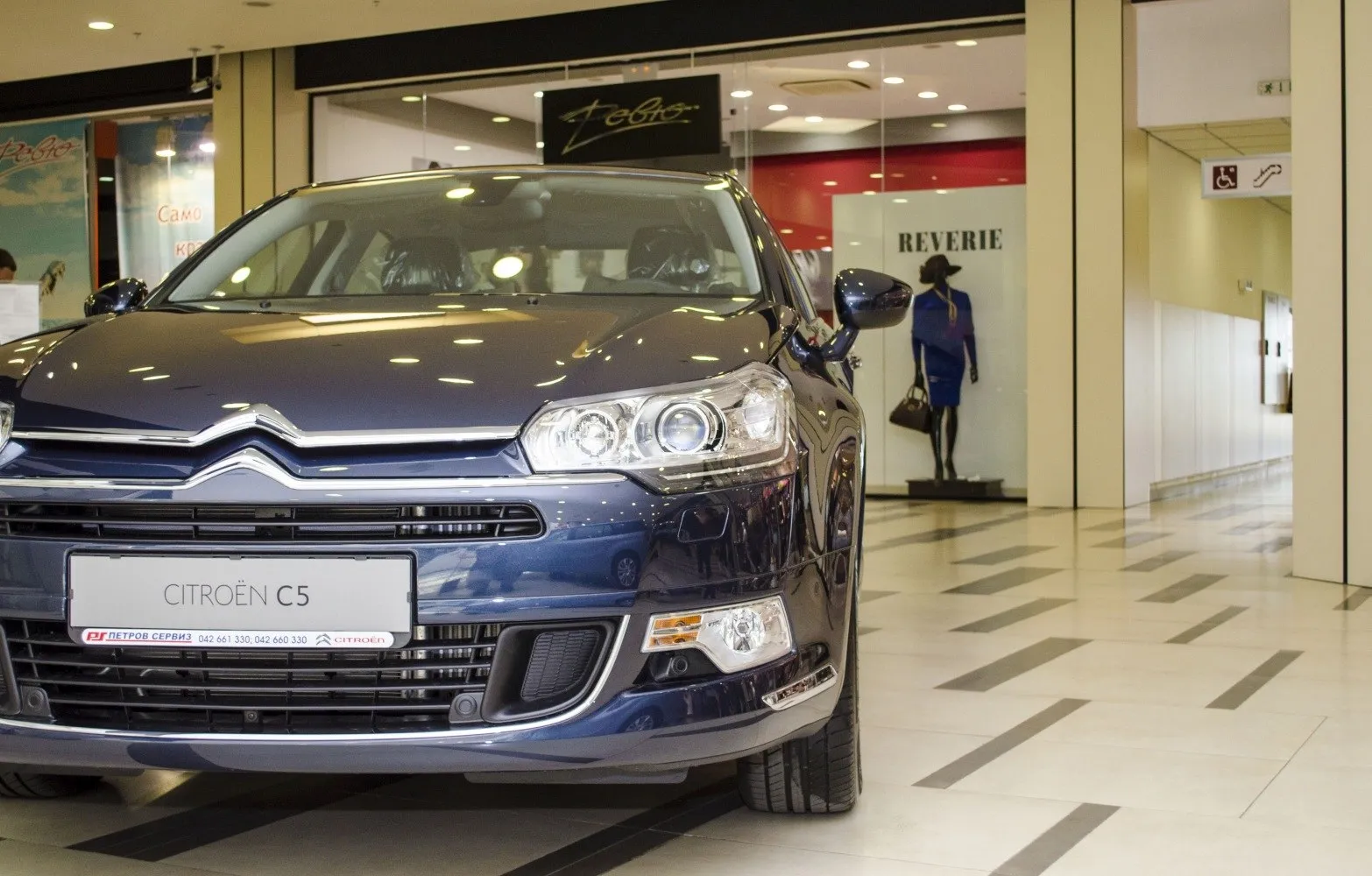

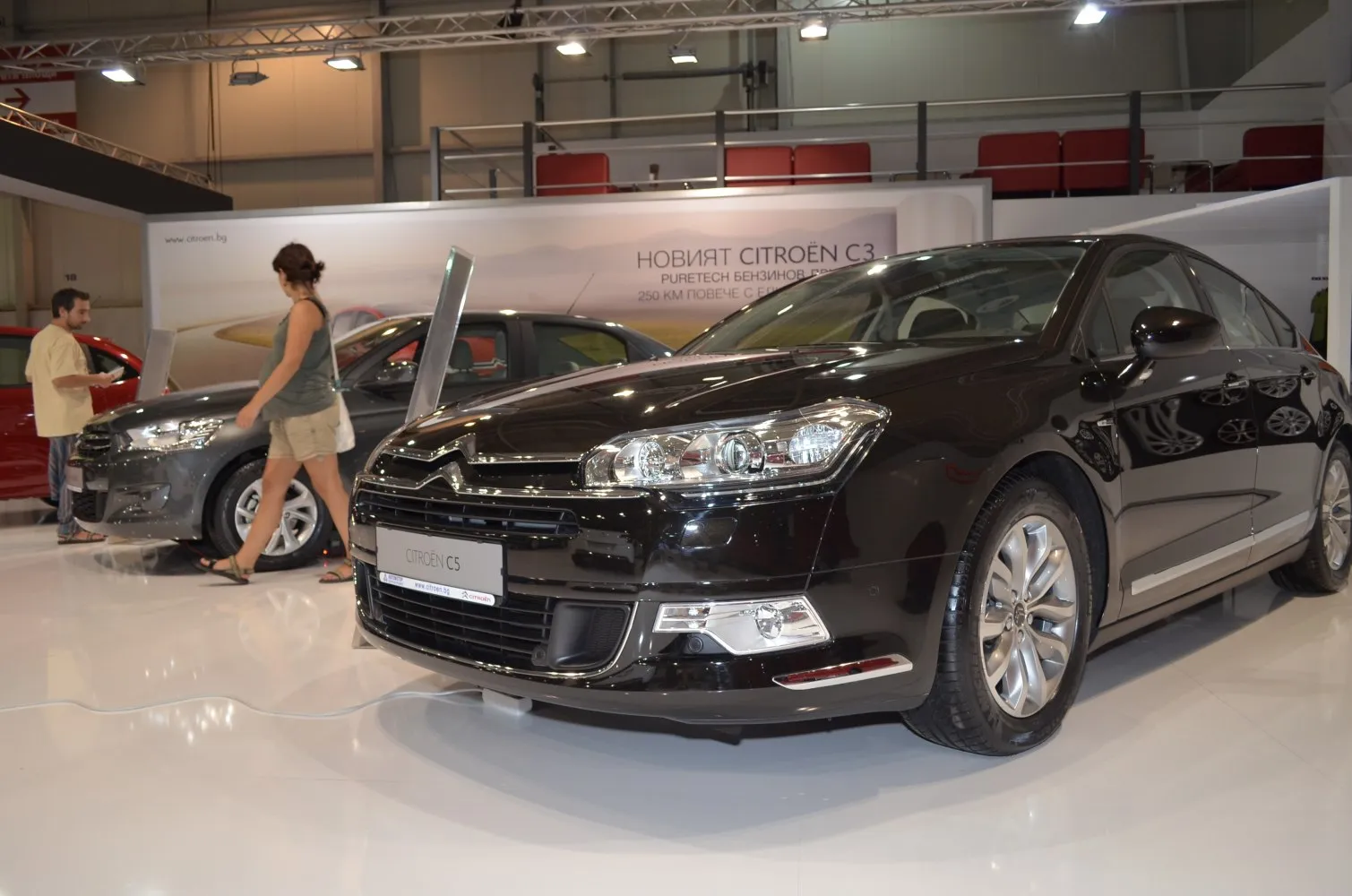

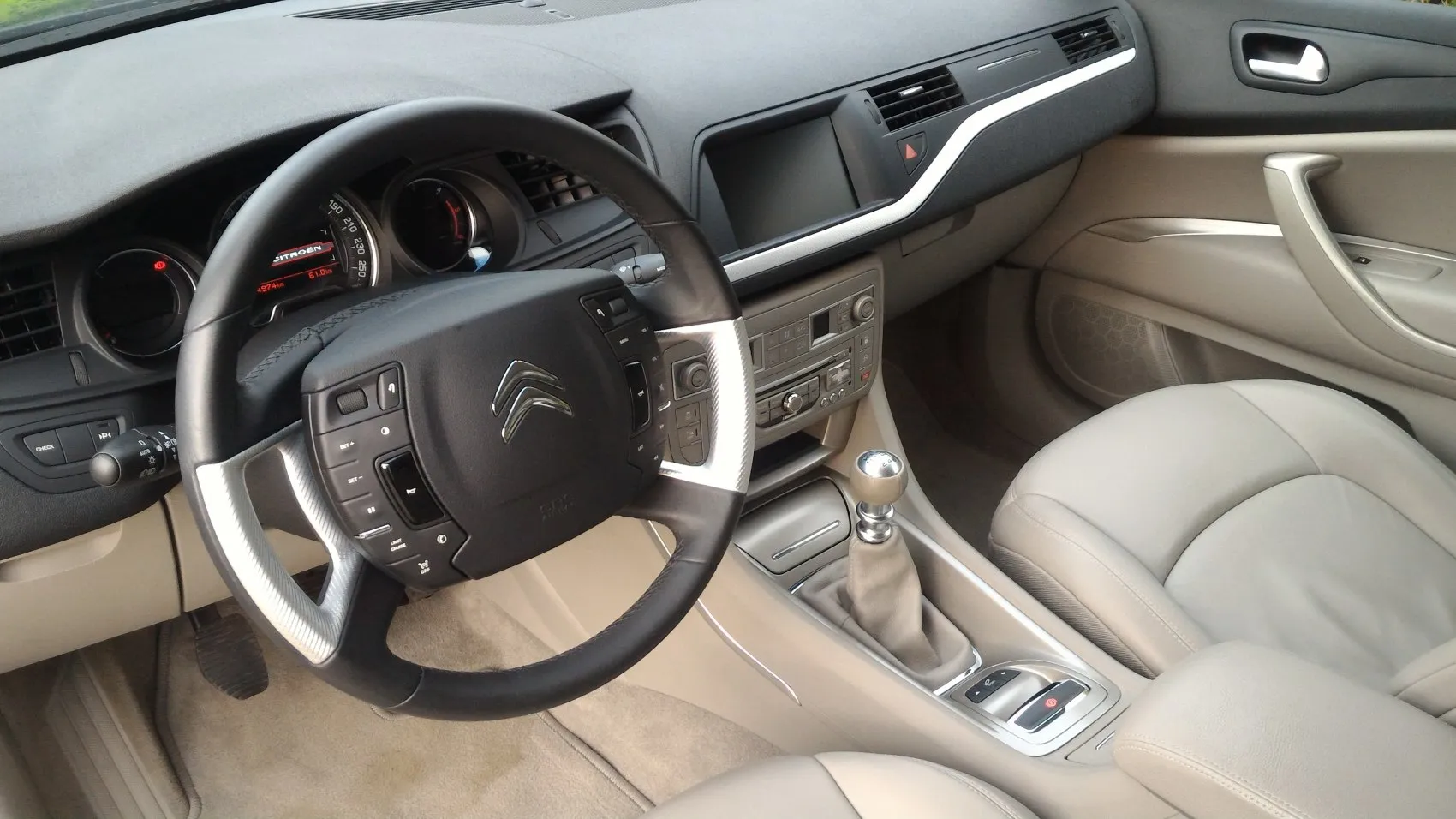

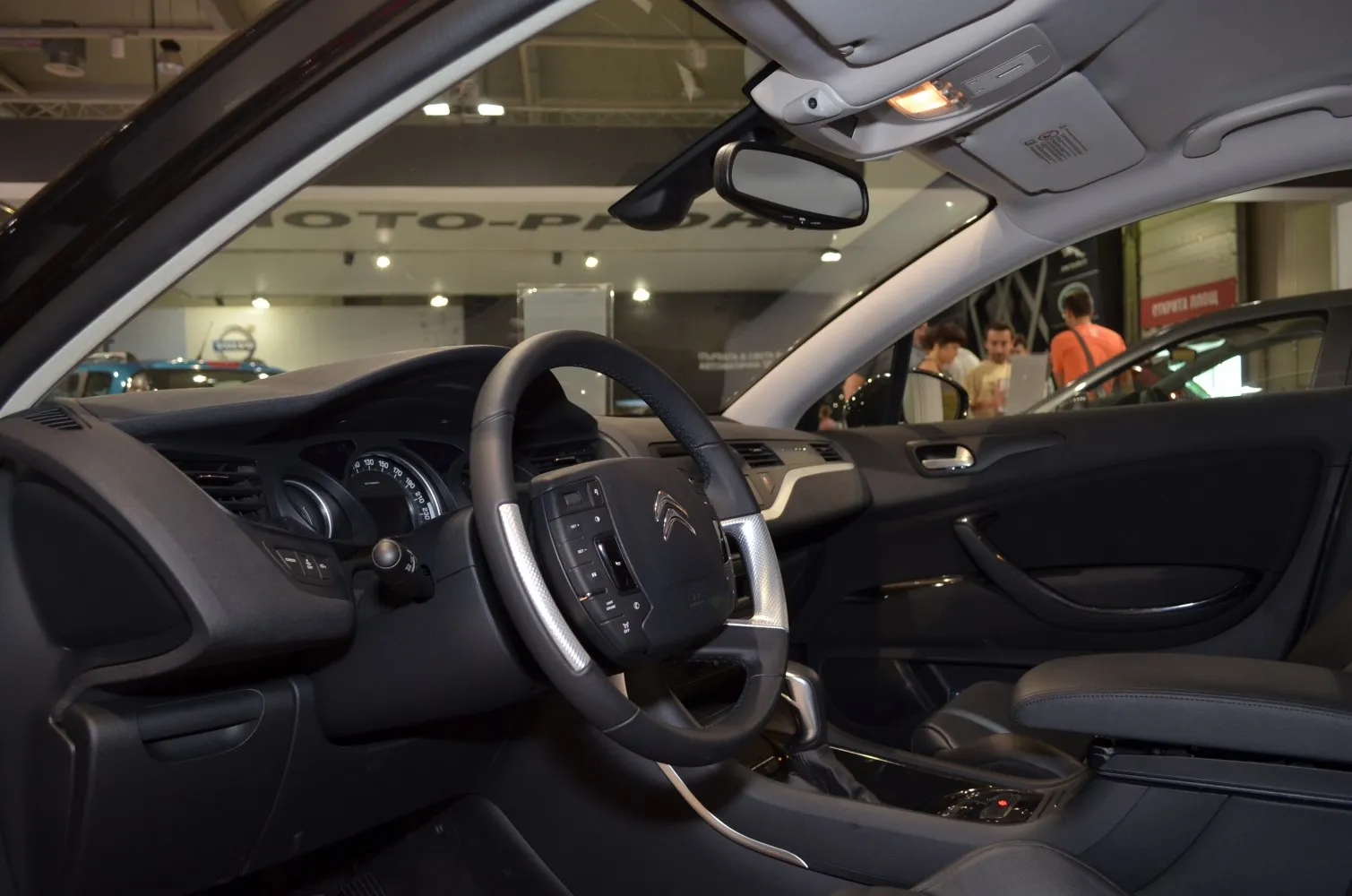

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine power | 114 KM – 204 KM |
| Years of production | 2012 r. – 2017 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 1.6 THP (156 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.8 s |
| Fuel consumption - Urban cycle | 10.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 7.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 169 g/km |
Engine
| Engine model / code | 5FVEP6CDT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1515 kg |
| Gross weight | 2026 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 69 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 1.6 e-HDi (114 KM) Airdream EGS |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.5 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 117 g/km |
Engine
| Engine model / code | 9HRDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1525 kg |
| Gross weight | 2062 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1340 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.5 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.0 HDi (163 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.1 s |
| Fuel consumption - Urban cycle | 6.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 5.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 139 g/km |
Engine
| Engine model / code | RHHDW10CTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 10.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1563 kg |
| Gross weight | 2156 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 1.6 VTi (120 KM) EGS |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 198 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5 l/100 km |
| Fuel consumption - Combined cycle | 6.2 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 144 g/km |
Engine
| Engine model / code | 5FSEP6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1425 kg |
| Gross weight | 2018 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 64 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.5 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 1.6 THP (156 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 9.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.1 l/100 km |
| Fuel consumption - Combined cycle | 6.7 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 153 g/km |
Engine
| Engine model / code | 5FVEP6CDT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1471 kg |
| Gross weight | 2065 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.0 HDi (163 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
| Fuel consumption - Urban cycle | 8.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 6.8 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 179 g/km |
Engine
| Engine model / code | RHHDW10CTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 10.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1609 kg |
| Gross weight | 2190 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 57 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.2 HDi (204 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.3 s |
| Fuel consumption - Urban cycle | 8 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.9 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 155 g/km |
Engine
| Engine model / code | DW12C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2179 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 96 mm |
| Compression ratio | 16.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.3 l |
| Coolant capacity | 10.7 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1731 kg |
| Gross weight | 2231 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 73 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/45 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.0 BlueHDi (150 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2015 r. |
| End of production | 2017 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 214 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.4 s |
| Fuel consumption - Urban cycle | 4.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.2 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 111 g/km |
Engine
| Engine model / code | AHRDW10FD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| AdBlue tank | 17 l |
| Minimum trunk capacity | 439 l |
| Curb weight | 1540 kg |
| Gross weight | 2160 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1750 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 73 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225 / 55 R17; 245 / 45 R18; 245 / 40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.0 BlueHDi (180 KM) S&S Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2015 r. |
| End of production | 2017 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 222 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.7 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 114 g/km |
Engine
| Engine model / code | AHWDW10FC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| AdBlue tank | 17 l |
| Minimum trunk capacity | 439 l |
| Curb weight | 1620 kg |
| Gross weight | 2190 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 57 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17; 245/45 R18; 245/40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 1.6 HDi (114 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.6 s |
| Fuel consumption - Urban cycle | 6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 5 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 129 g/km |
Engine
| Engine model / code | 9HRDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1506 kg |
| Gross weight | 2041 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1340 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase II, 2012) |
| Engine | 2.0 HDi (140 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2012 r. |
| End of production | 2015 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 7.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.7 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 149 g/km |
Engine
| Engine model / code | RHFDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1608 kg |
| Gross weight | 2155 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
