Vehicle specifications

Volkswagen Passat Variant (B8)

Compare all 22 engine versions of the Volkswagen Passat Passat Variant (B8), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Volkswagen Passat Variant (B8)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Volkswagen Passat Variant (B8)?

See the places on a 3D model →
VIN number
Inner wing / front wheel arch in engine compartment, right side
Dashboard, visible through the windscreen, left side
Identification plate
B-pillar, left side
1 of 7

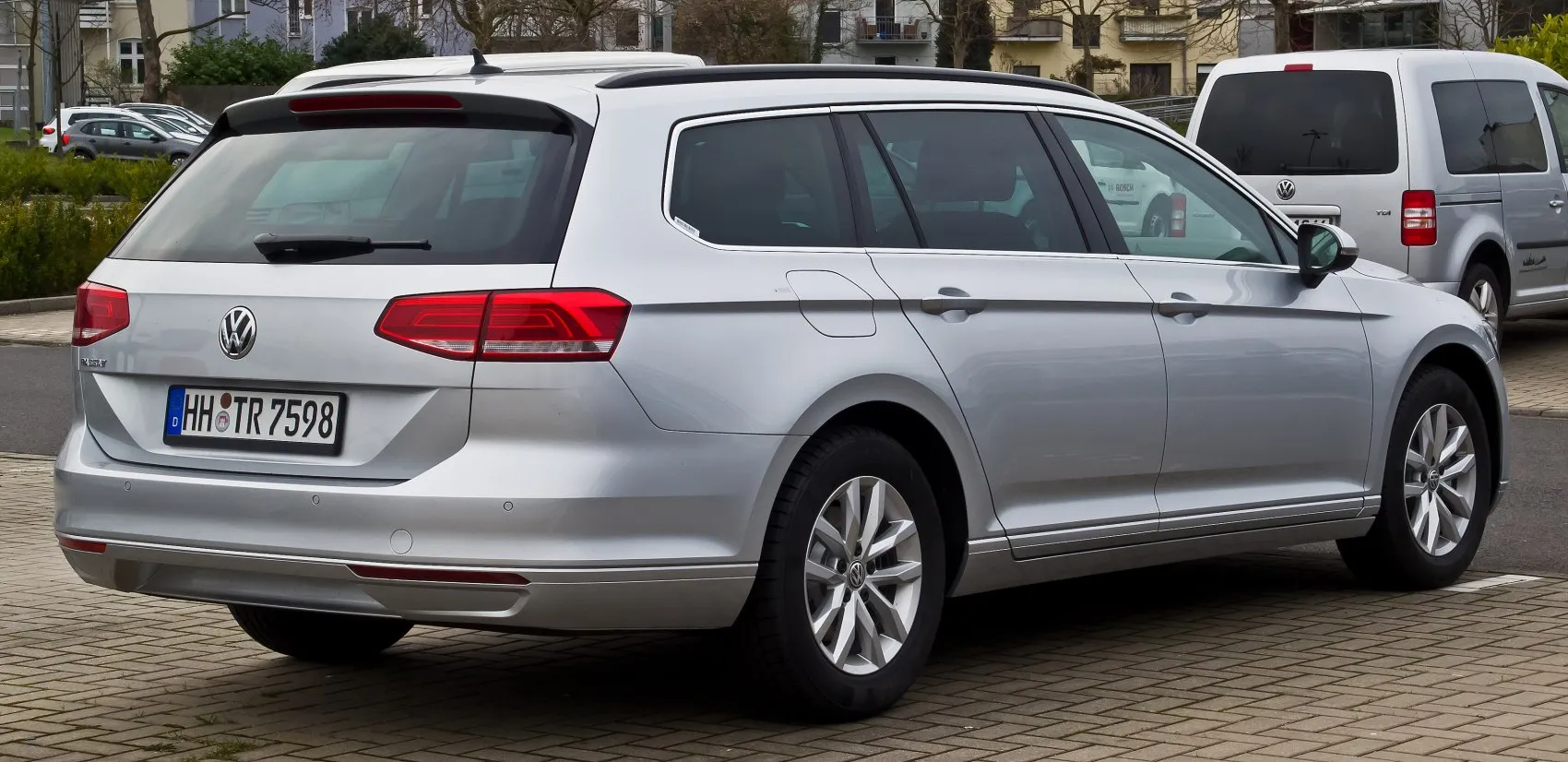

Volkswagen Passat Passat Variant (B8) View larger
Photo: OSX, Public domain, via Wikimedia Commons

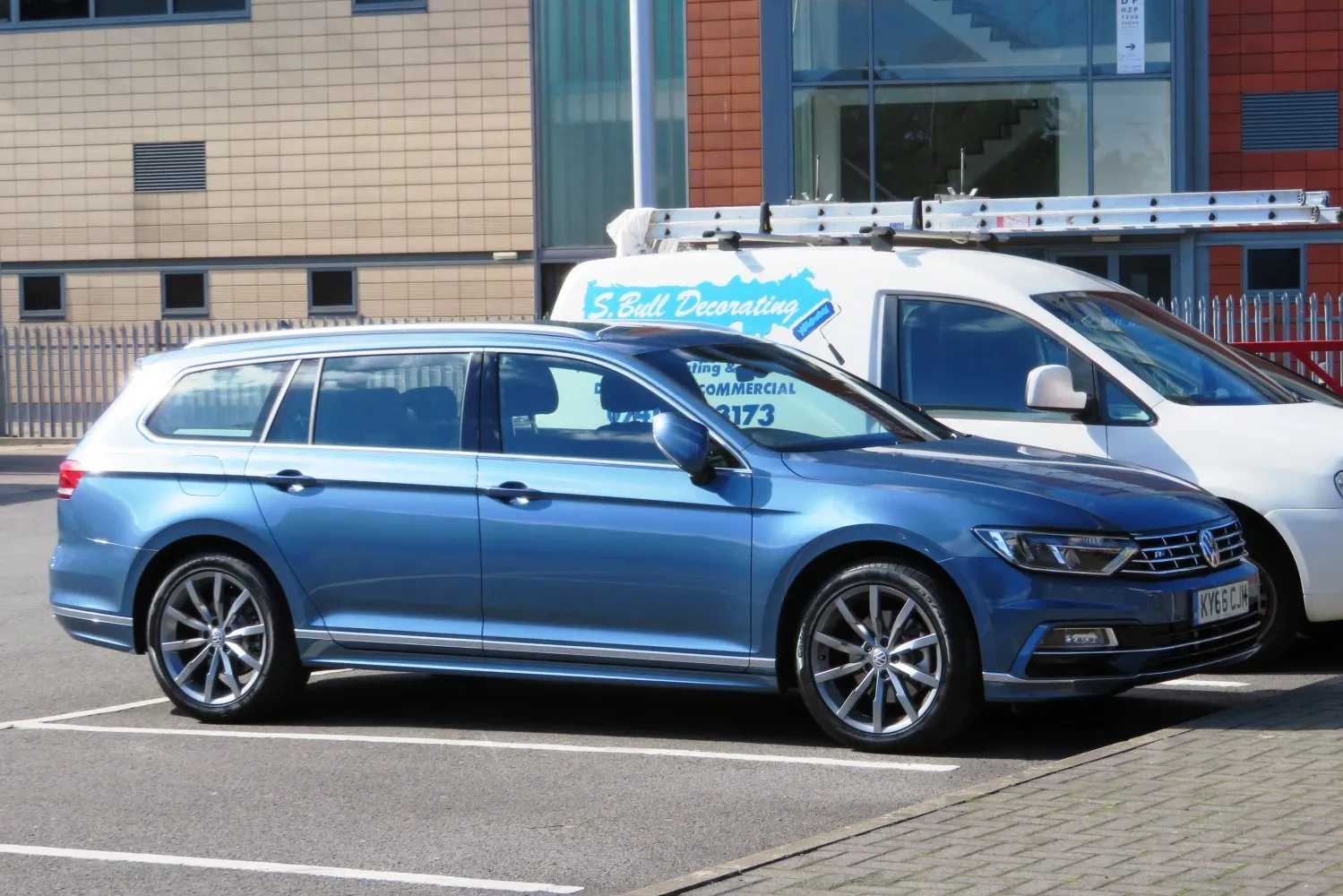

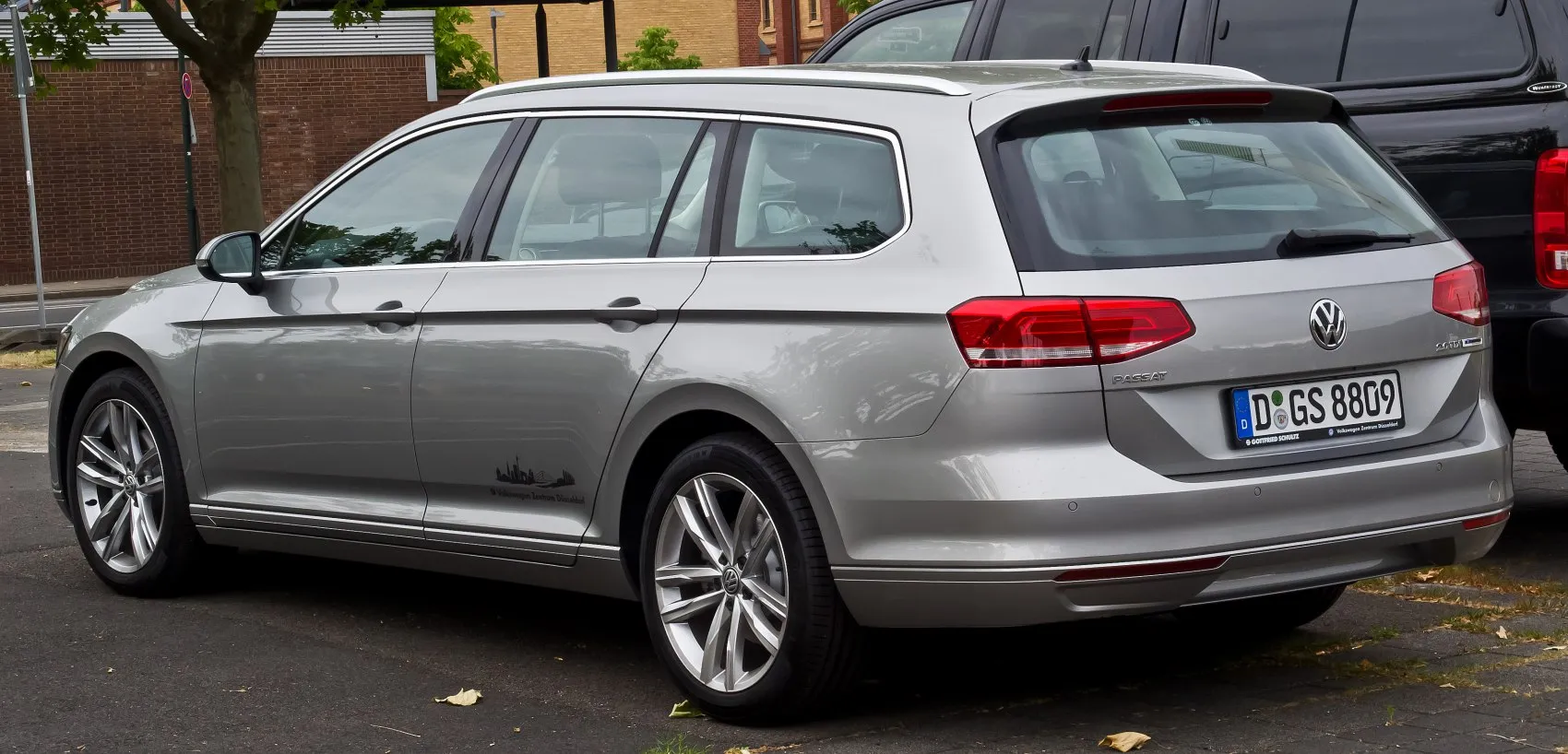

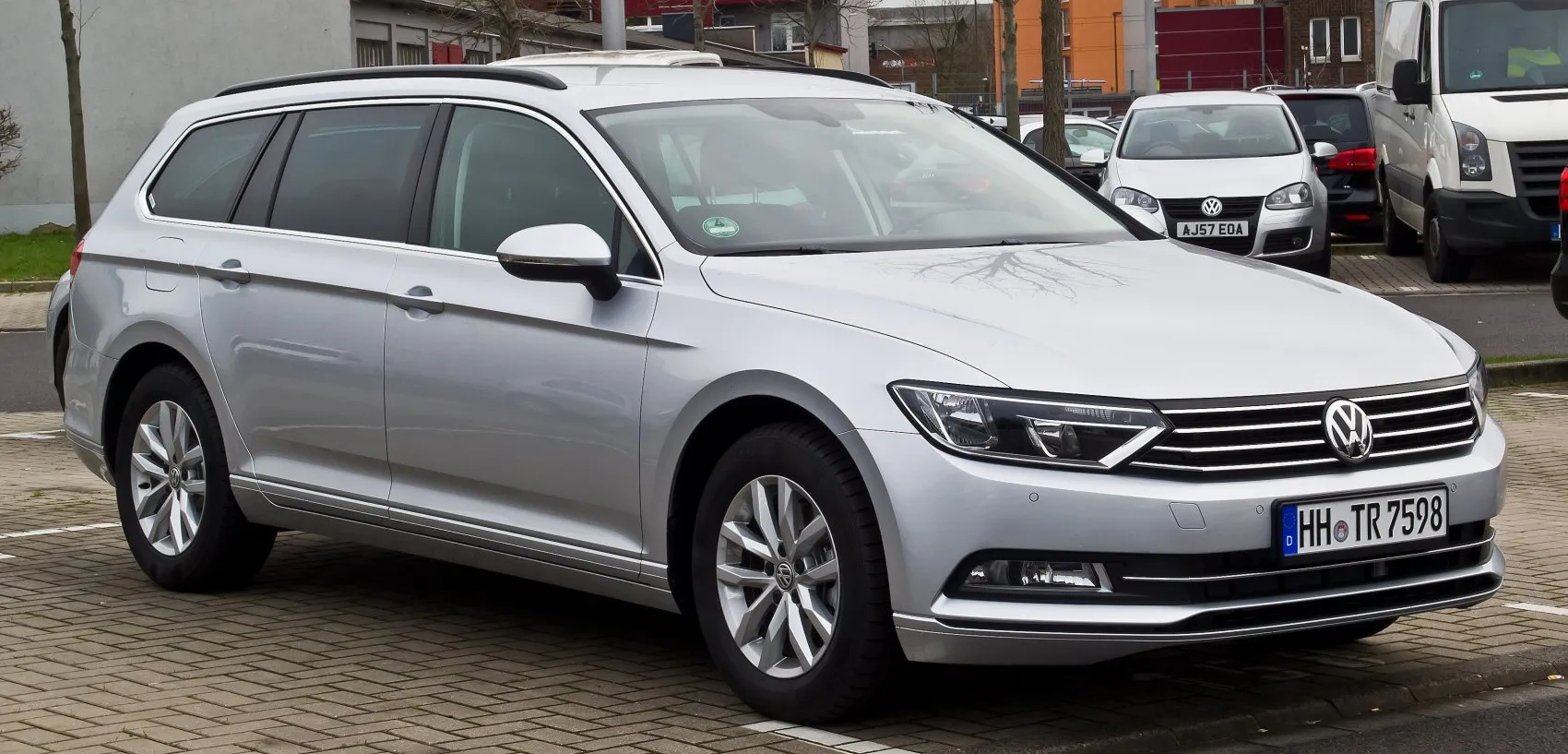

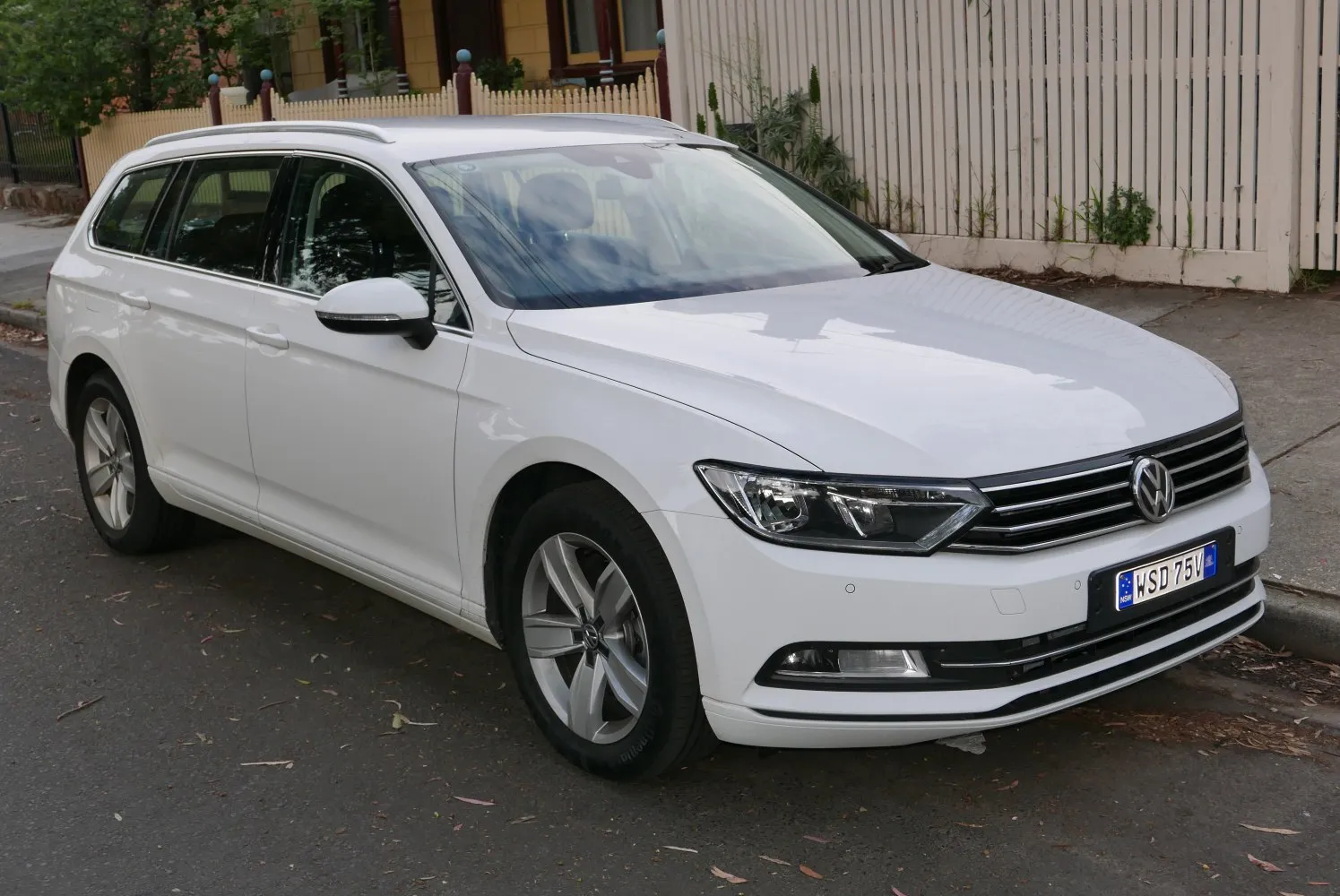

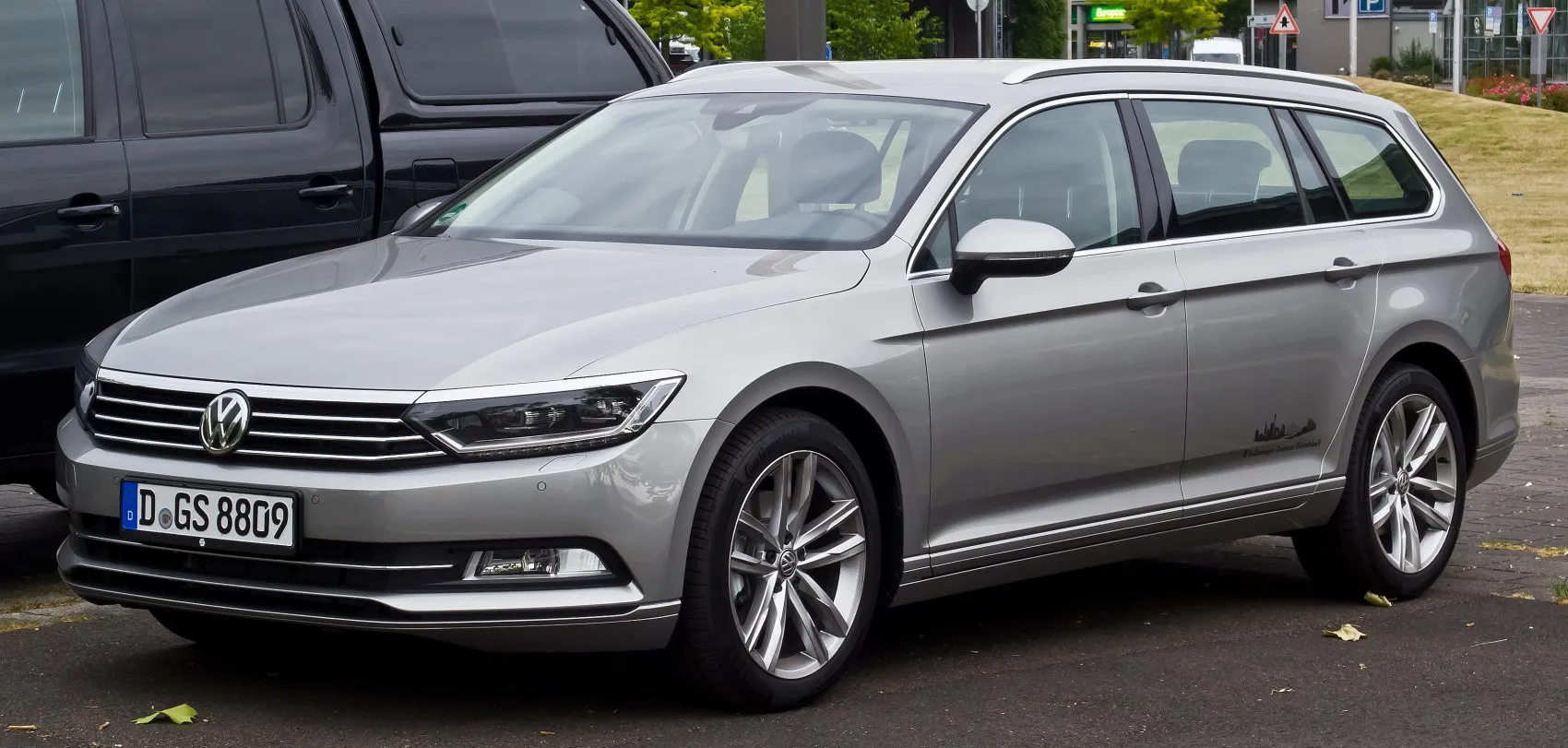

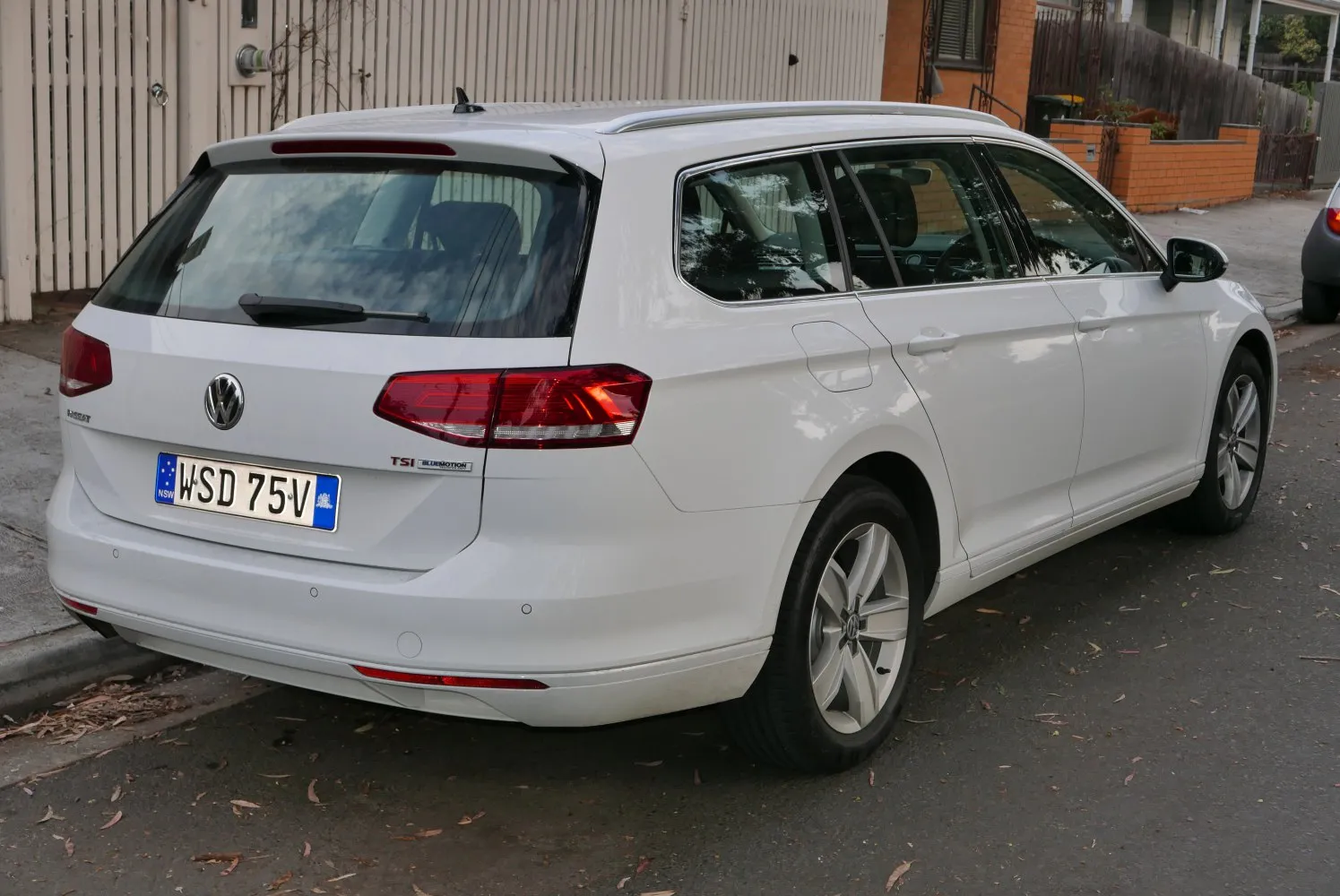

Vehicle gallery

Volkswagen Passat Passat Variant (B8)

Photo: OSX, Public domain, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

22 versions · 11 Gasoline · 10 Diesel fuel · 1 Gasoline / Electricity

Engine Fuel Power Production
1.4 TSI (125 KM) Selected Gasoline 125 KM 2014–2018
1.6 TDI BMT (120 KM) Selected Diesel fuel 120 KM 2014–2018
2.0 TDI (190 KM) DSG Selected Diesel fuel 190 KM 2014–2019
1.4 TSI (150 KM) ACT Selected Gasoline 150 KM 2014–2018
1.6 TDI (120 KM) DSG Selected Diesel fuel 120 KM 2014–2018
2.0 TDI (190 KM) DSG 4MOTION Selected Diesel fuel 190 KM 2014–2019
2.0 BiTDI (240 KM) DSG 4MOTION Selected Diesel fuel 240 KM 2014–2018
2.0 TDI (150 KM) Selected Diesel fuel 150 KM 2014–2019
1.4 TSI (150 KM) DSG ACT Selected Gasoline 150 KM 2014–2018
1.4 TSI (125 KM) DSG Selected Gasoline 125 KM 2014–2018
2.0 TDI (190 KM) Selected Diesel fuel 190 KM 2014–2019
2.0 TDI (150 KM) DSG Selected Diesel fuel 150 KM 2014–2019
1.8 TSI (180 KM) DSG Selected Gasoline 180 KM 2015–2018
1.6 TDI SCR (120 KM) BlueMotion Selected Diesel fuel 120 KM 2014–2018
1.4 TSI (150 KM) 4MOTION ACT Selected Gasoline 150 KM 2014–2018
2.0 TSI (280 KM) 4MOTION DSG Selected Gasoline 280 KM 2015–2018
2.0 TDI (150 KM) 4MOTION Selected Diesel fuel 150 KM 2014–2019
2.0 TSI (220 KM) DSG Selected Gasoline 220 KM 2015–2018
GTE 1.4 TSI (218 KM) DSG Plug-in Hybrid Selected Gasoline / Electricity 156 KM 2015–2018
2.0 TSI (272 KM) DSG 4MOTION Selected Gasoline 272 KM 2018–2019
1.5 TSI (150 KM) DSG Selected Gasoline 150 KM 2018–2019
1.5 TSI (150 KM) Selected Gasoline 150 KM 2018–2019

Selected engine version

1.4 TSI (125 KM)

Gasoline · 2014–2018

Engine power
125 KM
Torque
200 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
206 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.4 TSI (125 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
206 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
6.8-7.0 l/100 km
Fuel consumption - Extra-urban cycle
4.4-4.6 l/100 km
Fuel consumption - Combined cycle
5.3-5.5 l/100 km
Emission standard
Euro 6
CO2 emissions
124-127 g/km

Engine

Engine model / code
CZCA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
125 KM @ 5000-6000 obr./min
Torque
200 Nm @ 1400-4000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1394 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

1.6 TDI BMT (120 KM)

Diesel fuel · 2014–2018

Engine power
120 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.6 TDI BMT (120 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
11 s
Fuel consumption - Urban cycle
4.7-4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.7-3.8 l/100 km
Fuel consumption - Combined cycle
4.1-4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
107-110 g/km

Engine

Engine model / code
DCXA
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
120 KM @ 3600-4000 obr./min
Torque
250 Nm @ 1750-3500 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1485 kg
Gross weight
2060 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

2.0 TDI (190 KM) DSG

Diesel fuel · 2014–2019

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (190 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
5.4 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.6 l/100 km
Emission standard
Euro 6
CO2 emissions
119-120 g/km

Engine

Engine model / code
DDAA, DFCA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1581 kg
Gross weight
2170 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16; 215/55 R17
Rim size
6.5J x 16; 7.0J x 17
ABS
yes

Selected engine version

1.4 TSI (150 KM) ACT

Gasoline · 2014–2018

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.6 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.4 TSI (150 KM) ACT
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
8.6 s
Fuel consumption - Urban cycle
6.2-6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.1-5.2 l/100 km
Emission standard
Euro 6
CO2 emissions
119-120 g/km

Engine

Engine model / code
CZDA, CZEA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1429 kg
Gross weight
2000 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16; 215/55 R17
Rim size
6.5J x 16; 7.0J x 17
ABS
yes

Selected engine version

1.6 TDI (120 KM) DSG

Diesel fuel · 2014–2018

Engine power
120 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.6 TDI (120 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
11 s
Fuel consumption - Urban cycle
4.5-4.6 l/100 km
Fuel consumption - Extra-urban cycle
3.7-3.9 l/100 km
Fuel consumption - Combined cycle
4.0-4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
104-107 g/km

Engine

Engine model / code
DCXA
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
120 KM @ 3600-4000 obr./min
Torque
250 Nm @ 1750-3500 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1500 kg
Gross weight
2060 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DSG
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

2.0 TDI (190 KM) DSG 4MOTION

Diesel fuel · 2014–2019

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.7 s
Maximum speed
228 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (190 KM) DSG 4MOTION
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
228 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
134-135 g/km

Engine

Engine model / code
DDAA, DFCA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1674 kg
Gross weight
2220 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Type of automatic gearbox
DSG
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/60 R16; 215/55 R17
Rim size
6.5J x 16; 7.0J x 17
ABS
yes

Selected engine version

2.0 BiTDI (240 KM) DSG 4MOTION

Diesel fuel · 2014–2018

Engine power
240 KM
Torque
500 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.3 s
Maximum speed
238 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 BiTDI (240 KM) DSG 4MOTION
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
238 km/h
Acceleration 0-100 km/h
6.3 s
Fuel consumption - Urban cycle
6.5 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.4 l/100 km
Emission standard
Euro 6
CO2 emissions
140 g/km

Engine

Engine model / code
CUAA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Power
240 KM @ 4000 obr./min
Torque
500 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1735 kg
Gross weight
2310 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Type of automatic gearbox
DSG
Front brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
215/55 R17
Rim size
7.0J x 17
ABS
yes

Selected engine version

2.0 TDI (150 KM)

Diesel fuel · 2014–2019

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
4.8 l/100 km
Fuel consumption - Extra-urban cycle
3.4 l/100 km
Fuel consumption - Combined cycle
3.9 l/100 km
Emission standard
Euro 6
CO2 emissions
102 g/km

Engine

Engine model / code
CRLB, DBGA, DCYA, DFEA, DFGA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1430 kg
Gross weight
2110 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

1.4 TSI (150 KM) DSG ACT

Gasoline · 2014–2018

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.6 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.4 TSI (150 KM) DSG ACT
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
8.6 s
Fuel consumption - Urban cycle
6.4-6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.4 l/100 km
Fuel consumption - Combined cycle
5.2-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
120-119 g/km

Engine

Engine model / code
CZDA, CZEA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1378 kg
Gross weight
2040 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
720 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DSG
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

1.4 TSI (125 KM) DSG

Gasoline · 2014–2018

Engine power
125 KM
Torque
200 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
206 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.4 TSI (125 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
206 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
6.2-6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.5 l/100 km
Fuel consumption - Combined cycle
5.2-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
120-117 g/km

Engine

Engine model / code
CZCA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
125 KM @ 5000-6000 obr./min
Torque
200 Nm @ 1400-4000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1368 kg
Gross weight
2020 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
720 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DSG
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18
Rim size
7J x 17; 8J x 18
ABS
yes

Selected engine version

2.0 TDI (190 KM)

Diesel fuel · 2014–2019

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.1 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (190 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
8.1 s
Fuel consumption - Urban cycle
5 l/100 km
Fuel consumption - Extra-urban cycle
3.8-3.7 l/100 km
Fuel consumption - Combined cycle
4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
110-109 g/km

Engine

Engine model / code
DDAA, DFCA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
190 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1900-3300 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1515 kg
Gross weight
2180 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

2.0 TDI (150 KM) DSG

Diesel fuel · 2014–2019

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (150 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
5.4 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.4 l/100 km
Emission standard
Euro 6
CO2 emissions
115 g/km

Engine

Engine model / code
CRLB, DBGA, DCYA, DFEA, DFGA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1494 kg
Gross weight
2130 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

1.8 TSI (180 KM) DSG

Gasoline · 2015–2018

Engine power
180 KM
Torque
250 Nm
Engine displacement
1,798 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.1 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.8 TSI (180 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
8.1 s
Fuel consumption - Urban cycle
7.1 l/100 km
Fuel consumption - Extra-urban cycle
5 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 6
CO2 emissions
130-131 g/km

Engine

Engine model / code
EA888/CJSA
Engine position
Front, Transverse
Engine displacement
1798 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
84.2 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
180 KM @ 5100-6200 obr./min
Torque
250 Nm @ 1250-5000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1430 kg
Gross weight
2090 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2000 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Approach angle
13.4 °
Departure angle
12.3 °
Ramp angle
10.5 °
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DSG
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 235/45 R18; 235/40 R19
Rim size
6.5J x 16; 7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

1.6 TDI SCR (120 KM) BlueMotion

Diesel fuel · 2014–2018

Engine power
120 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11 s
Maximum speed
208 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.6 TDI SCR (120 KM) BlueMotion
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
208 km/h
Acceleration 0-100 km/h
11 s
Fuel consumption - Urban cycle
4.3 l/100 km
Fuel consumption - Extra-urban cycle
3.3 l/100 km
Fuel consumption - Combined cycle
3.7 l/100 km
Emission standard
Euro 6
CO2 emissions
95 g/km

Engine

Engine model / code
DCXA
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
120 KM @ 3600-4000 obr./min
Torque
250 Nm @ 1750-3500 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1430 kg
Gross weight
2070 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17
Rim size
7J x 17
ABS
yes

Selected engine version

1.4 TSI (150 KM) 4MOTION ACT

Gasoline · 2014–2018

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.4 TSI (150 KM) 4MOTION ACT
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.9-6.8 l/100 km
Fuel consumption - Extra-urban cycle
5.2-5.1 l/100 km
Fuel consumption - Combined cycle
5.8-5.7 l/100 km
Emission standard
Euro 6
CO2 emissions
133-132 g/km

Engine

Engine model / code
CZDA, CZEA, CPHB
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1462 kg
Gross weight
2100 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

2.0 TSI (280 KM) 4MOTION DSG

Gasoline · 2015–2018

Engine power
280 KM
Torque
350 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.7 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TSI (280 KM) 4MOTION DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.7 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
9 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.2 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
7.2 l/100 km
Emission standard
Euro 6
CO2 measurement standard
NEDC
CO2 emissions
163-164 g/km

Engine

Engine model / code
EA888/CJXA
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Power
280 KM @ 5600-6500 obr./min
Torque
350 Nm @ 1700-5600 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1599 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2200 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Type of automatic gearbox
DSG
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

2.0 TDI (150 KM) 4MOTION

Diesel fuel · 2014–2019

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TDI (150 KM) 4MOTION
Engine type
Combustion engine
Number of doors
5
Start of production
2014
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
5.7-5.6 l/100 km
Fuel consumption - Extra-urban cycle
4.1-4.0 l/100 km
Fuel consumption - Combined cycle
4.7-4.6 l/100 km
Emission standard
Euro 6
CO2 emissions
123-120 g/km

Engine

Engine model / code
CRLB, DBGA, DCYA, DFEA, DFGA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1556 kg
Gross weight
2220 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2200 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent multi-link suspension
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

2.0 TSI (220 KM) DSG

Gasoline · 2015–2018

Engine power
220 KM
Torque
350 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.9 s
Maximum speed
244 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TSI (220 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
244 km/h
Acceleration 0-100 km/h
6.9 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.9 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
6.3 l/100 km
Emission standard
Euro 6
CO2 measurement standard
NEDC
CO2 emissions
145-146 g/km

Engine

Engine model / code
EA888/CHHB
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Power
220 KM @ 4500-6200 obr./min
Torque
350 Nm @ 1500-4400 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1475 kg
Gross weight
2130 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2100 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1477 mm
Wheelbase
2791 mm
Front track
1584 mm
Rear track
1568 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R17; 235/45 R18; 235/40 R19
Rim size
7J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

GTE 1.4 TSI (218 KM) DSG Plug-in Hybrid

Gasoline / Electricity · 2015–2018

Engine power
156 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline / Electricity
Acceleration 0-100 km/h
7.6 s
Maximum speed
225 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
GTE 1.4 TSI (218 KM) DSG Plug-in Hybrid
Engine type
PHEV (Plug-in Hybrid Electric Vehicle)
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline / Electricity

Performance

Maximum speed
225 km/h
Acceleration 0-100 km/h
7.6 s
Battery gross capacity
9.9 kWh
All-electric range
50 km
Fuel consumption - Combined cycle
1.7-1.8 l/100 km
Average energy consumption
12.7-13.2 kWh/100 km
Emission standard
Euro 6
CO2 emissions
38-40 g/km

Engine

Max electric motor power
115 KM @ 2500 obr./min
Electric motor torque
330 Nm
Electric motor position
Między silnikiem spalinowym a skrzynią biegów
System power
218 KM
System torque
400 Nm
Engine model / code
CUKC
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
156 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
50 l
Minimum trunk capacity
483 l
Maximum trunk capacity
1613 l
Curb weight
1660 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1516 mm
Wheelbase
2786 mm
Front track
1578-1586 mm
Rear track
1562-1570 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/55 R17; 235/45 R18
Rim size
6.5J x 17; 7J x 17: 8J x 18
ABS
yes

Selected engine version

2.0 TSI (272 KM) DSG 4MOTION

Gasoline · 2018–2019

Engine power
272 KM
Torque
350 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.7 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
2.0 TSI (272 KM) DSG 4MOTION
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.7 s
Fuel consumption - Urban cycle
8.4-8.5 l/100 km
Fuel consumption - Extra-urban cycle
6.3-6.4 l/100 km
Fuel consumption - Combined cycle
7.1 l/100 km
Emission standard
Euro 6
CO2 emissions
162-163 g/km

Engine

Engine model / code
DNUA
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Power
272 KM @ 5500-6200 obr./min
Torque
350 Nm @ 2000-5400 obr./min

Volume and weight

Fuel tank
66 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1600 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2200 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1516 mm
Wheelbase
2786 mm
Front track
1578-1586 mm
Rear track
1562-1570 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Type of automatic gearbox
DSG
Steering system
Rack-and-pinion
Tire size
215/55 R17 H; 235/45 R18 V
Rim size
6.5J x 17; 8J x 18
ABS
yes

Selected engine version

1.5 TSI (150 KM) DSG

Gasoline · 2018–2019

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,498 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.8 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.5 TSI (150 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
8.8 s
Fuel consumption - Urban cycle
6.7-6.8 l/100 km
Fuel consumption - Extra-urban cycle
4.7-4.8 l/100 km
Fuel consumption - Combined cycle
5.5-5.6 l/100 km
Emission standard
Euro 6d-TEMP
CO2 emissions
124-126 g/km

Engine

Engine model / code
EA211evo/DADA
Engine position
Front, Transverse
Engine displacement
1498 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
59 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1465 kg
Gross weight
2060 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
720 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1516 mm
Wheelbase
2786 mm
Front track
1578-1586 mm
Rear track
1562-1570 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DSG
Steering system
Rack-and-pinion
Tire size
215/60 R16 H; 215/55 R17 H; 235/45 R18 V
Rim size
6.5J x 16; 6.5J x 17; 8J x 18
ABS
yes

Selected engine version

1.5 TSI (150 KM)

Gasoline · 2018–2019

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,498 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.8 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat Variant (B8)
Engine
1.5 TSI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
8.8 s
Fuel consumption - Urban cycle
6.5-6.7 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.8 l/100 km
Fuel consumption - Combined cycle
5.3-5.5 l/100 km
Emission standard
Euro 6d-TEMP
CO2 emissions
120-124 g/km

Engine

Engine model / code
EA211evo/DADA
Engine position
Front, Transverse
Engine displacement
1498 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
59 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1780 l
Curb weight
1450 kg
Gross weight
2040 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1900 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
720 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4767 mm
Width
1832 mm
Width with unfolded mirrors
2083 mm
Height
1516 mm
Wheelbase
2786 mm
Front track
1578-1586 mm
Rear track
1562-1570 mm
Ground clearance
145 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Steering system
Rack-and-pinion
Tire size
215/60 R16 H; 215/55 R17 H; 235/45 R18 V
Rim size
6.5J x 16; 6.5J x 17; 8J x 18
ABS
yes

About Volkswagen Passat Passat Variant (B8)

The Volkswagen Passat Variant (B8), produced from 2014 to 2019, is an elegant estate aimed at those who value comfort, space, and functionality. This five-door model, with its spacious interior and large boot capacity, is ideally suited as a family car or for professionals who travel frequently. The styling of the Passat B8 combines modernity with classic elegance, while also highlighting its status as a solid and prestigious vehicle.

Under the hood of the Passat B8 are various powertrains, including petrol, diesel, and plug-in hybrid engines. The engine lineup starts with the economical 1.6 TDI SCR BlueMotion producing 120 hp, and ends with the dynamic 2.0 TSI generating 280 hp, equipped with all-wheel drive and a DSG transmission. There is also a hybrid GTE variant with a 1.4 TSI engine producing 218 hp, combining low fuel consumption with eco-friendliness. Transmission options include manual, automatic, and dual-clutch DSG, allowing for customization based on driver preferences regarding comfort and driving dynamics.

The Passat Variant is standardly equipped with front-wheel drive, with the option of 4MOTION for better grip on slippery surfaces. Its high stability and comfort make it an excellent choice for both city driving and long distances. Systems such as adaptive cruise control, parking assist, and an innovative multimedia system significantly enhance driving comfort while ensuring a high level of safety.

Like any car, the Passat B8 has its downsides that prospective buyers should consider. Common issues involve certain versions of the DSG transmissions, which may require specialized servicing. There have also been reports of electronic system failures, which can lead to costly repairs. Maintenance costs, particularly for the 4MOTION versions, may be higher than the average in this segment, which is worth factoring into long-term financial plans.

The Volkswagen Passat Variant B8, thanks to its spaciousness, modern technologies, and diverse engine lineup, presents an attractive option for a wide range of drivers. Its versatility and elegant design make it a standout choice in the estate market, offering not only comfort and functionality but also the prestige and reliability typical of the Volkswagen brand.
