Volkswagen Passat (B5)

Compare all 28 engine versions of the Volkswagen Passat Passat (B5), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Volkswagen Passat (B5)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Volkswagen Passat (B5)?

See the places on a 3D model →
VIN number
Firewall (bulkhead), centre
Identification plate
Inner wing / front wheel arch in engine compartment, right side
1 of 8

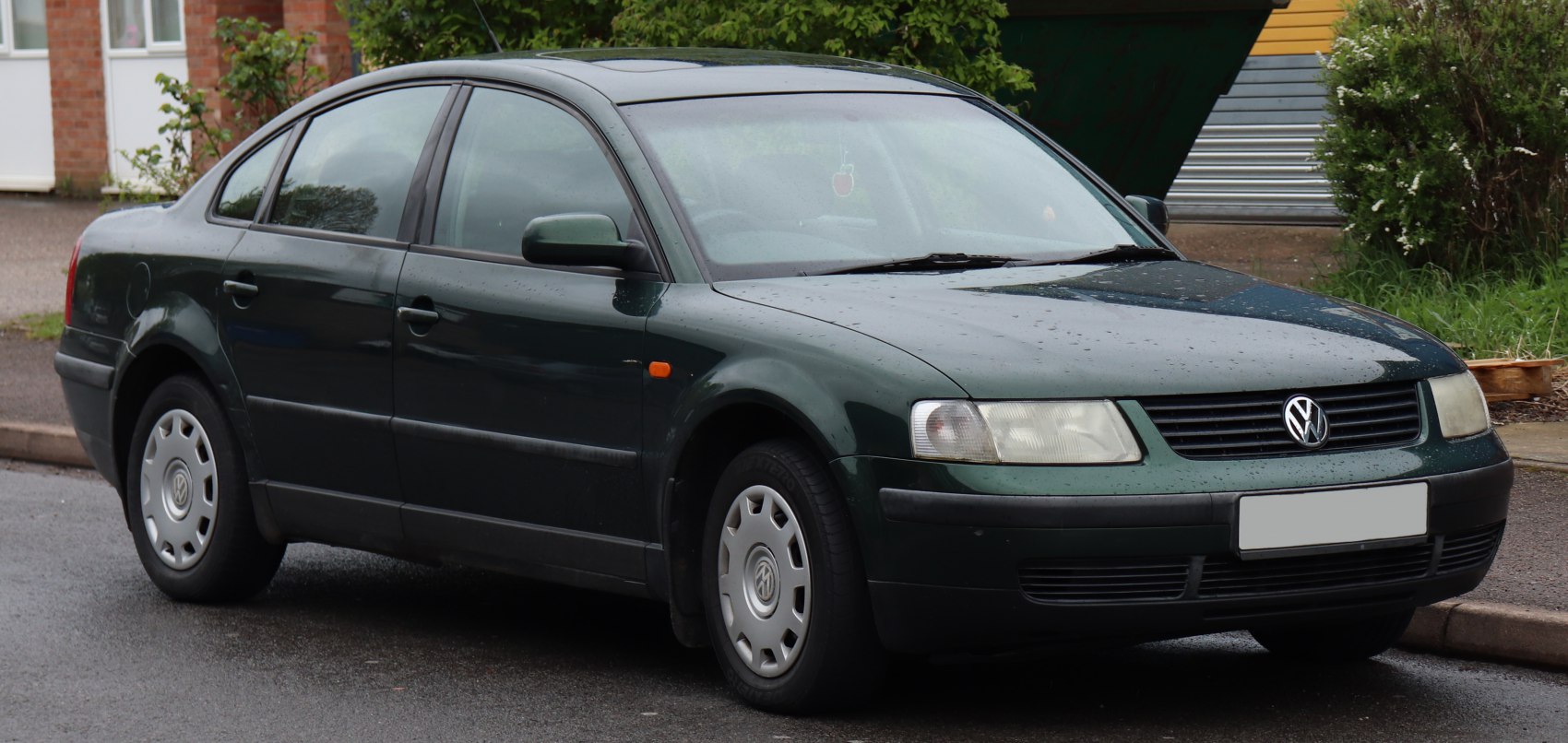

Volkswagen Passat Passat (B5) View larger
Photo: Vauxford, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons

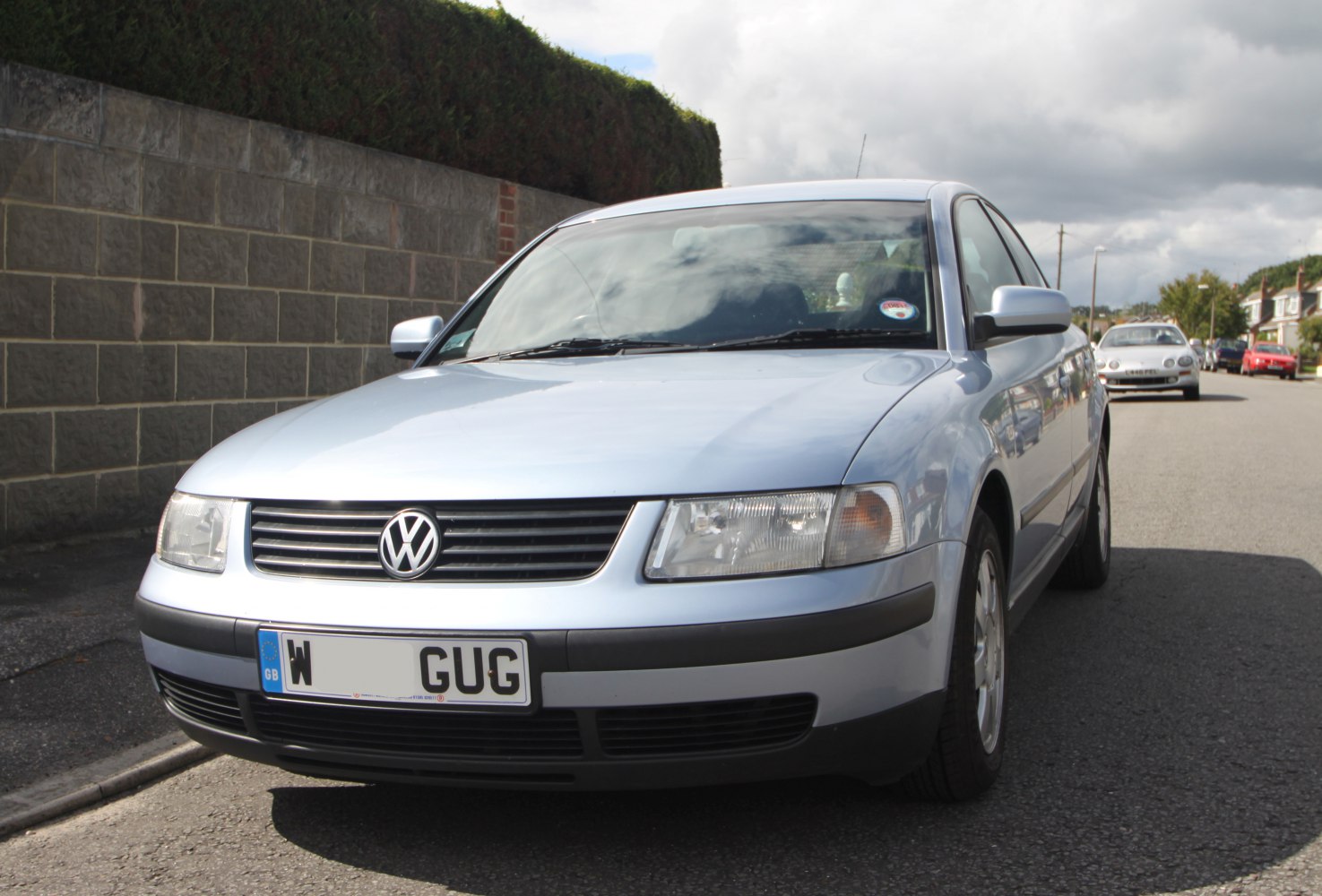

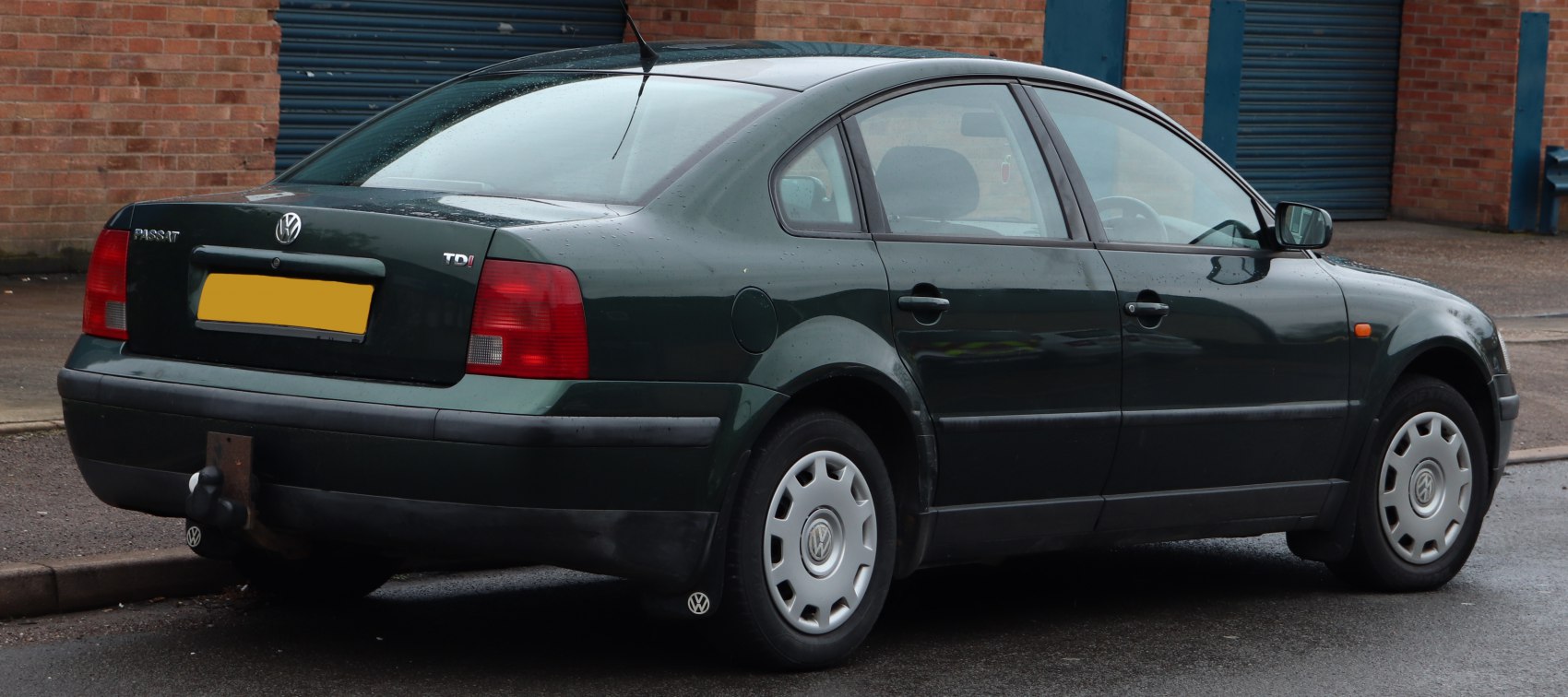

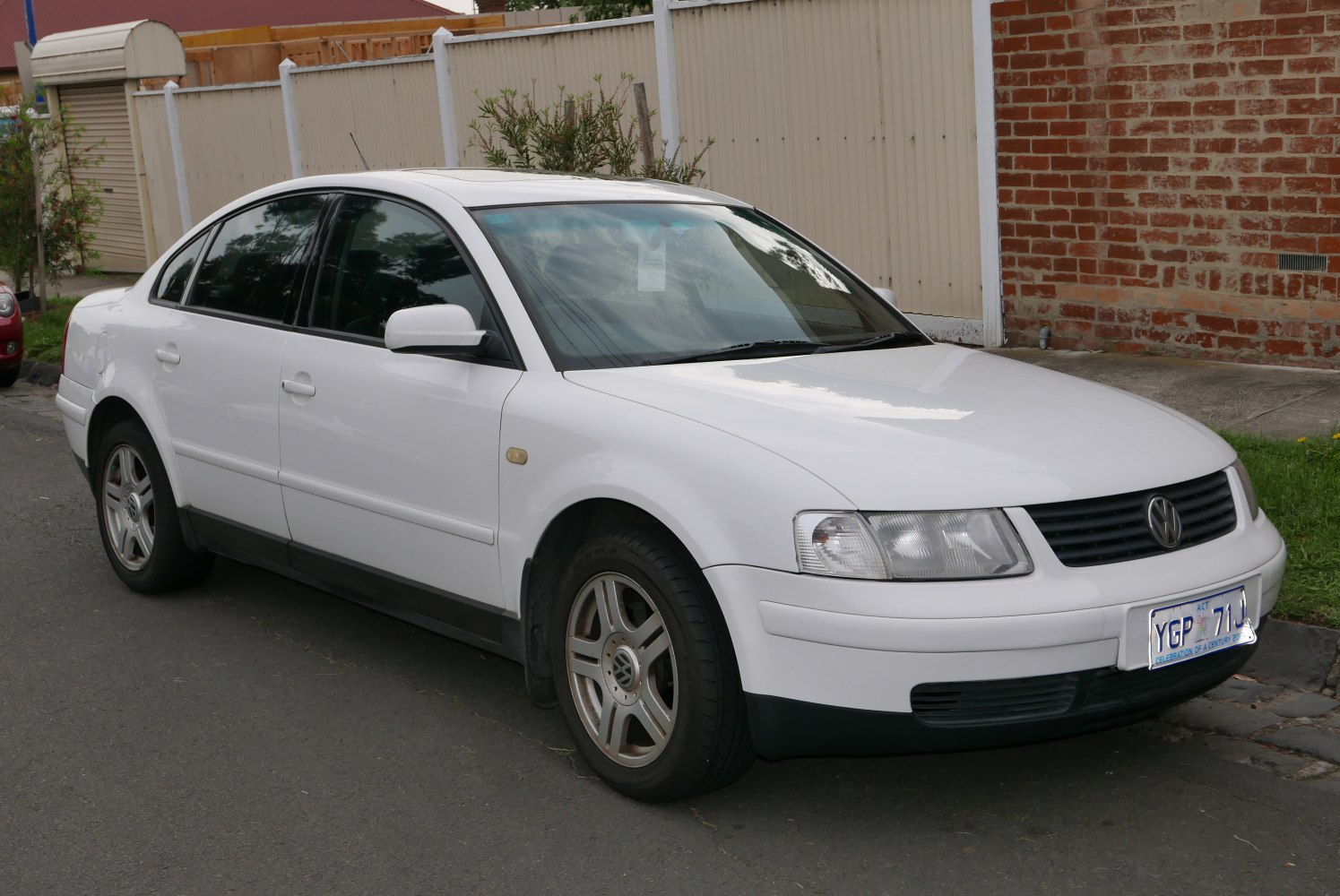

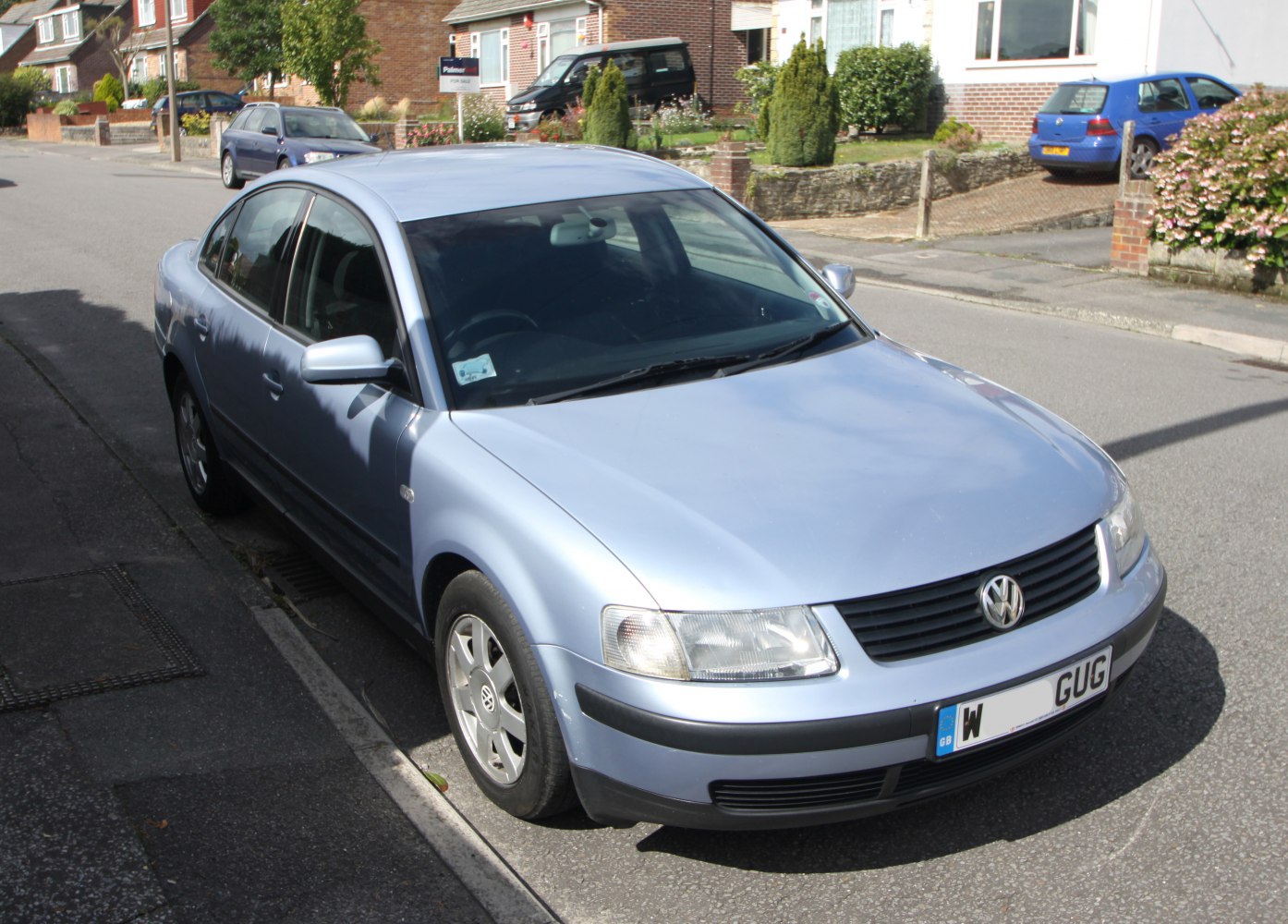

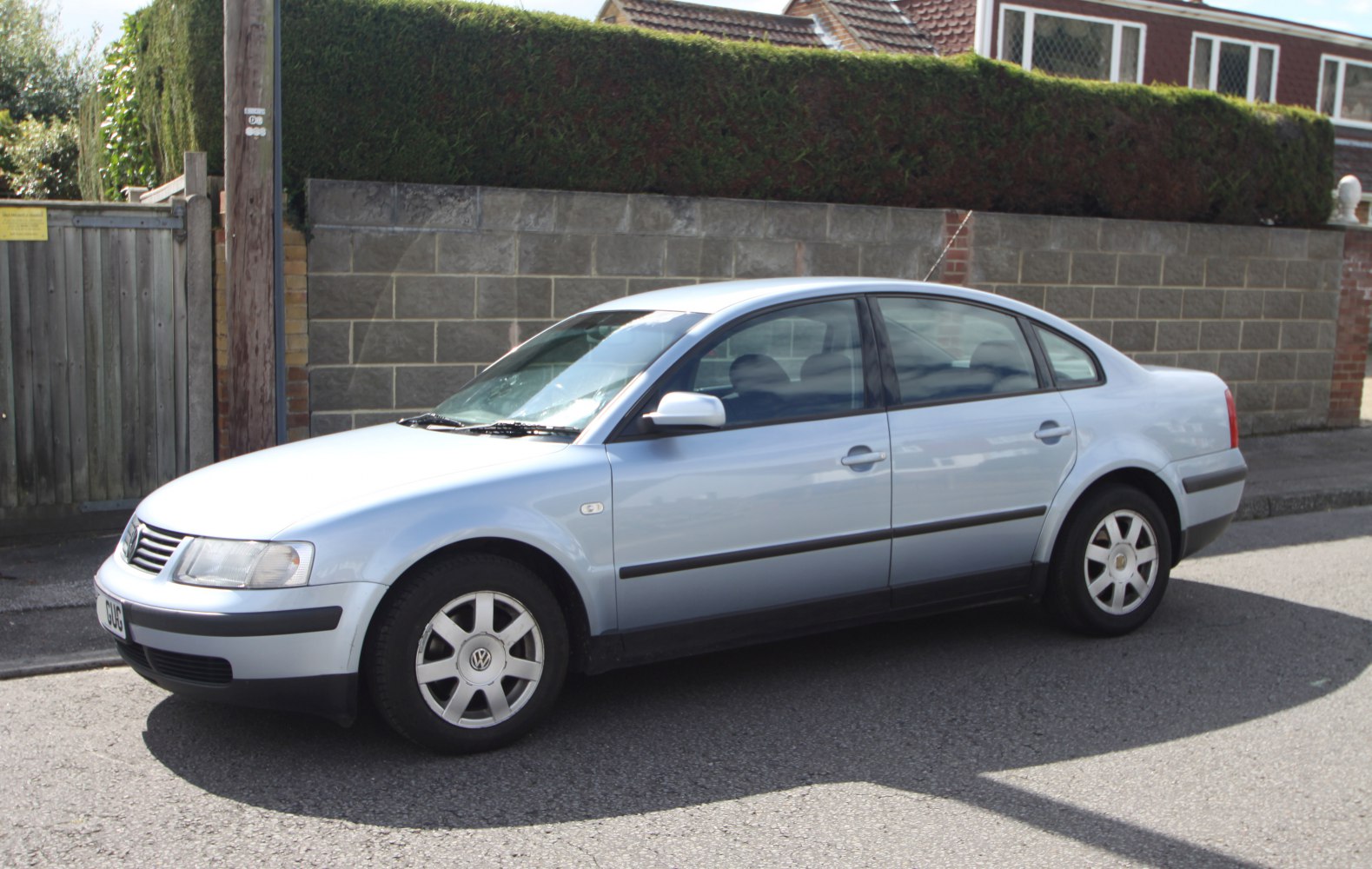

Vehicle gallery

Volkswagen Passat Passat (B5)

Photo: Vauxford, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

28 versions · 17 Gasoline · 11 Diesel fuel

Engine Fuel Power Production
1.6 (101 KM) Selected Gasoline 101 KM 1996–2000
1.8 20V (125 KM) Selected Gasoline 125 KM 1996–2000
1.8 20V (125 KM) Syncro Selected Gasoline 125 KM 1996–2000
1.8 T 20V (150 KM) Selected Gasoline 150 KM 1996–2000
1.9 TDI (101 KM) Selected Diesel fuel 101 KM 1999–2000
1.9 TDI (110 KM) Selected Diesel fuel 110 KM 1996–2000
1.9 TDI (115 KM) Selected Diesel fuel 115 KM 2000
1.9 TDI (90 KM) Selected Diesel fuel 90 KM 1996–2000
1.9 TDI (110 KM) Syncro Selected Diesel fuel 110 KM 1998–1999
1.9 TDI (90 KM) Automatic Selected Diesel fuel 90 KM 1998–2000
2.0 i (115 KM) Selected Gasoline 115 KM 1997–2000
2.0 i (115 KM) Syncro Selected Gasoline 115 KM 1997–2000
2.3 VR5 (150 KM) Selected Gasoline 150 KM 1996–2000
2.3 VR5 (150 KM) Syncro Selected Gasoline 150 KM 1997–2000
2.5 TDI (150 KM) Selected Diesel fuel 150 KM 1998–2000
2.5 TDI (150 KM) Syncro Selected Diesel fuel 150 KM 1998–2000
2.8 V6 30V (193 KM) Selected Gasoline 193 KM 1996–1998
2.8 V6 30V (193 KM) Syncro Selected Gasoline 193 KM 1999–2000
2.8 V6 30V (193 KM) Syncro Automatic Selected Gasoline 193 KM 1999–2000
2.8 V6 30V (193 KM) Automatic Selected Gasoline 193 KM 1996–1998
2.5 TDI (150 KM) Syncro Automatic Selected Diesel fuel 150 KM 1998–2000
1.6 (101 KM) Automatic Selected Gasoline 101 KM 1996–2000
1.8 T 20V (150 KM) Automatic Selected Gasoline 150 KM 1996–2000
1.9 TDI (101 KM) Automatic Selected Diesel fuel 101 KM 1999–2000
1.9 TDI (110 KM) Automatic Selected Diesel fuel 110 KM 1996–2000
2.3 VR5 (150 KM) Automatic Selected Gasoline 150 KM 1996–2000
2.0 i (115 KM) Automatic Selected Gasoline 115 KM 1997–2000
1.8 20V (125 KM) Automatic Selected Gasoline 125 KM 1996–2000

Selected engine version

1.6 (101 KM)

Gasoline · 1996–2000

Engine power
101 KM
Torque
145 Nm
Engine displacement
1,595 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.3 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.6 (101 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
12.3 s
Fuel consumption - Urban cycle
11.4 l/100 km
Fuel consumption - Extra-urban cycle
6.2 l/100 km

Engine

Engine model / code
ADP, AHL, ANA, ARM
Engine position
Front, Longitudinal
Engine displacement
1595 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
77.4 mm
Compression ratio
10.3
Number of valves per cylinder
2
Engine oil capacity
3 l
Coolant capacity
7 l
Power
101 KM @ 5600 obr./min
Torque
145 Nm @ 3800 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1200 kg
Gross weight
1750 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.8 20V (125 KM)

Gasoline · 1996–2000

Engine power
125 KM
Torque
168 Nm
Engine displacement
1,781 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.9 s
Maximum speed
206 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.8 20V (125 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
206 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
12.2 l/100 km
Fuel consumption - Extra-urban cycle
6.4 l/100 km
Fuel consumption - Combined cycle
8.5 l/100 km

Engine

Engine model / code
ADR, APT, ARG
Engine position
Front, Longitudinal
Engine displacement
1781 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
86.4 mm
Compression ratio
10.3
Number of valves per cylinder
5
Engine oil capacity
3.5 l
Coolant capacity
7 l
Power
125 KM @ 5800 obr./min
Torque
168 Nm @ 3500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1308 kg
Gross weight
1825 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.8 20V (125 KM) Syncro

Gasoline · 1996–2000

Engine power
125 KM
Torque
168 Nm
Engine displacement
1,781 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.3 s
Maximum speed
202 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.8 20V (125 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
202 km/h
Acceleration 0-100 km/h
11.3 s
Fuel consumption - Urban cycle
12.8 l/100 km
Fuel consumption - Extra-urban cycle
6.9 l/100 km

Engine

Engine model / code
ADR, APT, ARG
Engine position
Front, Longitudinal
Engine displacement
1781 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
86.4 mm
Compression ratio
10.3
Number of valves per cylinder
5
Engine oil capacity
3.5 l
Coolant capacity
7 l
Power
125 KM @ 5800 obr./min
Torque
168 Nm @ 3500 obr./min

Volume and weight

Fuel tank
65 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1370 kg
Gross weight
1920 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.8 T 20V (150 KM)

Gasoline · 1996–2000

Engine power
150 KM
Torque
210 Nm
Engine displacement
1,781 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.2 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.8 T 20V (150 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
10.7 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
9.3 l/100 km

Engine

Engine model / code
AEB, ANB, APU, ATW, AUG, AWT, BGC
Engine position
Front, Longitudinal
Engine displacement
1781 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
86.4 mm
Compression ratio
9.5
Number of valves per cylinder
5
Engine oil capacity
3.5 l
Coolant capacity
7 l
Power
150 KM @ 5700 obr./min
Torque
210 Nm @ 1750 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1280 kg
Gross weight
1830 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (101 KM)

Diesel fuel · 1999–2000

Engine power
101 KM
Torque
240 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.4 s
Maximum speed
191 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (101 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1999
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
191 km/h
Acceleration 0-100 km/h
12.4 s
Fuel consumption - Urban cycle
7 l/100 km
Fuel consumption - Extra-urban cycle
4.4 l/100 km

Engine

Engine model / code
AVB
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19
Number of valves per cylinder
2
Engine oil capacity
3.6 l
Coolant capacity
7 l
Power
101 KM @ 4000 obr./min
Torque
240 Nm @ 1800 obr./min

Volume and weight

Fuel tank
65 l
Minimum trunk capacity
475 l
Maximum trunk capacity
800 l
Curb weight
1380 kg
Gross weight
1940 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (110 KM)

Diesel fuel · 1996–2000

Engine power
110 KM
Torque
235 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.4 s
Maximum speed
196 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (110 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
196 km/h
Acceleration 0-100 km/h
11.4 s
Fuel consumption - Urban cycle
7.1 l/100 km
Fuel consumption - Extra-urban cycle
4.3 l/100 km

Engine

Engine model / code
AFN
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.5 l
Power
110 KM @ 4150 obr./min
Torque
235 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1300 kg
Gross weight
1850 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (115 KM)

Diesel fuel · 2000

Engine power
115 KM
Torque
310 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.5 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (115 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2000
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
6.5 l/100 km
Fuel consumption - Extra-urban cycle
4.5 l/100 km
Fuel consumption - Combined cycle
5.6 l/100 km

Engine

Engine model / code
ATJ, AJM
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
18
Number of valves per cylinder
2
Engine oil capacity
3.6 l
Coolant capacity
7 l
Power
115 KM @ 4000 obr./min
Torque
310 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1320 kg
Gross weight
1880 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R16
Rim size
6J x 16
ABS
yes

Selected engine version

1.9 TDI (90 KM)

Diesel fuel · 1996–2000

Engine power
90 KM
Torque
202 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.9 s
Maximum speed
184 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (90 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
184 km/h
Acceleration 0-100 km/h
13.9 s
Fuel consumption - Urban cycle
7 l/100 km
Fuel consumption - Extra-urban cycle
4.3 l/100 km
Fuel consumption - Combined cycle
5.3 l/100 km
CO2 emissions
143 g/km

Engine

Engine model / code
AHH, AHU
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.5 l
Power
90 KM @ 4000 obr./min
Torque
202 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1370 kg
Gross weight
1845 kg
Roof load
100 kg
Braked trailer load (8% slope start)
990 kg
Braked trailer load (12% slope start)
970 kg
Trailer load without brakes
650 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4675 mm
Width
1740 mm
Height
1459 mm
Wheelbase
2707 mm
Front track
1498 mm
Rear track
1500 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent multi-link suspension
Rear suspension
Steer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (110 KM) Syncro

Diesel fuel · 1998–1999

Engine power
110 KM
Torque
235 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.1 s
Maximum speed
194 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (110 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1998
End of production
1999
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
194 km/h
Acceleration 0-100 km/h
12.1 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
CO2 emissions
157 g/km

Engine

Engine model / code
AFN
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.5 l
Power
110 KM @ 4150 obr./min
Torque
235 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1445 kg
Gross weight
1945 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4675 mm
Width
1740 mm
Height
1462 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1498 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Independent multi-link suspension
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (90 KM) Automatic

Diesel fuel · 1998–2000

Engine power
90 KM
Torque
202 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
15.3 s
Maximum speed
177 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (90 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1998
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
177 km/h
Acceleration 0-100 km/h
15.3 s
Fuel consumption - Urban cycle
9 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.5 l/100 km
CO2 emissions
176 g/km

Engine

Engine model / code
AHU, AHH
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.5 l
Power
90 KM @ 4000 obr./min
Torque
202 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1385 kg
Gross weight
1860 kg
Roof load
100 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
650 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4675 mm
Width
1740 mm
Height
1459 mm
Wheelbase
2707 mm
Front track
1498 mm
Rear track
1500 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Independent multi-link suspension
Rear suspension
Steer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.0 i (115 KM)

Gasoline · 1997–2000

Engine power
115 KM
Torque
172 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.2 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.0 i (115 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1997
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
12.3 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
8.3 l/100 km

Engine

Engine model / code
AZM, BFF
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
10.3
Number of valves per cylinder
2
Engine oil capacity
4 l
Coolant capacity
7 l
Power
115 KM @ 5400 obr./min
Torque
172 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
800 l
Curb weight
1340 kg
Gross weight
1900 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.0 i (115 KM) Syncro

Gasoline · 1997–2000

Engine power
115 KM
Torque
166 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.6 s
Maximum speed
196 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.0 i (115 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1997
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
196 km/h
Acceleration 0-100 km/h
11.6 s
Fuel consumption - Urban cycle
12.3 l/100 km
Fuel consumption - Extra-urban cycle
7 l/100 km
Fuel consumption - Combined cycle
8.9 l/100 km

Engine

Engine model / code
AZM, BFF
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
10
Number of valves per cylinder
2
Engine oil capacity
4 l
Coolant capacity
5.5 l
Power
115 KM @ 5400 obr./min
Torque
166 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
725 l
Curb weight
1445 kg
Gross weight
2000 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.3 VR5 (150 KM)

Gasoline · 1996–2000

Engine power
150 KM
Torque
205 Nm
Engine displacement
2,324 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.1 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.3 VR5 (150 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
9.1 s
Fuel consumption - Urban cycle
13.5 l/100 km
Fuel consumption - Extra-urban cycle
7.4 l/100 km

Engine

Engine model / code
AGZ
Engine position
Front, Longitudinal
Engine displacement
2324 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
5
Cylinder bore
81 mm
Piston stroke
90.2 mm
Compression ratio
10.1
Number of valves per cylinder
2
Engine oil capacity
3.7 l
Coolant capacity
9 l
Power
150 KM @ 6000 obr./min
Torque
205 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1335 kg
Gross weight
1885 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.3 VR5 (150 KM) Syncro

Gasoline · 1997–2000

Engine power
150 KM
Torque
205 Nm
Engine displacement
2,324 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.3 VR5 (150 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1997
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
14.6 l/100 km
Fuel consumption - Extra-urban cycle
7.4 l/100 km

Engine

Engine model / code
AGZ
Engine position
Front, Longitudinal
Engine displacement
2324 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
5
Cylinder bore
81 mm
Piston stroke
90.2 mm
Compression ratio
10.1
Number of valves per cylinder
2
Engine oil capacity
3.7 l
Coolant capacity
9 l
Power
150 KM @ 6000 obr./min
Torque
205 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1430 kg
Gross weight
1980 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.5 TDI (150 KM)

Diesel fuel · 1998–2000

Engine power
150 KM
Torque
310 Nm
Engine displacement
2,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.9 s
Maximum speed
208 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.5 TDI (150 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1998
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
208 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
11.4 l/100 km
Fuel consumption - Extra-urban cycle
6 l/100 km

Engine

Engine model / code
AKN, AFB
Engine position
Front, Longitudinal
Engine displacement
2496 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
78.3 mm
Piston stroke
86.4 mm
Compression ratio
19.5
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
10 l
Power
150 KM @ 4000 obr./min
Torque
310 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1510 kg
Gross weight
2040 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Double wishbone
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.5 TDI (150 KM) Syncro

Diesel fuel · 1998–2000

Engine power
150 KM
Torque
310 Nm
Engine displacement
2,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10 s
Maximum speed
216 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.5 TDI (150 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1998
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
216 km/h
Acceleration 0-100 km/h
10 s
Fuel consumption - Urban cycle
11.2 l/100 km
Fuel consumption - Extra-urban cycle
6 l/100 km

Engine

Engine model / code
AKN, AFB
Engine position
Front, Longitudinal
Engine displacement
2496 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
78.3 mm
Piston stroke
86.4 mm
Compression ratio
19.5
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
10 l
Power
150 KM @ 4000 obr./min
Torque
310 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1475 kg
Gross weight
2030 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.8 V6 30V (193 KM)

Gasoline · 1996–1998

Engine power
193 KM
Torque
280 Nm
Engine displacement
2,771 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.6 s
Maximum speed
238 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.8 V6 30V (193 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
1998
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
238 km/h
Acceleration 0-100 km/h
7.6 s
Fuel consumption - Urban cycle
14.9 l/100 km
Fuel consumption - Extra-urban cycle
7.9 l/100 km
Fuel consumption - Combined cycle
10.5 l/100 km

Engine

Engine model / code
AMX, ATQ
Engine position
Front, Longitudinal
Engine displacement
2771 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
82.5 mm
Piston stroke
86.4 mm
Compression ratio
10.6
Number of valves per cylinder
5
Engine oil capacity
5.5 l
Coolant capacity
8 l
Power
193 KM @ 6000 obr./min
Torque
280 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1450 kg
Gross weight
2000 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.8 V6 30V (193 KM) Syncro

Gasoline · 1999–2000

Engine power
193 KM
Torque
280 Nm
Engine displacement
2,771 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10 s
Maximum speed
238 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.8 V6 30V (193 KM) Syncro
Engine type
Combustion engine
Number of doors
4
Start of production
1999
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
238 km/h
Acceleration 0-100 km/h
10 s
Fuel consumption - Urban cycle
15.1 l/100 km
Fuel consumption - Extra-urban cycle
8 l/100 km

Engine

Engine model / code
ACK, ALG
Engine position
Front, Longitudinal
Engine displacement
2771 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
82.5 mm
Piston stroke
86.4 mm
Compression ratio
10.6
Number of valves per cylinder
5
Engine oil capacity
5.7 l
Coolant capacity
8 l
Power
193 KM @ 6000 obr./min
Torque
280 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1535 kg
Gross weight
2100 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.8 V6 30V (193 KM) Syncro Automatic

Gasoline · 1999–2000

Engine power
193 KM
Torque
280 Nm
Engine displacement
2,771 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.9 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.8 V6 30V (193 KM) Syncro Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1999
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
16.2 l/100 km
Fuel consumption - Extra-urban cycle
7.8 l/100 km

Engine

Engine model / code
ACK, ALG
Engine position
Front, Longitudinal
Engine displacement
2771 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
82.5 mm
Piston stroke
86.4 mm
Compression ratio
10.6
Number of valves per cylinder
5
Engine oil capacity
5.7 l
Coolant capacity
8 l
Power
193 KM @ 6000 obr./min
Torque
280 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1535 kg
Gross weight
2100 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.8 V6 30V (193 KM) Automatic

Gasoline · 1996–1998

Engine power
193 KM
Torque
280 Nm
Engine displacement
2,771 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.8 V6 30V (193 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
1998
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
10 s
Fuel consumption - Urban cycle
16.5 l/100 km
Fuel consumption - Extra-urban cycle
8 l/100 km

Engine

Engine model / code
AMX, ATQ
Engine position
Front, Longitudinal
Engine displacement
2771 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
82.5 mm
Piston stroke
86.4 mm
Compression ratio
10.6
Number of valves per cylinder
5
Engine oil capacity
5.5 l
Coolant capacity
8 l
Power
193 KM @ 6000 obr./min
Torque
280 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1450 kg
Gross weight
2000 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

2.5 TDI (150 KM) Syncro Automatic

Diesel fuel · 1998–2000

Engine power
150 KM
Torque
310 Nm
Engine displacement
2,496 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.7 s
Maximum speed
214 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.5 TDI (150 KM) Syncro Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1998
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
214 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
11.4 l/100 km
Fuel consumption - Extra-urban cycle
6 l/100 km

Engine

Engine model / code
AKN, AFB
Engine position
Front, Longitudinal
Engine displacement
2496 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
78.3 mm
Piston stroke
86.4 mm
Compression ratio
19.5
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
10 l
Power
150 KM @ 4000 obr./min
Torque
310 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
400 l
Maximum trunk capacity
745 l
Curb weight
1475 kg
Gross weight
2030 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

Selected engine version

1.6 (101 KM) Automatic

Gasoline · 1996–2000

Engine power
101 KM
Torque
145 Nm
Engine displacement
1,595 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
15.2 s
Maximum speed
186 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.6 (101 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
186 km/h
Acceleration 0-100 km/h
15.2 s
Fuel consumption - Urban cycle
12.1 l/100 km
Fuel consumption - Extra-urban cycle
6.7 l/100 km

Engine

Engine model / code
ADP, AHL, ANA, ARM
Engine position
Front, Longitudinal
Engine displacement
1595 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
77.4 mm
Compression ratio
10.3
Number of valves per cylinder
2
Engine oil capacity
3 l
Coolant capacity
7 l
Power
101 KM @ 5600 obr./min
Torque
145 Nm @ 3800 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1200 kg
Gross weight
1750 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.8 T 20V (150 KM) Automatic

Gasoline · 1996–2000

Engine power
150 KM
Torque
210 Nm
Engine displacement
1,781 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.5 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.8 T 20V (150 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
12.9 l/100 km
Fuel consumption - Extra-urban cycle
6.9 l/100 km
Fuel consumption - Combined cycle
9.3 l/100 km

Engine

Engine model / code
AEB, ANB, APU, ATW, AUG, AWT, BGC
Engine position
Front, Longitudinal
Engine displacement
1781 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
86.4 mm
Compression ratio
9.5
Number of valves per cylinder
5
Engine oil capacity
3.5 l
Coolant capacity
7 l
Power
150 KM @ 5700 obr./min
Torque
210 Nm @ 1750 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1280 kg
Gross weight
1830 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (101 KM) Automatic

Diesel fuel · 1999–2000

Engine power
101 KM
Torque
240 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
14.3 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (101 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1999
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
14.3 s
Fuel consumption - Urban cycle
9.4 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km

Engine

Engine model / code
AVB
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19
Number of valves per cylinder
2
Engine oil capacity
3.6 l
Coolant capacity
7 l
Power
101 KM @ 4000 obr./min
Torque
240 Nm @ 1800 obr./min

Volume and weight

Fuel tank
65 l
Minimum trunk capacity
475 l
Maximum trunk capacity
800 l
Curb weight
1380 kg
Gross weight
1940 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

1.9 TDI (110 KM) Automatic

Diesel fuel · 1996–2000

Engine power
110 KM
Torque
235 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.1 s
Maximum speed
194 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.9 TDI (110 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
194 km/h
Acceleration 0-100 km/h
12.1 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km

Engine

Engine model / code
AFN
Engine position
Front, Longitudinal
Engine displacement
1896 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.5 l
Power
110 KM @ 4150 obr./min
Torque
235 Nm @ 1900 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1300 kg
Gross weight
1850 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.3 VR5 (150 KM) Automatic

Gasoline · 1996–2000

Engine power
150 KM
Torque
205 Nm
Engine displacement
2,324 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.7 s
Maximum speed
214 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.3 VR5 (150 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
214 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
15.1 l/100 km
Fuel consumption - Extra-urban cycle
7.2 l/100 km

Engine

Engine model / code
AGZ
Engine position
Front, Longitudinal
Engine displacement
2324 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
5
Cylinder bore
81 mm
Piston stroke
90.2 mm
Compression ratio
10.1
Number of valves per cylinder
2
Engine oil capacity
3.7 l
Coolant capacity
9 l
Power
150 KM @ 6000 obr./min
Torque
205 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1335 kg
Gross weight
1885 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

Selected engine version

2.0 i (115 KM) Automatic

Gasoline · 1997–2000

Engine power
115 KM
Torque
172 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.4 s
Maximum speed
193 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
2.0 i (115 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1997
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
193 km/h
Acceleration 0-100 km/h
12.4 s
Fuel consumption - Urban cycle
13.3 l/100 km
Fuel consumption - Extra-urban cycle
7.5 l/100 km
Fuel consumption - Combined cycle
9.6 l/100 km

Engine

Engine model / code
AZM, BFF
Engine position
Front, Longitudinal
Engine displacement
1984 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
10.3
Number of valves per cylinder
2
Engine oil capacity
4 l
Coolant capacity
7 l
Power
115 KM @ 5400 obr./min
Torque
172 Nm @ 3200 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
800 l
Curb weight
1340 kg
Gross weight
1900 kg

Vehicle dimensions

Length
4703 mm
Width
1746 mm
Height
1462 mm
Wheelbase
2703 mm
Front track
1515 mm
Rear track
1515 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
15
ABS
yes

Selected engine version

1.8 20V (125 KM) Automatic

Gasoline · 1996–2000

Engine power
125 KM
Torque
168 Nm
Engine displacement
1,781 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.7 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Passat
Version
Passat (B5)
Engine
1.8 20V (125 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
1996
End of production
2000
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
12.7 s
Fuel consumption - Urban cycle
12.3 l/100 km
Fuel consumption - Extra-urban cycle
7 l/100 km
Fuel consumption - Combined cycle
8.5 l/100 km

Engine

Engine model / code
ADR, APT, ARG
Engine position
Front, Longitudinal
Engine displacement
1781 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
86.4 mm
Compression ratio
10.3
Number of valves per cylinder
5
Engine oil capacity
3.5 l
Coolant capacity
7 l
Power
125 KM @ 5800 obr./min
Torque
168 Nm @ 3500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
475 l
Maximum trunk capacity
745 l
Curb weight
1308 kg
Gross weight
1825 kg

Vehicle dimensions

Length
4670 mm
Width
1740 mm
Height
1460 mm
Wheelbase
2700 mm
Front track
1498 mm
Rear track
1500 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Coil spring
Rear suspension
Coil spring
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/65 R15
Rim size
6J x 15
ABS
yes

About Volkswagen Passat Passat (B5)

The Volkswagen Passat (B5), produced from 1996 to 2000, is a classic sedan aimed at a wide audience seeking a blend of elegance and functionality. Its four-door body conceals a spacious interior that easily accommodates five passengers. The Passat B5, known for its solid design and quality of workmanship, performs well as both a family vehicle and for professionals who value prestige and comfort while traveling.

Under the hood of the Passat B5 lies a variety of engine options powered by both petrol and diesel. Engine power ranges from 90 HP to an impressive 193 HP, allowing the choice of a power unit to match the individual preferences of the driver. Versions offering excellent fuel efficiency, such as the 1.9 TDI (101 HP), are available alongside those delivering peak dynamic performance, such as the 2.8 V6 30V (193 HP). Manual transmissions are available, as well as automatic and advanced DSG options, enhancing driving comfort.

The Passat B5 comes with front-wheel drive and an optional 4x4 system, significantly improving its traction and stability in challenging road conditions. The vehicle offers excellent ride comfort and ease of handling in any situation – from city streets to long distances. Thanks to the applied technology, the Passat B5 ensures comfort and safety during travel, including supportive systems that, despite the passage of years, still fulfill their function.

Like any model, the Passat B5 has its typical ailments that are worth knowing before purchasing. Users report problems with electronics, including air conditioning systems and central locking. Mechanically, particular attention is required for the suspension, which may be prone to wear over extended use. Although the maintenance costs are not excessively high, certain versions may require more frequent servicing, especially those that are more technologically advanced.

In summary, the Volkswagen Passat B5 is a car that embodies the traditional values of the Volkswagen brand – reliability, comfort, and elegance. Its modern design for its time and advanced mechanics make it an attractive option in the used car market for those seeking a solid and comfortable sedan. Features such as a wide range of engines and the option for 4x4 drive distinguish it from its competitors in its class.
