Vehicle specifications
Volkswagen Eos Eos
Compare all 15 engine versions of the Volkswagen Eos Eos, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Volkswagen Eos Eos? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Volkswagen Eos Eos?
See the places on a 3D model →- VIN number
- Inner wing / front wheel arch in engine compartment, right side

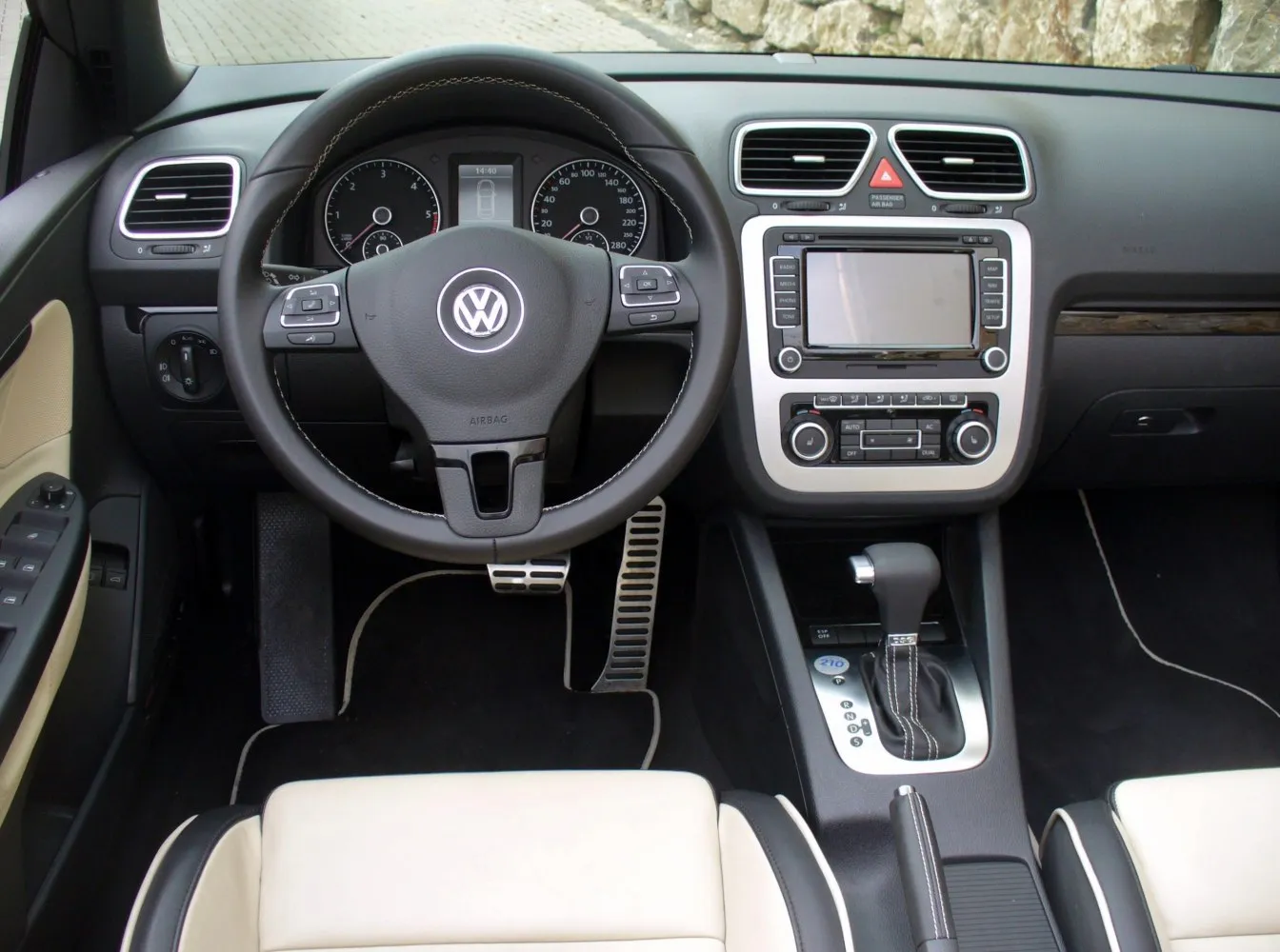

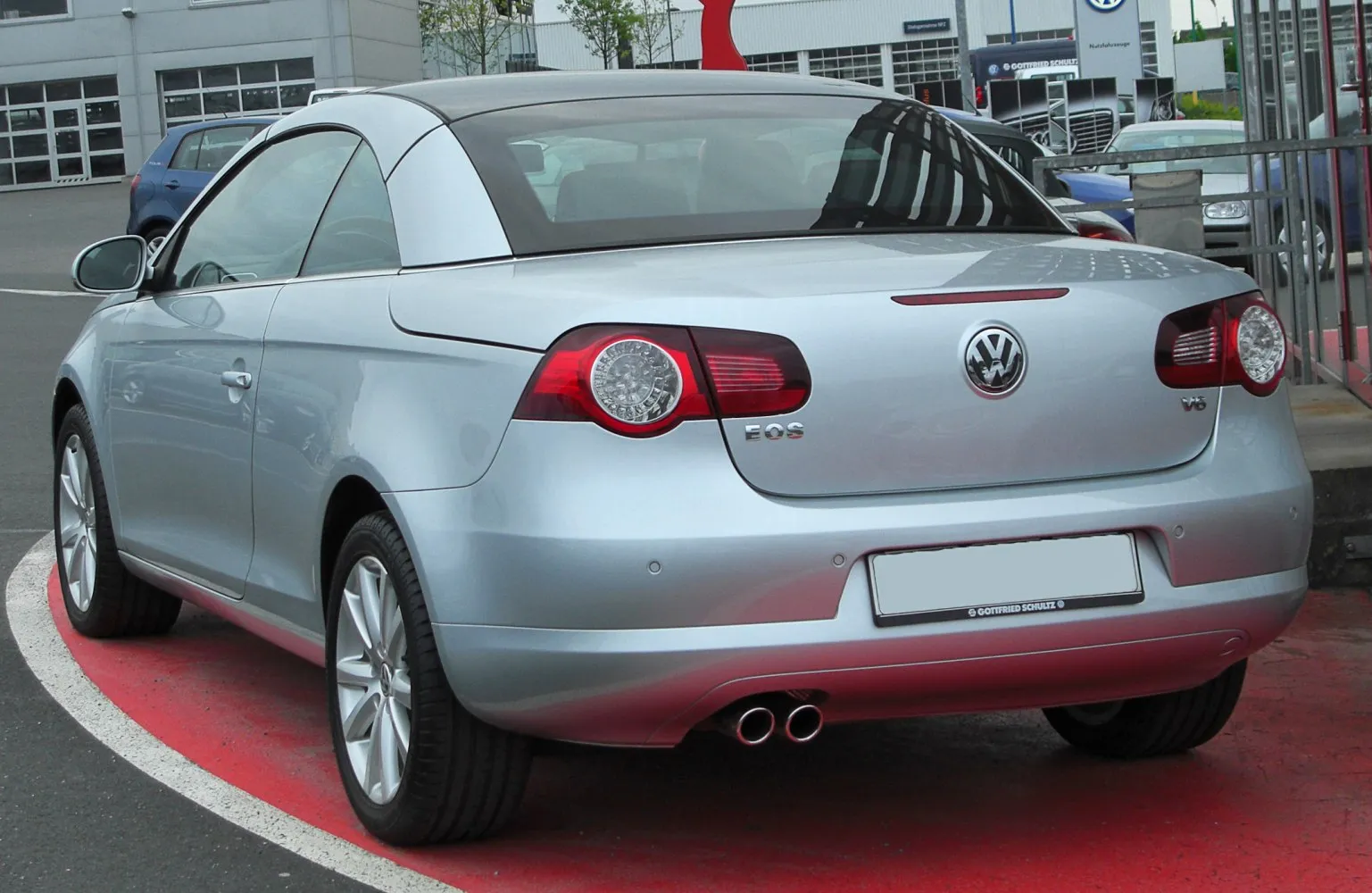

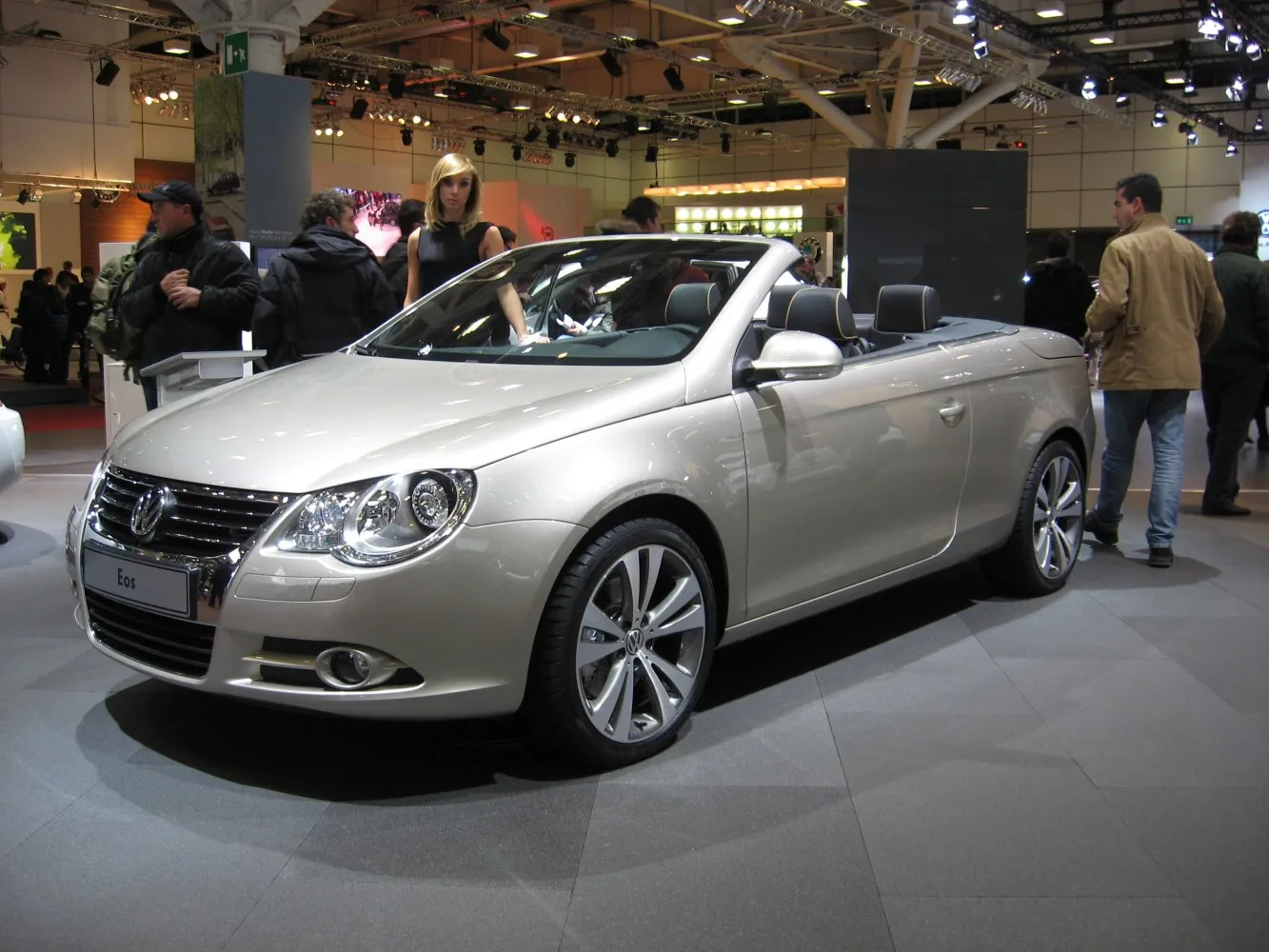

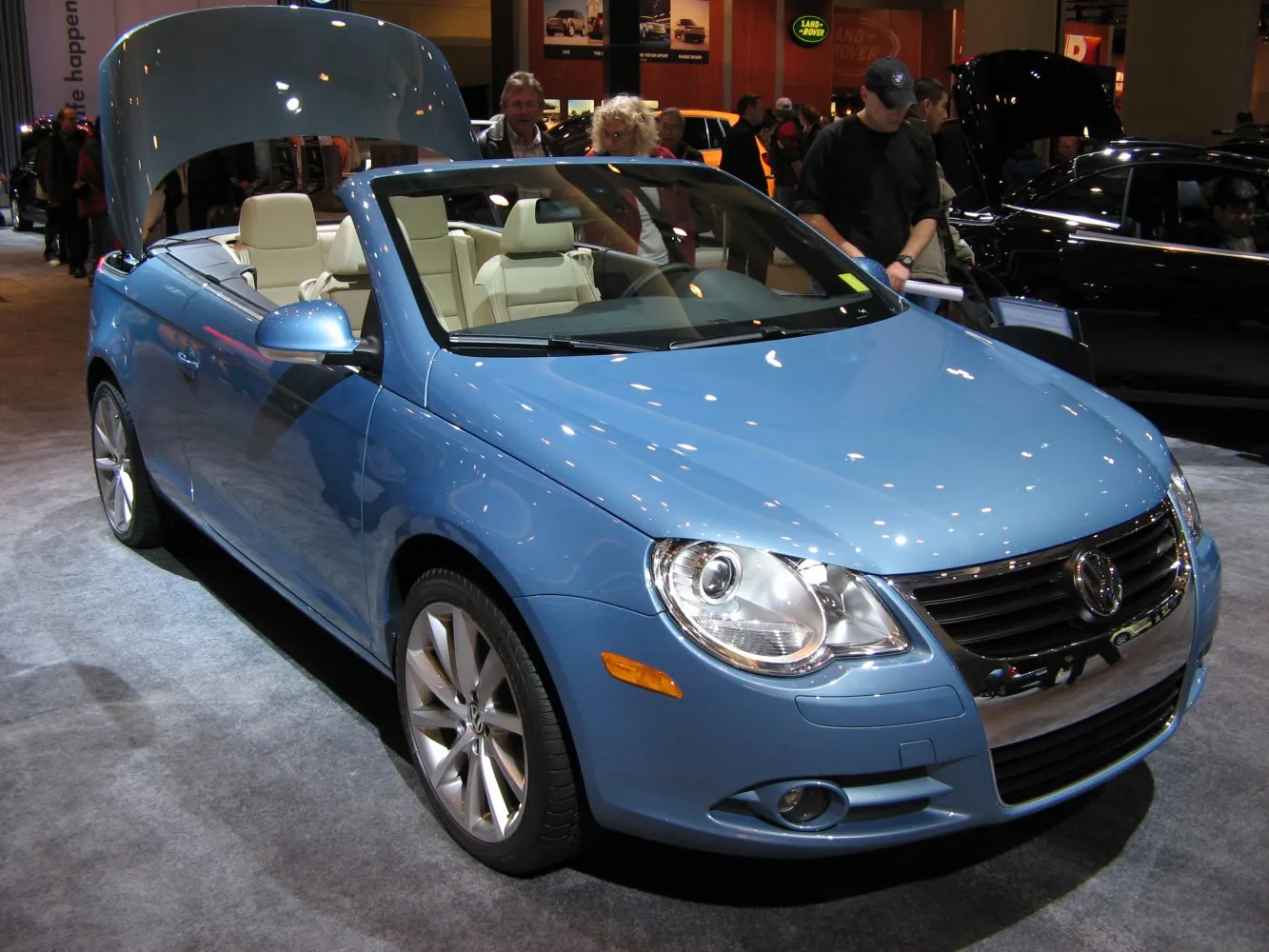

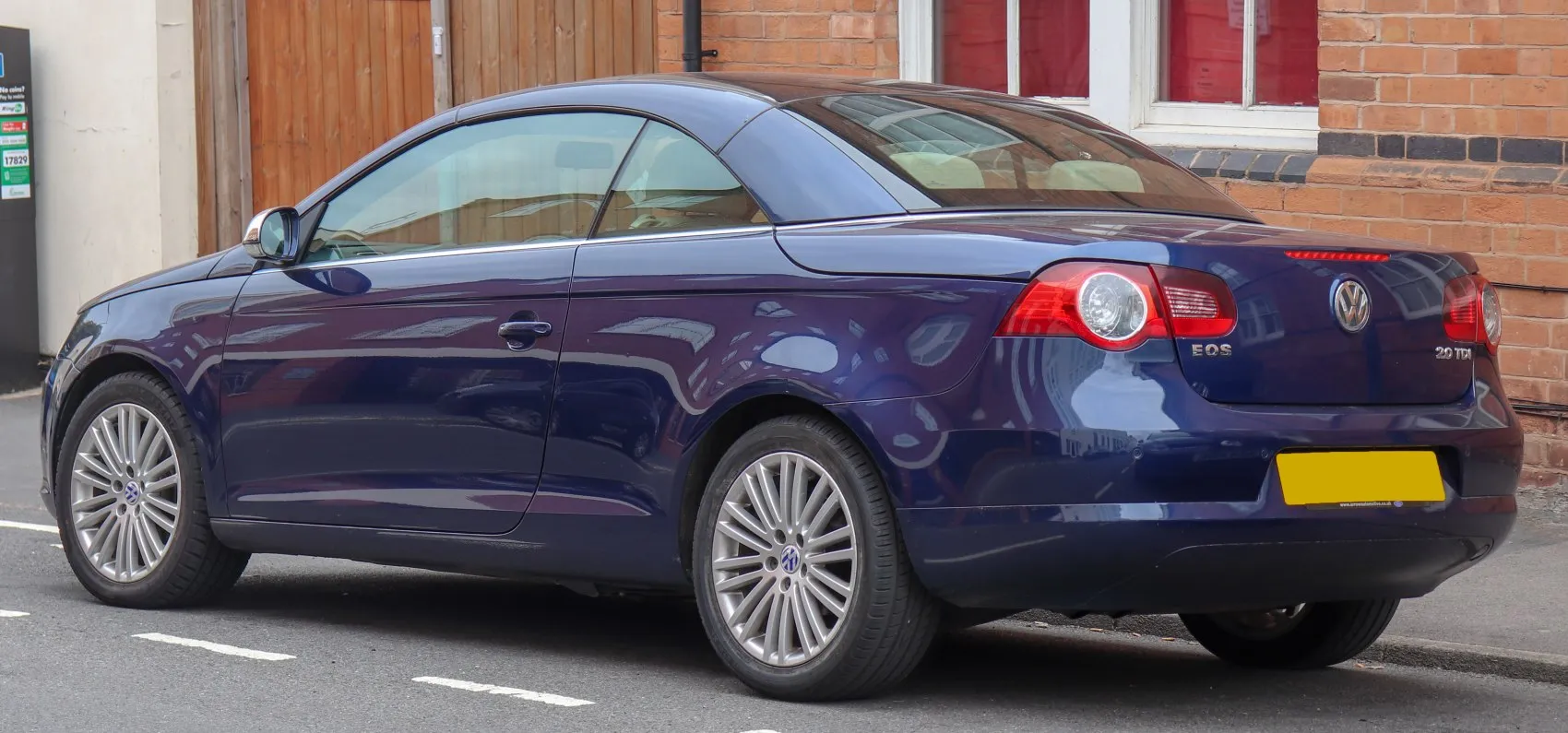

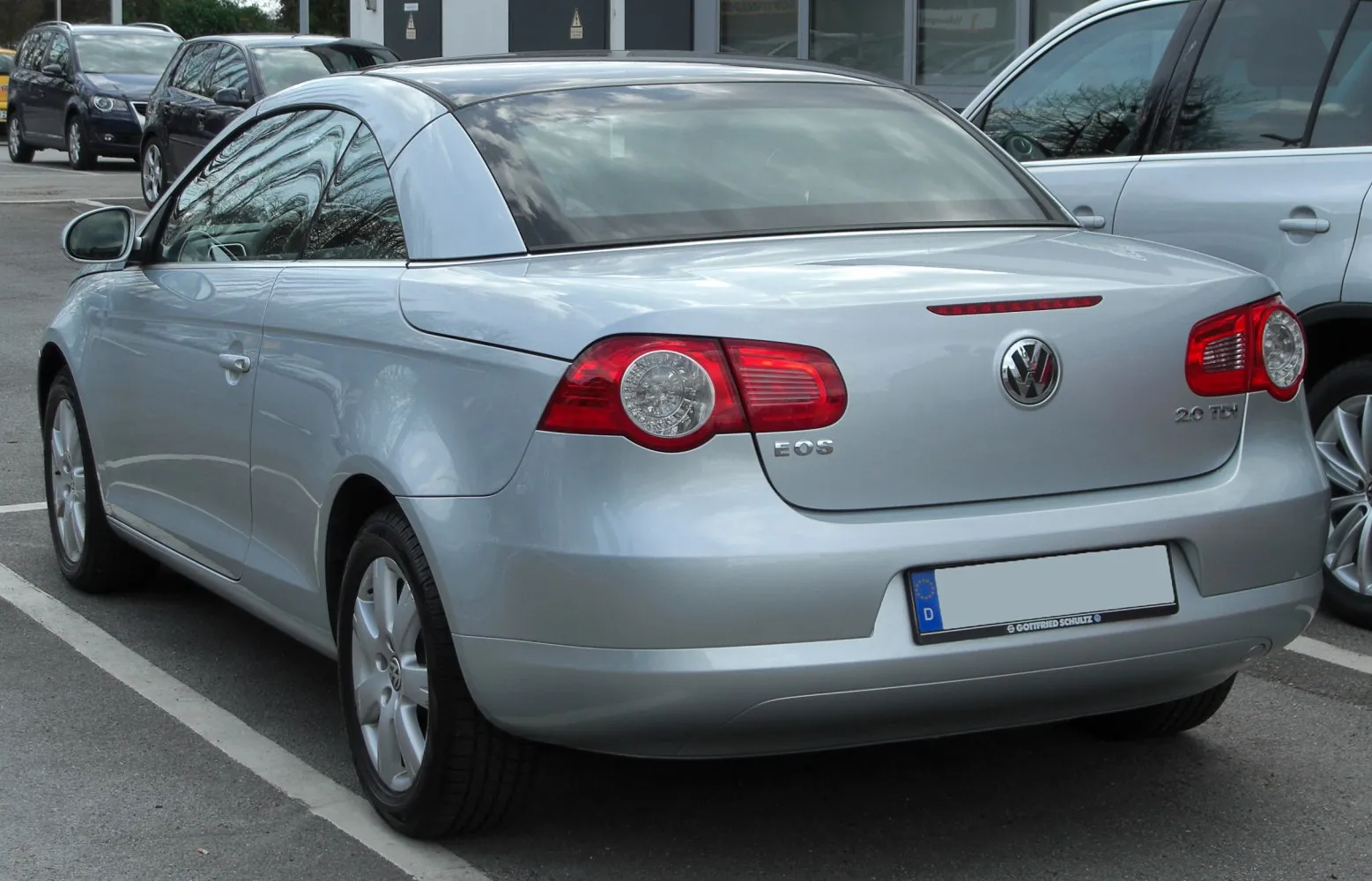

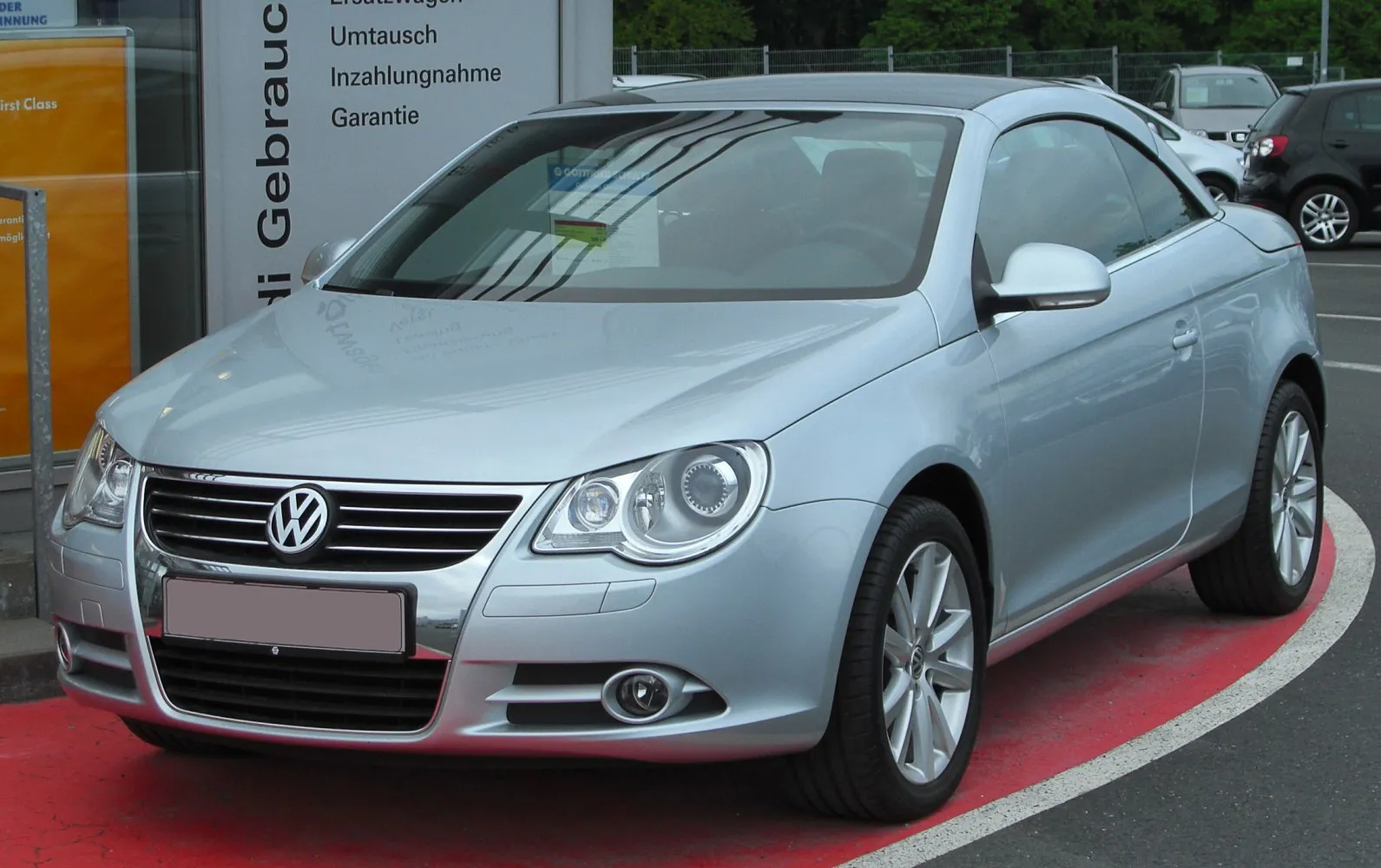

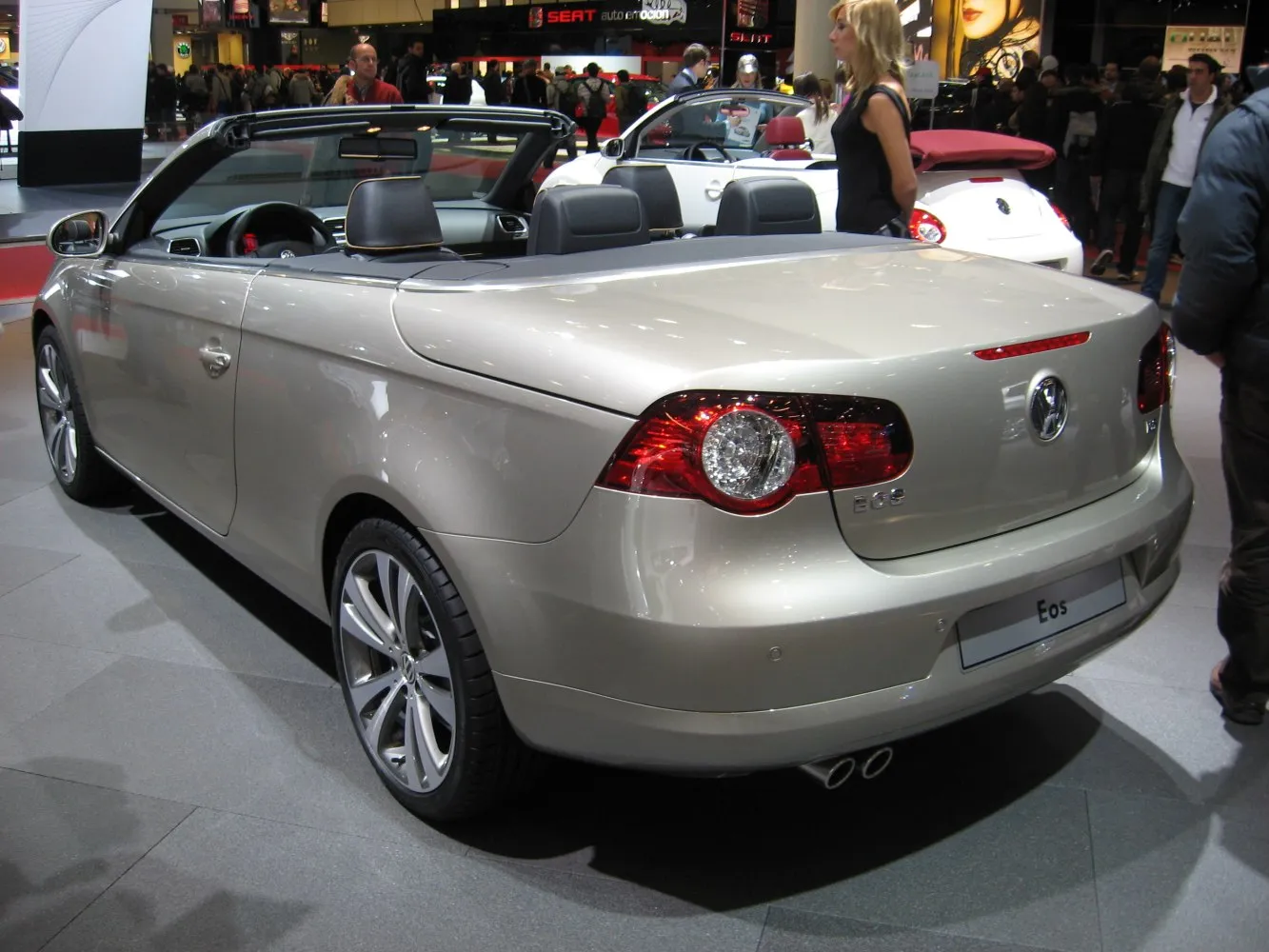

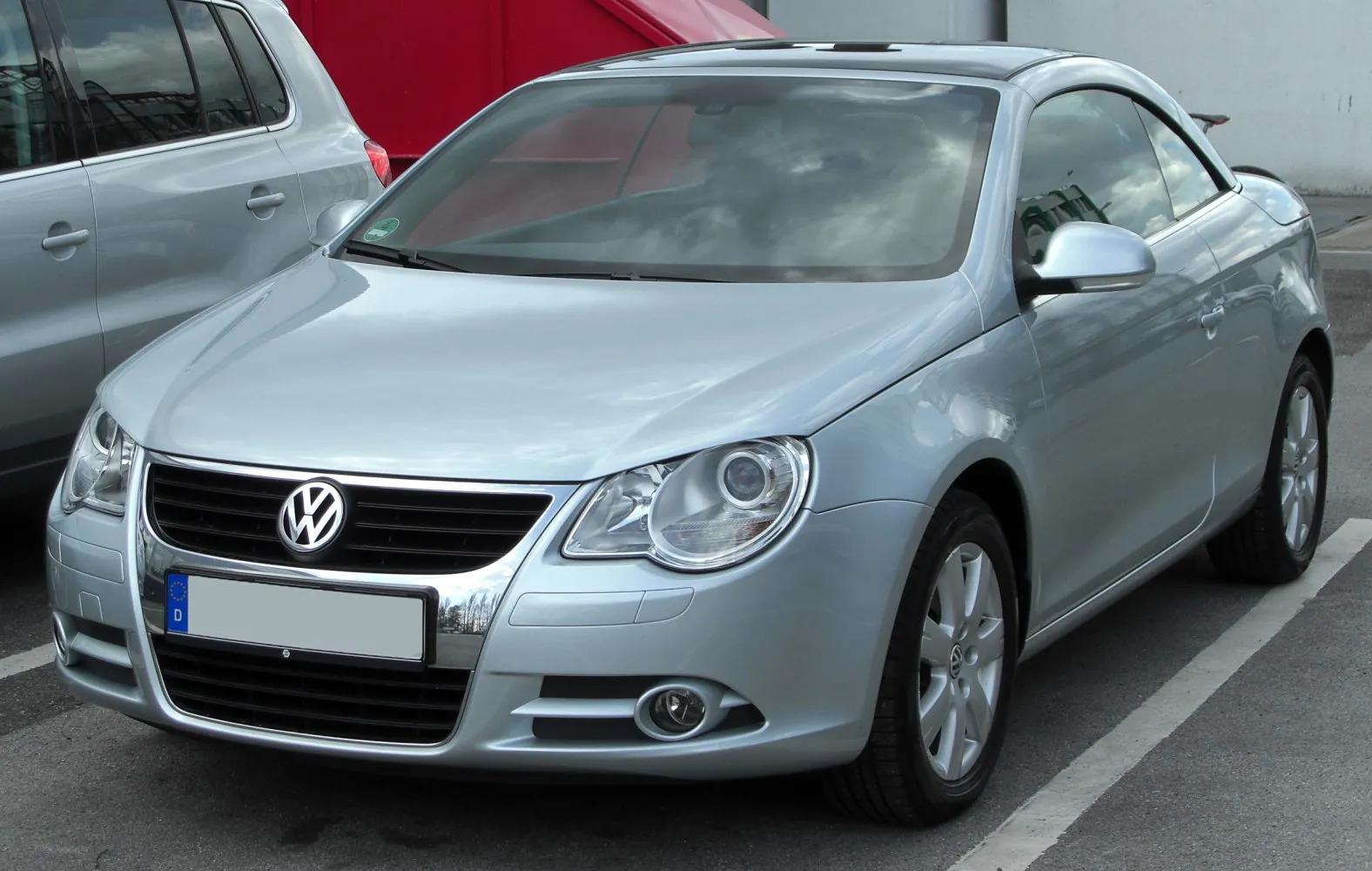

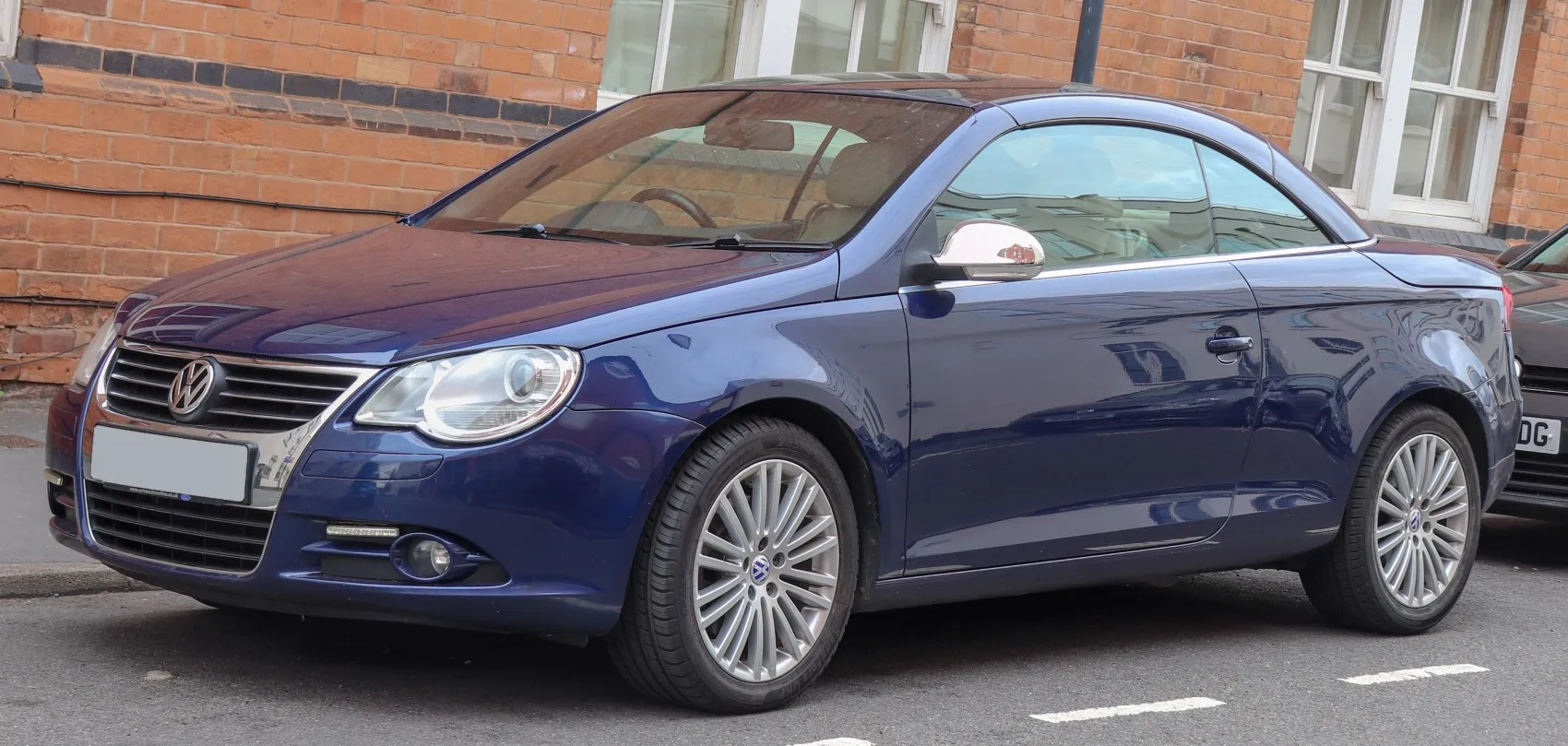

Vehicle photos
1 of 10
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
15 versions · 13 Gasoline · 2 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 16V FSI (150 KM) Selected | Gasoline | 150 KM | 2006–2008 |
| 2.0 16V TFSI (200 KM) Selected | Gasoline | 200 KM | 2006–2009 |
| 2.0 16V TFSI (200 KM) DSG Selected | Gasoline | 200 KM | 2006–2009 |
| 2.0 TDI (140 KM) PDE Selected | Diesel fuel | 140 KM | 2006–2008 |
| 3.2 V6 (250 KM) DSG Selected | Gasoline | 250 KM | 2006–2009 |
| 1.4 TSI (122 KM) Selected | Gasoline | 122 KM | 2007–2009 |
| 1.4 TSI (122 KM) Selected | Gasoline | 122 KM | 2009–2010 |
| 1.4 TSI BMT (122 KM) Selected | Gasoline | 122 KM | 2009–2010 |
| 1.4 TSI (160 KM) Selected | Gasoline | 160 KM | 2008–2009 |
| 1.4 TSI (160 KM) Selected | Gasoline | 160 KM | 2009–2010 |
| 2.0 TSI (210 KM) Selected | Gasoline | 210 KM | 2009–2010 |
| 2.0 TSI (210 KM) DSG Selected | Gasoline | 210 KM | 2009–2010 |
| 3.6 FSI V6 (260 KM) DSG Selected | Gasoline | 260 KM | 2009–2010 |
| 2.0 TDI (140 KM) DSG Selected | Diesel fuel | 140 KM | 2008–2010 |
| 1.6 FSI (115 KM) Selected | Gasoline | 115 KM | 2006–2007 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 16V FSI (150 KM)
Gasoline · 2006–2008
- Engine power
- 150 KM
- Torque
- 200 Nm
- Engine displacement
- 1,984 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 16V FSI (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2008
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption - Urban cycle
- 11.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 8.2 l/100 km
Engine
- Engine model / code
- BVY, BVZ
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 11.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 8 l
- Power
- 150 KM @ 6000 obr./min
- Torque
- 200 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1481 kg
- Gross weight
- 1950 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- With spring struts
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
2.0 16V TFSI (200 KM)
Gasoline · 2006–2009
- Engine power
- 200 KM
- Torque
- 280 Nm
- Engine displacement
- 1,984 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.8 s
- Maximum speed
- 232 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 16V TFSI (200 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2009
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 232 km/h
- Acceleration 0-100 km/h
- 7.8 s
- Fuel consumption - Urban cycle
- 11.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.5 l/100 km
- Fuel consumption - Combined cycle
- 8.2 l/100 km
Engine
- Engine model / code
- BWA, CCZA, CAWB
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Power
- 200 KM @ 5100 obr./min
- Torque
- 280 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1539 kg
- Gross weight
- 2000 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- With spring struts
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
2.0 16V TFSI (200 KM) DSG
Gasoline · 2006–2009
- Engine power
- 200 KM
- Torque
- 280 Nm
- Engine displacement
- 1,984 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 229 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 16V TFSI (200 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2009
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 229 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption - Urban cycle
- 11.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.5 l/100 km
- Fuel consumption - Combined cycle
- 8.2 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- BWA, CCZA, CAWB
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Power
- 200 KM @ 5100 obr./min
- Torque
- 280 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1539 kg
- Gross weight
- 2000 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- With spring struts
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
2.0 TDI (140 KM) PDE
Diesel fuel · 2006–2008
- Engine power
- 140 KM
- Torque
- 320 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.3 s
- Maximum speed
- 206 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 TDI (140 KM) PDE
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2008
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 206 km/h
- Acceleration 0-100 km/h
- 10.3 s
- Fuel consumption - Urban cycle
- 8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
Engine
- Engine model / code
- EA188/BMM
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 18.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.3 l
- Power
- 140 KM @ 4000 obr./min
- Torque
- 320 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1548 kg
- Gross weight
- 2010 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- With spring struts
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
3.2 V6 (250 KM) DSG
Gasoline · 2006–2009
- Engine power
- 250 KM
- Torque
- 330 Nm
- Engine displacement
- 3,168 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.3 s
- Maximum speed
- 247 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 3.2 V6 (250 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2009
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 247 km/h
- Acceleration 0-100 km/h
- 7.3 s
- Fuel consumption - Urban cycle
- 13.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption - Combined cycle
- 9.2 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- BUB, CBRA
- Engine position
- Front, Transverse
- Engine displacement
- 3168 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 90.9 mm
- Compression ratio
- 12
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 9 l
- Power
- 250 KM @ 6250 obr./min
- Torque
- 330 Nm @ 2750 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1539 kg
- Gross weight
- 2000 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- With spring struts
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.4 TSI (122 KM)
Gasoline · 2007–2009
- Engine power
- 122 KM
- Torque
- 200 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.9 s
- Maximum speed
- 196 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.4 TSI (122 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2007
- End of production
- 2009
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 196 km/h
- Acceleration 0-100 km/h
- 10.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.5 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.5 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 154 g/km
Engine
- Engine model / code
- CAXA
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Power
- 122 KM @ 5500 obr./min
- Torque
- 200 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1386 kg
- Gross weight
- 1930 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.4 TSI (122 KM)
Gasoline · 2009–2010
- Engine power
- 122 KM
- Torque
- 200 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.9 s
- Maximum speed
- 196 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.4 TSI (122 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 196 km/h
- Acceleration 0-100 km/h
- 10.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.6 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 152 g/km
Engine
- Engine model / code
- CAXA
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Power
- 122 KM @ 5500 obr./min
- Torque
- 200 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1433 kg
- Gross weight
- 1920 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.4 TSI BMT (122 KM)
Gasoline · 2009–2010
- Engine power
- 122 KM
- Torque
- 200 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.9 s
- Maximum speed
- 196 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.4 TSI BMT (122 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 196 km/h
- Acceleration 0-100 km/h
- 10.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 7.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.3 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 144 g/km
Engine
- Engine model / code
- CAXA
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Power
- 122 KM @ 5500 obr./min
- Torque
- 200 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1448 kg
- Gross weight
- 1920 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.4 TSI (160 KM)
Gasoline · 2008–2009
- Engine power
- 160 KM
- Torque
- 240 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.8 s
- Maximum speed
- 215 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.4 TSI (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2008
- End of production
- 2009
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 215 km/h
- Acceleration 0-100 km/h
- 8.8 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.5 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 159 g/km
Engine
- Engine model / code
- CAVD
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 160 KM @ 5800 obr./min
- Torque
- 240 Nm @ 1500-4500 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1412 kg
- Gross weight
- 1980 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.4 TSI (160 KM)
Gasoline · 2009–2010
- Engine power
- 160 KM
- Torque
- 240 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.8 s
- Maximum speed
- 215 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.4 TSI (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 215 km/h
- Acceleration 0-100 km/h
- 8.8 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.7 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.8 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 159 g/km
Engine
- Engine model / code
- CAVD
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 160 KM @ 5800 obr./min
- Torque
- 240 Nm @ 1500-4500 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1456 kg
- Gross weight
- 1940 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1400 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
2.0 TSI (210 KM)
Gasoline · 2009–2010
- Engine power
- 210 KM
- Torque
- 280 Nm
- Engine displacement
- 1,984 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.8 s
- Maximum speed
- 236 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 TSI (210 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 236 km/h
- Acceleration 0-100 km/h
- 7.8 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.7 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 7.2 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 167 g/km
Engine
- Engine model / code
- CCZB
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Power
- 210 KM @ 5300-6200 obr./min
- Torque
- 280 Nm @ 1700-5200 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1497 kg
- Gross weight
- 2000 kg
- Braked trailer load (8% slope start)
- 1700 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
2.0 TSI (210 KM) DSG
Gasoline · 2009–2010
- Engine power
- 210 KM
- Torque
- 280 Nm
- Engine displacement
- 1,984 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.8 s
- Maximum speed
- 234 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 TSI (210 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 234 km/h
- Acceleration 0-100 km/h
- 7.8 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 10.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 178 g/km
Engine
- Engine model / code
- CCZB
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Power
- 210 KM @ 5300-6200 obr./min
- Torque
- 280 Nm @ 1700-5200 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1514 kg
- Gross weight
- 2020 kg
- Braked trailer load (8% slope start)
- 1700 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DSG
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
3.6 FSI V6 (260 KM) DSG
Gasoline · 2009–2010
- Engine power
- 260 KM
- Torque
- 350 Nm
- Engine displacement
- 3,597 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 3.6 FSI V6 (260 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2009
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 13.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 9.2 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 214 g/km
Engine
- Engine model / code
- CDVA
- Engine position
- Front, Transverse
- Engine displacement
- 3597 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- VR-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 96.4 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 9 l
- Power
- 260 KM @ 6000 obr./min
- Torque
- 350 Nm @ 2400-4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 183 l
- Maximum trunk capacity
- 358 l
- Curb weight
- 1591 kg
- Gross weight
- 2070 kg
- Braked trailer load (8% slope start)
- 1700 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DSG
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/45 R17
- Rim size
- 7.5J x 17
- ABS
- yes
Selected engine version
2.0 TDI (140 KM) DSG
Diesel fuel · 2008–2010
- Engine power
- 140 KM
- Torque
- 320 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.3 s
- Maximum speed
- 203 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 2.0 TDI (140 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2008
- End of production
- 2010
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 203 km/h
- Acceleration 0-100 km/h
- 10.3 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 7.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 154 g/km
Engine
- Engine model / code
- CBAB, CFFB
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Power
- 140 KM @ 4200 obr./min
- Torque
- 320 Nm @ 1750-2500 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1531 kg
- Gross weight
- 2030 kg
- Braked trailer load (8% slope start)
- 1700 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2009 mm
- Height
- 1443 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Ground clearance
- 106 mm
- Approach angle
- 14.4 °
- Departure angle
- 14.4 °
- Ramp angle
- 10.7 °
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DSG
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
Selected engine version
1.6 FSI (115 KM)
Gasoline · 2006–2007
- Engine power
- 115 KM
- Torque
- 155 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 192 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Eos Eos- Brand
- Volkswagen
- Model
- Eos
- Version
- Eos
- Engine
- 1.6 FSI (115 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2006
- End of production
- 2007
- Body type
- Coupé - Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 192 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 10.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.3 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 181 g/km
Engine
- Engine model / code
- BLF
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 12
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Power
- 115 KM @ 6000 obr./min
- Torque
- 155 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 205 l
- Maximum trunk capacity
- 380 l
- Curb weight
- 1503 kg
- Gross weight
- 1930 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4407 mm
- Width
- 1791 mm
- Width with unfolded mirrors
- 2026 mm
- Height
- 1437 mm
- Wheelbase
- 2578 mm
- Front track
- 1545 mm
- Rear track
- 1553 mm
- Turning circle
- 10.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring, Lateral control arm, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/55 R16
- Rim size
- 7J x 16
- ABS
- yes
