Vehicle specifications
Vauxhall Zafira C Tourer
Compare all 5 engine versions of the Vauxhall Zafira Zafira C Tourer, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Vauxhall Zafira C Tourer? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

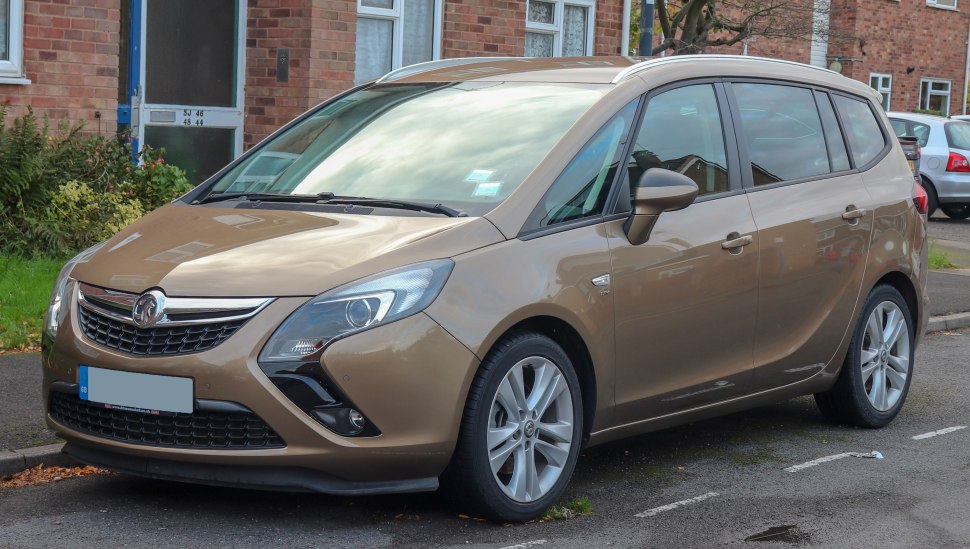

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 3 Diesel fuel · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 CDTI (136 KM) Ecotec start/stop Selected | Diesel fuel | 136 KM | 2013–2016 |
| 2.0 CDTI (170 KM) Automatic Selected | Diesel fuel | 170 KM | 2014–2016 |
| 2.0 CDTI (170 KM) start/stop Selected | Diesel fuel | 170 KM | 2014–2016 |
| 1.4 Turbo (140 KM) Ecotec Selected | Gasoline | 140 KM | 2012–2016 |
| 1.4 Turbo (140 KM) Ecotec Automatic Selected | Gasoline | 140 KM | 2012–2016 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 CDTI (136 KM) Ecotec start/stop
Diesel fuel · 2013–2016
- Engine power
- 136 KM
- Torque
- 320 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 193 km/h
On this page
Check vehicle history
Basic version information
Vauxhall Zafira Zafira C Tourer- Brand
- Vauxhall
- Model
- Zafira
- Version
- Zafira C Tourer
- Engine
- 1.6 CDTI (136 KM) Ecotec start/stop
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2013
- End of production
- 2016
- Body type
- MPV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 193 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Urban cycle
- 4.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.8 l/100 km
- Fuel consumption - Combined cycle
- 4.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- B16DTH
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.7 mm
- Piston stroke
- 80.1 mm
- Engine oil capacity
- 5 l
- Coolant capacity
- 6.2 l
- Power
- 136 KM @ 3500-4000 obr./min
- Torque
- 320 Nm @ 2000-2250 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 152 l
- Maximum trunk capacity
- 1860 l
- Curb weight
- kg
- Gross weight
- 2545 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4658 mm
- Width
- 1884 mm
- Width with unfolded mirrors
- 2099 mm
- Height
- 1685 mm
- Wheelbase
- 2760 mm
- Front track
- 1577 mm
- Rear track
- 1577 mm
- Front overhang
- 991 mm
- Rear overhang
- 907 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.0 CDTI (170 KM) Automatic
Diesel fuel · 2014–2016
- Engine power
- 170 KM
- Torque
- 400 Nm
- Engine displacement
- 1,956 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 204 km/h
On this page
Check vehicle history
Basic version information
Vauxhall Zafira Zafira C Tourer- Brand
- Vauxhall
- Model
- Zafira
- Version
- Zafira C Tourer
- Engine
- 2.0 CDTI (170 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2016
- Body type
- MPV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 204 km/h
- Fuel consumption - Urban cycle
- 8.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.8 l/100 km
- Fuel consumption - Combined cycle
- 6.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 161 g/km
Engine
- Engine model / code
- B20DTH
- Engine position
- Front, Transverse
- Engine displacement
- 1956 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 16.5
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.9 l
- Power
- 170 KM @ 3750 obr./min
- Torque
- 400 Nm @ 1750-2500 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 152 l
- Maximum trunk capacity
- 1860 l
- Curb weight
- kg
- Gross weight
- 2545 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4658 mm
- Width
- 1884 mm
- Width with unfolded mirrors
- 2099 mm
- Height
- 1685 mm
- Wheelbase
- 2760 mm
- Front track
- 1584 mm
- Rear track
- 1588 mm
- Front overhang
- 991 mm
- Rear overhang
- 907 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/50 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.0 CDTI (170 KM) start/stop
Diesel fuel · 2014–2016
- Engine power
- 170 KM
- Torque
- 400 Nm
- Engine displacement
- 1,956 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 208 km/h
On this page
Check vehicle history
Basic version information
Vauxhall Zafira Zafira C Tourer- Brand
- Vauxhall
- Model
- Zafira
- Version
- Zafira C Tourer
- Engine
- 2.0 CDTI (170 KM) start/stop
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2016
- Body type
- MPV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 208 km/h
- Fuel consumption - Urban cycle
- 6.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.2 l/100 km
- Fuel consumption - Combined cycle
- 4.9 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 129 g/km
Engine
- Engine model / code
- B20DTH
- Engine position
- Front, Transverse
- Engine displacement
- 1956 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 16.5
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.9 l
- Power
- 170 KM @ 3750 obr./min
- Torque
- 400 Nm @ 1750-2500 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 152 l
- Maximum trunk capacity
- 1860 l
- Curb weight
- kg
- Gross weight
- 2545 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4658 mm
- Width
- 1884 mm
- Width with unfolded mirrors
- 2099 mm
- Height
- 1685 mm
- Wheelbase
- 2760 mm
- Front track
- 1584 mm
- Rear track
- 1588 mm
- Front overhang
- 991 mm
- Rear overhang
- 907 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/50 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.4 Turbo (140 KM) Ecotec
Gasoline · 2012–2016
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,362 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.8 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Vauxhall Zafira Zafira C Tourer- Brand
- Vauxhall
- Model
- Zafira
- Version
- Zafira C Tourer
- Engine
- 1.4 Turbo (140 KM) Ecotec
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2016
- Body type
- MPV
- Number of seats
- 5-7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.8 s
- Fuel consumption - Urban cycle
- 8.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 158 g/km
Engine
- Engine model / code
- A14NET, B14NET
- Engine position
- Front, Transverse
- Engine displacement
- 1362 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72.5 mm
- Piston stroke
- 82.5 mm
- Engine oil capacity
- 4 l
- Coolant capacity
- 6.2 l
- Power
- 140 KM @ 4900-6000 obr./min
- Torque
- 200 Nm @ 1850-4900 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 152 l
- Maximum trunk capacity
- 1860 l
- Curb weight
- kg
- Gross weight
- 2545 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4658 mm
- Width
- 1884 mm
- Width with unfolded mirrors
- 2099 mm
- Height
- 1685 mm
- Wheelbase
- 2760 mm
- Front track
- 1577 mm
- Rear track
- 1577 mm
- Front overhang
- 991 mm
- Rear overhang
- 907 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.4 Turbo (140 KM) Ecotec Automatic
Gasoline · 2012–2016
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 1,362 cm³
- Fuel type
- Gasoline
- Maximum speed
- 196 km/h
On this page
Check vehicle history
Basic version information
Vauxhall Zafira Zafira C Tourer- Brand
- Vauxhall
- Model
- Zafira
- Version
- Zafira C Tourer
- Engine
- 1.4 Turbo (140 KM) Ecotec Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2016
- Body type
- MPV
- Number of seats
- 5-7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 196 km/h
- Fuel consumption - Urban cycle
- 9.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 168 g/km
Engine
- Engine model / code
- A14NET, B14NET
- Engine position
- Front, Transverse
- Engine displacement
- 1362 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72.5 mm
- Piston stroke
- 82.5 mm
- Engine oil capacity
- 4 l
- Coolant capacity
- 6.2 l
- Power
- 140 KM @ 4900-6000 obr./min
- Torque
- 200 Nm @ 1850-4900 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 152 l
- Maximum trunk capacity
- 1860 l
- Curb weight
- kg
- Gross weight
- 2545 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4658 mm
- Width
- 1884 mm
- Width with unfolded mirrors
- 2099 mm
- Height
- 1685 mm
- Wheelbase
- 2760 mm
- Front track
- 1577 mm
- Rear track
- 1577 mm
- Front overhang
- 991 mm
- Rear overhang
- 907 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17
- Rim size
- 17
- ABS
- yes
