Specifications Vauxhall Zafira C Tourer

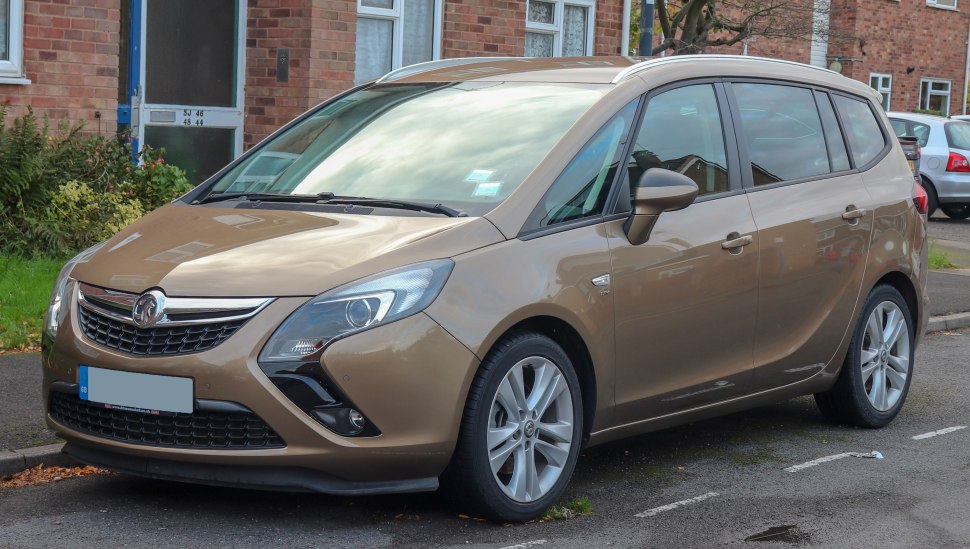

Vehicle photos
Basic information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine power | 136 KM – 170 KM |
| Years of production | 2012 r. – 2016 r. |
| Body type | MPV |
| Number of doors | 5 |
| Number of seats | 5-7 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine | 1.6 CDTI (136 KM) Ecotec start/stop |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2016 r. |
| Body type | MPV |
| Number of seats | 5-7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 193 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.2 s |
| Fuel consumption - Urban cycle | 4.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 109 g/km |
Engine
| Engine model / code | B16DTH |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.7 mm |
| Piston stroke | 80.1 mm |
| Engine oil capacity | 5 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Minimum trunk capacity | 152 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | kg |
| Gross weight | 2545 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4658 mm |
|---|---|
| Width | 1884 mm |
| Width with unfolded mirrors | 2099 mm |
| Height | 1685 mm |
| Wheelbase | 2760 mm |
| Front track | 1577 mm |
| Rear track | 1577 mm |
| Front overhang | 991 mm |
| Rear overhang | 907 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine | 2.0 CDTI (170 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | MPV |
| Number of seats | 5-7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 204 km/h |
|---|---|
| Fuel consumption - Urban cycle | 8.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.8 l/100 km |
| Fuel consumption - Combined cycle | 6.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 161 g/km |
Engine
| Engine model / code | B20DTH |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1956 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 16.5 |
| Engine oil capacity | 4.9 l |
| Coolant capacity | 6.9 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Minimum trunk capacity | 152 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | kg |
| Gross weight | 2545 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4658 mm |
|---|---|
| Width | 1884 mm |
| Width with unfolded mirrors | 2099 mm |
| Height | 1685 mm |
| Wheelbase | 2760 mm |
| Front track | 1584 mm |
| Rear track | 1588 mm |
| Front overhang | 991 mm |
| Rear overhang | 907 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 225/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine | 2.0 CDTI (170 KM) start/stop |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | MPV |
| Number of seats | 5-7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 208 km/h |
|---|---|
| Fuel consumption - Urban cycle | 6.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.2 l/100 km |
| Fuel consumption - Combined cycle | 4.9 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 129 g/km |
Engine
| Engine model / code | B20DTH |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1956 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 16.5 |
| Engine oil capacity | 4.9 l |
| Coolant capacity | 6.9 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Minimum trunk capacity | 152 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | kg |
| Gross weight | 2545 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4658 mm |
|---|---|
| Width | 1884 mm |
| Width with unfolded mirrors | 2099 mm |
| Height | 1685 mm |
| Wheelbase | 2760 mm |
| Front track | 1584 mm |
| Rear track | 1588 mm |
| Front overhang | 991 mm |
| Rear overhang | 907 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 225/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine | 1.4 Turbo (140 KM) Ecotec |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2012 r. |
| End of production | 2016 r. |
| Body type | MPV |
| Number of seats | 5-7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.8 s |
| Fuel consumption - Urban cycle | 8.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.8 l/100 km |
| Fuel consumption - Combined cycle | 6.7 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 158 g/km |
Engine
| Engine model / code | A14NET, B14NET |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1362 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 72.5 mm |
| Piston stroke | 82.5 mm |
| Engine oil capacity | 4 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Minimum trunk capacity | 152 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | kg |
| Gross weight | 2545 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4658 mm |
|---|---|
| Width | 1884 mm |
| Width with unfolded mirrors | 2099 mm |
| Height | 1685 mm |
| Wheelbase | 2760 mm |
| Front track | 1577 mm |
| Rear track | 1577 mm |
| Front overhang | 991 mm |
| Rear overhang | 907 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Vauxhall |
|---|---|
| Model | Zafira |
| Version | Zafira C Tourer |
| Engine | 1.4 Turbo (140 KM) Ecotec Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2012 r. |
| End of production | 2016 r. |
| Body type | MPV |
| Number of seats | 5-7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Fuel consumption - Urban cycle | 9.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 6 l/100 km |
| Fuel consumption - Combined cycle | 7.2 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 168 g/km |
Engine
| Engine model / code | A14NET, B14NET |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1362 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 72.5 mm |
| Piston stroke | 82.5 mm |
| Engine oil capacity | 4 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 58 l |
|---|---|
| Minimum trunk capacity | 152 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | kg |
| Gross weight | 2545 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4658 mm |
|---|---|
| Width | 1884 mm |
| Width with unfolded mirrors | 2099 mm |
| Height | 1685 mm |
| Wheelbase | 2760 mm |
| Front track | 1577 mm |
| Rear track | 1577 mm |
| Front overhang | 991 mm |
| Rear overhang | 907 mm |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 |
| Rim size | 17 |
