Vehicle specifications
Toyota Avensis II Hatch
Compare all 6 engine versions of the Toyota Avensis Avensis II Hatch, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Avensis II Hatch? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Toyota Avensis II Hatch?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), centre
- Dashboard, visible through the windscreen, left side
- Identification plate
- B-pillar, left side

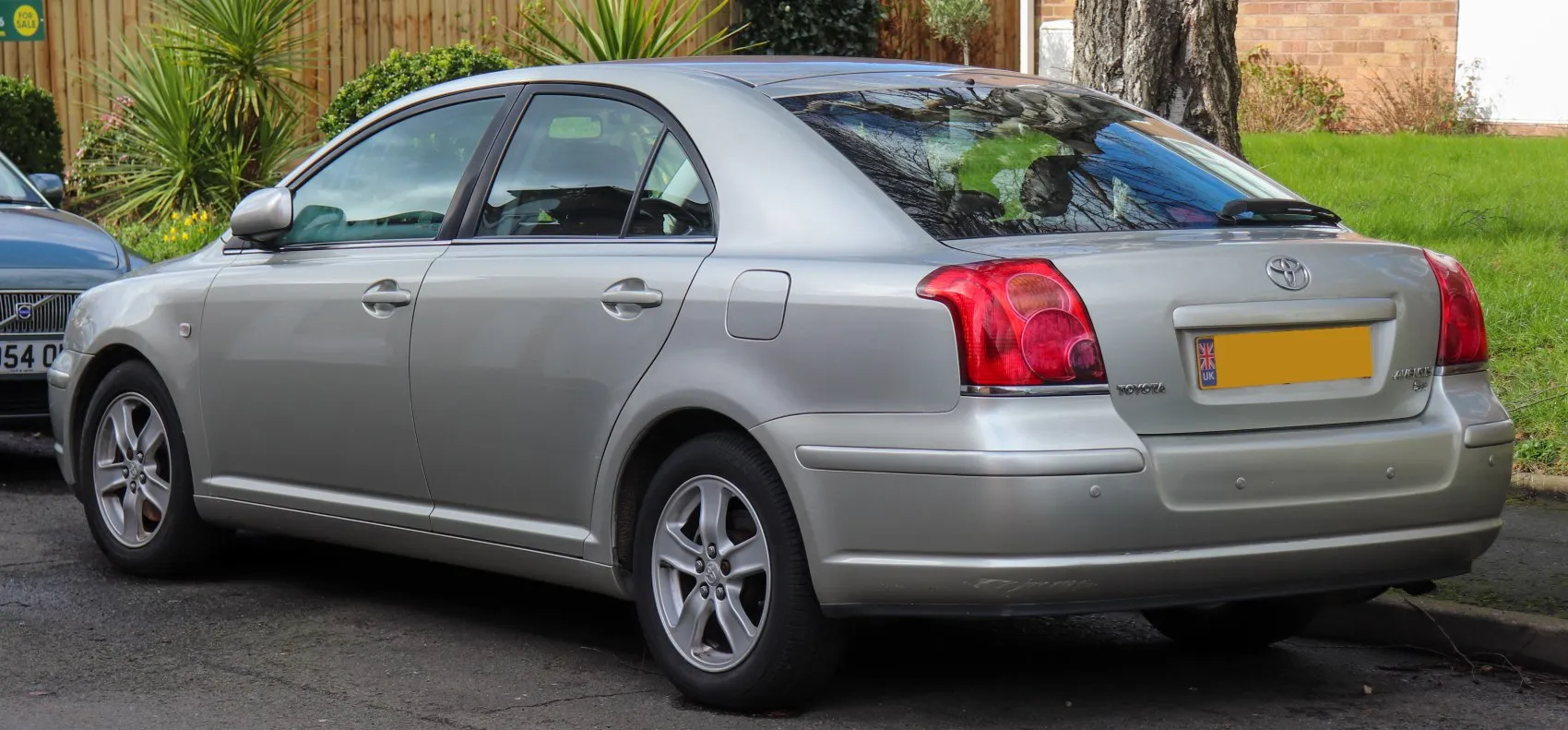

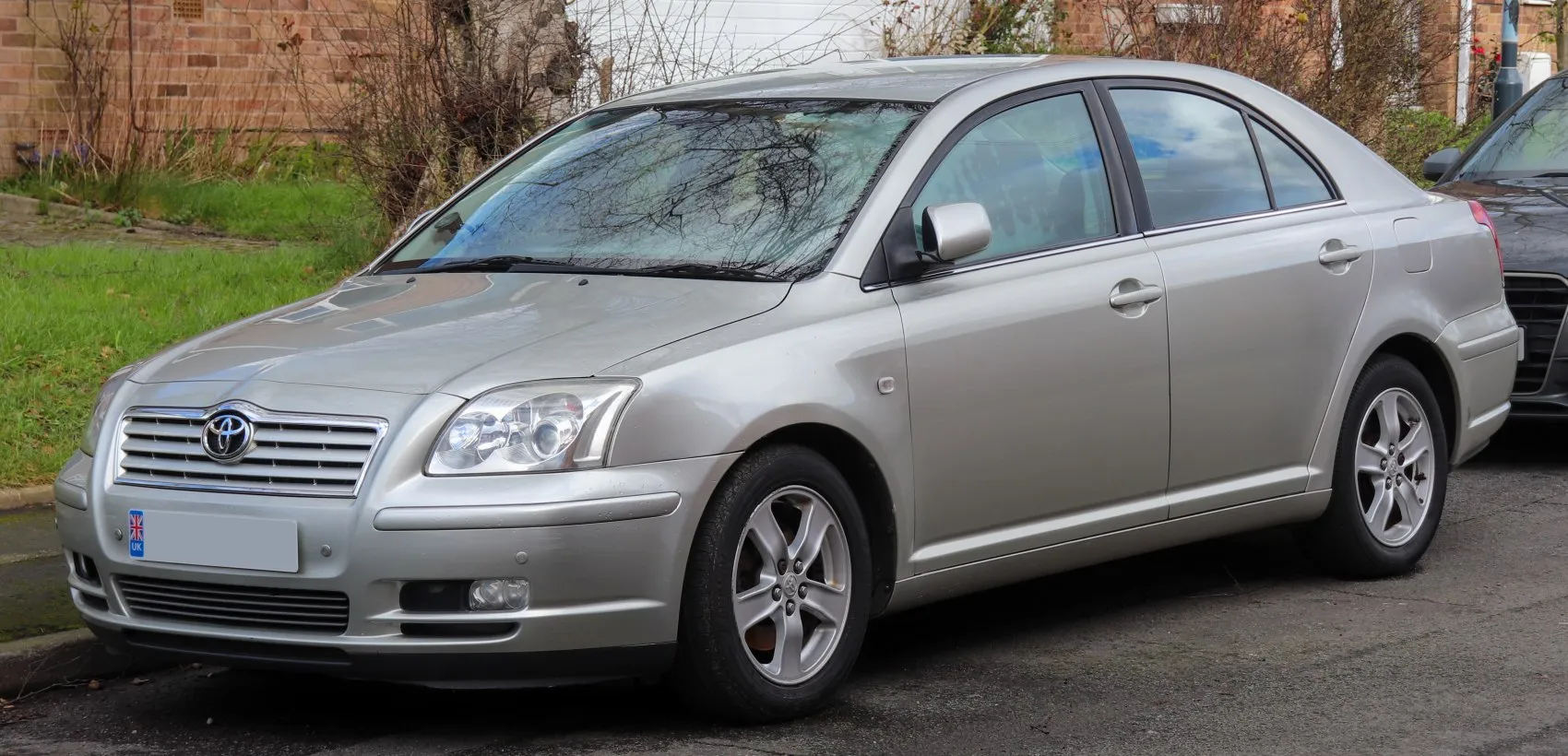

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 5 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 VVT-i (110 KM) Selected | Gasoline | 110 KM | 2003–2009 |
| 1.8 VVT-i (129 KM) Selected | Gasoline | 129 KM | 2003–2009 |
| 2.0 VVT-i (147 KM) Selected | Gasoline | 147 KM | 2003–2009 |
| 2.0 D-4D (116 KM) Selected | Diesel fuel | 116 KM | 2003–2009 |
| 2.0 VVT-i (147 KM) Automatic Selected | Gasoline | 147 KM | 2003–2009 |
| 1.8 VVT-i (129 KM) Automatic Selected | Gasoline | 129 KM | 2003–2009 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 VVT-i (110 KM)
Gasoline · 2003–2009
- Engine power
- 110 KM
- Torque
- 150 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 1.6 VVT-i (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 9.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
Engine
- Engine model / code
- 3ZZ-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 5.8 l
- Power
- 110 KM @ 6000 obr./min
- Torque
- 150 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1265 kg
- Gross weight
- 1820 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- ABS
- yes
Selected engine version
1.8 VVT-i (129 KM)
Gasoline · 2003–2009
- Engine power
- 129 KM
- Torque
- 170 Nm
- Engine displacement
- 1,794 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.3 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 1.8 VVT-i (129 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.3 s
- Fuel consumption - Urban cycle
- 9.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
Engine
- Engine model / code
- 1ZZ-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1794 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 91.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.7 l
- Power
- 129 KM @ 6000 obr./min
- Torque
- 170 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1275 kg
- Gross weight
- 1820 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 VVT-i (147 KM)
Gasoline · 2003–2009
- Engine power
- 147 KM
- Torque
- 196 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.1 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 2.0 VVT-i (147 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 8.1 s
- Fuel consumption - Urban cycle
- 10.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.6 l/100 km
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- 1AZ-FSE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6 l
- Power
- 147 KM @ 5700 obr./min
- Torque
- 196 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1335 kg
- Gross weight
- 1895 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 D-4D (116 KM)
Diesel fuel · 2003–2009
- Engine power
- 116 KM
- Torque
- 280 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 2.0 D-4D (116 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Urban cycle
- 7.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption - Combined cycle
- 5.6 l/100 km
Engine
- Engine model / code
- 1CD-FTV
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.2 mm
- Piston stroke
- 94 mm
- Compression ratio
- 18.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Coolant capacity
- 7.6 l
- Power
- 116 KM @ 3600 obr./min
- Torque
- 280 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1400 kg
- Gross weight
- 1970 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/45 R17
- ABS
- yes
Selected engine version
2.0 VVT-i (147 KM) Automatic
Gasoline · 2003–2009
- Engine power
- 147 KM
- Torque
- 196 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.2 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 2.0 VVT-i (147 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 9.2 s
- Fuel consumption - Urban cycle
- 12.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.2 l/100 km
- Fuel consumption - Combined cycle
- 9.2 l/100 km
Engine
- Engine model / code
- 1AZ-FSE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.3 l
- Power
- 147 KM @ 5700 obr./min
- Torque
- 196 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1335 kg
- Gross weight
- 1895 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.8 VVT-i (129 KM) Automatic
Gasoline · 2003–2009
- Engine power
- 129 KM
- Torque
- 170 Nm
- Engine displacement
- 1,794 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Toyota Avensis Avensis II Hatch- Brand
- Toyota
- Model
- Avensis
- Version
- Avensis II Hatch
- Engine
- 1.8 VVT-i (129 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.3 l/100 km
- Fuel consumption - Combined cycle
- 7.7 l/100 km
Engine
- Engine model / code
- 1ZZ-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1794 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 91.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.7 l
- Power
- 129 KM @ 6000 obr./min
- Torque
- 170 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 510 l
- Maximum trunk capacity
- 1320 l
- Curb weight
- 1275 kg
- Gross weight
- 1820 kg
Vehicle dimensions
- Length
- 4630 mm
- Width
- 1760 mm
- Height
- 1480 mm
- Wheelbase
- 2700 mm
- Front track
- 1505 mm
- Rear track
- 1510 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
