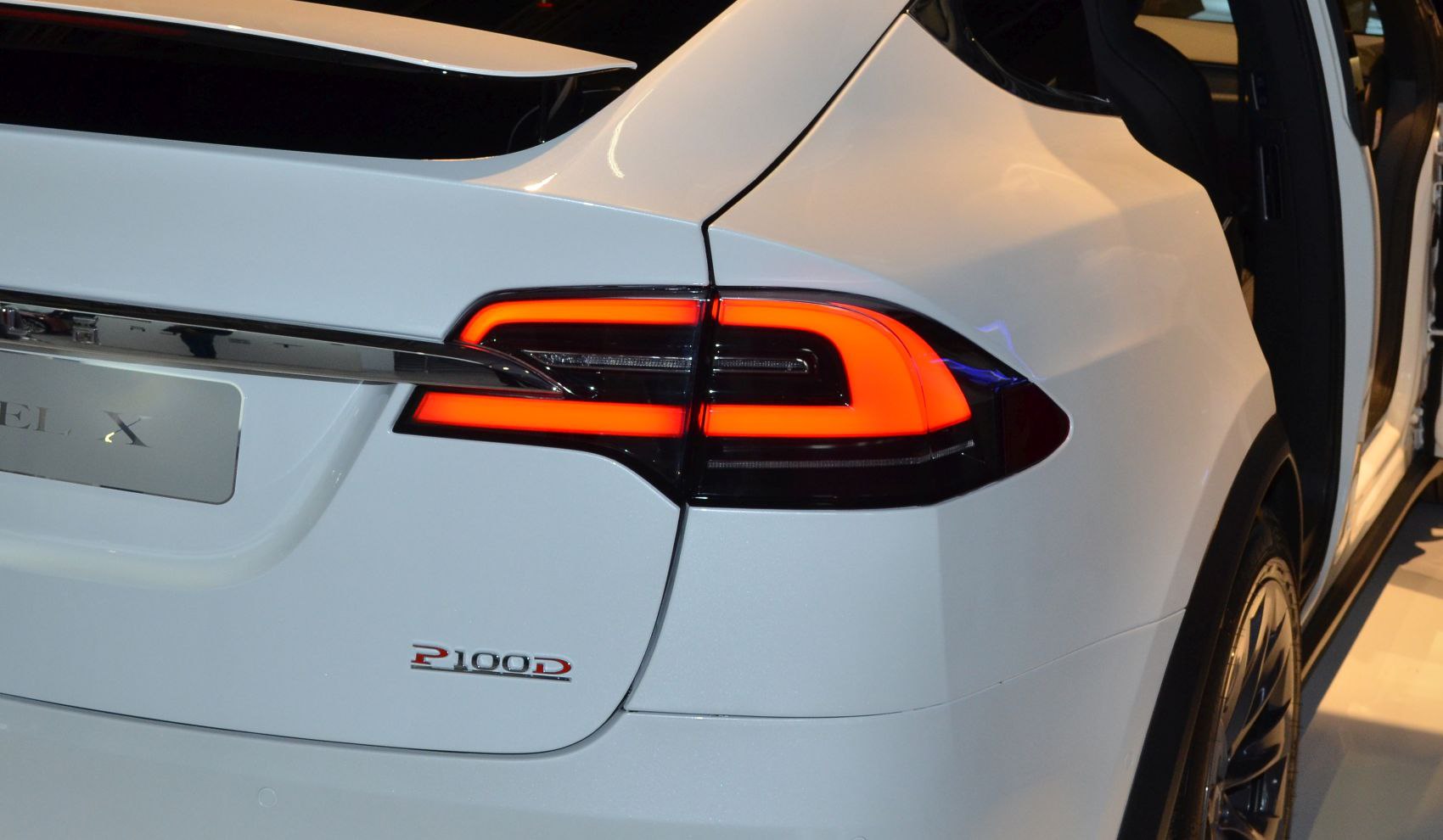

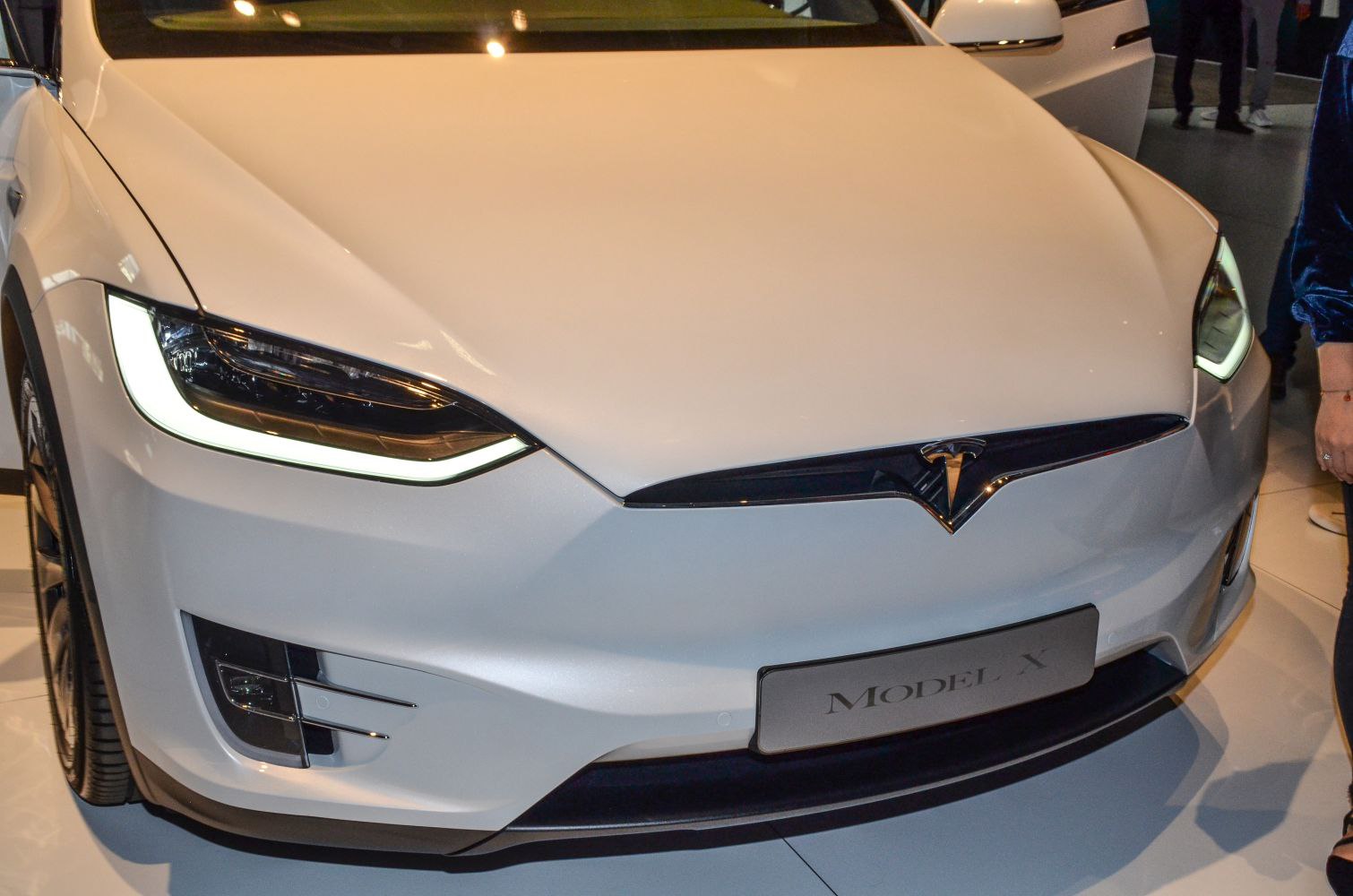

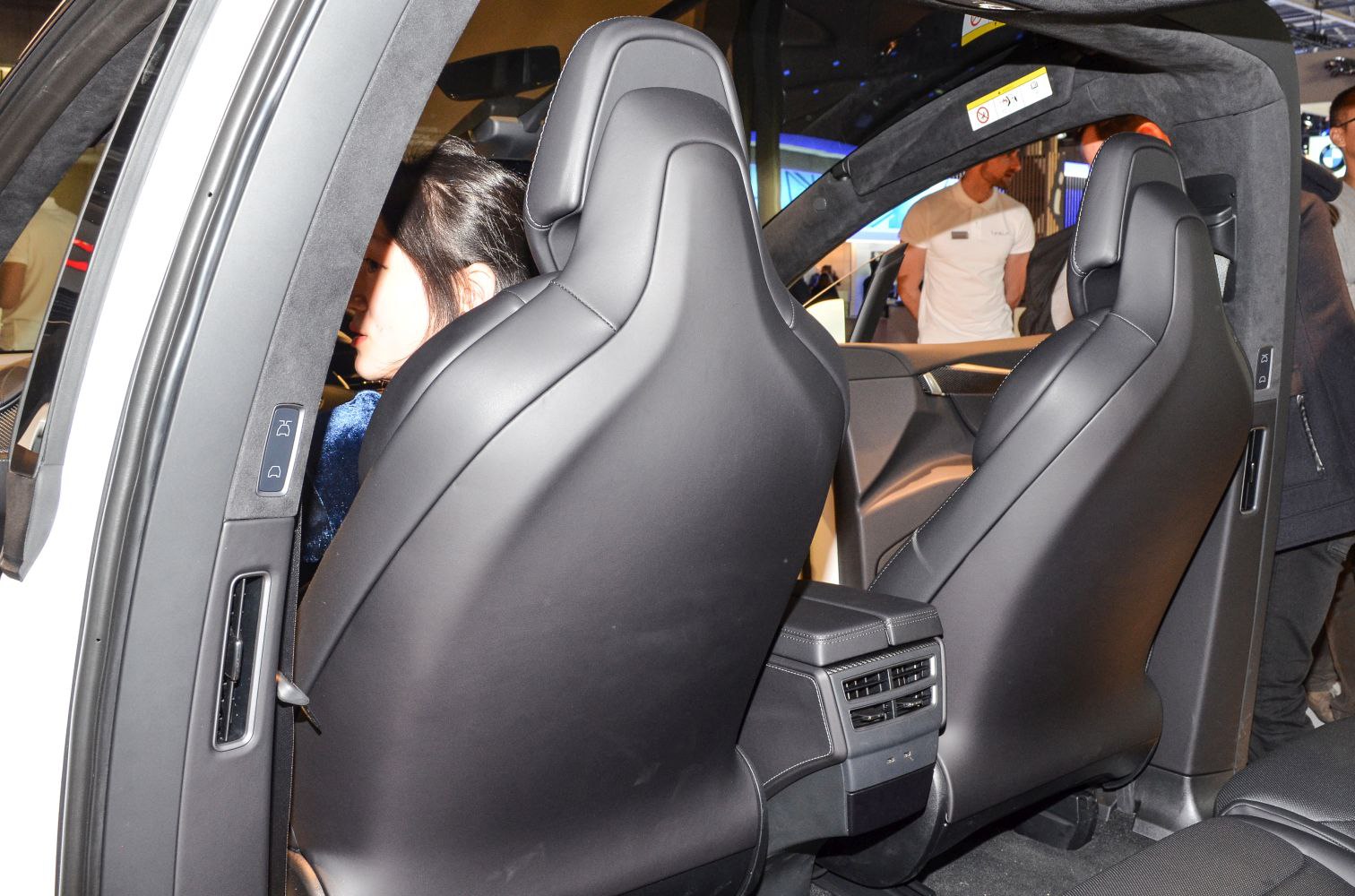

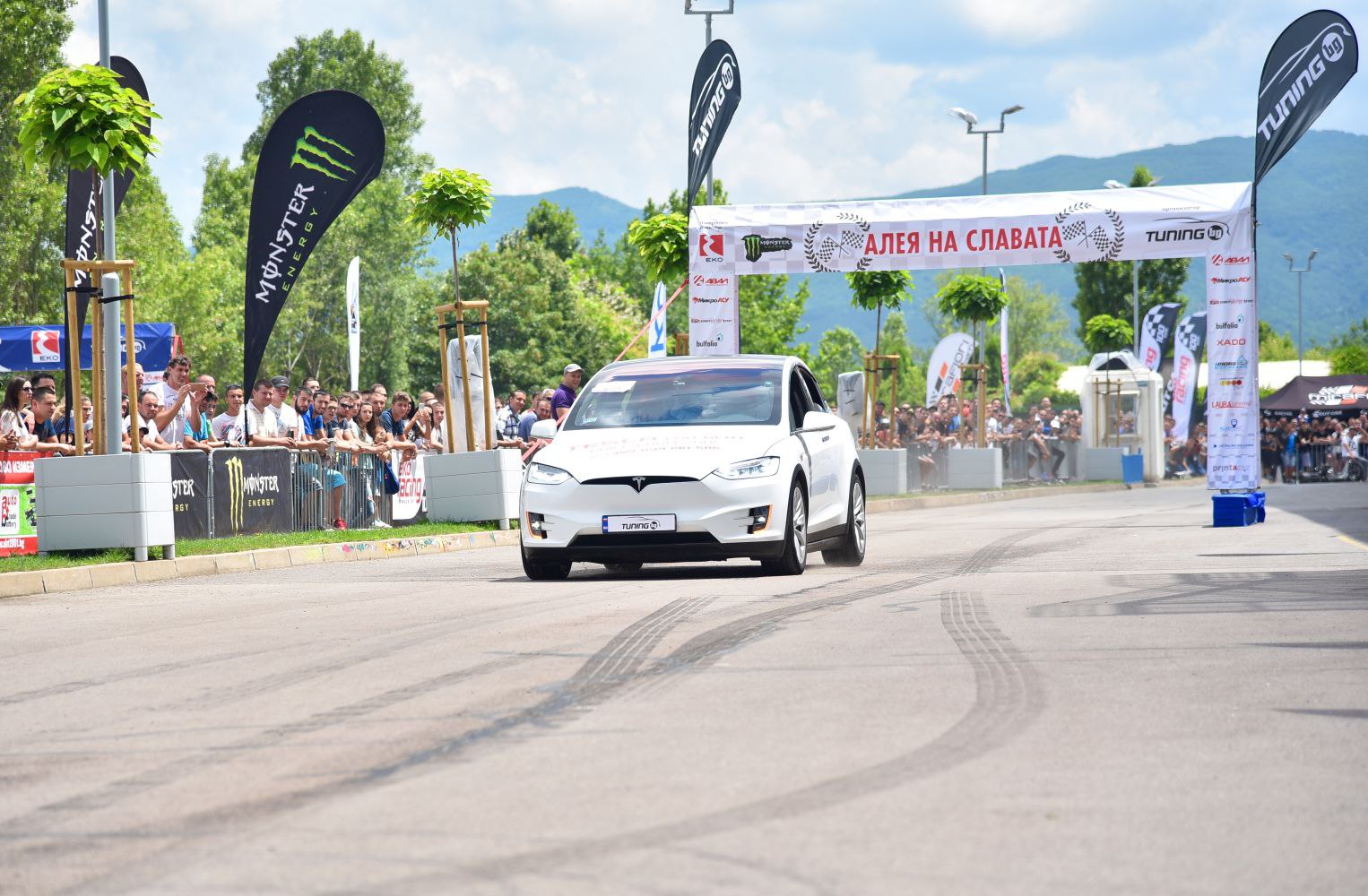

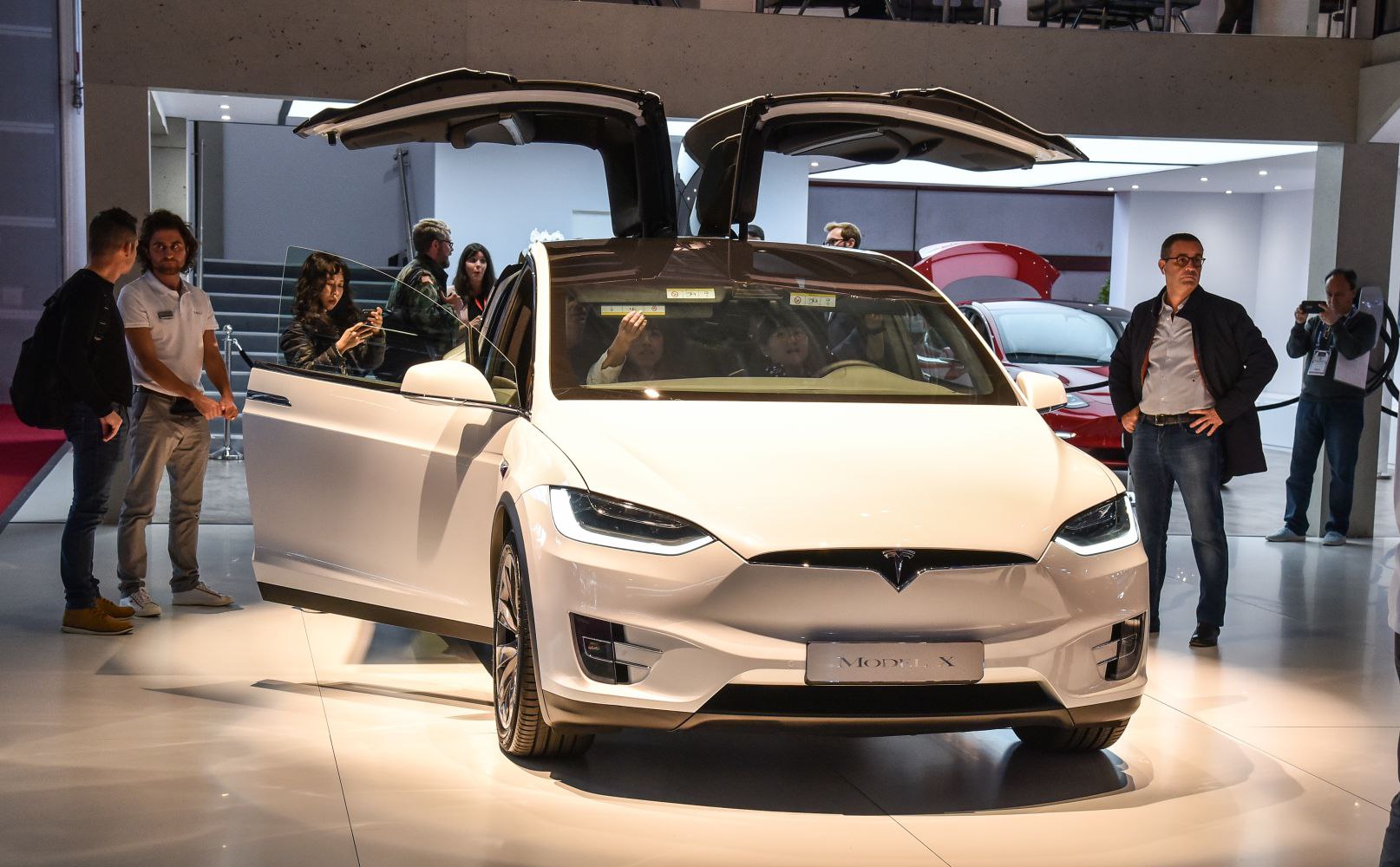

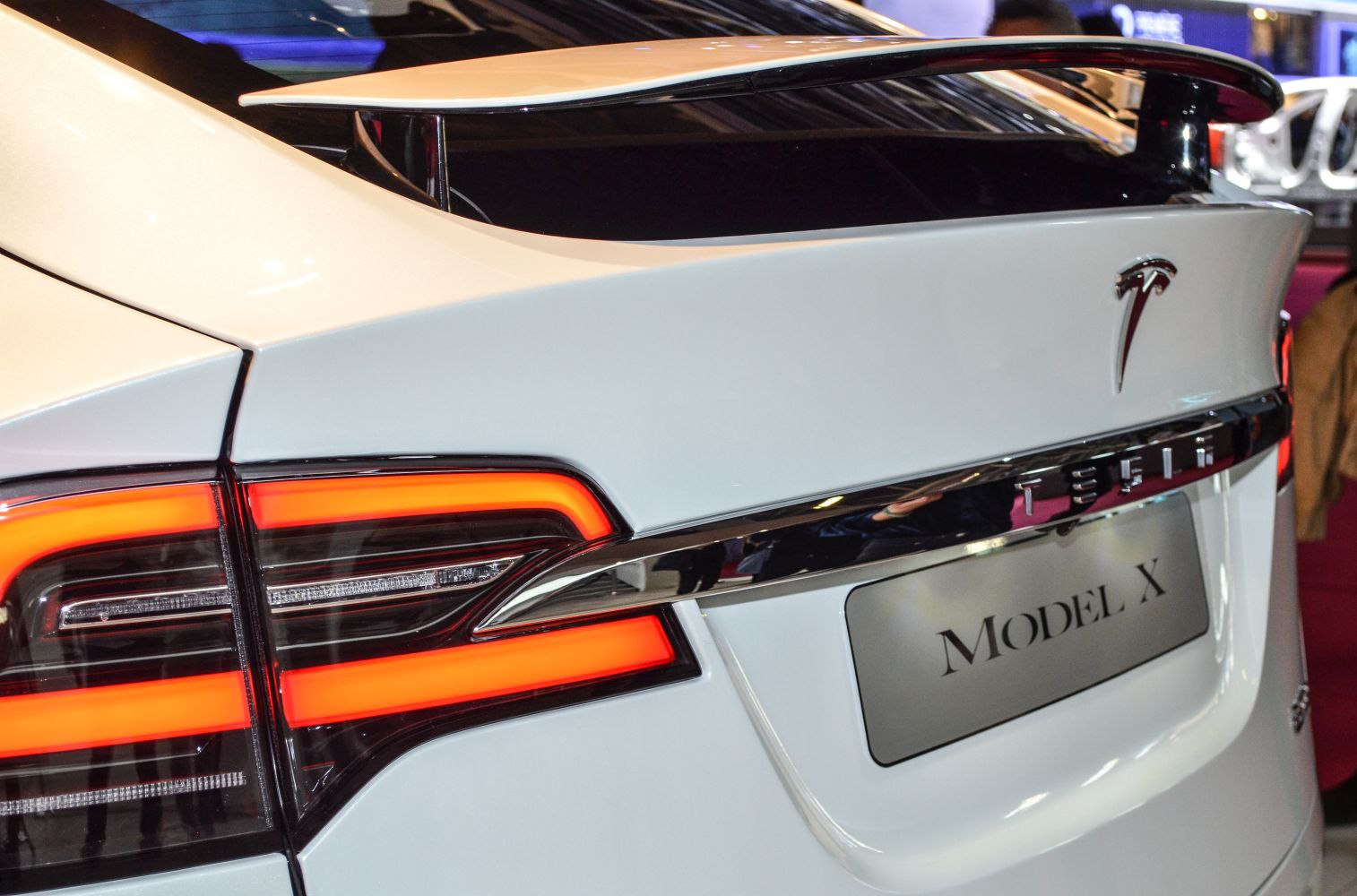

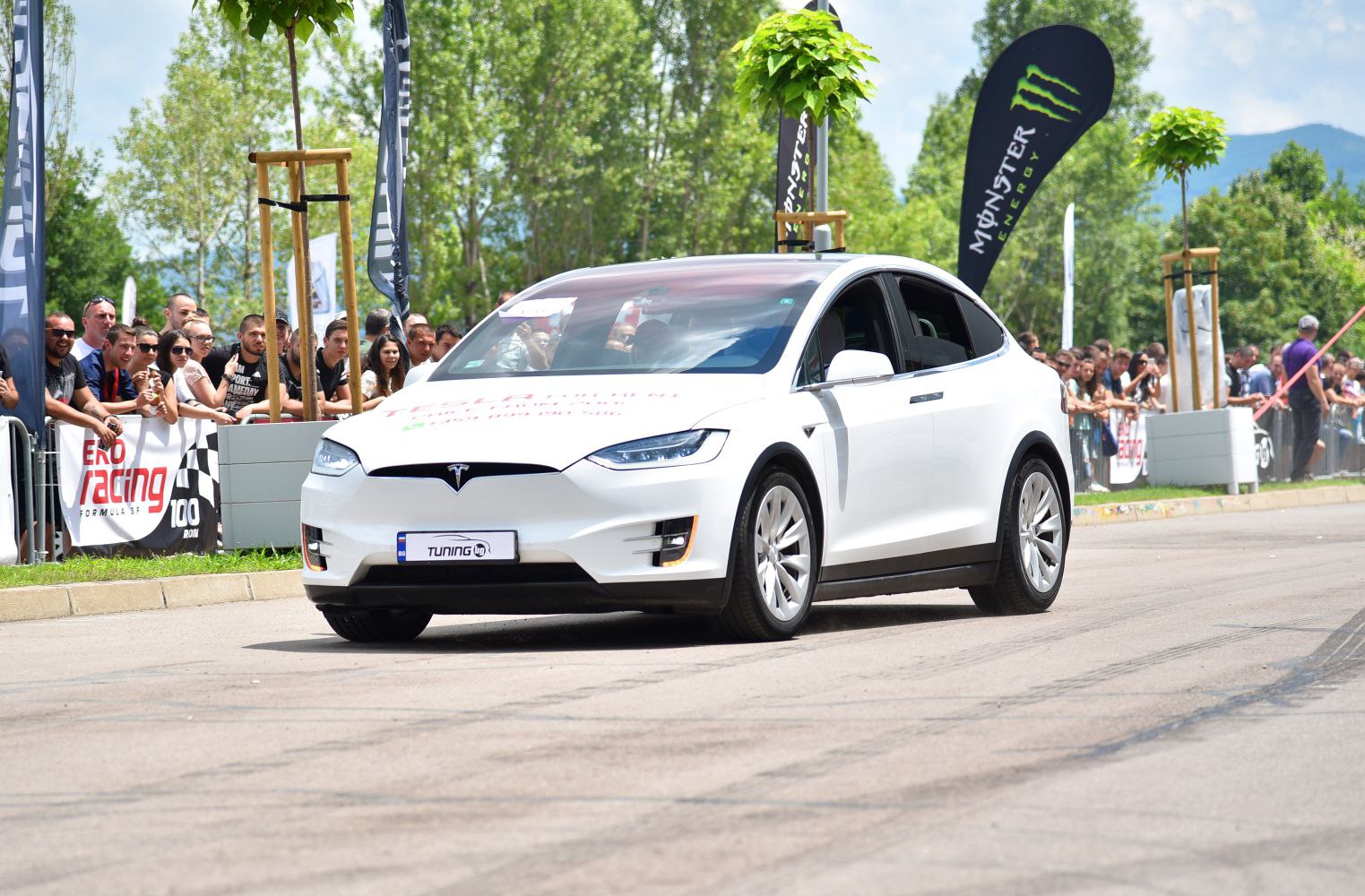

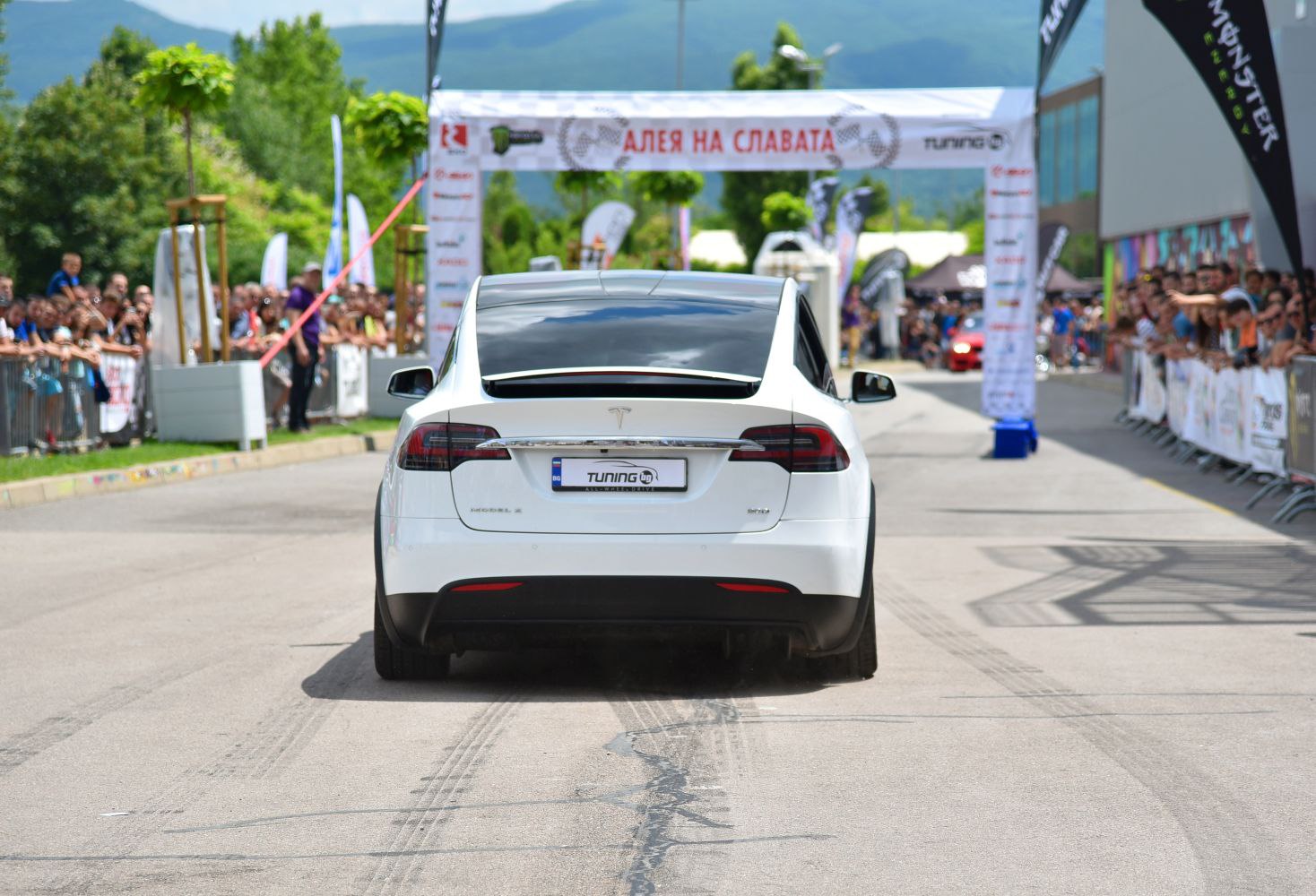

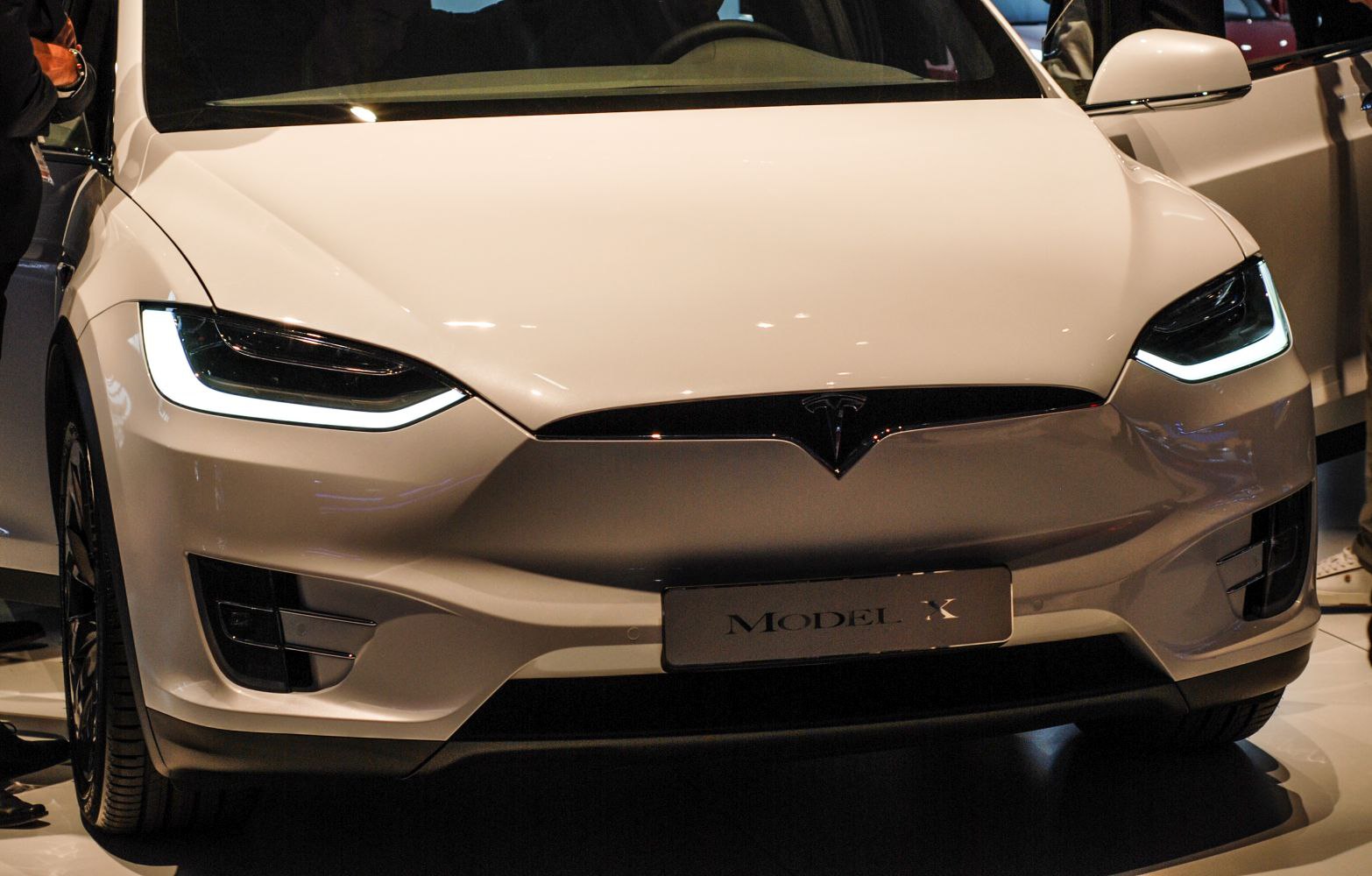

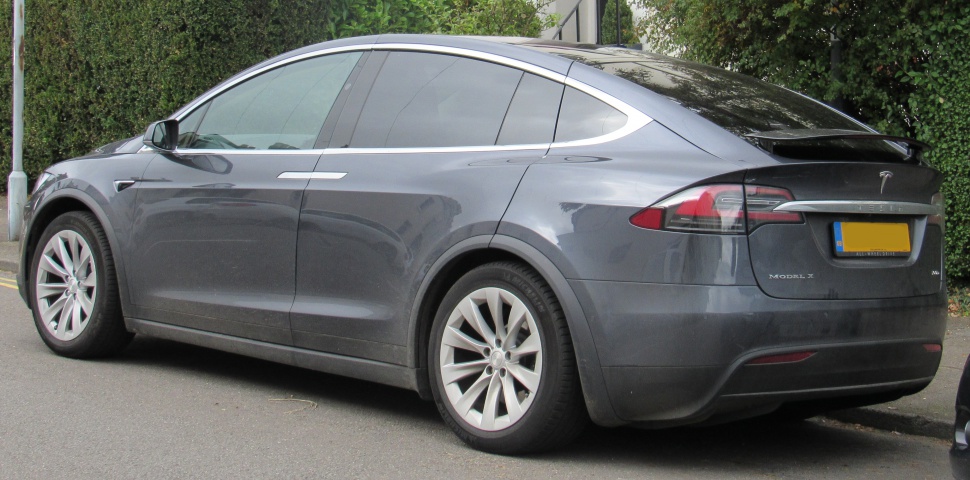

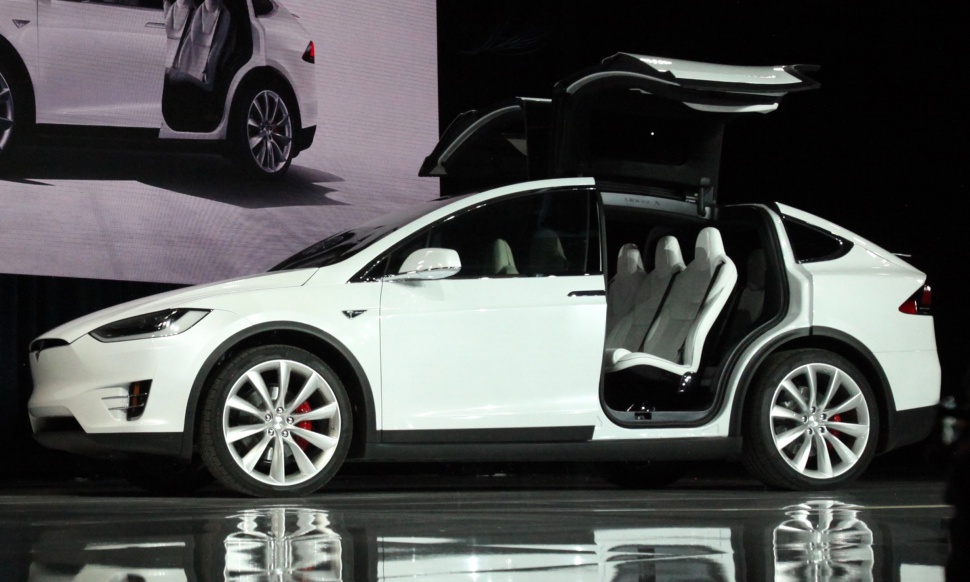

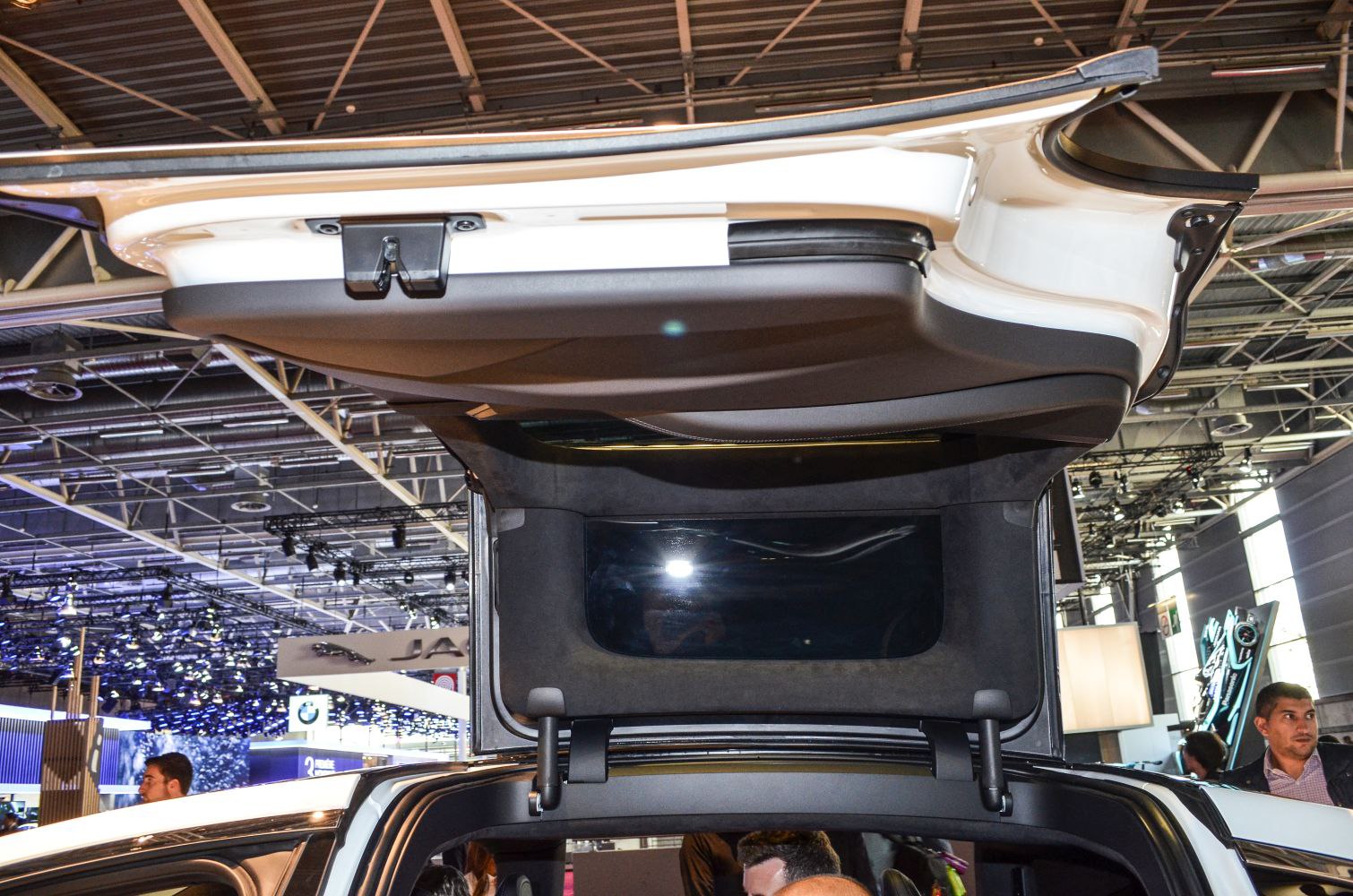

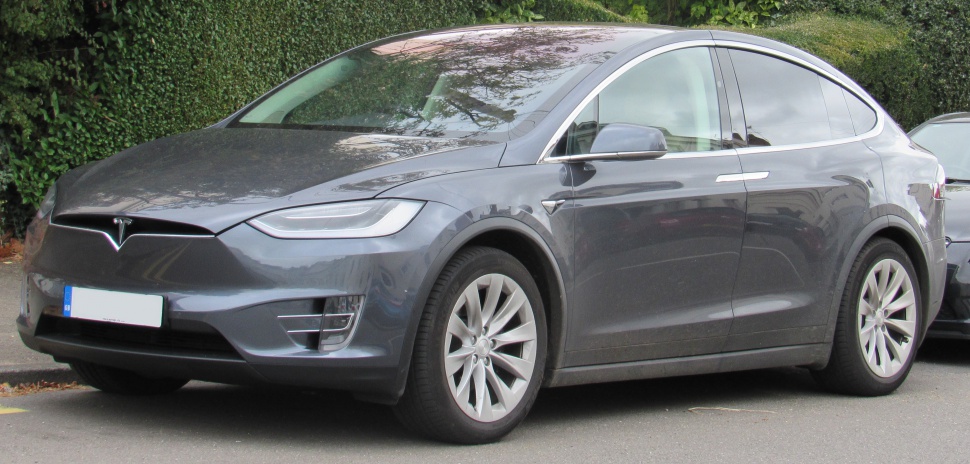

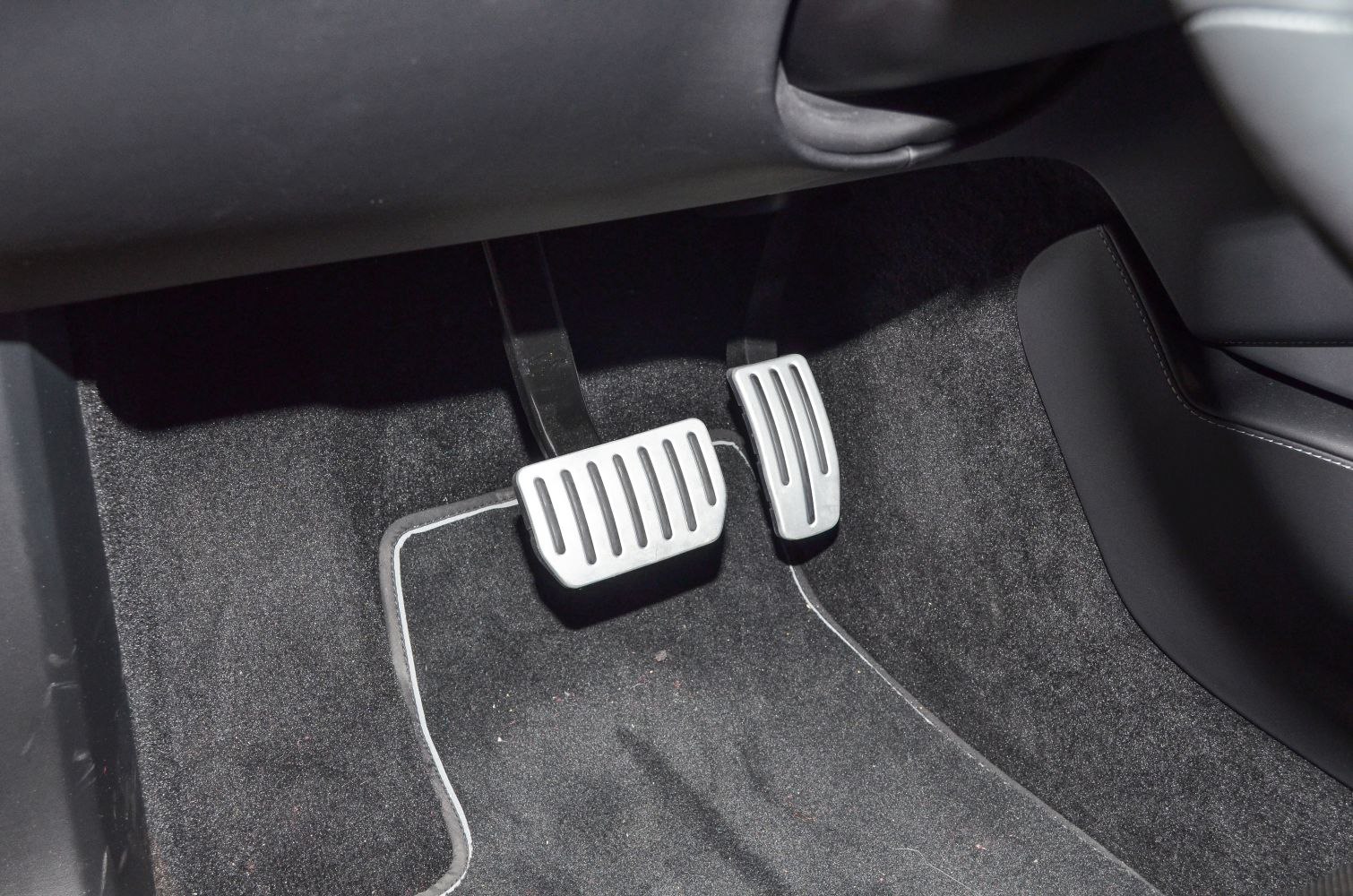

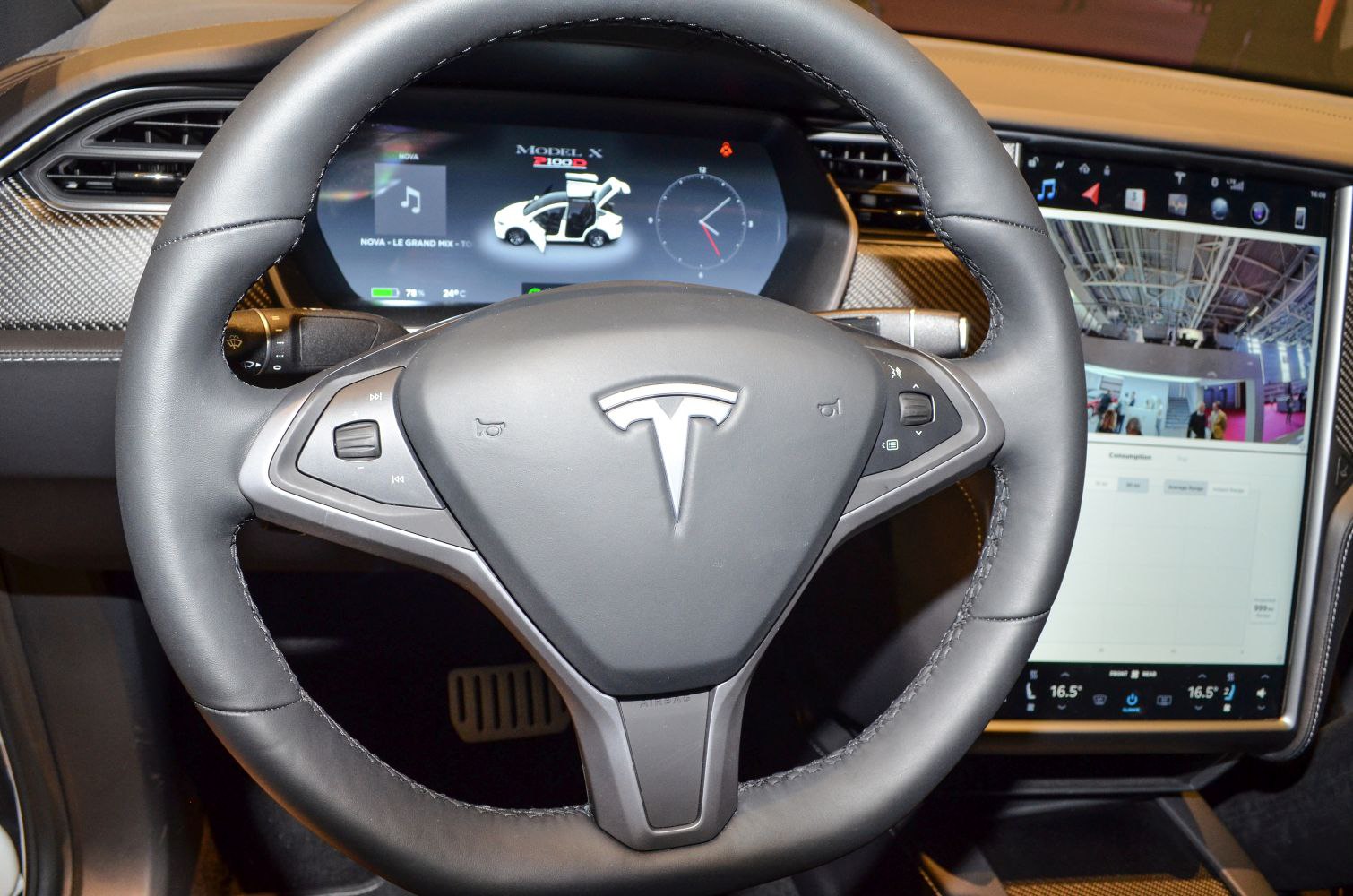

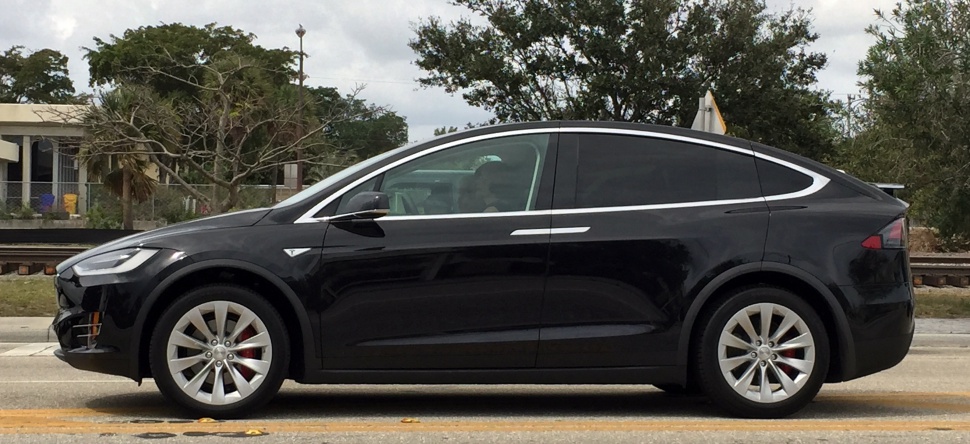

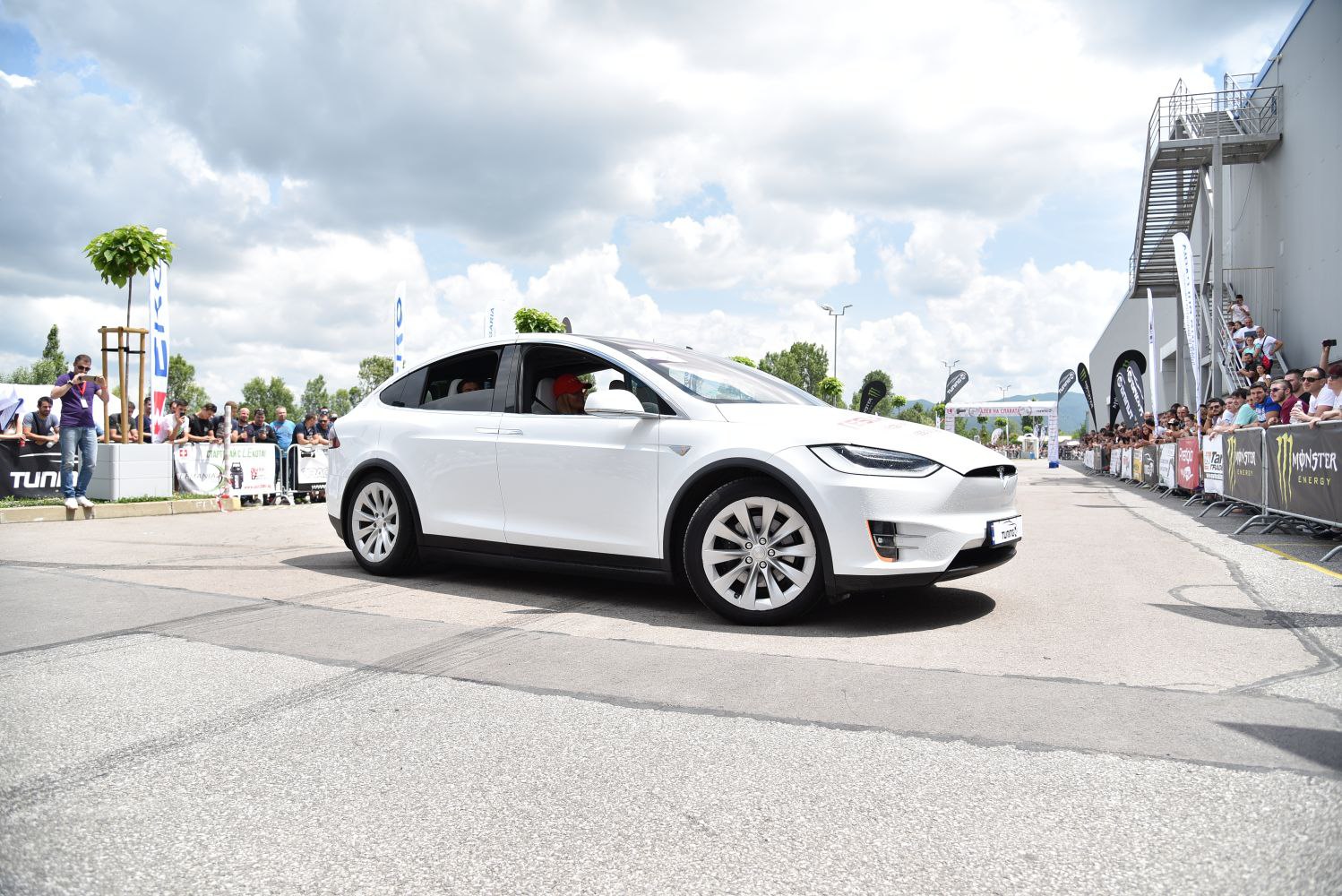

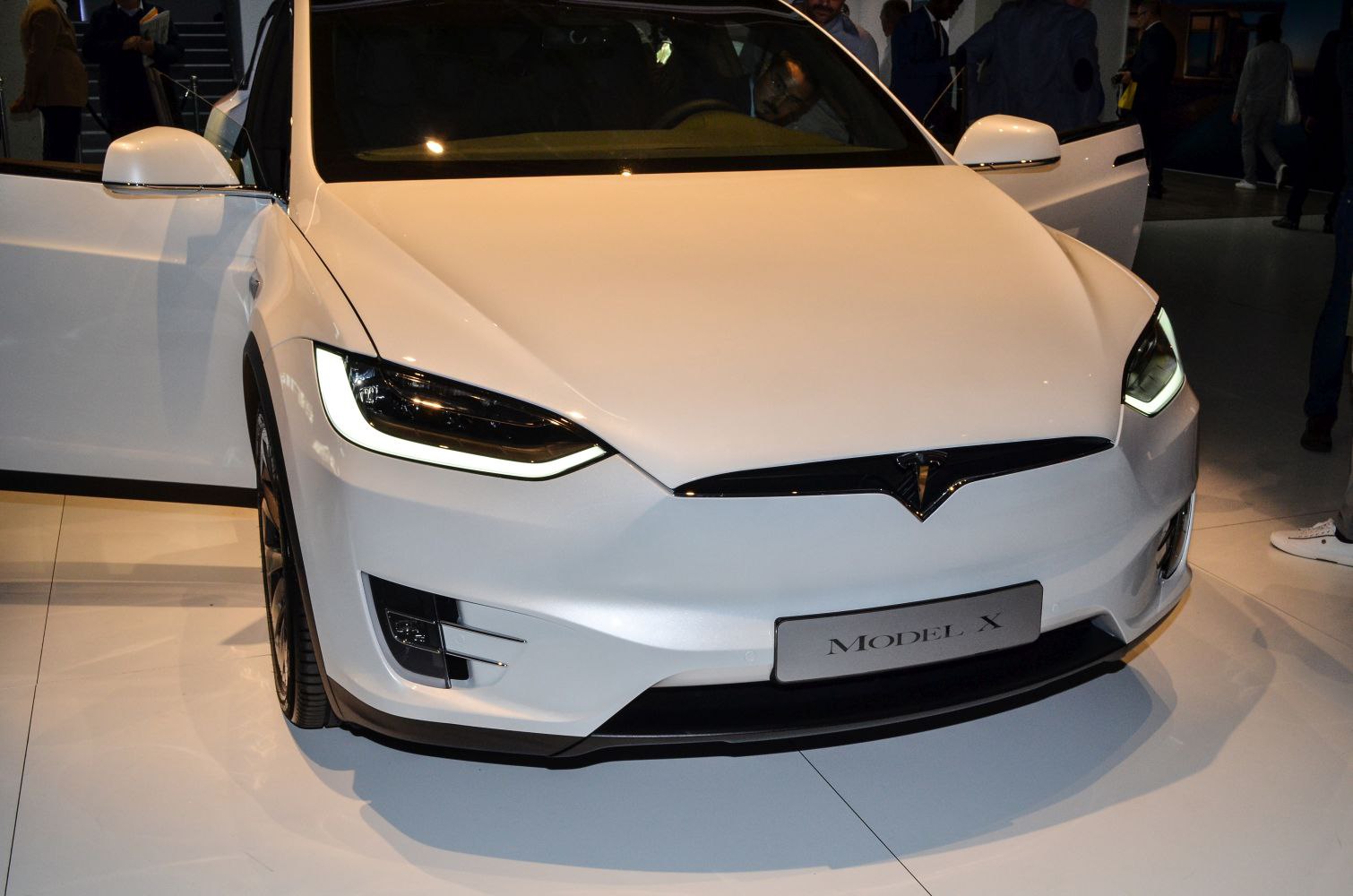

Vehicle photos
1 of 26
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
7 versions · 7 Electricity
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 75D 75 kWh (333 KM) Dual Motor AWD Selected | Electricity | 2016–2019 | |
| 100D 100 kWh (422 KM) Dual Motor AWD Selected | Electricity | 2017–2019 | |
| P100D 100 kWh (611 KM) Dual Motor AWD Selected | Electricity | 2016–2019 | |
| 90D 90 kWh (525 KM) Dual Motor AWD Selected | Electricity | 2015–2017 | |
| P90D 90 kWh (772 KM) Dual Motor AWD Selected | Electricity | 2015–2016 | |
| Long Range 100 kWh (422 KM) Dual Motor AWD Selected | Electricity | 2019–2021 | |
| Performance 100 kWh (611 KM) Dual Motor AWD Selected | Electricity | 2019–2021 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
75D 75 kWh (333 KM) Dual Motor AWD
Electricity · 2016–2019
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 5.2 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- 75D 75 kWh (333 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2019
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 5.2 s
- Acceleration 0-60 mph
- 4.9 mph
- Battery gross capacity
- 75 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 417 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 17.4 kWh/100 km
Engine
- Max electric motor power
- 262 KM @ 6100-6800 obr./min
- 2nd electric motor max power
- 262 KM @ 6100-6800 obr./min
- Electric motor torque
- 330 Nm
- 2nd electric motor torque
- 330 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 333 KM
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.24
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2352 kg
- Gross weight
- 2985 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5036 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2072 mm
- Width with unfolded mirrors
- 2271 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1705 mm
- Rear track
- 1710 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 974 mm
- Rear overhang
- 1097 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 275/45 R20; 285/35 R22;255/45 R20; 265/45 R20; 265/35 R22
- Rim size
- 9.5J x 20; 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
100D 100 kWh (422 KM) Dual Motor AWD
Electricity · 2017–2019
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 4.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- 100D 100 kWh (422 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2017
- End of production
- 2019
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.9 s
- Acceleration 0-60 mph
- 4.7 mph
- Battery gross capacity
- 100 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 523 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 16.8 kWh/100 km
Engine
- Max electric motor power
- 262 KM @ 6100-6800 obr./min
- 2nd electric motor max power
- 262 KM @ 6100-6800 obr./min
- Electric motor torque
- 330 Nm
- 2nd electric motor torque
- 330 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 422 KM
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.24
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2459 kg
- Gross weight
- 3079 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5036 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2072 mm
- Width with unfolded mirrors
- 2271 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1705 mm
- Rear track
- 1710 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 974 mm
- Rear overhang
- 1097 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 275/45 R20; 285/35 R22;255/45 R20; 265/45 R20; 265/35 R22
- Rim size
- 9.5J x 20; 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
P100D 100 kWh (611 KM) Dual Motor AWD
Electricity · 2016–2019
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 3.1 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- P100D 100 kWh (611 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2019
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 3.1 s
- Acceleration 0-60 mph
- 2.9 mph
- Battery gross capacity
- 100 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 491 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 24 kWh/100 km
Engine
- Max electric motor power
- 510 KM @ 6150 obr./min
- 2nd electric motor max power
- 262 KM @ 6100-6800 obr./min
- Electric motor torque
- 660 Nm
- 2nd electric motor torque
- 330 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 611 KM
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.24
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2487 kg
- Gross weight
- 3120 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5036 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2072 mm
- Width with unfolded mirrors
- 2271 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1705 mm
- Rear track
- 1710 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 974 mm
- Rear overhang
- 1097 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 275/45 R20; 285/35 R22;255/45 R20; 265/45 R20; 265/35 R22
- Rim size
- 9.5J x 20; 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
90D 90 kWh (525 KM) Dual Motor AWD
Electricity · 2015–2017
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 5 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- 90D 90 kWh (525 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2017
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5 s
- Acceleration 0-60 mph
- 4.8 mph
- Battery gross capacity
- 90 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 489 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 17.5 kWh/100 km
Engine
- Max electric motor power
- 262 KM
- 2nd electric motor max power
- 262 KM
- Electric motor torque
- 330 Nm
- 2nd electric motor torque
- 330 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 525 KM
- System torque
- 660 Nm
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.24
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2389 kg
- Gross weight
- 3020 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5052 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2017 mm
- Width with unfolded mirrors
- 2272 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1711 mm
- Rear track
- 1723 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 989 mm
- Rear overhang
- 1098 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 285/35 R22;255/45 R20; 265/45 R20; 265/35 R22
- Rim size
- 9.5J x 20; 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
P90D 90 kWh (772 KM) Dual Motor AWD
Electricity · 2015–2016
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 3.4 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- P90D 90 kWh (772 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2016
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 3.4 s
- Acceleration 0-60 mph
- 3.2 mph
- Battery gross capacity
- 90 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 467 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 18.3 kWh/100 km
Engine
- Max electric motor power
- 510 KM @ 6150 obr./min
- 2nd electric motor max power
- 262 KM @ 6100-6800 obr./min
- Electric motor torque
- 660 Nm
- 2nd electric motor torque
- 330 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 772 KM
- System torque
- 990 Nm
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.24
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2439 kg
- Gross weight
- 3070 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5052 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2017 mm
- Width with unfolded mirrors
- 2272 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1711 mm
- Rear track
- 1723 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 989 mm
- Rear overhang
- 1098 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 285/35 R22;255/45 R20; 265/45 R20; 265/35 R22
- Rim size
- 9.5J x 20; 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
Long Range 100 kWh (422 KM) Dual Motor AWD
Electricity · 2019–2021
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 4.6 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- Long Range 100 kWh (422 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2019
- End of production
- 2021
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.6 s
- Acceleration 0-60 mph
- 4.4 mph
- Battery gross capacity
- 100 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 580 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 16.8 kWh/100 km
Engine
- Max electric motor power
- 286 KM
- 2nd electric motor max power
- 279 KM
- Electric motor torque
- 335 Nm
- 2nd electric motor torque
- 420 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 422 KM
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.25
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2510 kg
- Gross weight
- 3079 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5036 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2072 mm
- Width with unfolded mirrors
- 2271 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1705 mm
- Rear track
- 1710 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 974 mm
- Rear overhang
- 1097 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 285/35 R22;265/45 R20; 265/35 R22
- Rim size
- 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
Selected engine version
Performance 100 kWh (611 KM) Dual Motor AWD
Electricity · 2019–2021
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 2.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Tesla Model X Model X- Brand
- Tesla
- Model
- Model X
- Version
- Model X
- Engine
- Performance 100 kWh (611 KM) Dual Motor AWD
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2019
- End of production
- 2021
- Body type
- SUV
- Number of seats
- 7
- Fuel type
- Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 2.9 s
- Acceleration 0-60 mph
- 2.8 mph
- Battery gross capacity
- 100 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 485 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 19.6 kWh/100 km
Engine
- Max electric motor power
- 510 KM
- 2nd electric motor max power
- 279 KM
- Electric motor torque
- 720 Nm
- 2nd electric motor torque
- 420 Nm
- Electric motor position
- Rear axle, Transverse
- 2nd electric motor position
- Front axle, Transverse
- System power
- 611 KM
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.25
- Minimum trunk capacity
- 357 l
- Maximum trunk capacity
- 2166 l
- Curb weight
- 2562 kg
- Gross weight
- 3120 kg
- Braked trailer load (12% slope start)
- 2250 kg
- Trailer nose weight
- 54 kg
Vehicle dimensions
- Length
- 5036 mm
- Width
- 1999 mm
- Width with folded mirrors
- 2072 mm
- Width with unfolded mirrors
- 2271 mm
- Height
- 1684 mm
- Wheelbase
- 2965 mm
- Front track
- 1705 mm
- Rear track
- 1710 mm
- Ground clearance
- 183-223 mm
- Front overhang
- 974 mm
- Rear overhang
- 1097 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 1
- Front suspension
- Double wishbone, Anti-roll bar, Air suspension
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 355 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 365 mm
- Rear brake disc thickness
- 28 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 275/45 R20; 285/35 R22;265/45 R20; 265/35 R22
- Rim size
- 10J x 20; 10J x 22;9J x 20; 9J x 22
- ABS
- yes
