Vehicle specifications
Renault Trafic II (Phase I)
Compare all 8 engine versions of the Renault Trafic Trafic II (Phase I), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Renault Trafic II (Phase I)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Renault Trafic II (Phase I)?
See the places on a 3D model →- VIN number
- Door sill, right side
- Identification plate
- B-pillar, right side

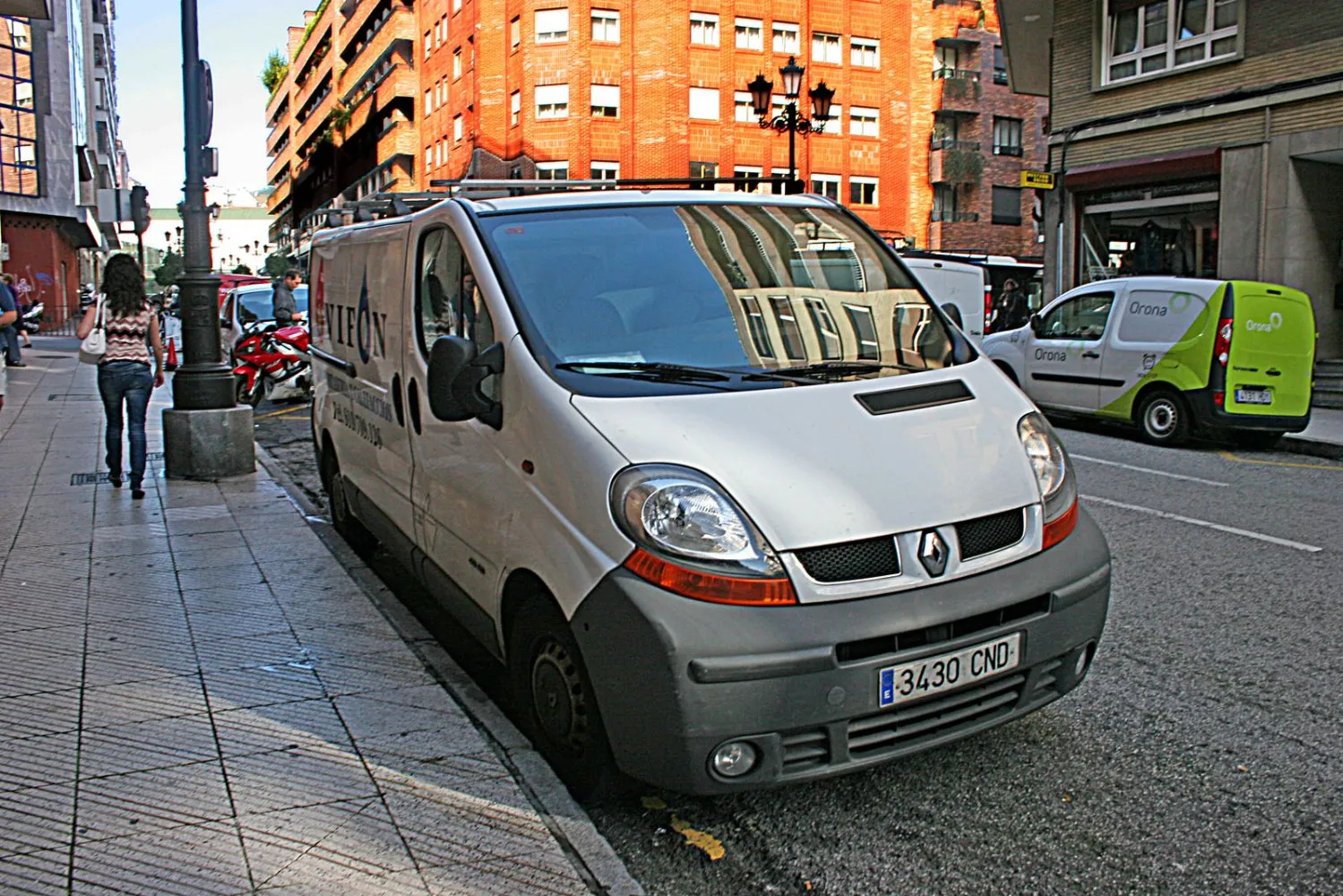

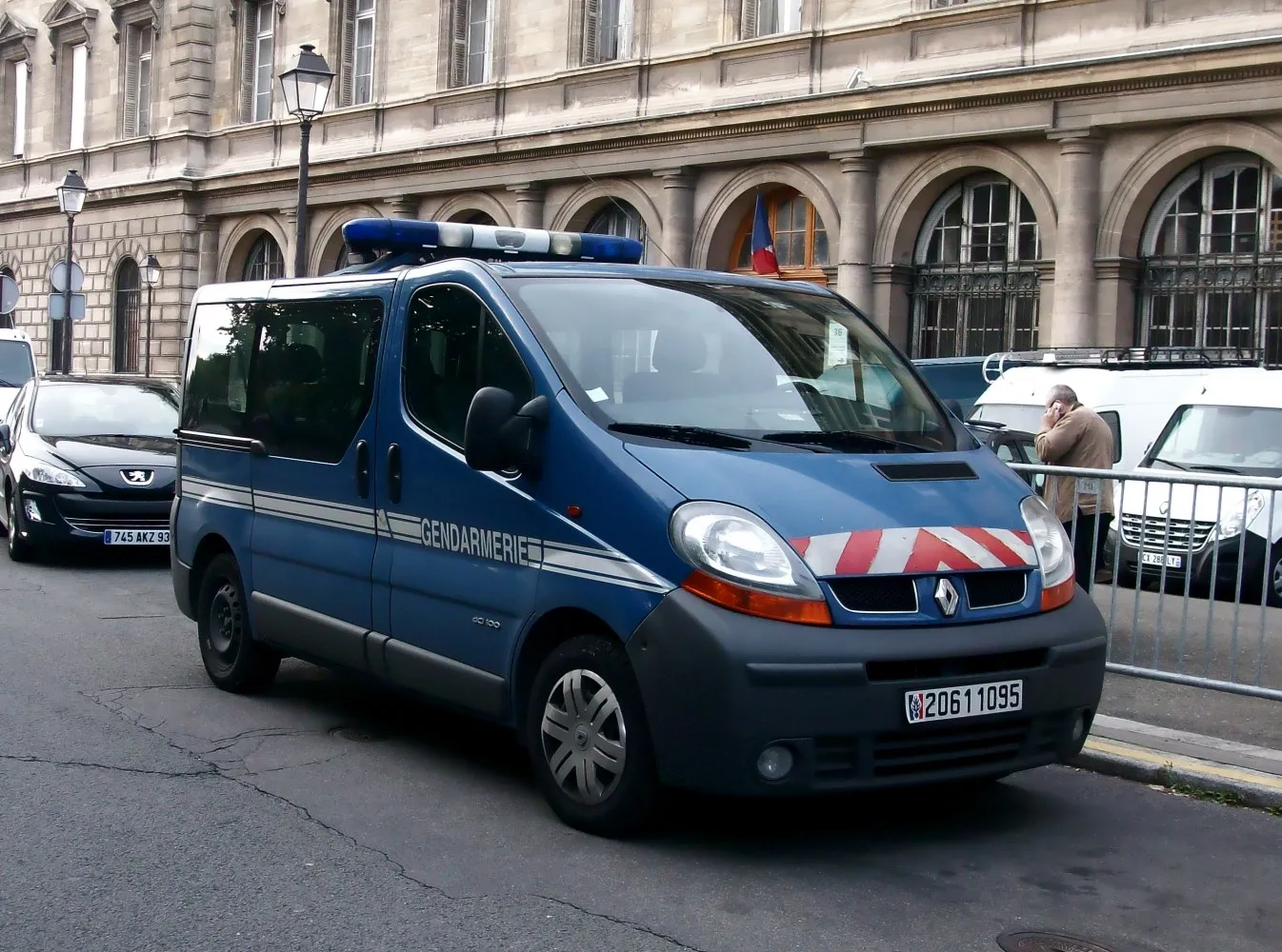

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 6 Diesel fuel · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.9 dCi (100 KM) L1H1 Selected | Diesel fuel | 100 KM | 2001–2006 |
| 1.9 dCi (100 KM) L2H1 Selected | Diesel fuel | 100 KM | 2001–2006 |
| 1.9 dCi (82 KM) L1H1 Selected | Diesel fuel | 82 KM | 2001–2006 |
| 2.0 (120 KM) L1H1 Selected | Gasoline | 120 KM | 2001–2006 |
| 2.5 dCi (135 KM) L1H1 Selected | Diesel fuel | 135 KM | 2003–2006 |
| 1.9 dCi (82 KM) L2H1 Selected | Diesel fuel | 82 KM | 2001–2006 |
| 2.0 (120 KM) L2H1 Selected | Gasoline | 120 KM | 2001–2006 |
| 2.5 dCi (135 KM) L2H1 Selected | Diesel fuel | 135 KM | 2003–2006 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.9 dCi (100 KM) L1H1
Diesel fuel · 2001–2006
- Engine power
- 100 KM
- Torque
- 240 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 1.9 dCi (100 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Urban cycle
- 9.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- CO2 emissions
- 205 g/km
Engine
- Engine model / code
- F9Q760
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.5 l
- Power
- 100 KM @ 3500 obr./min
- Torque
- 240 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1791 kg
- Gross weight
- 2760 kg
Vehicle dimensions
- Length
- 4782 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3098 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.9 dCi (100 KM) L2H1
Diesel fuel · 2001–2006
- Engine power
- 100 KM
- Torque
- 240 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 1.9 dCi (100 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Urban cycle
- 9.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
- Fuel consumption - Combined cycle
- 7.9 l/100 km
- CO2 emissions
- 210 g/km
Engine
- Engine model / code
- F9Q760
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.5 l
- Power
- 100 KM @ 3500 obr./min
- Torque
- 240 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1846 kg
- Gross weight
- 2900 kg
Vehicle dimensions
- Length
- 5182 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3498 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.9 dCi (82 KM) L1H1
Diesel fuel · 2001–2006
- Engine power
- 82 KM
- Torque
- 190 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 138 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 1.9 dCi (82 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 138 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Urban cycle
- 9.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- CO2 emissions
- 205 g/km
Engine
- Engine model / code
- F9Q
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.5 l
- Power
- 82 KM @ 3500 obr./min
- Torque
- 190 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1791 kg
- Gross weight
- 2670 kg
Vehicle dimensions
- Length
- 4782 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3098 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 (120 KM) L1H1
Gasoline · 2001–2006
- Engine power
- 120 KM
- Torque
- 190 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 2.0 (120 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Gasoline
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 12.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.5 l/100 km
- Fuel consumption - Combined cycle
- 10.1 l/100 km
- CO2 emissions
- 241 g/km
Engine
- Engine model / code
- F4R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 6.5 l
- Power
- 120 KM @ 4700 obr./min
- Torque
- 190 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1775 kg
- Gross weight
- 2745 kg
Vehicle dimensions
- Length
- 4782 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3098 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.5 dCi (135 KM) L1H1
Diesel fuel · 2003–2006
- Engine power
- 135 KM
- Torque
- 310 Nm
- Engine displacement
- 2,463 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 2.5 dCi (135 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2003
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.7 l/100 km
- Fuel consumption - Combined cycle
- 8.6 l/100 km
- CO2 emissions
- 228 g/km
Engine
- Engine model / code
- G9U
- Engine position
- Front, Transverse
- Engine displacement
- 2463 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 8 l
- Coolant capacity
- 5.6 l
- Power
- 135 KM @ 3500 obr./min
- Torque
- 310 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1935 kg
- Gross weight
- 2835 kg
Vehicle dimensions
- Length
- 4782 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3098 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.9 dCi (82 KM) L2H1
Diesel fuel · 2001–2006
- Engine power
- 82 KM
- Torque
- 190 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 138 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 1.9 dCi (82 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 138 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Urban cycle
- 9.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
- Fuel consumption - Combined cycle
- 7.9 l/100 km
- CO2 emissions
- 210 g/km
Engine
- Engine model / code
- F9Q
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.5 l
- Power
- 82 KM @ 3500 obr./min
- Torque
- 190 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1846 kg
- Gross weight
- 2900 kg
Vehicle dimensions
- Length
- 5182 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3498 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 (120 KM) L2H1
Gasoline · 2001–2006
- Engine power
- 120 KM
- Torque
- 190 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 2.0 (120 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2001
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Gasoline
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 12.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.6 l/100 km
- Fuel consumption - Combined cycle
- 10.2 l/100 km
- CO2 emissions
- 244 g/km
Engine
- Engine model / code
- F4R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Coolant capacity
- 6.5 l
- Power
- 120 KM @ 4700 obr./min
- Torque
- 190 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1830 kg
- Gross weight
- 2945 kg
Vehicle dimensions
- Length
- 5182 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3498 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.5 dCi (135 KM) L2H1
Diesel fuel · 2003–2006
- Engine power
- 135 KM
- Torque
- 310 Nm
- Engine displacement
- 2,463 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Renault Trafic Trafic II (Phase I)- Brand
- Renault
- Model
- Trafic
- Version
- Trafic II (Phase I)
- Engine
- 2.5 dCi (135 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2003
- End of production
- 2006
- Body type
- Minivan
- Number of seats
- 9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.7 l/100 km
- Fuel consumption - Combined cycle
- 8.6 l/100 km
- CO2 emissions
- 228 g/km
Engine
- Engine model / code
- G9U
- Engine position
- Front, Transverse
- Engine displacement
- 2463 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 8 l
- Coolant capacity
- 5.6 l
- Power
- 135 KM @ 3500 obr./min
- Torque
- 310 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 90 l
- Curb weight
- 1951 kg
- Gross weight
- 3070 kg
Vehicle dimensions
- Length
- 5182 mm
- Width
- 1904 mm
- Height
- 1940 mm
- Wheelbase
- 3498 mm
- Front track
- 1615 mm
- Rear track
- 1630 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R16
- Rim size
- 16
- ABS
- yes
