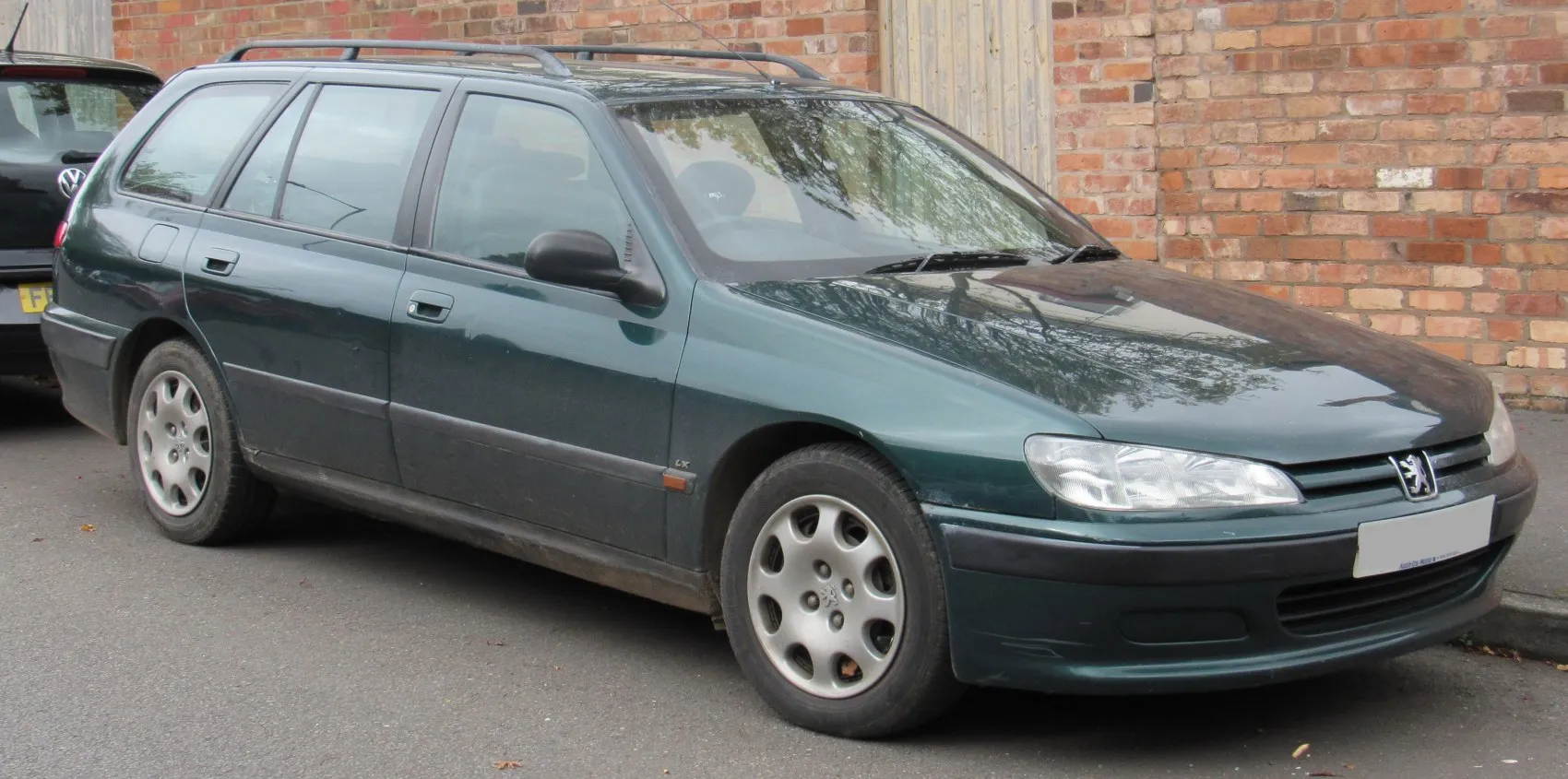

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 6 Gasoline · 2 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.8 (90 KM) Selected | Gasoline | 90 KM | 1997–1999 |
| 1.8 16V (110 KM) Selected | Gasoline | 110 KM | 1996–1999 |
| 1.9 D (75 KM) Selected | Diesel fuel | 75 KM | 1996–1999 |
| 1.9 TD (90 KM) Selected | Diesel fuel | 90 KM | 1996–1999 |
| 2.0 16V (132 KM) Selected | Gasoline | 132 KM | 1996–1999 |
| 2.0 Turbo (147 KM) Selected | Gasoline | 147 KM | 1996–1999 |
| 3.0 24V (190 KM) Selected | Gasoline | 190 KM | 1996–1999 |
| 3.0 24V (190 KM) Automatic Selected | Gasoline | 190 KM | 1996–1999 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.8 (90 KM)
Gasoline · 1997–1999
- Engine power
- 90 KM
- Torque
- 147 Nm
- Engine displacement
- 1,761 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 1.8 (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1997
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 11.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 8.4 l/100 km
- CO2 emissions
- 205 g/km
Engine
- Engine model / code
- LFXXU7JB
- Engine position
- Front, Transverse
- Engine displacement
- 1761 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 81.4 mm
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 8 l
- Power
- 90 KM @ 5000 obr./min
- Torque
- 147 Nm @ 2600 obr./min
Volume and weight
- Curb weight
- 1300 kg
- Gross weight
- 1950 kg
- Braked trailer load (12% slope start)
- 1150 kg
Vehicle dimensions
- Length
- 4740 mm
- Width
- 1760 mm
- Height
- 1505 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
- Front overhang
- 937 mm
- Rear overhang
- 1103 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.8 16V (110 KM)
Gasoline · 1996–1999
- Engine power
- 110 KM
- Torque
- 155 Nm
- Engine displacement
- 1,761 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 1.8 16V (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 12.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
- Fuel consumption - Combined cycle
- 8.5 l/100 km
Engine
- Engine model / code
- LFYXU7JP4
- Engine position
- Front, Transverse
- Engine displacement
- 1761 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Coolant capacity
- 7.4 l
- Power
- 110 KM @ 5500 obr./min
- Torque
- 155 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 525 l
- Maximum trunk capacity
- 1740 l
- Curb weight
- 1310 kg
- Gross weight
- 1805 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1765 mm
- Height
- 1500 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Multiple arms and links
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/65 R15
- ABS
- yes
Selected engine version
1.9 D (75 KM)
Diesel fuel · 1996–1999
- Engine power
- 75 KM
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 1.9 D (75 KM)
- Engine type
- Combustion engine
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DHWXUD9SD
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 4 l
- Coolant capacity
- 8 l
- Power
- 75 KM
Volume and weight
- Curb weight
- kg
Drivetrain, Brakes and suspension
- ABS
- no
Selected engine version
1.9 TD (90 KM)
Diesel fuel · 1996–1999
- Engine power
- 90 KM
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 1.9 TD (90 KM)
- Engine type
- Combustion engine
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- DHXXUD9TE
- Engine type
- Turbocharger
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 9 l
- Power
- 90 KM
Volume and weight
- Curb weight
- kg
Drivetrain, Brakes and suspension
- ABS
- no
Selected engine version
2.0 16V (132 KM)
Gasoline · 1996–1999
- Engine power
- 132 KM
- Torque
- 180 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 197 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 2.0 16V (132 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 197 km/h
- Acceleration 0-100 km/h
- 11.2 s
Engine
- Engine model / code
- RFVXU10J4R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Coolant capacity
- 7.5 l
- Power
- 132 KM @ 5500 obr./min
- Torque
- 180 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 525 l
- Maximum trunk capacity
- 1740 l
- Curb weight
- 1378 kg
- Gross weight
- 1932 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1765 mm
- Height
- 1500 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Multiple arms and links
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/65 R15
- ABS
- yes
Selected engine version
2.0 Turbo (147 KM)
Gasoline · 1996–1999
- Engine power
- 147 KM
- Torque
- 235 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 2.0 Turbo (147 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 10.6 s
- Fuel consumption - Urban cycle
- 14.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.7 l/100 km
Engine
- Engine model / code
- RGXXU10J2TE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 8.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.5 l
- Power
- 147 KM @ 5300 obr./min
- Torque
- 235 Nm @ 2500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 525 l
- Maximum trunk capacity
- 1740 l
- Curb weight
- 1460 kg
- Gross weight
- 1930 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1765 mm
- Height
- 1500 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Multiple arms and links
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/60 R15
- ABS
- yes
Selected engine version
3.0 24V (190 KM)
Gasoline · 1996–1999
- Engine power
- 190 KM
- Torque
- 267 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.5 s
- Maximum speed
- 227 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 3.0 24V (190 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 227 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Fuel consumption - Urban cycle
- 16.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.2 l/100 km
Engine
- Engine model / code
- XFZES9J4
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.75 l
- Coolant capacity
- 9.6 l
- Power
- 190 KM @ 5500 obr./min
- Torque
- 267 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 525 l
- Maximum trunk capacity
- 1740 l
- Curb weight
- 1540 kg
- Gross weight
- 1960 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1765 mm
- Height
- 1500 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Multiple arms and links
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/60 R15
- ABS
- yes
Selected engine version
3.0 24V (190 KM) Automatic
Gasoline · 1996–1999
- Engine power
- 190 KM
- Torque
- 267 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 220 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Break (Phase I, 1996)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Break (Phase I, 1996)
- Engine
- 3.0 24V (190 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 220 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Fuel consumption - Urban cycle
- 16.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.2 l/100 km
Engine
- Engine model / code
- XFZES9J4
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.75 l
- Coolant capacity
- 10.6 l
- Power
- 190 KM @ 5500 obr./min
- Torque
- 267 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 525 l
- Maximum trunk capacity
- 1740 l
- Curb weight
- 1540 kg
- Gross weight
- 1960 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1765 mm
- Height
- 1500 mm
- Wheelbase
- 2700 mm
- Front track
- 1500 mm
- Rear track
- 1480 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Lateral control arm
- Rear suspension
- Multiple arms and links
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 205/60 R15
- Rim size
- 15
- ABS
- yes
