Vehicle specifications
Peugeot 306 Cabrio (7D)
Compare all 4 engine versions of the Peugeot 306 306 Cabrio (7D), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Peugeot 306 Cabrio (7D)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

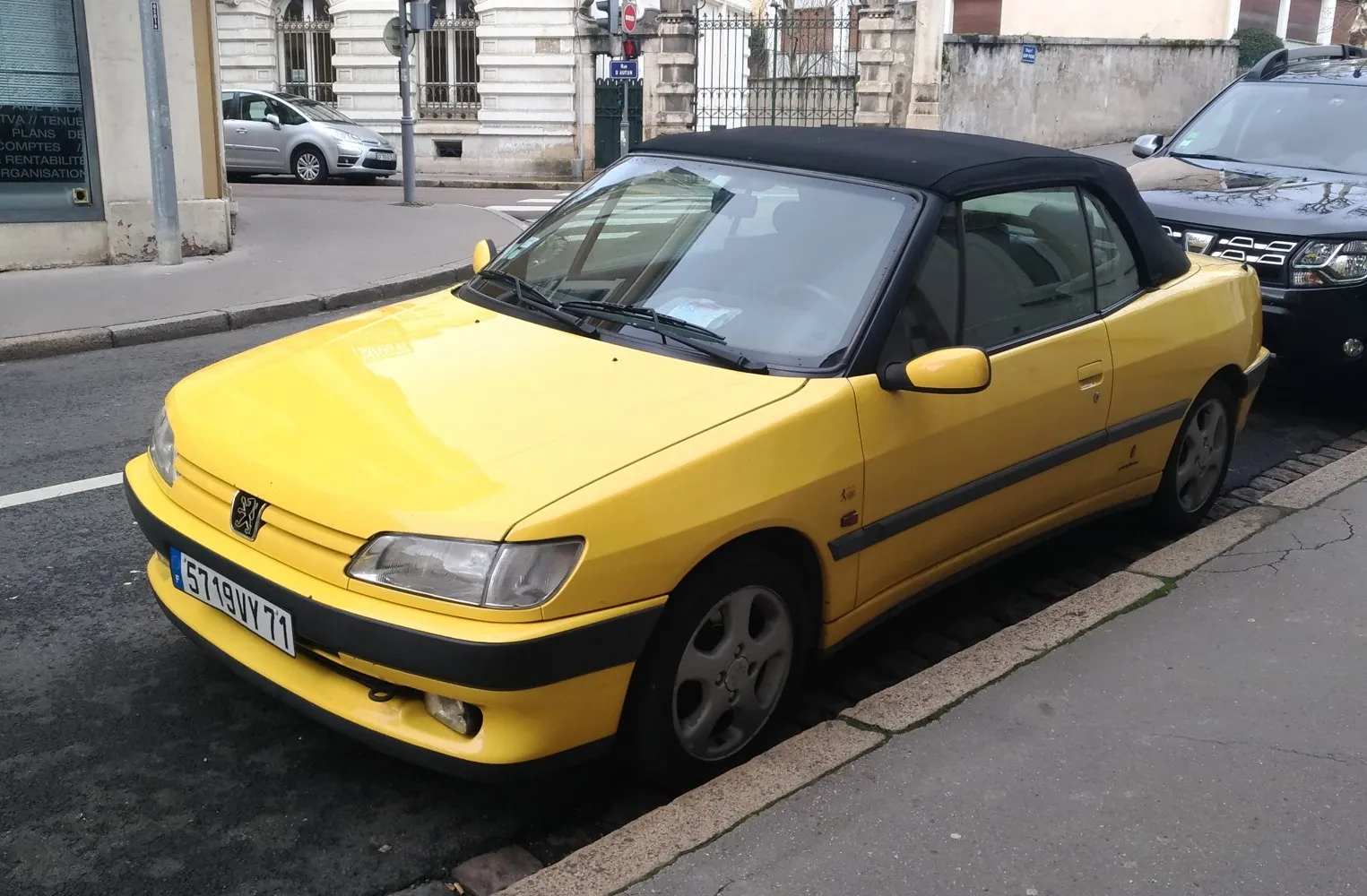

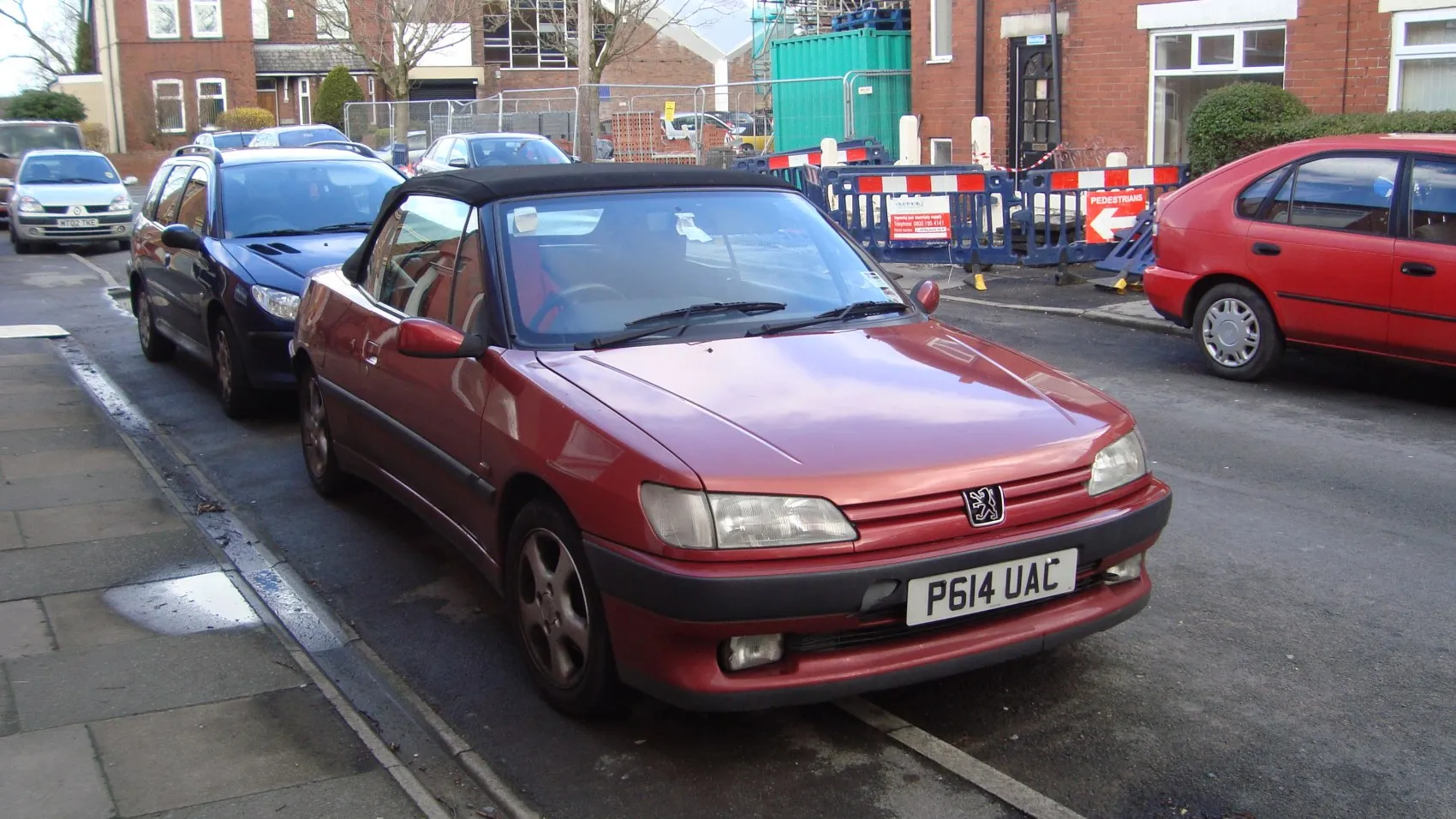

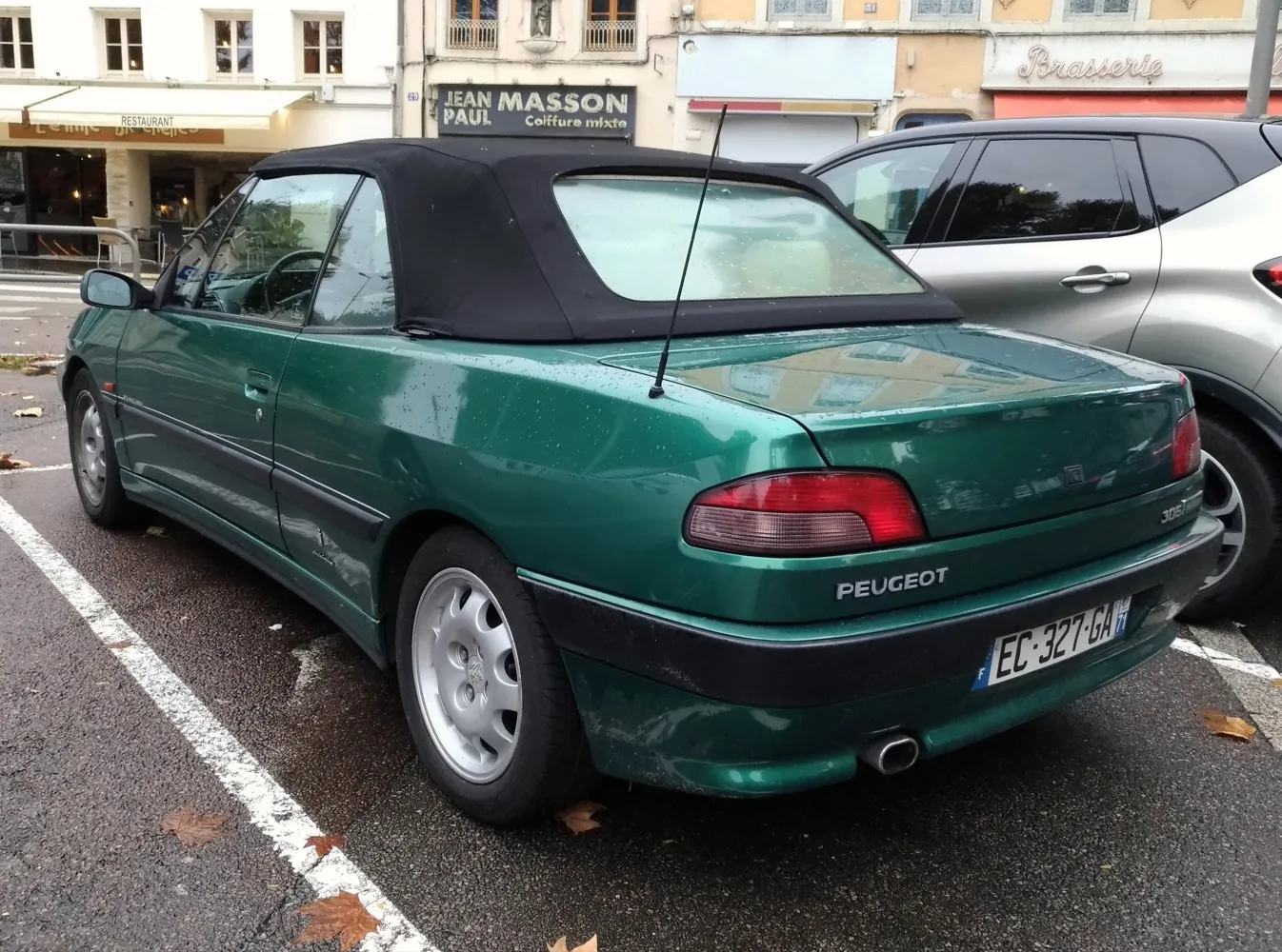

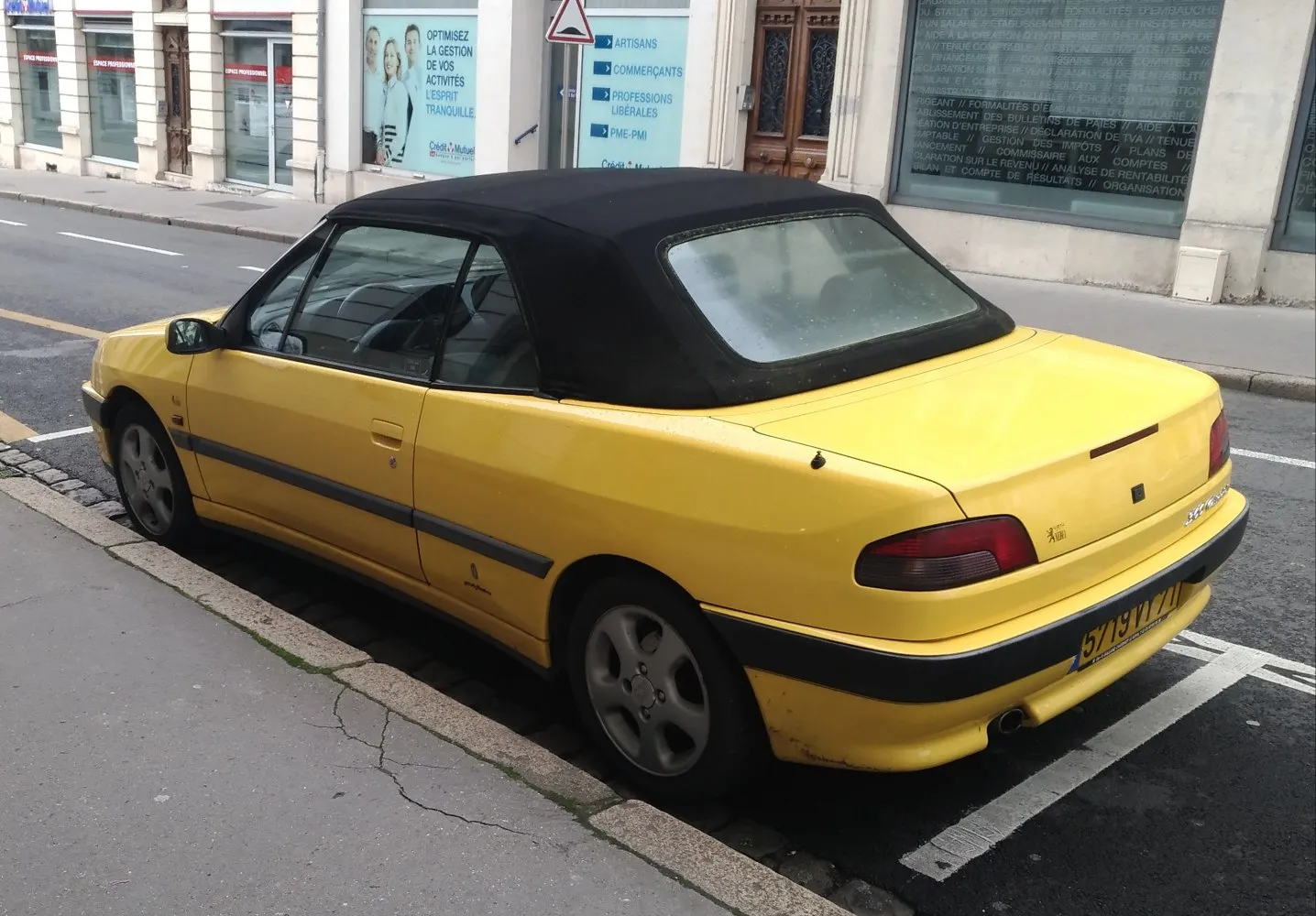

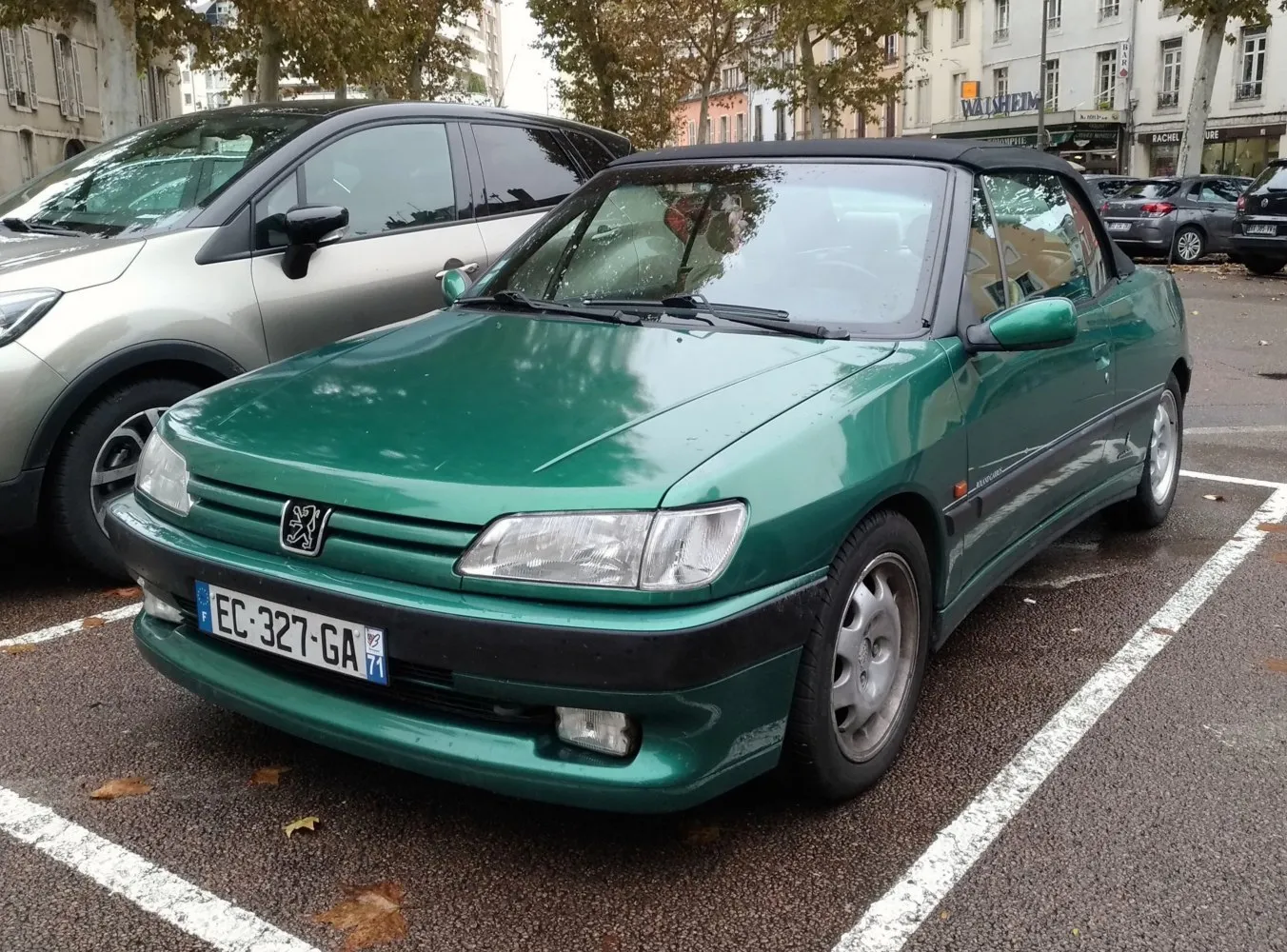

Vehicle photos
1 of 5
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 (89 KM) Selected | Gasoline | 89 KM | 1996–1997 |
| 1.8 (101 KM) Selected | Gasoline | 101 KM | 1994–1997 |
| 2.0 (121 KM) Selected | Gasoline | 121 KM | 1994–1997 |
| 1.8 (101 KM) Automatic Selected | Gasoline | 101 KM | 1994–1997 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 (89 KM)
Gasoline · 1996–1997
- Engine power
- 89 KM
- Torque
- 135 Nm
- Engine displacement
- 1,587 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.7 s
- Maximum speed
- 177 km/h
On this page
Check vehicle history
Basic version information
Peugeot 306 306 Cabrio (7D)- Brand
- Peugeot
- Model
- 306
- Version
- 306 Cabrio (7D)
- Engine
- 1.6 (89 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1996
- End of production
- 1997
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 177 km/h
- Acceleration 0-100 km/h
- 12.7 s
- Fuel consumption - Combined cycle
- 7.7 l/100 km
Engine
- Engine model / code
- NFZTU5JP
- Engine position
- Front, Transverse
- Engine displacement
- 1587 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78.5 mm
- Piston stroke
- 82 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.2 l
- Coolant capacity
- 7 l
- Power
- 89 KM @ 5600 obr./min
- Torque
- 135 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 274 l
- Curb weight
- 1200 kg
- Gross weight
- 1550 kg
Vehicle dimensions
- Length
- 4144 mm
- Width
- 1689 mm
- Height
- 1356 mm
- Wheelbase
- 2540 mm
- Front track
- 1454 mm
- Rear track
- 1429 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/65 R14
- ABS
- yes
Selected engine version
1.8 (101 KM)
Gasoline · 1994–1997
- Engine power
- 101 KM
- Torque
- 153 Nm
- Engine displacement
- 1,762 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Peugeot 306 306 Cabrio (7D)- Brand
- Peugeot
- Model
- 306
- Version
- 306 Cabrio (7D)
- Engine
- 1.8 (101 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1997
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Combined cycle
- 8.2 l/100 km
Engine
- Engine model / code
- LFZXU7JP
- Engine position
- Front, Transverse
- Engine displacement
- 1762 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 9.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 7.5 l
- Power
- 101 KM @ 6000 obr./min
- Torque
- 153 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 56 l
- Minimum trunk capacity
- 274 l
- Curb weight
- 1220 kg
- Gross weight
- 1570 kg
Vehicle dimensions
- Length
- 4144 mm
- Width
- 1689 mm
- Height
- 1356 mm
- Wheelbase
- 2540 mm
- Front track
- 1454 mm
- Rear track
- 1429 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/60 R14
- ABS
- yes
Selected engine version
2.0 (121 KM)
Gasoline · 1994–1997
- Engine power
- 121 KM
- Torque
- 176 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.8 s
- Maximum speed
- 194 km/h
On this page
Check vehicle history
Basic version information
Peugeot 306 306 Cabrio (7D)- Brand
- Peugeot
- Model
- 306
- Version
- 306 Cabrio (7D)
- Engine
- 2.0 (121 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1997
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 194 km/h
- Acceleration 0-100 km/h
- 10.8 s
- Fuel consumption - Combined cycle
- 8.4 l/100 km
Engine
- Engine model / code
- RFXXU10J2
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 7.5 l
- Power
- 121 KM @ 5750 obr./min
- Torque
- 176 Nm @ 2750 obr./min
Volume and weight
- Fuel tank
- 56 l
- Minimum trunk capacity
- 274 l
- Curb weight
- 1260 kg
- Gross weight
- 1610 kg
Vehicle dimensions
- Length
- 4144 mm
- Width
- 1689 mm
- Height
- 1356 mm
- Wheelbase
- 2540 mm
- Front track
- 1464 mm
- Rear track
- 1439 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Lateral control arm
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/55 R15
- ABS
- yes
Selected engine version
1.8 (101 KM) Automatic
Gasoline · 1994–1997
- Engine power
- 101 KM
- Torque
- 153 Nm
- Engine displacement
- 1,762 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Peugeot 306 306 Cabrio (7D)- Brand
- Peugeot
- Model
- 306
- Version
- 306 Cabrio (7D)
- Engine
- 1.8 (101 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1994
- End of production
- 1997
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Combined cycle
- 8.2 l/100 km
Engine
- Engine model / code
- LFZXU7JP
- Engine position
- Front, Transverse
- Engine displacement
- 1762 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 81.4 mm
- Compression ratio
- 9.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 7.5 l
- Power
- 101 KM @ 6000 obr./min
- Torque
- 153 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 56 l
- Minimum trunk capacity
- 274 l
- Curb weight
- 1220 kg
- Gross weight
- 1570 kg
Vehicle dimensions
- Length
- 4144 mm
- Width
- 1689 mm
- Height
- 1356 mm
- Wheelbase
- 2540 mm
- Front track
- 1454 mm
- Rear track
- 1429 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Lateral control arm
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/60 R14
- Rim size
- 14
- ABS
- yes
