Opel Insignia Hatchback (A)

Compare all 26 engine versions of the Opel Insignia Insignia Hatchback (A), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Insignia Hatchback (A)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

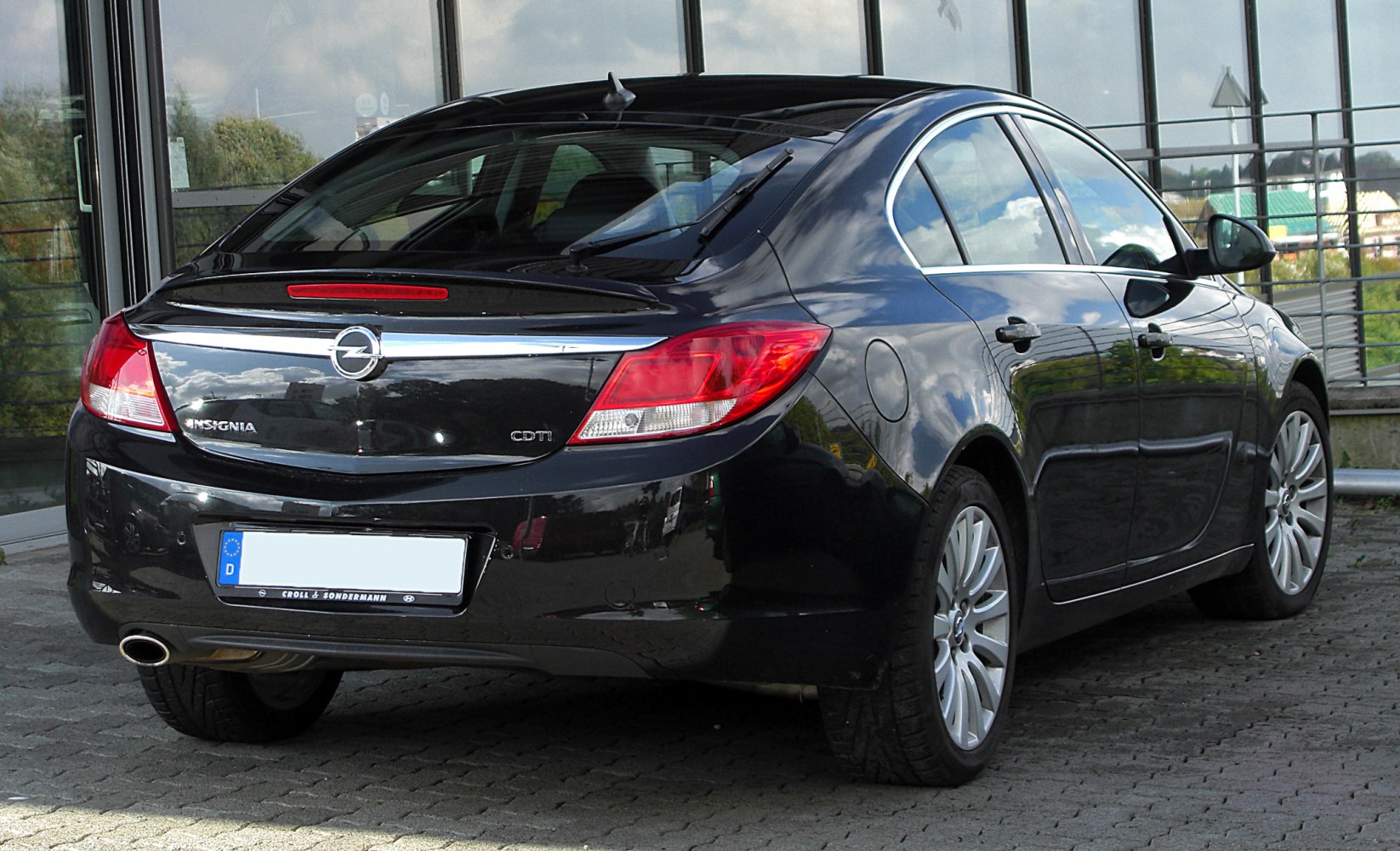

Opel Insignia Insignia Hatchback (A) View larger
Photo: M 93, Attribution, via Wikimedia Commons

Vehicle gallery

Opel Insignia Insignia Hatchback (A)

Photo: M 93, Attribution, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

26 versions · 14 Gasoline · 12 Diesel fuel

Engine Fuel Power Production
1.6 Turbo (180 KM) Selected Gasoline 180 KM 2008–2013
1.6i (115 KM) Selected Gasoline 115 KM 2008–2012
1.8i (140 KM) Selected Gasoline 140 KM 2008–2011
2.0 CDTI (110 KM) DPF Selected Diesel fuel 110 KM 2008–2013
2.0 CDTI (131 KM) DPF Selected Diesel fuel 131 KM 2008–2013
2.0 CDTI (131 KM) DPF Automatic start/stop Selected Diesel fuel 131 KM 2010–2013
2.0 CDTI (160 KM) DPF Selected Diesel fuel 160 KM 2008–2013
2.0 CDTI (160 KM) DPF 4x4 Automatic Selected Diesel fuel 160 KM 2010–2013
2.0 CDTI (190 KM) 4x4 DPF Selected Diesel fuel 190 KM 2008–2009
2.0 CDTI (190 KM) 4x4 DPF Automatic Selected Diesel fuel 190 KM 2008–2009
2.0 Turbo (220 KM) Selected Gasoline 220 KM 2008–2011
2.0 Turbo (220 KM) 4x4 Selected Gasoline 220 KM 2008–2011
2.0 Turbo (220 KM) 4x4 Automatic Selected Gasoline 220 KM 2008–2011
2.0 Turbo (220 KM) Automatic Selected Gasoline 220 KM 2008–2011
2.8 V6 Turbo (260 KM) 4x4 Selected Gasoline 260 KM 2008–2013
2.8 V6 Turbo (260 KM) 4x4 Automatic Selected Gasoline 260 KM 2008–2013
OPC 2.8 V6 Turbo (325 KM) 4x4 Selected Gasoline 325 KM 2009–2013
2.0 CDTI (110 KM) Ecotec start/stop Selected Diesel fuel 110 KM 2011–2013
2.0 Turbo (250 KM) Selected Gasoline 250 KM 2011–2013
2.0 BiTurbo CDTI (195 KM) Automatic Selected Diesel fuel 195 KM 2011–2013
2.0 BiTurbo CDTI (195 KM) 4x4 Automatic Selected Diesel fuel 195 KM 2011–2013
2.0 BiTurbo CDTI (195 KM) Selected Diesel fuel 195 KM 2011–2013
2.0 Turbo (250 KM) 4x4 Selected Gasoline 250 KM 2011–2013
2.0 Turbo (250 KM) 4x4 Automatic Selected Gasoline 250 KM 2011–2013
2.0 CDTI (160 KM) DPF Automatic Selected Diesel fuel 160 KM 2008–2013
OPC 2.8 V6 Turbo (325 KM) 4x4 Automatic Selected Gasoline 325 KM 2009–2013

Selected engine version

1.6 Turbo (180 KM)

Gasoline · 2008–2013

Engine power
180 KM
Torque
230 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
225 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
1.6 Turbo (180 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
225 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
9.7 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
7 l/100 km
Emission standard
Euro 5
CO2 emissions
164 g/km

Engine

Engine model / code
A16LET
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
180 KM @ 5500 obr./min
Torque
230 Nm @ 2200-5500 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1503 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16
Rim size
16
ABS
yes

Selected engine version

1.6i (115 KM)

Gasoline · 2008–2012

Engine power
115 KM
Torque
155 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.9 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
1.6i (115 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2012
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
12.9 s
Fuel consumption - Urban cycle
10.6 l/100 km
Fuel consumption - Extra-urban cycle
5.9 l/100 km
Fuel consumption - Combined cycle
7.6 l/100 km
Emission standard
Euro 5
CO2 emissions
179 g/km

Engine

Engine model / code
A16XER
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
115 KM @ 6000 obr./min
Torque
155 Nm @ 4000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1470 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16
Rim size
16
ABS
yes

Selected engine version

1.8i (140 KM)

Gasoline · 2008–2011

Engine power
140 KM
Torque
175 Nm
Engine displacement
1,796 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.9 s
Maximum speed
206 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
1.8i (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2011
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
206 km/h
Acceleration 0-100 km/h
11.9 s
Fuel consumption - Urban cycle
10.8 l/100 km
Fuel consumption - Extra-urban cycle
5.8 l/100 km
Fuel consumption - Combined cycle
7.6 l/100 km
Emission standard
Euro 5
CO2 emissions
169 g/km

Engine

Engine model / code
A18XER
Engine position
Front, Transverse
Engine displacement
1796 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
80.5 mm
Piston stroke
88.2 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
140 KM @ 6300 obr./min
Torque
175 Nm @ 3800 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1470 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16
Rim size
16
ABS
yes

Selected engine version

2.0 CDTI (110 KM) DPF

Diesel fuel · 2008–2013

Engine power
110 KM
Torque
260 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.1 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (110 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
12.1 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20DTC, A20DTL
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
110 KM @ 4000 obr./min
Torque
260 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1613 kg
Gross weight
2140 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 CDTI (131 KM) DPF

Diesel fuel · 2008–2013

Engine power
131 KM
Torque
300 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.1 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (131 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
11.1 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20DTJ, A20DT
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
131 KM @ 4000 obr./min
Torque
300 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1613 kg
Gross weight
2140 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17
Rim size
16; 17
ABS
yes

Selected engine version

2.0 CDTI (131 KM) DPF Automatic start/stop

Diesel fuel · 2010–2013

Engine power
131 KM
Torque
300 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.2 s
Maximum speed
204 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (131 KM) DPF Automatic start/stop
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
204 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
9.2 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.7 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20DT
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
131 KM @ 4000 obr./min
Torque
300 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1655 kg
Gross weight
2170 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17
Rim size
16; 17
ABS
yes

Selected engine version

2.0 CDTI (160 KM) DPF

Diesel fuel · 2008–2013

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.5 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (160 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
A20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1613 kg
Gross weight
2130 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Power steering
Electric power steering
Tire size
215/60 R16; 225/55 R17; 245/45R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 CDTI (160 KM) DPF 4x4 Automatic

Diesel fuel · 2010–2013

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.5 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (160 KM) DPF 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
8.7 l/100 km
Fuel consumption - Extra-urban cycle
5 l/100 km
Fuel consumption - Combined cycle
6.4 l/100 km
Emission standard
Euro 5
CO2 emissions
169 g/km

Engine

Engine model / code
A20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1613 kg
Gross weight
2135 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 CDTI (190 KM) 4x4 DPF

Diesel fuel · 2008–2009

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.8 s
Maximum speed
224 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (190 KM) 4x4 DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2009
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
224 km/h
Acceleration 0-100 km/h
8.8 s
Fuel consumption - Combined cycle
6.7 l/100 km
Emission standard
Euro 4

Engine

Engine model / code
A20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
190 KM @ 4500 obr./min
Torque
400 Nm @ 2000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 CDTI (190 KM) 4x4 DPF Automatic

Diesel fuel · 2008–2009

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.1 s
Maximum speed
221 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (190 KM) 4x4 DPF Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2009
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
221 km/h
Acceleration 0-100 km/h
9.1 s
Fuel consumption - Combined cycle
7.7 l/100 km
Emission standard
Euro 4

Engine

Engine model / code
A20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
190 KM @ 4500 obr./min
Torque
400 Nm @ 2000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17; 245/45 R18
Rim size
17; 18
ABS
yes

Selected engine version

2.0 Turbo (220 KM)

Gasoline · 2008–2011

Engine power
220 KM
Torque
350 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.6 s
Maximum speed
242 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (220 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2011
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
242 km/h
Acceleration 0-100 km/h
7.6 s
Fuel consumption - Urban cycle
12.6 l/100 km
Fuel consumption - Extra-urban cycle
6.7 l/100 km
Fuel consumption - Combined cycle
8.9 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20NHT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
6 l
Coolant capacity
7.3 l
Power
220 KM @ 5300 obr./min
Torque
350 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1645 kg
Gross weight
2150 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17; 245/45 R18
Rim size
17; 18
ABS
yes

Selected engine version

2.0 Turbo (220 KM) 4x4

Gasoline · 2008–2011

Engine power
220 KM
Torque
350 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.7 s
Maximum speed
240 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (220 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2011
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
240 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
13 l/100 km
Fuel consumption - Extra-urban cycle
7.7 l/100 km
Fuel consumption - Combined cycle
9.2 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20NHT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
6 l
Coolant capacity
7.3 l
Power
220 KM @ 5300 obr./min
Torque
350 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1733 kg
Gross weight
2265 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17; 245/45 R18
Rim size
17; 18
ABS
yes

Selected engine version

2.0 Turbo (220 KM) 4x4 Automatic

Gasoline · 2008–2011

Engine power
220 KM
Torque
350 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.9 s
Maximum speed
237 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (220 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2011
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
237 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
14.3 l/100 km
Fuel consumption - Extra-urban cycle
7.2 l/100 km
Fuel consumption - Combined cycle
9.8 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20NHT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
6 l
Coolant capacity
7.3 l
Power
220 KM @ 5300 obr./min
Torque
350 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1785 kg
Gross weight
2290 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17; 245/45 R18
Rim size
17; 18
ABS
yes

Selected engine version

2.0 Turbo (220 KM) Automatic

Gasoline · 2008–2011

Engine power
220 KM
Torque
350 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.8 s
Maximum speed
240 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (220 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2011
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
240 km/h
Acceleration 0-100 km/h
7.8 s
Fuel consumption - Urban cycle
14 l/100 km
Fuel consumption - Extra-urban cycle
7 l/100 km
Fuel consumption - Combined cycle
9.6 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20NHT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
6 l
Coolant capacity
7.3 l
Power
220 KM @ 5300 obr./min
Torque
350 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1670 kg
Gross weight
2175 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17; 245/45 R18
Rim size
17; 18
ABS
no

Selected engine version

2.8 V6 Turbo (260 KM) 4x4

Gasoline · 2008–2013

Engine power
260 KM
Torque
350 Nm
Engine displacement
2,792 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.9 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.8 V6 Turbo (260 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
6.9 s
Fuel consumption - Urban cycle
16.9 l/100 km
Fuel consumption - Extra-urban cycle
7.4 l/100 km
Fuel consumption - Combined cycle
10.9 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A28NET
Engine position
Front, Transverse
Engine displacement
2792 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
89 mm
Piston stroke
74.8 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
6.3 l
Coolant capacity
6.7 l
Power
260 KM @ 5500 obr./min
Torque
350 Nm

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1825 kg
Gross weight
2330 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
11.4 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
245/45 R18
Rim size
18
ABS
yes

Selected engine version

2.8 V6 Turbo (260 KM) 4x4 Automatic

Gasoline · 2008–2013

Engine power
260 KM
Torque
350 Nm
Engine displacement
2,792 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.1 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.8 V6 Turbo (260 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
7.1 s
Fuel consumption - Urban cycle
17.9 l/100 km
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption - Combined cycle
11.6 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A28NET
Engine position
Front, Transverse
Engine displacement
2792 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
89 mm
Piston stroke
74.8 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
6.3 l
Coolant capacity
6.7 l
Power
260 KM @ 5500 obr./min
Torque
350 Nm

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1843 kg
Gross weight
2365 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
245/45 R18
Rim size
18
ABS
yes

Selected engine version

OPC 2.8 V6 Turbo (325 KM) 4x4

Gasoline · 2009–2013

Engine power
325 KM
Torque
435 Nm
Engine displacement
2,792 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.9 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
OPC 2.8 V6 Turbo (325 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2009
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
6.9 s
Fuel consumption - Urban cycle
15.8 l/100 km
Fuel consumption - Extra-urban cycle
7.6 l/100 km
Fuel consumption - Combined cycle
10.6 l/100 km
Emission standard
Euro 5
CO2 emissions
249 g/km

Engine

Engine model / code
A28NER
Engine position
Front, Transverse
Engine displacement
2792 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
89 mm
Piston stroke
74.8 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
6.3 l
Coolant capacity
6.7 l
Power
325 KM @ 5250 obr./min
Torque
435 Nm @ 5250 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1810 kg
Gross weight
2315 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Tire size
245/40 R19
Rim size
8.5 x 19
ABS
yes

Selected engine version

2.0 CDTI (110 KM) Ecotec start/stop

Diesel fuel · 2011–2013

Engine power
110 KM
Torque
260 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.1 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (110 KM) Ecotec start/stop
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
12.1 s
Fuel consumption - Urban cycle
5.3 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.4 l/100 km
Emission standard
Euro 5
CO2 emissions
116 g/km

Engine

Engine model / code
A20DTL
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
110 KM @ 4000 obr./min
Torque
260 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
530 l
Maximum trunk capacity
1470 l
Curb weight
1428 kg
Gross weight
2035 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Width with unfolded mirrors
2084 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Turning circle
11.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Steering system
Rack-and-pinion
Tire size
215/60 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

2.0 Turbo (250 KM)

Gasoline · 2011–2013

Engine power
250 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.6 s
Maximum speed
242 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (250 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
242 km/h
Acceleration 0-100 km/h
7.6 s
Fuel consumption - Urban cycle
10.1 l/100 km
Fuel consumption - Extra-urban cycle
5.5 l/100 km
Fuel consumption - Combined cycle
7.2 l/100 km
Emission standard
Euro 5
CO2 emissions
169 g/km

Engine

Engine model / code
A20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
7.8 l
Power
250 KM @ 5300 obr./min
Torque
400 Nm @ 2400-3600 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1733 kg
Gross weight
2250 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17
Rim size
17
ABS
yes

Selected engine version

2.0 BiTurbo CDTI (195 KM) Automatic

Diesel fuel · 2011–2013

Engine power
195 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.8 s
Maximum speed
229 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 BiTurbo CDTI (195 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
229 km/h
Acceleration 0-100 km/h
8.8 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 5
CO2 emissions
155 g/km

Engine

Engine model / code
A20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
195 KM @ 4000 obr./min
Torque
400 Nm @ 2000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1503 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 BiTurbo CDTI (195 KM) 4x4 Automatic

Diesel fuel · 2011–2013

Engine power
195 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9 s
Maximum speed
225 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 BiTurbo CDTI (195 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
225 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption - Urban cycle
8.4 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.4 l/100 km
Emission standard
Euro 5
CO2 emissions
169 g/km

Engine

Engine model / code
A20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
195 KM @ 4000 obr./min
Torque
400 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1503 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 BiTurbo CDTI (195 KM)

Diesel fuel · 2011–2013

Engine power
195 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
229 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 BiTurbo CDTI (195 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
229 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
5.8 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.7 l/100 km
Emission standard
Euro 5
CO2 emissions
125 g/km

Engine

Engine model / code
A20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
195 KM @ 4000 obr./min
Torque
400 Nm @ 2000 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1503 kg
Gross weight
2020 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 Turbo (250 KM) 4x4

Gasoline · 2011–2013

Engine power
250 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.5 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (250 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
10.6 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
7.8 l/100 km
Emission standard
Euro 5
CO2 emissions
184 g/km

Engine

Engine model / code
A20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
7.8 l
Power
250 KM @ 5300 obr./min
Torque
400 Nm @ 2400-3600 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1733 kg
Gross weight
2250 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17
Rim size
17
ABS
yes

Selected engine version

2.0 Turbo (250 KM) 4x4 Automatic

Gasoline · 2011–2013

Engine power
250 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.7 s
Maximum speed
243 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 Turbo (250 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
243 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
11.7 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
8.3 l/100 km
Emission standard
Euro 5
CO2 emissions
194 g/km

Engine

Engine model / code
A20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.3
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
7.8 l
Power
250 KM @ 5300 obr./min
Torque
400 Nm @ 2400-3600 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1733 kg
Gross weight
2250 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
225/55 R17
Rim size
17
ABS
yes

Selected engine version

2.0 CDTI (160 KM) DPF Automatic

Diesel fuel · 2008–2013

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.6 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
2.0 CDTI (160 KM) DPF Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2008
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
7.7 l/100 km
Fuel consumption - Extra-urban cycle
5.1 l/100 km
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 5
CO2 emissions
204 g/km

Engine

Engine model / code
A20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
9 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1613 kg
Gross weight
2130 kg

Vehicle dimensions

Length
4830 mm
Width
1856 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Ground clearance
160 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Tire size
215/60 R16; 225/55 R17; 245/45 R18
Rim size
16; 17; 18
ABS
yes

Selected engine version

OPC 2.8 V6 Turbo (325 KM) 4x4 Automatic

Gasoline · 2009–2013

Engine power
325 KM
Torque
435 Nm
Engine displacement
2,792 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.9 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Hatchback (A)
Engine
OPC 2.8 V6 Turbo (325 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2009
End of production
2013
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
6.9 s
Fuel consumption - Urban cycle
16.1 l/100 km
Fuel consumption - Extra-urban cycle
7.5 l/100 km
Fuel consumption - Combined cycle
10.7 l/100 km
Emission standard
Euro 5
CO2 emissions
251 g/km

Engine

Engine model / code
A28NER
Engine position
Front, Transverse
Engine displacement
2792 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Engine configuration
V-shaped
Number of cylinders
6
Cylinder bore
89 mm
Piston stroke
74.8 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
6.3 l
Coolant capacity
6.7 l
Power
325 KM @ 5250 obr./min
Torque
435 Nm @ 5250 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
520 l
Maximum trunk capacity
1465 l
Curb weight
1810 kg
Gross weight
2315 kg

Vehicle dimensions

Length
4830 mm
Width
1858 mm
Height
1498 mm
Wheelbase
2737 mm
Front track
1585 mm
Rear track
1587 mm
Turning circle
10.8 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Tire size
245/40 R19
Rim size
8.5 x 19
ABS
yes

About Opel Insignia Insignia Hatchback (A)

The Opel Insignia Hatchback (A), produced from 2008 to 2013, is an elegant and spacious hatchback that accommodates five people. Designed for customers seeking a blend of style and practicality, the Insignia offers not only an attractive design but also a functional interior and advanced technologies. It is an excellent option for those who value comfort in daily driving as well as on longer journeys.

The Insignia is available with a variety of engines, including both petrol and diesel options. The engine power ranges from 110 hp to an impressive 325 hp, allowing the vehicle to be tailored to the diverse needs of users. There are economical options, such as the 2.0 CDTI Ecotec with 110 hp featuring a start/stop system, as well as more dynamic options like the OPC 2.8 V6 Turbo offering 325 hp and all-wheel drive with an automatic transmission. The availability of both automatic and manual gearboxes allows for further customization according to driver preferences.

This model is available with front-wheel drive and all-wheel drive (4x4), which allows for better adaptation to different driving styles and road conditions. The Insignia performs excellently in urban environments thanks to its agility, while also providing comfort and stability during highway driving. Numerous assistance systems, such as adaptive cruise control and advanced steering systems, contribute to enhanced safety and travel comfort.

Despite its many advantages, the Insignia Hatchback (A) may also have drawbacks worth considering before purchase. There have been known cases of electronic issues, particularly within multimedia systems, which can lead to additional servicing costs. Some users also report higher fuel consumption in more equipped versions, especially during sporty driving styles. It is also recommended to pay attention to the condition of the mechanical components when purchasing a used model.

The Opel Insignia Hatchback (A) stands out in the market due to its modern appearance, comfort, and advanced technologies. It is an attractive option for those seeking an elegant vehicle that offers both dynamic performance and practicality for everyday use. With a wide range of engines and drivetrain options, the Insignia remains a competitive choice in its segment, providing a unique combination of style and functionality.
