Vehicle specifications

Opel Astra K Sports Tourer

Compare all 27 engine versions of the Opel Astra Astra K Sports Tourer, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Astra K Sports Tourer? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Opel Astra K Sports Tourer?

See the places on a 3D model →
VIN number
Floor next to / in front of the front seat, right side
1 of 5

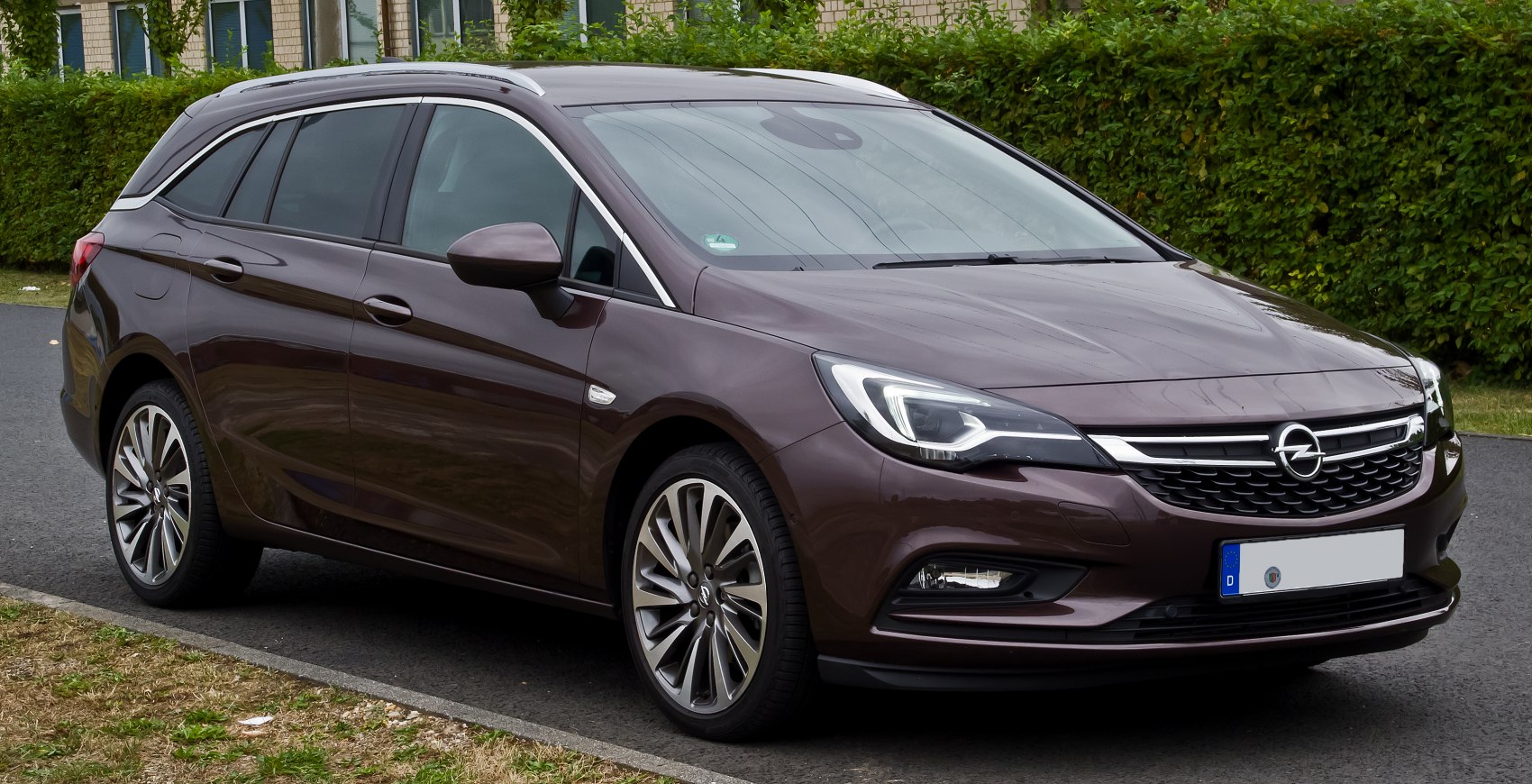

Opel Astra Astra K Sports Tourer View larger
Photo: Herranderssvensson, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons

Vehicle gallery

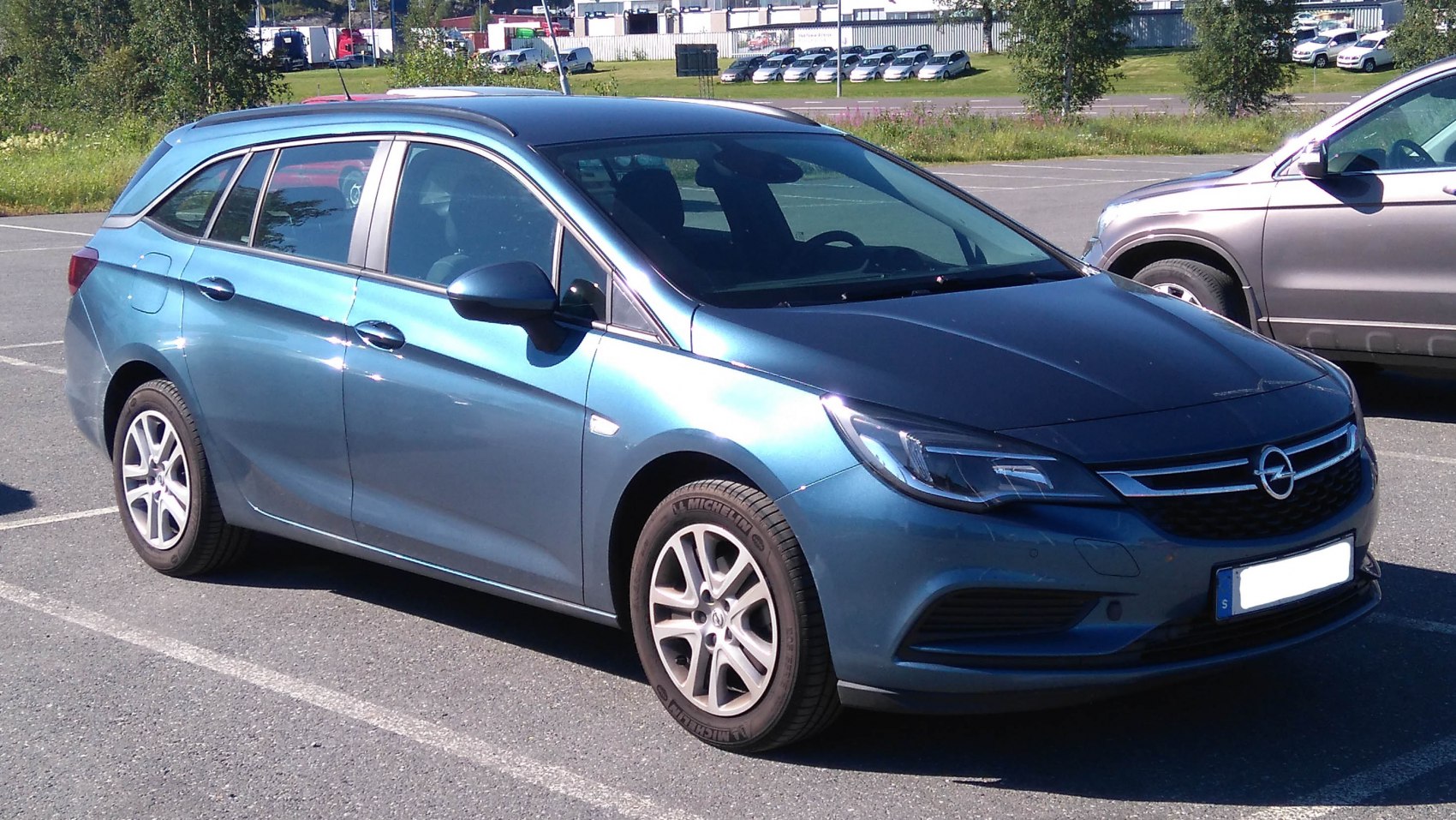

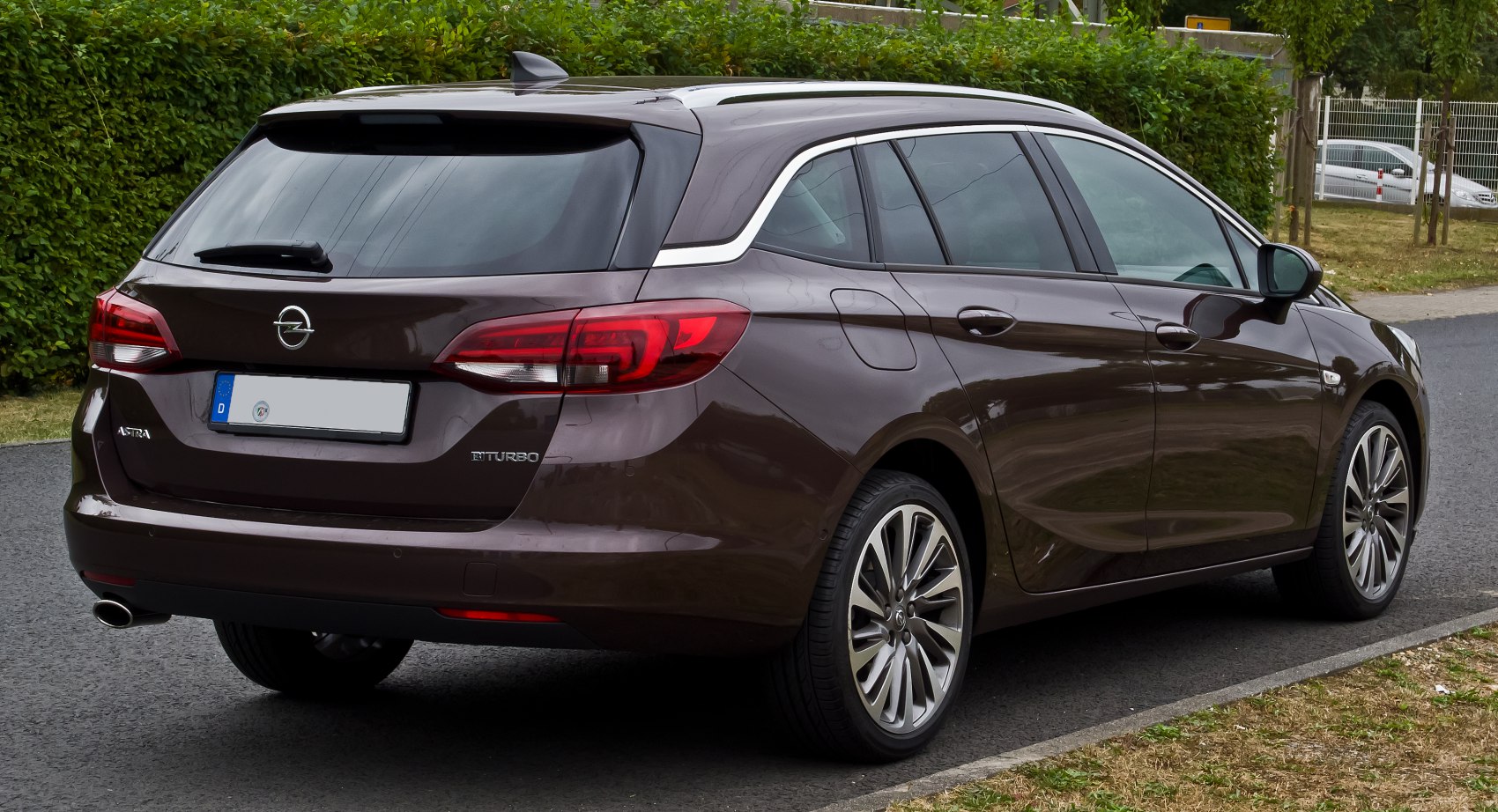

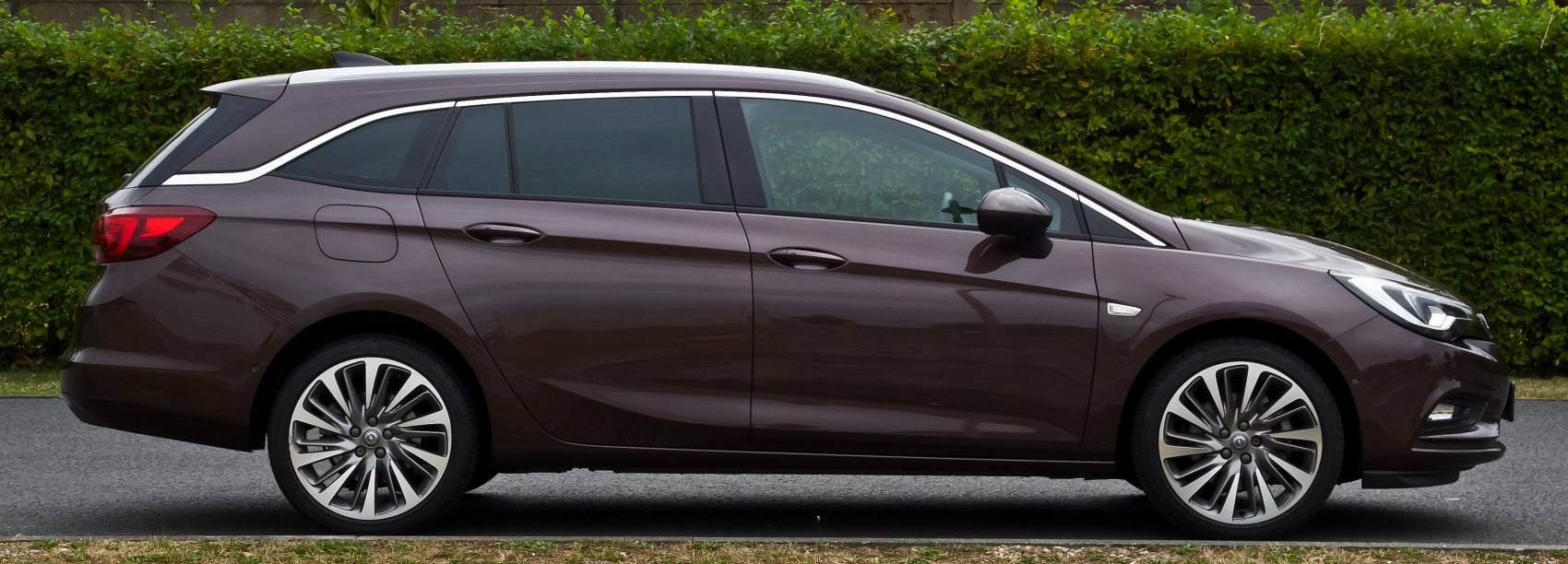

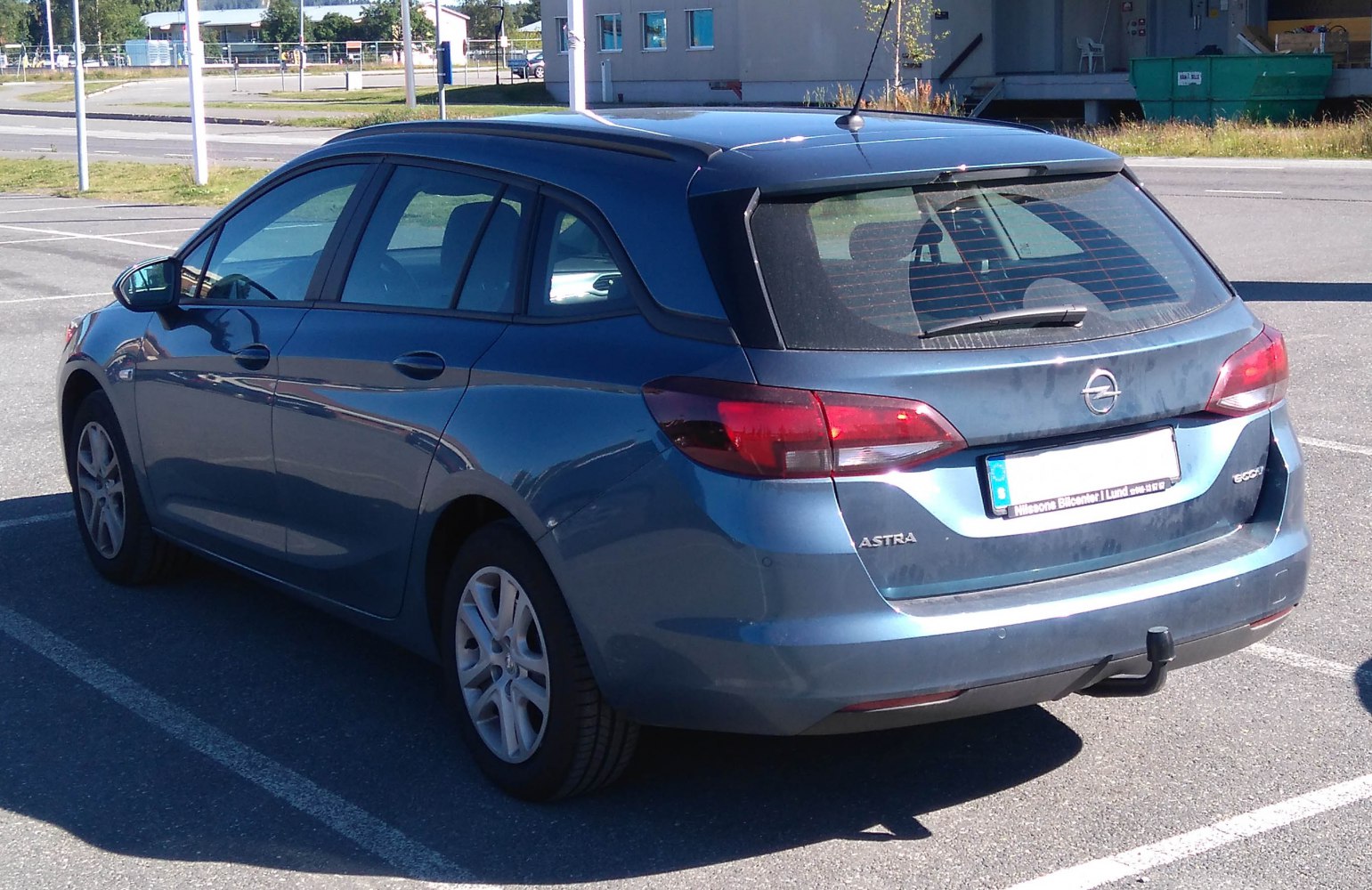

Opel Astra Astra K Sports Tourer

Photo: Herranderssvensson, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

27 versions · 16 Gasoline · 10 Diesel fuel · 1 Gasoline / CNG

Engine Fuel Power Production
1.4 (100 KM) Selected Gasoline 100 KM 2015–2018
1.6 CDTi (95 KM) Selected Diesel fuel 95 KM 2015–2018
1.0 ECOTEC (105 KM) ecoFLEX Easytronic start&stop Selected Gasoline 105 KM 2015–2018
1.4 ECOTEC (150 KM) ecoFLEX start&stop Selected Gasoline 150 KM 2015–2018
1.6 CDTi (110 KM) ecoFLEX start&stop Selected Diesel fuel 110 KM 2015–2018
1.0 ECOTEC (105 KM) ecoFLEX start&stop Selected Gasoline 105 KM 2015–2018
1.6 CDTi (110 KM) Selected Diesel fuel 110 KM 2015–2018
1.4 ECOTEC (150 KM) ecoFLEX Automatic start&stop Selected Gasoline 150 KM 2015–2018
1.4 ECOTEC (125 KM) Selected Gasoline 125 KM 2015–2018
1.4 ECOTEC (150 KM) Selected Gasoline 150 KM 2015–2018
1.6 CDTi (136 KM) ecoFLEX start&stop Selected Diesel fuel 136 KM 2015–2018
1.4 ECOTEC (125 KM) ecoFLEX start&stop Selected Gasoline 125 KM 2015–2018
1.6 ECOTEC (200 KM) start&stop Selected Gasoline 200 KM 2015–2018
1.6 CDTi (160 KM) ecoFLEX start&stop Selected Diesel fuel 160 KM 2015–2018
1.6 CDTi (136 KM) Automatic Selected Diesel fuel 136 KM 2015–2018
1.0 EcoTec (90 KM) Selected Gasoline 90 KM 2018–2019
1.0 EcoTec (105 KM) Selected Gasoline 105 KM 2018–2019
1.4 Turbo (125 KM) Selected Gasoline 125 KM 2018–2019
1.4 Turbo (150 KM) Selected Gasoline 150 KM 2018–2019
1.4 Turbo (150 KM) Automatic Selected Gasoline 150 KM 2018–2019
1.6 Turbo (200 KM) Selected Gasoline 200 KM 2018–2019
1.6 Turbo (200 KM) Automatic Selected Gasoline 200 KM 2018–2019
1.6d (110 KM) Selected Diesel fuel 110 KM 2018–2019
1.6d (136 KM) Selected Diesel fuel 136 KM 2018–2019
1.6d (136 KM) Automatic Selected Diesel fuel 136 KM 2018–2019
1.6 BiTurbo (150 KM) Selected Diesel fuel 150 KM 2018–2019
1.4 EcoTec (110 KM) CNG Selected Gasoline / CNG 110 KM 2018–2019

Selected engine version

1.4 (100 KM)

Gasoline · 2015–2018

Engine power
100 KM
Torque
130 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13.9 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 (100 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
13.9 s
Fuel consumption - Urban cycle
7.5-7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.3-4.5 l/100 km
Fuel consumption - Combined cycle
5.5-5.7 l/100 km
Emission standard
Euro 6
CO2 emissions
131-127 g/km

Engine

Engine model / code
B14XE
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10.6
Engine oil capacity
4 l
Power
100 KM @ 6000 obr./min
Torque
130 Nm @ 4300 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1198 kg
Gross weight
1830 kg
Roof load
75 kg
Braked trailer load (12% slope start)
800 kg
Trailer load without brakes
610 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16
Rim size
6J x 15; 6.5J x 16
ABS
yes

Selected engine version

1.6 CDTi (95 KM)

Diesel fuel · 2015–2018

Engine power
95 KM
Torque
280 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.9 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (95 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
12.9 s
Fuel consumption - Urban cycle
4.2-4.4 l/100 km
Fuel consumption - Extra-urban cycle
3.3-3.4 l/100 km
Fuel consumption - Combined cycle
3.6-3.8 l/100 km
Emission standard
Euro 6
CO2 emissions
99-96 g/km

Engine

Engine model / code
B16DTC
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
5 l
Power
95 KM @ 3500 obr./min
Torque
280 Nm @ 1500-1750 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1313 kg
Gross weight
1925 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
670 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16
Rim size
6J x 15; 6.5J x 16
ABS
yes

Selected engine version

1.0 ECOTEC (105 KM) ecoFLEX Easytronic start&stop

Gasoline · 2015–2018

Engine power
105 KM
Torque
170 Nm
Engine displacement
999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.9 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.0 ECOTEC (105 KM) ecoFLEX Easytronic start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
12.9 s
Fuel consumption - Urban cycle
5.1-5.2 l/100 km
Fuel consumption - Extra-urban cycle
3.7-3.8 l/100 km
Fuel consumption - Combined cycle
4.2-4.3 l/100 km
Emission standard
Euro 6
CO2 emissions
100-97 g/km

Engine

Engine model / code
B10XFL
Engine position
Front, Transverse
Engine displacement
999 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
74 mm
Piston stroke
77.4 mm
Compression ratio
10.5
Engine oil capacity
4 l
Power
105 KM @ 5500 obr./min
Torque
170 Nm @ 1800-4250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1213 kg
Gross weight
1855 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1150 kg
Trailer load without brakes
620 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Type of automatic gearbox
Easytronic
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.4 ECOTEC (150 KM) ecoFLEX start&stop

Gasoline · 2015–2018

Engine power
150 KM
Torque
230 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 ECOTEC (150 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.2-6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.3 l/100 km
Fuel consumption - Combined cycle
4.9-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
117-114 g/km

Engine

Engine model / code
B14XFT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
150 KM @ 5000-5600 obr./min
Torque
230 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1885 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.6 CDTi (110 KM) ecoFLEX start&stop

Diesel fuel · 2015–2018

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.4 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (110 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
11.4 s
Fuel consumption - Urban cycle
4 l/100 km
Fuel consumption - Extra-urban cycle
3.2-3.3 l/100 km
Fuel consumption - Combined cycle
3.5-3.6 l/100 km
Emission standard
Euro 6
CO2 emissions
95-92 g/km

Engine

Engine model / code
B16DTE
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
5 l
Power
110 KM @ 3500 obr./min
Torque
300 Nm @ 1750-2000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1328 kg
Gross weight
1940 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.0 ECOTEC (105 KM) ecoFLEX start&stop

Gasoline · 2015–2018

Engine power
105 KM
Torque
170 Nm
Engine displacement
999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.7 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.0 ECOTEC (105 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
11.7 s
Fuel consumption - Urban cycle
5.2-5.3 l/100 km
Fuel consumption - Extra-urban cycle
3.9-4.0 l/100 km
Fuel consumption - Combined cycle
4.3-4.5 l/100 km
Emission standard
Euro 6
CO2 emissions
103-100 g/km

Engine

Engine model / code
B10XFL
Engine position
Front, Transverse
Engine displacement
999 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
74 mm
Piston stroke
77.4 mm
Compression ratio
10.5
Engine oil capacity
4 l
Power
105 KM @ 5500 obr./min
Torque
170 Nm @ 1800-4250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1213 kg
Gross weight
1850 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1150 kg
Trailer load without brakes
620 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.6 CDTi (110 KM)

Diesel fuel · 2015–2018

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.4 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
11.4 s
Fuel consumption - Urban cycle
4.2-4.4 l/100 km
Fuel consumption - Extra-urban cycle
3.3-3.4 l/100 km
Fuel consumption - Combined cycle
3.6-3.8 l/100 km
Emission standard
Euro 6
CO2 emissions
99-96 g/km

Engine

Engine model / code
B16TDTU
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
4.5 l
Power
110 KM @ 3500 obr./min
Torque
300 Nm @ 1750-2000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1328 kg
Gross weight
1940 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16
Rim size
6J x 15; 6.5J x 16
ABS
yes

Selected engine version

1.4 ECOTEC (150 KM) ecoFLEX Automatic start&stop

Gasoline · 2015–2018

Engine power
150 KM
Torque
230 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.4 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 ECOTEC (150 KM) ecoFLEX Automatic start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9.4 s
Fuel consumption - Urban cycle
7.1-7.3 l/100 km
Fuel consumption - Extra-urban cycle
4.4-4.5 l/100 km
Fuel consumption - Combined cycle
5.4-5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
128-125 g/km

Engine

Engine model / code
B14XFT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
150 KM @ 5000-5600 obr./min
Torque
230 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1275 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
750 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.4 ECOTEC (125 KM)

Gasoline · 2015–2018

Engine power
125 KM
Torque
245 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.6 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 ECOTEC (125 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
7.2-7.4 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.5-5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
130-127 g/km

Engine

Engine model / code
B14XFL
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
125 KM @ 4000-5600 obr./min
Torque
245 Nm @ 2000-3500 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1890 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.4 ECOTEC (150 KM)

Gasoline · 2015–2018

Engine power
150 KM
Torque
245 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.7 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 ECOTEC (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
8.7 s
Fuel consumption - Urban cycle
7.2-7.4 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.5-5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
130-127 g/km

Engine

Engine model / code
B14XFT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
150 KM @ 5000-5600 obr./min
Torque
245 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1890 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.6 CDTi (136 KM) ecoFLEX start&stop

Diesel fuel · 2015–2018

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.1 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (136 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
10.1 s
Fuel consumption - Urban cycle
4.5-4.7 l/100 km
Fuel consumption - Extra-urban cycle
3.4-3.5 l/100 km
Fuel consumption - Combined cycle
3.8-3.9 l/100 km
Emission standard
Euro 6
CO2 emissions
104-101 g/km

Engine

Engine model / code
B16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
5 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1328 kg
Gross weight
1975 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.4 ECOTEC (125 KM) ecoFLEX start&stop

Gasoline · 2015–2018

Engine power
125 KM
Torque
245 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 ECOTEC (125 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
6.2-6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.3 l/100 km
Fuel consumption - Combined cycle
4.9-5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
117-114 g/km

Engine

Engine model / code
B14XFL
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
125 KM @ 4000-5600 obr./min
Torque
245 Nm @ 2000-3500 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1885 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.6 ECOTEC (200 KM) start&stop

Gasoline · 2015–2018

Engine power
200 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.7 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 ECOTEC (200 KM) start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
8 l/100 km
Fuel consumption - Extra-urban cycle
4.9-5.1 l/100 km
Fuel consumption - Combined cycle
6.0-6.2 l/100 km
Emission standard
Euro 6
CO2 emissions
142-139 g/km

Engine

Engine model / code
B16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Engine oil capacity
5.5 l
Coolant capacity
5.9 l
Power
200 KM @ 4700-5500 obr./min
Torque
300 Nm @ 1700-4700 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1318 kg
Gross weight
1960 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

1.6 CDTi (160 KM) ecoFLEX start&stop

Diesel fuel · 2015–2018

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (160 KM) ecoFLEX start&stop
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
5.1-5.2 l/100 km
Fuel consumption - Extra-urban cycle
3.6-3.7 l/100 km
Fuel consumption - Combined cycle
4.1-4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
112-109 g/km

Engine

Engine model / code
B16DTR
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
5 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1500-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1360 kg
Gross weight
1985 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
7.5J x 17
ABS
yes

Selected engine version

1.6 CDTi (136 KM) Automatic

Diesel fuel · 2015–2018

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.1 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 CDTi (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.1 s
Fuel consumption - Urban cycle
5.7-5.8 l/100 km
Fuel consumption - Extra-urban cycle
3.8-3.9 l/100 km
Fuel consumption - Combined cycle
4.5-4.6 l/100 km
Emission standard
Euro 6
CO2 emissions
122-119 g/km

Engine

Engine model / code
B16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Engine oil capacity
5 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1350 kg
Gross weight
1975 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1499 mm
Wheelbase
2662 mm
Front track
1548 mm
Rear track
1565 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

1.0 EcoTec (90 KM)

Gasoline · 2018–2019

Engine power
90 KM
Torque
170 Nm
Engine displacement
999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.5 s
Maximum speed
187 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.0 EcoTec (90 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
187 km/h
Acceleration 0-100 km/h
12.5 s
Fuel consumption - Urban cycle
5.4-5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.5 l/100 km
Fuel consumption - Combined cycle
4.6-5.0 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
107-114 g/km

Engine

Engine model / code
D10XFL
Engine position
Front, Transverse
Engine displacement
999 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
74 mm
Piston stroke
77.4 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
4.3 l
Power
90 KM @ 3700-6000 obr./min
Torque
170 Nm @ 1800-3700 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1213 kg
Gross weight
1860 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1150 kg
Trailer load without brakes
620 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

1.0 EcoTec (105 KM)

Gasoline · 2018–2019

Engine power
105 KM
Torque
170 Nm
Engine displacement
999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.8 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.0 EcoTec (105 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
11.8 s
Fuel consumption - Urban cycle
5.5-5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.1-4.5 l/100 km
Fuel consumption - Combined cycle
4.6-5.0 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
107-114 g/km

Engine

Engine model / code
D10XFL
Engine position
Front, Transverse
Engine displacement
999 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
74 mm
Piston stroke
77.4 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
105 KM @ 4300-6000 obr./min
Torque
170 Nm @ 1800-4300 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1213 kg
Gross weight
1860 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1150 kg
Trailer load without brakes
620 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
6.5J x 16; 7J x 16
ABS
yes

Selected engine version

1.4 Turbo (125 KM)

Gasoline · 2018–2019

Engine power
125 KM
Torque
230 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 Turbo (125 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.0-7.2 l/100 km
Fuel consumption - Extra-urban cycle
4.7-4.9 l/100 km
Fuel consumption - Combined cycle
5.5-5.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
127-131 g/km

Engine

Engine model / code
D14XFL
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.1 l
Power
125 KM @ 4000-5600 obr./min
Torque
230 Nm @ 2000-3500 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1885 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
6.5J x 16; 7J x 16
ABS
yes

Selected engine version

1.4 Turbo (150 KM)

Gasoline · 2018–2019

Engine power
150 KM
Torque
230 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
215 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 Turbo (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
215 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
7.0-7.1 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.9 l/100 km
Fuel consumption - Combined cycle
5.5-5.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
127-131 g/km

Engine

Engine model / code
D14XFT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
230 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1247 kg
Gross weight
1885 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1403 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.4 Turbo (150 KM) Automatic

Gasoline · 2018–2019

Engine power
150 KM
Torque
230 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.1 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 Turbo (150 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9.1 s
Fuel consumption - Urban cycle
7.3-7.5 l/100 km
Fuel consumption - Extra-urban cycle
4.7-5.2 l/100 km
Fuel consumption - Combined cycle
5.7-6.0 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
130-138 g/km

Engine

Engine model / code
D14XFT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-5600 obr./min
Torque
230 Nm @ 2000-4000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1275 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1420 kg
Trailer load without brakes
640 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM)

Gasoline · 2018–2019

Engine power
200 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.9 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 Turbo (200 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
8.5 l/100 km
Fuel consumption - Extra-urban cycle
5.0-5.5 l/100 km
Fuel consumption - Combined cycle
6.3-6.6 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
144-151 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Coolant capacity
5.9 l
Power
200 KM @ 5500 obr./min
Torque
300 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1318 kg
Gross weight
1960 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1650 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM) Automatic

Gasoline · 2018–2019

Engine power
200 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.9 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 Turbo (200 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
8.5-8.7 l/100 km
Fuel consumption - Extra-urban cycle
5.4-5.6 l/100 km
Fuel consumption - Combined cycle
6.5-6.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
149-154 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Coolant capacity
5.9 l
Power
200 KM @ 5500 obr./min
Torque
300 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1350 kg
Gross weight
1980 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.6d (110 KM)

Diesel fuel · 2018–2019

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.5 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6d (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
11.5 s
Fuel consumption - Urban cycle
5.7-5.9 l/100 km
Fuel consumption - Extra-urban cycle
3.8-4.1 l/100 km
Fuel consumption - Combined cycle
4.5-4.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
119-125 g/km

Engine

Engine model / code
D16DTI
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Power
110 KM @ 3500 obr./min
Torque
300 Nm @ 1750-2000 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1335 kg
Gross weight
1930 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
6.5J x 16; 7J x 16
ABS
yes

Selected engine version

1.6d (136 KM)

Diesel fuel · 2018–2019

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.6 s
Maximum speed
212 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6d (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
212 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
5.4-5.7 l/100 km
Fuel consumption - Extra-urban cycle
4.0-4.2 l/100 km
Fuel consumption - Combined cycle
5.0-5.2 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
118-125 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1350 kg
Gross weight
1980 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
6.5J x 16; 7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.6d (136 KM) Automatic

Diesel fuel · 2018–2019

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.2 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6d (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
10.2 s
Fuel consumption - Urban cycle
6.1-6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.1-4.4 l/100 km
Fuel consumption - Combined cycle
4.8-5.1 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
126-134 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1381 kg
Gross weight
2000 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
680 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
6.5J x 16; 7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.6 BiTurbo (150 KM)

Diesel fuel · 2018–2019

Engine power
150 KM
Torque
350 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.2 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.6 BiTurbo (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
6.3-6.6 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.4 l/100 km
Fuel consumption - Combined cycle
5.0-5.2 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
131-137 g/km

Engine

Engine model / code
D16DTR
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
5.9 l
Power
150 KM @ 4000 obr./min
Torque
350 Nm @ 1500-2250 obr./min

Volume and weight

Fuel tank
48 l
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1366 kg
Gross weight
1985 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/40 R18
Rim size
7J x 16; 7.5J x 18
ABS
yes

Selected engine version

1.4 EcoTec (110 KM) CNG

Gasoline / CNG · 2018–2019

Engine power
110 KM
Torque
200 Nm
Engine displacement
1,399 cm³
Fuel type
Gasoline / CNG
Acceleration 0-100 km/h
12.3 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra K Sports Tourer
Engine
1.4 EcoTec (110 KM) CNG
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline / CNG

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
12.3 s
Fuel consumption - Urban cycle
5.6 l/100 km
Fuel consumption - Extra-urban cycle
3.5 l/100 km
Fuel consumption - Combined cycle
4.3 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
116 g/km

Engine

Engine model / code
D14XNT
Engine position
Front, Transverse
Engine displacement
1399 cm³
Engine type
Naturally aspirated engine
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
81.3 mm
Compression ratio
10
Engine oil capacity
4 l
Power
110 KM @ 5600 obr./min
Torque
200 Nm @ 2000-3600 obr./min

Volume and weight

Fuel tank
14 l
CNG tank capacity
13.4 kg
Minimum trunk capacity
540 l
Maximum trunk capacity
1630 l
Curb weight
1350 kg
Gross weight
1930 kg
Roof load
75 kg
Braked trailer load (12% slope start)
750 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4702 mm
Width
1809 mm
Width with folded mirrors
1871 mm
Width with unfolded mirrors
2042 mm
Height
1510 mm
Wheelbase
2662 mm
Front track
1544 mm
Rear track
1558 mm
Turning circle
11.05 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7J x 16
ABS
yes

About Opel Astra Astra K Sports Tourer

The Opel Astra K Sports Tourer, produced from 2015 to 2019, is a versatile estate car that stands out with its elegant design and practicality. Designed with families and individuals needing more cargo space in mind, it offers a five-door body with seating for five passengers. Its stylish appearance and functionality make it an ideal choice for those who require a daily driver that is also representative.

The Astra K Sports Tourer offers a wide range of powertrains, including both petrol and diesel engines. Engine power ranges from 90 to 200 hp, allowing customization of performance to meet individual user needs. The lineup includes, among others, the 1.0 ECOTEC (105 hp) ecoFLEX engines that ensure fuel efficiency, as well as more dynamic units like the 1.6 Turbo (200 hp). Depending on preferences, both manual and automatic transmissions are available, influencing driving comfort and dynamics.

The vehicle is equipped with front-wheel drive, which ensures stability and good traction in various road conditions. The Astra K Sports Tourer performs excellently in the city, offering agility and ease of parking as well as on long journeys, where driving comfort plays a crucial role. Modern technologies, such as parking assistance systems and adaptive cruise control, further enhance the comfort and safety of travel.

Despite its numerous advantages, potential users should be aware of certain issues, such as electronic problems that may occur in some units, particularly concerning multimedia systems. Service costs, although generally moderate, can be higher for technologically advanced engine versions. Attention should also be paid to the wear of certain components, which may affect overall satisfaction with the vehicle.

The Opel Astra K Sports Tourer is an excellent option for those looking for a combination of modern design and practical solutions. With its wide range of powertrains and advanced technologies, this car stands out in the estate segment, offering comfort, style, and functionality all in one. For many buyers, it may represent the perfect blend of daily use and driving enjoyment.
