Vehicle specifications

Opel Astra J Sports Tourer

Compare all 14 engine versions of the Opel Astra Astra J Sports Tourer, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Astra J Sports Tourer? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Opel Astra J Sports Tourer?

See the places on a 3D model →
VIN number
Floor next to / in front of the front seat, right side
Dashboard, visible through the windscreen, left side
Identification plate
B-pillar, left side
1 of 7
Opel Astra Astra J Sports Tourer View larger
Photo: M 93, CC BY-SA 3.0 DE <https://creativecommons.org/licenses/by-sa/3.0/de/deed.en>, via Wikimedia Commons

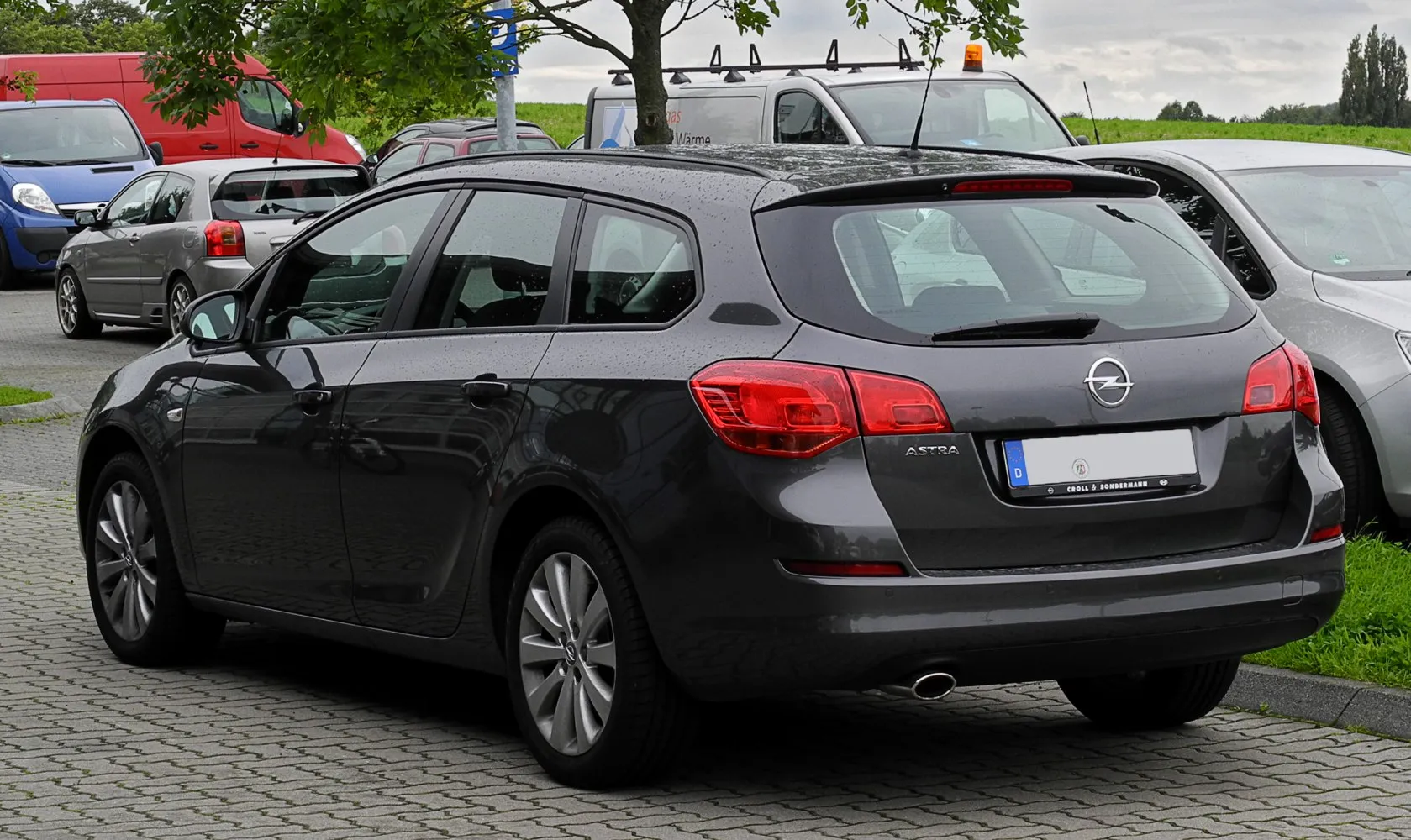

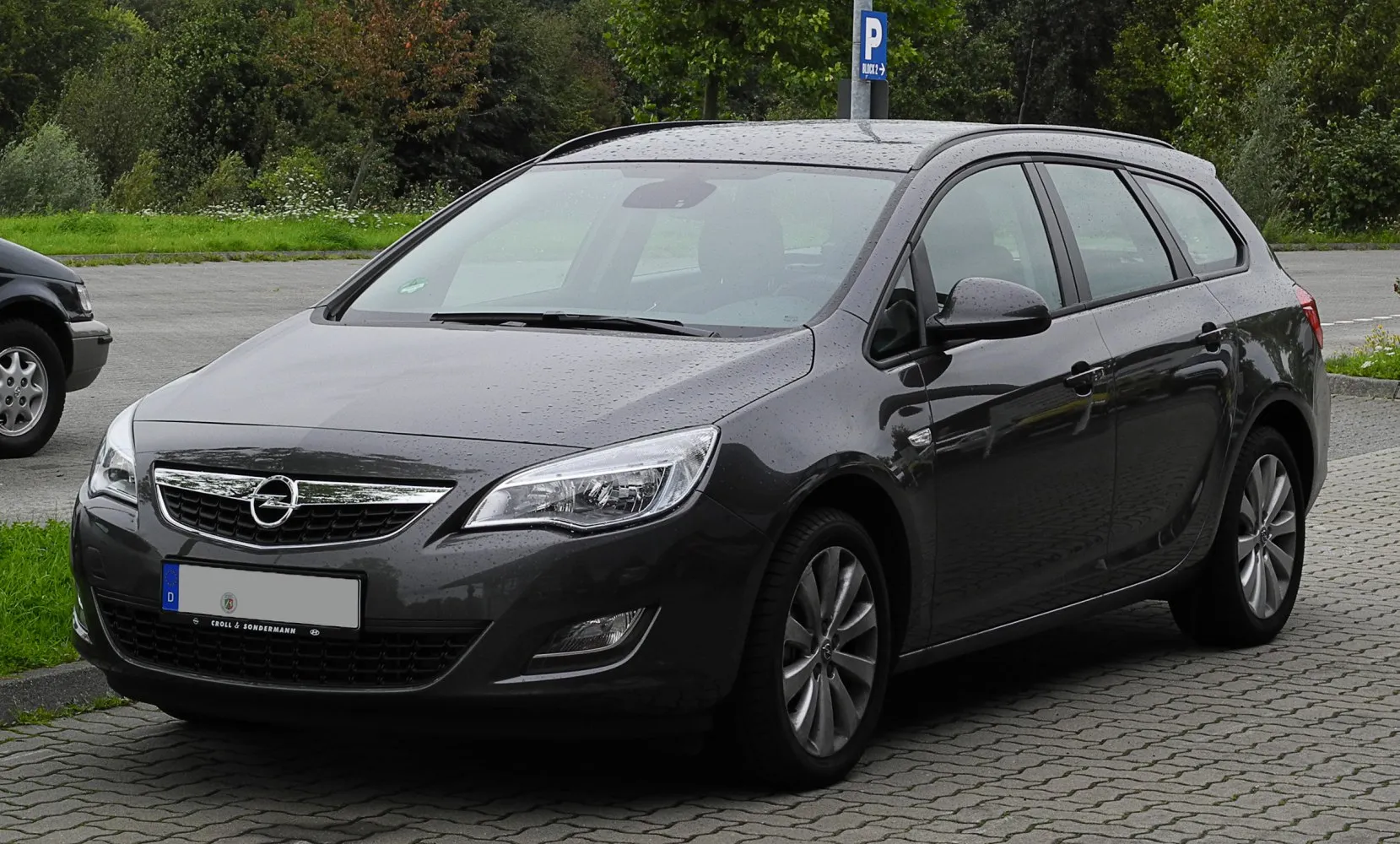

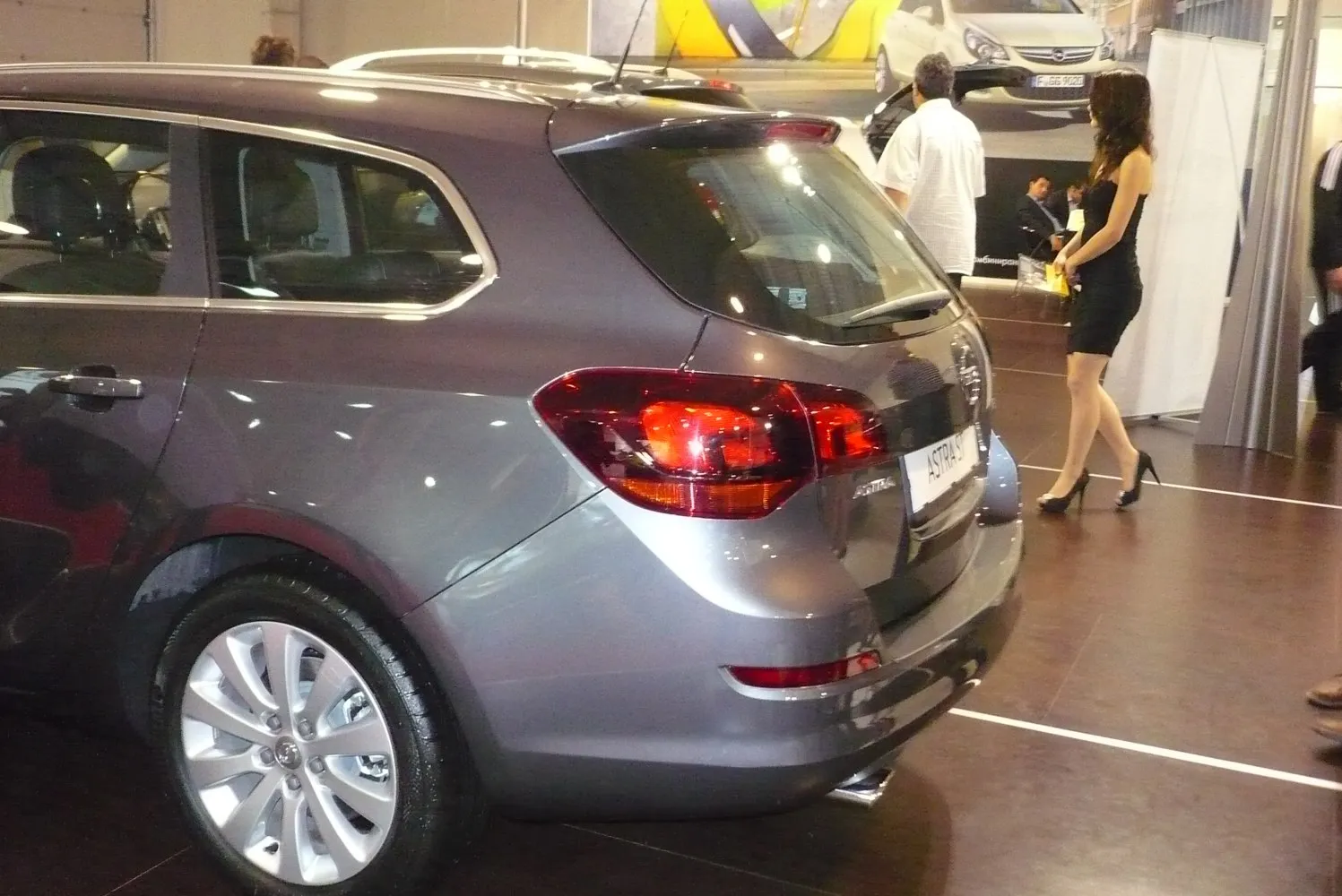

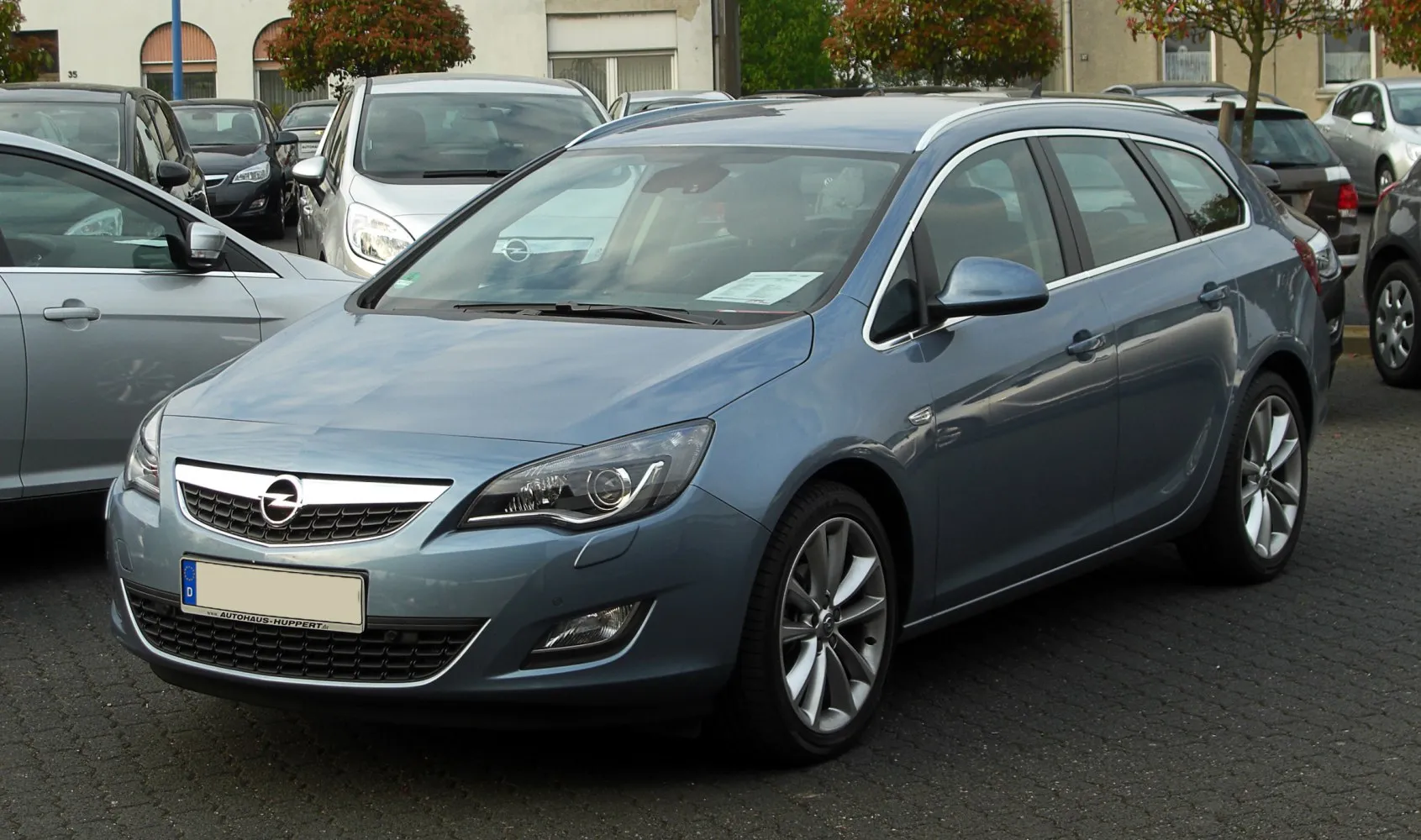

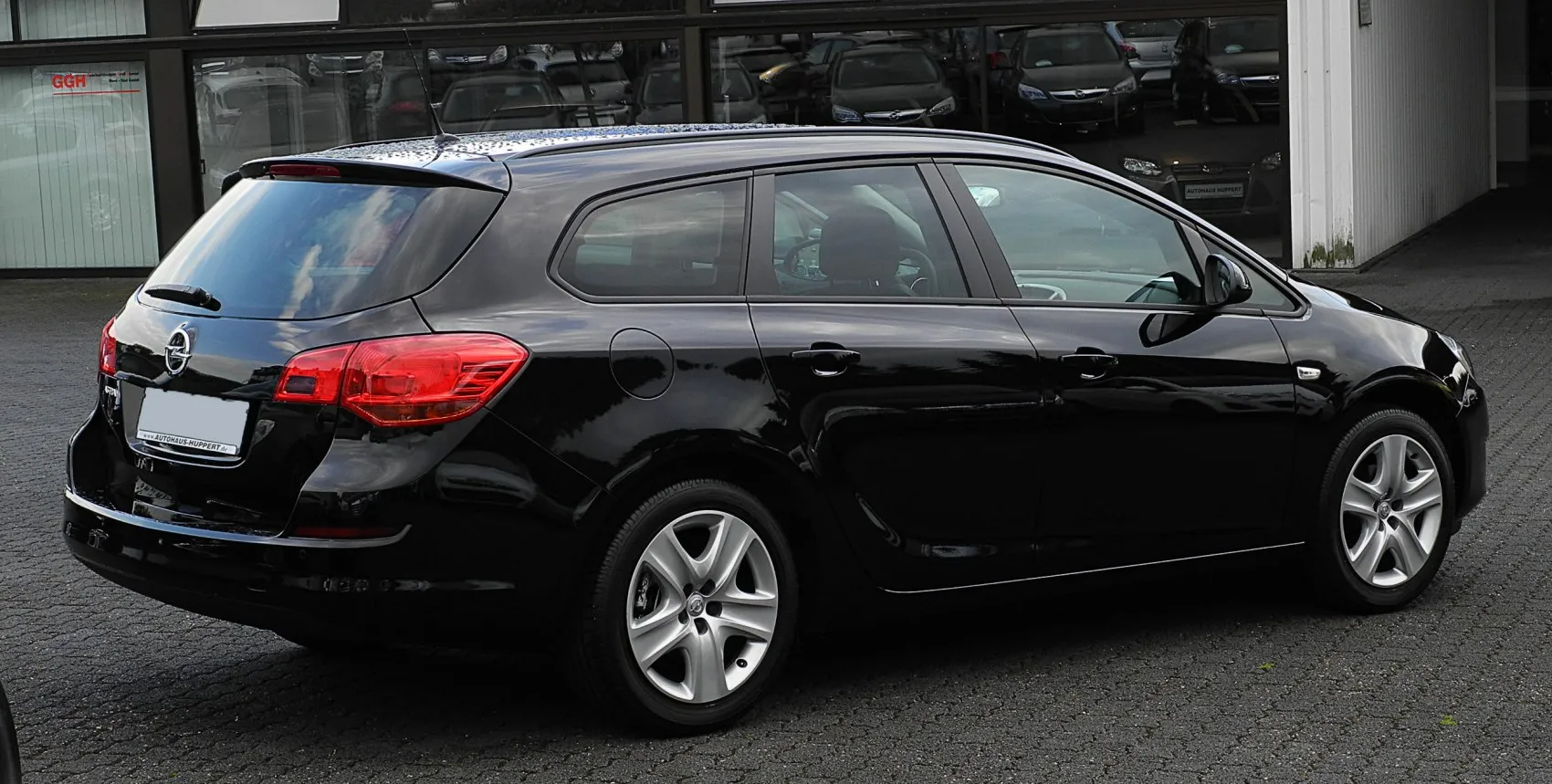

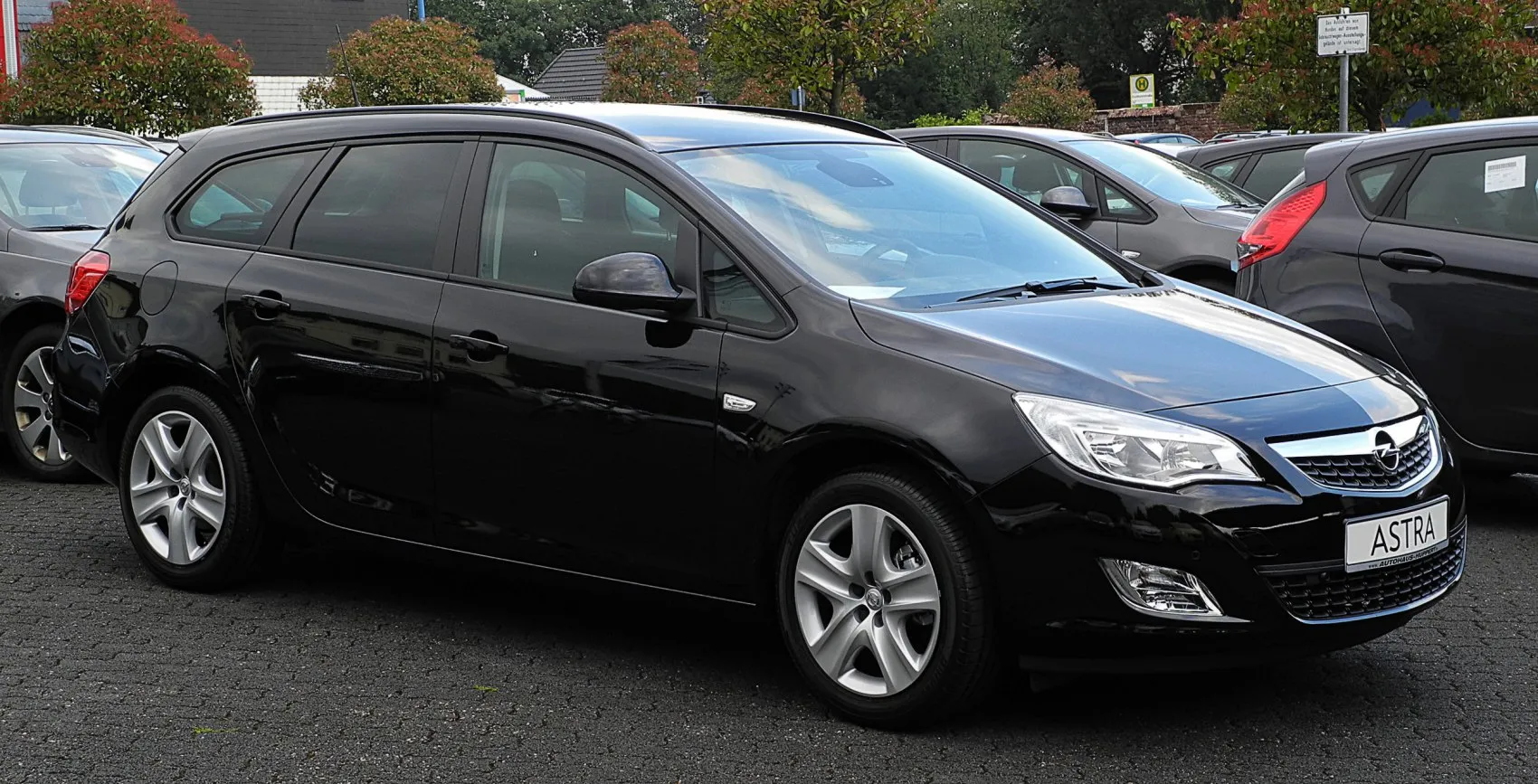

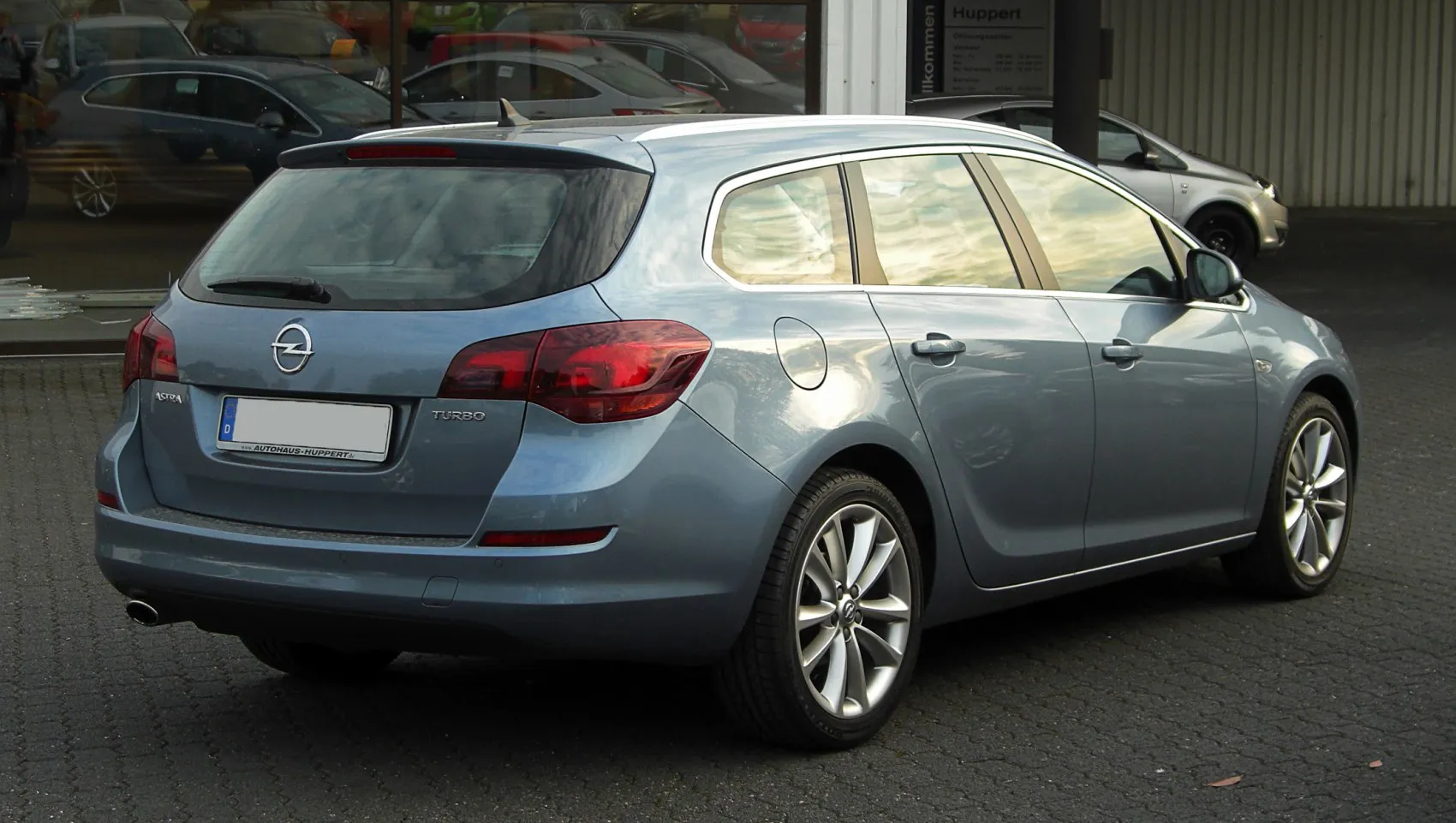

Vehicle gallery

Opel Astra Astra J Sports Tourer

Photo: M 93, CC BY-SA 3.0 DE <https://creativecommons.org/licenses/by-sa/3.0/de/deed.en>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

14 versions · 6 Diesel fuel · 8 Gasoline

Engine Fuel Power Production
1.3 CDTI (95 KM) Selected Diesel fuel 95 KM 2010–2012
1.4 Turbo (140 KM) Automatic Selected Gasoline 140 KM 2010–2012
1.6 (115 KM) Automatic Selected Gasoline 115 KM 2010–2012
2.0 CDTI (160 KM) Automatic Selected Diesel fuel 160 KM 2010–2012
1.4 (100 KM) Selected Gasoline 100 KM 2010–2012
1.6 Turbo (180 KM) Automatic Selected Gasoline 180 KM 2010–2012
1.6 (115 KM) Selected Gasoline 115 KM 2010–2012
1.7 CDTI (125 KM) Selected Diesel fuel 125 KM 2010–2012
1.4 Turbo (120 KM) Selected Gasoline 120 KM 2010–2012
1.4 Turbo (140 KM) Selected Gasoline 140 KM 2010–2012
1.7 CDTI (110 KM) ecoFLEX start/stop Selected Diesel fuel 110 KM 2010–2012
2.0 CDTI (160 KM) Selected Diesel fuel 160 KM 2010–2012
1.7 CDTI (110 KM) Selected Diesel fuel 110 KM 2010–2012
1.6 Turbo (180 KM) Selected Gasoline 180 KM 2010–2012

Selected engine version

1.3 CDTI (95 KM)

Diesel fuel · 2010–2012

Engine power
95 KM
Torque
190 Nm
Engine displacement
1,248 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
14.9 s
Maximum speed
172 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.3 CDTI (95 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
172 km/h
Acceleration 0-100 km/h
14.9 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.7 l/100 km
Fuel consumption - Combined cycle
4.1 l/100 km
Emission standard
Euro 5
CO2 emissions
109 g/km

Engine

Engine model / code
A13DTE
Engine position
Front, Transverse
Engine displacement
1248 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
69.6 mm
Piston stroke
82 mm
Compression ratio
16.8
Number of valves per cylinder
4
Engine oil capacity
3.5 l
Coolant capacity
6.8 l
Power
95 KM @ 4000 obr./min
Torque
190 Nm @ 1750 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1541 mm
Rear track
1551 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16
Rim size
16
ABS
yes

Selected engine version

1.4 Turbo (140 KM) Automatic

Gasoline · 2010–2012

Engine power
140 KM
Torque
200 Nm
Engine displacement
1,398 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.6 s
Maximum speed
198 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.4 Turbo (140 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
198 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
9.1 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
6.8 l/100 km
Emission standard
Euro 5
CO2 emissions
159 g/km

Engine

Engine model / code
A14NET
Engine position
Front, Transverse
Engine displacement
1398 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
73.4 mm
Piston stroke
82.6 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.2 l
Power
140 KM @ 4900-6000 obr./min
Torque
200 Nm @ 1850-4900 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1370 kg
Gross weight
2010 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.6 (115 KM) Automatic

Gasoline · 2010–2012

Engine power
115 KM
Torque
155 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13.7 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.6 (115 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
13.7 s
Fuel consumption - Urban cycle
10.1 l/100 km
Fuel consumption - Extra-urban cycle
5.5 l/100 km
Fuel consumption - Combined cycle
7.2 l/100 km
Emission standard
Euro 5
CO2 emissions
169 g/km

Engine

Engine model / code
A16XER
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
115 KM @ 6000 obr./min
Torque
155 Nm @ 4000 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1360 kg
Gross weight
2000 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm
Turning circle
11.5 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

2.0 CDTI (160 KM) Automatic

Diesel fuel · 2010–2012

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.7 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
2.0 CDTI (160 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
9.7 s
Fuel consumption - Urban cycle
7.9 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
A20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
6.9 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1750 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.4 (100 KM)

Gasoline · 2010–2012

Engine power
100 KM
Torque
200 Nm
Engine displacement
1,398 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
14.5 s
Maximum speed
175 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.4 (100 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
175 km/h
Acceleration 0-100 km/h
14.5 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 5
CO2 emissions
139 g/km

Engine

Engine model / code
A14XER
Engine position
Front, Transverse
Engine displacement
1398 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
73.4 mm
Piston stroke
82.6 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.75 l
Coolant capacity
6.2 l
Power
100 KM @ 6000 obr./min
Torque
200 Nm @ 1850-4900 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.6 Turbo (180 KM) Automatic

Gasoline · 2010–2012

Engine power
180 KM
Torque
230 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9 s
Maximum speed
211 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.6 Turbo (180 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
211 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption - Urban cycle
10.1 l/100 km
Fuel consumption - Extra-urban cycle
5.8 l/100 km
Fuel consumption - Combined cycle
7.4 l/100 km
Emission standard
Euro 5
CO2 emissions
174 g/km

Engine

Engine model / code
A16LET
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
180 KM @ 5500 obr./min
Torque
230 Nm @ 2200-5400 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1390 kg
Gross weight
2030 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.6 (115 KM)

Gasoline · 2010–2012

Engine power
115 KM
Torque
155 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.3 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.6 (115 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
12.3 s
Fuel consumption - Urban cycle
8.6 l/100 km
Fuel consumption - Extra-urban cycle
5.1 l/100 km
Fuel consumption - Combined cycle
6.4 l/100 km
Emission standard
Euro 5
CO2 emissions
149 g/km

Engine

Engine model / code
A16XER
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
115 KM @ 6000 obr./min
Torque
155 Nm @ 4000 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1340-1980 kg
Gross weight
1980 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.7 CDTI (125 KM)

Diesel fuel · 2010–2012

Engine power
125 KM
Torque
280 Nm
Engine displacement
1,686 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.7 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.7 CDTI (125 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
11.7 s
Fuel consumption - Urban cycle
5.5 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.5 l/100 km
Emission standard
Euro 5
CO2 emissions
119 g/km

Engine

Engine model / code
A17DTR
Engine position
Front, Transverse
Engine displacement
1686 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
86 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
7.1 l
Power
125 KM @ 4000 obr./min
Torque
280 Nm @ 2300 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.4 Turbo (120 KM)

Gasoline · 2010–2012

Engine power
120 KM
Torque
175 Nm
Engine displacement
1,398 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.2 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.4 Turbo (120 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
8.4 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
6.1 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
A14NEL
Engine position
Front, Transverse
Engine displacement
1398 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
73.4 mm
Piston stroke
82.6 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.2 l
Power
120 KM @ 6000 obr./min
Torque
175 Nm @ 4800 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.4 Turbo (140 KM)

Gasoline · 2010–2012

Engine power
140 KM
Torque
199 Nm
Engine displacement
1,398 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.4 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.4 Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.4 s
Fuel consumption - Urban cycle
8.4 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
6.1 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
A14NET
Engine position
Front, Transverse
Engine displacement
1398 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
73.4 mm
Piston stroke
82.6 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.2 l
Power
140 KM @ 6000 obr./min
Torque
199 Nm @ 4900 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1350 kg
Gross weight
1990 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.7 CDTI (110 KM) ecoFLEX start/stop

Diesel fuel · 2010–2012

Engine power
110 KM
Torque
260 Nm
Engine displacement
1,686 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.7 CDTI (110 KM) ecoFLEX start/stop
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
13 s
Fuel consumption - Urban cycle
4.5 l/100 km
Fuel consumption - Extra-urban cycle
3.4 l/100 km
Fuel consumption - Combined cycle
3.7 l/100 km
Emission standard
Euro 5
CO2 emissions
99 g/km

Engine

Engine model / code
A17DTJ
Engine position
Front, Transverse
Engine displacement
1686 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
86 mm
Compression ratio
18.4
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
7.1 l
Power
110 KM @ 3800 obr./min
Torque
260 Nm @ 2550 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

2.0 CDTI (160 KM)

Diesel fuel · 2010–2012

Engine power
160 KM
Torque
350 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.5 s
Maximum speed
212 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
2.0 CDTI (160 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
212 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
6.5 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 5
CO2 emissions
134 g/km

Engine

Engine model / code
A20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
OHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
6.9 l
Power
160 KM @ 4000 obr./min
Torque
350 Nm @ 1750 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.7 CDTI (110 KM)

Diesel fuel · 2010–2012

Engine power
110 KM
Torque
260 Nm
Engine displacement
1,686 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.7 CDTI (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
13 s
Fuel consumption - Urban cycle
5.5 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
3.9 l/100 km
Emission standard
Euro 5
CO2 emissions
119 g/km

Engine

Engine model / code
A17DTJ
Engine position
Front, Transverse
Engine displacement
1686 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
86 mm
Compression ratio
18.4
Number of valves per cylinder
4
Engine oil capacity
5.4 l
Coolant capacity
7.1 l
Power
110 KM @ 3800 obr./min
Torque
260 Nm @ 2550 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1393 kg
Gross weight
1960 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
109 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

Selected engine version

1.6 Turbo (180 KM)

Gasoline · 2010–2012

Engine power
180 KM
Torque
230 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.8 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra J Sports Tourer
Engine
1.6 Turbo (180 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2012
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
8.8 s
Fuel consumption - Urban cycle
9 l/100 km
Fuel consumption - Extra-urban cycle
5.5 l/100 km
Fuel consumption - Combined cycle
6.8 l/100 km
Emission standard
Euro 5
CO2 emissions
159 g/km

Engine

Engine model / code
A16LET
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
5.6 l
Power
180 KM @ 5500 obr./min
Torque
230 Nm @ 2200-5400 obr./min

Volume and weight

Fuel tank
56 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
550 l
Maximum trunk capacity
1550 l
Curb weight
1390 kg
Gross weight
2030 kg

Vehicle dimensions

Length
4698 mm
Width
1814 mm
Width with unfolded mirrors
2013 mm
Height
1535 mm
Wheelbase
2685 mm
Front track
1544 mm
Rear track
1558 mm
Ground clearance
117 mm
Front overhang
974 mm
Rear overhang
1039 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/50 R17
Rim size
17
ABS
yes

About Opel Astra Astra J Sports Tourer

The Opel Astra J Sports Tourer, produced between 2010 and 2012, is a station wagon that combines functionality with elegant design. This five-door vehicle is designed with families and drivers seeking extra luggage space in mind, boasting a stylish appearance and practical interior. Intended for a wide range of applications, it performs well both in daily city driving and during longer trips, offering comfort and adequate cargo room.

The Astra J Sports Tourer is available with a variety of powertrains, including petrol and diesel engines. Engine outputs range from 95 to 180 HP, allowing users to tailor the car to their preferences – from economical units like the 1.3 CDTI (95 HP) to more dynamic options like the 1.6 Turbo (180 HP) in automatic version. The car offers both manual and automatic transmissions, enabling choice of the optimal option. Thanks to modern technologies, the ecoFLEX versions provide better fuel efficiency through the start/stop system.

The Opel Astra J Sports Tourer is equipped with front-wheel drive, ensuring good stability and traction. In an urban environment, it demonstrates agility, facilitating everyday maneuvers, while on the highway it offers comfortable handling with adequate damping of irregularities. The car has a rich set of driver assistance systems, including parking aids and navigation systems, which significantly enhance user comfort and driving safety.

Despite its many advantages, the Opel Astra J Sports Tourer may encounter some issues worth paying attention to before purchase. There are known cases of electronic failures, particularly concerning multimedia systems. Some engines, especially the diesel variants, may require regular maintenance to avoid fuel injection system problems. While servicing costs are moderate, certain models may exhibit faster wear on some components, such as the suspension.

In conclusion, the Opel Astra J Sports Tourer is a solid choice for those seeking a practical and stylish station wagon with a diverse range of powertrains. Offering a spacious interior and advanced technologies, it stands out against the competition as a functional vehicle for families and individuals needing extra space. Its elegant design and versatility make it a remarkable choice in the station wagon segment.
