Opel Astra H Caravan

Compare all 13 engine versions of the Opel Astra Astra H Caravan, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Astra H Caravan? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 5

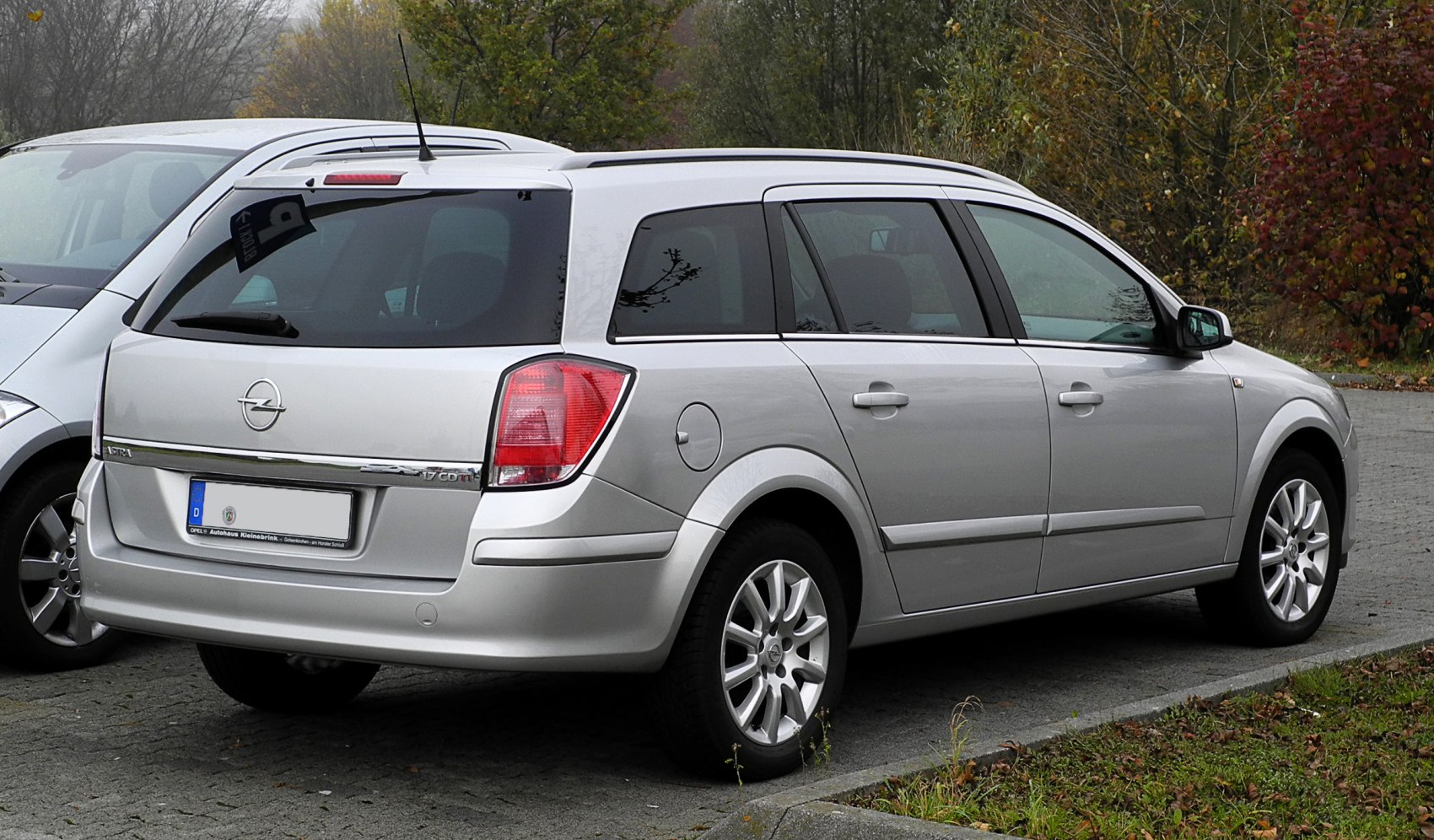

Opel Astra Astra H Caravan View larger
Photo: Philippe Berube, Public domain, via Wikimedia Commons

Vehicle gallery

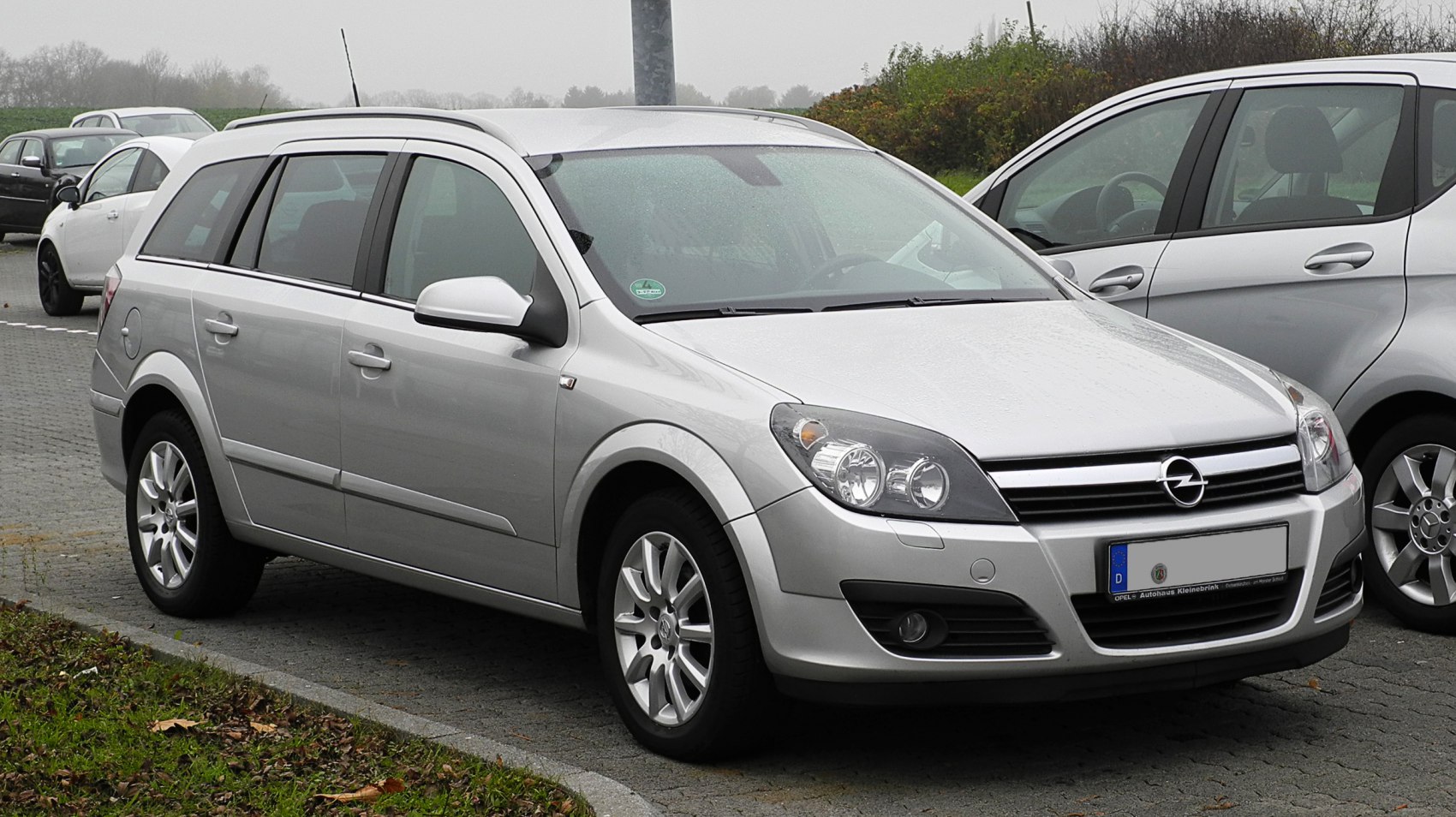

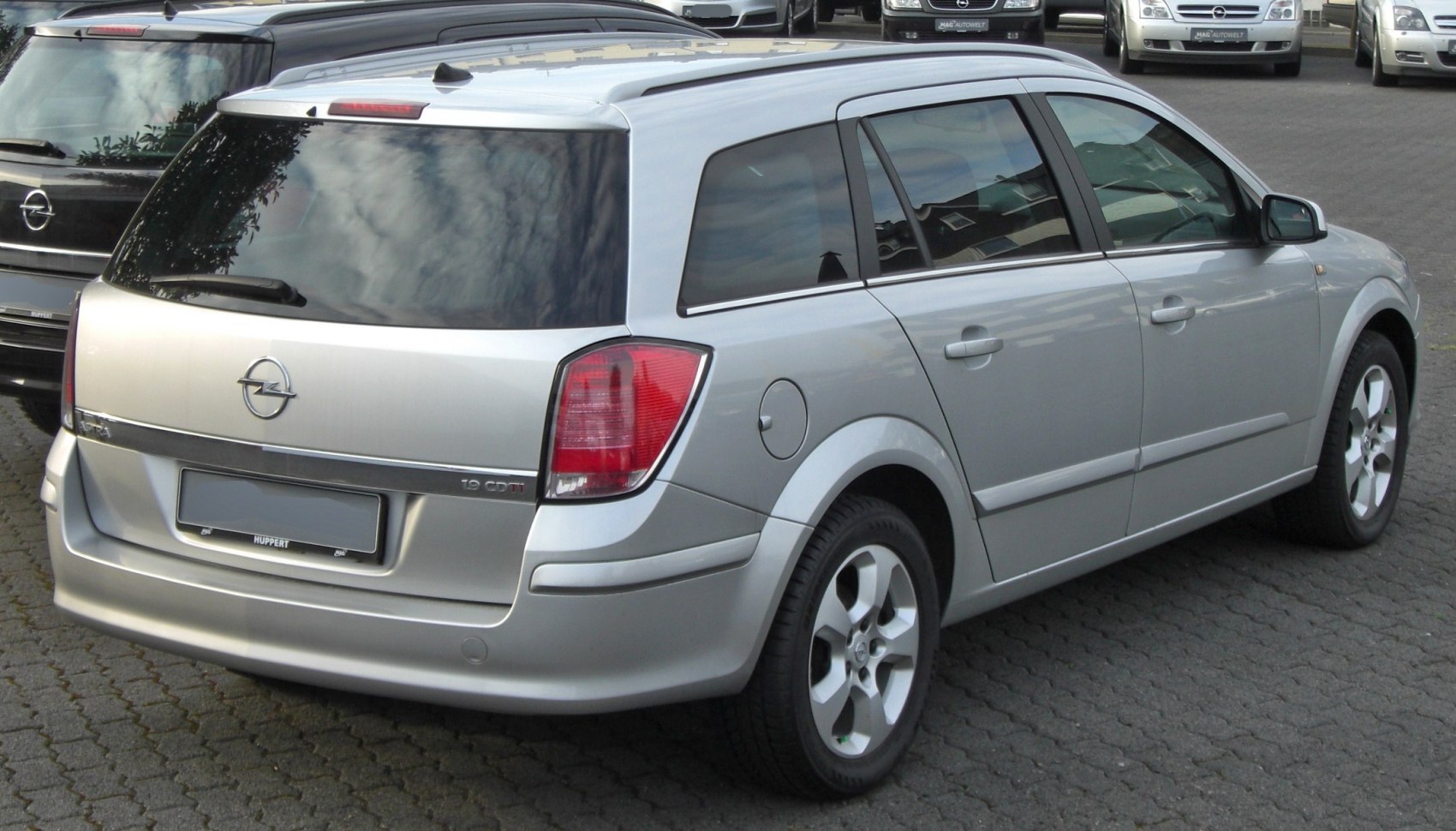

Opel Astra Astra H Caravan

Photo: Philippe Berube, Public domain, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

13 versions · 6 Diesel fuel · 7 Gasoline

Engine Fuel Power Production
1.3 CDTI (90 KM) Selected Diesel fuel 90 KM 2005–2006
1.4i 16V (90 KM) Selected Gasoline 90 KM 2004–2006
1.6i 16V (105 KM) Selected Gasoline 105 KM 2004–2006
1.6i 16V (105 KM) Automatic Selected Gasoline 105 KM 2004–2006
1.7 CDTI (100 KM) Selected Diesel fuel 100 KM 2004–2006
1.7 CDTI (80 KM) Selected Diesel fuel 80 KM 2004–2005
1.8i 16V (140 KM) Selected Gasoline 140 KM 2005–2006
1.9 CDTI (120 KM) Automatic Selected Diesel fuel 120 KM 2005–2006
1.8i 16V (140 KM) Automatic Selected Gasoline 140 KM 2005–2006
1.9 CDTI (120 KM) Selected Diesel fuel 120 KM 2005–2006
1.9 CDTI (150 KM) Selected Diesel fuel 150 KM 2004–2006
2.0i 16V Turbo (170 KM) Selected Gasoline 170 KM 2004–2006
2.0i 16V Turbo (200 KM) Selected Gasoline 200 KM 2004–2006

Selected engine version

1.3 CDTI (90 KM)

Diesel fuel · 2005–2006

Engine power
90 KM
Torque
200 Nm
Engine displacement
1,248 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
14.1 s
Maximum speed
172 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.3 CDTI (90 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
172 km/h
Acceleration 0-100 km/h
14.1 s
Fuel consumption - Urban cycle
6.2 l/100 km
Fuel consumption - Extra-urban cycle
4 l/100 km
Fuel consumption - Combined cycle
4.8 l/100 km
Emission standard
Euro 4
CO2 emissions
130 g/km

Engine

Engine model / code
Z13DTH
Engine position
Front, Transverse
Engine displacement
1248 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
69.6 mm
Piston stroke
82 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
3.1 l
Coolant capacity
6.8 l
Power
90 KM @ 4000 obr./min
Torque
200 Nm @ 1750 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
500 l
Maximum trunk capacity
1590 l
Curb weight
1280 kg
Gross weight
1905 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent coil spring suspension
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Drum
Tire size
205/55 R16
Rim size
16
ABS
yes

Selected engine version

1.4i 16V (90 KM)

Gasoline · 2004–2006

Engine power
90 KM
Torque
125 Nm
Engine displacement
1,364 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
14.1 s
Maximum speed
178 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.4i 16V (90 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
178 km/h
Acceleration 0-100 km/h
14.1 s
Fuel consumption - Urban cycle
8.2 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.3 l/100 km
Emission standard
Euro 4
CO2 emissions
156 g/km

Engine

Engine model / code
Z14XEP
Engine position
Front, Transverse
Engine displacement
1364 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
73.4 mm
Piston stroke
80.6 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.5 l
Coolant capacity
5.6 l
Power
90 KM @ 5600 obr./min
Torque
125 Nm @ 4000 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1180 kg
Gross weight
1805 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.6i 16V (105 KM)

Gasoline · 2004–2006

Engine power
105 KM
Torque
150 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.7 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.6i 16V (105 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
12.7 s
Fuel consumption - Urban cycle
8.7 l/100 km
Fuel consumption - Extra-urban cycle
5.5 l/100 km
Fuel consumption - Combined cycle
6.7 l/100 km
Emission standard
Euro 4
CO2 emissions
166 g/km

Engine

Engine model / code
Z16XEP, Z16XE1
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.1 l
Power
105 KM @ 6000 obr./min
Torque
150 Nm @ 3900 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1215 kg
Gross weight
1840 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.6i 16V (105 KM) Automatic

Gasoline · 2004–2006

Engine power
105 KM
Torque
150 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13.7 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.6i 16V (105 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
13.7 s
Fuel consumption - Urban cycle
8.6 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 4
CO2 emissions
163 g/km

Engine

Engine model / code
Z16XEP, Z16XE1
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.1 l
Power
105 KM @ 6000 obr./min
Torque
150 Nm @ 3900 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1215 kg
Gross weight
1840 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.7 CDTI (100 KM)

Diesel fuel · 2004–2006

Engine power
100 KM
Torque
240 Nm
Engine displacement
1,686 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.5 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.7 CDTI (100 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
12.5 s
Fuel consumption - Urban cycle
6.4 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
5 l/100 km
CO2 emissions
165 g/km

Engine

Engine model / code
Z17DTH
Engine position
Front, Transverse
Engine displacement
1686 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
86 mm
Compression ratio
18.4
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.8 l
Power
100 KM @ 4400 obr./min
Torque
240 Nm @ 2300 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1293 kg
Gross weight
1918 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.7 CDTI (80 KM)

Diesel fuel · 2004–2005

Engine power
80 KM
Torque
170 Nm
Engine displacement
1,686 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
15.4 s
Maximum speed
168 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.7 CDTI (80 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2005
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
168 km/h
Acceleration 0-100 km/h
15.4 s
Fuel consumption - Urban cycle
6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.9 l/100 km
CO2 emissions
132 g/km

Engine

Engine model / code
Z17DTL
Engine position
Front, Transverse
Engine displacement
1686 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
86 mm
Compression ratio
18.4
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
6.8 l
Power
80 KM @ 4400 obr./min
Torque
170 Nm @ 1800 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1280 kg
Gross weight
1905 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.8i 16V (140 KM)

Gasoline · 2005–2006

Engine power
140 KM
Torque
175 Nm
Engine displacement
1,796 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.5 s
Maximum speed
208 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.8i 16V (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
208 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
10.5 l/100 km
Fuel consumption - Extra-urban cycle
6.2 l/100 km
Fuel consumption - Combined cycle
7.8 l/100 km
CO2 emissions
178 g/km

Engine

Engine model / code
Z18XER
Engine position
Front, Transverse
Engine displacement
1796 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
80.5 mm
Piston stroke
88.2 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
6.1 l
Power
140 KM @ 6300 obr./min
Torque
175 Nm @ 3800 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1225 kg
Gross weight
1850 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.9 CDTI (120 KM) Automatic

Diesel fuel · 2005–2006

Engine power
120 KM
Torque
250 Nm
Engine displacement
1,910 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.2 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.9 CDTI (120 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
8 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
6.5 l/100 km
CO2 emissions
169 g/km

Engine

Engine model / code
Z19DT
Engine position
Front, Transverse
Engine displacement
1910 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
90.4 mm
Compression ratio
17.5
Number of valves per cylinder
2
Engine oil capacity
4.3 l
Coolant capacity
7 l
Power
120 KM @ 3250 obr./min
Torque
250 Nm @ 1750 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1350 kg
Gross weight
1975 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16
Rim size
16
ABS
yes

Selected engine version

1.8i 16V (140 KM) Automatic

Gasoline · 2005–2006

Engine power
140 KM
Torque
175 Nm
Engine displacement
1,796 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.7 s
Maximum speed
188 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.8i 16V (140 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
188 km/h
Acceleration 0-100 km/h
11.7 s
Fuel consumption - Urban cycle
11.4 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
8.2 l/100 km
Emission standard
Euro 4
CO2 emissions
187 g/km

Engine

Engine model / code
Z18XER
Engine position
Front, Transverse
Engine displacement
1796 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
80.5 mm
Piston stroke
88.2 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
6.1 l
Power
140 KM @ 6300 obr./min
Torque
175 Nm @ 3800 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1325 kg
Gross weight
1850 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15
Rim size
6.5J X 15
ABS
yes

Selected engine version

1.9 CDTI (120 KM)

Diesel fuel · 2005–2006

Engine power
120 KM
Torque
250 Nm
Engine displacement
1,910 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.8 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.9 CDTI (120 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
10.8 s
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption - Extra-urban cycle
5 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
CO2 emissions
161 g/km

Engine

Engine model / code
Z19DT
Engine position
Front, Transverse
Engine displacement
1910 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
90.4 mm
Compression ratio
17.5
Number of valves per cylinder
2
Engine oil capacity
4.3 l
Coolant capacity
7 l
Power
120 KM @ 3250 obr./min
Torque
250 Nm @ 1750 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1350 kg
Gross weight
1975 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16
Rim size
6.5J X 16
ABS
yes

Selected engine version

1.9 CDTI (150 KM)

Diesel fuel · 2004–2006

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,910 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.2 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
1.9 CDTI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption - Extra-urban cycle
5 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 4
CO2 emissions
159 g/km

Engine

Engine model / code
Z19DTH
Engine position
Front, Transverse
Engine displacement
1910 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
90.4 mm
Compression ratio
17.5
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Coolant capacity
7 l
Power
150 KM @ 3800 obr./min
Torque
320 Nm @ 2000 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1350 kg
Gross weight
1975 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
720 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm
Turning circle
11.5 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent suspension, Trailing arms with transverse torsion bars
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/55 R16
Rim size
6.5J X 16
ABS
yes

Selected engine version

2.0i 16V Turbo (170 KM)

Gasoline · 2004–2006

Engine power
170 KM
Torque
250 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
217 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
2.0i 16V Turbo (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
217 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
13.2 l/100 km
Fuel consumption - Extra-urban cycle
7.2 l/100 km
Fuel consumption - Combined cycle
9.4 l/100 km

Engine

Engine model / code
Z20LEL
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Coolant capacity
7.7 l
Power
170 KM @ 5200 obr./min
Torque
250 Nm @ 1950 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1425 kg
Gross weight
1950 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
7J x 17
ABS
yes

Selected engine version

2.0i 16V Turbo (200 KM)

Gasoline · 2004–2006

Engine power
200 KM
Torque
262 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.4 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra H Caravan
Engine
2.0i 16V Turbo (200 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
8.4 s
Fuel consumption - Urban cycle
13.2 l/100 km
Fuel consumption - Extra-urban cycle
7.2 l/100 km
Fuel consumption - Combined cycle
9.4 l/100 km
CO2 emissions
233 g/km

Engine

Engine model / code
Z20LER
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Coolant capacity
7.7 l
Power
200 KM @ 5400 obr./min
Torque
262 Nm @ 4200 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.31
Minimum trunk capacity
540 l
Maximum trunk capacity
1590 l
Curb weight
1425 kg
Gross weight
1950 kg

Vehicle dimensions

Length
4515 mm
Width
1794 mm
Height
1500 mm
Wheelbase
2703 mm
Front track
1488 mm
Rear track
1488 mm
Ground clearance
160 mm
Front overhang
871 mm
Rear overhang
941 mm

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
With spring struts
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
7J x 17
ABS
yes

About Opel Astra Astra H Caravan

The Opel Astra H Caravan, produced from 2004 to 2006, is a versatile estate car designed for families and individuals needing more cargo space. The five-door body combines functionality with sleek styling, making it ideal for both everyday use and longer journeys. The Astra H Caravan is part of a popular series valued for its solidity and affordability, offering an attractive option for those seeking a reliable car with ample room.

The Opel Astra H Caravan features a wide range of powertrains, including gasoline and diesel engines. Engine power ranges from 80 to 200 HP, allowing for customization to meet different driver needs. Available are both economical diesel engines, such as the 1.3 CDTI (90 HP), and more powerful gasoline versions, like the 2.0 16V Turbo (200 HP). A choice of manual and automatic transmissions offers comfort and driving pleasure. With its variety of options, the Astra H Caravan combines satisfying performance with fuel efficiency.

The Astra H Caravan is front-wheel drive, providing good handling and stability in various road conditions. Ride comfort is satisfactory, both in the city and on highways, due to its comfortable suspension and decent maneuverability. The vehicle is equipped with basic driver assistance systems such as ABS and traction control, which support safe driving and enhance confidence behind the wheel.

Among the potential downsides of the Astra H Caravan are some electronic failures that may affect electrical systems and control components. Other possible issues include mechanical malfunctions, such as engine accessories and the exhaust system, which can lead to higher servicing costs in older models. Therefore, potential buyers should pay attention to the vehicle's technical condition before purchase.

The Opel Astra H Caravan is an excellent choice for those who need a spacious and practical vehicle that also offers comfort and reliability. With a diverse range of engines and user-friendly design, the Astra H Caravan stands out as a competitive option in the estate segment. For many buyers, it may represent an attractive compromise between functionality and performance, distinguishing itself among other models available on the market.
