Opel Astra G Cabrio

Compare all 8 engine versions of the Opel Astra Astra G Cabrio, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Astra G Cabrio? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 8

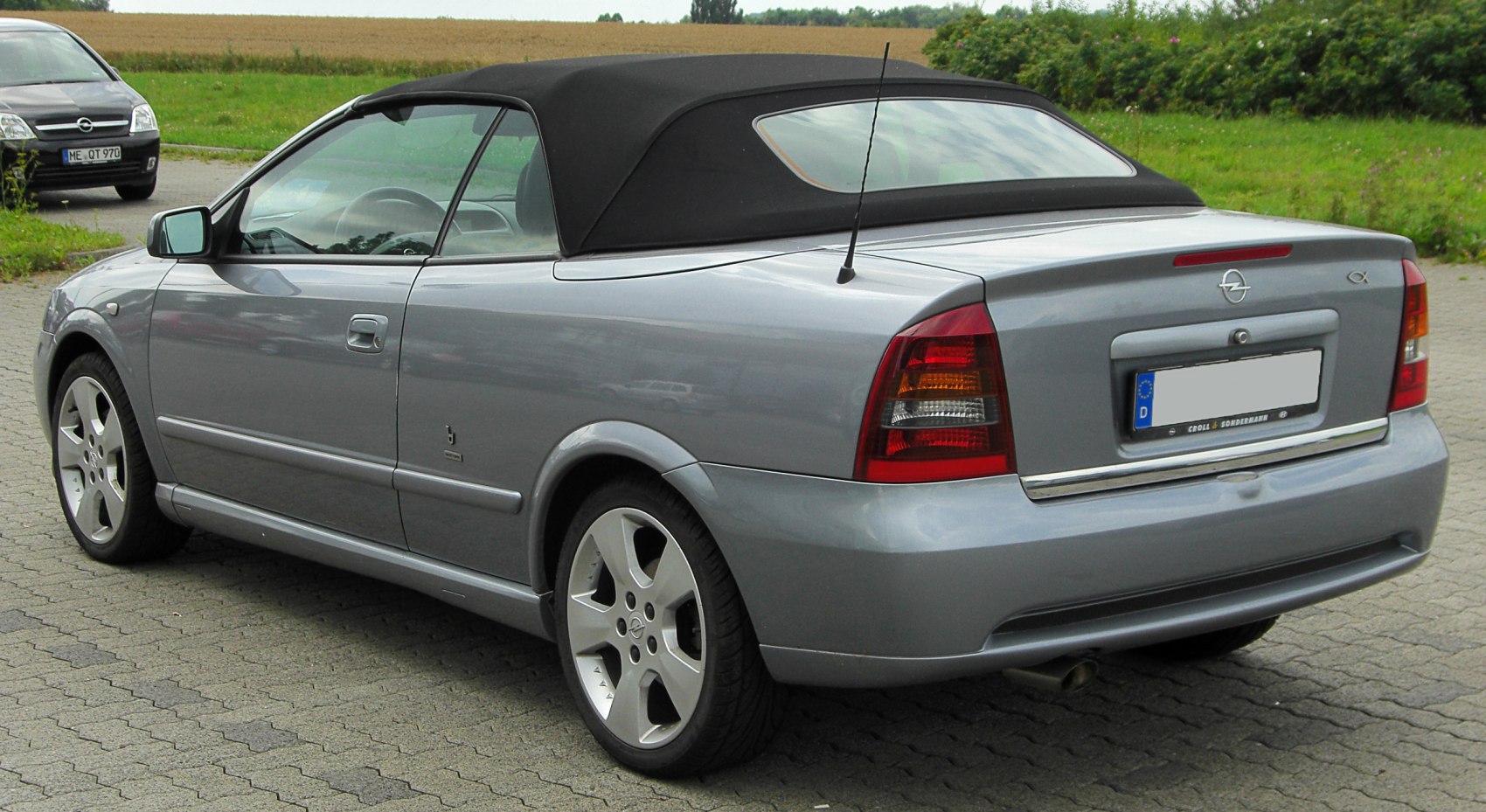

Opel Astra Astra G Cabrio View larger
Photo: M 93, Attribution, via Wikimedia Commons

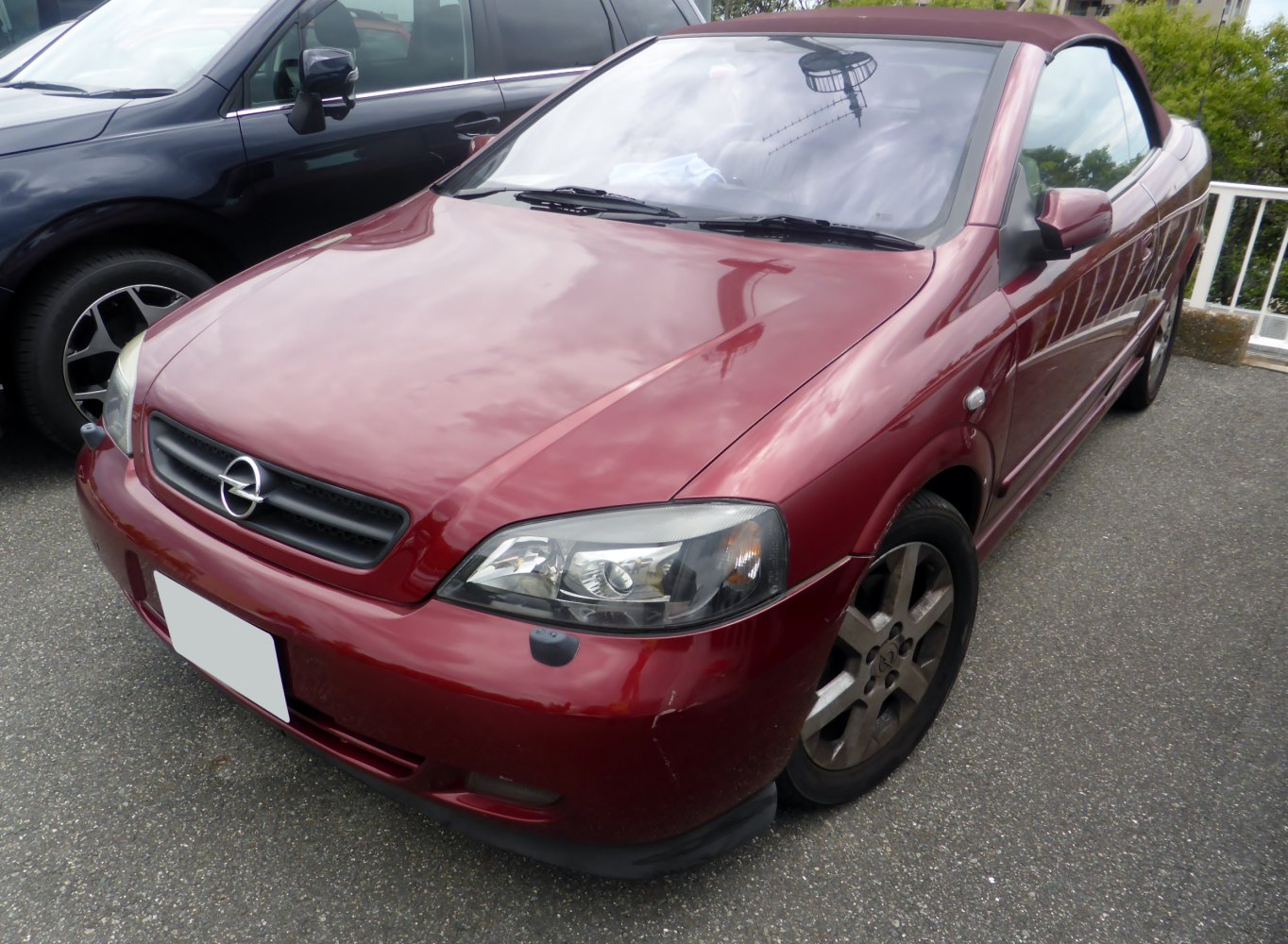

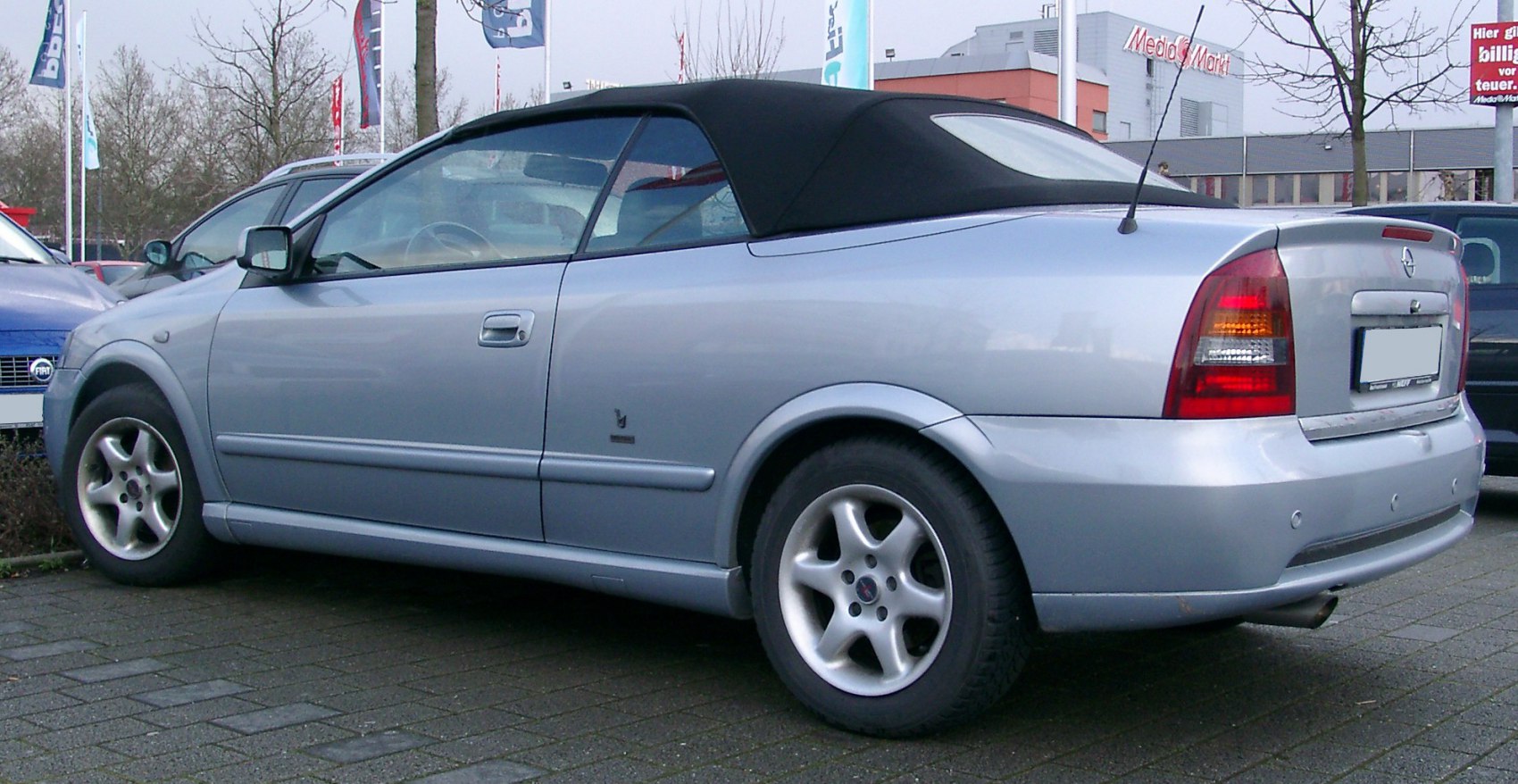

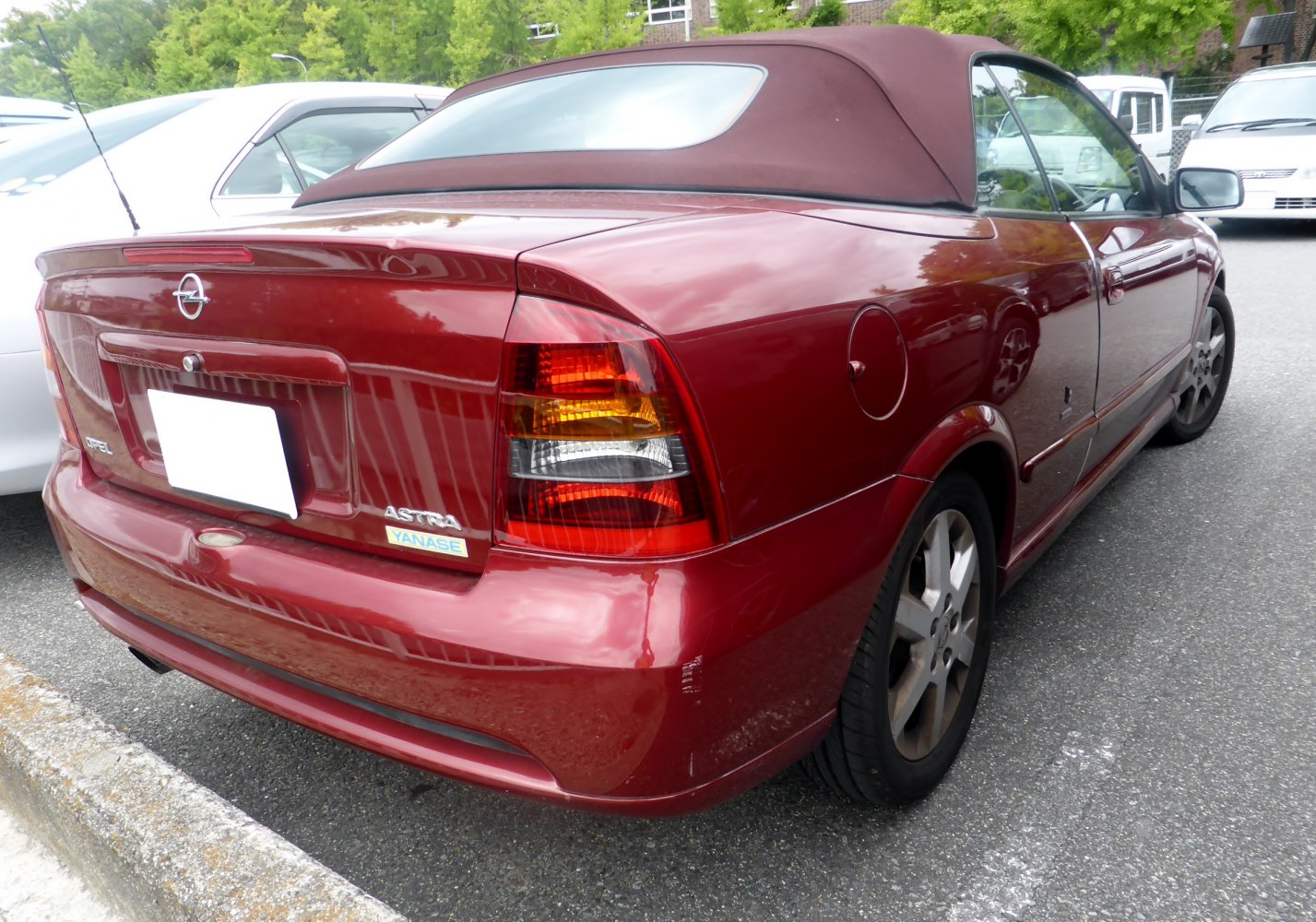

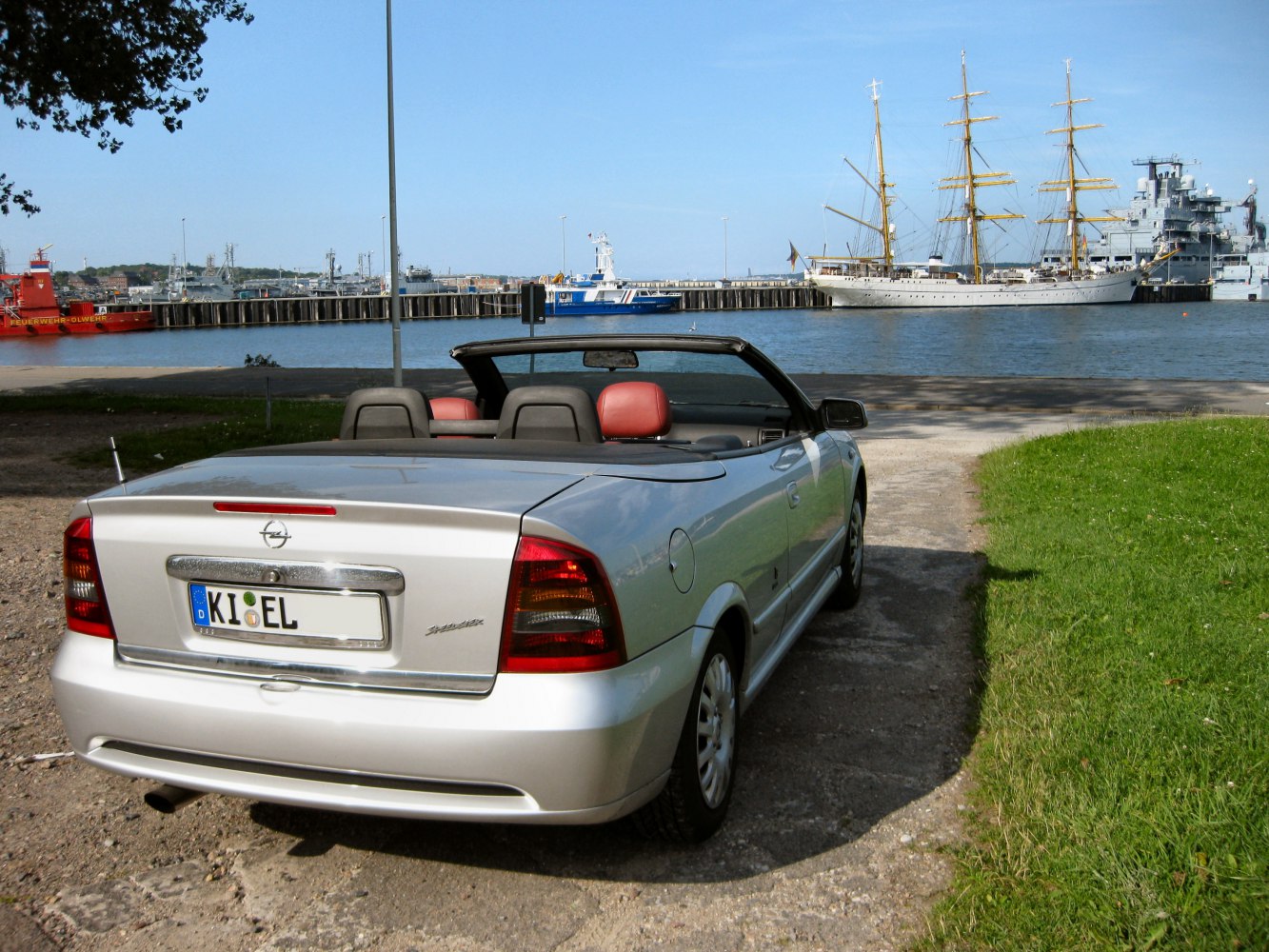

Vehicle gallery

Opel Astra Astra G Cabrio

Photo: M 93, Attribution, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

8 versions · 7 Gasoline · 1 Diesel fuel

Engine Fuel Power Production
1.6 16V (101 KM) Selected Gasoline 101 KM 2001–2003
1.8 Ecotec 16V (125 KM) Selected Gasoline 125 KM 2001–2005
2.0i 16V Turbo (192 KM) Selected Gasoline 192 KM 2002
2.0i 16V Turbo (200 KM) Selected Gasoline 200 KM 2002–2005
2.2 Ecotec 16V (147 KM) Selected Gasoline 147 KM 2001–2005
2.2 DTI (125 KM) Selected Diesel fuel 125 KM 2002–2005
1.6 Twinport 16V (103 KM) Selected Gasoline 103 KM 2003–2005
2.2 Ecotec 16V (147 KM) Automatic Selected Gasoline 147 KM 2001–2005

Selected engine version

1.6 16V (101 KM)

Gasoline · 2001–2003

Engine power
101 KM
Torque
150 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
1.6 16V (101 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2001
End of production
2003
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
13 s
Fuel consumption - Urban cycle
9.9 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
7.2 l/100 km
Emission standard
Euro 3
CO2 emissions
175 g/km

Engine

Engine model / code
Z16XE
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.25 l
Coolant capacity
6.3 l
Power
101 KM @ 6000 obr./min
Torque
150 Nm @ 3600 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1275 kg
Gross weight
1695 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
195/60 R15 H
Rim size
6.5J x 15
ABS
yes

Selected engine version

1.8 Ecotec 16V (125 KM)

Gasoline · 2001–2005

Engine power
125 KM
Torque
170 Nm
Engine displacement
1,796 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.5 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
1.8 Ecotec 16V (125 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2001
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
10.8 l/100 km
Fuel consumption - Extra-urban cycle
5.9 l/100 km
Fuel consumption - Combined cycle
7.7 l/100 km
Emission standard
Euro 3
CO2 emissions
184 g/km

Engine

Engine model / code
Z18XE
Engine position
Front, Transverse
Engine displacement
1796 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
80.5 mm
Piston stroke
88.2 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
5.2 l
Power
125 KM @ 5600 obr./min
Torque
170 Nm @ 3800 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1305 kg
Gross weight
1725 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/50 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

2.0i 16V Turbo (192 KM)

Gasoline · 2002

Engine power
192 KM
Torque
250 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8 s
Maximum speed
242 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
2.0i 16V Turbo (192 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2002
End of production
2002
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
242 km/h
Acceleration 0-100 km/h
8 s
Fuel consumption - Urban cycle
12.5 l/100 km
Fuel consumption - Extra-urban cycle
6.8 l/100 km
Fuel consumption - Combined cycle
8.9 l/100 km
CO2 emissions
214 g/km

Engine

Engine model / code
Z20LET
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
7.4 l
Power
192 KM @ 5400 obr./min
Torque
250 Nm @ 1950-5300 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.32
Minimum trunk capacity
330 l
Curb weight
1415 kg
Gross weight
1835 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1467 mm
Rear track
1456 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
215/40 R17
Rim size
7.5J x 17
ABS
yes

Selected engine version

2.0i 16V Turbo (200 KM)

Gasoline · 2002–2005

Engine power
200 KM
Torque
250 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8 s
Maximum speed
242 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
2.0i 16V Turbo (200 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2002
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
242 km/h
Acceleration 0-100 km/h
8 s
Fuel consumption - Urban cycle
12.5 l/100 km
Fuel consumption - Extra-urban cycle
6.8 l/100 km
Fuel consumption - Combined cycle
8.9 l/100 km
CO2 emissions
214 g/km

Engine

Engine model / code
Z20LET
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Multi-point injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
8.8
Number of valves per cylinder
4
Engine oil capacity
4.25 l
Coolant capacity
7.4 l
Power
200 KM @ 5600 obr./min
Torque
250 Nm @ 1950-5500 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.32
Minimum trunk capacity
330 l
Curb weight
1415 kg
Gross weight
1835 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1467 mm
Rear track
1456 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
215/40 R17
Rim size
7.5J x 17
ABS
yes

Selected engine version

2.2 Ecotec 16V (147 KM)

Gasoline · 2001–2005

Engine power
147 KM
Torque
203 Nm
Engine displacement
2,198 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
216 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
2.2 Ecotec 16V (147 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2001
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
216 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
11.8 l/100 km
Fuel consumption - Extra-urban cycle
6.1 l/100 km
Fuel consumption - Combined cycle
8.2 l/100 km
Emission standard
Euro 4
CO2 emissions
197 g/km

Engine

Engine model / code
Z22SE
Engine position
Front, Transverse
Engine displacement
2198 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
94.6 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.8 l
Power
147 KM @ 5800 obr./min
Torque
203 Nm @ 4000 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1318 kg
Gross weight
1765 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
215/40 R17
Rim size
7.5J x 17
ABS
yes

Selected engine version

2.2 DTI (125 KM)

Diesel fuel · 2002–2005

Engine power
125 KM
Torque
280 Nm
Engine displacement
2,171 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
2.2 DTI (125 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2002
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
11 s
Fuel consumption - Urban cycle
8.9 l/100 km
Fuel consumption - Extra-urban cycle
5.1 l/100 km
Fuel consumption - Combined cycle
6.5 l/100 km
Emission standard
Euro 3
CO2 emissions
176 g/km

Engine

Engine model / code
Y22DTR
Engine position
Front, Transverse
Engine displacement
2171 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
98 mm
Compression ratio
18.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Coolant capacity
7.9 l
Power
125 KM @ 4000 obr./min
Torque
280 Nm @ 1500-2750 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1430 kg
Gross weight
1850 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/50 R16
Rim size
7J x 16
ABS
yes

Selected engine version

1.6 Twinport 16V (103 KM)

Gasoline · 2003–2005

Engine power
103 KM
Torque
147 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13 s
Maximum speed
190 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
1.6 Twinport 16V (103 KM)
Engine type
Combustion engine
Number of doors
2
Start of production
2003
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
190 km/h
Acceleration 0-100 km/h
13 s
Fuel consumption - Urban cycle
8.8 l/100 km
Fuel consumption - Extra-urban cycle
5.5 l/100 km
Fuel consumption - Combined cycle
6.7 l/100 km
Emission standard
Euro 4
CO2 emissions
161 g/km

Engine

Engine model / code
Z16XEP
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.25 l
Coolant capacity
6.1 l
Power
103 KM @ 6000 obr./min
Torque
147 Nm @ 3600 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1275 kg
Gross weight
1695 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
205/50 R16 H
Rim size
6.5J x 16 ET49
ABS
yes

Selected engine version

2.2 Ecotec 16V (147 KM) Automatic

Gasoline · 2001–2005

Engine power
147 KM
Torque
203 Nm
Engine displacement
2,198 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Astra
Version
Astra G Cabrio
Engine
2.2 Ecotec 16V (147 KM) Automatic
Engine type
Combustion engine
Number of doors
2
Start of production
2001
End of production
2005
Body type
Convertible
Number of seats
4
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
11 s
Fuel consumption - Urban cycle
12 l/100 km
Fuel consumption - Extra-urban cycle
6.8 l/100 km
Fuel consumption - Combined cycle
8.7 l/100 km
Emission standard
Euro 4
CO2 emissions
209 g/km

Engine

Engine model / code
Z22SE
Engine position
Front, Transverse
Engine displacement
2198 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
94.6 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6.8 l
Power
147 KM @ 5800 obr./min
Torque
203 Nm @ 4000 obr./min

Volume and weight

Fuel tank
52 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
330 l
Curb weight
1338 kg
Gross weight
1785 kg

Vehicle dimensions

Length
4267 mm
Width
1709 mm
Width with unfolded mirrors
1989 mm
Height
1390 mm
Wheelbase
2606 mm
Front track
1474 mm
Rear track
1462 mm
Front overhang
812 mm
Rear overhang
849 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
4
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Hydraulic power steering
Tire size
215/40 R17
Rim size
7.5J x 17
ABS
yes

About Opel Astra Astra G Cabrio

The Opel Astra G Cabrio, produced from 2001 to 2005, is a stylish convertible that draws attention with its elegant appearance and sporty character. As a two-door model designed for four passengers, it is an ideal choice for those who value open spaces and driving with the wind in their hair. It stands out with a classic yet modern design that still attracts automotive enthusiasts looking for both prestige and functionality in one vehicle.

The Astra G Cabrio offers a variety of engine options, utilizing both petrol and diesel fuel. Engine power ranges from 101 to 200 horsepower, catering to both those who seek economical travel and enthusiasts looking for dynamic performance. Among the available units are the 1.6 16V (101 HP), 2.2 Ecotec 16V (147 HP), and 2.0i 16V Turbo (200 HP). Depending on the selected version, the car is equipped with either a manual or automatic transmission, impacting the variety of driving experiences.

This convertible features front-wheel drive, ensuring good traction and stability on the road. The Astra G Cabrio performs well in urban conditions, where maneuverability and ease of handling are crucial, as well as during longer journeys. User comfort is enhanced by available support systems, such as ABS, power steering assistance, and a high-quality audio system that ensures a pleasant and safe driving experience.

Like any model, the Opel Astra G Cabrio has its drawbacks that are worth noting. The most commonly mentioned issues include failures of the roof folding mechanism and potential electronic malfunctions that may affect the comfort and functionality of the vehicle. Maintenance costs, especially for turbo versions, can be higher due to the more complex engine design. Additionally, trunk space, while typical for convertibles, may be a limitation for those who need more room.

Despite the mentioned challenges, the Opel Astra G Cabrio remains an attractive option for outdoor driving enthusiasts. It offers a unique combination of elegant design, diverse engine options, and solid performance, setting it apart from other convertibles in a similar segment. With its classic yet appealing aesthetics, it is an excellent choice for those seeking a distinctive car for weekend getaways or city driving.
