Vehicle specifications
Opel Astra F Caravan (facelift 1994)
Compare all 17 engine versions of the Opel Astra Astra F Caravan (facelift 1994), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Opel Astra F Caravan (facelift 1994)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Opel Astra F Caravan (facelift 1994)?
See the places on a 3D model →- VIN number
- Floor next to / in front of the front seat, right side
- Identification plate
- B-pillar, right side
- Front panel (radiator support), right side

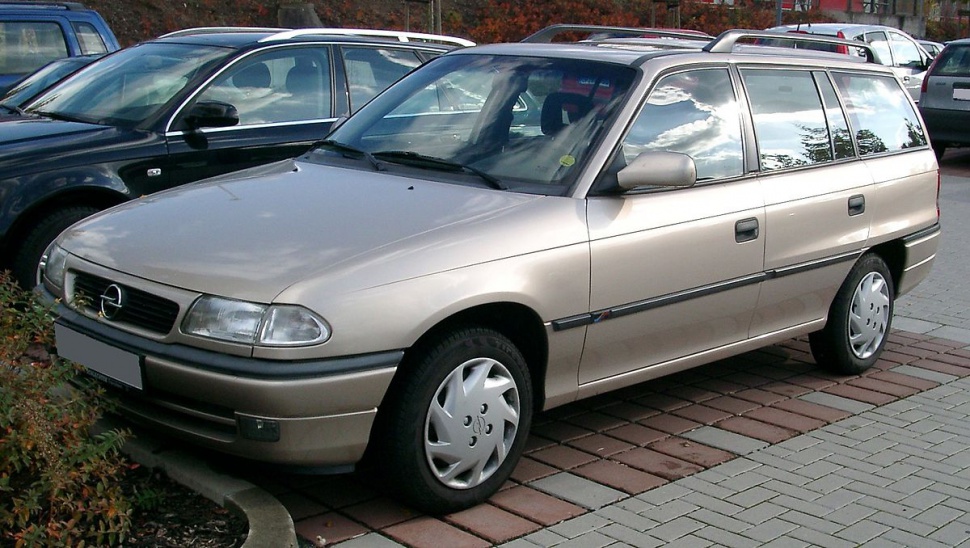

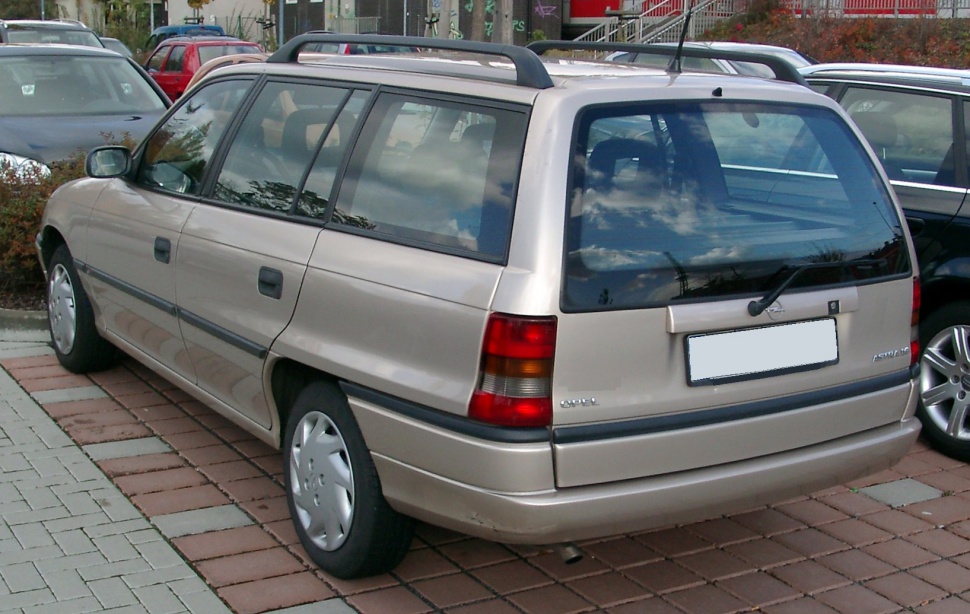

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
17 versions · 15 Gasoline · 2 Diesel fuel
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4i Ecotec 16V (90 KM)
Gasoline · 1996–1998
- Engine power
- 90 KM
- Torque
- 125 Nm
- Engine displacement
- 1,389 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 13.5 s
- Maximum speed
- 173 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.4i Ecotec 16V (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1998
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 173 km/h
- Acceleration 0-100 km/h
- 13.5 s
- Fuel consumption - Urban cycle
- 9.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.6 l/100 km
- Fuel consumption - Combined cycle
- 8.4 l/100 km
Engine
- Engine model / code
- X14XE
- Engine position
- Front, Transverse
- Engine displacement
- 1389 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.6 mm
- Piston stroke
- 73.4 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 90 KM @ 6000 obr./min
- Torque
- 125 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1085 kg
- Gross weight
- 1570 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1686 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82T
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.6i (75 KM)
Gasoline · 1996–1997
- Engine power
- 75 KM
- Torque
- 128 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 15 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i (75 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 15 s
- Fuel consumption - Urban cycle
- 9.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 8.2 l/100 km
- Emission standard
- Euro 2
- CO2 emissions
- 178 g/km
Engine
- Engine model / code
- X16SZR
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Single-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 75 KM @ 5200 obr./min
- Torque
- 128 Nm @ 2600 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1065 kg
- Gross weight
- 1570 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82T
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.6i Ecotec 16V (101 KM)
Gasoline · 1994–1997
- Engine power
- 101 KM
- Torque
- 148 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i Ecotec 16V (101 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 8.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.7 l/100 km
- Fuel consumption - Combined cycle
- 7.5 l/100 km
- Emission standard
- Euro 2
Engine
- Engine model / code
- X16XEL
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.9 l
- Power
- 101 KM @ 6200 obr./min
- Torque
- 148 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1110 kg
- Gross weight
- 1595 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82H
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.6i Ecotec (71 KM)
Gasoline · 1994–1995
- Engine power
- 71 KM
- Torque
- 128 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 165 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i Ecotec (71 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1995
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 165 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 9.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.3 l/100 km
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- X16SZ
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Single-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 71 KM @ 5000 obr./min
- Torque
- 128 Nm @ 2800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1055 kg
- Gross weight
- 1555 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430-1424 mm
- Rear track
- 1429-1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T; 175/65 R14 82T
- Rim size
- 5.5J x 13 ET49; 5.5J x 14 ET49
- ABS
- yes
Selected engine version
1.7 TD (68 KM)
Diesel fuel · 1994–1997
- Engine power
- 68 KM
- Torque
- 132 Nm
- Engine displacement
- 1,700 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 16.5 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.7 TD (68 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 16.5 s
- Fuel consumption - Urban cycle
- 7.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption - Combined cycle
- 6.6 l/100 km
Engine
- Engine model / code
- X17DTL
- Engine position
- Front, Transverse
- Engine displacement
- 1700 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 79.5 mm
- Compression ratio
- 22
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.8 l
- Power
- 68 KM @ 4500 obr./min
- Torque
- 132 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1115 kg
- Gross weight
- 1615 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430 mm
- Rear track
- 1429 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T; 175/65 R14 82T
- Rim size
- 5.5J x 13 ET49; 5.5J x 14 ET49
- ABS
- no
Selected engine version
2.0i Ecotec 16V (136 KM)
Gasoline · 1995–1997
- Engine power
- 136 KM
- Torque
- 185 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.5 s
- Maximum speed
- 202 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 2.0i Ecotec 16V (136 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1995
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 202 km/h
- Acceleration 0-100 km/h
- 9.5 s
- Fuel consumption - Urban cycle
- 11.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.4 l/100 km
- Fuel consumption - Combined cycle
- 9.9 l/100 km
Engine
- Engine model / code
- X20XEV
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 6.7 l
- Power
- 136 KM @ 6000 obr./min
- Torque
- 185 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1175 kg
- Gross weight
- 1660 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/55 R15
- Rim size
- 6.0J x 15
- ABS
- no
Selected engine version
1.8i Ecotec 16V (116 KM)
Gasoline · 1994–1995
- Engine power
- 116 KM
- Torque
- 168 Nm
- Engine displacement
- 1,799 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.8i Ecotec 16V (116 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1995
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption - Urban cycle
- 11.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.7 l/100 km
- Fuel consumption - Combined cycle
- 9.9 l/100 km
Engine
- Engine model / code
- C18XEL
- Engine position
- Front, Transverse
- Engine displacement
- 1799 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81.6 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 7 l
- Power
- 116 KM @ 5400 obr./min
- Torque
- 168 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1150 kg
- Gross weight
- 1640 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82H
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.8i Ecotec 16V (116 KM) Automatic
Gasoline · 1996–1997
- Engine power
- 116 KM
- Torque
- 170 Nm
- Engine displacement
- 1,799 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 188 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.8i Ecotec 16V (116 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 188 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 11 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
- Fuel consumption - Combined cycle
- 9.7 l/100 km
Engine
- Engine model / code
- X18XE
- Engine position
- Front, Transverse
- Engine displacement
- 1799 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81.6 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 6.9 l
- Power
- 116 KM @ 5400 obr./min
- Torque
- 170 Nm @ 3600 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1170 kg
- Gross weight
- 1660 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82H
- Rim size
- 5.5J x 14
- ABS
- no
Selected engine version
2.0i Ecotec 16V (136 KM) Automatic
Gasoline · 1995–1997
- Engine power
- 136 KM
- Torque
- 185 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 2.0i Ecotec 16V (136 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1995
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11 s
- Fuel consumption - Urban cycle
- 13.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 9 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
Engine
- Engine model / code
- X20XEV
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 6.6 l
- Power
- 136 KM @ 6000 obr./min
- Torque
- 185 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1195 kg
- Gross weight
- 1655 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/55 R15
- Rim size
- 6.0J x 15
- ABS
- no
Selected engine version
1.6i Ecotec (71 KM) Automatic
Gasoline · 1994–1995
- Engine power
- 71 KM
- Torque
- 128 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 17.5 s
- Maximum speed
- 158 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i Ecotec (71 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1995
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 158 km/h
- Acceleration 0-100 km/h
- 17.5 s
- Fuel consumption - Urban cycle
- 11.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 8 l/100 km
- Fuel consumption - Combined cycle
- 8.5 l/100 km
Engine
- Engine model / code
- X16SZ
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Single-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 71 KM @ 5000 obr./min
- Torque
- 128 Nm @ 2800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1075 kg
- Gross weight
- 1575 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430-1424 mm
- Rear track
- 1429-1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T; 175/65 R14 82T
- Rim size
- 5.5J x 13 ET49; 5.5J x 14 ET49
- ABS
- no
Selected engine version
1.4i (60 KM)
Gasoline · 1994–1996
- Engine power
- 60 KM
- Torque
- 103 Nm
- Engine displacement
- 1,389 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 17 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.4i (60 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1996
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 17 s
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.2 l/100 km
- Fuel consumption - Combined cycle
- 7.8 l/100 km
Engine
- Engine model / code
- C14NZ
- Engine position
- Front, Transverse
- Engine displacement
- 1389 cm³
- Fuel injection system
- Single-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.6 mm
- Piston stroke
- 73.4 mm
- Compression ratio
- 9.4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.7 l
- Power
- 60 KM @ 5200 obr./min
- Torque
- 103 Nm @ 2800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1040 kg
- Gross weight
- 1555 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430-1424 mm
- Rear track
- 1429-1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T; 175/65 R14 82T
- Rim size
- 5.5J x 13 ET49; 5.5J x 14 ET49
- ABS
- yes
Selected engine version
1.4 Si (82 KM)
Gasoline · 1994–1996
- Engine power
- 82 KM
- Torque
- 114 Nm
- Engine displacement
- 1,389 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 13.5 s
- Maximum speed
- 170 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.4 Si (82 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1996
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 170 km/h
- Acceleration 0-100 km/h
- 13.5 s
- Fuel consumption - Urban cycle
- 10.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
- Fuel consumption - Combined cycle
- 8 l/100 km
Engine
- Engine model / code
- C14SE
- Engine position
- Front, Transverse
- Engine displacement
- 1389 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.6 mm
- Piston stroke
- 73.4 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.8 l
- Power
- 82 KM @ 5800 obr./min
- Torque
- 114 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1040 kg
- Gross weight
- 1555 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430 mm
- Rear track
- 1429 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T
- Rim size
- 5.5J x 13 ET49
- ABS
- no
Selected engine version
1.6i Ecotec 16V (101 KM) Automatic
Gasoline · 1994–1997
- Engine power
- 101 KM
- Torque
- 148 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14 s
- Maximum speed
- 178 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i Ecotec 16V (101 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 178 km/h
- Acceleration 0-100 km/h
- 14 s
- Fuel consumption - Urban cycle
- 10.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.3 l/100 km
- Fuel consumption - Combined cycle
- 9.3 l/100 km
Engine
- Engine model / code
- X16XEL
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.9 l
- Power
- 101 KM @ 6200 obr./min
- Torque
- 148 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1130 kg
- Gross weight
- 1615 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82H
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.7 Turbo (82 KM)
Diesel fuel · 1994–1997
- Engine power
- 82 KM
- Torque
- 168 Nm
- Engine displacement
- 1,686 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 168 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.7 Turbo (82 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 168 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 7.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.3 l/100 km
- Fuel consumption - Combined cycle
- 6.6 l/100 km
Engine
- Engine model / code
- X17DT
- Engine position
- Front, Transverse
- Engine displacement
- 1686 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 86 mm
- Compression ratio
- 22
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.8 l
- Power
- 82 KM @ 4400 obr./min
- Torque
- 168 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1140 kg
- Gross weight
- 1640 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430-1424 mm
- Rear track
- 1429-1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R13 82T; 175/65 R14 82T
- Rim size
- 5.5J x 13 ET49; 5.5J x 14 ET49
- ABS
- no
Selected engine version
1.4i Ecotec 16V (90 KM) Automatic
Gasoline · 1996–1998
- Engine power
- 90 KM
- Torque
- 125 Nm
- Engine displacement
- 1,389 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 16 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.4i Ecotec 16V (90 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1998
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 16 s
- Fuel consumption - Urban cycle
- 9.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.8 l/100 km
- Fuel consumption - Combined cycle
- 8.4 l/100 km
Engine
- Engine model / code
- X14XE
- Engine position
- Front, Transverse
- Engine displacement
- 1389 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.6 mm
- Piston stroke
- 73.4 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 90 KM @ 6000 obr./min
- Torque
- 125 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1105 kg
- Gross weight
- 1590 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1686 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82T
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
1.6i (75 KM) Automatic
Gasoline · 1996–1997
- Engine power
- 75 KM
- Torque
- 128 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 17 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- 1.6i (75 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1996
- End of production
- 1997
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 17 s
- Fuel consumption - Urban cycle
- 9.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 7 l/100 km
- Fuel consumption - Combined cycle
- 8.8 l/100 km
- Emission standard
- Euro 2
- CO2 emissions
- 202 g/km
Engine
- Engine model / code
- X16SZR
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Single-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 81.5 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 5.6 l
- Power
- 75 KM @ 5200 obr./min
- Torque
- 128 Nm @ 2600 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1085 kg
- Gross weight
- 1590 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1424 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/65 R14 82T
- Rim size
- 5.5J x 14 ET 49
- ABS
- no
Selected engine version
GSi 2.0i 16V (150 KM)
Gasoline · 1994–1996
- Engine power
- 150 KM
- Torque
- 196 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.5 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Opel Astra Astra F Caravan (facelift 1994)- Brand
- Opel
- Model
- Astra
- Version
- Astra F Caravan (facelift 1994)
- Engine
- GSi 2.0i 16V (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1994
- End of production
- 1996
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Fuel consumption - Urban cycle
- 12.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.9 l/100 km
- Fuel consumption - Combined cycle
- 10.7 l/100 km
Engine
- Engine model / code
- C20XE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.9 l
- Power
- 150 KM @ 6000 obr./min
- Torque
- 196 Nm @ 4600 obr./min
Volume and weight
- Fuel tank
- 50 l
- Aerodynamic drag coefficient (Cx)
- 0.34
- Minimum trunk capacity
- 500 l
- Maximum trunk capacity
- 1630 l
- Curb weight
- 1175 kg
- Gross weight
- 1660 kg
Vehicle dimensions
- Length
- 4278 mm
- Width
- 1696 mm
- Width with unfolded mirrors
- 1852 mm
- Height
- 1525 mm
- Wheelbase
- 2517 mm
- Front track
- 1430 mm
- Rear track
- 1423 mm
- Ground clearance
- 135 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R14 V
- Rim size
- 6J x 14 ET49
- ABS
- no
