Opel Ascona A Voyage
Compare all 6 engine versions of the Opel Ascona Ascona A Voyage, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Opel Ascona A Voyage? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

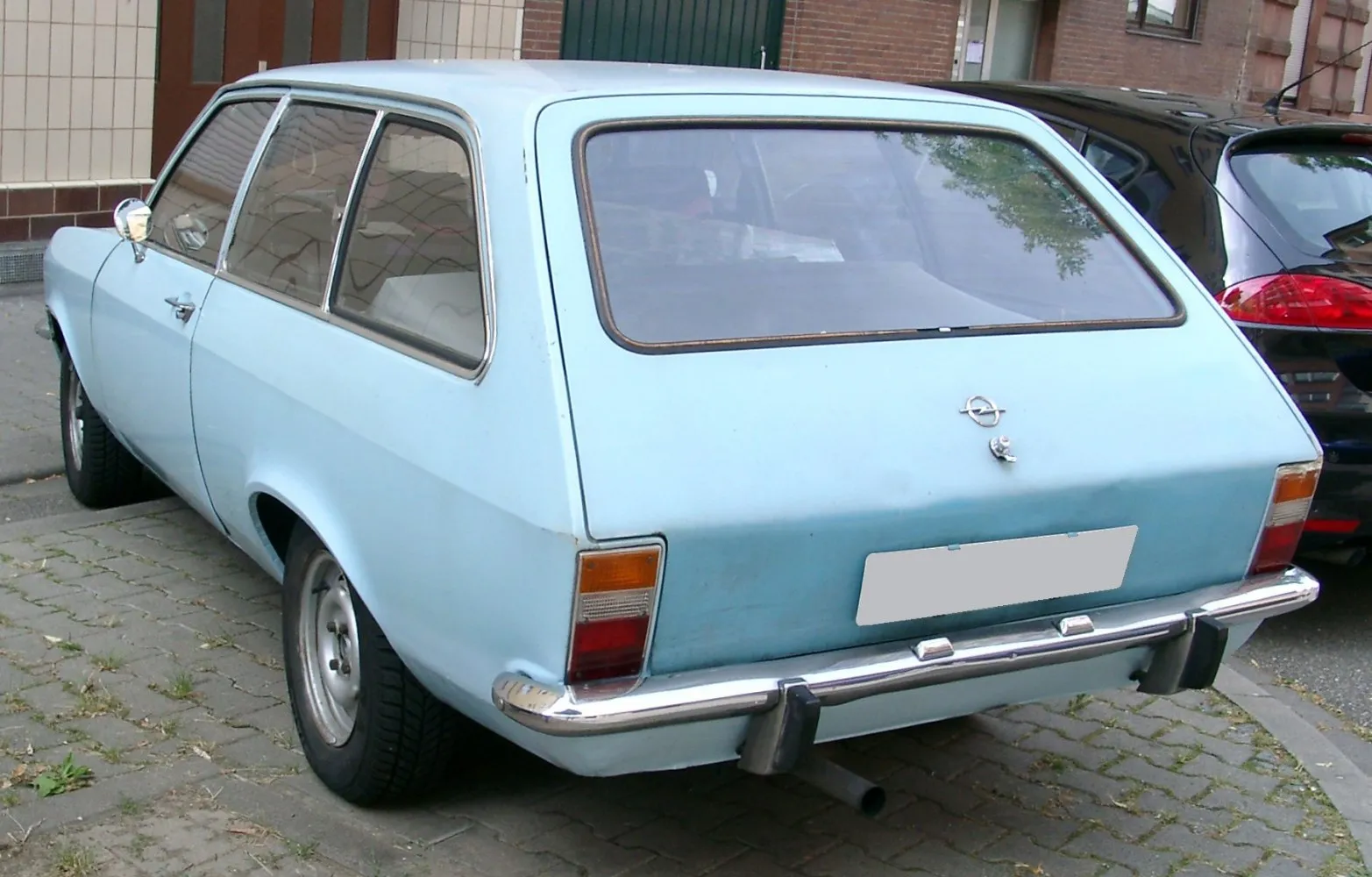

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 6 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 N (60 KM) Selected | Gasoline | 60 KM | 1975 |
| 1.6 N (68 KM) Selected | Gasoline | 68 KM | 1970–1974 |
| 1.6 S (75 KM) Selected | Gasoline | 75 KM | 1975 |
| 1.6 S (80 KM) Selected | Gasoline | 80 KM | 1970–1974 |
| 1.9 S (88 KM) Selected | Gasoline | 88 KM | 1975 |
| 1.9 S (90 KM) Selected | Gasoline | 90 KM | 1971–1974 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 N (60 KM)
Gasoline · 1975
- Engine power
- 60 KM
- Torque
- 105 Nm
- Engine displacement
- 1,584 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 21 s
- Maximum speed
- 140 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.6 N (60 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1975
- End of production
- 1975
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 140 km/h
- Acceleration 0-100 km/h
- 21 s
Engine
- Engine model / code
- 16N
- Engine position
- Front, Longitudinal
- Engine displacement
- 1584 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 60 KM @ 5000 obr./min
- Torque
- 105 Nm @ 3000-3400 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 985 kg
- Gross weight
- 1505 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone, Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 155/80 R13; 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
Selected engine version
1.6 N (68 KM)
Gasoline · 1970–1974
- Engine power
- 68 KM
- Torque
- 110 Nm
- Engine displacement
- 1,584 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 20 s
- Maximum speed
- 145 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.6 N (68 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1970
- End of production
- 1974
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 145 km/h
- Acceleration 0-100 km/h
- 20 s
- Fuel consumption - Combined cycle
- 10.2 l/100 km
Engine
- Engine model / code
- 16N
- Engine position
- Front, Longitudinal
- Engine displacement
- 1584 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 8.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 68 KM @ 5200 obr./min
- Torque
- 110 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 995 kg
- Gross weight
- 1505 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Coil spring, Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 155/80 R13; 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
Selected engine version
1.6 S (75 KM)
Gasoline · 1975
- Engine power
- 75 KM
- Torque
- 117 Nm
- Engine displacement
- 1,584 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 16 s
- Maximum speed
- 153 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.6 S (75 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1975
- End of production
- 1975
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 153 km/h
- Acceleration 0-100 km/h
- 16 s
Engine
- Engine model / code
- 16S
- Engine position
- Front, Longitudinal
- Engine displacement
- 1584 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 8.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 75 KM @ 5000 obr./min
- Torque
- 117 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 1015 kg
- Gross weight
- 1535 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Coil spring, Double wishbone, Independent coil spring suspension
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 155/80 R13; 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
Selected engine version
1.6 S (80 KM)
Gasoline · 1970–1974
- Engine power
- 80 KM
- Torque
- 120 Nm
- Engine displacement
- 1,584 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.6 S (80 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1970
- End of production
- 1974
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption - Combined cycle
- 9.7 l/100 km
Engine
- Engine model / code
- 16S
- Engine position
- Front, Longitudinal
- Engine displacement
- 1584 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.5 l
- Power
- 80 KM @ 5200 obr./min
- Torque
- 120 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 1020 kg
- Gross weight
- 1535 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone, Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 155/80 R13; 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
Selected engine version
1.9 S (88 KM)
Gasoline · 1975
- Engine power
- 88 KM
- Torque
- 150 Nm
- Engine displacement
- 1,897 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.9 S (88 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1975
- End of production
- 1975
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 14 s
Engine
- Engine model / code
- 19S
- Engine position
- Front, Longitudinal
- Engine displacement
- 1897 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 93 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 8.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.1 l
- Power
- 88 KM @ 4800 obr./min
- Torque
- 150 Nm @ 2600-3800 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 1015 kg
- Gross weight
- 1535 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Coil spring, Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
Selected engine version
1.9 S (90 KM)
Gasoline · 1971–1974
- Engine power
- 90 KM
- Torque
- 149 Nm
- Engine displacement
- 1,897 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Opel Ascona Ascona A Voyage- Brand
- Opel
- Model
- Ascona
- Version
- Ascona A Voyage
- Engine
- 1.9 S (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 1971
- End of production
- 1974
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 14 s
- Fuel consumption - Combined cycle
- 9.9 l/100 km
Engine
- Engine model / code
- 19S
- Engine position
- Front, Longitudinal
- Engine displacement
- 1897 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- CIH
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 93 mm
- Piston stroke
- 69.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 6.1 l
- Power
- 90 KM @ 5100 obr./min
- Torque
- 149 Nm @ 2500-3100 obr./min
Volume and weight
- Fuel tank
- 46 l
- Aerodynamic drag coefficient (Cx)
- 0.50
- Curb weight
- 1020 kg
- Gross weight
- 1535 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4180 mm
- Width
- 1632 mm
- Height
- 1400 mm
- Wheelbase
- 2430 mm
- Front track
- 1331 mm
- Rear track
- 1320 mm
- Ground clearance
- 134 mm
- Turning circle
- 9.76 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone, Independent coil spring suspension, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm, Coil spring
- Front brakes
- Disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 165/80 R13; 185/70 R13
- Rim size
- 5J x 13; 5.5J x 13
- ABS
- no
