Vehicle specifications
Mercedes-Benz W123 S123
Compare all 25 engine versions of the Mercedes-Benz W123 S123, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Mercedes-Benz W123 S123? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

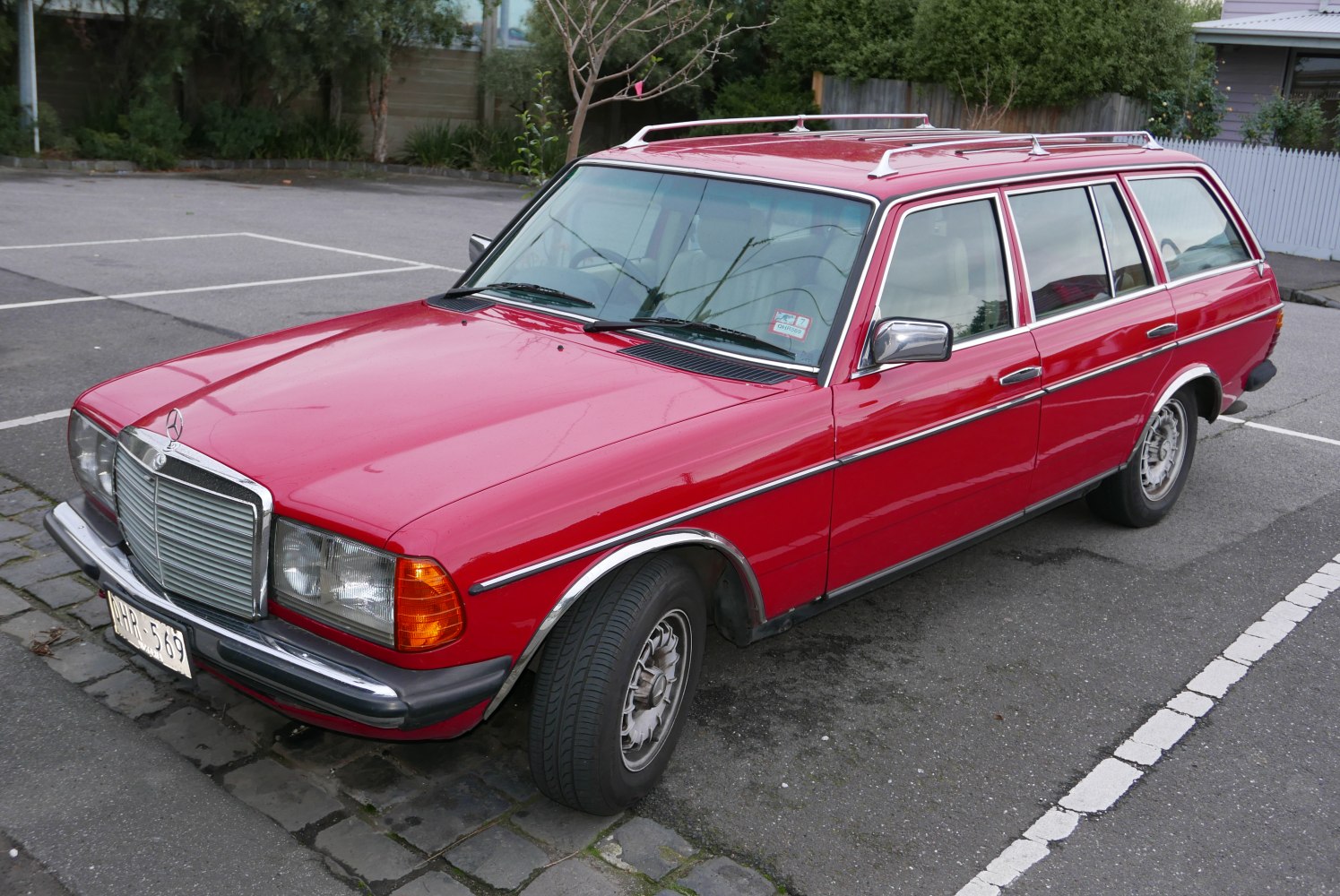

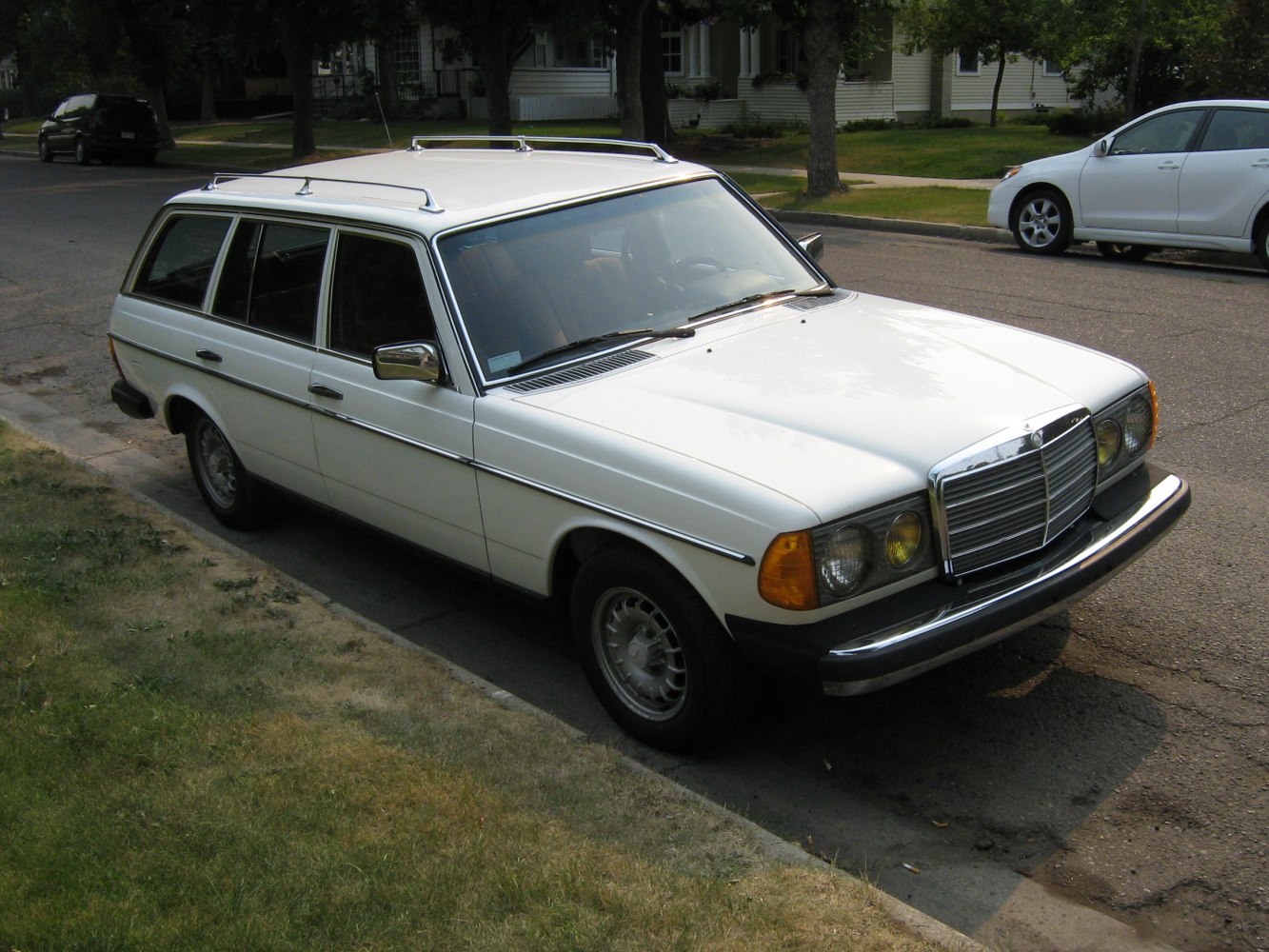

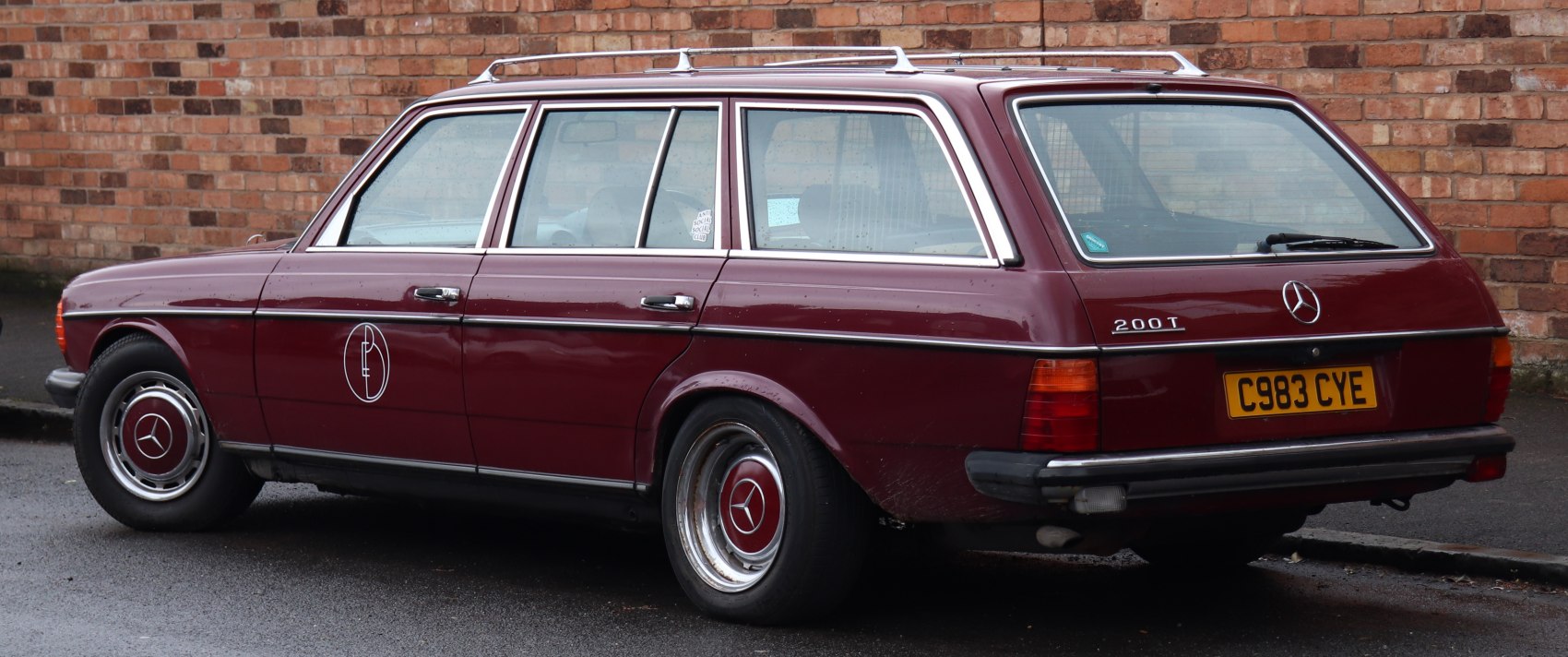

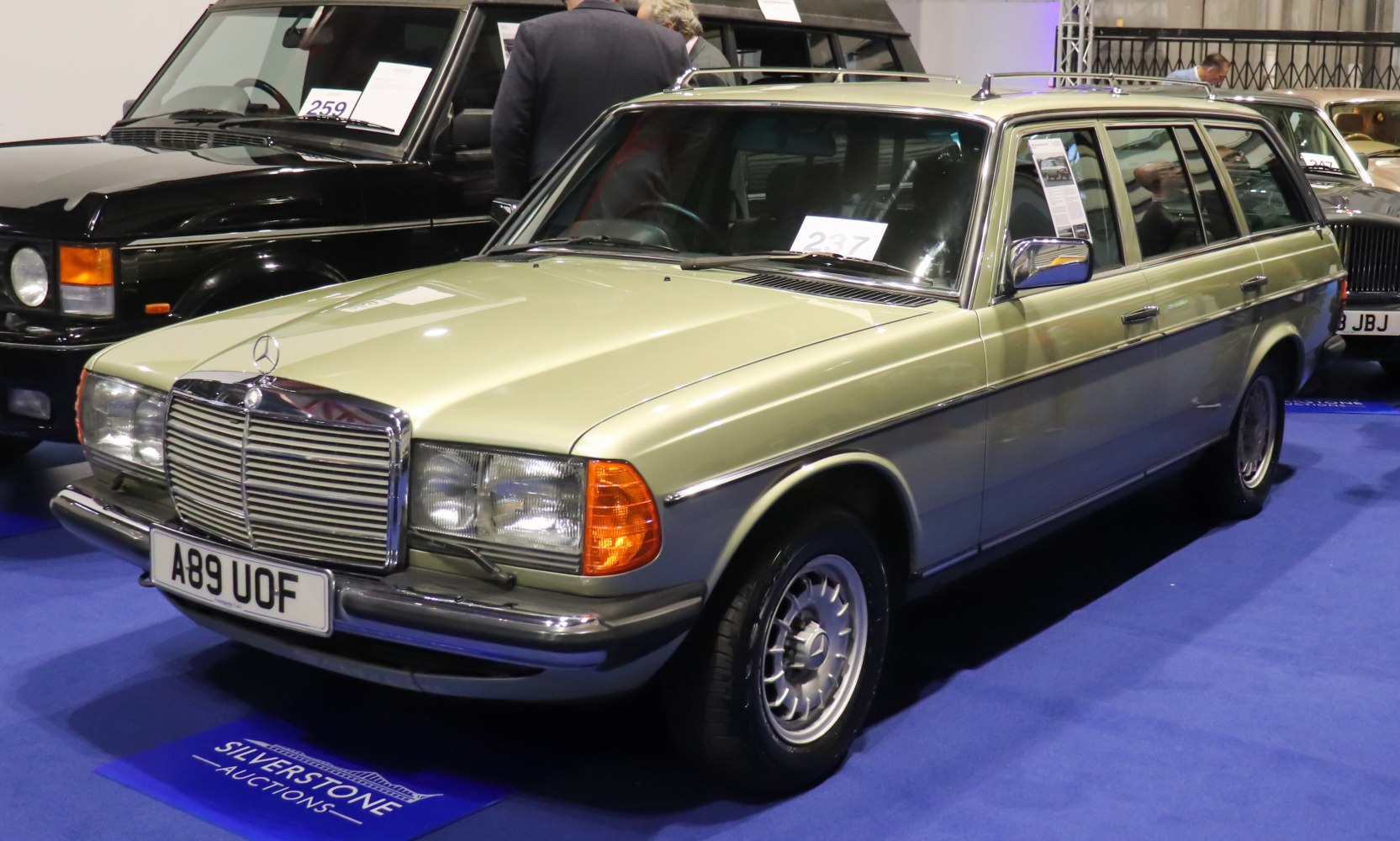

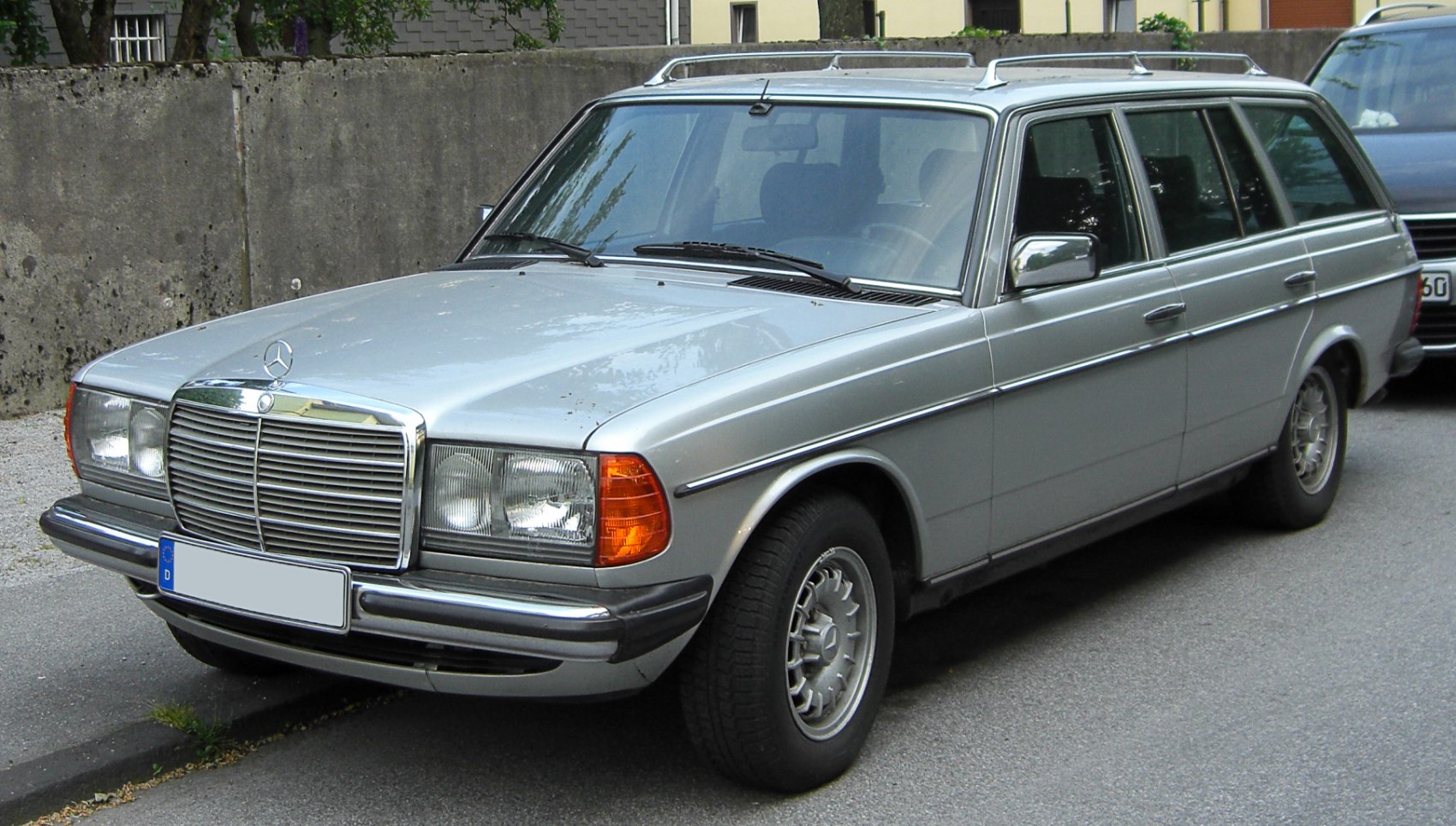

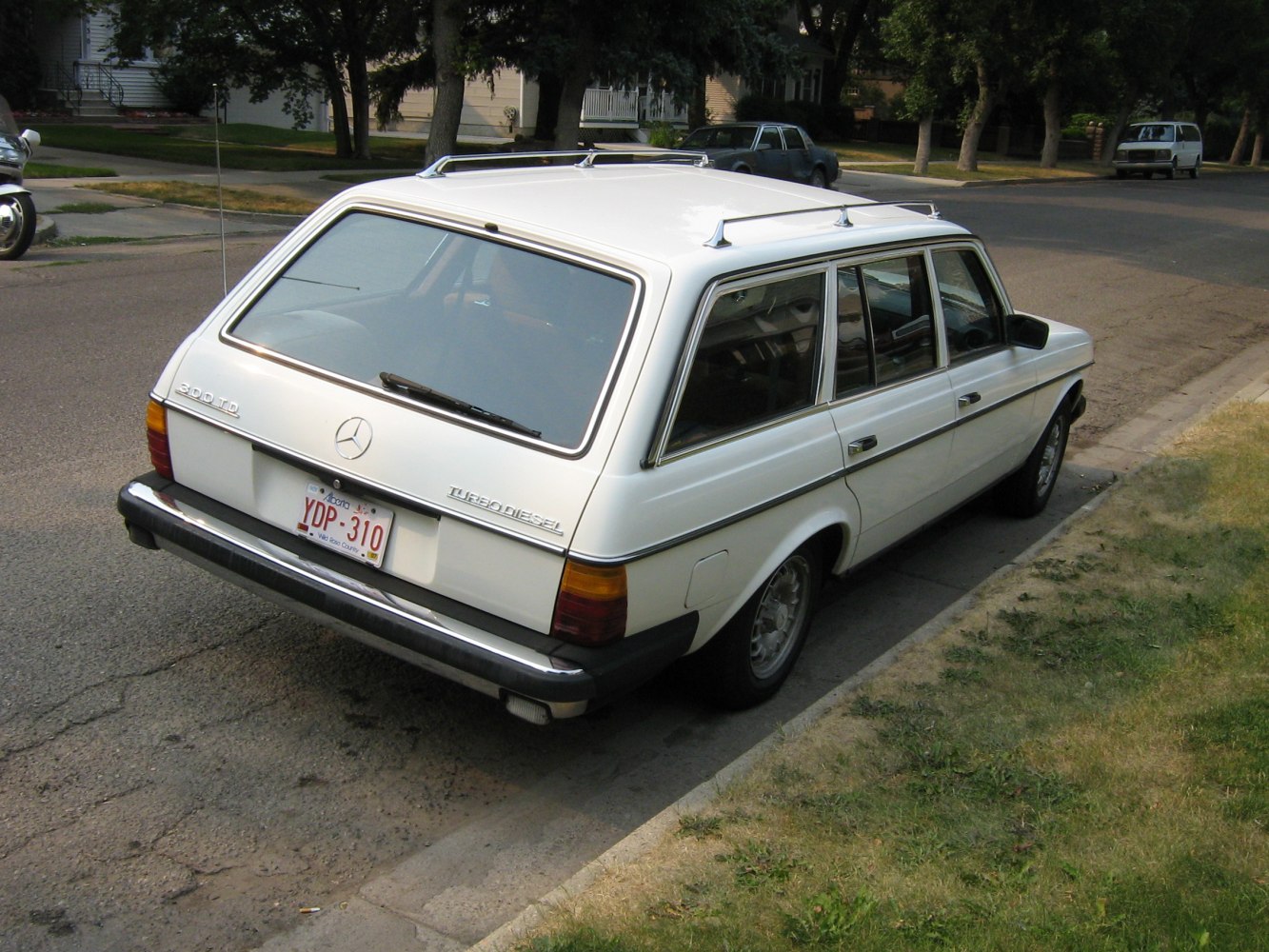

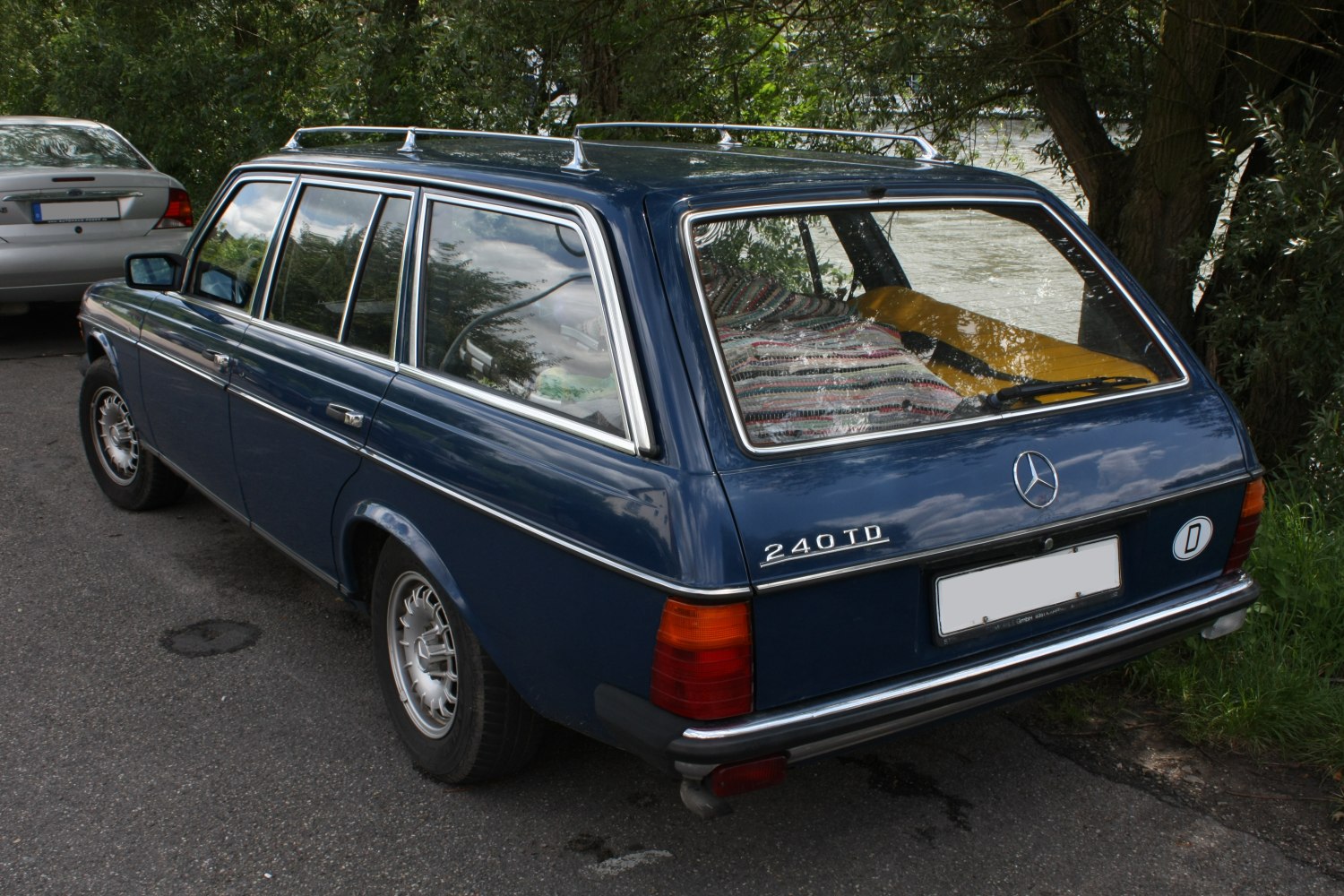

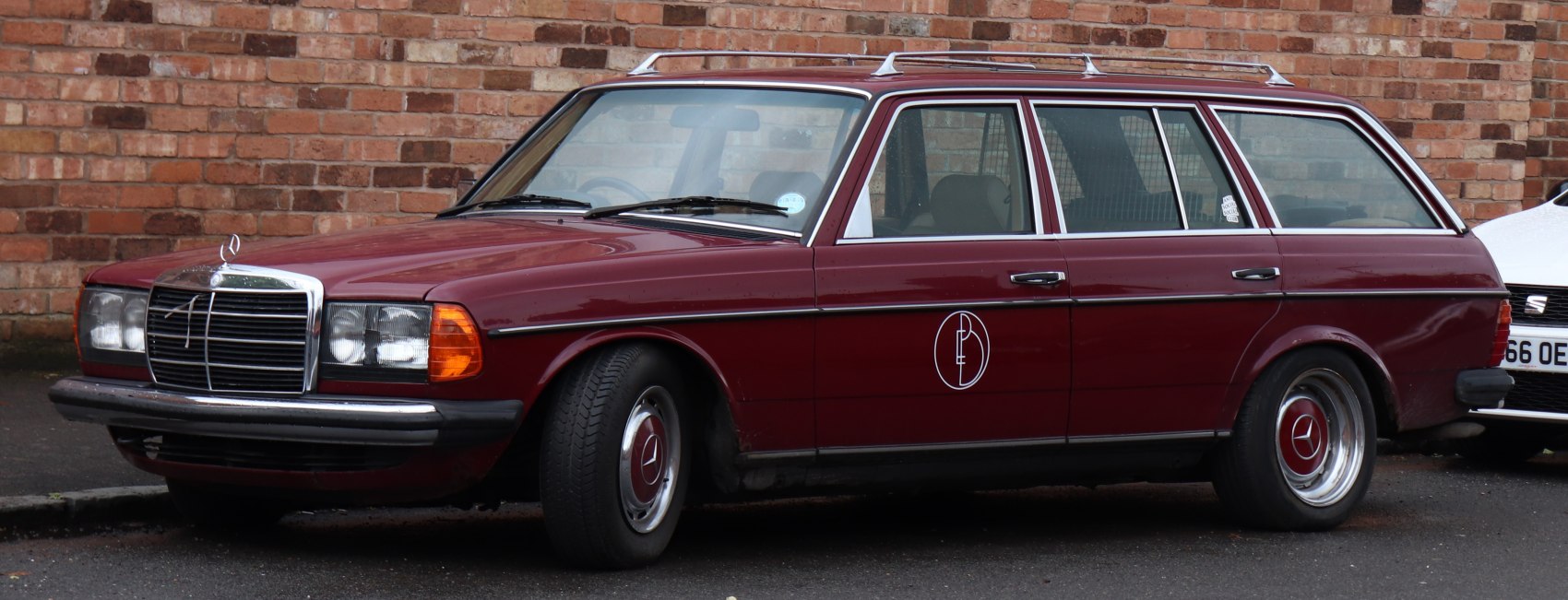

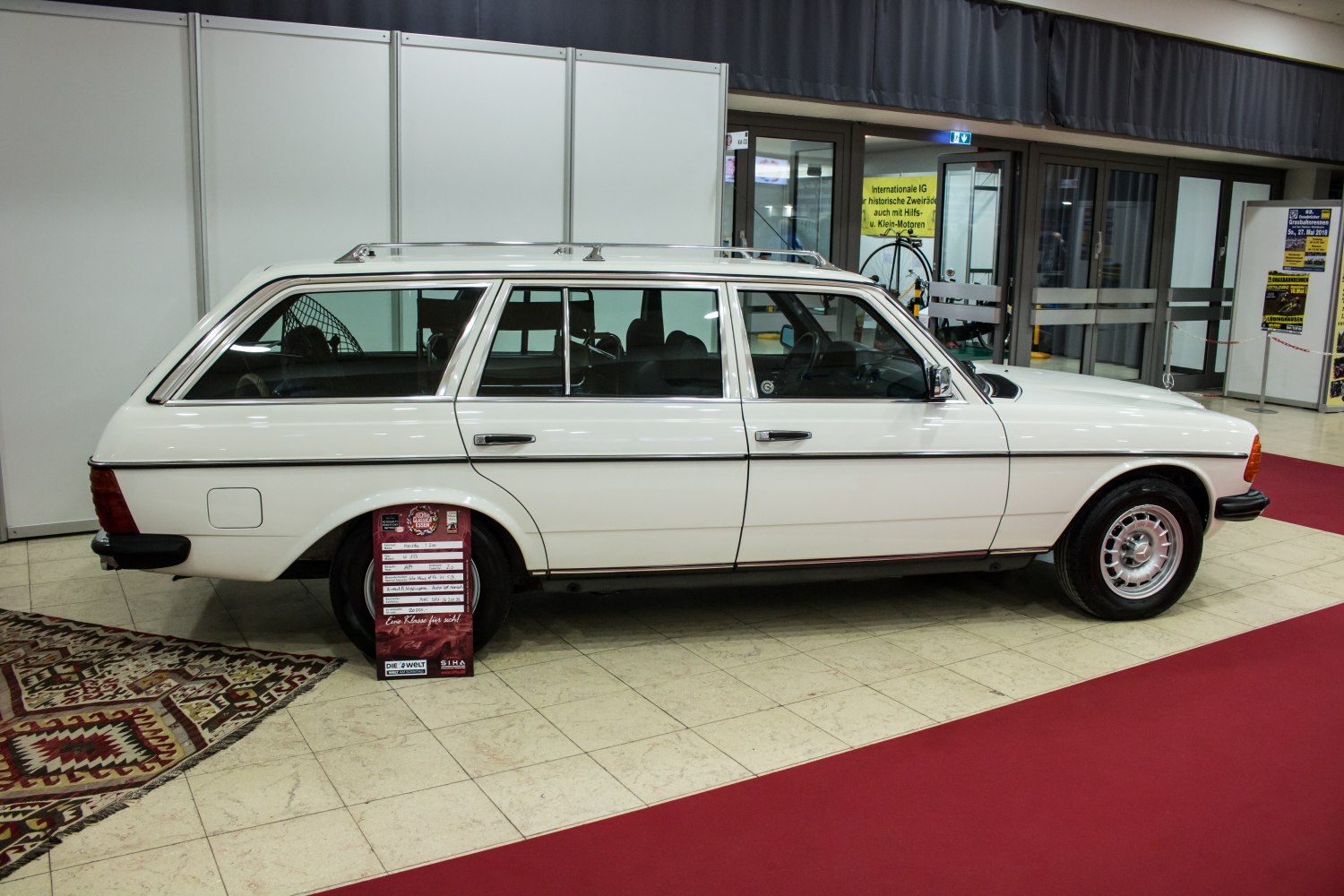

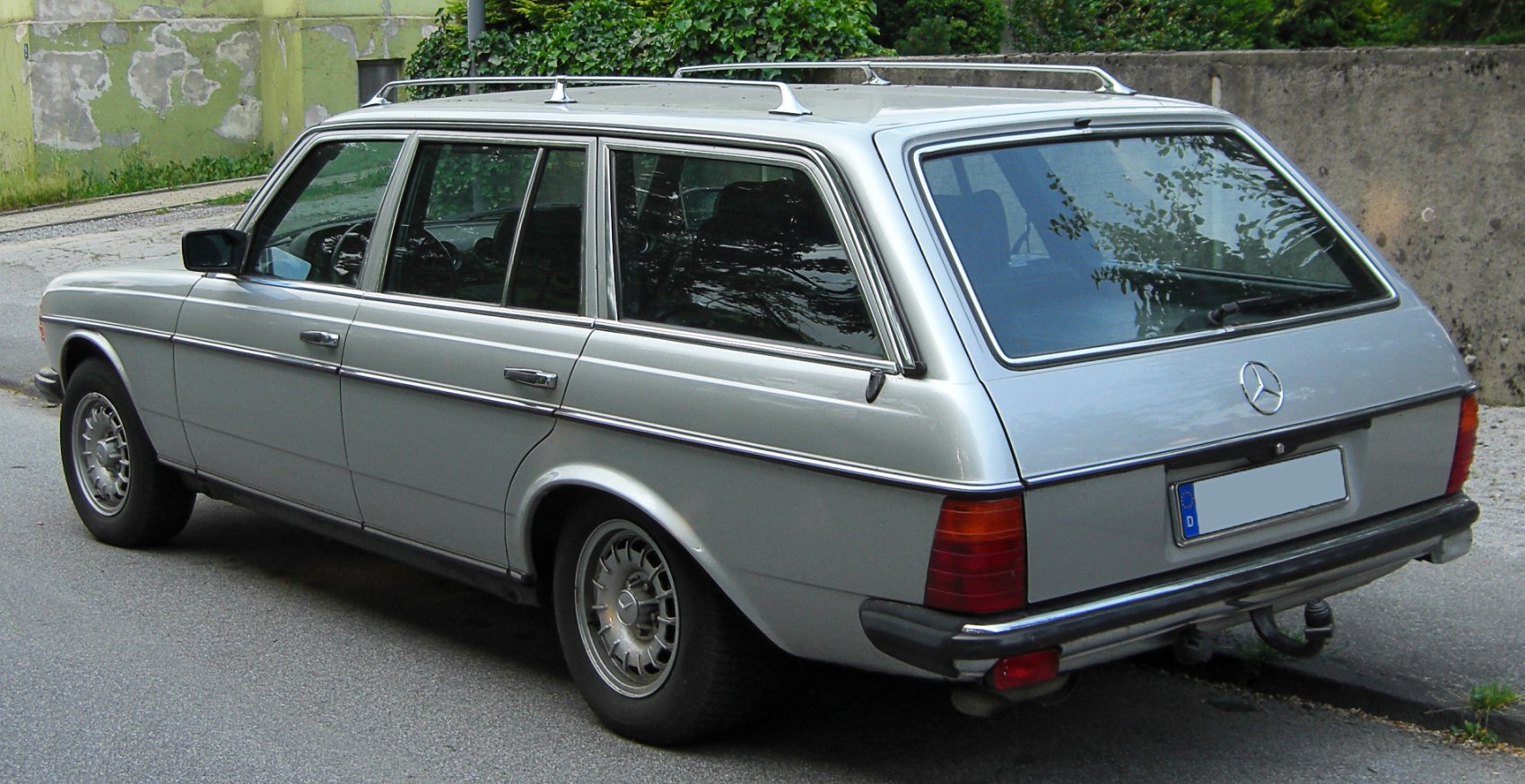

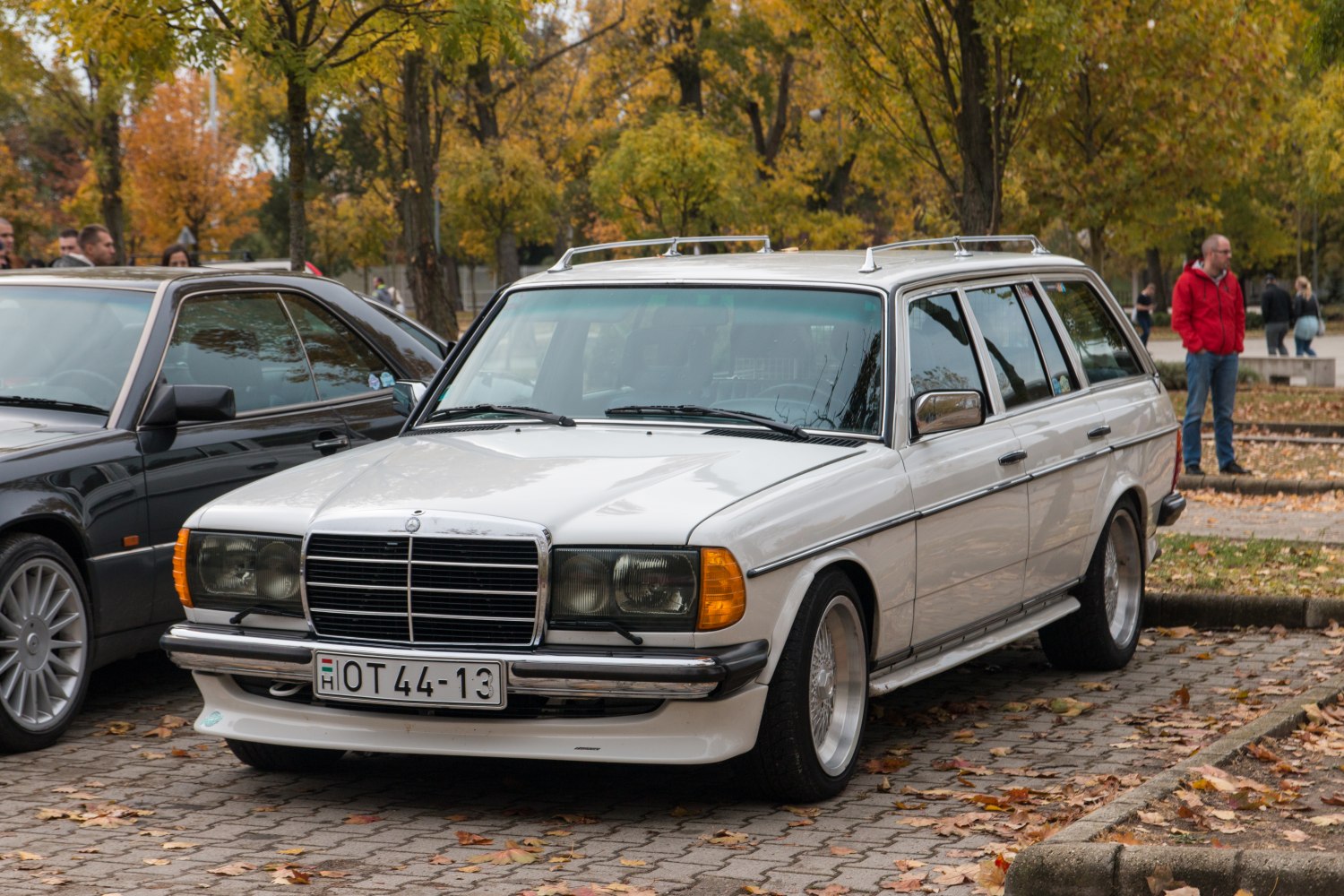

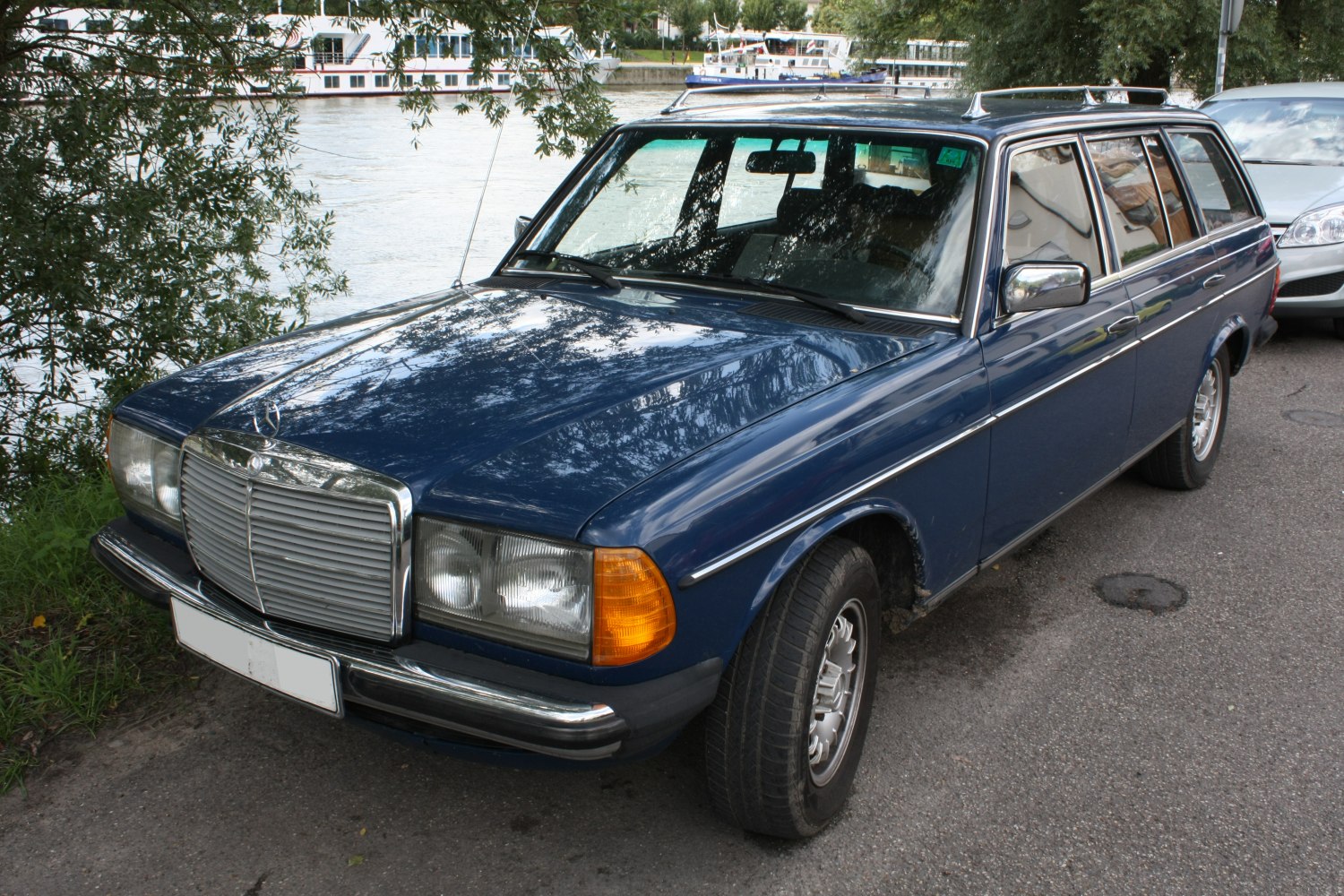

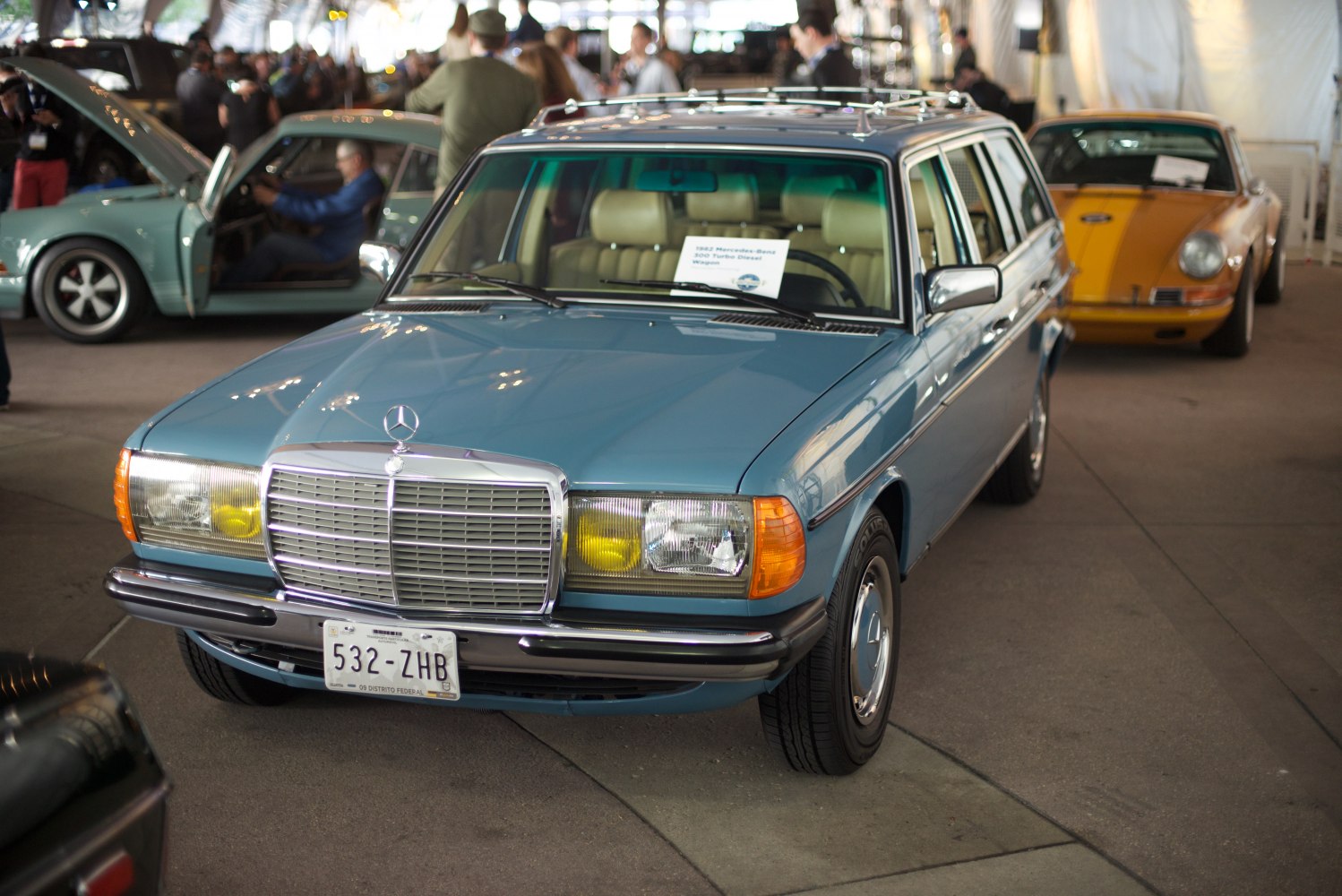

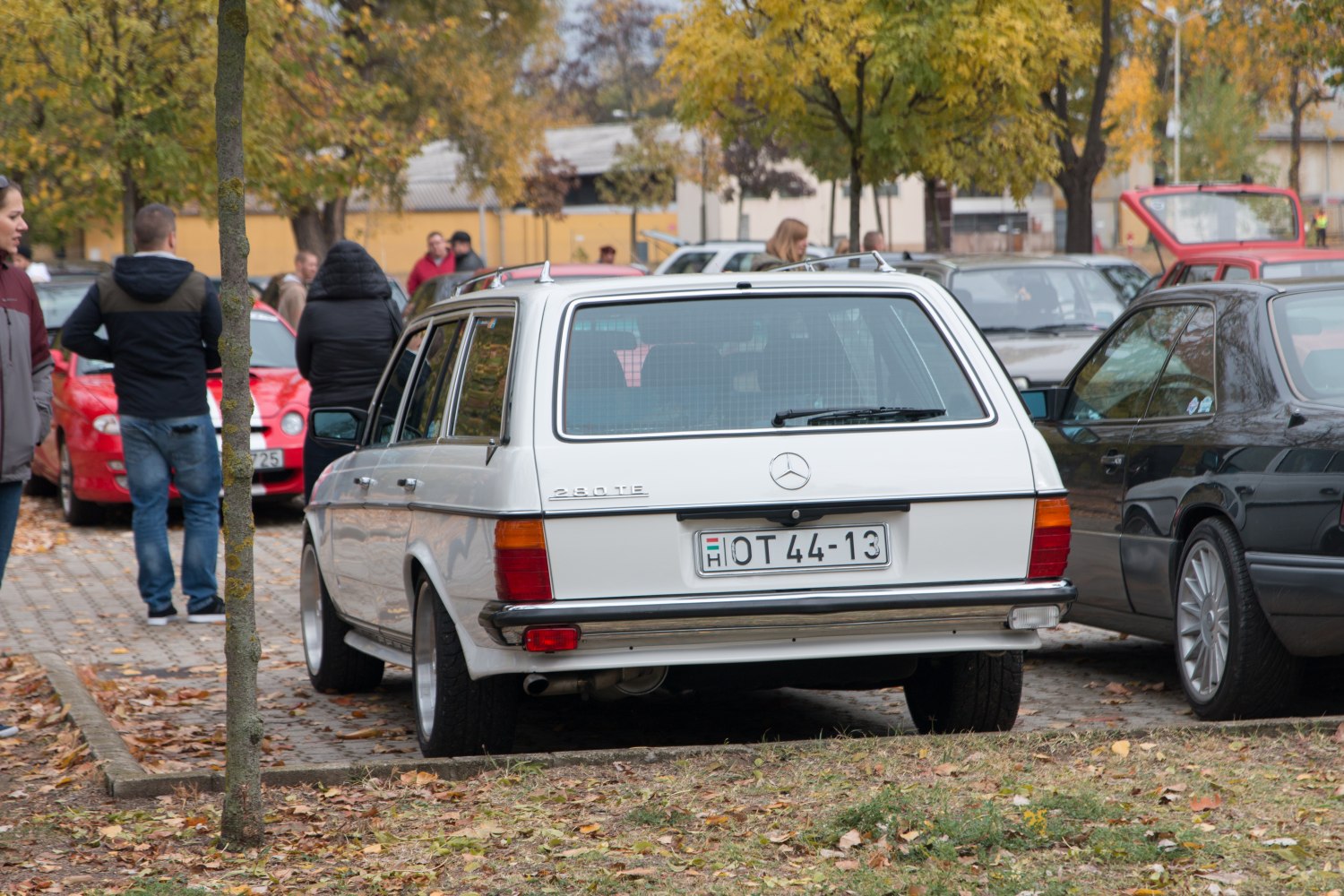

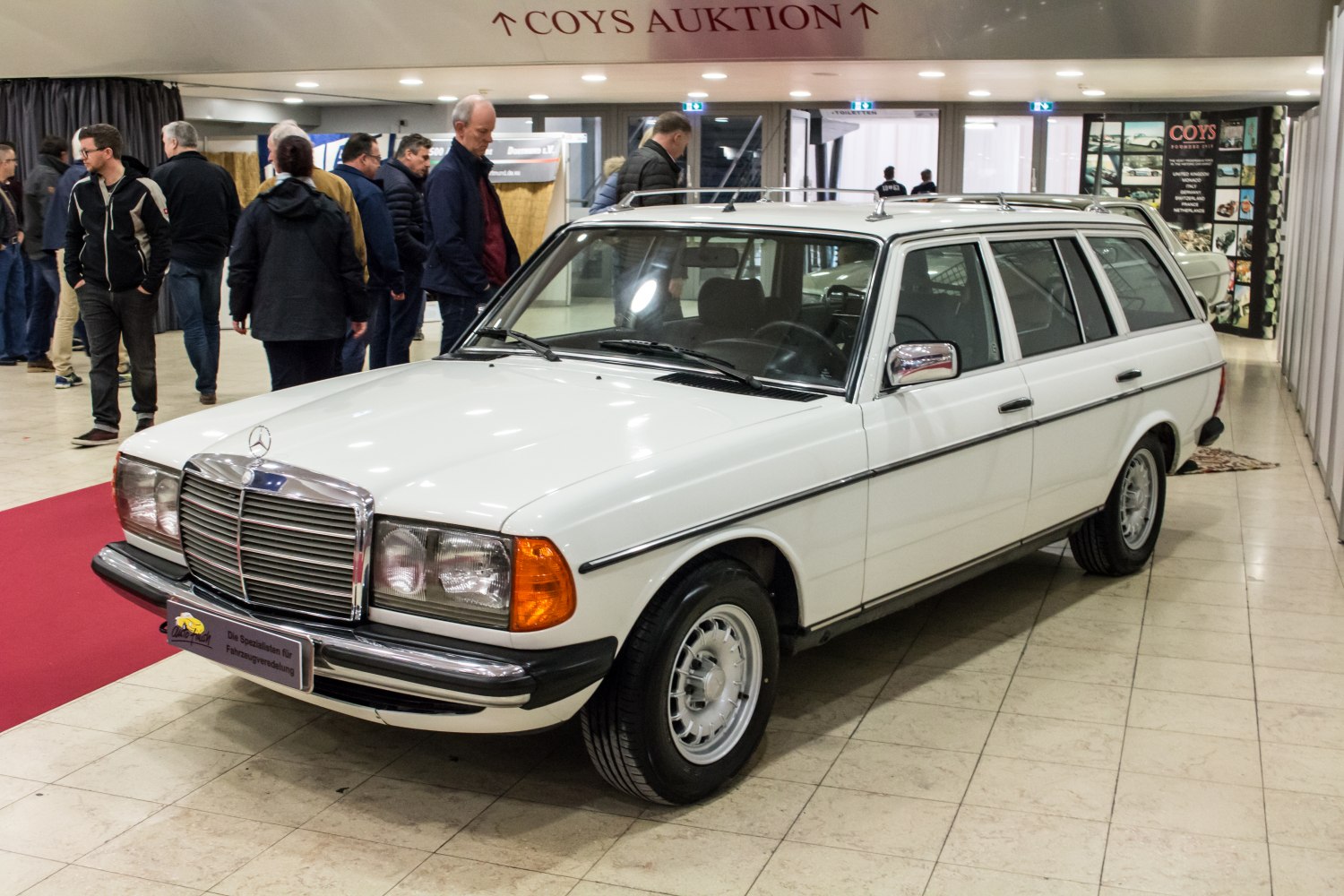

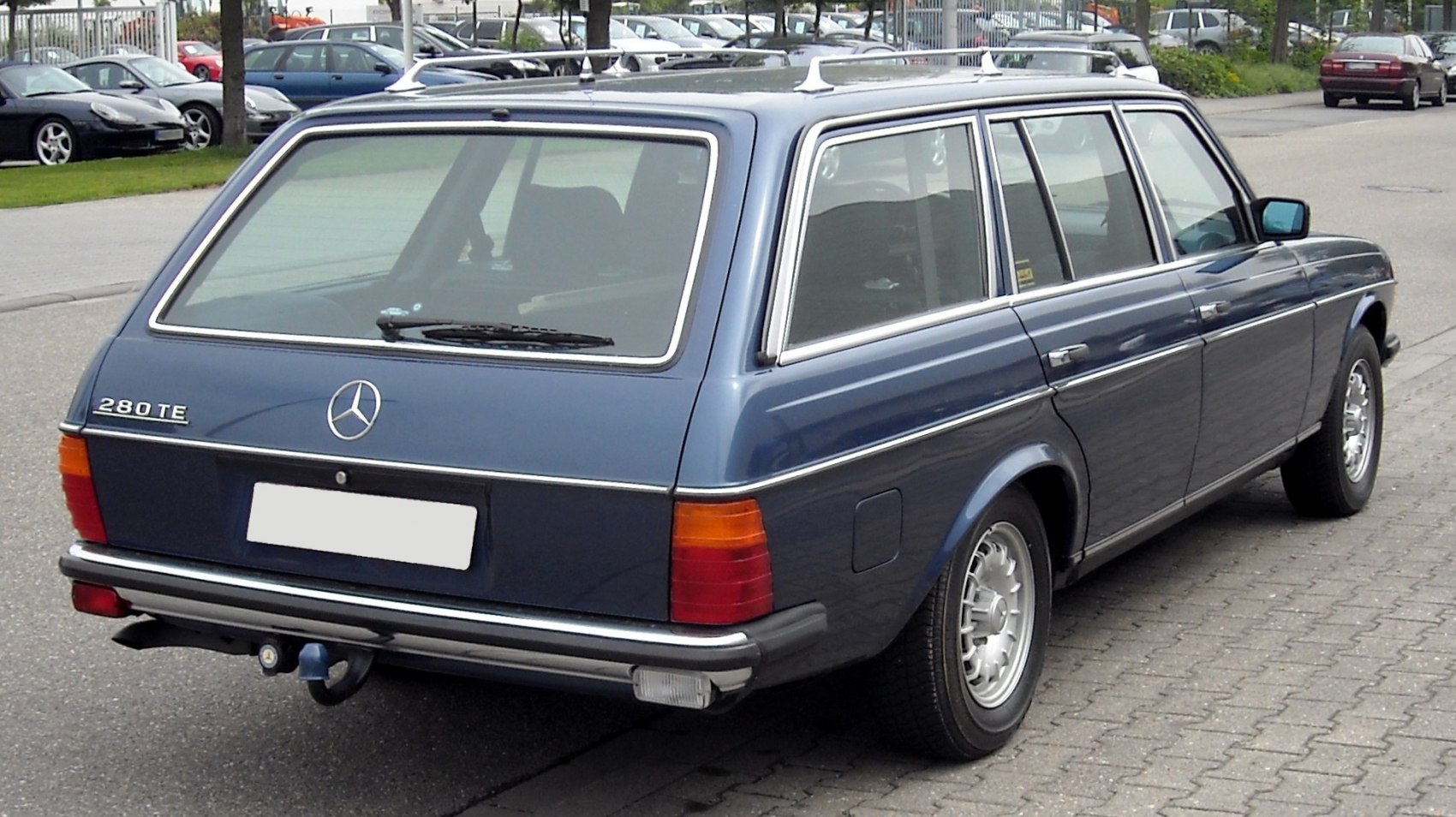

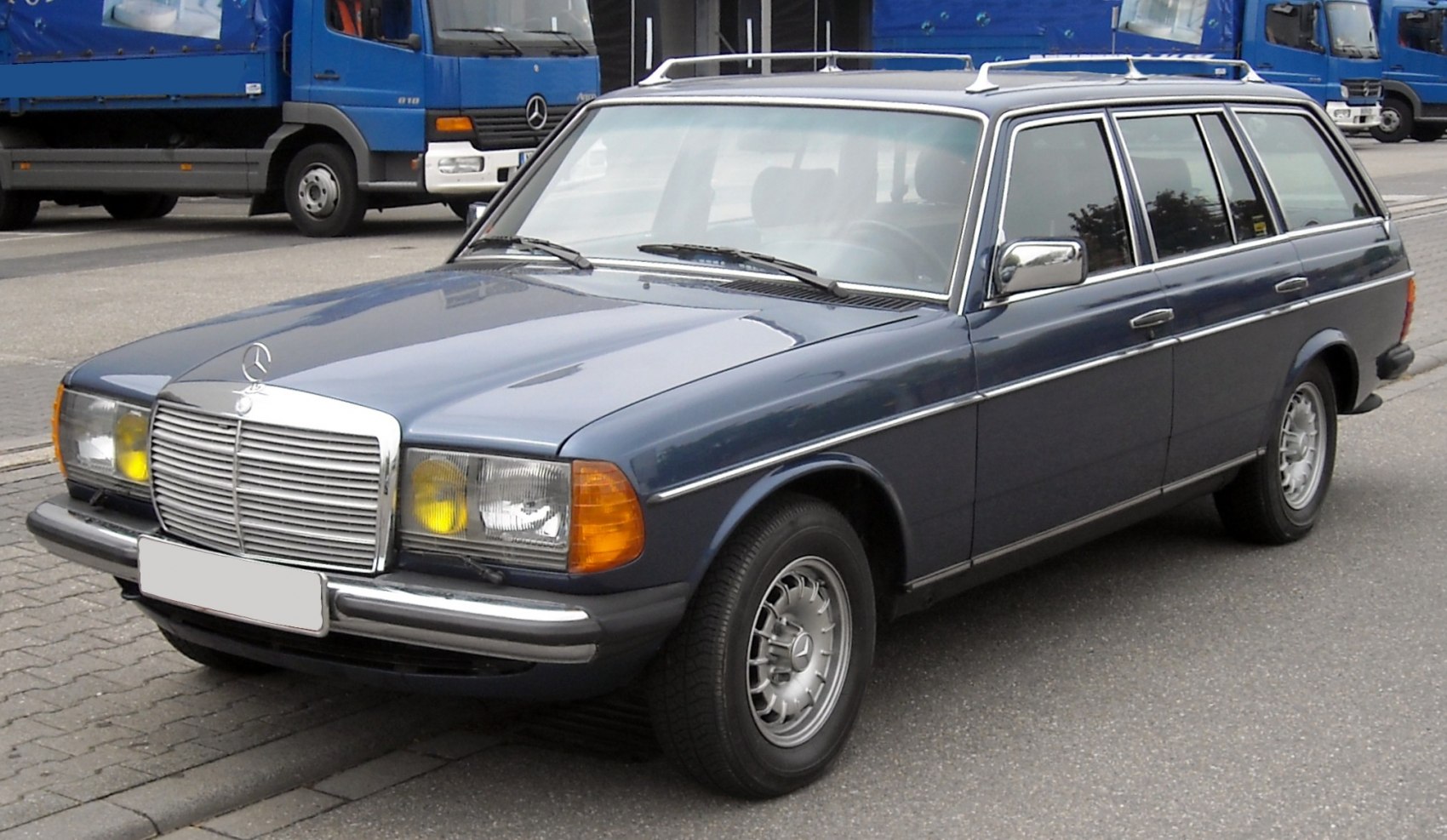

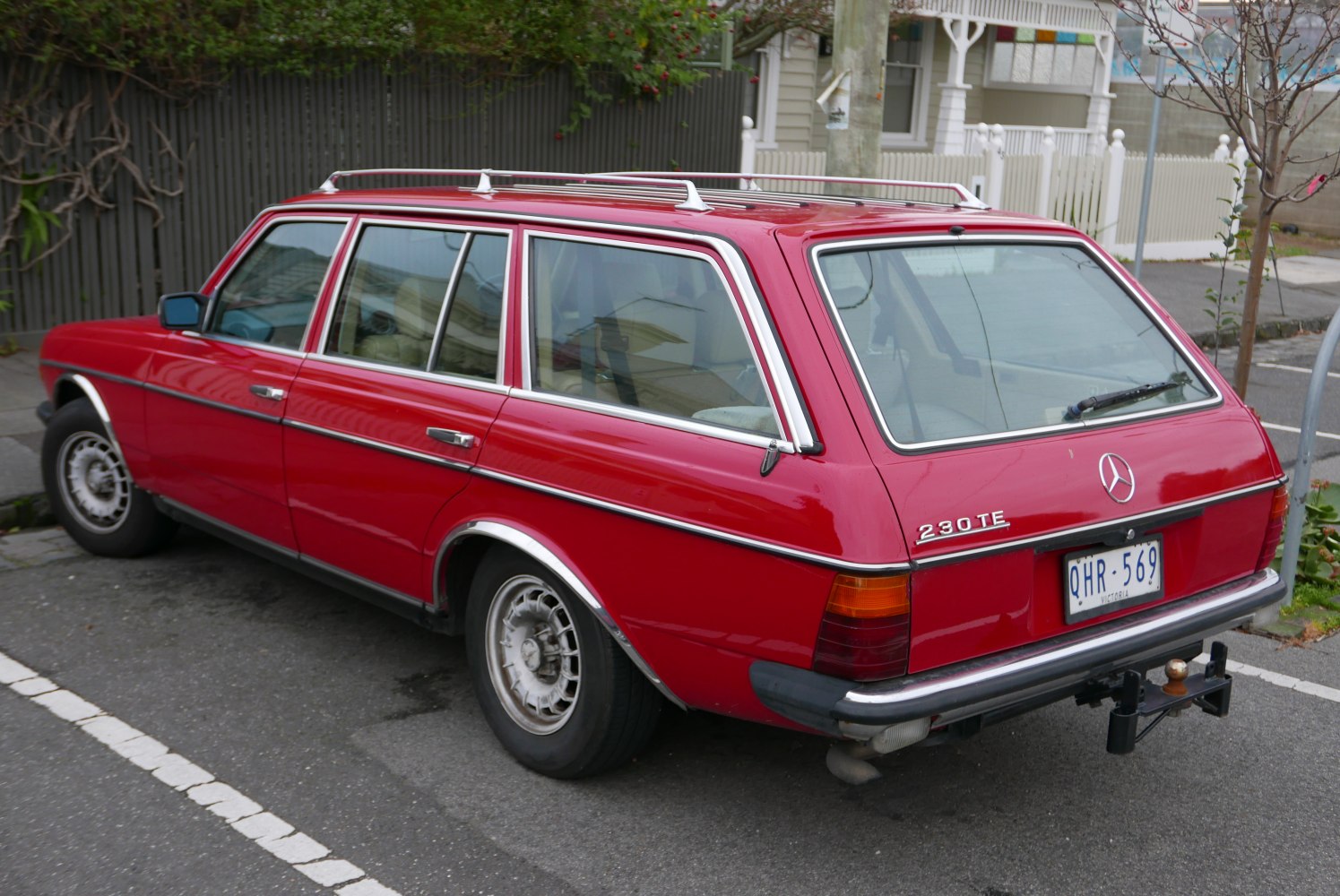

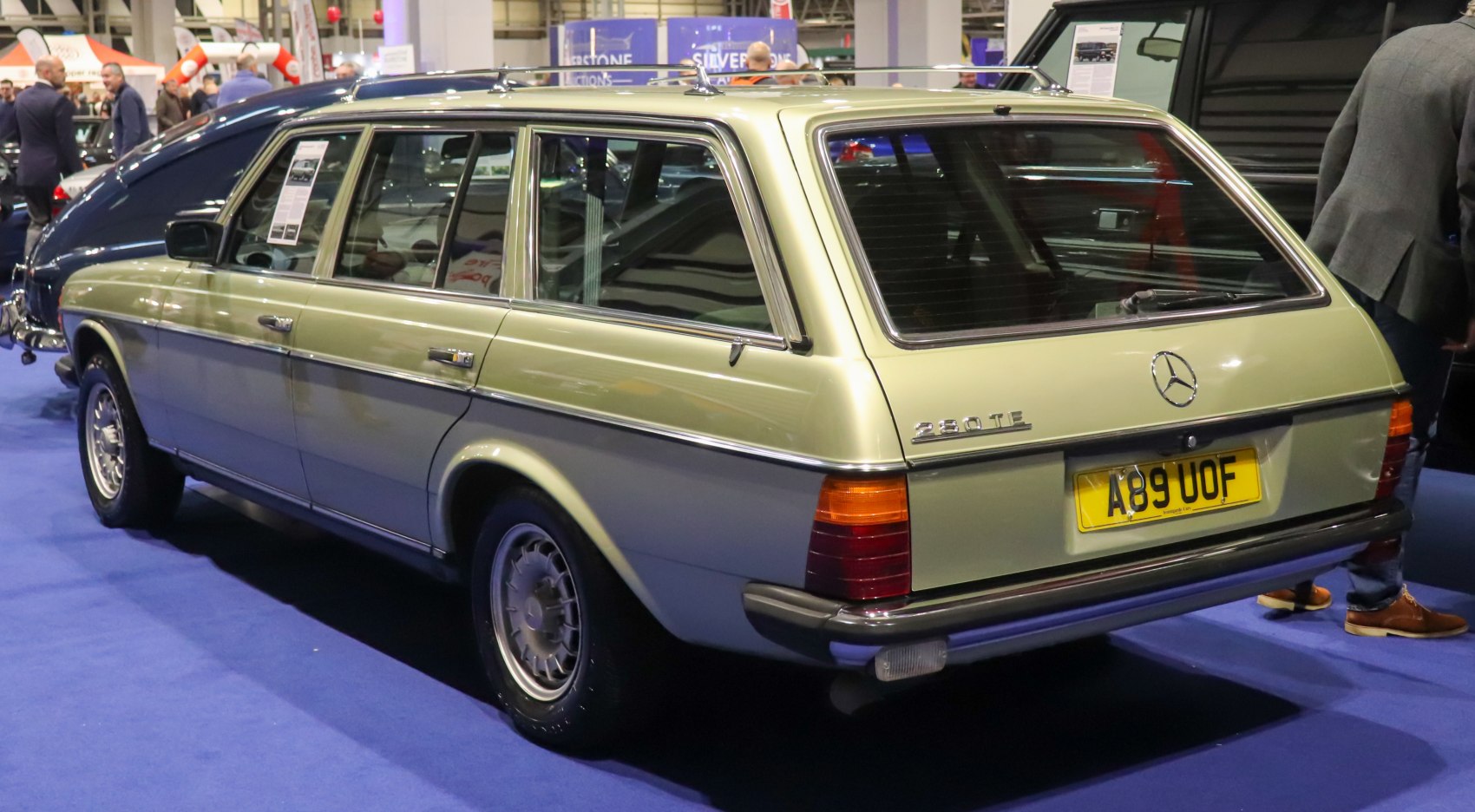

Vehicle photos
1 of 21
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
25 versions · 15 Gasoline · 10 Diesel fuel
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
200 T (101 KM)
Gasoline · 1980–1985
- Engine power
- 101 KM
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 200 T (101 KM)
- Engine type
- Combustion engine
- Start of production
- 1980
- End of production
- 1985
- Body type
- Station wagon
- Fuel type
- Gasoline
Engine
- Engine model / code
- M102.920
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 4.5 l
- Power
- 101 KM
Volume and weight
- Curb weight
- kg
Drivetrain, Brakes and suspension
- ABS
- no
Selected engine version
200 T (109 KM)
Gasoline · 1980–1986
- Engine power
- 109 KM
- Torque
- 170 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 15.3 s
- Maximum speed
- 168 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 200 T (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1980
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 168 km/h
- Acceleration 0-100 km/h
- 15.3 s
- Fuel consumption - Urban cycle
- 13.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.9 l/100 km
Engine
- Engine model / code
- M102V20/102.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 1997 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 89 mm
- Piston stroke
- 80.25 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.5 l
- Power
- 109 KM @ 5200 obr./min
- Torque
- 170 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1470 kg
- Gross weight
- 2090 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
230 T (109 KM)
Gasoline · 1978–1980
- Engine power
- 109 KM
- Torque
- 186 Nm
- Engine displacement
- 2,307 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.4 s
- Maximum speed
- 170 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 230 T (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1980
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 170 km/h
- Acceleration 0-100 km/h
- 14.4 s
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.4 l/100 km
Engine
- Engine model / code
- M115V23/115.954
- Engine position
- Front, Longitudinal
- Engine displacement
- 2307 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 93.75 mm
- Piston stroke
- 83.6 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10 l
- Power
- 109 KM @ 4800 obr./min
- Torque
- 186 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1470 kg
- Gross weight
- 2030 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
230 TE (136 KM)
Gasoline · 1979–1986
- Engine power
- 136 KM
- Torque
- 205 Nm
- Engine displacement
- 2,299 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 230 TE (136 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 13.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.1 l/100 km
Engine
- Engine model / code
- M102E23/102.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2299 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 95.5 mm
- Piston stroke
- 80.25 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.5 l
- Power
- 136 KM @ 5100 obr./min
- Torque
- 205 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1480 kg
- Gross weight
- 2100 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
240 TD (65 KM)
Diesel fuel · 1977–1979
- Engine power
- 65 KM
- Fuel type
- Diesel fuel
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 240 TD (65 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1977
- End of production
- 1979
- Body type
- Station wagon
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 160 km/h
Engine
- Engine model / code
- OM616D24/616.912
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 65 KM
Volume and weight
- Curb weight
- kg
Drivetrain, Brakes and suspension
- ABS
- no
Selected engine version
240 TD (72 KM) Manual 4-speed
Diesel fuel · 1978–1986
- Engine power
- 72 KM
- Torque
- 137 Nm
- Engine displacement
- 2,399 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 25.8 s
- Maximum speed
- 138 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 240 TD (72 KM) Manual 4-speed
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 138 km/h
- Acceleration 0-100 km/h
- 25.8 s
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
Engine
- Engine model / code
- OM616D24/616.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2399 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 10 l
- Power
- 72 KM @ 4400 obr./min
- Torque
- 137 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1515 kg
- Gross weight
- 2135 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
250 T (129 KM)
Gasoline · 1977–1979
- Engine power
- 129 KM
- Torque
- 196 Nm
- Engine displacement
- 2,525 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 250 T (129 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1979
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption - Urban cycle
- 16.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
Engine
- Engine model / code
- M123V25/123.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2525 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 72.45 mm
- Compression ratio
- 8.7
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 129 KM @ 5500 obr./min
- Torque
- 196 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1510 kg
- Gross weight
- 2130 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
250 T (140 KM)
Gasoline · 1979–1982
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 2,525 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 250 T (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1982
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption - Urban cycle
- 14.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 9 l/100 km
Engine
- Engine model / code
- M123V25/123.921
- Engine position
- Front, Longitudinal
- Engine displacement
- 2525 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 72.45 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 140 KM @ 5500 obr./min
- Torque
- 200 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1510 kg
- Gross weight
- 2130 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
280 TE (185 KM)
Gasoline · 1978–1986
- Engine power
- 185 KM
- Torque
- 240 Nm
- Engine displacement
- 2,746 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 280 TE (185 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.2 s
- Fuel consumption - Urban cycle
- 15 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.3 l/100 km
Engine
- Engine model / code
- M110E28/110.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 2746 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7 l
- Coolant capacity
- 10 l
- Power
- 185 KM @ 5800 obr./min
- Torque
- 240 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1560 kg
- Gross weight
- 2180 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD (80 KM)
Diesel fuel · 1977–1979
- Engine power
- 80 KM
- Torque
- 172 Nm
- Engine displacement
- 3,005 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 20.9 s
- Maximum speed
- 148 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD (80 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1979
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 148 km/h
- Acceleration 0-100 km/h
- 20.9 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 8 l/100 km
Engine
- Engine model / code
- OM617D30/617.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 3005 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 91 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 11 l
- Power
- 80 KM @ 4000 obr./min
- Torque
- 172 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1570 kg
- Gross weight
- 2190 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD (88 KM) Manual 4-speed
Diesel fuel · 1979–1986
- Engine power
- 88 KM
- Torque
- 172 Nm
- Engine displacement
- 2,998 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 18.9 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD (88 KM) Manual 4-speed
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 18.9 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
Engine
- Engine model / code
- OM617D30/617.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2998 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 11 l
- Power
- 88 KM @ 4400 obr./min
- Torque
- 172 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1570 kg
- Gross weight
- 2190 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD Turbodiesel (125 KM) Automatic
Diesel fuel · 1979–1986
- Engine power
- 125 KM
- Torque
- 250 Nm
- Engine displacement
- 2,998 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15 s
- Maximum speed
- 165 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD Turbodiesel (125 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 165 km/h
- Acceleration 0-100 km/h
- 15 s
- Fuel consumption - Urban cycle
- 10.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 8 l/100 km
Engine
- Engine model / code
- OM617D30A/617.952
- Engine position
- Front, Longitudinal
- Engine displacement
- 2998 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 11 l
- Power
- 125 KM @ 4350 obr./min
- Torque
- 250 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1620 kg
- Gross weight
- 2230 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
230 TE (136 KM) Automatic
Gasoline · 1979–1986
- Engine power
- 136 KM
- Torque
- 205 Nm
- Engine displacement
- 2,299 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 13.1 s
- Maximum speed
- 175 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 230 TE (136 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 175 km/h
- Acceleration 0-100 km/h
- 13.1 s
- Fuel consumption - Urban cycle
- 13.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.6 l/100 km
Engine
- Engine model / code
- M102E23/102.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2299 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 95.5 mm
- Piston stroke
- 80.25 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.5 l
- Power
- 136 KM @ 5100 obr./min
- Torque
- 205 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1480 kg
- Gross weight
- 2100 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
250 T (129 KM) Automatic
Gasoline · 1977–1979
- Engine power
- 129 KM
- Torque
- 196 Nm
- Engine displacement
- 2,525 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.9 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 250 T (129 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1979
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.9 s
- Fuel consumption - Urban cycle
- 14.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.5 l/100 km
Engine
- Engine model / code
- M123V25/123.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2525 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 72.45 mm
- Compression ratio
- 8.7
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 129 KM @ 5500 obr./min
- Torque
- 196 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1510 kg
- Gross weight
- 2130 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
280 TE (177 KM)
Gasoline · 1977–1978
- Engine power
- 177 KM
- Torque
- 234 Nm
- Engine displacement
- 2,746 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 280 TE (177 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1978
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.2 s
- Fuel consumption - Urban cycle
- 17.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
Engine
- Engine model / code
- M110E28/110.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 2746 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 8.7
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7 l
- Coolant capacity
- 10 l
- Power
- 177 KM @ 6000 obr./min
- Torque
- 234 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1560 kg
- Gross weight
- 2180 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
250 T (140 KM) Automatic
Gasoline · 1979–1982
- Engine power
- 140 KM
- Torque
- 200 Nm
- Engine displacement
- 2,525 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.9 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 250 T (140 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1982
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.9 s
- Fuel consumption - Urban cycle
- 14.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.5 l/100 km
Engine
- Engine model / code
- M123V25/123.921
- Engine position
- Front, Longitudinal
- Engine displacement
- 2525 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 72.45 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 140 KM @ 5500 obr./min
- Torque
- 200 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1510 kg
- Gross weight
- 2130 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
200 T (109Hp) Automatic
Gasoline · 1980–1986
- Engine power
- 109 KM
- Torque
- 170 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 16.4 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 200 T (109Hp) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1980
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 16.4 s
- Fuel consumption - Urban cycle
- 12.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.6 l/100 km
Engine
- Engine model / code
- M102V20/102.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 1997 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 89 mm
- Piston stroke
- 80.25 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 8.5 l
- Power
- 109 KM @ 5200 obr./min
- Torque
- 170 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1470 kg
- Gross weight
- 2090 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
230 T (109 KM) Automatic
Gasoline · 1978–1980
- Engine power
- 109 KM
- Torque
- 186 Nm
- Engine displacement
- 2,307 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.8 s
- Maximum speed
- 165 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 230 T (109 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1980
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 165 km/h
- Acceleration 0-100 km/h
- 14.8 s
- Fuel consumption - Urban cycle
- 15.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
Engine
- Engine model / code
- M115V23/115.954
- Engine position
- Front, Longitudinal
- Engine displacement
- 2307 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 93.75 mm
- Piston stroke
- 83.6 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10 l
- Power
- 109 KM @ 4800 obr./min
- Torque
- 186 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1470 kg
- Gross weight
- 2030 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD (88 KM) Automatic
Diesel fuel · 1979–1986
- Engine power
- 88 KM
- Torque
- 172 Nm
- Engine displacement
- 2,998 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 20.4 s
- Maximum speed
- 150 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD (88 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 150 km/h
- Acceleration 0-100 km/h
- 20.4 s
- Fuel consumption - Urban cycle
- 9.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.1 l/100 km
Engine
- Engine model / code
- OM617D30/617.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.41 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 11 l
- Power
- 88 KM @ 4400 obr./min
- Torque
- 172 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1570 kg
- Gross weight
- 2190 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD (88 KM) Manual 5-speed
Diesel fuel · 1979–1986
- Engine power
- 88 KM
- Torque
- 172 Nm
- Engine displacement
- 2,998 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 18.9 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD (88 KM) Manual 5-speed
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1979
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 18.9 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 7 l/100 km
Engine
- Engine model / code
- OM617D30/617.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 90.91 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 11 l
- Power
- 88 KM @ 4400 obr./min
- Torque
- 172 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1570 kg
- Gross weight
- 2190 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
240 TD (72 KM) Automatic
Diesel fuel · 1978–1986
- Engine power
- 72 KM
- Torque
- 137 Nm
- Engine displacement
- 2,399 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 28.8 s
- Maximum speed
- 133 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 240 TD (72 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 133 km/h
- Acceleration 0-100 km/h
- 28.8 s
- Fuel consumption - Urban cycle
- 9.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.7 l/100 km
Engine
- Engine model / code
- OM616D24/616.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2399 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 10 l
- Power
- 72 KM @ 4400 obr./min
- Torque
- 137 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1515 kg
- Gross weight
- 2135 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
300 TD (80 KM) Automatic
Diesel fuel · 1977–1979
- Engine power
- 80 KM
- Torque
- 172 Nm
- Engine displacement
- 3,005 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 21.9 s
- Maximum speed
- 143 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 300 TD (80 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1979
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 143 km/h
- Acceleration 0-100 km/h
- 21.9 s
- Fuel consumption - Urban cycle
- 10.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.4 l/100 km
Engine
- Engine model / code
- OM617D30/617.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 3005 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 91.01 mm
- Piston stroke
- 92.41 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 11 l
- Power
- 80 KM @ 4000 obr./min
- Torque
- 172 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1570 kg
- Gross weight
- 2190 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
240 TD (72 KM) Manual 5-speed
Diesel fuel · 1978–1986
- Engine power
- 72 KM
- Torque
- 137 Nm
- Engine displacement
- 2,399 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 23.2 s
- Maximum speed
- 143 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 240 TD (72 KM) Manual 5-speed
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 143 km/h
- Acceleration 0-100 km/h
- 23.2 s
- Fuel consumption - Urban cycle
- 9.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.3 l/100 km
Engine
- Engine model / code
- OM616D24/616.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 2399 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 90.9 mm
- Piston stroke
- 92.4 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 8 l
- Coolant capacity
- 10 l
- Power
- 72 KM @ 4400 obr./min
- Torque
- 137 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- Curb weight
- 1515 kg
- Gross weight
- 2135 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
280 TE (185 KM) Automatic
Gasoline · 1978–1986
- Engine power
- 185 KM
- Torque
- 240 Nm
- Engine displacement
- 2,746 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 280 TE (185 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1978
- End of production
- 1986
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Urban cycle
- 17.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.9 l/100 km
Engine
- Engine model / code
- M110E28/110.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 2746 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 10 l
- Power
- 185 KM @ 5800 obr./min
- Torque
- 240 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1560 kg
- Gross weight
- 2180 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
Selected engine version
280 TE (177 KM) Automatic
Gasoline · 1977–1978
- Engine power
- 177 KM
- Torque
- 234 Nm
- Engine displacement
- 2,746 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W123 S123- Brand
- Mercedes-Benz
- Model
- W123
- Version
- S123
- Engine
- 280 TE (177 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1977
- End of production
- 1978
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Urban cycle
- 17.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.9 l/100 km
Engine
- Engine model / code
- M110E28/110.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 2746 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 8.7
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7 l
- Coolant capacity
- 10 l
- Power
- 177 KM @ 6000 obr./min
- Torque
- 234 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1560 kg
- Gross weight
- 2180 kg
Vehicle dimensions
- Length
- 4725 mm
- Width
- 1786 mm
- Height
- 1470 mm
- Wheelbase
- 2795 mm
- Front track
- 1488 mm
- Rear track
- 1453 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R14;195/70 R14
- Rim size
- 6J x 14;6J x 14
- ABS
- no
