Vehicle specifications

Lexus ES V (XV40)

Compare all 1 engine versions of the Lexus ES ES V (XV40), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Lexus ES V (XV40)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

Vehicle photos

1 of 7

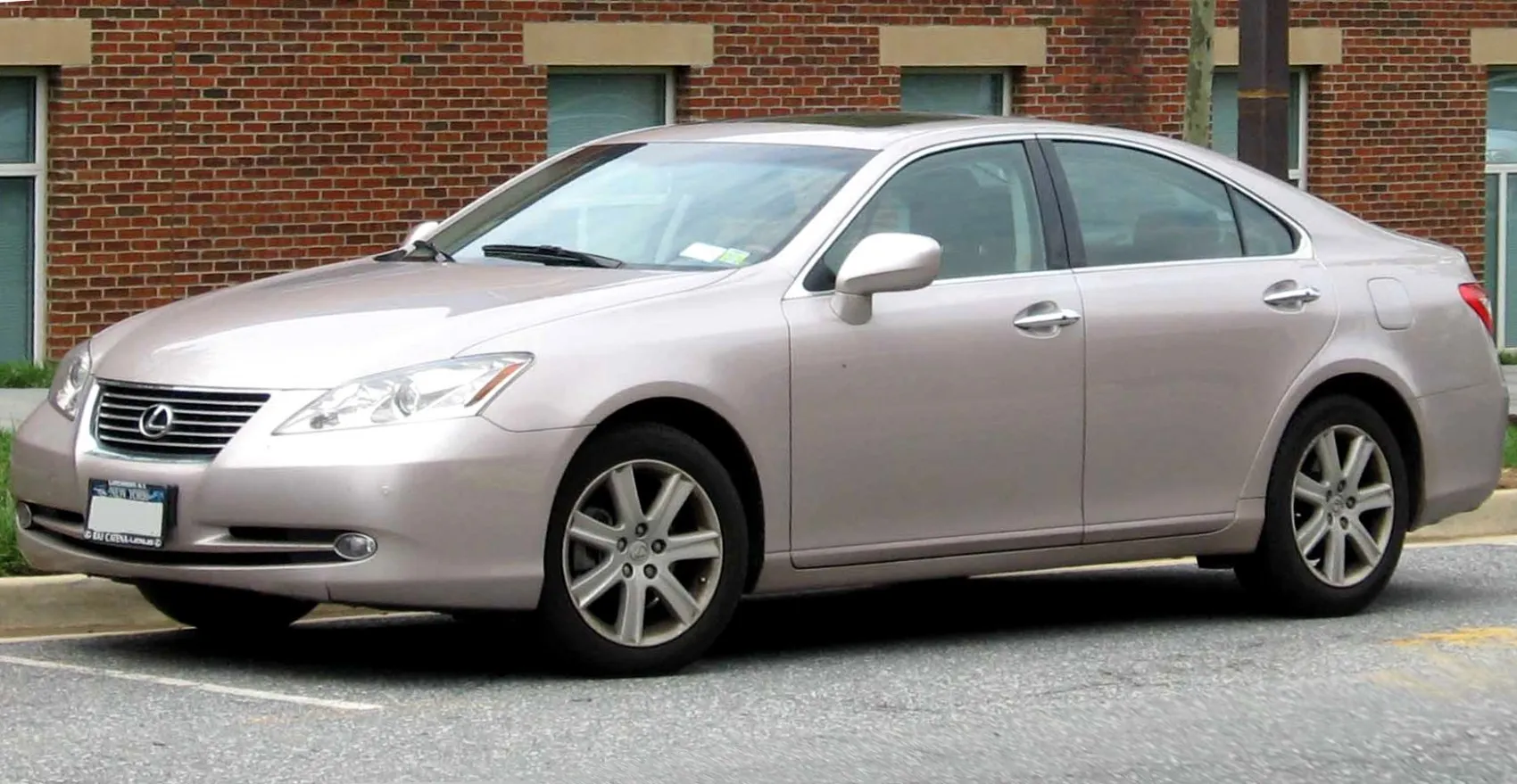

Lexus ES ES V (XV40) — Photo: Daniel R. Tobias (username Dtobias [commons, en, etc.]), CC BY-SA 3.0 <http://creativecommons.org/licenses/by-sa/3.0/>, via Wikimedia Commons

Lexus ES ES V (XV40) — 1 — Photo: Daniel R. Tobias (username Dtobias [commons, en, etc.]), CC BY-SA 3.0 <http://creativecommons.org/licenses/by-sa/3.0/>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

1 versions · 1 Gasoline

Engine	Fuel	Power	Production
350 (275 KM) Selected	Gasoline	275 KM	2006–2012

Selected engine version

350 (275 KM)

Gasoline · 2006–2012

Engine power: 275 KM
Torque: 344 Nm
Engine displacement: 3,456 cm³
Fuel type: Gasoline
Acceleration 0-100 km/h: 6.8 s
Maximum speed: 220 km/h

On this page

Check vehicle history

Basic version information

Lexus ES ES V (XV40)

Brand: Lexus
Model: ES
Version: ES V (XV40)
Engine: 350 (275 KM)
Engine type: Combustion engine
Number of doors: 4
Start of production: 2006
End of production: 2012
Body type: Sedan
Number of seats: 5
Fuel type: Gasoline

Performance

Maximum speed: 220 km/h
Acceleration 0-100 km/h: 6.8 s

Engine

Engine model / code: 2GR-FE
Engine position: Front, Transverse
Engine displacement: 3456 cm³
Fuel injection system: Multi-point injection
Engine type: Naturally aspirated engine
Engine configuration: V-shaped
Number of cylinders: 6
Cylinder bore: 94 mm
Piston stroke: 83 mm
Compression ratio: 10.8
Number of valves per cylinder: 4
Engine oil capacity: 6.1 l
Coolant capacity: 9 l
Power: 275 KM @ 6200 obr./min
Torque: 344 Nm

Volume and weight

Fuel tank: 70 l
Maximum trunk capacity: 425 l
Curb weight: 1635 kg

Vehicle dimensions

Length: 4854 mm
Width: 1820 mm
Height: 1455 mm
Wheelbase: 2775 mm
Front track: 1575 mm
Rear track: 1565 mm

Drivetrain, Brakes and suspension

Drive: Front-wheel drive
Number of gears: 6
Front suspension: Independent, McPherson type with coil spring and stabilizer bar
Rear suspension: Independent multi-link coil spring suspension with stabilizer
Front brakes: Ventilated disc
Rear brakes: Disc
Tire size: 215/55R17
ABS: yes
