Vehicle specifications
Land Rover Discovery IV
Compare all 8 engine versions of the Land Rover Discovery Discovery IV, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Land Rover Discovery IV? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Land Rover Discovery IV?
See the places on a 3D model →- VIN number
- Frame rail – between the axles, right side
- Identification plate
- Front panel (radiator support) · less certain (little data)

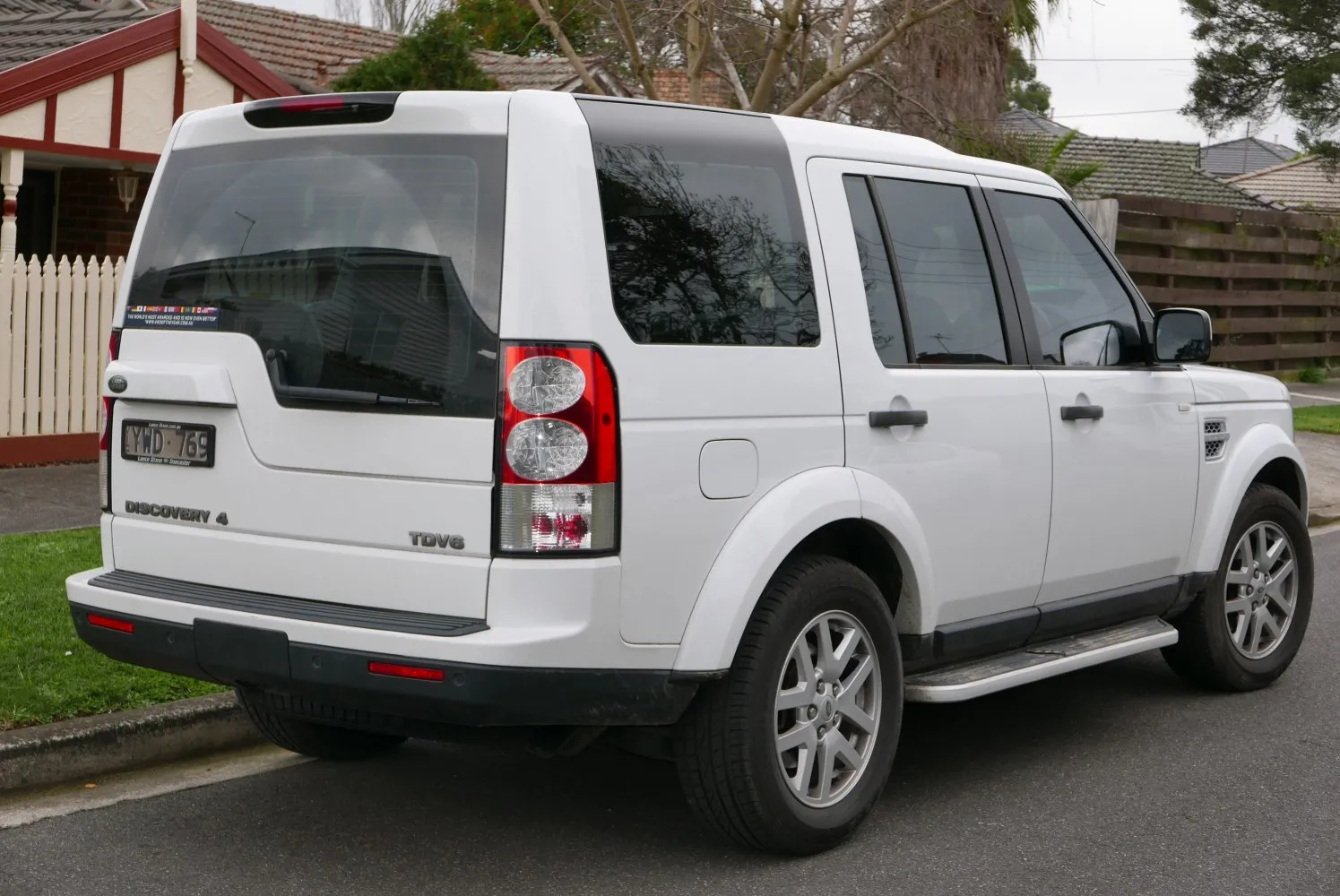

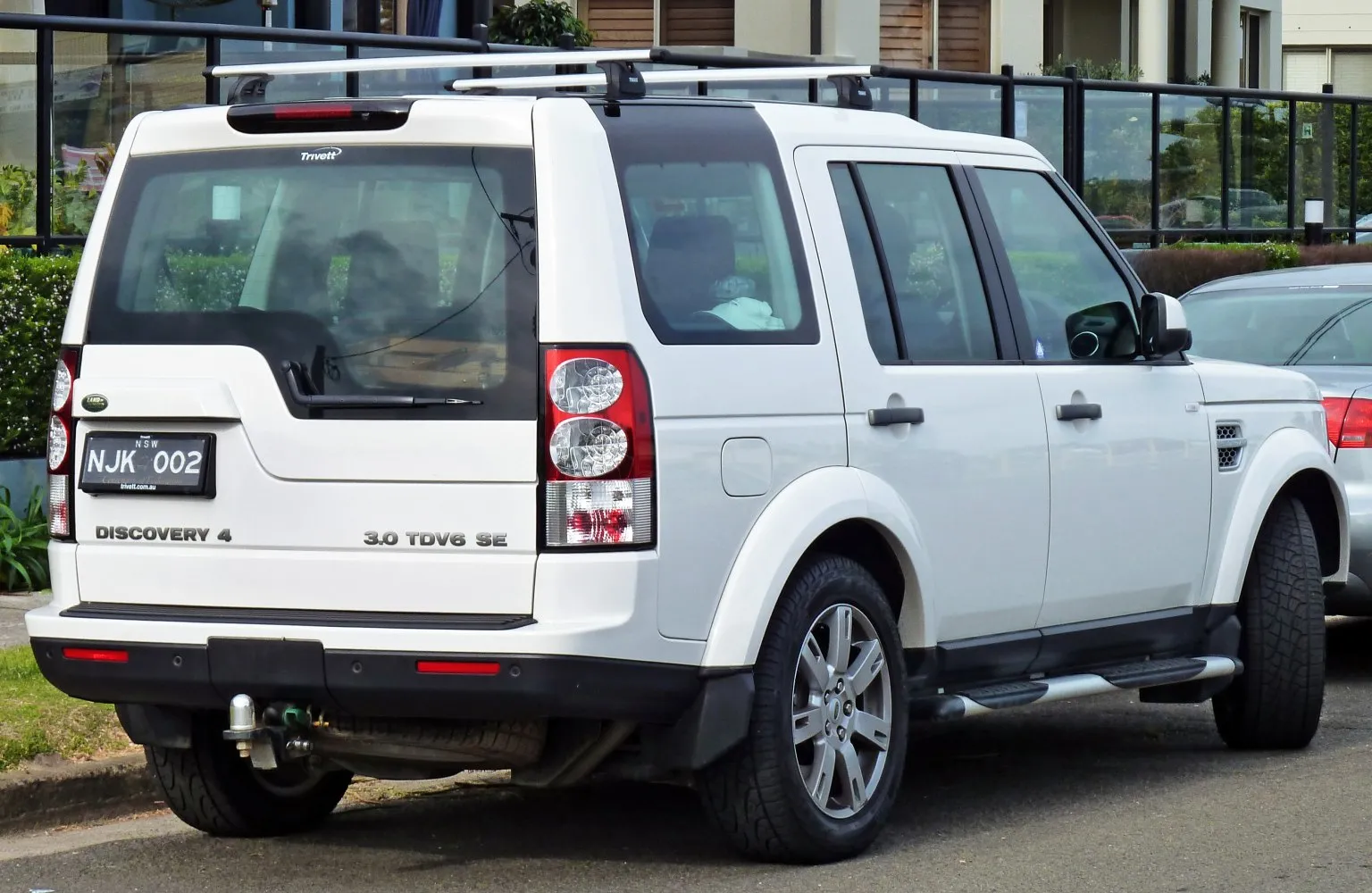

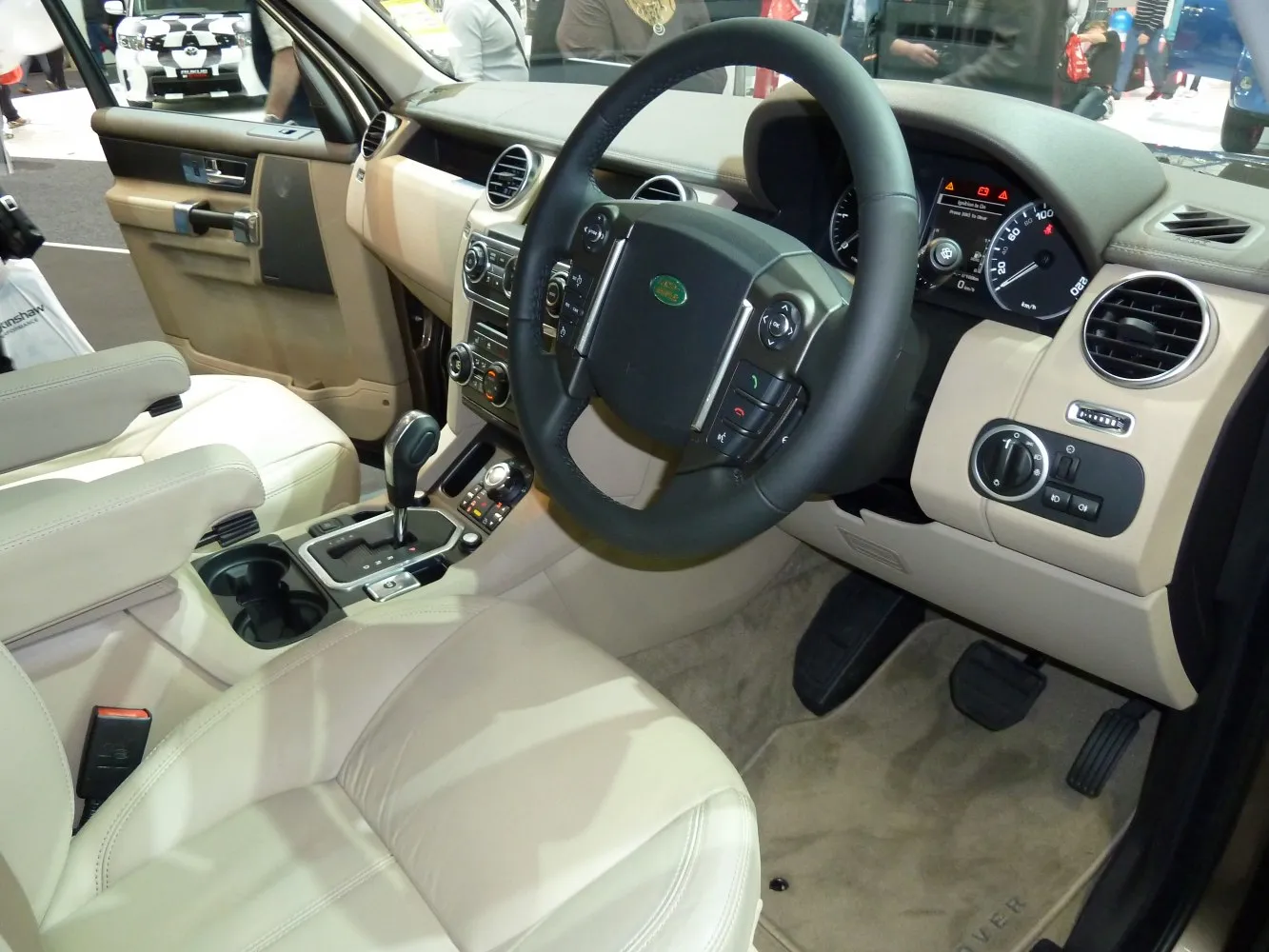

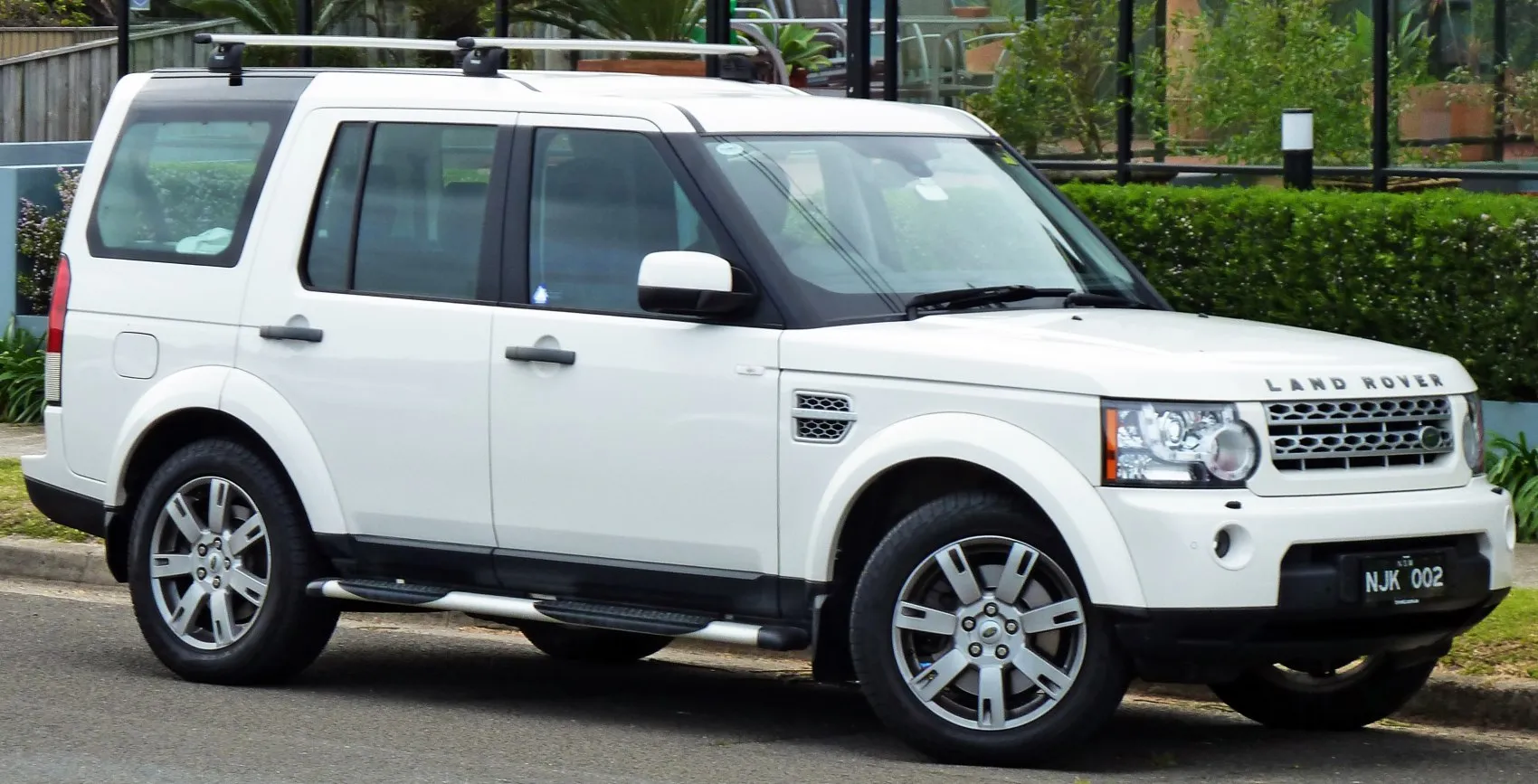

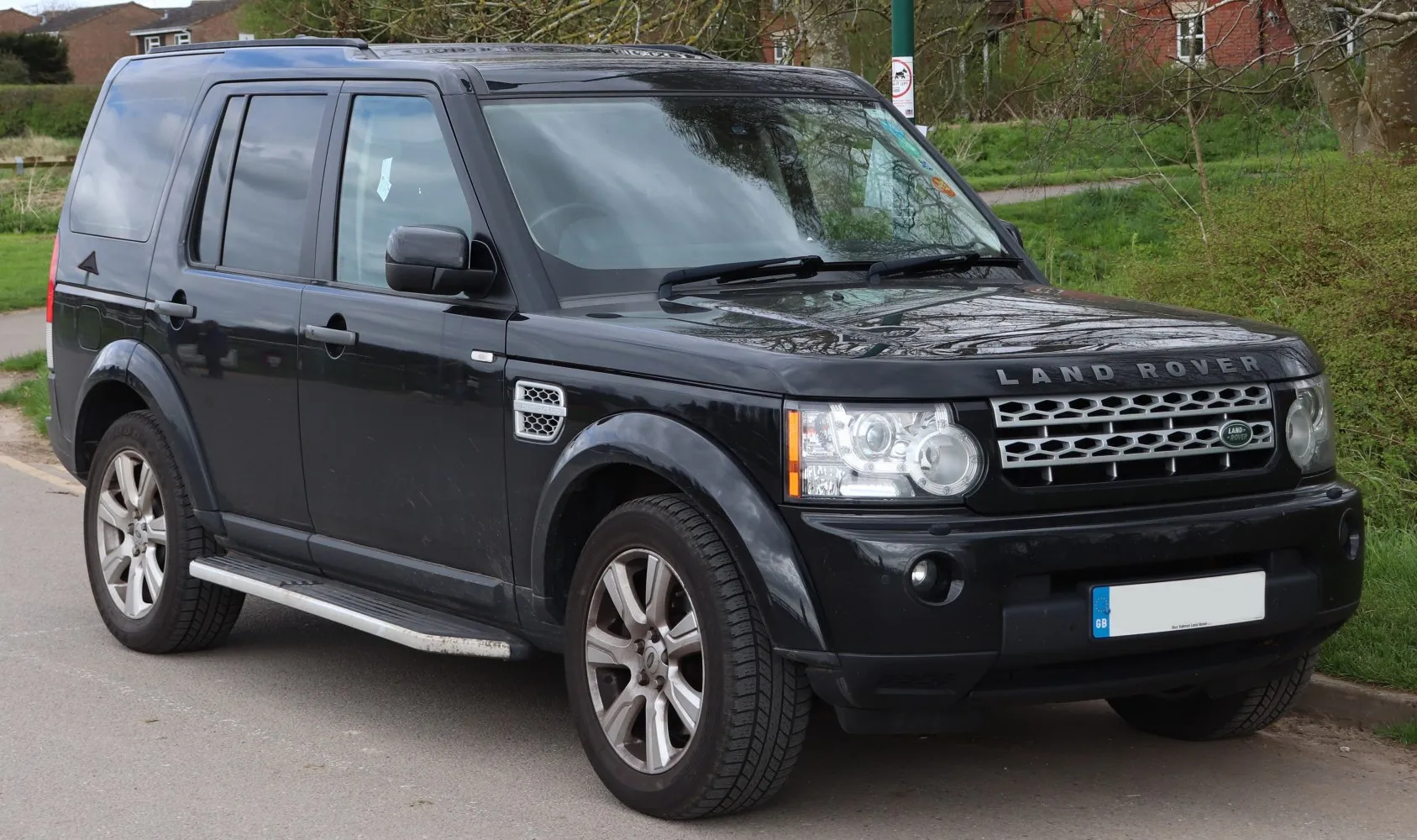

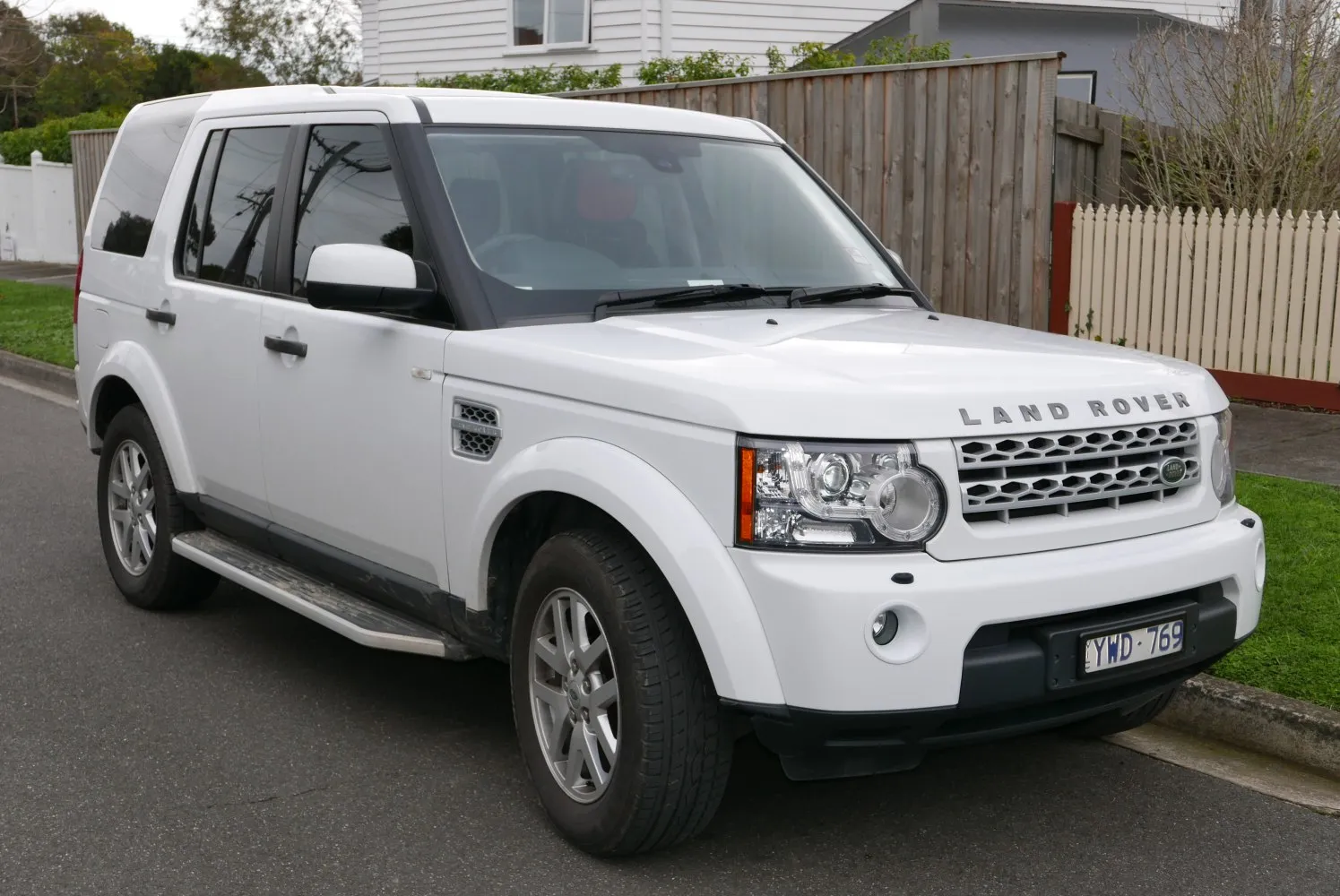

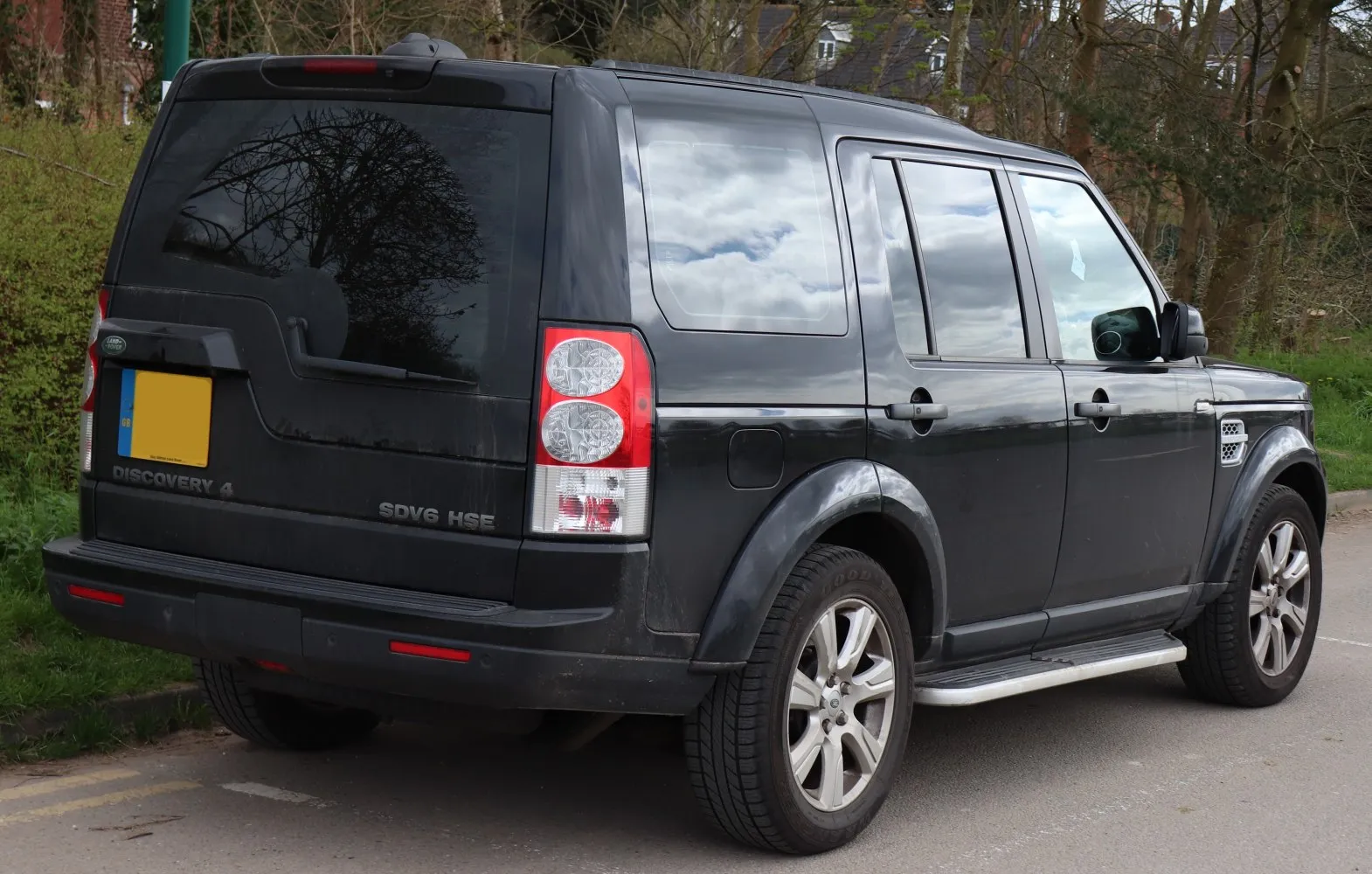

Vehicle photos
1 of 7
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 5 Diesel fuel · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.7 LR TD V6 (190 KM) AWD Selected | Diesel fuel | 190 KM | 2009–2013 |
| 2.7 LR TD V6 (190 KM) AWD Automatic Selected | Diesel fuel | 190 KM | 2009–2013 |
| 5.0 LR V8 (375 KM) AWD Automatic Selected | Gasoline | 375 KM | 2011–2013 |
| 4.0 LR V6 (216 KM) AWD Automatic Selected | Gasoline | 216 KM | 2009–2013 |
| 3.0 LR SD V6 (256 KM) AWD Automatic Selected | Diesel fuel | 256 KM | 2011–2013 |
| 3.0 LR TD V6 (245 KM) AWD Automatic Selected | Diesel fuel | 245 KM | 2009–2013 |
| 3.0 LR TD V6 (211 KM) AWD Automatic Selected | Diesel fuel | 211 KM | 2011–2013 |
| 5.0 V8 (375 KM) AWD Automatic Selected | Gasoline | 375 KM | 2009–2013 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.7 LR TD V6 (190 KM) AWD
Diesel fuel · 2009–2013
- Engine power
- 190 KM
- Torque
- 440 Nm
- Engine displacement
- 2,720 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.7 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 2.7 LR TD V6 (190 KM) AWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 11.7 s
- Fuel consumption - Combined cycle
- 9.2 l/100 km
- CO2 emissions
- 244 g/km
Engine
- Engine model / code
- 276DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2720 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81 mm
- Piston stroke
- 88 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.45 l
- Coolant capacity
- 16.7 l
- Power
- 190 KM @ 4000 obr./min
- Torque
- 440 Nm @ 1900 obr./min
Volume and weight
- Fuel tank
- 82.3 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Front track
- 1605 mm
- Rear track
- 1613 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.7 LR TD V6 (190 KM) AWD Automatic
Diesel fuel · 2009–2013
- Engine power
- 190 KM
- Torque
- 440 Nm
- Engine displacement
- 2,720 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.7 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 2.7 LR TD V6 (190 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.7 s
- Fuel consumption - Combined cycle
- 10.2 l/100 km
- CO2 emissions
- 270 g/km
Engine
- Engine model / code
- 276DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2720 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 81 mm
- Piston stroke
- 88 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.45 l
- Coolant capacity
- 16.7 l
- Power
- 190 KM @ 4000 obr./min
- Torque
- 440 Nm @ 1900 obr./min
Volume and weight
- Fuel tank
- 82.3 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Front track
- 1605 mm
- Rear track
- 1613 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
5.0 LR V8 (375 KM) AWD Automatic
Gasoline · 2011–2013
- Engine power
- 375 KM
- Torque
- 510 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 5.0 LR V8 (375 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2011
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption - Urban cycle
- 19.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.7 l/100 km
- Fuel consumption - Combined cycle
- 14.1 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 328 g/km
Engine
- Engine model / code
- AJ133
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 11.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 8 l
- Coolant capacity
- 17 l
- Power
- 375 KM @ 6500 obr./min
- Torque
- 510 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 86.3 l
- Aerodynamic drag coefficient (Cx)
- 0.40
- Curb weight
- kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
4.0 LR V6 (216 KM) AWD Automatic
Gasoline · 2009–2013
- Engine power
- 216 KM
- Torque
- 360 Nm
- Engine displacement
- 3,999 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 4.0 LR V6 (216 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Combined cycle
- 15.2 l/100 km
- CO2 emissions
- 359 g/km
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 3999 cm³
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 100.4 mm
- Piston stroke
- 84.2 mm
- Compression ratio
- 9.75
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.2 l
- Coolant capacity
- 10.8 l
- Power
- 216 KM @ 4500 obr./min
- Torque
- 360 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 86.3 l
- Curb weight
- kg
- Braked trailer load (8% slope start)
- 3500 kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Front track
- 1605 mm
- Rear track
- 1613 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
3.0 LR SD V6 (256 KM) AWD Automatic
Diesel fuel · 2011–2013
- Engine power
- 256 KM
- Torque
- 600 Nm
- Engine displacement
- 2,993 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 3.0 LR SD V6 (256 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2011
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption - Urban cycle
- 9.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.1 l/100 km
- Fuel consumption - Combined cycle
- 8.8 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 230 g/km
Engine
- Engine model / code
- 306DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2993 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- OHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 16.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 256 KM @ 4000 obr./min
- Torque
- 600 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 82.3 l
- Aerodynamic drag coefficient (Cx)
- 0.40
- Curb weight
- kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
3.0 LR TD V6 (245 KM) AWD Automatic
Diesel fuel · 2009–2013
- Engine power
- 245 KM
- Torque
- 600 Nm
- Engine displacement
- 2,993 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.6 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 3.0 LR TD V6 (245 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 9.6 s
- Fuel consumption - Combined cycle
- 9.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 244 g/km
Engine
- Engine model / code
- 306DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2993 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 245 KM @ 4000 obr./min
- Torque
- 600 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 82.3 l
- Curb weight
- kg
- Braked trailer load (8% slope start)
- 3500 kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Front track
- 1605 mm
- Rear track
- 1613 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
3.0 LR TD V6 (211 KM) AWD Automatic
Diesel fuel · 2011–2013
- Engine power
- 211 KM
- Torque
- 520 Nm
- Engine displacement
- 2,993 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.7 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 3.0 LR TD V6 (211 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2011
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 10.7 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
- Fuel consumption - Combined cycle
- 8.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 224 g/km
Engine
- Engine model / code
- 306DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2993 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- OHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 16.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 211 KM @ 4000 obr./min
- Torque
- 520 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 82.3 l
- Aerodynamic drag coefficient (Cx)
- 0.40
- Curb weight
- kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
5.0 V8 (375 KM) AWD Automatic
Gasoline · 2009–2013
- Engine power
- 375 KM
- Torque
- 510 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Land Rover Discovery Discovery IV- Brand
- Land Rover
- Model
- Discovery
- Version
- Discovery IV
- Engine
- 5.0 V8 (375 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5-7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption - Combined cycle
- 13.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 328 g/km
Engine
- Engine model / code
- AJ133
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DIVCT
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 11.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 8 l
- Coolant capacity
- 17 l
- Power
- 375 KM @ 6500 obr./min
- Torque
- 510 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 86.3 l
- Curb weight
- kg
- Braked trailer load (12% slope start)
- 3500 kg
Vehicle dimensions
- Length
- 4829 mm
- Width with folded mirrors
- 2022 mm
- Width with unfolded mirrors
- 2176 mm
- Height
- 1887 mm
- Wheelbase
- 2885 mm
- Front track
- 1605 mm
- Rear track
- 1613 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
