Vehicle specifications
KGM Korando Korando
Compare all 5 engine versions of the KGM Korando Korando, then open the technical data for the exact drivetrain and production year.

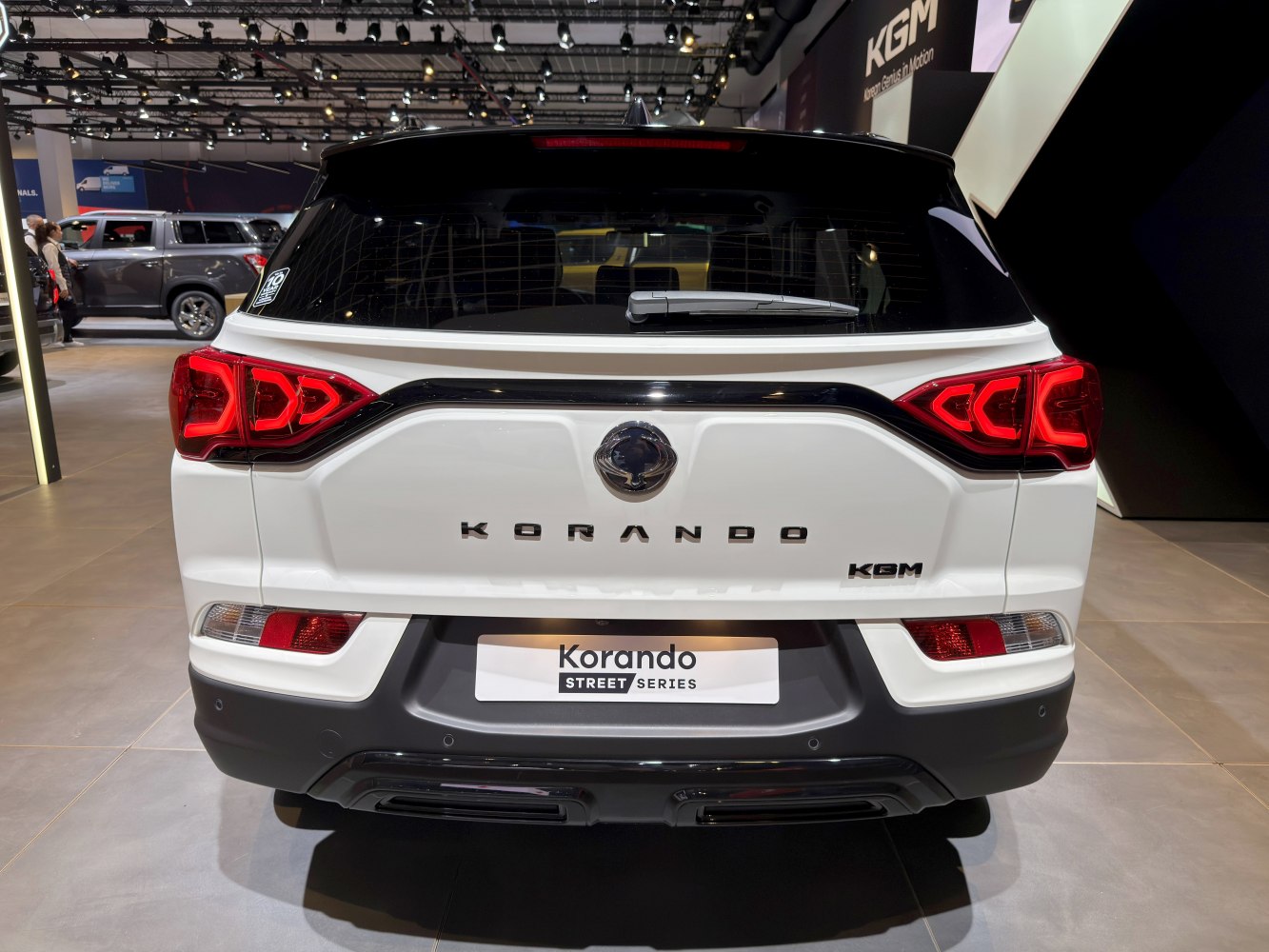

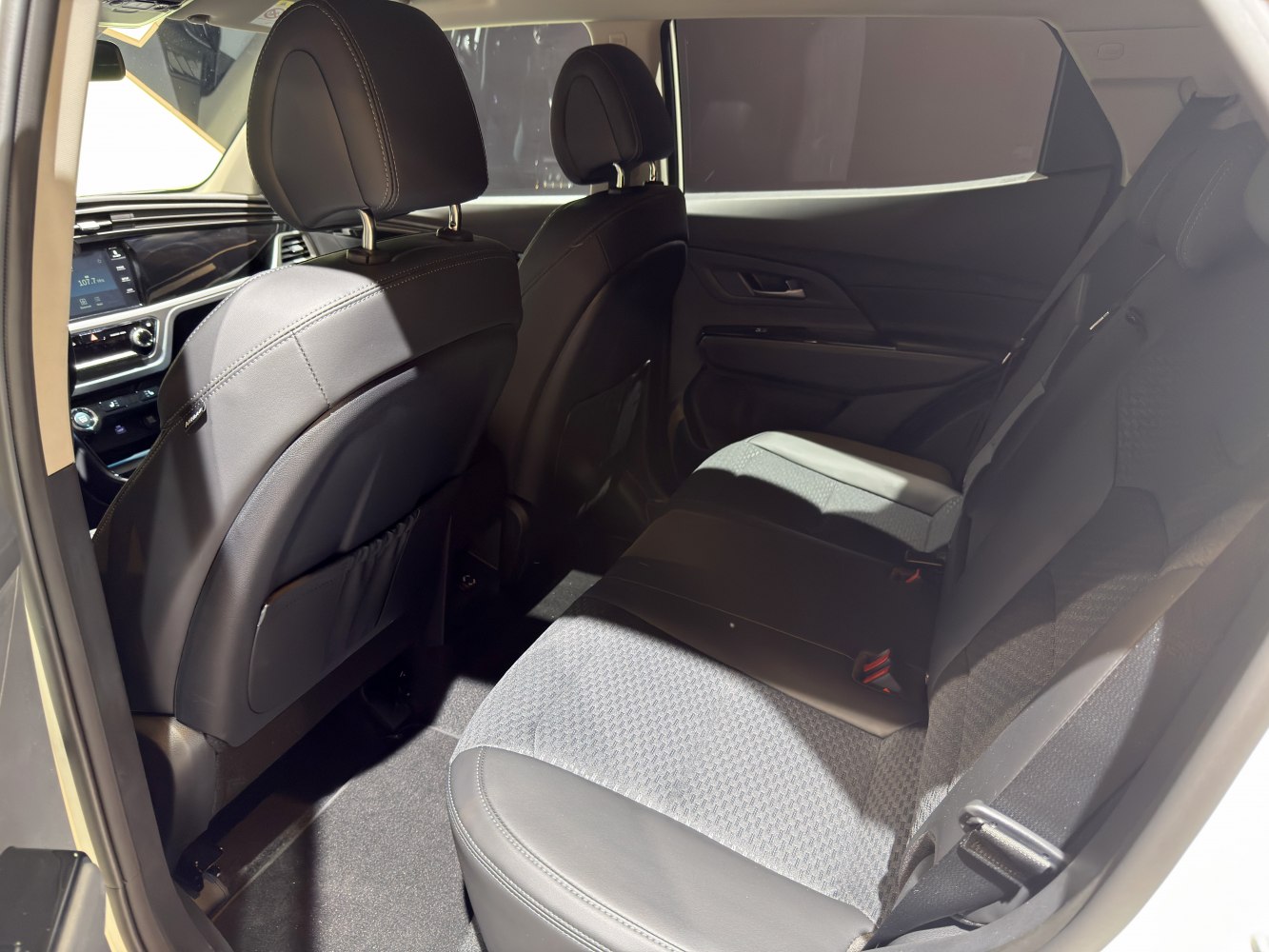

Vehicle photos
1 of 24
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 1 Electricity · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| e-Motion 61.5 kWh (190 KM) Selected | Electricity | 2023–present | |
| 1.5 T-GDI (163 KM) Selected | Gasoline | 163 KM | 2023–present |
| 1.5 T-GDI (163 KM) Automatic Selected | Gasoline | 163 KM | 2023–present |
| 1.5 T-GDI (163 KM) 4WD Selected | Gasoline | 163 KM | 2023–present |
| 1.5 T-GDI (163 KM) 4WD Automatic Selected | Gasoline | 163 KM | 2023–present |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
e-Motion 61.5 kWh (190 KM)
Electricity · 2023–present
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 8.5s
- Maximum speed
- 156km/h
On this page
Basic version information
KGM Korando Korando- Brand
- KGM
- Model
- Korando
- Version
- Korando
- Engine
- e-Motion 61.5 kWh (190 KM)
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2023
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Electricity
Performance
- Maximum speed
- 156 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Battery gross capacity
- 61.5 kWh
- Net battery capacity
- 55.3 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 339-346 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 16.8-19.4 kWh/100 km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Max electric motor power
- 190 KM
- Electric motor torque
- 360 Nm
- Electric motor position
- Front axle, Transverse
- System power
- 190 KM
- System torque
- 360 Nm
Volume and weight
- Minimum trunk capacity
- 551 l
- Maximum trunk capacity
- 1248 l
- Curb weight
- 1765-1822 kg
- Gross weight
- 2250 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4465 mm
- Width
- 1870 mm
- Height
- 1635 mm
- Wheelbase
- 2675 mm
- Front track
- 1590 mm
- Rear track
- 1610 mm
- Ground clearance
- 169 mm
- Approach angle
- 19.5 °
- Departure angle
- 25 °
- Ramp angle
- 15 °
- Front overhang
- 922 mm
- Rear overhang
- 868 mm
- Turning circle
- 10.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 1
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/65 R17
- Rim size
- 6.5J x 17
- ABS
- yes
Selected engine version
1.5 T-GDI (163 KM)
Gasoline · 2023–present
- Engine power
- 163KM
- Torque
- 280Nm
- Engine displacement
- 1,497cm³
- Fuel type
- Gasoline
- Maximum speed
- 191km/h
On this page
Basic version information
KGM Korando Korando- Brand
- KGM
- Model
- Korando
- Version
- Korando
- Engine
- 1.5 T-GDI (163 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2023
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 191 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 7.5-7.6 l/100 km
- Emission standard
- Euro 6d
- CO2 measurement standard
- WLTP
- CO2 emissions
- 171 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- G15DTF
- Engine position
- Front, Transverse
- Engine displacement
- 1497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 82.5 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7 l
- Power
- 163 KM @ 5000 obr./min
- Torque
- 280 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 551 l
- Maximum trunk capacity
- 1248 l
- Curb weight
- 1442 kg
- Gross weight
- 1980 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4450 mm
- Width
- 1870 mm
- Height
- 1630 mm
- Wheelbase
- 2675 mm
- Front track
- 1590 mm
- Rear track
- 1610 mm
- Ground clearance
- 180 mm
- Approach angle
- 18 °
- Departure angle
- 24.5 °
- Ramp angle
- 15.9 °
- Front overhang
- 910 mm
- Rear overhang
- 865 mm
- Turning circle
- 10.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/65 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
1.5 T-GDI (163 KM) Automatic
Gasoline · 2023–present
- Engine power
- 163KM
- Torque
- 260Nm
- Engine displacement
- 1,497cm³
- Fuel type
- Gasoline
- Maximum speed
- 189km/h
On this page
Basic version information
KGM Korando Korando- Brand
- KGM
- Model
- Korando
- Version
- Korando
- Engine
- 1.5 T-GDI (163 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2023
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 189 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 8 l/100 km
- Emission standard
- Euro 6d
- CO2 measurement standard
- WLTP
- CO2 emissions
- 182 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- G15DTF
- Engine position
- Front, Transverse
- Engine displacement
- 1497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 82.5 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7 l
- Power
- 163 KM @ 5000 obr./min
- Torque
- 260 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 551 l
- Maximum trunk capacity
- 1248 l
- Curb weight
- 1469 kg
- Gross weight
- 2005 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4450 mm
- Width
- 1870 mm
- Height
- 1630 mm
- Wheelbase
- 2675 mm
- Front track
- 1590 mm
- Rear track
- 1610 mm
- Ground clearance
- 180 mm
- Approach angle
- 18 °
- Departure angle
- 24.5 °
- Ramp angle
- 15.9 °
- Front overhang
- 910 mm
- Rear overhang
- 865 mm
- Turning circle
- 10.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/65 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
1.5 T-GDI (163 KM) 4WD
Gasoline · 2023–present
- Engine power
- 163KM
- Torque
- 280Nm
- Engine displacement
- 1,497cm³
- Fuel type
- Gasoline
- Maximum speed
- 191km/h
On this page
Basic version information
KGM Korando Korando- Brand
- KGM
- Model
- Korando
- Version
- Korando
- Engine
- 1.5 T-GDI (163 KM) 4WD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2023
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 191 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 8.1 l/100 km
- Emission standard
- Euro 6d
- CO2 measurement standard
- WLTP
- CO2 emissions
- 185 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- G15DTF
- Engine position
- Front, Transverse
- Engine displacement
- 1497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 82.5 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7 l
- Power
- 163 KM @ 5000 obr./min
- Torque
- 280 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 551 l
- Maximum trunk capacity
- 1248 l
- Curb weight
- 1508 kg
- Gross weight
- 2045 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4450 mm
- Width
- 1870 mm
- Height
- 1630 mm
- Wheelbase
- 2675 mm
- Front track
- 1590 mm
- Rear track
- 1610 mm
- Ground clearance
- 180 mm
- Approach angle
- 18 °
- Departure angle
- 24.5 °
- Ramp angle
- 15.9 °
- Front overhang
- 910 mm
- Rear overhang
- 865 mm
- Turning circle
- 10.7 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/65 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
1.5 T-GDI (163 KM) 4WD Automatic
Gasoline · 2023–present
- Engine power
- 163KM
- Torque
- 260Nm
- Engine displacement
- 1,497cm³
- Fuel type
- Gasoline
- Maximum speed
- 189km/h
On this page
Basic version information
KGM Korando Korando- Brand
- KGM
- Model
- Korando
- Version
- Korando
- Engine
- 1.5 T-GDI (163 KM) 4WD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2023
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 189 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 8.6 l/100 km
- Emission standard
- Euro 6d
- CO2 measurement standard
- WLTP
- CO2 emissions
- 197 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- G15DTF
- Engine position
- Front, Transverse
- Engine displacement
- 1497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 82.5 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7 l
- Power
- 163 KM @ 5000 obr./min
- Torque
- 260 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 551 l
- Maximum trunk capacity
- 1248 l
- Curb weight
- 1537 kg
- Gross weight
- 2075 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4450 mm
- Width
- 1870 mm
- Height
- 1630 mm
- Wheelbase
- 2675 mm
- Front track
- 1590 mm
- Rear track
- 1610 mm
- Ground clearance
- 180 mm
- Approach angle
- 18 °
- Departure angle
- 24.5 °
- Ramp angle
- 15.9 °
- Front overhang
- 910 mm
- Rear overhang
- 865 mm
- Turning circle
- 10.7 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/65 R18
- Rim size
- 18
- ABS
- yes
