Vehicle specifications

Jaguar C-X16 C-X16

Compare all 1 engine versions of the Jaguar C-X16 C-X16, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Jaguar C-X16 C-X16? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

Vehicle photos

1 of 21

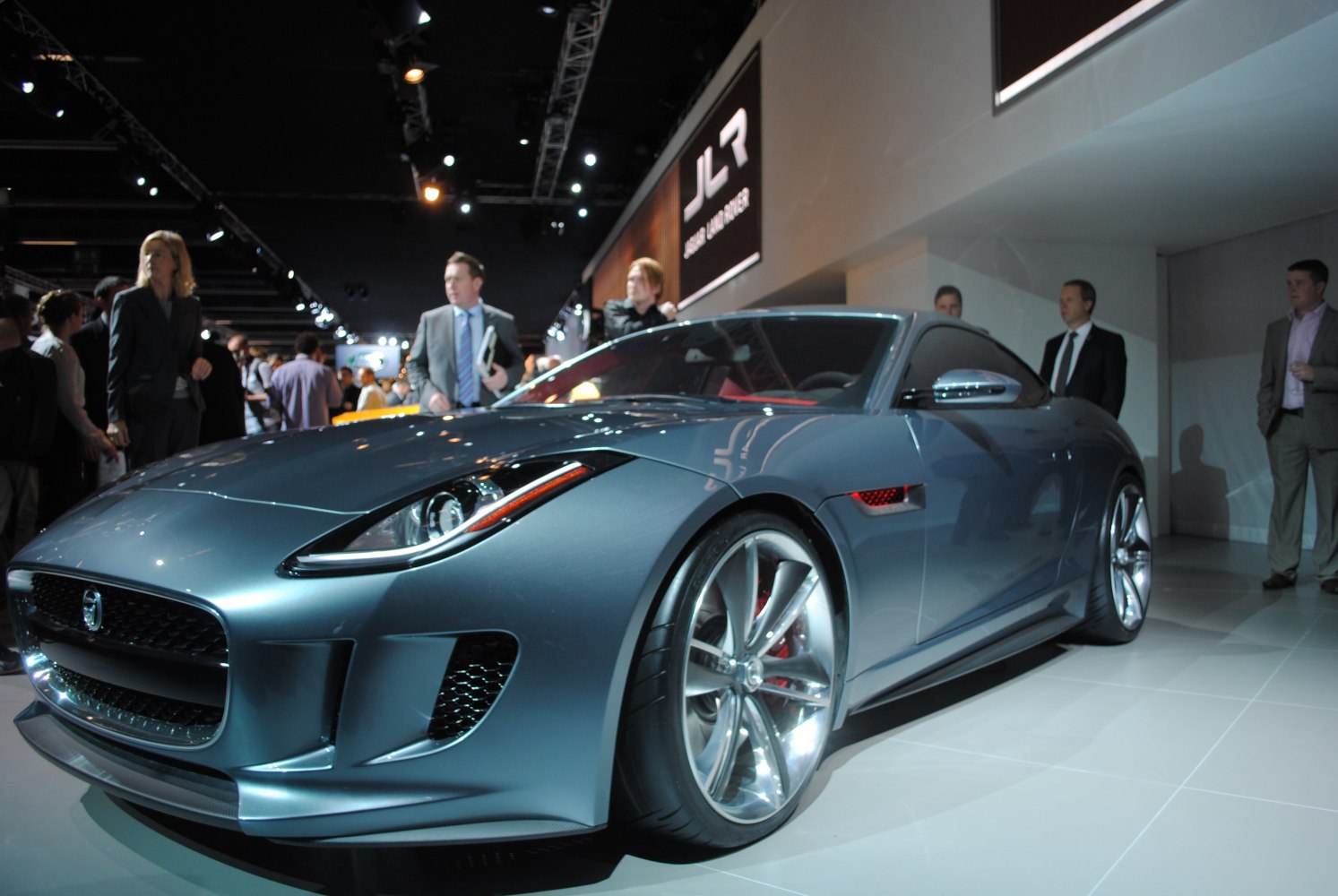

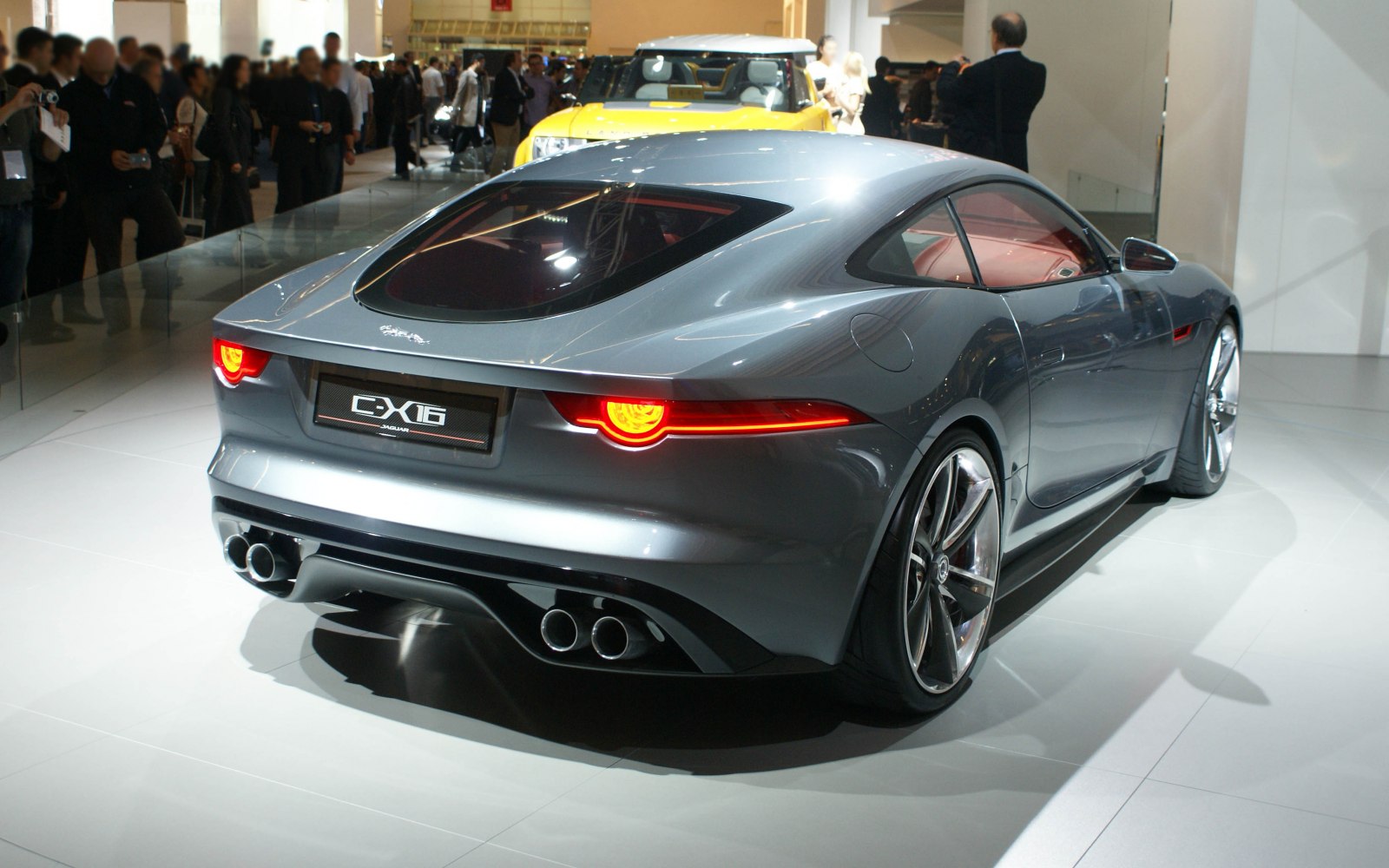

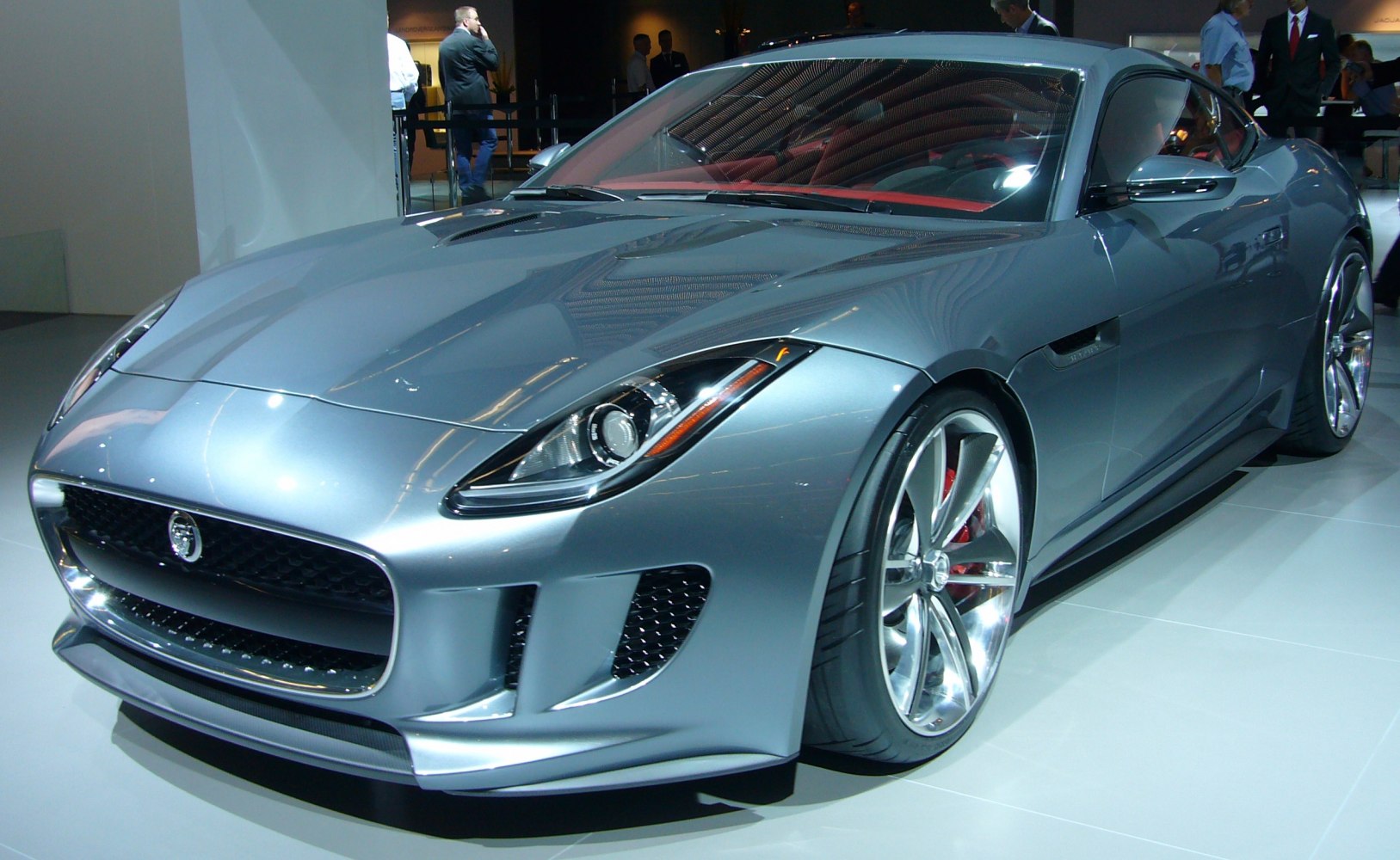

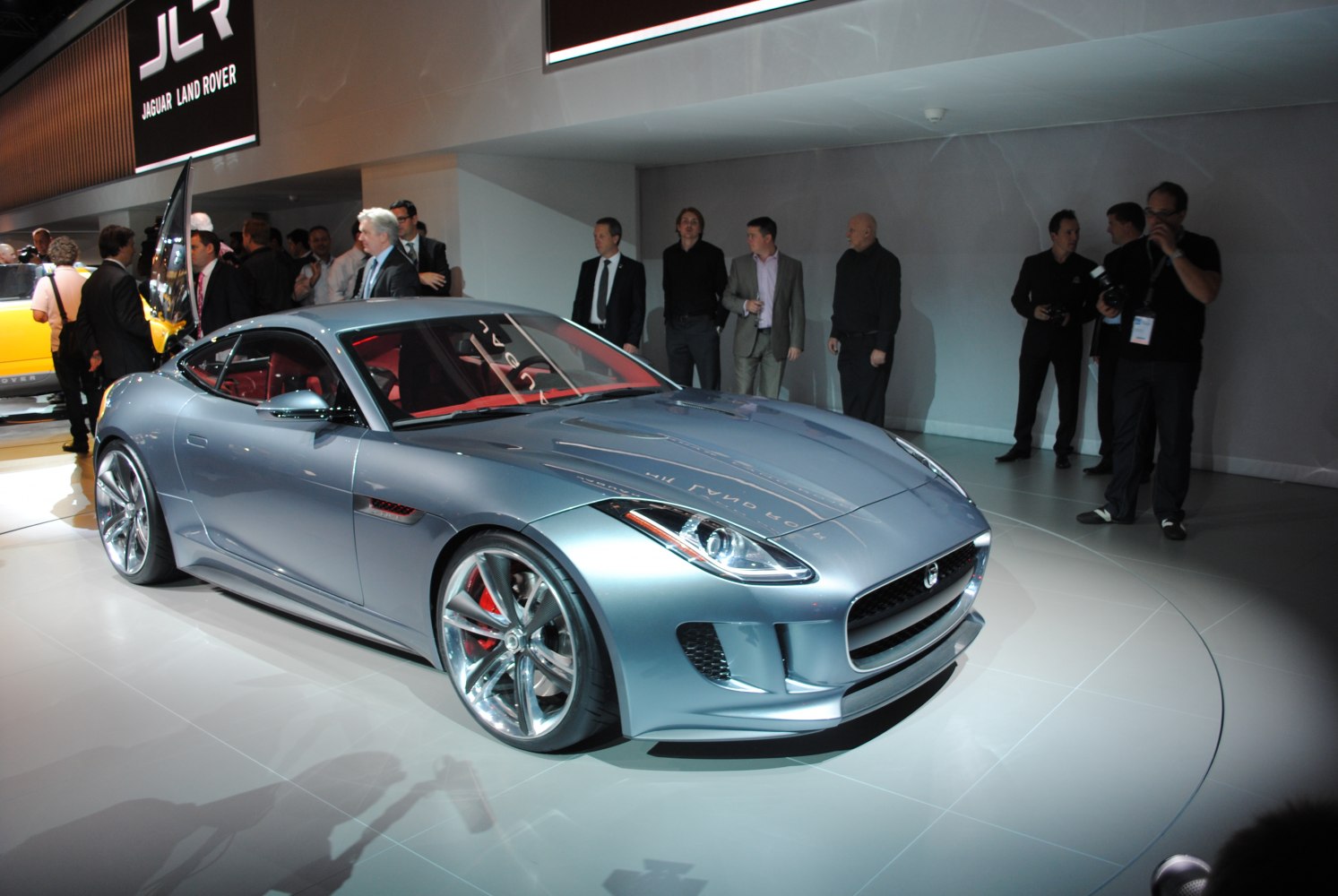

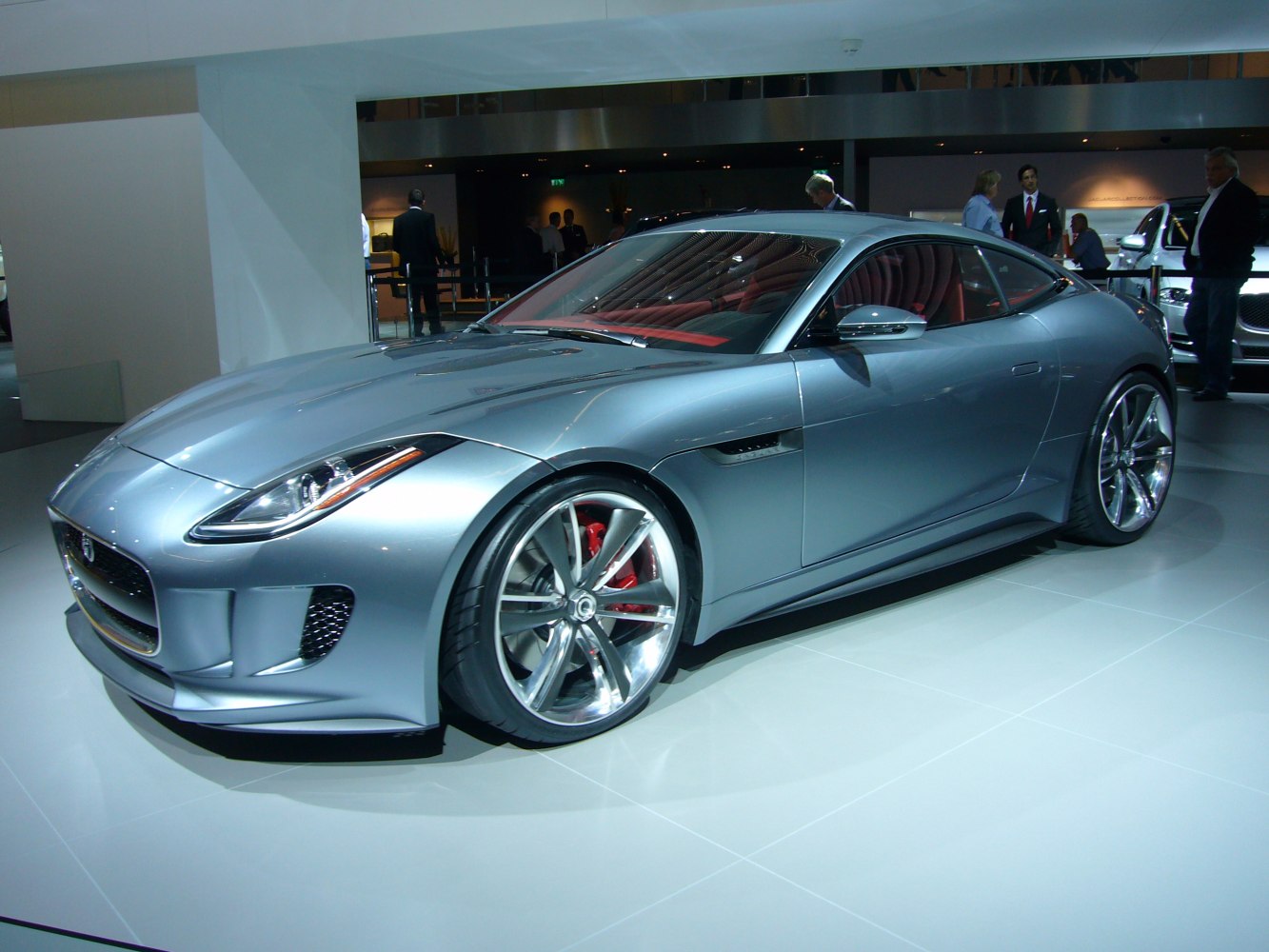

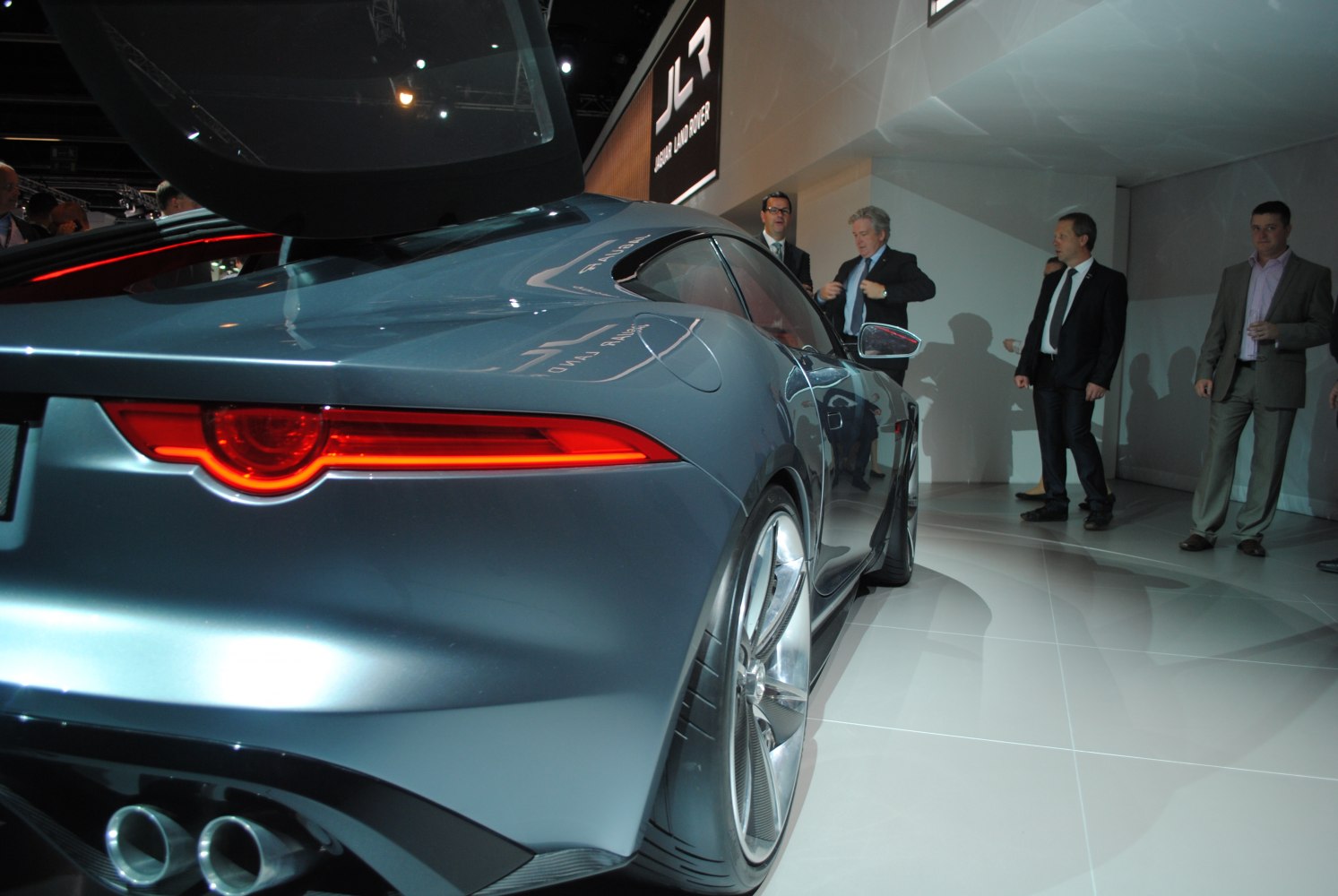

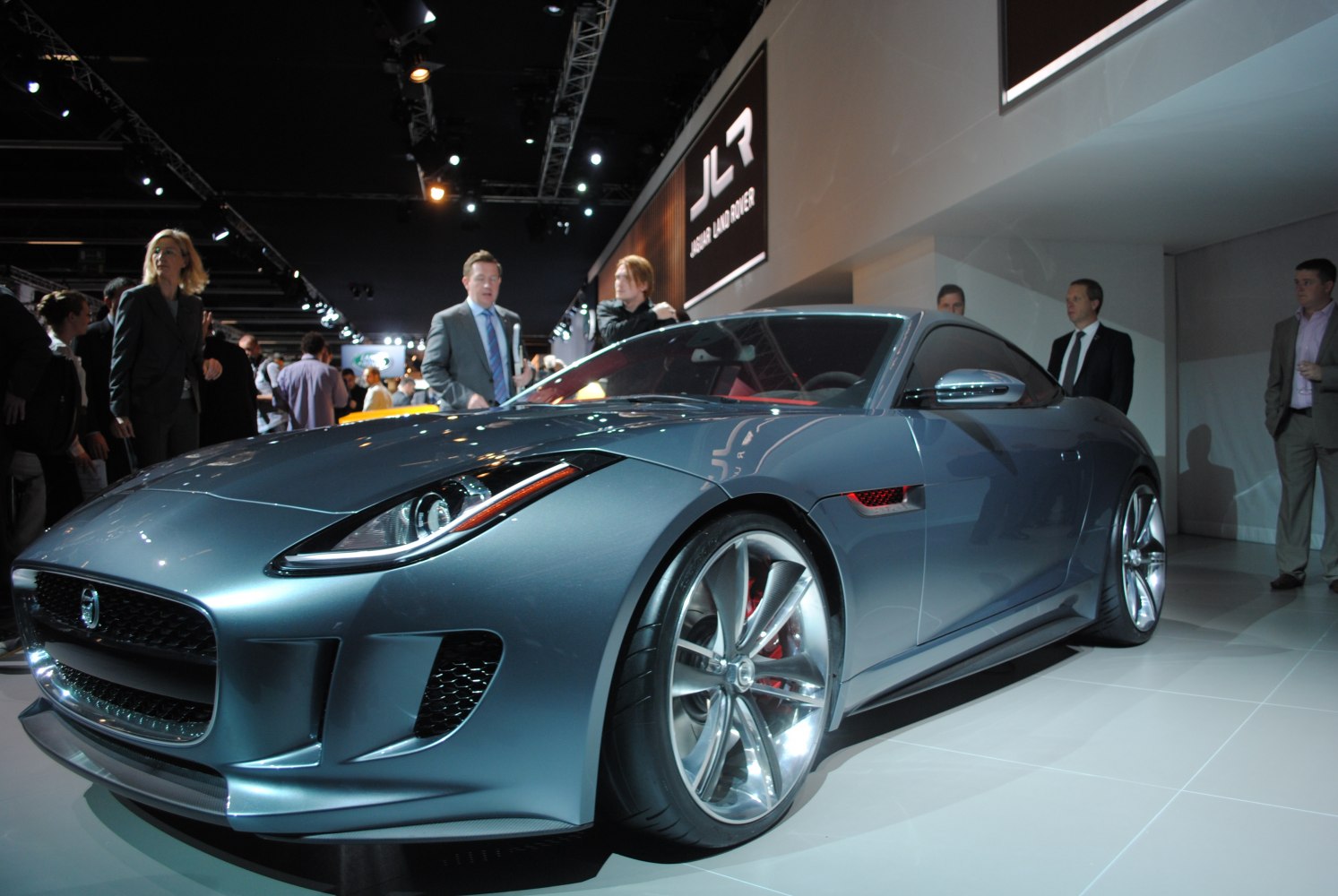

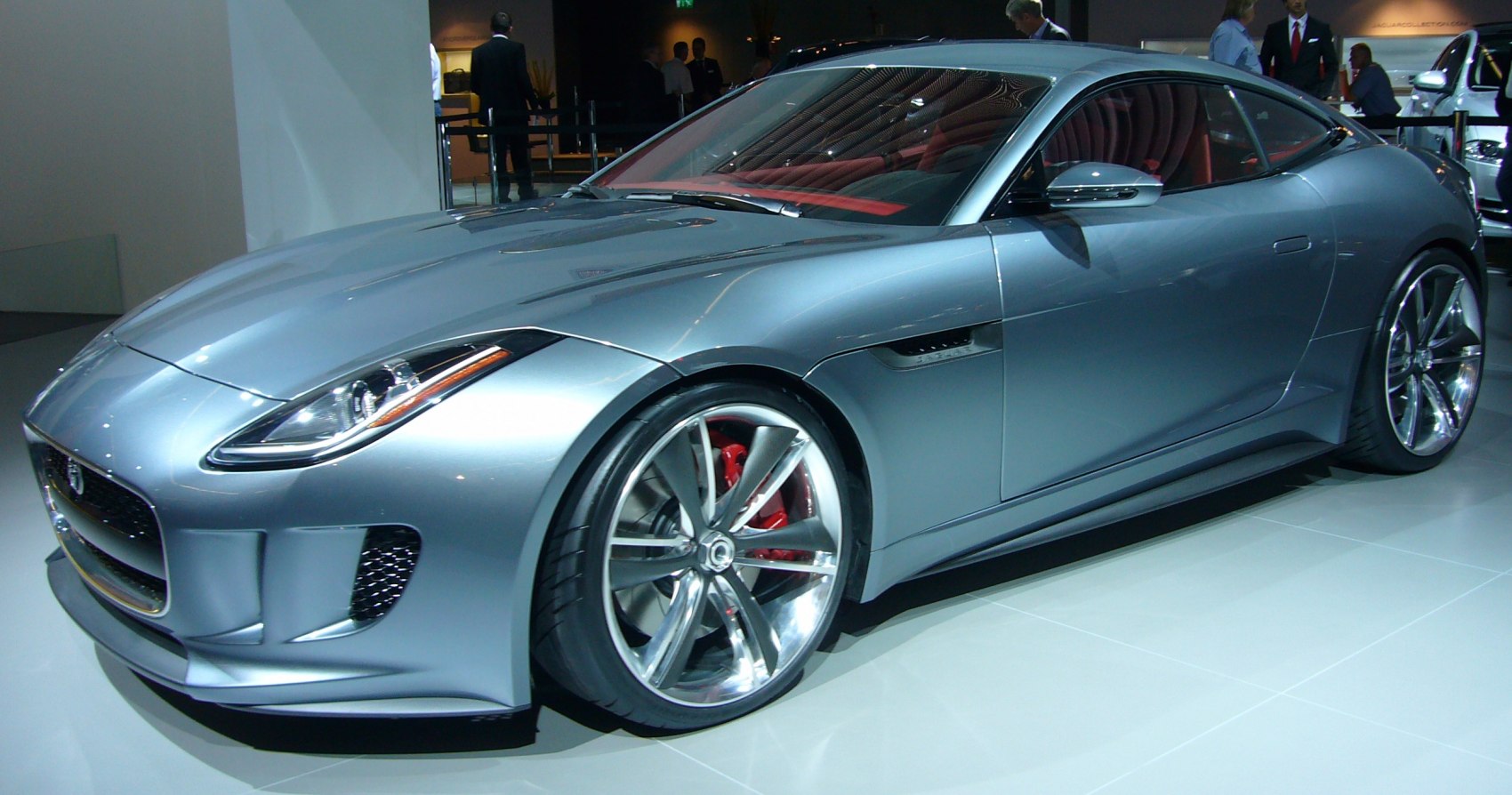

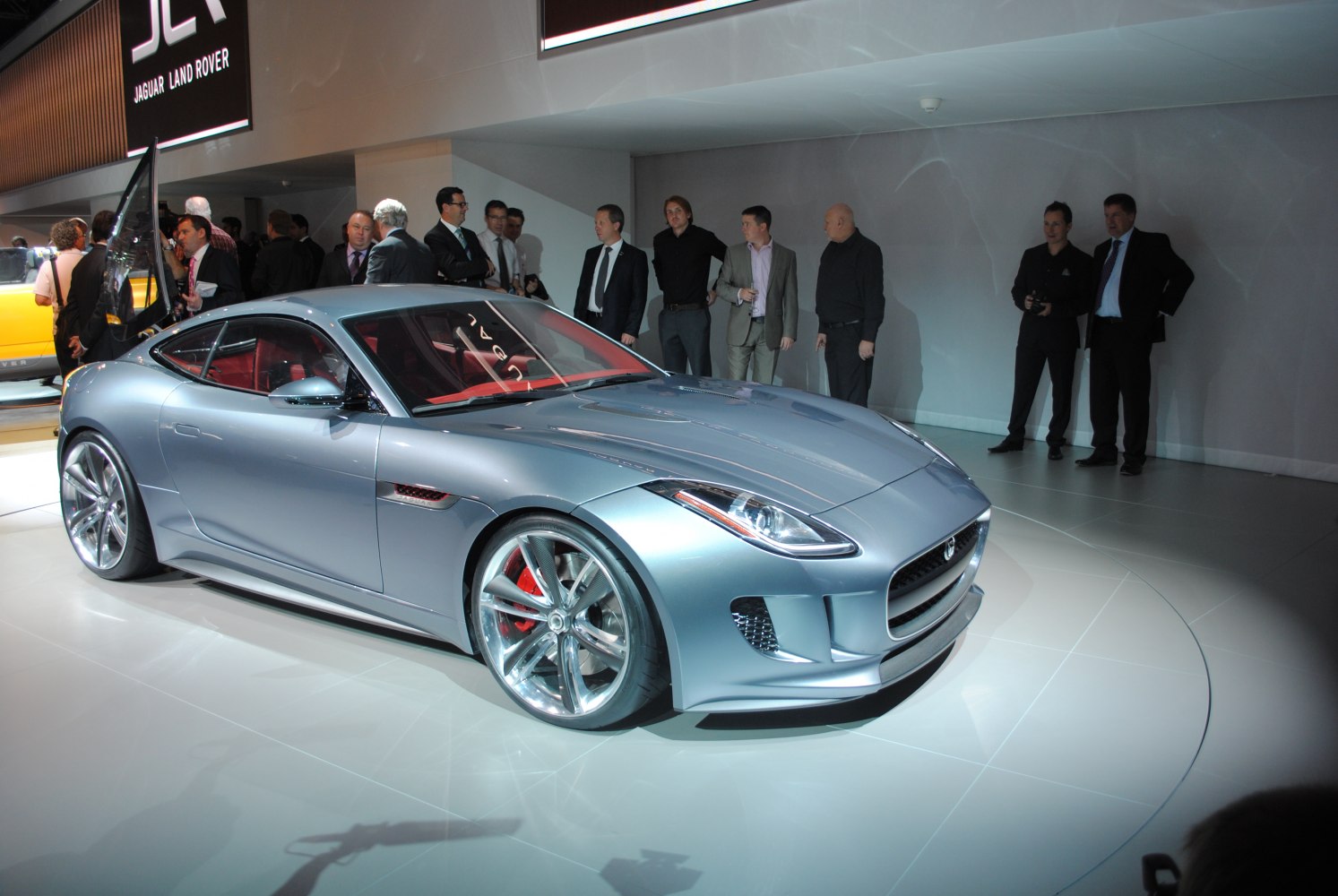

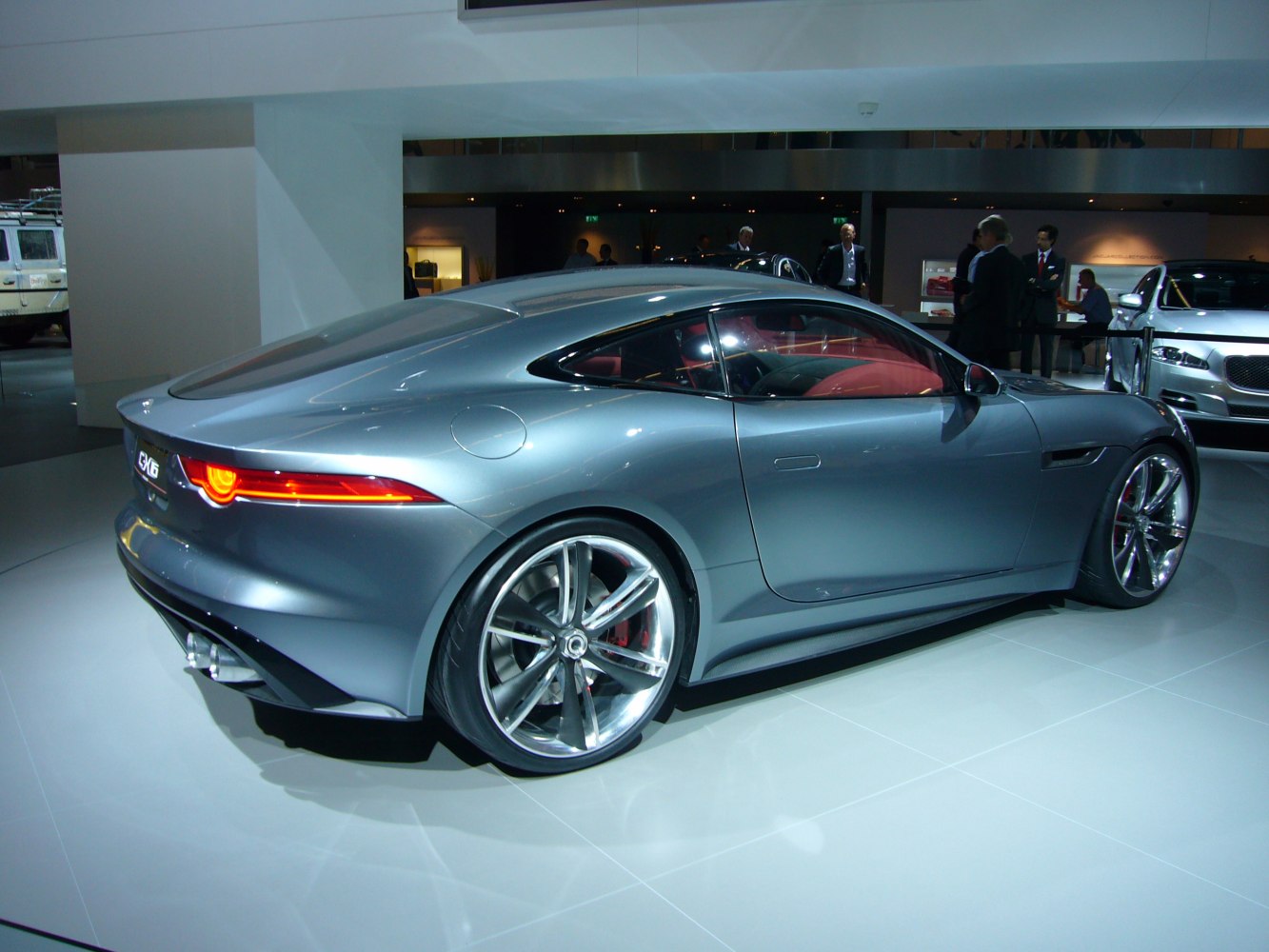

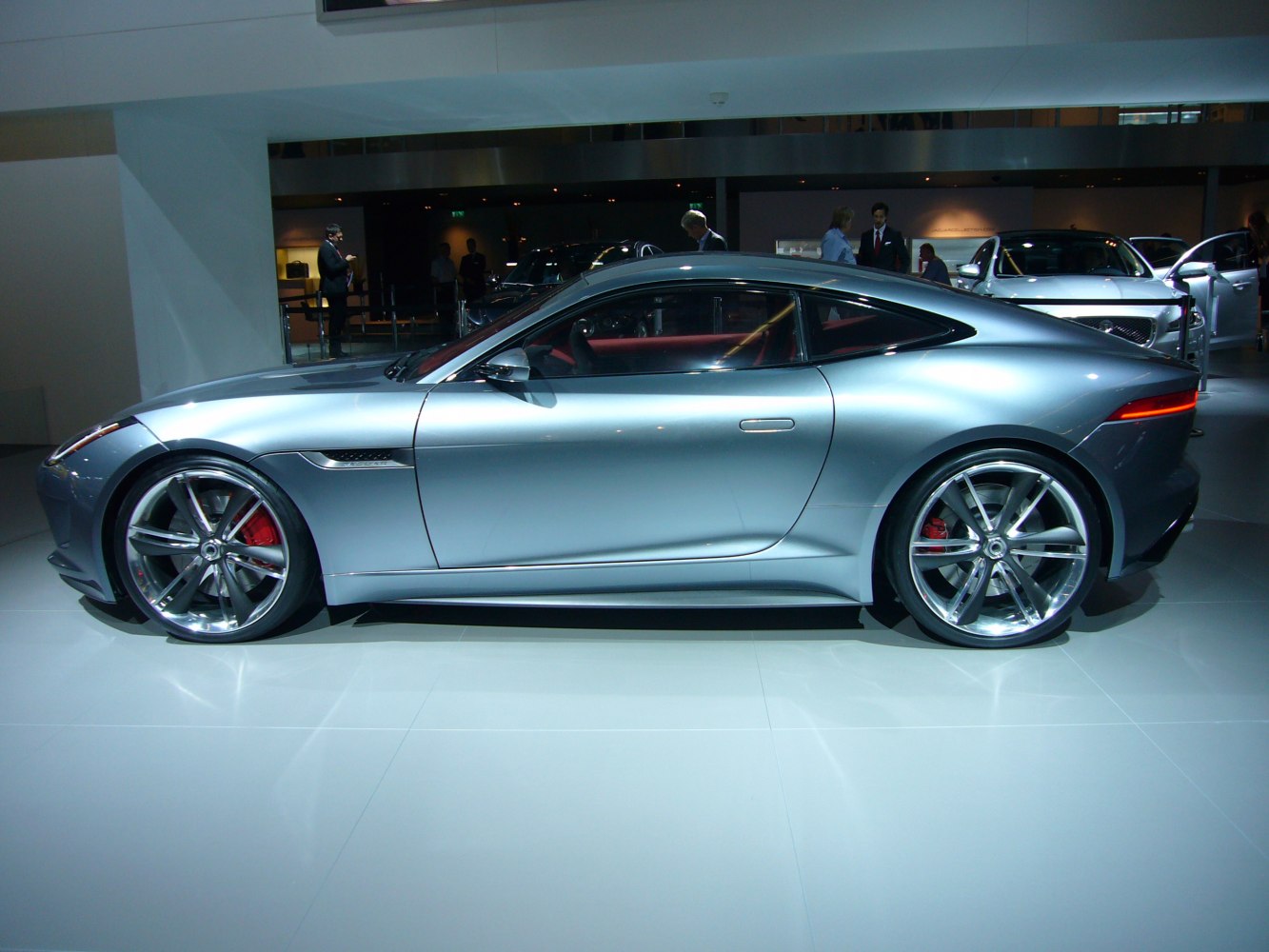

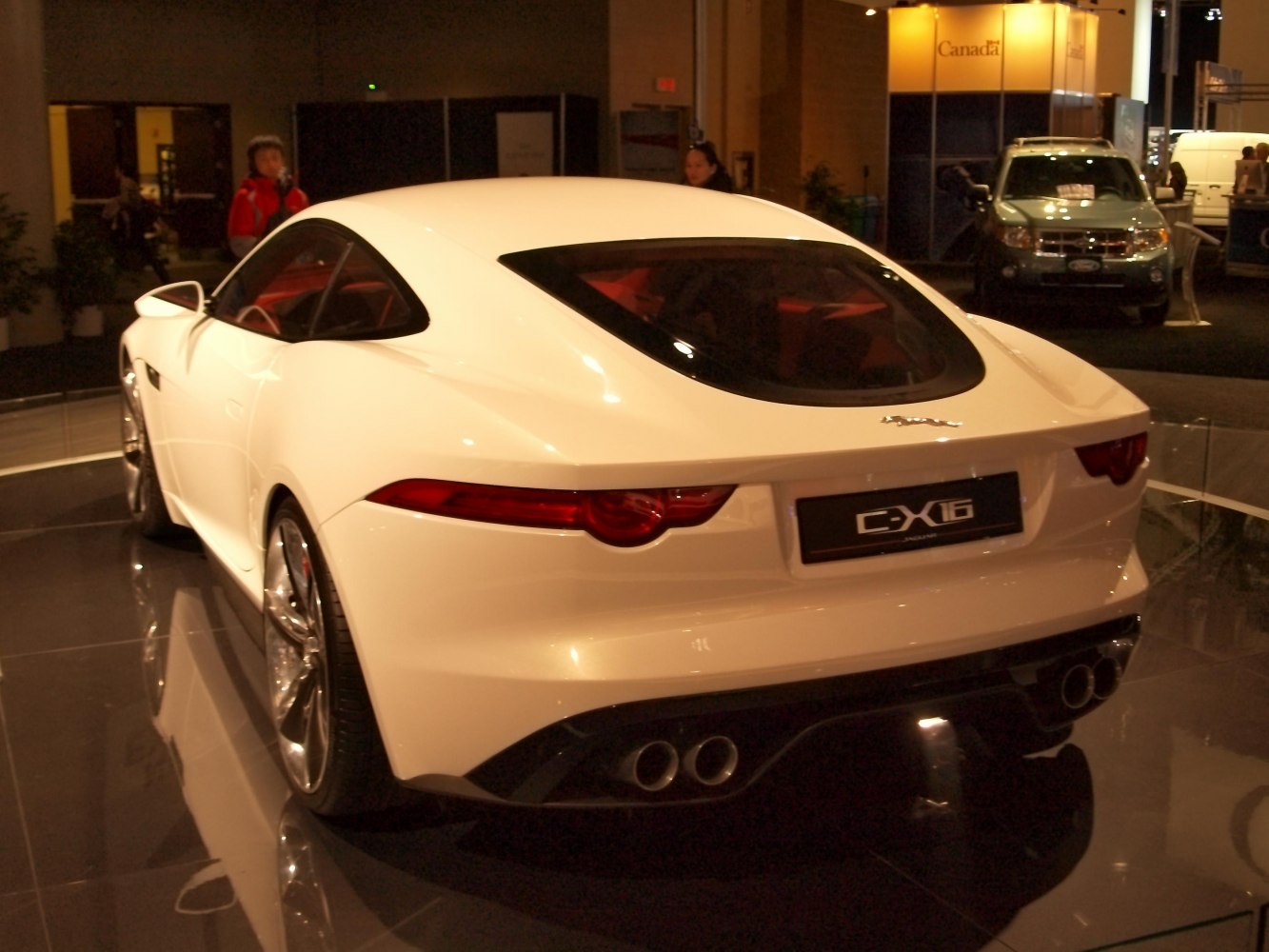

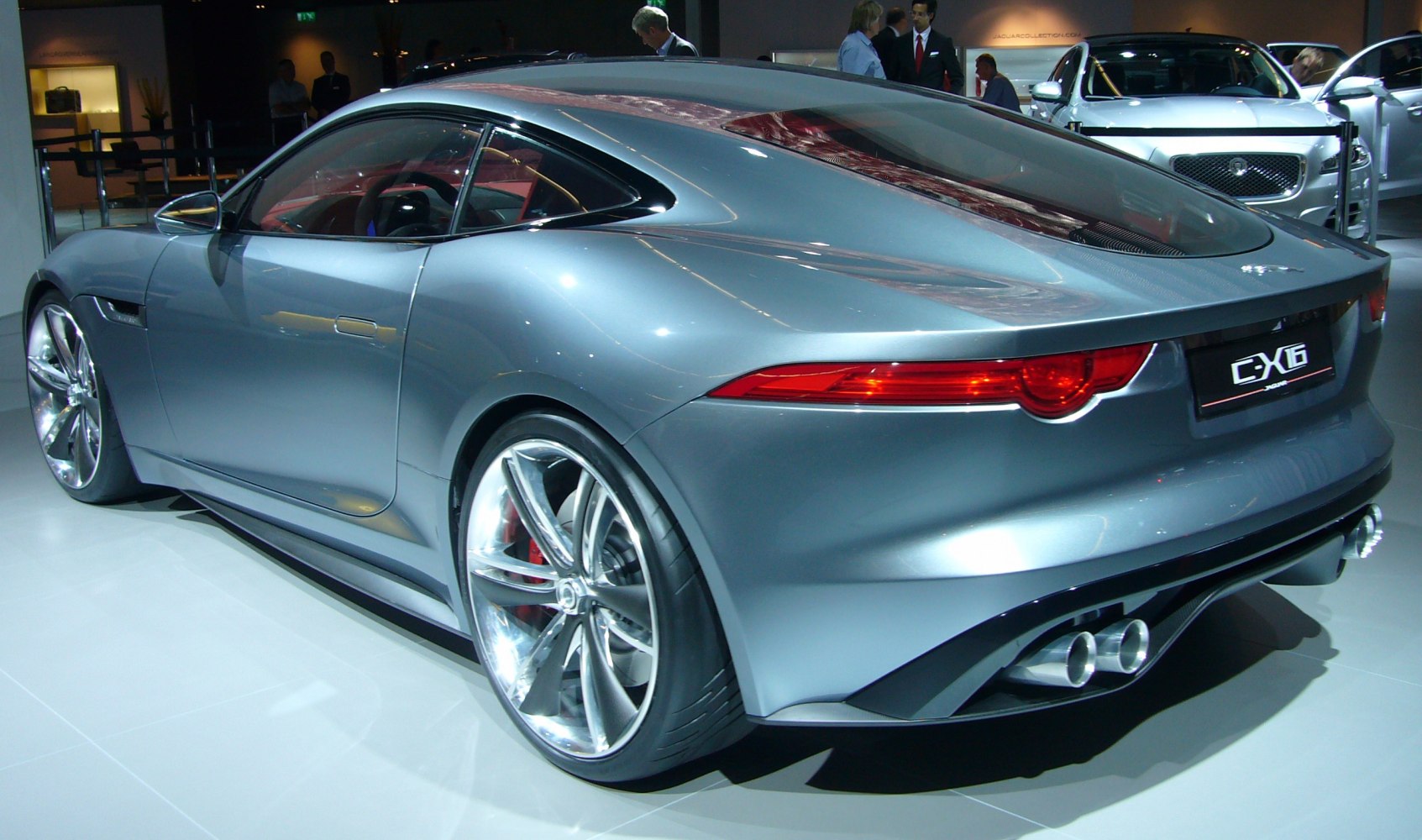

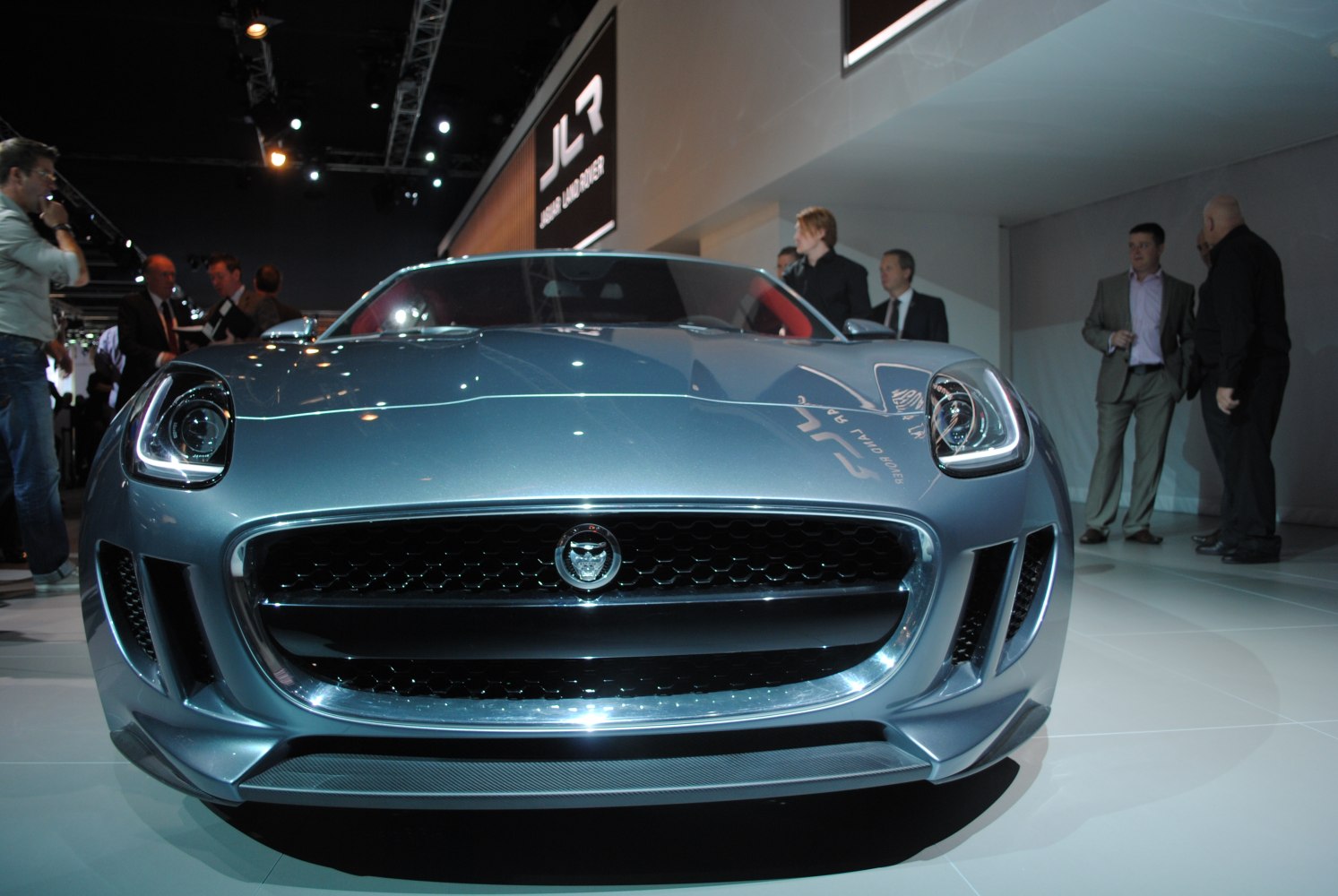

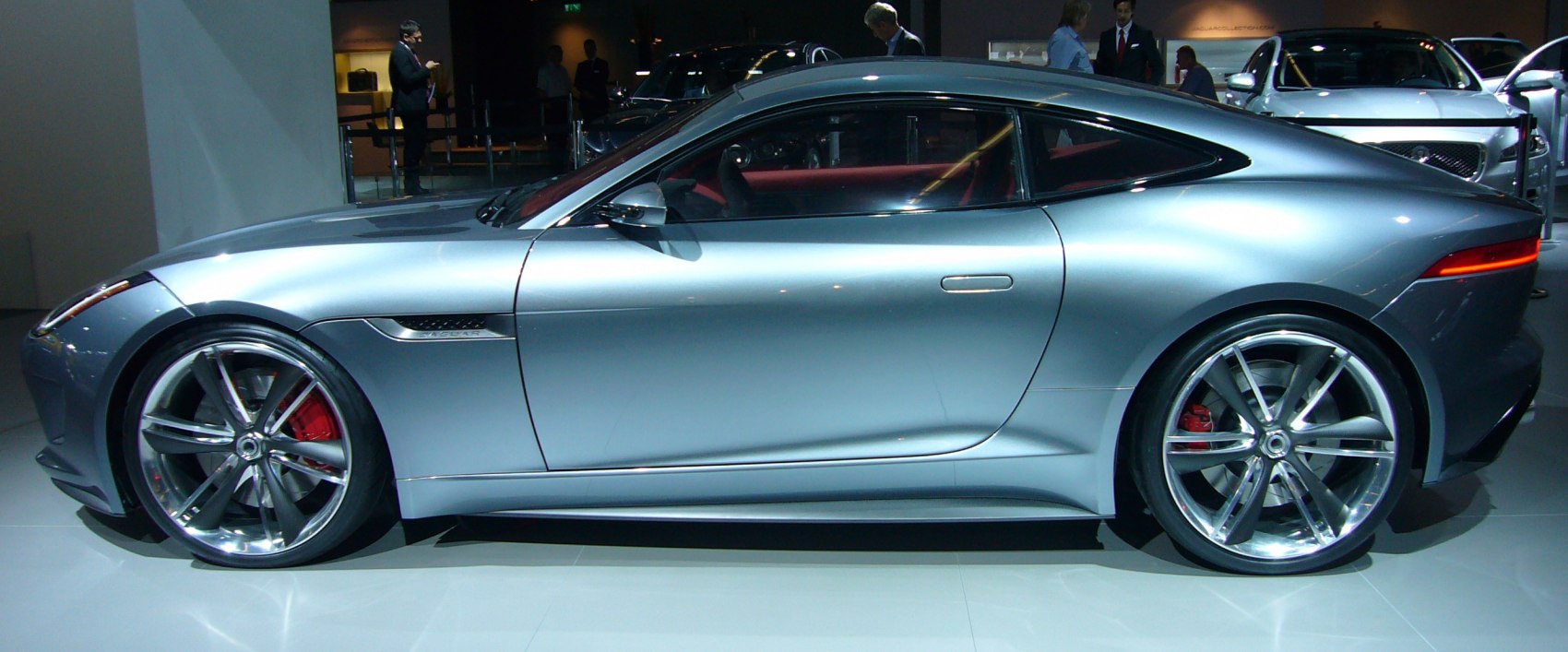

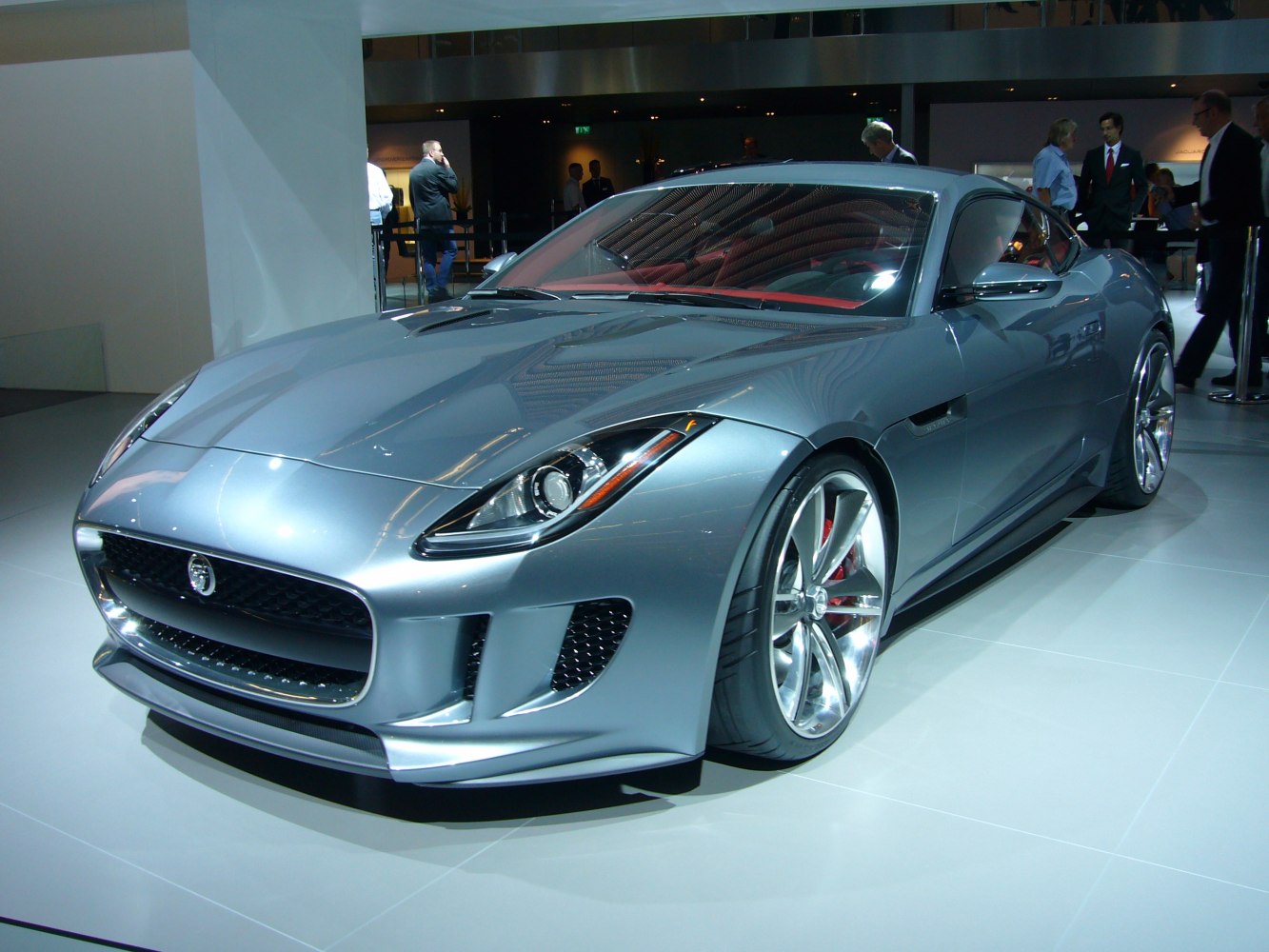

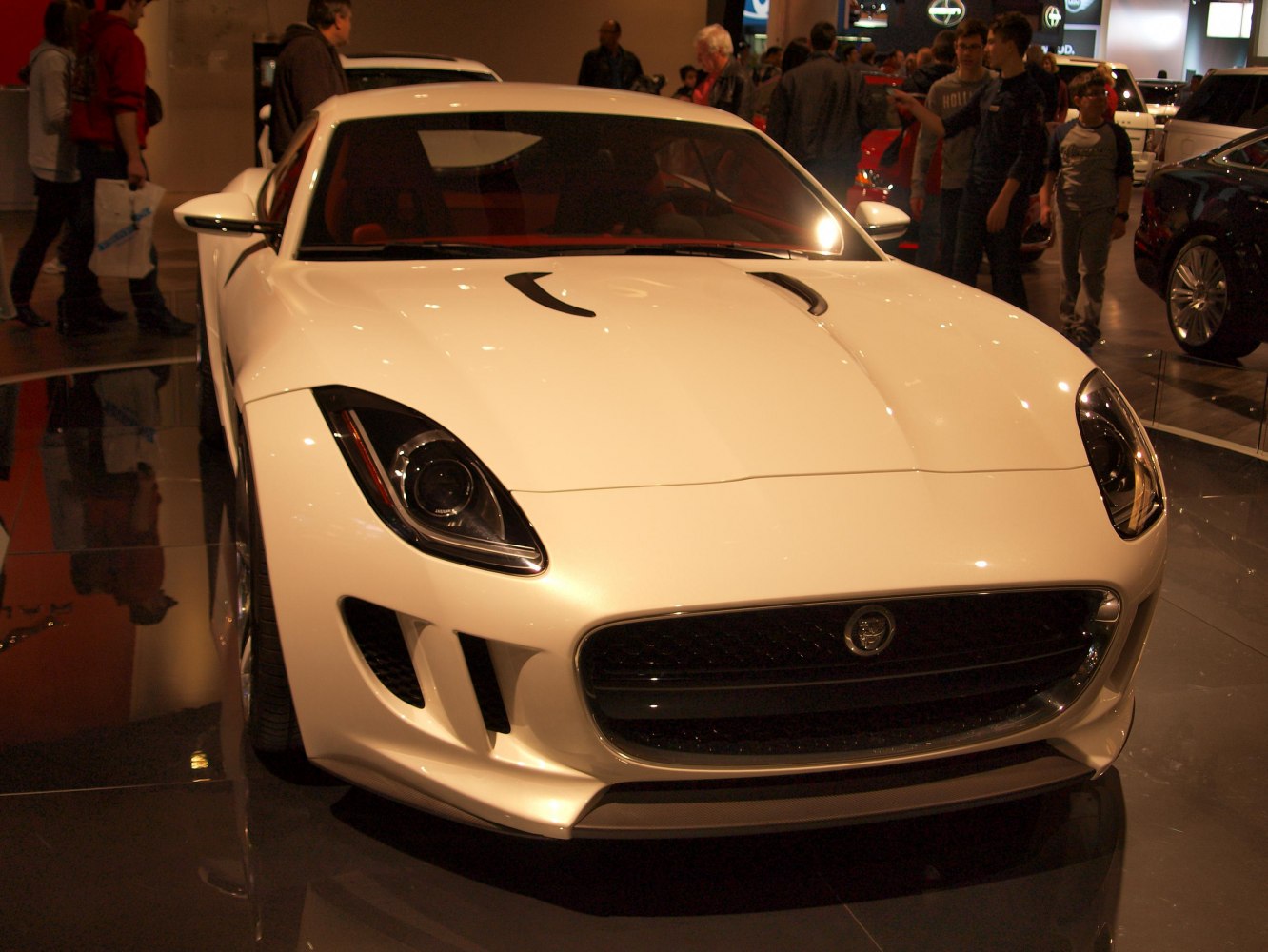

Jaguar C-X16 C-X16 — Photo: Rutger van der Maar from Leiden, The Netherlands, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons

Jaguar C-X16 C-X16 — 1 — Photo: Rutger van der Maar from Leiden, The Netherlands, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

1 versions · 1 Gasoline / Electricity

Engine	Fuel	Power	Production
3.0 V6 (467 KM) FHEV Automatic Selected	Gasoline / Electricity	380 KM	2011

Selected engine version

3.0 V6 (467 KM) FHEV Automatic

Gasoline / Electricity · 2011

Engine power: 380 KM
Torque: 450 Nm
Engine displacement: 2,995 cm³
Fuel type: Gasoline / Electricity
Acceleration 0-100 km/h: 4.4 s
Maximum speed: 300 km/h

On this page

Check vehicle history

Basic version information

Jaguar C-X16 C-X16

Brand: Jaguar
Model: C-X16
Version: C-X16
Engine: 3.0 V6 (467 KM) FHEV Automatic
Engine type: FHEF (Full Hybrid Electric Vehicle)
Number of doors: 2
Start of production: 2011
End of production: 2011
Body type: Coupé
Number of seats: 2
Fuel type: Gasoline / Electricity

Performance

Maximum speed: 300 km/h
Acceleration 0-100 km/h: 4.4 s
Battery gross capacity: 1.6 kWh
Fuel consumption - Combined cycle: 6.9 l/100 km
CO2 emissions: 165 g/km

Engine

Max electric motor power: 95 KM
Electric motor torque: 235 Nm
Electric motor position: Między silnikiem spalinowym a skrzynią biegów
System power: 467 KM
System torque: 685 Nm
Engine position: Mid-engine, Longitudinal
Engine displacement: 2995 cm³
Fuel injection system: Direct injection
Engine type: Compressor, Intercooler
Valvetrain: DOHC
Engine configuration: V-shaped
Number of cylinders: 6
Cylinder bore: 84.5 mm
Piston stroke: 89 mm
Compression ratio: 10.5
Number of valves per cylinder: 4
Power: 380 KM
Torque: 450 Nm

Volume and weight

Curb weight: 1600 kg

Vehicle dimensions

Length: 4445 mm
Width: 2048 mm
Height: 1297 mm
Wheelbase: 2622 mm

Drivetrain, Brakes and suspension

Drive: Rear-wheel drive
Number of gears: 8
Front brakes: Ventilated disc
Rear brakes: Ventilated disc
ABS: yes
