Vehicle specifications
Hummer H1 I
Compare all 6 engine versions of the Hummer H1 H1 I, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Hummer H1 I? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

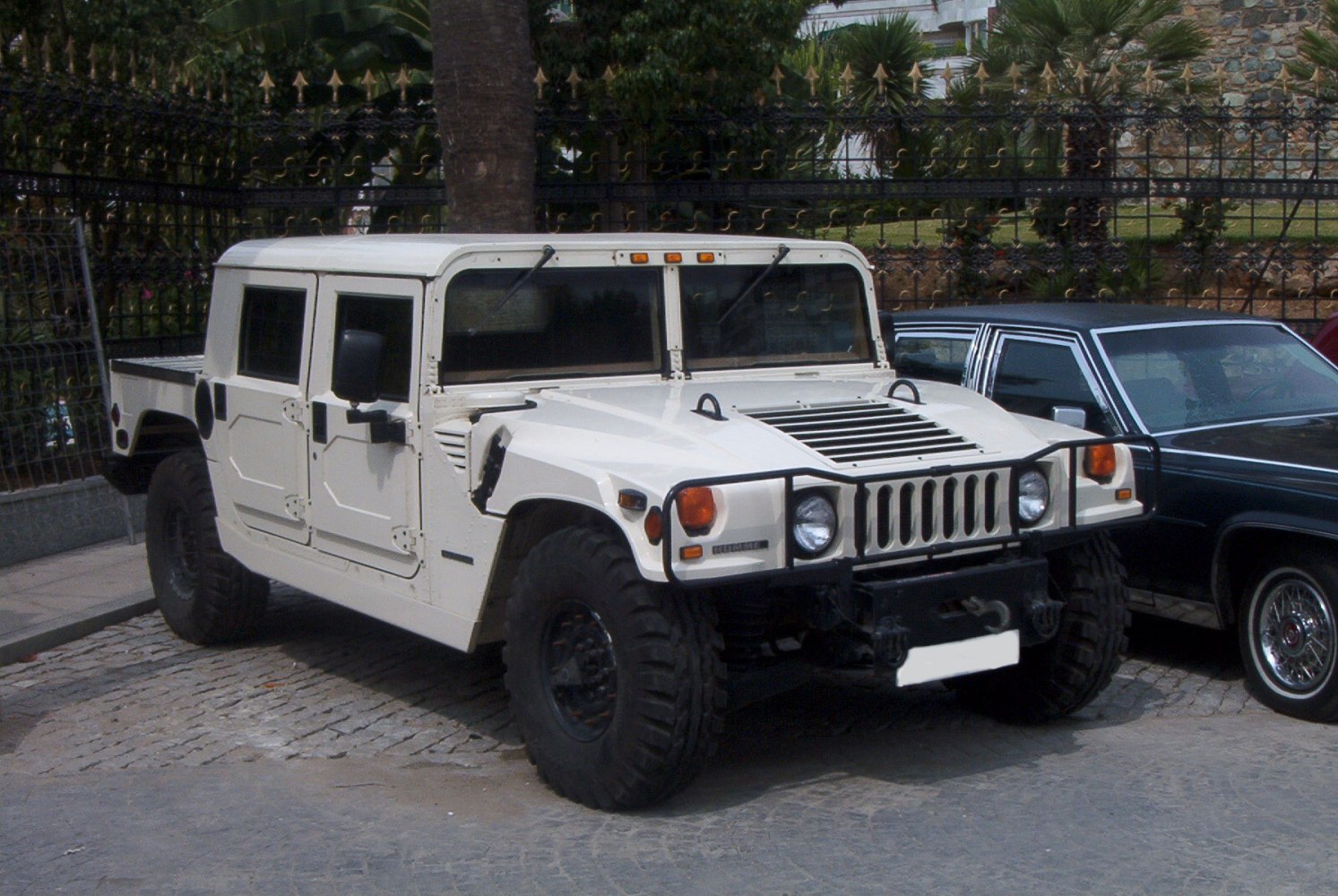

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 5 Diesel fuel · 1 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 6.5 D V8 (170 KM) 4x4 Automatic Selected | Diesel fuel | 170 KM | 1995–1998 |
| 6.6 TD V8 (305 KM) 4x4 Automatic Selected | Diesel fuel | 305 KM | 2005–2006 |
| 5.7 V8 (193 KM) 4x4 Automatic Selected | Gasoline | 193 KM | 1995–1997 |
| 6.5 TD V8 (197 KM) 4x4 Automatic Selected | Diesel fuel | 197 KM | 1995–2003 |
| 6.2 V8 (152 KM) 4x4 Automatic Selected | Diesel fuel | 152 KM | 1993–1995 |
| 6.5 TD V8 (208 KM) 4x4 Automatic Selected | Diesel fuel | 208 KM | 2003–2004 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
6.5 D V8 (170 KM) 4x4 Automatic
Diesel fuel · 1995–1998
- Engine power
- 170 KM
- Torque
- 393 Nm
- Engine displacement
- 6,466 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 134 km/h
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 6.5 D V8 (170 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1995
- End of production
- 1998
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 134 km/h
- Fuel consumption - Combined cycle
- 22 l/100 km
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6466 cm³
- Maximum engine speed
- 3600 obr./min
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 97 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.6 l
- Coolant capacity
- 25 l
- Power
- 170 KM @ 3400 obr./min
- Torque
- 393 Nm @ 1700 obr./min
Volume and weight
- Fuel tank
- 160 l
- Aerodynamic drag coefficient (Cx)
- 0.7
- Curb weight
- 3159 kg
- Gross weight
- 4899 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2197 mm
- Height
- 1905 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 16.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- ABS
- no
Selected engine version
6.6 TD V8 (305 KM) 4x4 Automatic
Diesel fuel · 2005–2006
- Engine power
- 305 KM
- Torque
- 705 Nm
- Engine displacement
- 6,599 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.1 s
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 6.6 TD V8 (305 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2005
- End of production
- 2006
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Acceleration 0-100 km/h
- 14.1 s
Engine
- Engine model / code
- Duramax/LLY
- Engine position
- Front, Longitudinal
- Engine displacement
- 6599 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 99 mm
- Compression ratio
- 17.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 9.5 l
- Power
- 305 KM @ 3000 obr./min
- Torque
- 705 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 195 l
- Aerodynamic drag coefficient (Cx)
- 0.7
- Curb weight
- 3680 kg
- Gross weight
- 4672 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2197 mm
- Height
- 1905 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 16.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- ABS
- no
Selected engine version
5.7 V8 (193 KM) 4x4 Automatic
Gasoline · 1995–1997
- Engine power
- 193 KM
- Torque
- 450 Nm
- Engine displacement
- 5,733 cm³
- Fuel type
- Gasoline
- Maximum speed
- 134 km/h
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 5.7 V8 (193 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1995
- End of production
- 1997
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 134 km/h
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 5733 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101.6 mm
- Piston stroke
- 88.39 mm
- Number of valves per cylinder
- 2
- Power
- 193 KM @ 4000 obr./min
- Torque
- 450 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 160 l
- Aerodynamic drag coefficient (Cx)
- 0.7
- Curb weight
- 3140 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2197 mm
- Height
- 1905 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 16.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- ABS
- no
Selected engine version
6.5 TD V8 (197 KM) 4x4 Automatic
Diesel fuel · 1995–2003
- Engine power
- 197 KM
- Torque
- 583 Nm
- Engine displacement
- 6,466 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 134 km/h
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 6.5 TD V8 (197 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1995
- End of production
- 2003
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 134 km/h
Engine
- Engine model / code
- TZA
- Engine position
- Front, Longitudinal
- Engine displacement
- 6466 cm³
- Maximum engine speed
- 3650 obr./min
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 97 mm
- Compression ratio
- 20.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.6 l
- Coolant capacity
- 25 l
- Power
- 197 KM @ 3400 obr./min
- Torque
- 583 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 159 l
- Aerodynamic drag coefficient (Cx)
- 0.7
- Wading depth
- 762 mm
- Curb weight
- 3468 kg
- Gross weight
- 4899 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2197 mm
- Height
- 1905 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 16.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- ABS
- no
Selected engine version
6.2 V8 (152 KM) 4x4 Automatic
Diesel fuel · 1993–1995
- Engine power
- 152 KM
- Torque
- 339 Nm
- Engine displacement
- 6,217 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 105 km/h
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 6.2 V8 (152 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1993
- End of production
- 1995
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 105 km/h
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6217 cm³
- Maximum engine speed
- 3600 obr./min
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 101 mm
- Piston stroke
- 97 mm
- Compression ratio
- 21.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 24.6 l
- Power
- 152 KM @ 3600 obr./min
- Torque
- 339 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 160 l
- Aerodynamic drag coefficient (Cx)
- 0.7
- Curb weight
- 3160 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2159 mm
- Height
- 1829 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 15.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 3
- ABS
- no
Selected engine version
6.5 TD V8 (208 KM) 4x4 Automatic
Diesel fuel · 2003–2004
- Engine power
- 208 KM
- Torque
- 597 Nm
- Engine displacement
- 6,466 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 134 km/h
On this page
Check vehicle history
Basic version information
Hummer H1 H1 I- Brand
- Hummer
- Model
- H1
- Version
- H1 I
- Engine
- 6.5 TD V8 (208 KM) 4x4 Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2003
- End of production
- 2004
- Body type
- Off-road vehicle
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 134 km/h
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6466 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 103 mm
- Piston stroke
- 97 mm
- Compression ratio
- 20.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.6 l
- Coolant capacity
- 25 l
- Power
- 208 KM @ 3400 obr./min
- Torque
- 597 Nm @ 1800 obr./min
Volume and weight
- Aerodynamic drag coefficient (Cx)
- 0.7
- Curb weight
- 3428 kg
- Gross weight
- 4672 kg
Vehicle dimensions
- Length
- 4686 mm
- Width
- 2197 mm
- Height
- 1905 mm
- Wheelbase
- 3302 mm
- Front track
- 1819 mm
- Rear track
- 1819 mm
- Ground clearance
- 406 mm
- Approach angle
- 72 °
- Departure angle
- 37.5 °
- Ramp angle
- 29 °
- Turning circle
- 15.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- ABS
- no
