Vehicle specifications
GMC Acadia I (facelift 2013)
Compare all 4 engine versions of the GMC Acadia Acadia I (facelift 2013), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used GMC Acadia I (facelift 2013)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

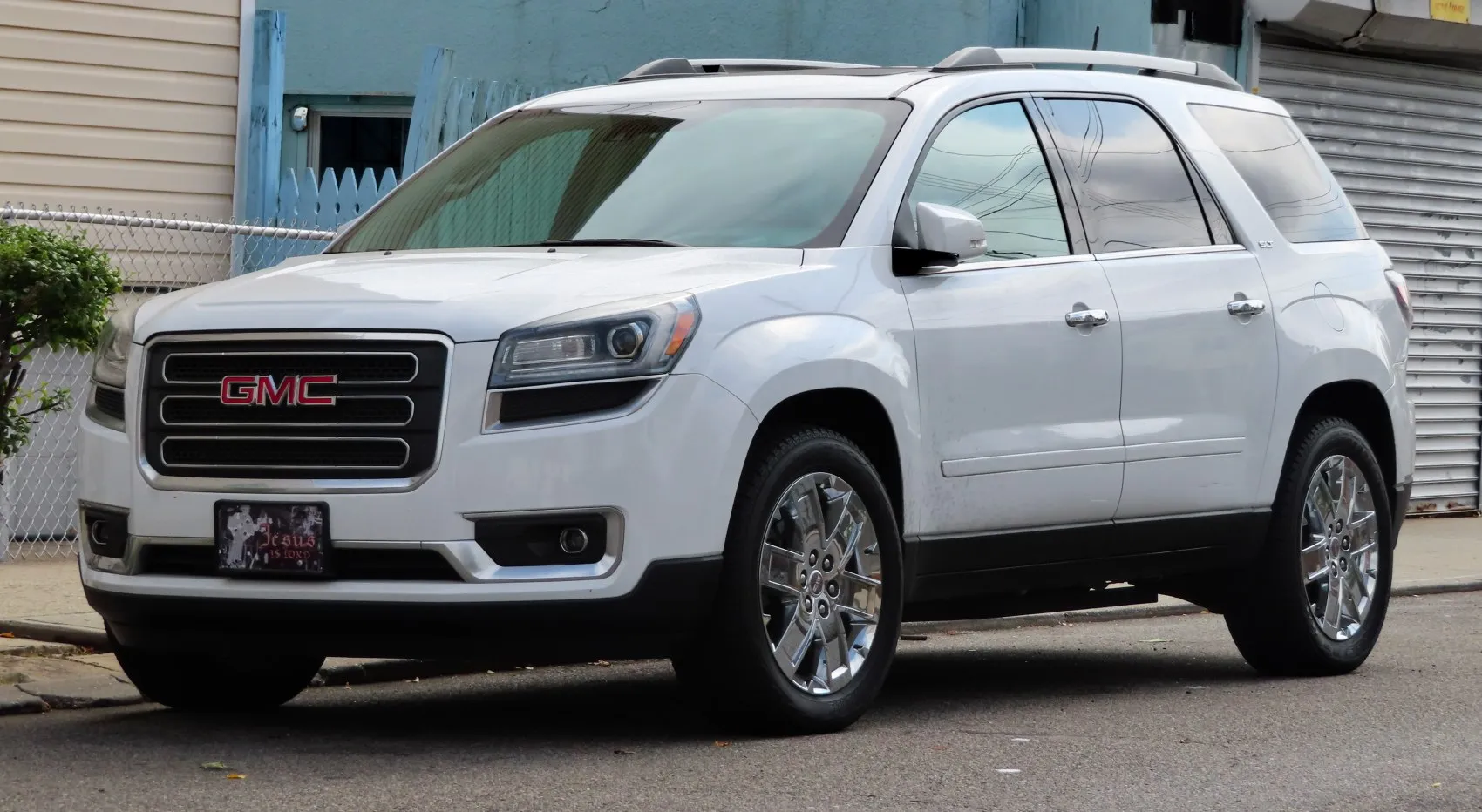

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| Denali 3.6 V6 (288 KM) AWD Automatic Selected | Gasoline | 288 KM | 2013–2016 |
| 3.6 V6 (281 KM) AWD Automatic Selected | Gasoline | 281 KM | 2015–2016 |
| Denali 3.6 V6 (288 KM) Automatic Selected | Gasoline | 288 KM | 2013–2016 |
| 3.6 V6 (281 KM) Automatic Selected | Gasoline | 281 KM | 2015–2016 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
Denali 3.6 V6 (288 KM) AWD Automatic
Gasoline · 2013–2016
- Engine power
- 288 KM
- Torque
- 366 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Acadia Acadia I (facelift 2013)- Brand
- GMC
- Model
- Acadia
- Version
- Acadia I (facelift 2013)
- Engine
- Denali 3.6 V6 (288 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2013
- End of production
- 2016
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
Engine
- Engine model / code
- LLT
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 94 mm
- Piston stroke
- 85.6 mm
- Compression ratio
- 11.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.3 l
- Power
- 288 KM @ 6300 obr./min
- Torque
- 366 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 83 l
- Minimum trunk capacity
- 682 l
- Maximum trunk capacity
- 3286 l
- Curb weight
- 2200 kg
- Gross weight
- 2930 kg
- Braked trailer load (12% slope start)
- 2358 kg
Vehicle dimensions
- Length
- 5101 mm
- Width
- 2003 mm
- Height
- 1844 mm
- Wheelbase
- 3021 mm
- Front track
- 1709 mm
- Rear track
- 1704 mm
- Ground clearance
- 194 mm
- Turning circle
- 12.3 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 255/65 R18; 255/60 R19; 255/55 R20
- Rim size
- 7.5J x 18; 8J x 19; 7.5J x 20
- ABS
- yes
Selected engine version
3.6 V6 (281 KM) AWD Automatic
Gasoline · 2015–2016
- Engine power
- 281 KM
- Torque
- 361 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Acadia Acadia I (facelift 2013)- Brand
- GMC
- Model
- Acadia
- Version
- Acadia I (facelift 2013)
- Engine
- 3.6 V6 (281 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2016
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
Engine
- Engine model / code
- LLT
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 94 mm
- Piston stroke
- 85.6 mm
- Compression ratio
- 11.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.3 l
- Power
- 281 KM @ 6300 obr./min
- Torque
- 361 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 83 l
- Minimum trunk capacity
- 682 l
- Maximum trunk capacity
- 3288 l
- Curb weight
- 2200 kg
- Gross weight
- 2930 kg
- Braked trailer load (12% slope start)
- 2359 kg
Vehicle dimensions
- Length
- 5100 mm
- Width
- 2004 mm
- Height
- 1844 mm
- Wheelbase
- 3020 mm
- Front track
- 1709 mm
- Rear track
- 1704 mm
- Ground clearance
- 193 mm
- Turning circle
- 12.3 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 255/65 R18; 255/60 R19; 255/55 R20
- Rim size
- 7.5J x 18; 8J x 19; 7.5J x 20
- ABS
- yes
Selected engine version
Denali 3.6 V6 (288 KM) Automatic
Gasoline · 2013–2016
- Engine power
- 288 KM
- Torque
- 366 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Acadia Acadia I (facelift 2013)- Brand
- GMC
- Model
- Acadia
- Version
- Acadia I (facelift 2013)
- Engine
- Denali 3.6 V6 (288 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2013
- End of production
- 2016
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Performance
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
Engine
- Engine model / code
- LLT
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 94 mm
- Piston stroke
- 85.6 mm
- Compression ratio
- 11.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.3 l
- Power
- 288 KM @ 6300 obr./min
- Torque
- 366 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 83 l
- Minimum trunk capacity
- 682 l
- Maximum trunk capacity
- 3286 l
- Curb weight
- 2112 kg
- Gross weight
- 2908 kg
- Braked trailer load (12% slope start)
- 2358 kg
Vehicle dimensions
- Length
- 5101 mm
- Width
- 2003 mm
- Height
- 1844 mm
- Wheelbase
- 3021 mm
- Front track
- 1709 mm
- Rear track
- 1704 mm
- Ground clearance
- 194 mm
- Turning circle
- 12.3 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 255/65 R18; 255/60 R19; 255/55 R20
- Rim size
- 7.5J x 18; 8J x 19; 7.5J x 20
- ABS
- yes
Selected engine version
3.6 V6 (281 KM) Automatic
Gasoline · 2015–2016
- Engine power
- 281 KM
- Torque
- 361 Nm
- Engine displacement
- 3,564 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
GMC Acadia Acadia I (facelift 2013)- Brand
- GMC
- Model
- Acadia
- Version
- Acadia I (facelift 2013)
- Engine
- 3.6 V6 (281 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2016
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.8 l/100 km
Engine
- Engine model / code
- LLT
- Engine position
- Front, Transverse
- Engine displacement
- 3564 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 94 mm
- Piston stroke
- 85.6 mm
- Compression ratio
- 11.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.3 l
- Power
- 281 KM @ 6300 obr./min
- Torque
- 361 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 83 l
- Minimum trunk capacity
- 682 l
- Maximum trunk capacity
- 3288 l
- Curb weight
- 2112 kg
- Gross weight
- 2908 kg
- Braked trailer load (12% slope start)
- 2359 kg
Vehicle dimensions
- Length
- 5100 mm
- Width
- 2004 mm
- Height
- 1844 mm
- Wheelbase
- 3020 mm
- Front track
- 1709 mm
- Rear track
- 1704 mm
- Ground clearance
- 193 mm
- Turning circle
- 12.3 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Hydra-Matic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 255/65 R18; 255/60 R19; 255/55 R20
- Rim size
- 7.5J x 18; 8J x 19; 7.5J x 20
- ABS
- yes
