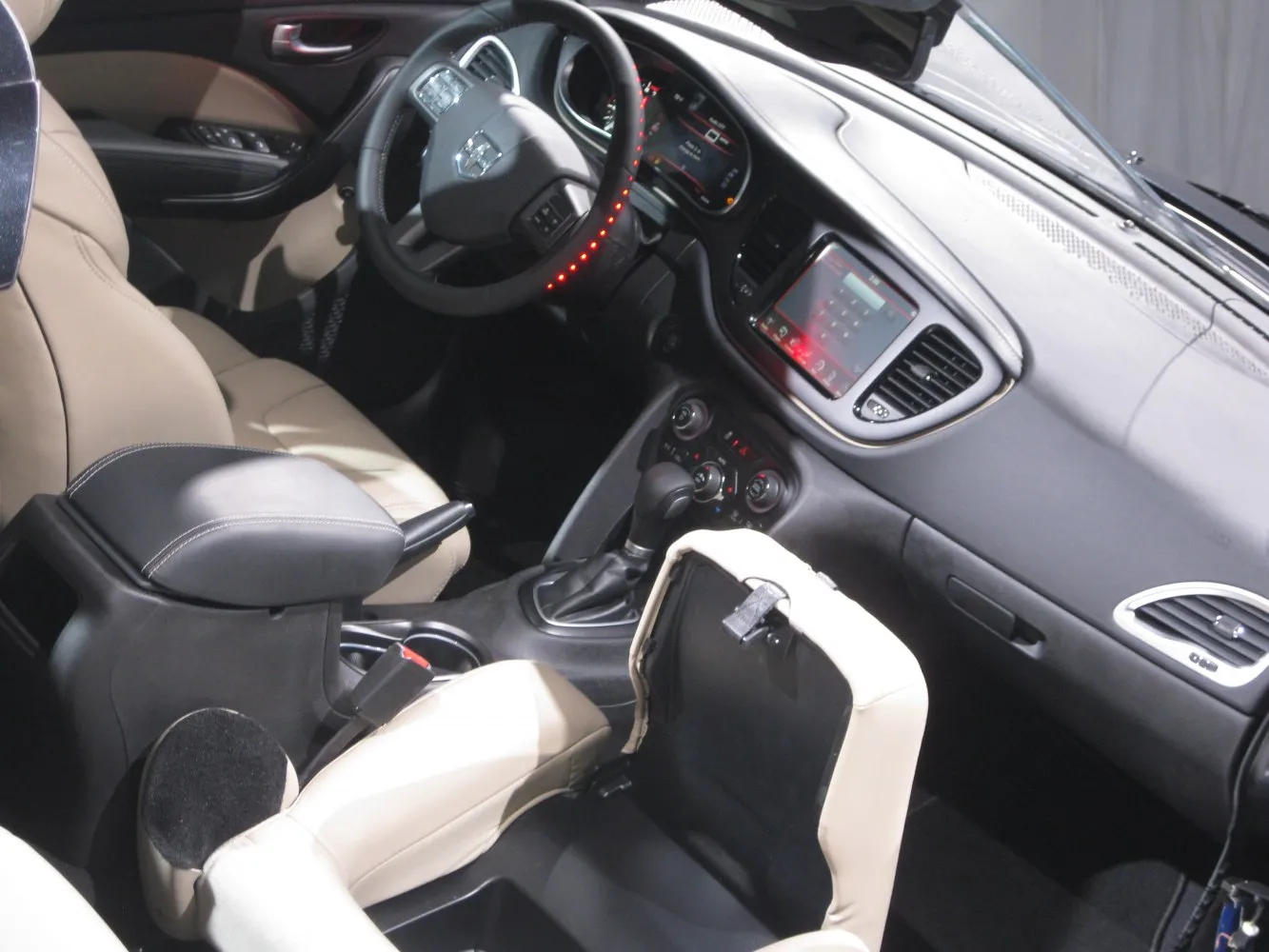

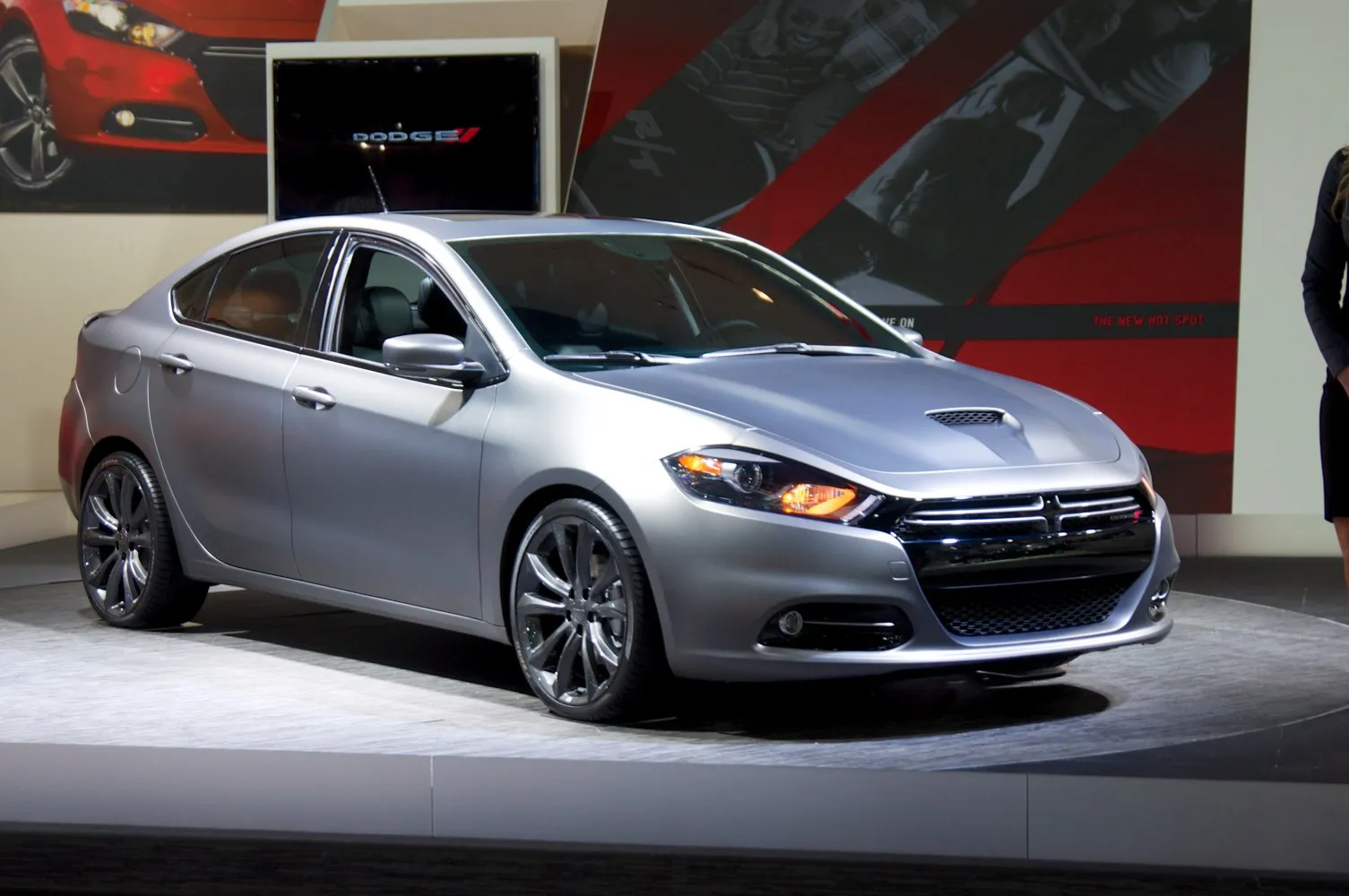

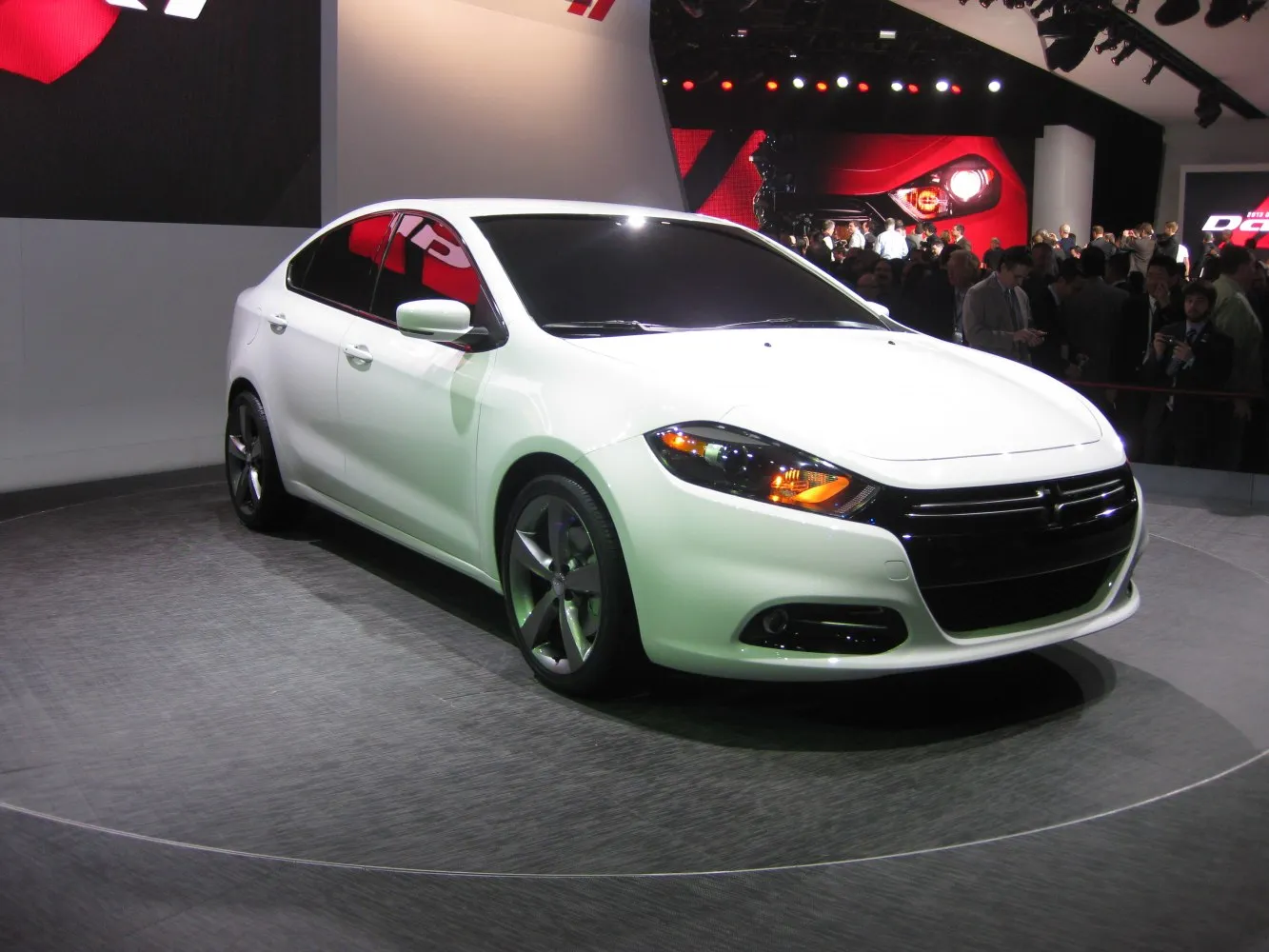

Vehicle photos
1 of 12
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 6 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 (160 KM) Automatic Selected | Gasoline | 160 KM | 2012–2016 |
| 1.4 MultiAir Turbo (160 KM) Selected | Gasoline | 160 KM | 2012–2016 |
| 1.4 MultiAir Turbo (160 KM) DDCT Selected | Gasoline | 160 KM | 2012–2016 |
| 2.0 (160 KM) Selected | Gasoline | 160 KM | 2012–2016 |
| 2.4 MultiAir II (184 KM) Selected | Gasoline | 184 KM | 2013–2016 |
| 2.4 MultiAir II (184 KM) Automatic Selected | Gasoline | 184 KM | 2013–2016 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 (160 KM) Automatic
Gasoline · 2012–2016
- Engine power
- 160 KM
- Torque
- 200 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 2.0 (160 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 8.7 l/100 km
Engine
- Engine model / code
- ECK
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Maximum engine speed
- 6750 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 82 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 6.7 l
- Power
- 160 KM @ 6400 obr./min
- Torque
- 200 Nm @ 4600 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1471 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.12 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/45 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.4 MultiAir Turbo (160 KM)
Gasoline · 2012–2016
- Engine power
- 160 KM
- Torque
- 250 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 1.4 MultiAir Turbo (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 7.3 l/100 km
Engine
- Engine model / code
- EAF
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 5.7 l
- Power
- 160 KM @ 5500 obr./min
- Torque
- 250 Nm @ 2500-4000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1447 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.12 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.4 MultiAir Turbo (160 KM) DDCT
Gasoline · 2012–2016
- Engine power
- 160 KM
- Torque
- 250 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 1.4 MultiAir Turbo (160 KM) DDCT
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 7.3 l/100 km
Engine
- Engine model / code
- EAF
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 5.7 l
- Power
- 160 KM @ 5500 obr./min
- Torque
- 250 Nm @ 2500-4000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1471 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.12 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DDCT
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 (160 KM)
Gasoline · 2012–2016
- Engine power
- 160 KM
- Torque
- 200 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 2.0 (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- ECK
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Maximum engine speed
- 6750 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 82 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 6.7 l
- Power
- 160 KM @ 6400 obr./min
- Torque
- 200 Nm @ 4600 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1445 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.12 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/45 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.4 MultiAir II (184 KM)
Gasoline · 2013–2016
- Engine power
- 184 KM
- Torque
- 232 Nm
- Engine displacement
- 2,360 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 2.4 MultiAir II (184 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2013
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- ED6
- Engine position
- Front, Transverse
- Engine displacement
- 2360 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 97 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 6.7 l
- Power
- 184 KM @ 6250 obr./min
- Torque
- 232 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1496 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.49 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/40 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
2.4 MultiAir II (184 KM) Automatic
Gasoline · 2013–2016
- Engine power
- 184 KM
- Torque
- 232 Nm
- Engine displacement
- 2,360 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Dodge Dart Dart (PF)- Brand
- Dodge
- Model
- Dart
- Version
- Dart (PF)
- Engine
- 2.4 MultiAir II (184 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2013
- End of production
- 2016
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- ED6
- Engine position
- Front, Transverse
- Engine displacement
- 2360 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 97 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 6.7 l
- Power
- 184 KM @ 6250 obr./min
- Torque
- 232 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.285
- Minimum trunk capacity
- 371 l
- Curb weight
- 1519 kg
Vehicle dimensions
- Length
- 4672 mm
- Width
- 1830 mm
- Height
- 1465 mm
- Wheelbase
- 2703 mm
- Front track
- 1568 mm
- Rear track
- 1565 mm
- Ground clearance
- 112 mm
- Turning circle
- 11.49 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/40 R18
- Rim size
- 18
- ABS
- yes
