Specifications Dodge Dart (PF)

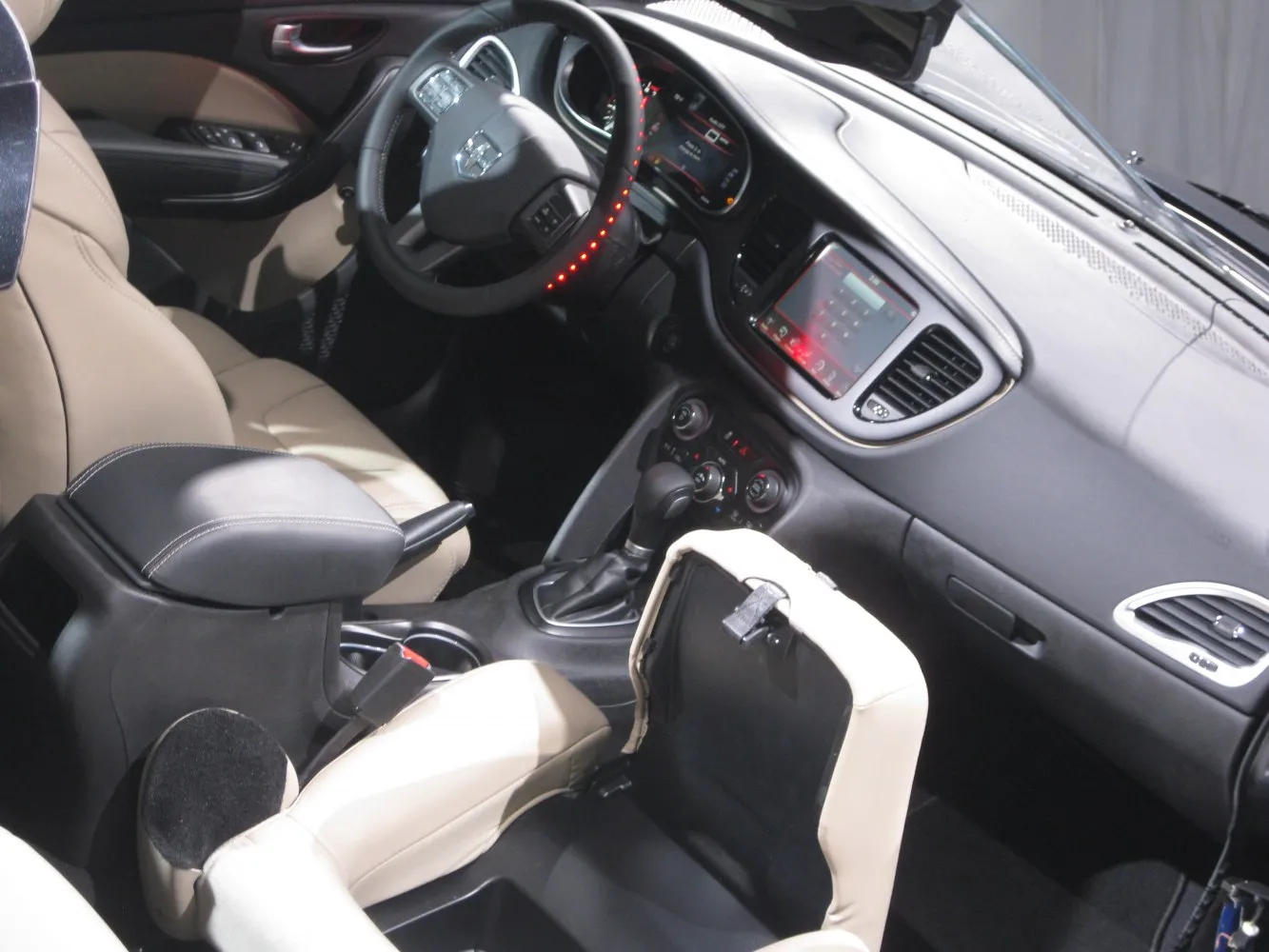

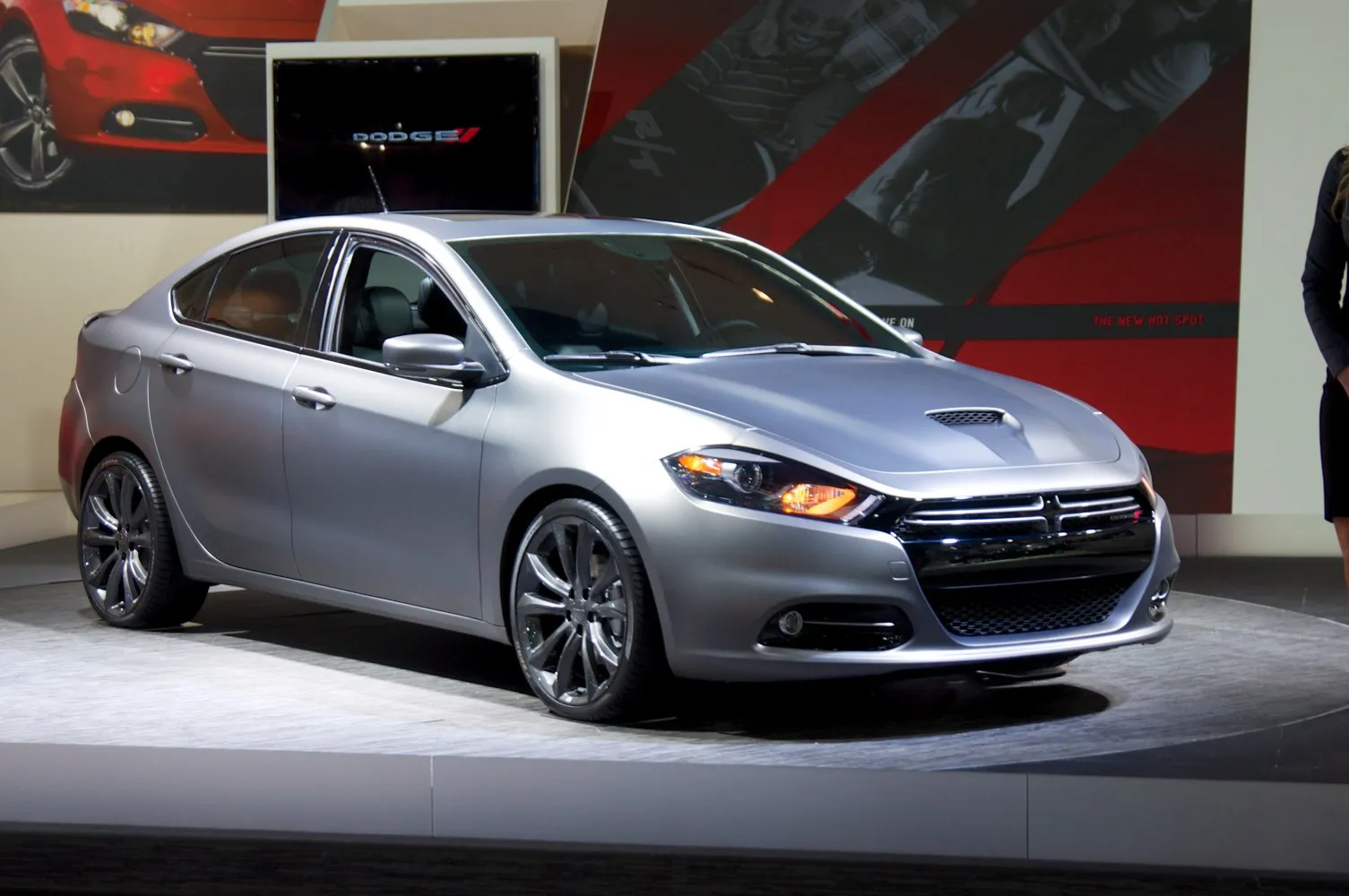

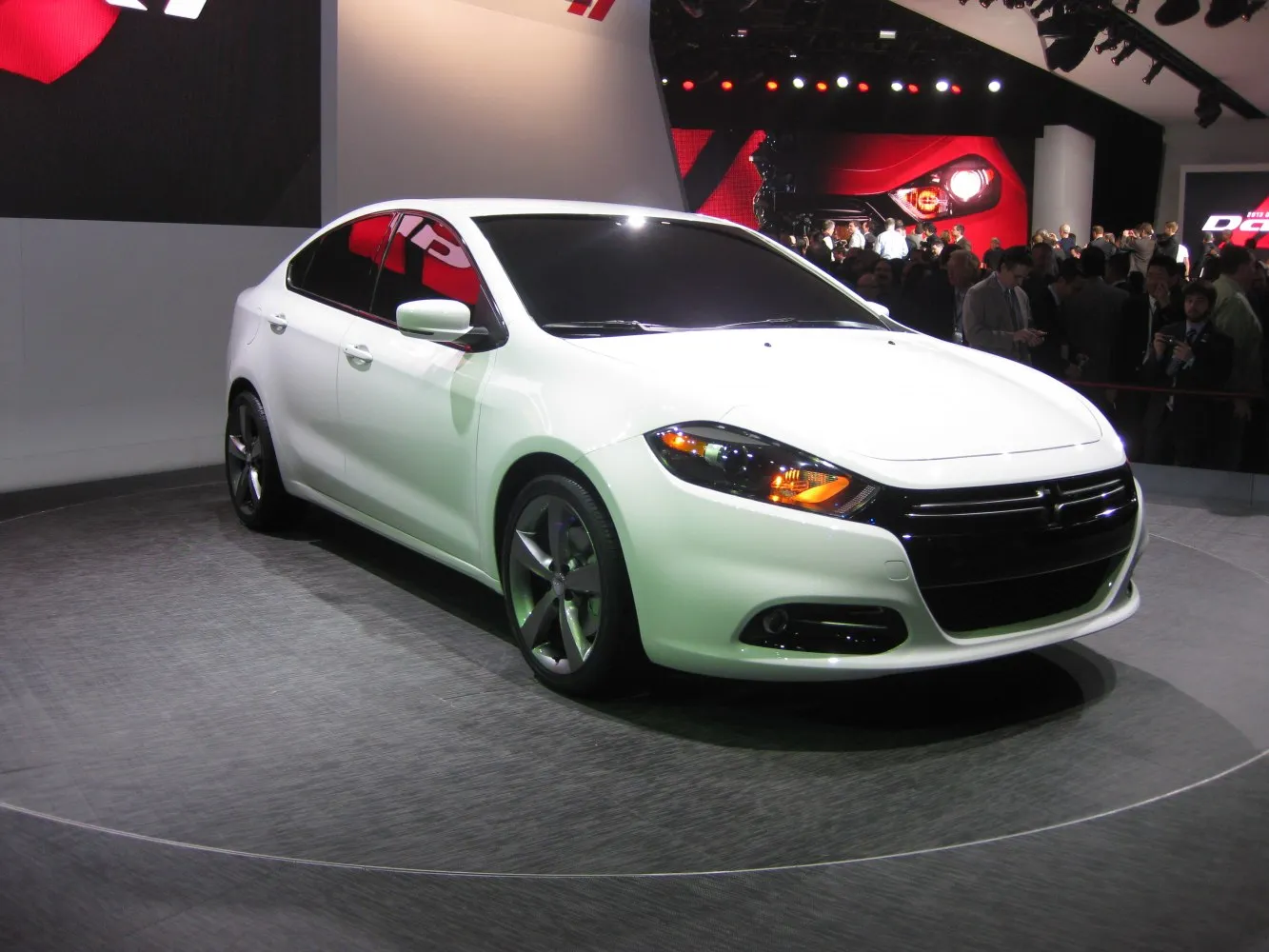

Vehicle photos

Basic information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine power	160 KM – 184 KM
Years of production	2012 r. – 2016 r.
Body type	Sedan
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	2.0 (160 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2012 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	8.7 l/100 km

Engine

Engine model / code	ECK
Engine position	Front, Transverse
Engine displacement	1995 cm³
Maximum engine speed	6750 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	82 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	6.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1471 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.12 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/45 R17
Rim size	17

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	1.4 MultiAir Turbo (160 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2012 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	7.3 l/100 km

Engine

Engine model / code	EAF
Engine position	Front, Transverse
Engine displacement	1368 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Compression ratio	9.8
Number of valves per cylinder	4
Engine oil capacity	3.8 l
Coolant capacity	5.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1447 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.12 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	205/55 R16
Rim size	16

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	1.4 MultiAir Turbo (160 KM) DDCT
Engine type	Combustion engine
Number of doors	4
Start of production	2012 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	7.3 l/100 km

Engine

Engine model / code	EAF
Engine position	Front, Transverse
Engine displacement	1368 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	72 mm
Piston stroke	84 mm
Compression ratio	9.8
Number of valves per cylinder	4
Engine oil capacity	3.8 l
Coolant capacity	5.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1471 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.12 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Type of automatic gearbox	DDCT
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	205/55 R16
Rim size	16

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	2.0 (160 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2012 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	8.1 l/100 km

Engine

Engine model / code	ECK
Engine position	Front, Transverse
Engine displacement	1995 cm³
Maximum engine speed	6750 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	82 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	6.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1445 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.12 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/45 R17
Rim size	17

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	2.4 MultiAir II (184 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	8.1 l/100 km

Engine

Engine model / code	ED6
Engine position	Front, Transverse
Engine displacement	2360 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	97 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	6.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1496 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.49 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/40 R18
Rim size	18

Basic version information

Brand	Dodge
Model	Dart
Version	Dart (PF)
Engine	2.4 MultiAir II (184 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2016 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Combined cycle	8.1 l/100 km

Engine

Engine model / code	ED6
Engine position	Front, Transverse
Engine displacement	2360 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	97 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	6.7 l

Volume and weight

Fuel tank	60 l
Aerodynamic drag coefficient (Cx)	0.285
Minimum trunk capacity	371 l
Curb weight	1519 kg

Vehicle dimensions

Length	4672 mm
Width	1830 mm
Height	1465 mm
Wheelbase	2703 mm
Front track	1568 mm
Rear track	1565 mm
Ground clearance	112 mm
Turning circle	11.49 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/40 R18
Rim size	18
