Vehicle specifications
Citroen C3 I (Phase I, 2002)
Compare all 11 engine versions of the Citroen C3 C3 I (Phase I, 2002), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Citroen C3 I (Phase I, 2002)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

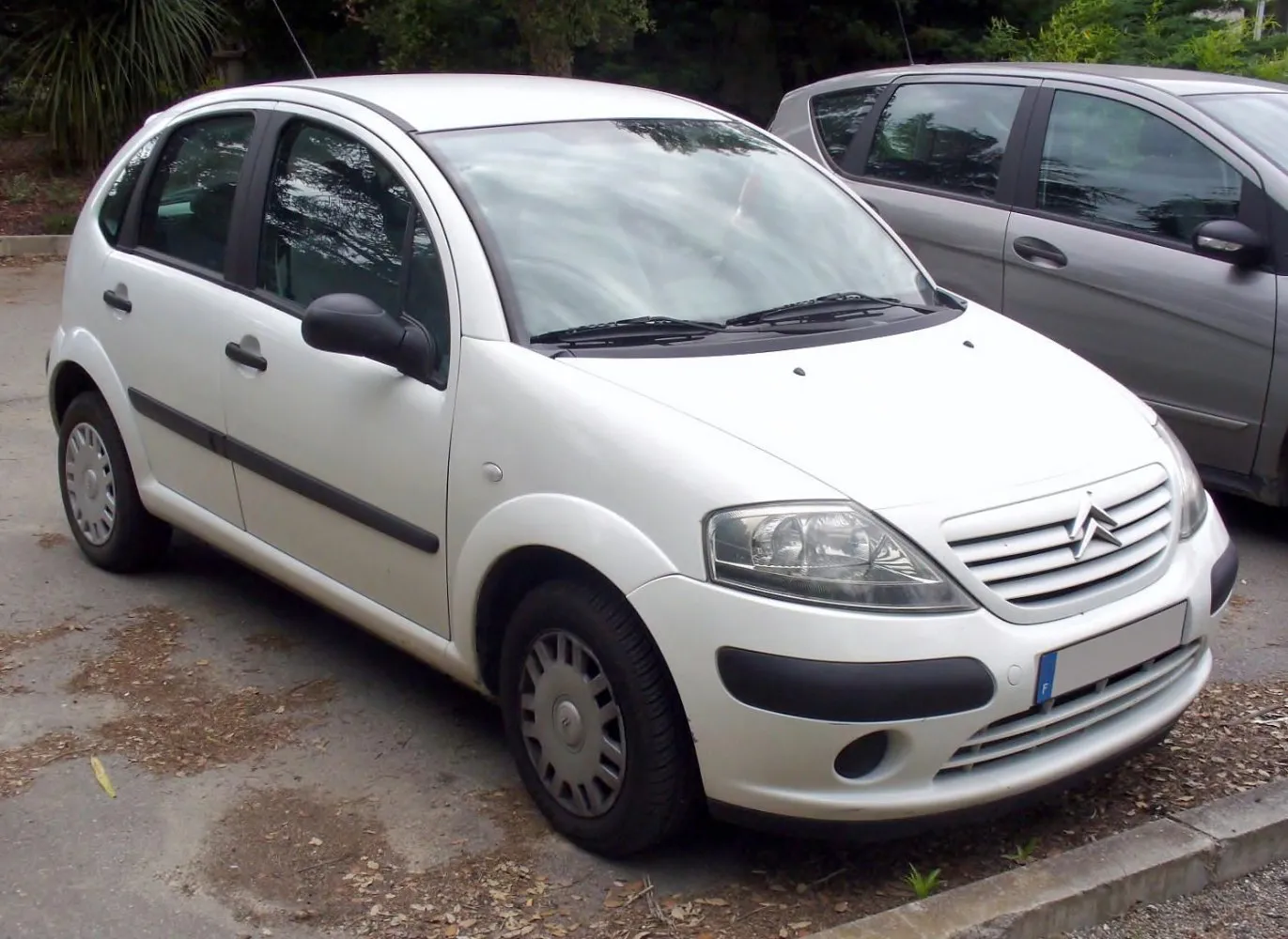

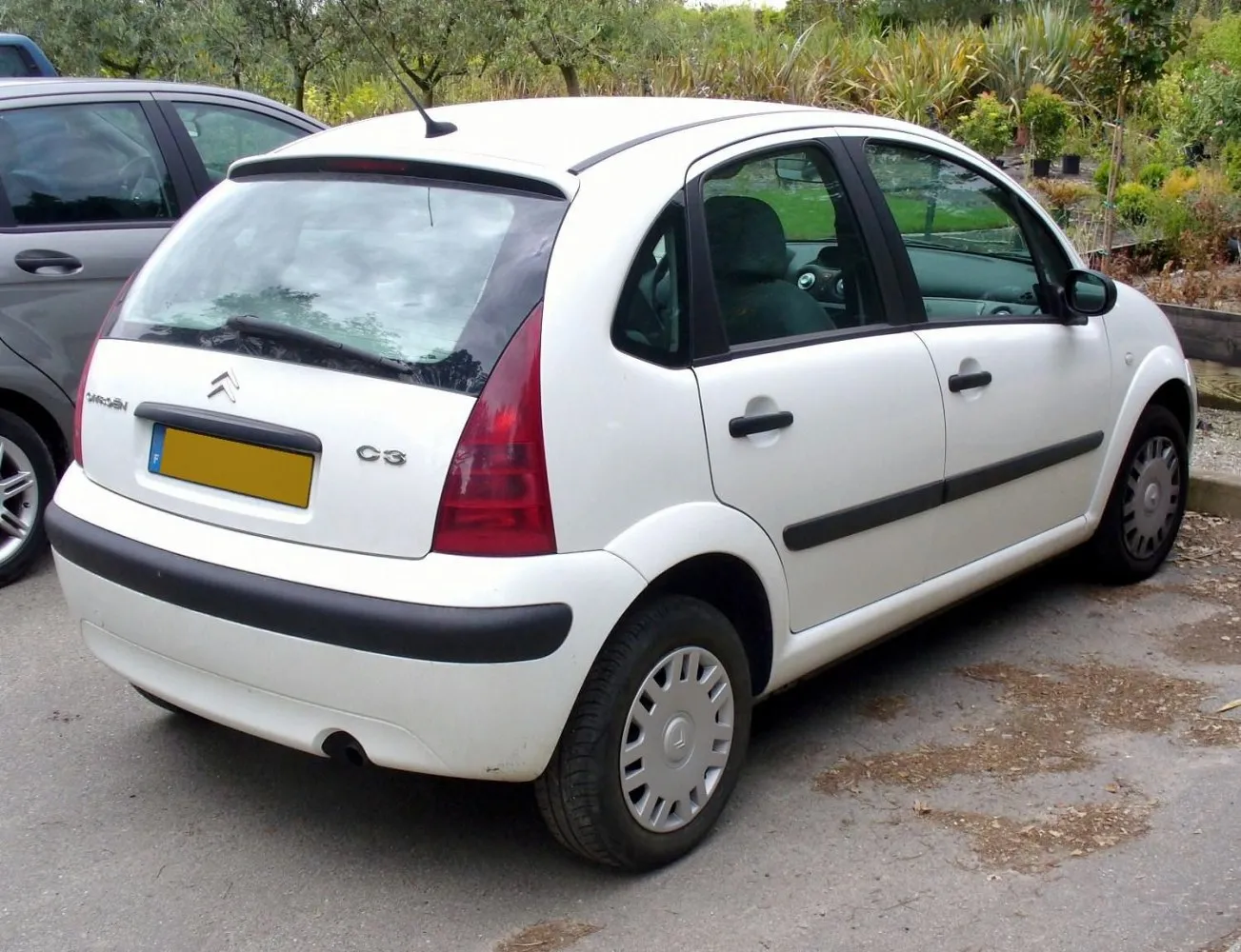

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
11 versions · 8 Gasoline · 3 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4i 16V (88 KM) SensoDrive Selected | Gasoline | 88 KM | 2004–2005 |
| 1.1i (60 KM) Selected | Gasoline | 60 KM | 2002–2005 |
| 1.4 HDi (68 KM) Selected | Diesel fuel | 68 KM | 2002–2005 |
| 1.4 HDi 16V (90 KM) Selected | Diesel fuel | 90 KM | 2003–2005 |
| 1.4i (73 KM) Selected | Gasoline | 73 KM | 2002–2005 |
| 1.4i 16V (88 KM) Selected | Gasoline | 88 KM | 2003–2005 |
| 1.6i 16V (109 KM) Selected | Gasoline | 109 KM | 2002–2005 |
| 1.6i 16V (109 KM) SensoDrive Selected | Gasoline | 109 KM | 2002–2005 |
| 1.4i (73 KM) Automatic Selected | Gasoline | 73 KM | 2002–2005 |
| 1.4 HDi (68 KM) SensoDrive Selected | Diesel fuel | 68 KM | 2004–2005 |
| 1.4i 16V (88 KM) Automatic Selected | Gasoline | 88 KM | 2003–2005 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4i 16V (88 KM) SensoDrive
Gasoline · 2004–2005
- Engine power
- 88 KM
- Torque
- 133 Nm
- Engine displacement
- 1,361 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4i 16V (88 KM) SensoDrive
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 7.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- KFUET3J4
- Engine position
- Front, Transverse
- Engine displacement
- 1361 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 77 mm
- Compression ratio
- 11.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.9 l
- Power
- 88 KM @ 5250 obr./min
- Torque
- 133 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1051 kg
- Gross weight
- 1506 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Type of automatic gearbox
- SensoDrive
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 185/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.1i (60 KM)
Gasoline · 2002–2005
- Engine power
- 60 KM
- Torque
- 94 Nm
- Engine displacement
- 1,124 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 17.3 s
- Maximum speed
- 157 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.1i (60 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 157 km/h
- Acceleration 0-100 km/h
- 17.3 s
- Fuel consumption - Urban cycle
- 7.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- HFXTU1JP
- Engine position
- Front, Transverse
- Engine displacement
- 1124 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 69 mm
- Compression ratio
- 9.7
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.4 l
- Coolant capacity
- 7 l
- Power
- 60 KM @ 5500 obr./min
- Torque
- 94 Nm @ 3500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 978 kg
- Gross weight
- 1463 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1438 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 165/70 R14
- Rim size
- 5J x 14
- ABS
- yes
Selected engine version
1.4 HDi (68 KM)
Diesel fuel · 2002–2005
- Engine power
- 68 KM
- Torque
- 150 Nm
- Engine displacement
- 1,398 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.4 s
- Maximum speed
- 165 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4 HDi (68 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 165 km/h
- Acceleration 0-100 km/h
- 15.4 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.8 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- 8HXDV4TD
- Engine position
- Front, Transverse
- Engine displacement
- 1398 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73.7 mm
- Piston stroke
- 82 mm
- Compression ratio
- 17.9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.3 l
- Coolant capacity
- 5.7 l
- Power
- 68 KM @ 4000 obr./min
- Torque
- 150 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1022 kg
- Gross weight
- 1501 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1438 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 165/70 R14
- Rim size
- 5J x 14
- ABS
- yes
Selected engine version
1.4 HDi 16V (90 KM)
Diesel fuel · 2003–2005
- Engine power
- 90 KM
- Torque
- 200 Nm
- Engine displacement
- 1,398 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.9 s
- Maximum speed
- 177 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4 HDi 16V (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 177 km/h
- Acceleration 0-100 km/h
- 12.9 s
- Fuel consumption - Urban cycle
- 5.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.7 l/100 km
- Fuel consumption - Combined cycle
- 4.3 l/100 km
Engine
- Engine model / code
- 8HYDV4TED4
- Engine position
- Front, Transverse
- Engine displacement
- 1398 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73.7 mm
- Piston stroke
- 82 mm
- Compression ratio
- 17.9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.75 l
- Coolant capacity
- 5.7 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 200 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1072 kg
- Gross weight
- 1539 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Suspension on a link connecting the control arms
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.4i (73 KM)
Gasoline · 2002–2005
- Engine power
- 73 KM
- Torque
- 120 Nm
- Engine displacement
- 1,360 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.2 s
- Maximum speed
- 168 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4i (73 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 168 km/h
- Acceleration 0-100 km/h
- 14.2 s
- Fuel consumption - Urban cycle
- 8.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- KFVTU3JP
- Engine position
- Front, Transverse
- Engine displacement
- 1360 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 77 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.4 l
- Coolant capacity
- 7 l
- Power
- 73 KM @ 5400 obr./min
- Torque
- 120 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1005 kg
- Gross weight
- 1470 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1438 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 5.5J x 15
- ABS
- yes
Selected engine version
1.4i 16V (88 KM)
Gasoline · 2003–2005
- Engine power
- 88 KM
- Torque
- 133 Nm
- Engine displacement
- 1,361 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4i 16V (88 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 7.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- KFUET3J4
- Engine position
- Front, Transverse
- Engine displacement
- 1361 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 77 mm
- Compression ratio
- 11.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.9 l
- Power
- 88 KM @ 5250 obr./min
- Torque
- 133 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1045 kg
- Gross weight
- 1515 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 5.5J x 15
- ABS
- yes
Selected engine version
1.6i 16V (109 KM)
Gasoline · 2002–2005
- Engine power
- 109 KM
- Torque
- 147 Nm
- Engine displacement
- 1,587 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.7 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.6i 16V (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 10.7 s
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption - Combined cycle
- 6.5 l/100 km
Engine
- Engine model / code
- NFUTU5JP4
- Engine position
- Front, Transverse
- Engine displacement
- 1587 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78.5 mm
- Piston stroke
- 82 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.4 l
- Coolant capacity
- 7 l
- Power
- 109 KM @ 5750 obr./min
- Torque
- 147 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1060 kg
- Gross weight
- 1525 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 5.5J x 15
- ABS
- yes
Selected engine version
1.6i 16V (109 KM) SensoDrive
Gasoline · 2002–2005
- Engine power
- 109 KM
- Torque
- 147 Nm
- Engine displacement
- 1,587 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.9 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.6i 16V (109 KM) SensoDrive
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 12.9 s
- Fuel consumption - Urban cycle
- 8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- NFUTU5JP4
- Engine position
- Front, Transverse
- Engine displacement
- 1587 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78.5 mm
- Piston stroke
- 82 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.4 l
- Coolant capacity
- 7 l
- Power
- 109 KM @ 5750 obr./min
- Torque
- 147 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1063 kg
- Gross weight
- 1525 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Type of automatic gearbox
- SensoDrive
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 5.5J x 15
- ABS
- yes
Selected engine version
1.4i (73 KM) Automatic
Gasoline · 2002–2005
- Engine power
- 73 KM
- Torque
- 120 Nm
- Engine displacement
- 1,360 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 17.7 s
- Maximum speed
- 162 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4i (73 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2002
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 162 km/h
- Acceleration 0-100 km/h
- 17.7 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 7.1 l/100 km
- Emission standard
- Euro 4
Engine
- Engine model / code
- KFVTU3JP
- Engine position
- Front, Transverse
- Engine displacement
- 1360 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 77 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.4 l
- Coolant capacity
- 7 l
- Power
- 73 KM @ 5500 obr./min
- Torque
- 120 Nm @ 3400 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1005 kg
- Gross weight
- 1470 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1438 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 165/70 R13
- Rim size
- 13
- ABS
- yes
Selected engine version
1.4 HDi (68 KM) SensoDrive
Diesel fuel · 2004–2005
- Engine power
- 68 KM
- Torque
- 150 Nm
- Engine displacement
- 1,398 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 17.4 s
- Maximum speed
- 165 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4 HDi (68 KM) SensoDrive
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 165 km/h
- Acceleration 0-100 km/h
- 17.4 s
- Fuel consumption - Urban cycle
- 4.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.9 l/100 km
- Fuel consumption - Combined cycle
- 4.3 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- 8HXDV4TD
- Engine position
- Front, Transverse
- Engine displacement
- 1398 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73.7 mm
- Piston stroke
- 82 mm
- Compression ratio
- 17.9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.3 l
- Coolant capacity
- 5.7 l
- Power
- 68 KM @ 4000 obr./min
- Torque
- 150 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1022 kg
- Gross weight
- 1501 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Type of automatic gearbox
- SensoDrive
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.4i 16V (88 KM) Automatic
Gasoline · 2003–2005
- Engine power
- 88 KM
- Torque
- 133 Nm
- Engine displacement
- 1,361 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Citroen C3 C3 I (Phase I, 2002)- Brand
- Citroen
- Model
- C3
- Version
- C3 I (Phase I, 2002)
- Engine
- 1.4i 16V (88 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2003
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 7.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 3
Engine
- Engine model / code
- KFUET3J4
- Engine position
- Front, Transverse
- Engine displacement
- 1361 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 77 mm
- Compression ratio
- 11.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.9 l
- Power
- 88 KM @ 5250 obr./min
- Torque
- 133 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 45 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 305 l
- Maximum trunk capacity
- 1150 l
- Curb weight
- 1044 kg
- Gross weight
- 1517 kg
Vehicle dimensions
- Length
- 3850 mm
- Width
- 1667 mm
- Height
- 1529 mm
- Wheelbase
- 2460 mm
- Front track
- 1435 mm
- Rear track
- 1435 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15
- Rim size
- 5.5J x 15
- ABS
- yes
