Vehicle specifications
BMW X5 M (F85)
Compare all 1 engine versions of the BMW X5 M X5 M (F85), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used BMW X5 M (F85)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

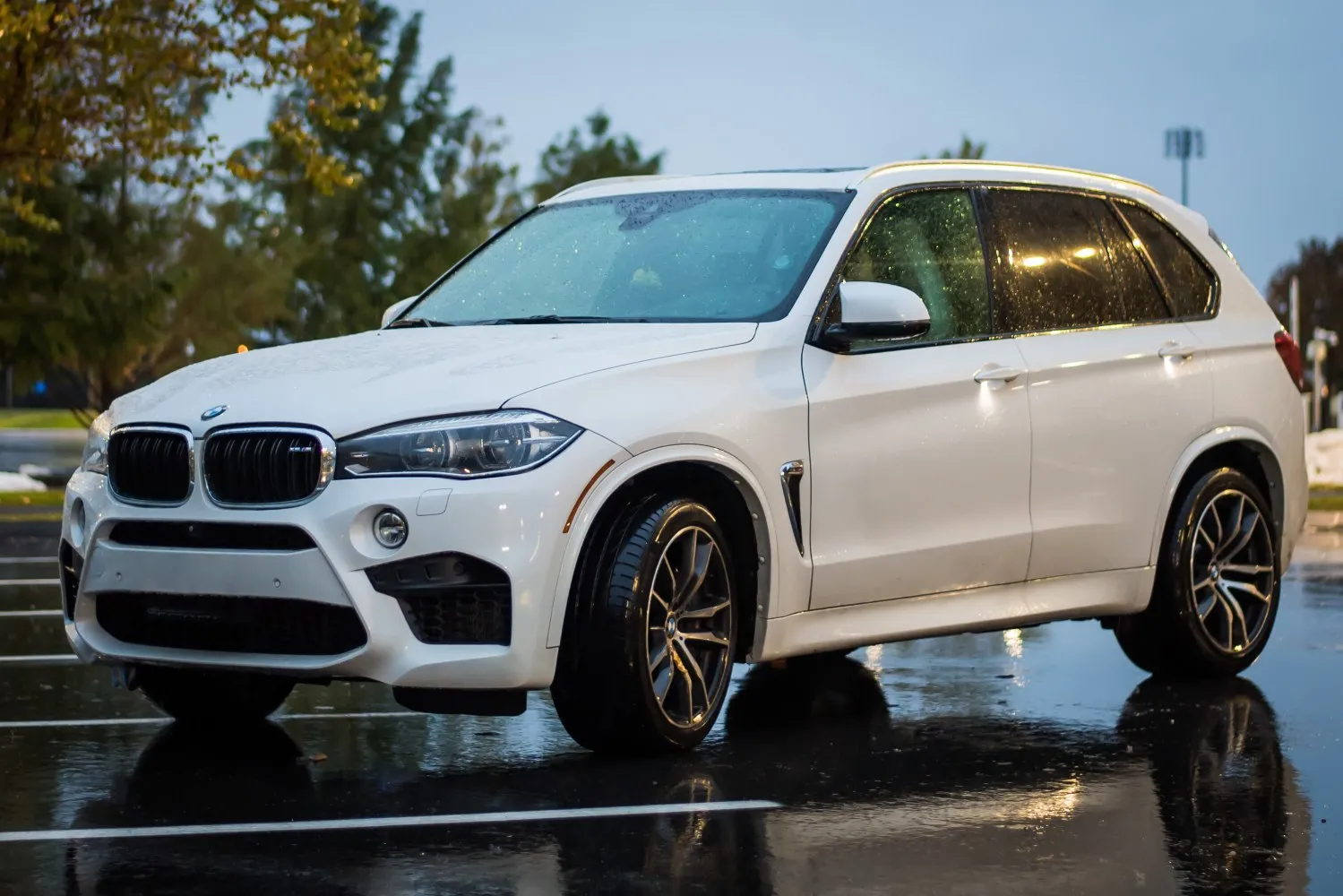

Vehicle photos
1 of 5
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
1 versions · 1 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 4.4 V8 (575 KM) xDrive Steptronic Selected | Gasoline | 575 KM | 2015–2018 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
4.4 V8 (575 KM) xDrive Steptronic
Gasoline · 2015–2018
- Engine power
- 575 KM
- Torque
- 750 Nm
- Engine displacement
- 4,395 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.2 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
BMW X5 M X5 M (F85)- Brand
- BMW
- Model
- X5 M
- Version
- X5 M (F85)
- Engine
- 4.4 V8 (575 KM) xDrive Steptronic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2018
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.2 s
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 9 l/100 km
- Fuel consumption - Combined cycle
- 11.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 258 g/km
Engine
- Engine model / code
- S63B44
- Engine position
- Front, Longitudinal
- Engine displacement
- 4395 cm³
- Fuel injection system
- Direct injection
- Engine type
- Twin-power turbo, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 89 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9.5 l
- Coolant capacity
- 16.8 l
- Power
- 575 KM @ 6000-6500 obr./min
- Torque
- 750 Nm @ 2200-5000 obr./min
Volume and weight
- Fuel tank
- 85 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 650 l
- Maximum trunk capacity
- 1870 l
- Curb weight
- 2275 kg
- Gross weight
- 2970 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2970 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 140 kg
Vehicle dimensions
- Length
- 4880 mm
- Width
- 1985 mm
- Height
- 1754 mm
- Wheelbase
- 2933 mm
- Front track
- 1666 mm
- Rear track
- 1667 mm
- Ground clearance
- 195 mm
- Turning circle
- 12.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Type of automatic gearbox
- Steptronic
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 285/40 R20 104Y; 325/35 R20 108Y
- Rim size
- 10.0J x 20; 11.5J x 20
- ABS
- yes
