Vehicle specifications
Audi S4 Avant (B9)
Compare all 2 engine versions of the Audi S4 S4 Avant (B9), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Audi S4 Avant (B9)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Audi S4 Avant (B9)?
See the places on a 3D model →- VIN number
- Suspension strut tower, right side

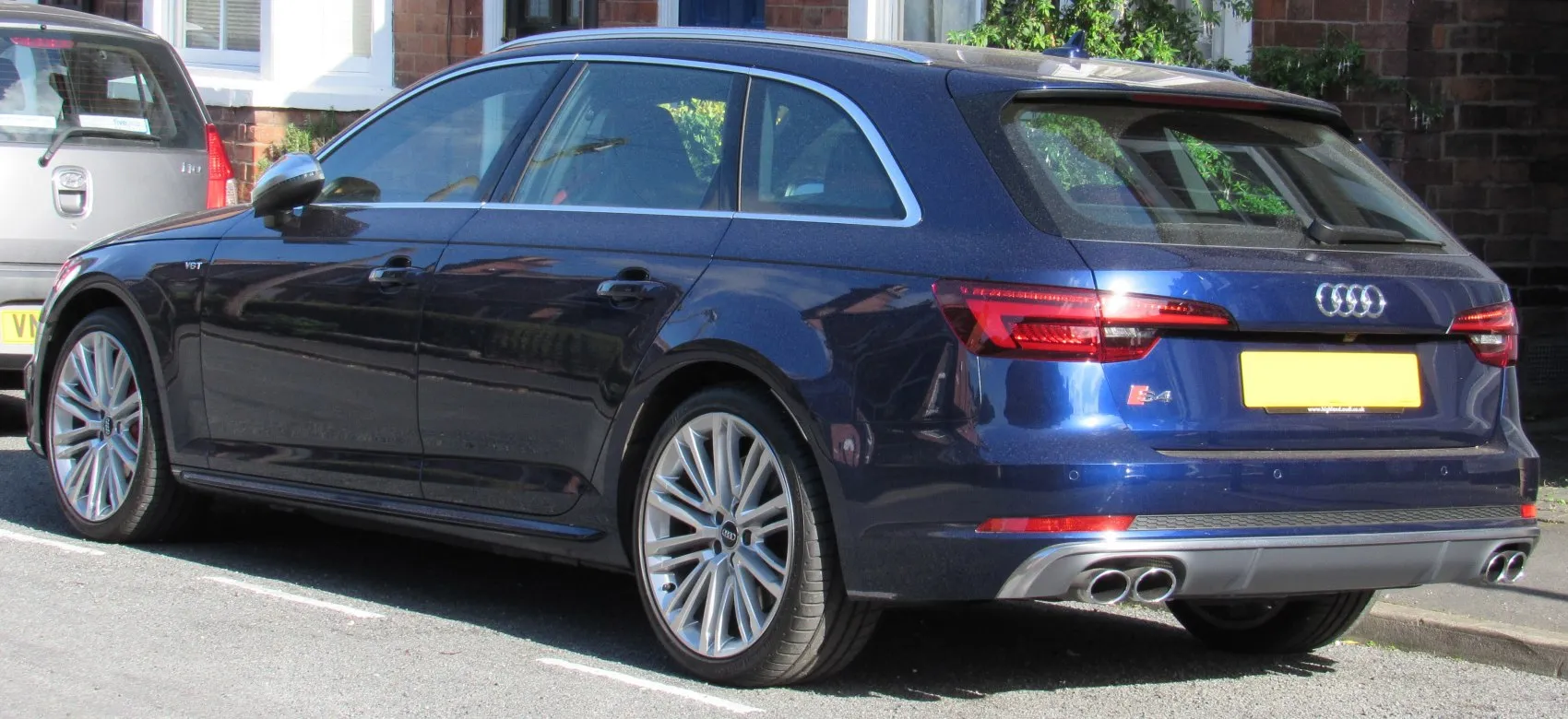

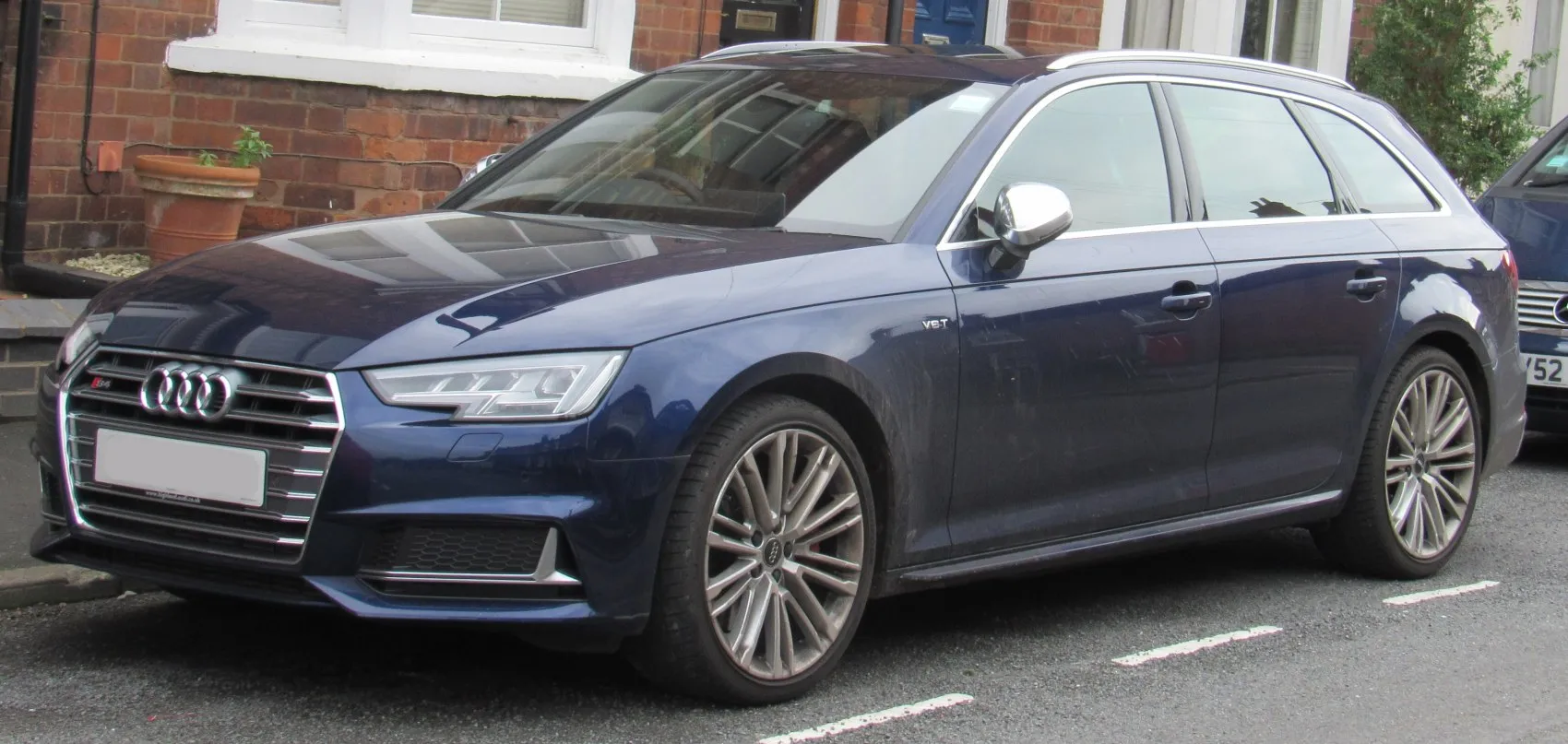

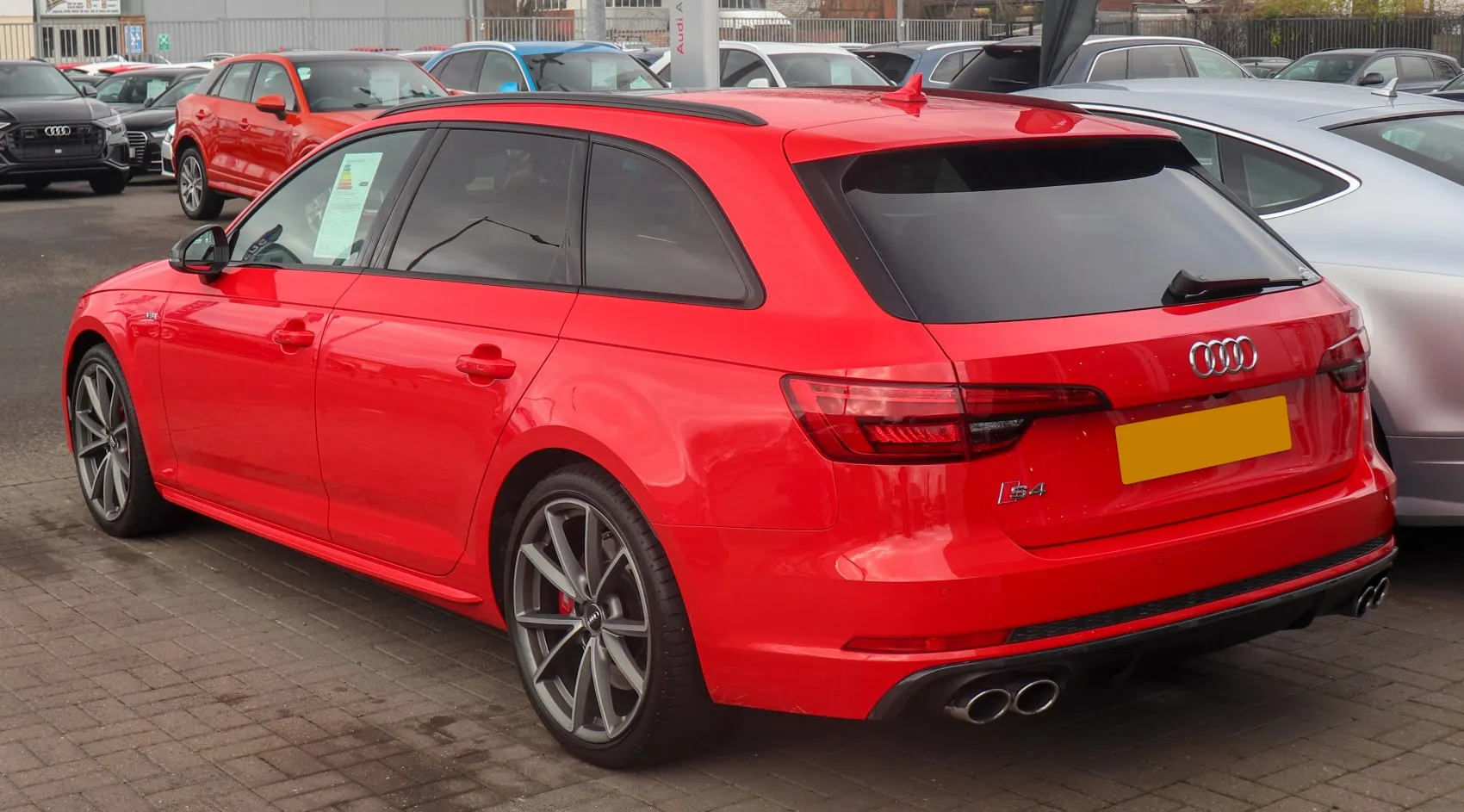

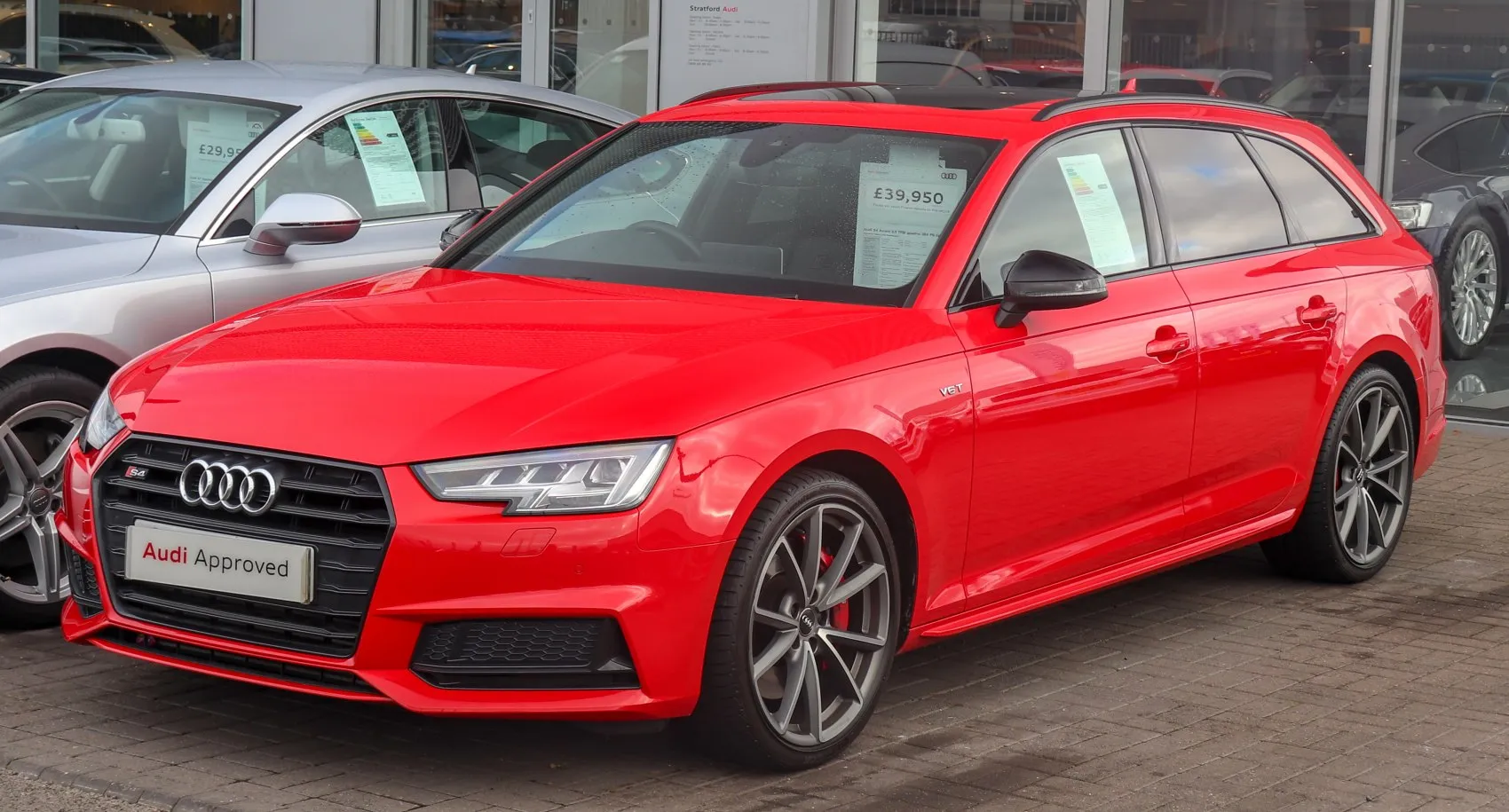

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 1 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.0 TFSI V6 (354 KM) quattro tiptronic Selected | Gasoline | 354 KM | 2016–2019 |
| 3.0 TDI V6 (347 KM) Mild Hybrid quattro tiptronic Selected | Diesel fuel | 347 KM | 2019 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.0 TFSI V6 (354 KM) quattro tiptronic
Gasoline · 2016–2019
- Engine power
- 354 KM
- Torque
- 500 Nm
- Engine displacement
- 2,995 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Audi S4 S4 Avant (B9)- Brand
- Audi
- Model
- S4
- Version
- S4 Avant (B9)
- Engine
- 3.0 TFSI V6 (354 KM) quattro tiptronic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2019
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.9 s
- Fuel consumption - Urban cycle
- 10.0-10.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1-6.3 l/100 km
- Fuel consumption - Combined cycle
- 7.5-7.6 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 171-175 g/km
Engine
- Engine model / code
- EA839/CWGD
- Engine position
- Front, Longitudinal
- Engine displacement
- 2995 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84.5 mm
- Piston stroke
- 89 mm
- Compression ratio
- 11.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.2 l
- Coolant capacity
- 10 l
- Power
- 354 KM @ 5400-6400 obr./min
- Torque
- 500 Nm @ 1370-4500 obr./min
Volume and weight
- Fuel tank
- 58 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 505 l
- Maximum trunk capacity
- 1510 l
- Curb weight
- 1675 kg
- Gross weight
- 2265 kg
- Roof load
- 90 kg
- Braked trailer load (8% slope start)
- 2100 kg
- Braked trailer load (12% slope start)
- 1900 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4745 mm
- Width
- 1842 mm
- Width with unfolded mirrors
- 2022 mm
- Height
- 1411-1437 mm
- Wheelbase
- 2825 mm
- Front track
- 1565 mm
- Rear track
- 1546 mm
- Front overhang
- 887 mm
- Rear overhang
- 1033 mm
- Turning circle
- 11.6 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Type of automatic gearbox
- tiptronic
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/40 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
3.0 TDI V6 (347 KM) Mild Hybrid quattro tiptronic
Diesel fuel · 2019
- Engine power
- 347 KM
- Torque
- 700 Nm
- Engine displacement
- 2,967 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 4.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Audi S4 S4 Avant (B9)- Brand
- Audi
- Model
- S4
- Version
- S4 Avant (B9)
- Engine
- 3.0 TDI V6 (347 KM) Mild Hybrid quattro tiptronic
- Engine type
- MHEV (Mild Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2019
- End of production
- 2019
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.9 s
- Battery gross capacity
- 0.5 kWh
- Fuel consumption - Urban cycle
- 7.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.7-5.8 l/100 km
- Fuel consumption - Combined cycle
- 6.3 l/100 km
- Emission standard
- Euro 6d
- CO2 emissions
- 164-165 g/km
Engine
- Engine model / code
- EA897evo2/DEWB
- Engine position
- Front, Longitudinal
- Engine displacement
- 2967 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbo kompresor i Sprężarka zasilana elektrycznie, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 83 mm
- Piston stroke
- 91.4 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.1 l
- Coolant capacity
- 11.5 l
- Power
- 347 KM @ 3850 obr./min
- Torque
- 700 Nm @ 2500-3100 obr./min
Volume and weight
- Fuel tank
- 58 l
- AdBlue tank
- 12 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 420 l
- Maximum trunk capacity
- 1435 l
- Curb weight
- 1820 kg
- Gross weight
- 2375 kg
- Roof load
- 90 kg
- Braked trailer load (8% slope start)
- 2100 kg
- Braked trailer load (12% slope start)
- 1900 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4750 mm
- Width
- 1842 mm
- Width with unfolded mirrors
- 2022 mm
- Height
- 1437 mm
- Wheelbase
- 2825 mm
- Front track
- 1565 mm
- Rear track
- 1546 mm
- Turning circle
- 11.6 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Type of automatic gearbox
- tiptronic
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/40 R18
- Rim size
- 8J x 18
- ABS
- yes
