Vehicle specifications
Aston Martin Vanquish II Volante
Compare all 2 engine versions of the Aston Martin Vanquish Vanquish II Volante, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Aston Martin Vanquish II Volante? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Aston Martin Vanquish II Volante?
See the places on a 3D model →- VIN number
- Floor next to / in front of the front seat, right side

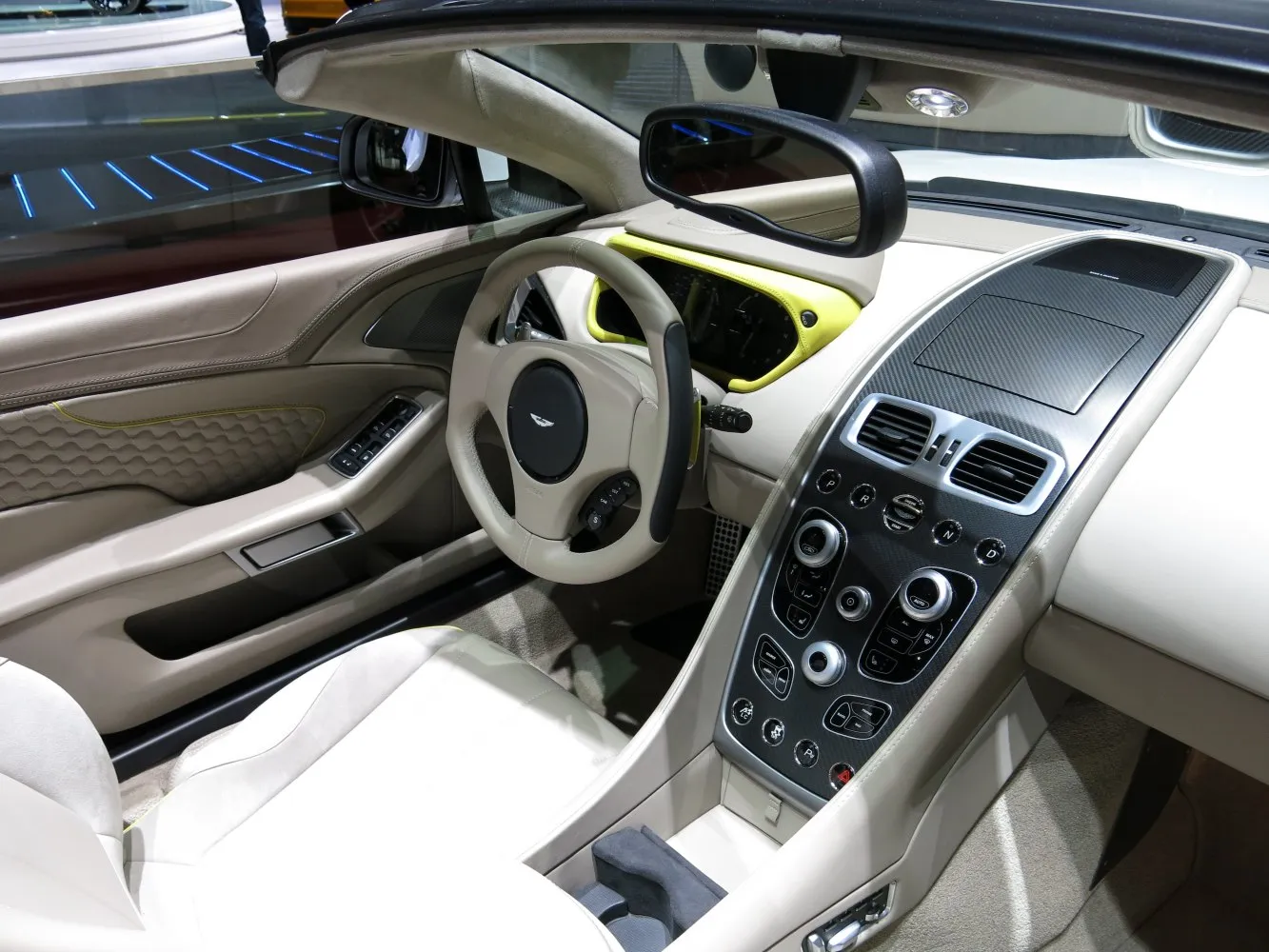

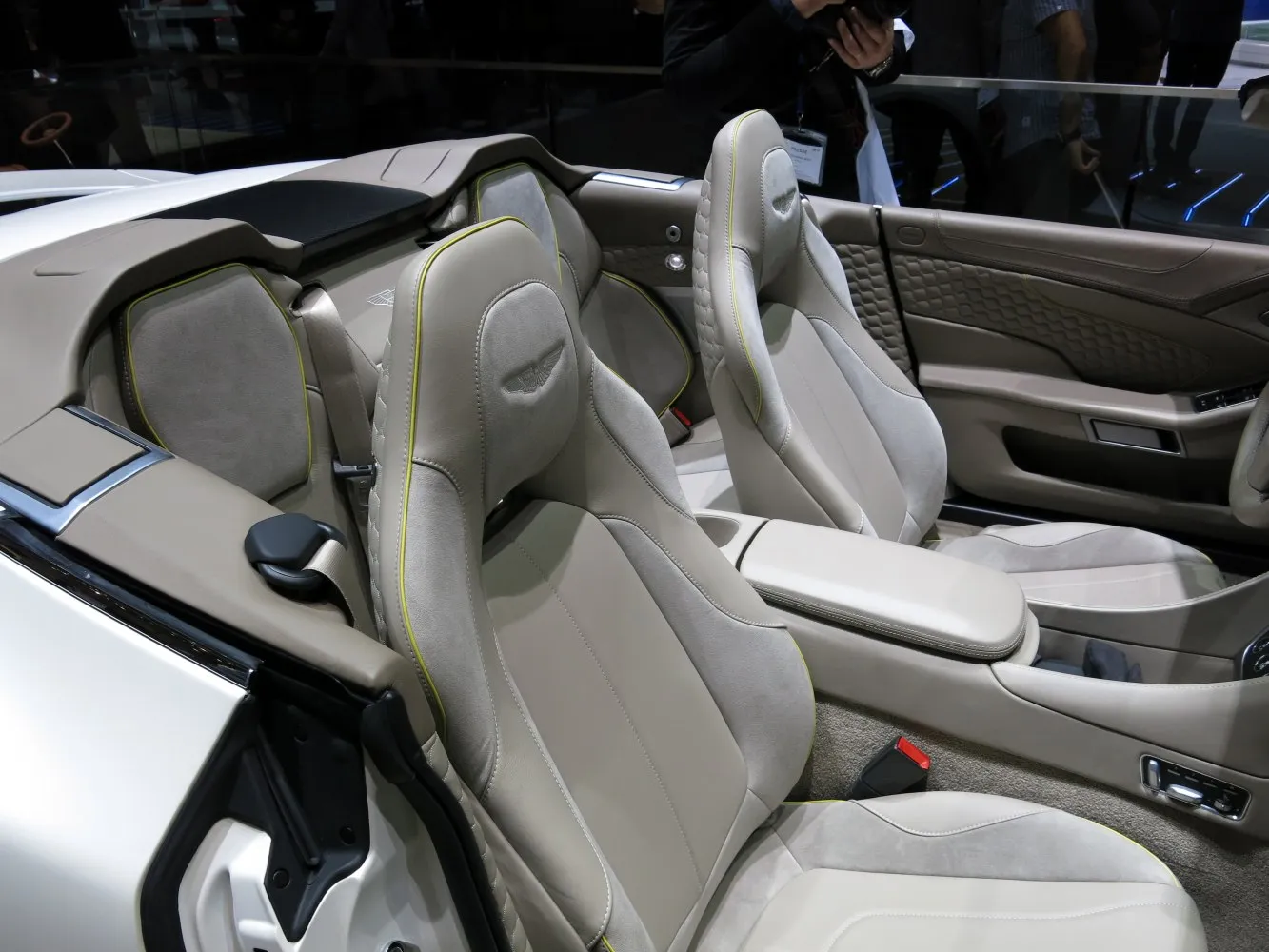

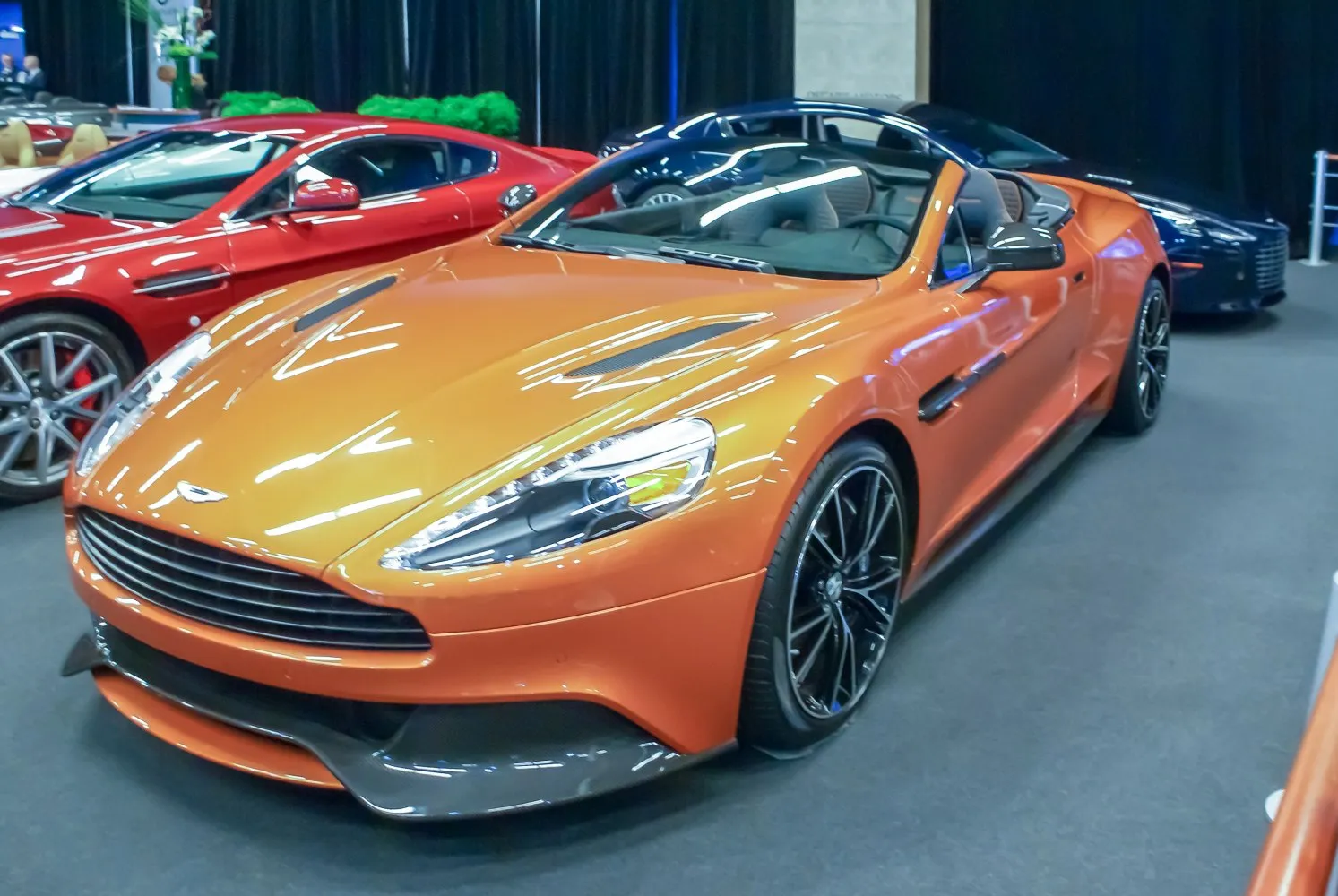

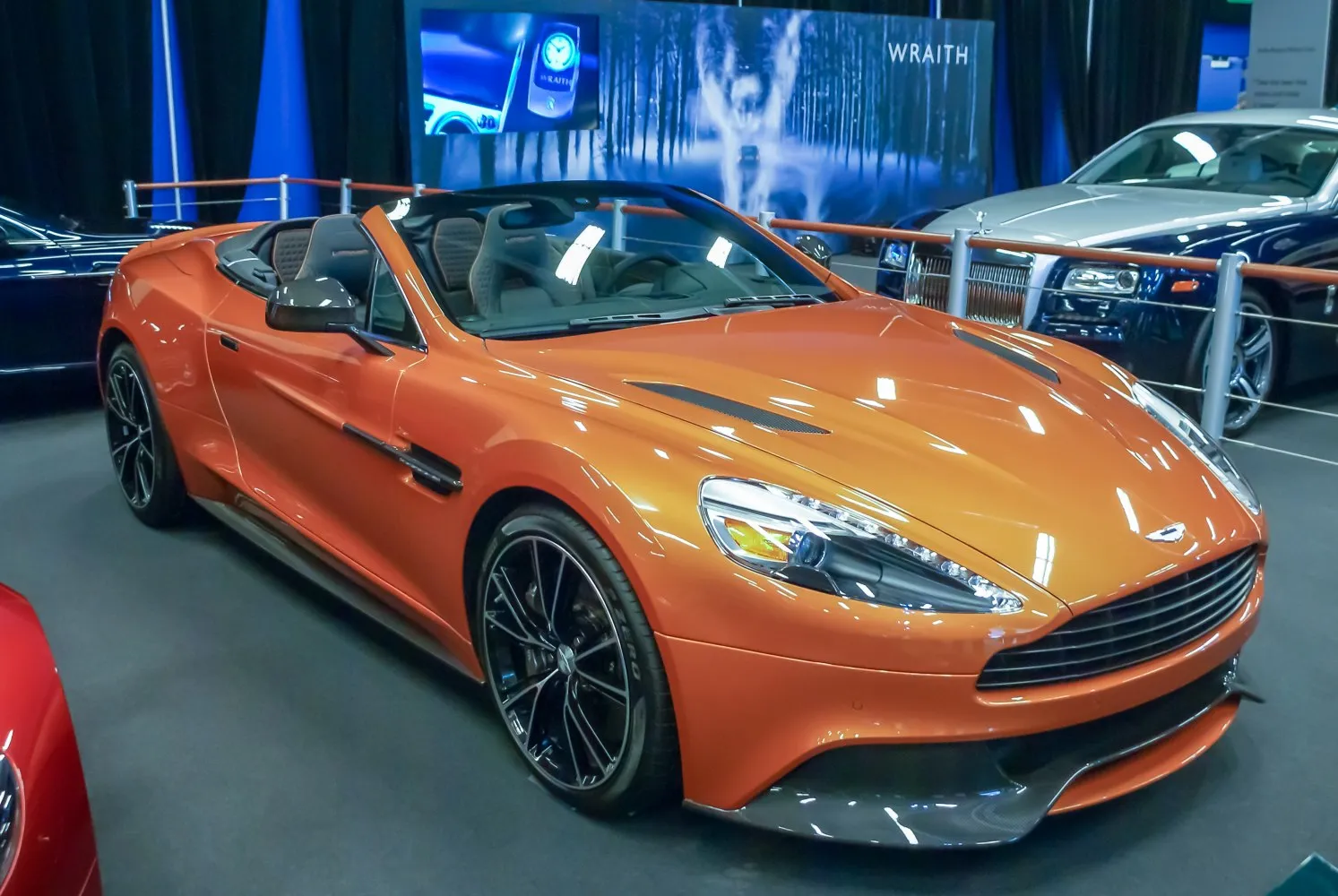

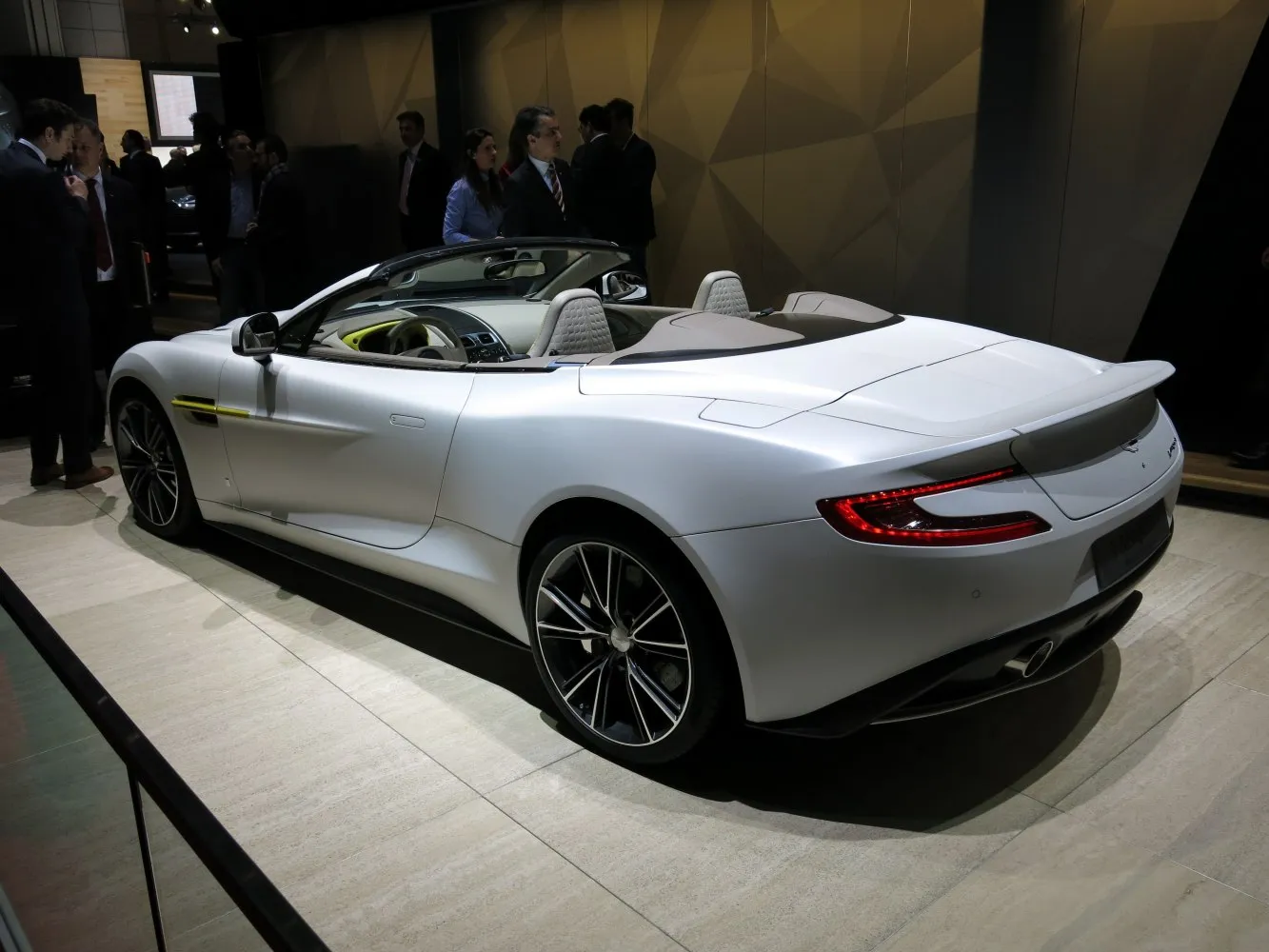

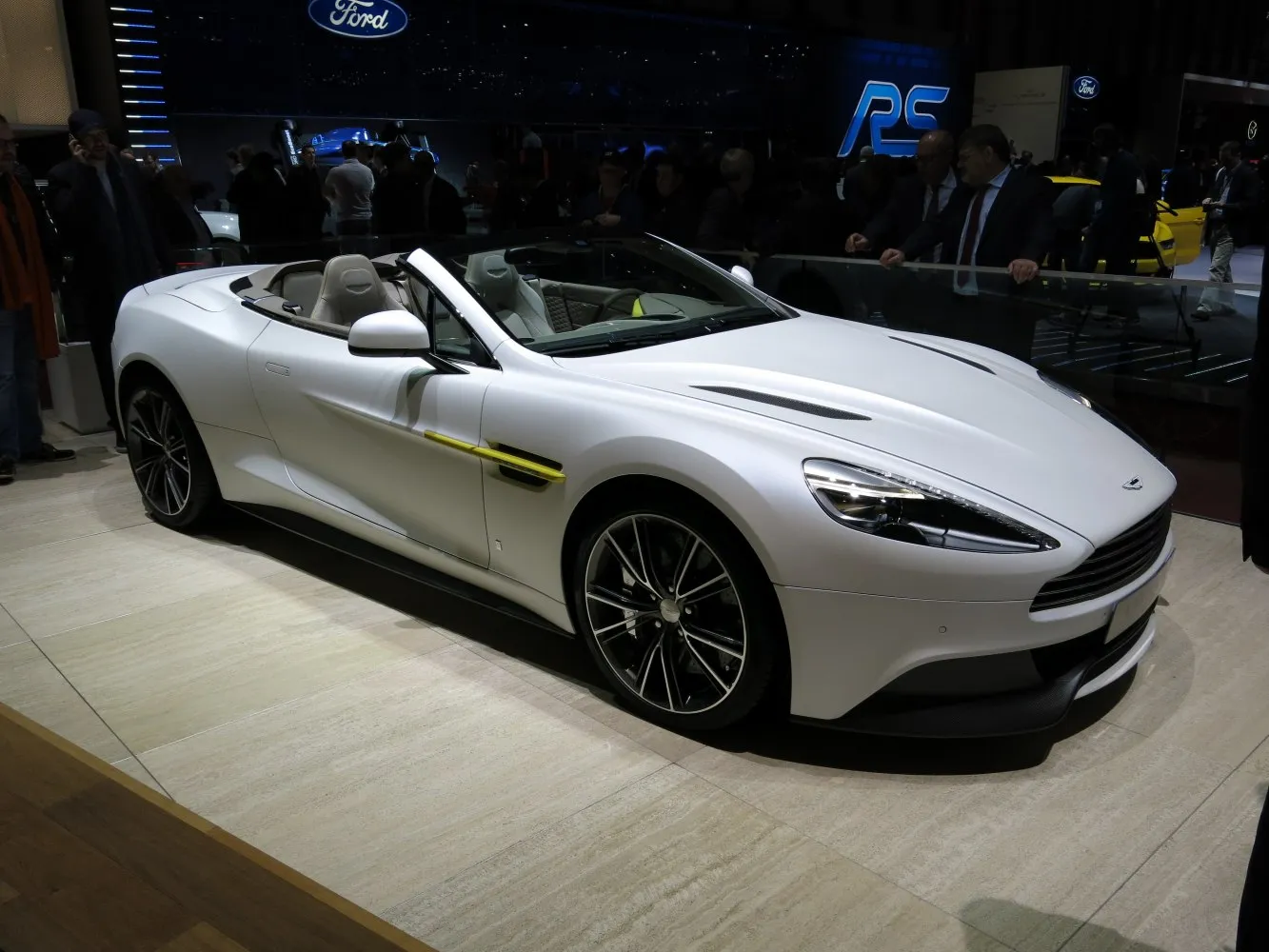

Vehicle photos
1 of 6
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 6.0 V12 (577 KM) Automatic Selected | Gasoline | 577 KM | 2013–2018 |
| 6.0 V12 (573 KM) Automatic Selected | Gasoline | 573 KM | 2013–2014 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
6.0 V12 (577 KM) Automatic
Gasoline · 2013–2018
- Engine power
- 577 KM
- Torque
- 630 Nm
- Engine displacement
- 5,935 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4 s
- Maximum speed
- 317 km/h
On this page
Check vehicle history
Basic version information
Aston Martin Vanquish Vanquish II Volante- Brand
- Aston Martin
- Model
- Vanquish
- Version
- Vanquish II Volante
- Engine
- 6.0 V12 (577 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2013
- End of production
- 2018
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 317 km/h
- Acceleration 0-100 km/h
- 4 s
- Fuel consumption - Urban cycle
- 19.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.1 l/100 km
- Fuel consumption - Combined cycle
- 12.8 l/100 km
- CO2 emissions
- 298 g/km
Engine
- Engine model / code
- AM29
- Engine position
- Front, Longitudinal
- Engine displacement
- 5935 cm³
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 12
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 13.1 l
- Coolant capacity
- 15 l
- Power
- 577 KM @ 6650 obr./min
- Torque
- 630 Nm @ 5500 obr./min
Volume and weight
- Fuel tank
- 78 l
- Curb weight
- 1844 kg
Vehicle dimensions
- Length
- 4728 mm
- Width
- 1912 mm
- Width with unfolded mirrors
- 2067 mm
- Height
- 1294 mm
- Wheelbase
- 2740 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Type of automatic gearbox
- Touchtronic
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 398 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 305/30 ZR20;255/35 ZR20
- Rim size
- 20
- ABS
- yes
Selected engine version
6.0 V12 (573 KM) Automatic
Gasoline · 2013–2014
- Engine power
- 573 KM
- Torque
- 620 Nm
- Engine displacement
- 5,935 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.3 s
- Maximum speed
- 295 km/h
On this page
Check vehicle history
Basic version information
Aston Martin Vanquish Vanquish II Volante- Brand
- Aston Martin
- Model
- Vanquish
- Version
- Vanquish II Volante
- Engine
- 6.0 V12 (573 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2013
- End of production
- 2014
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 295 km/h
- Acceleration 0-100 km/h
- 4.3 s
- Fuel consumption - Urban cycle
- 21.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
- Fuel consumption - Combined cycle
- 14.4 l/100 km
- CO2 emissions
- 335 g/km
Engine
- Engine model / code
- AM11
- Engine position
- Front, Longitudinal
- Engine displacement
- 5935 cm³
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 12
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 11 l
- Coolant capacity
- 15 l
- Power
- 573 KM @ 6750 obr./min
- Torque
- 620 Nm @ 5500 obr./min
Volume and weight
- Fuel tank
- 78 l
- Curb weight
- 1844 kg
Vehicle dimensions
- Length
- 4692 mm
- Width
- 1912 mm
- Width with unfolded mirrors
- 2067 mm
- Height
- 1294 mm
- Wheelbase
- 2740 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Touchtronic
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 398 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 360 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 305/30 ZR20;255/35 ZR20
- Rim size
- 11.5J x 20;9J x 20
- ABS
- yes
