Vehicle specifications
Alfa Romeo Spider (105)
Compare all 4 engine versions of the Alfa Romeo Spider Spider (105), then open the technical data for the exact drivetrain and production year.

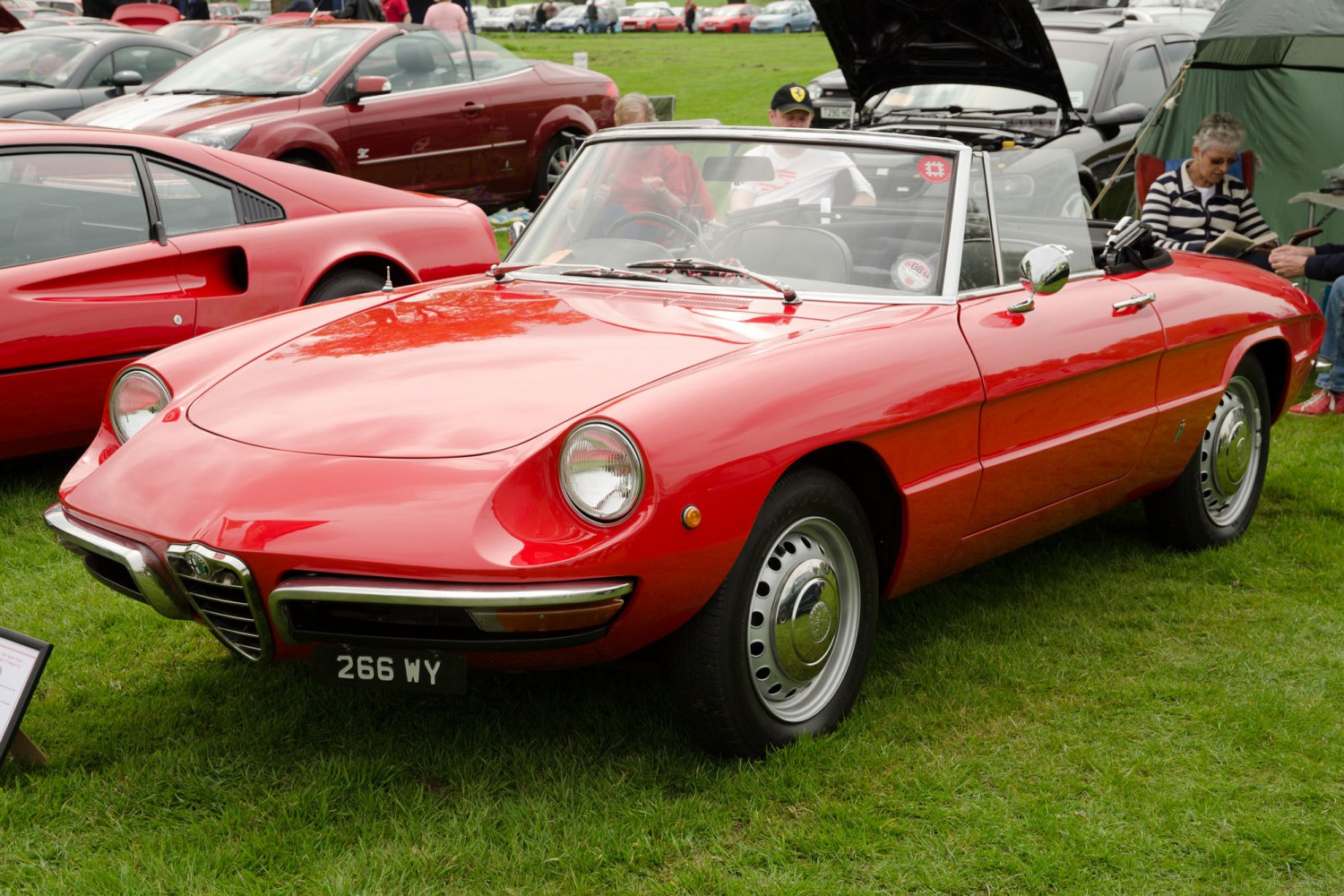

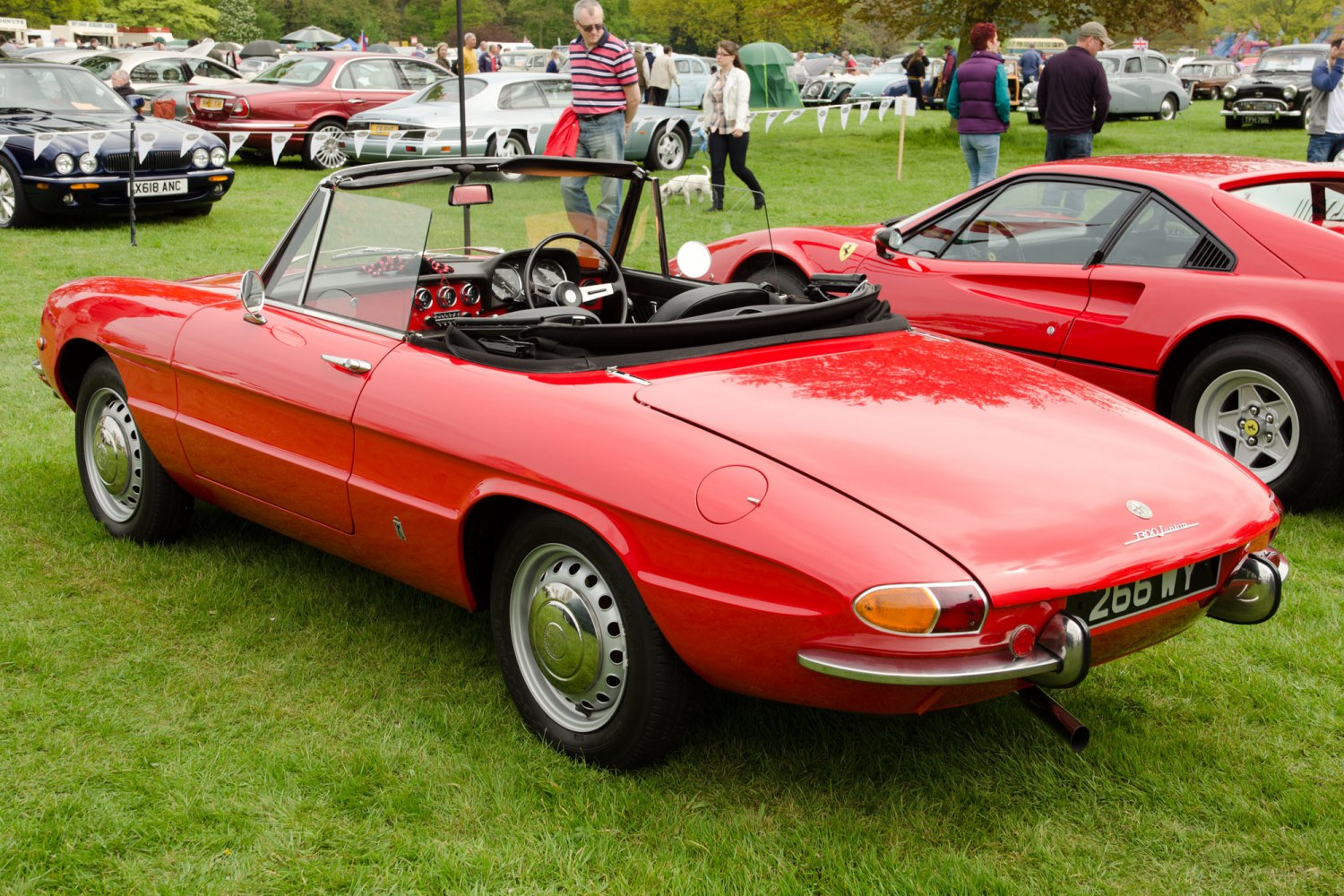

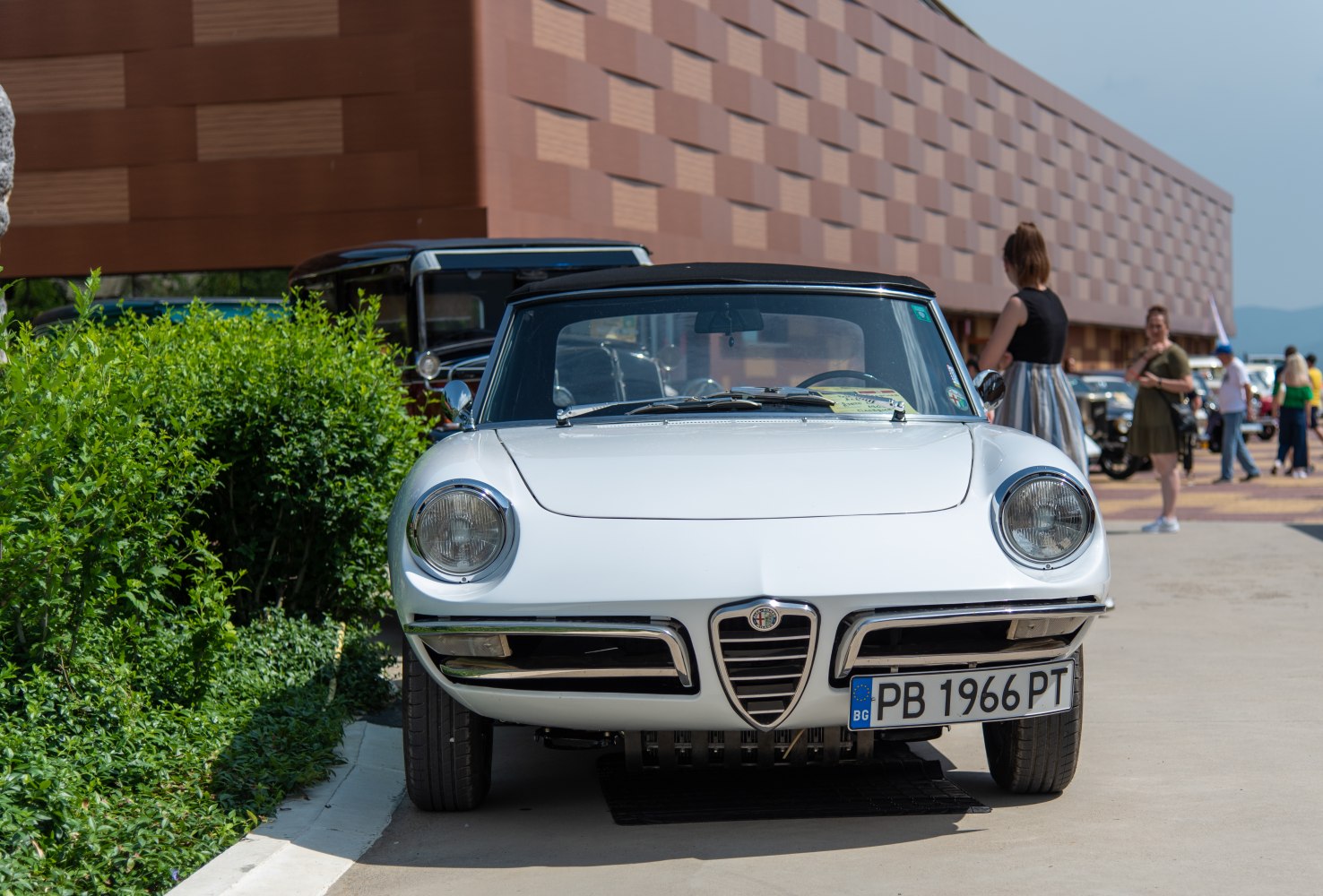

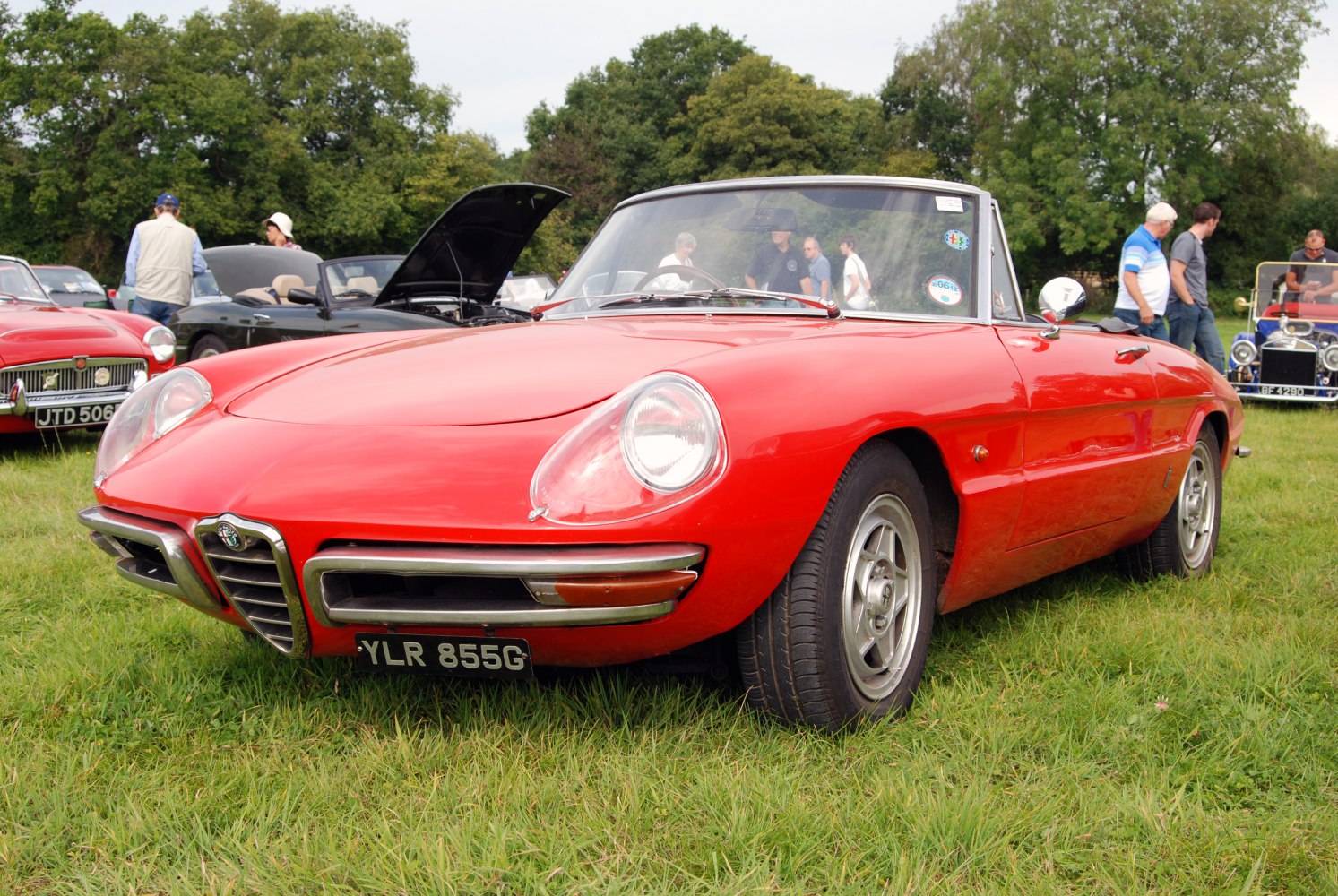

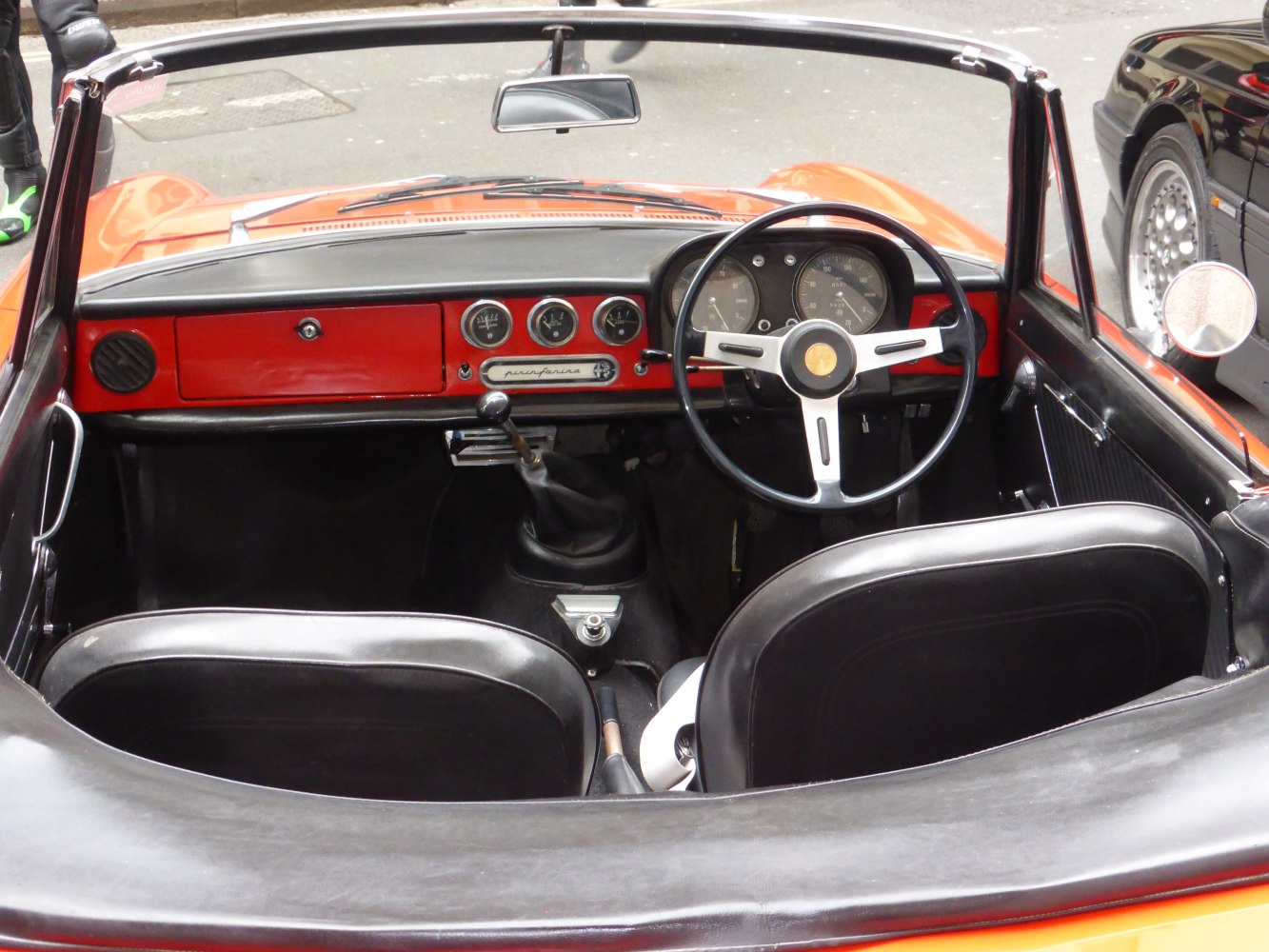

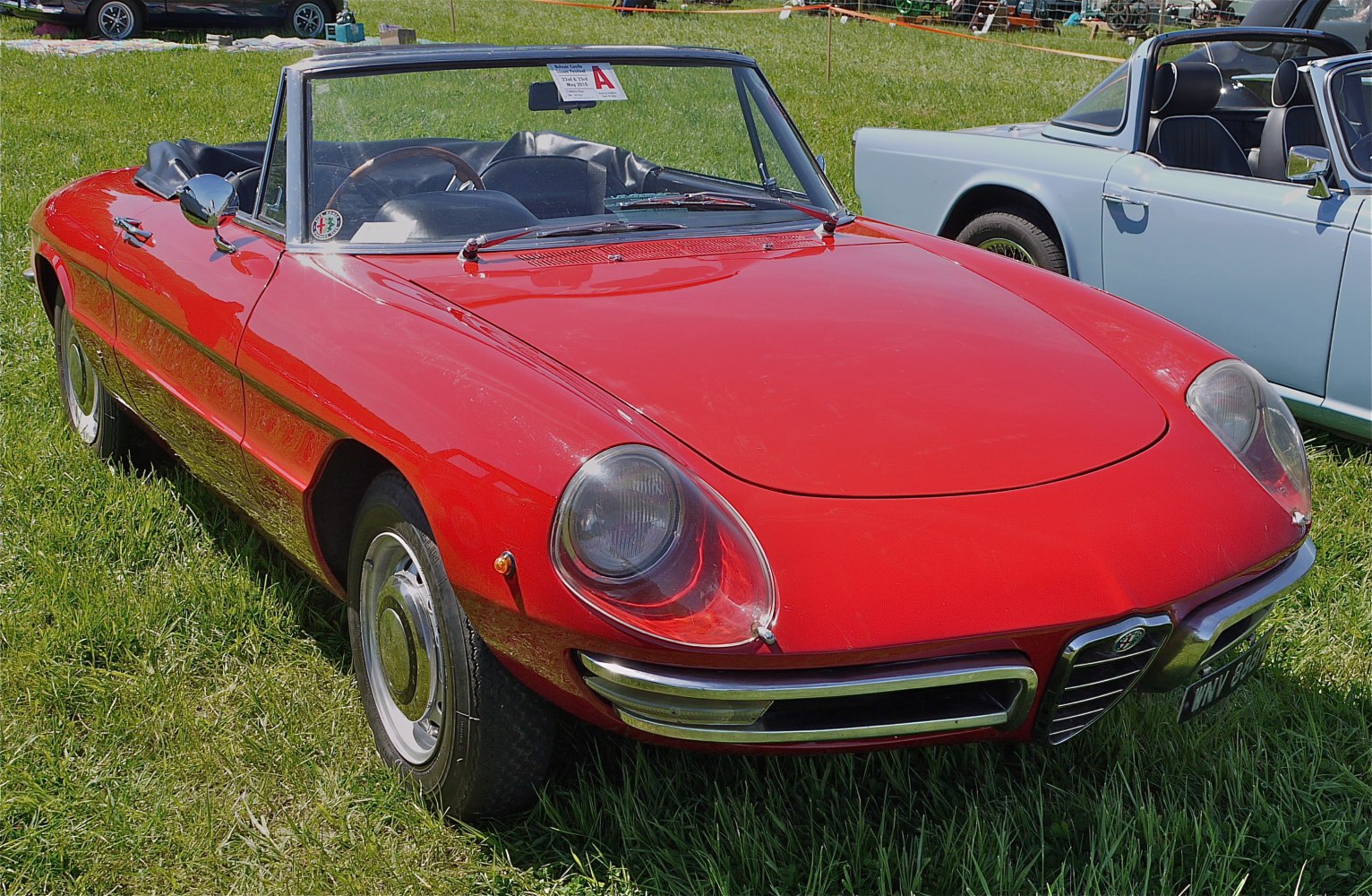

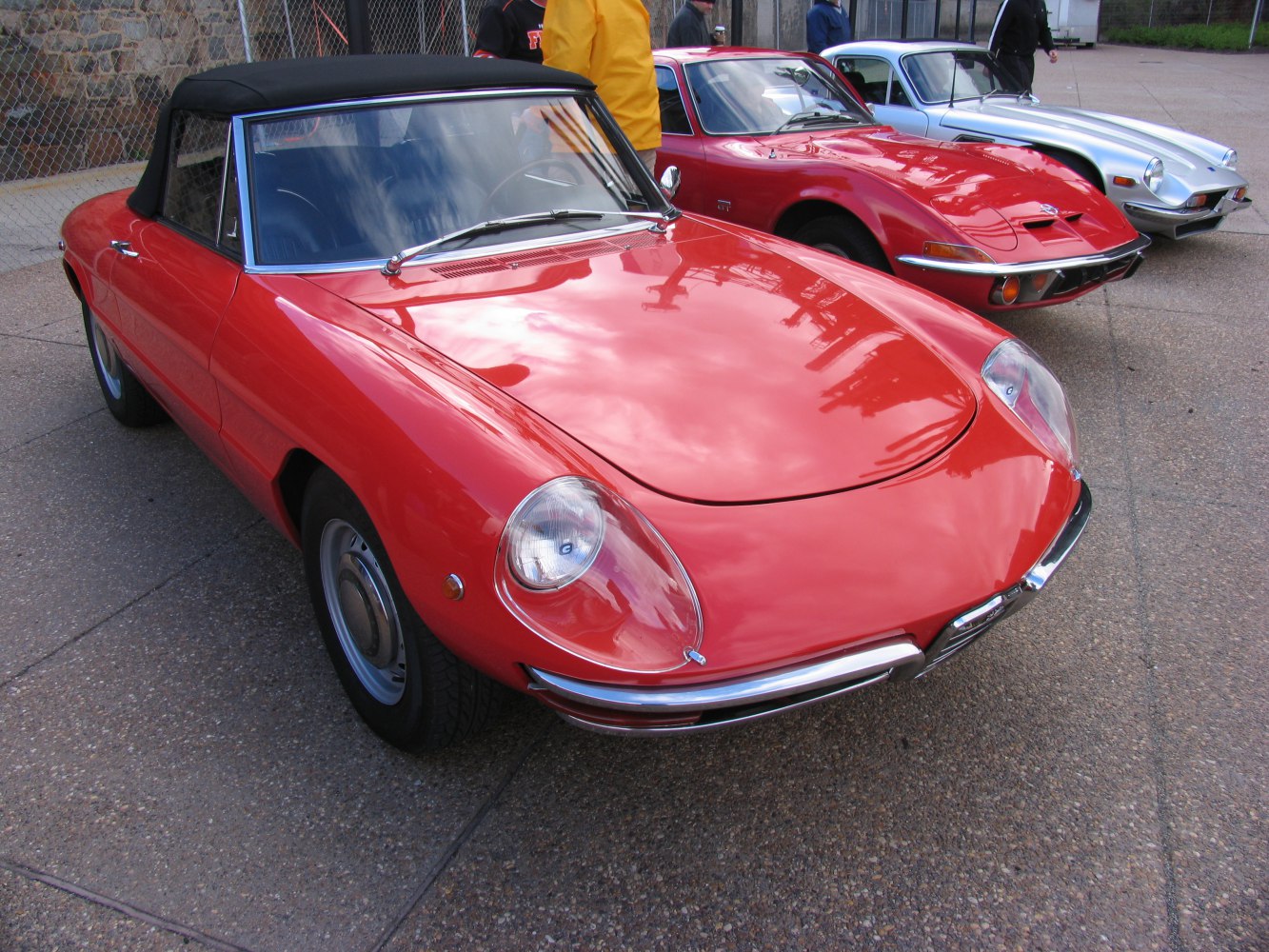

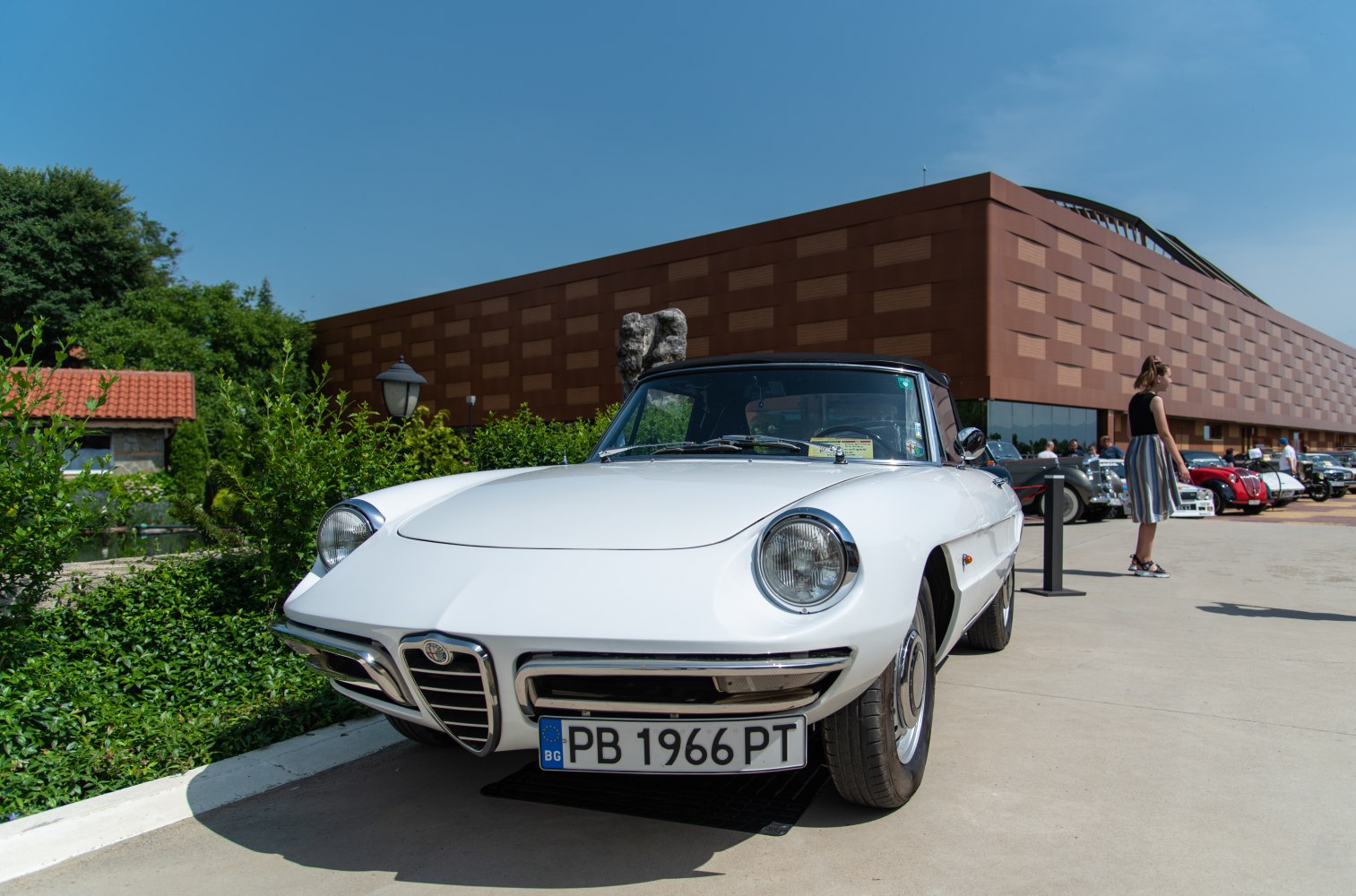

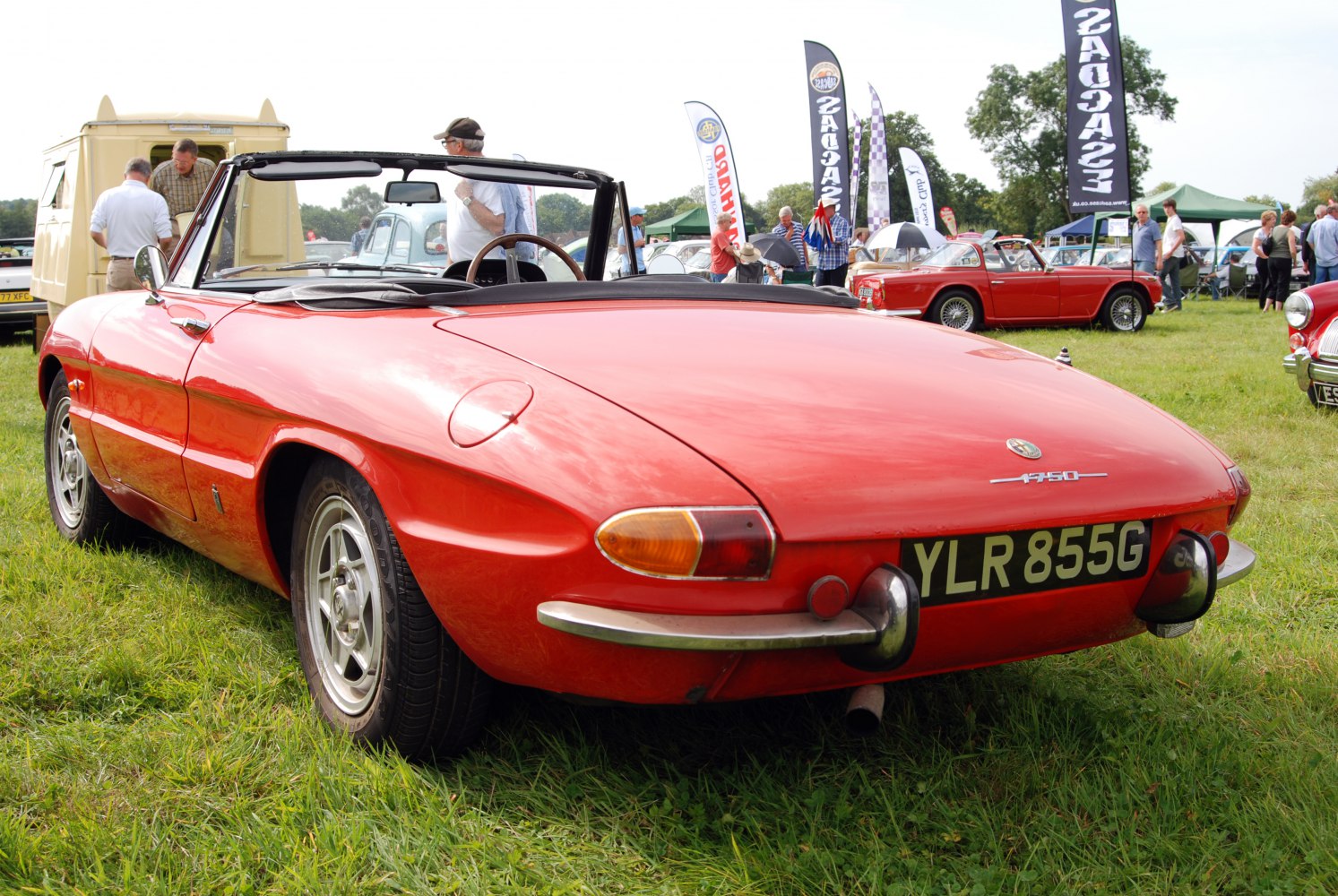

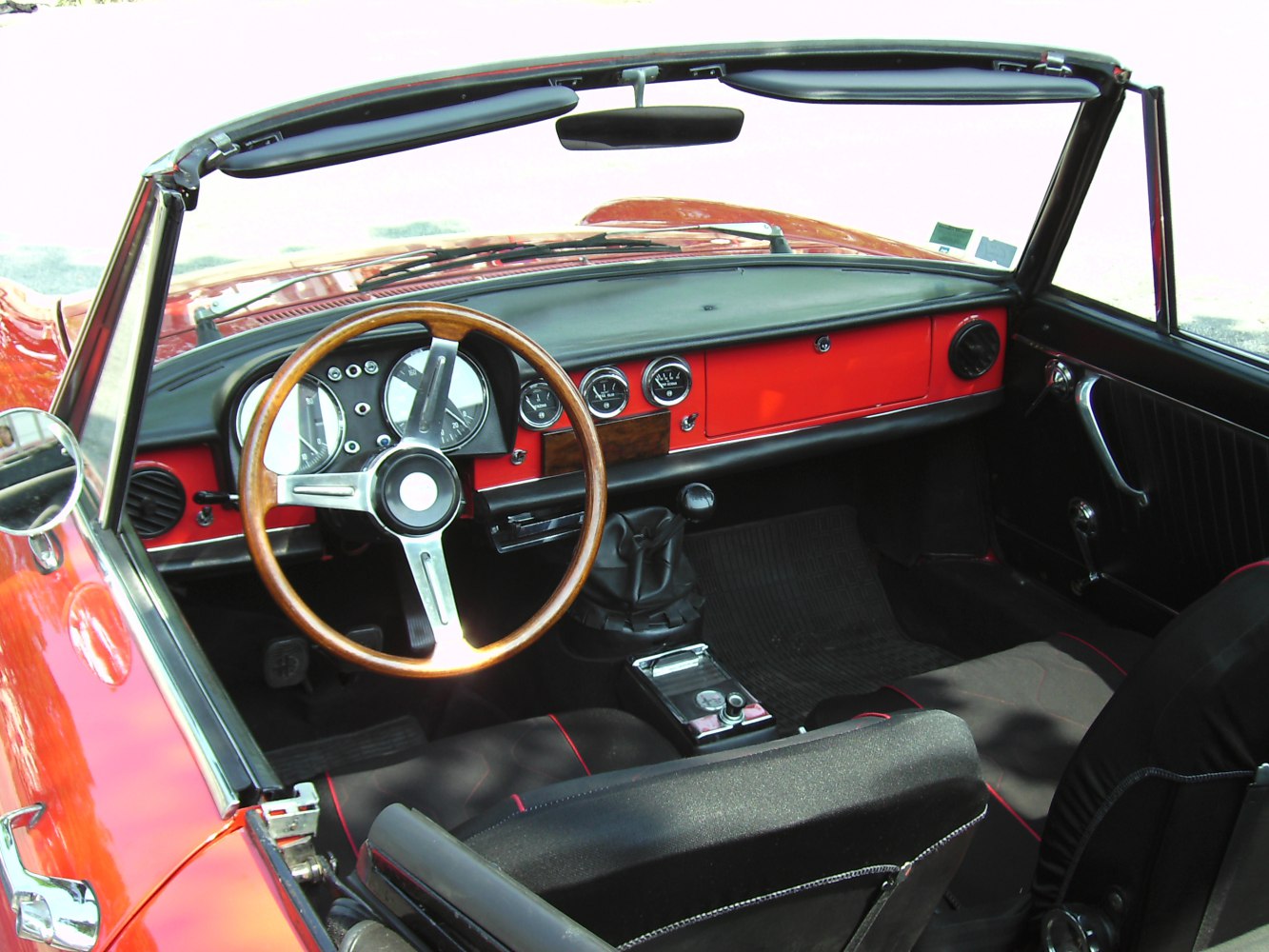

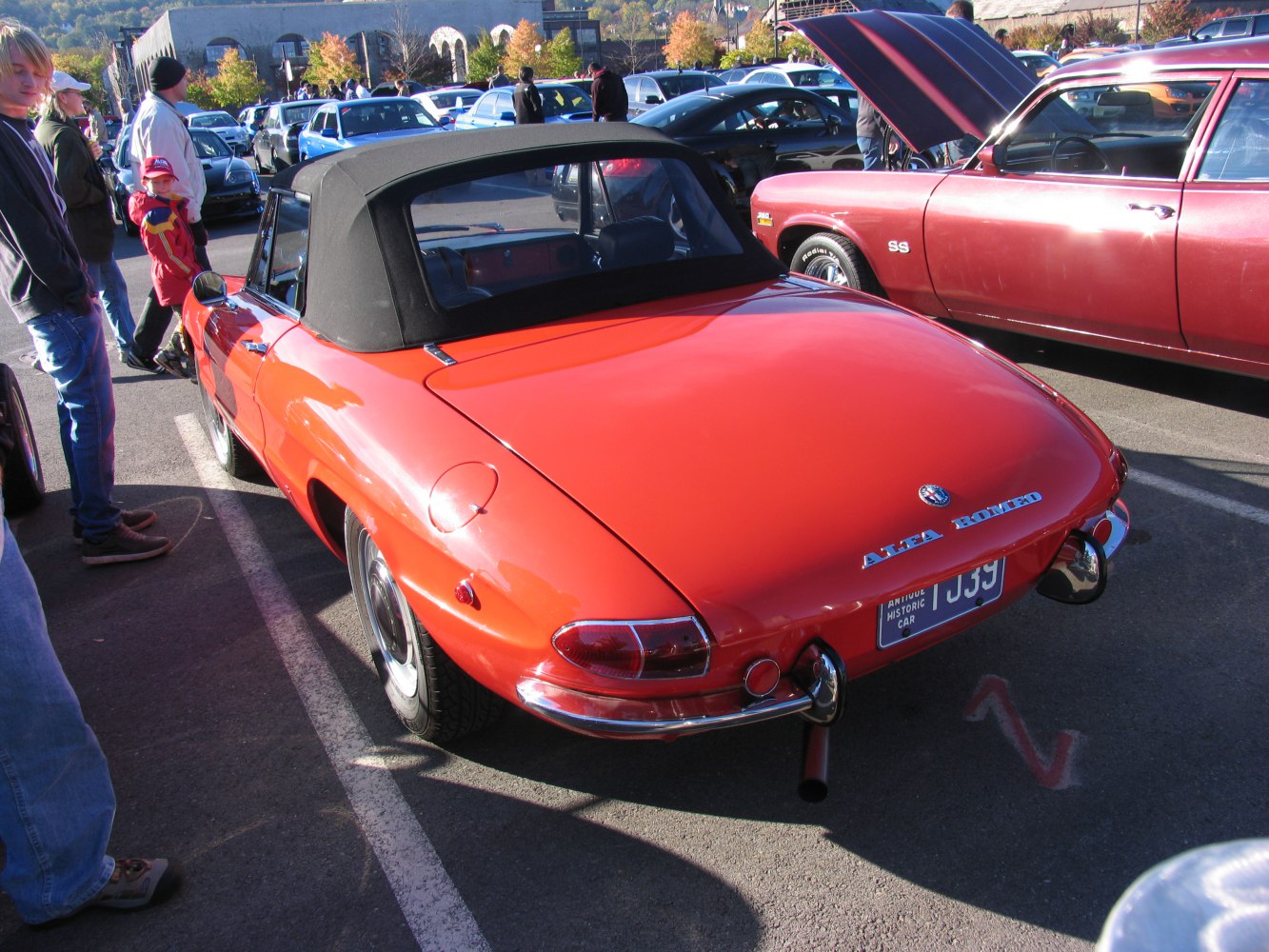

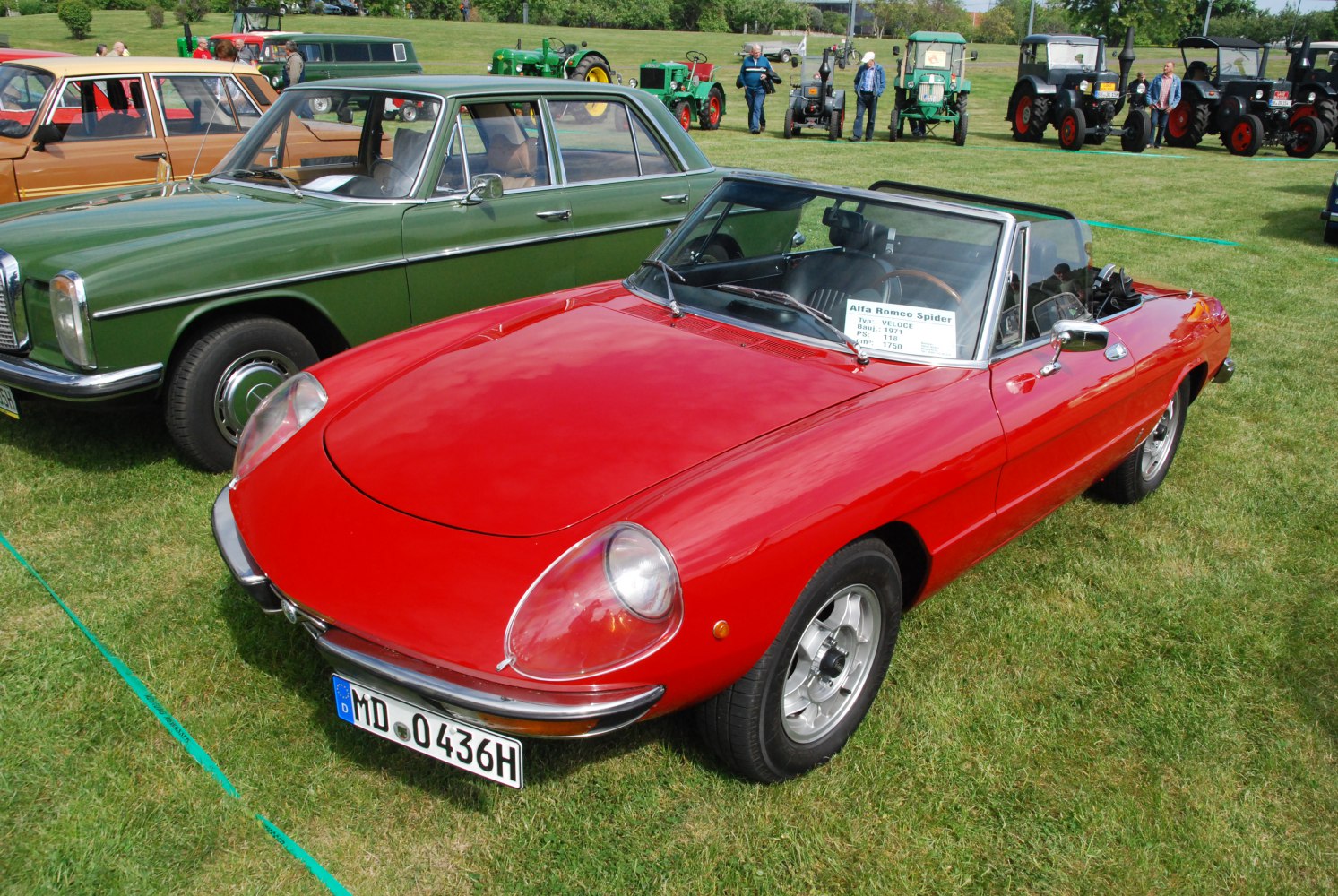

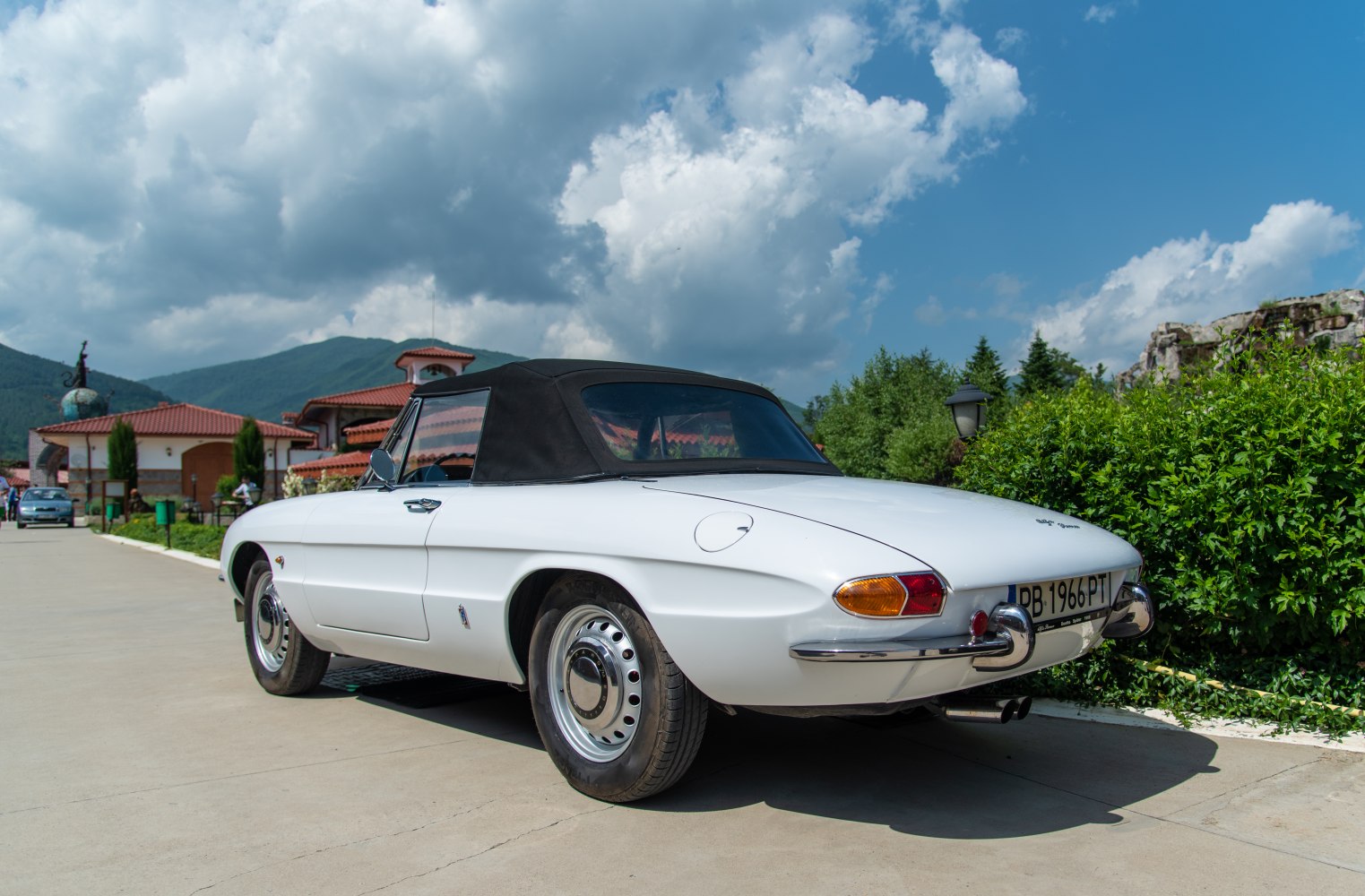

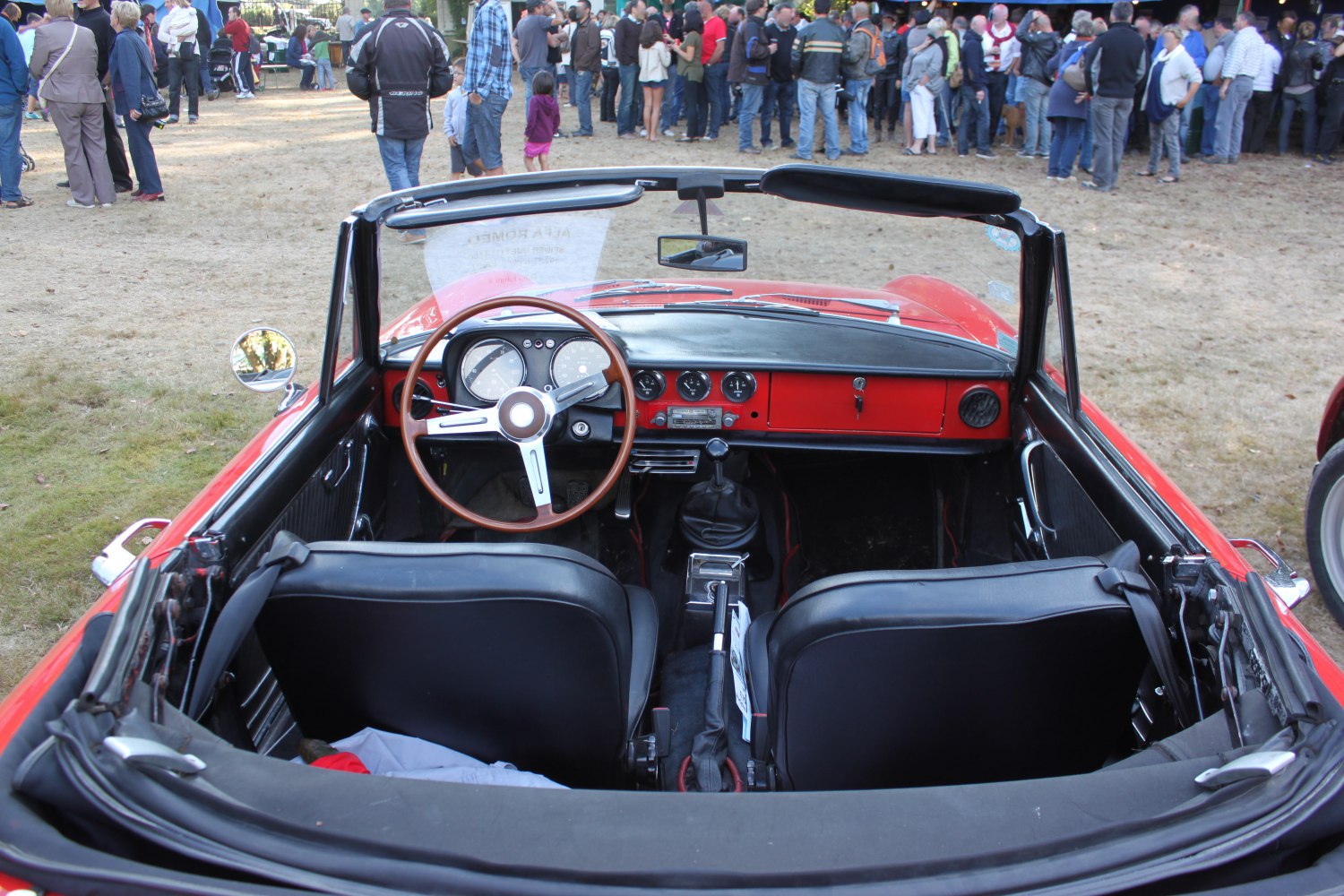

Vehicle photos
1 of 14
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1300 (88 KM) Selected | Gasoline | 88 KM | 1968–1969 |
| 1600 (109 KM) Selected | Gasoline | 109 KM | 1966–1967 |
| 1750 (113 KM) Selected | Gasoline | 113 KM | 1967–1969 |
| 2000 (131 KM) Selected | Gasoline | 131 KM | 1971–1977 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1300 (88 KM)
Gasoline · 1968–1969
- Engine power
- 88KM
- Engine displacement
- 1,290cm³
- Fuel type
- Gasoline
- Maximum speed
- 170km/h
On this page
Basic version information
Alfa Romeo Spider Spider (105)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (105)
- Engine
- 1300 (88 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1968
- End of production
- 1969
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 170 km/h
- Fuel consumption - Combined cycle
- 9.8 l/100 km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- AR00530
- Engine position
- Front, Longitudinal
- Engine displacement
- 1290 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74 mm
- Piston stroke
- 75 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.7 l
- Coolant capacity
- 7.5 l
- Power
- 88 KM @ 6000 obr./min
Volume and weight
- Fuel tank
- 46 l
- Curb weight
- 990 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1630 mm
- Height
- 1290 mm
- Wheelbase
- 2250 mm
- Front track
- 1324 mm
- Rear track
- 1274 mm
- Front overhang
- 935 mm
- Rear overhang
- 1065 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- ABS
- no
Selected engine version
1600 (109 KM)
Gasoline · 1966–1967
- Engine power
- 109KM
- Engine displacement
- 1,570cm³
- Fuel type
- Gasoline
- Maximum speed
- 185km/h
On this page
Basic version information
Alfa Romeo Spider Spider (105)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (105)
- Engine
- 1600 (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1966
- End of production
- 1967
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Fuel consumption - Combined cycle
- 10.5 l/100 km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- AR00536
- Engine position
- Front, Longitudinal
- Engine displacement
- 1570 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78 mm
- Piston stroke
- 82 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Coolant capacity
- 7.5 l
- Power
- 109 KM @ 6000 obr./min
Volume and weight
- Fuel tank
- 76 l
- Curb weight
- 940 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1630 mm
- Height
- 1290 mm
- Wheelbase
- 2250 mm
- Front track
- 1310 mm
- Rear track
- 1270 mm
- Turning circle
- 10.5 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- ABS
- no
Selected engine version
1750 (113 KM)
Gasoline · 1967–1969
- Engine power
- 113KM
- Engine displacement
- 1,779cm³
- Fuel type
- Gasoline
- Maximum speed
- 190km/h
On this page
Basic version information
Alfa Romeo Spider Spider (105)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (105)
- Engine
- 1750 (113 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1967
- End of production
- 1969
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- AR00548
- Engine position
- Front, Longitudinal
- Engine displacement
- 1779 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 80 mm
- Piston stroke
- 88.5 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 9.7 l
- Power
- 113 KM @ 5500 obr./min
Volume and weight
- Fuel tank
- 46 l
- Curb weight
- 1040 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1630 mm
- Height
- 1290 mm
- Wheelbase
- 2250 mm
- Front track
- 1324 mm
- Rear track
- 1274 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Solid axle suspension, Anti-roll bar, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- ABS
- no
Selected engine version
2000 (131 KM)
Gasoline · 1971–1977
- Engine power
- 131KM
- Fuel type
- Gasoline
On this page
Basic version information
Alfa Romeo Spider Spider (105)- Brand
- Alfa Romeo
- Model
- Spider
- Version
- Spider (105)
- Engine
- 2000 (131 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 1971
- End of production
- 1977
- Body type
- Convertible
- Number of seats
- 2
- Fuel type
- Gasoline
Engine
- Engine model / code
- AR00512
- Engine type
- Naturally aspirated engine
- Engine oil capacity
- 6.6 l
- Power
- 131 KM
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Volume and weight
- Curb weight
- kg
Drivetrain, Brakes and suspension
- ABS
- no
