Vehicle specifications
Abarth 500 500C
Compare all 2 engine versions of the Abarth 500 500C, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Abarth 500 500C? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

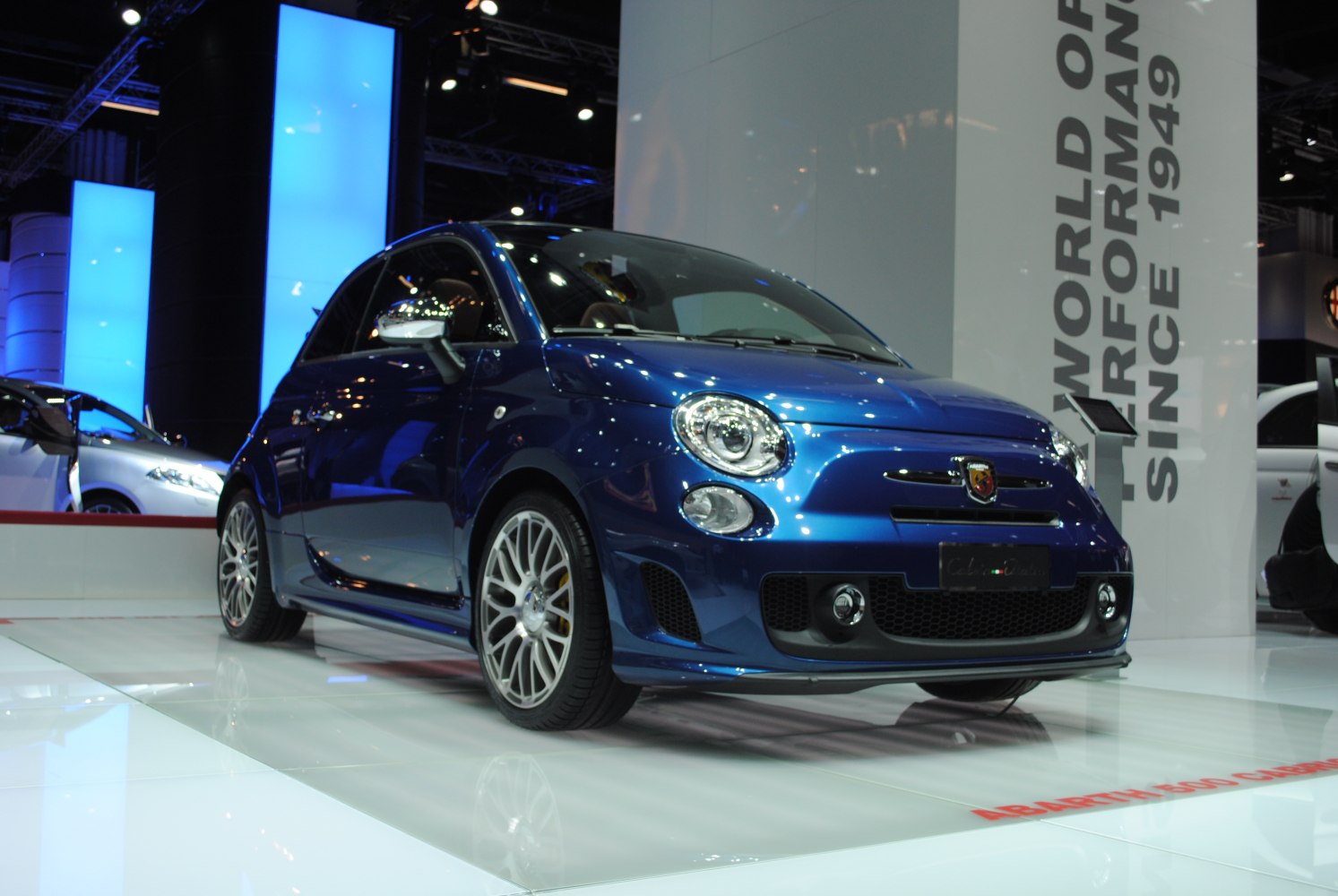

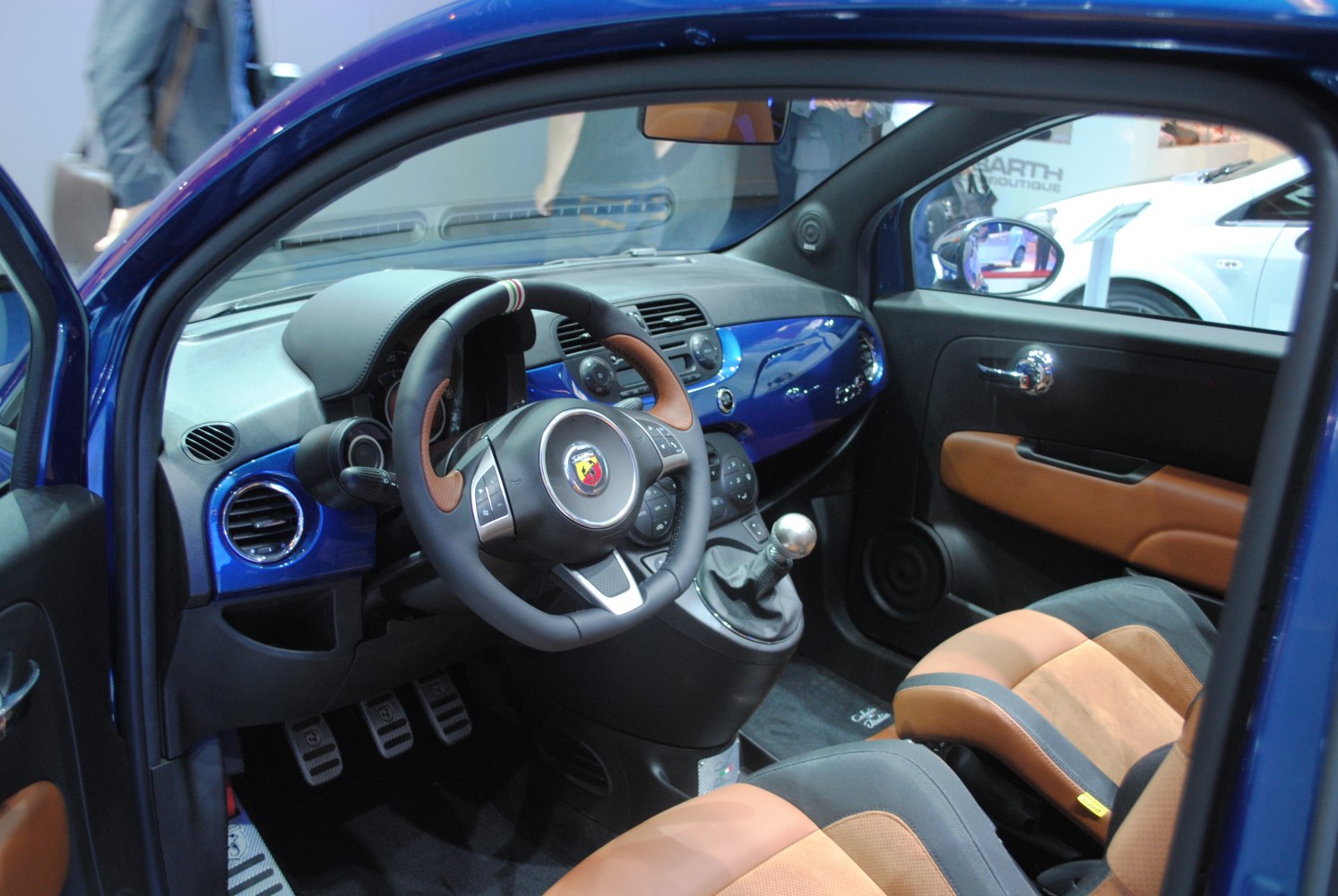

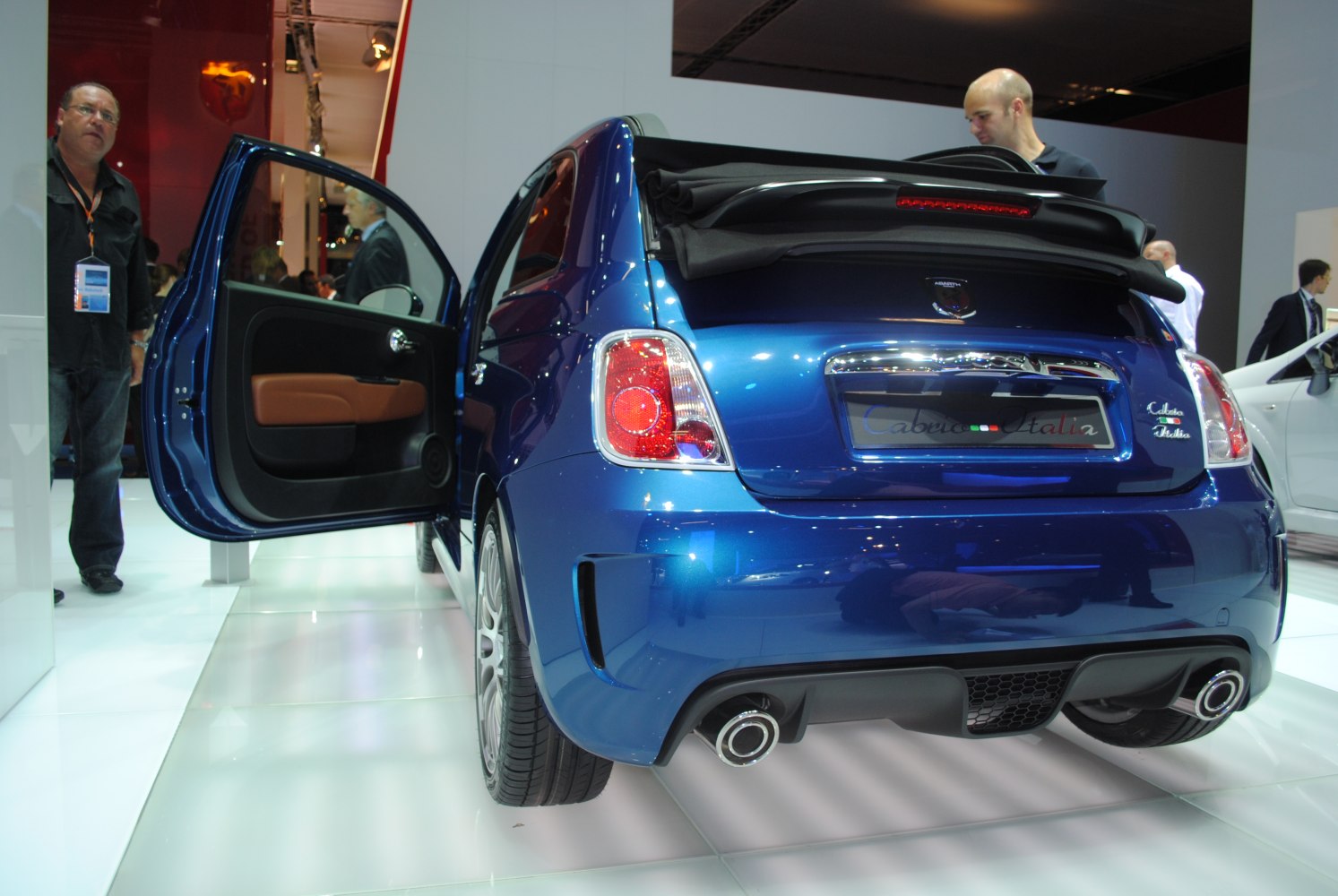

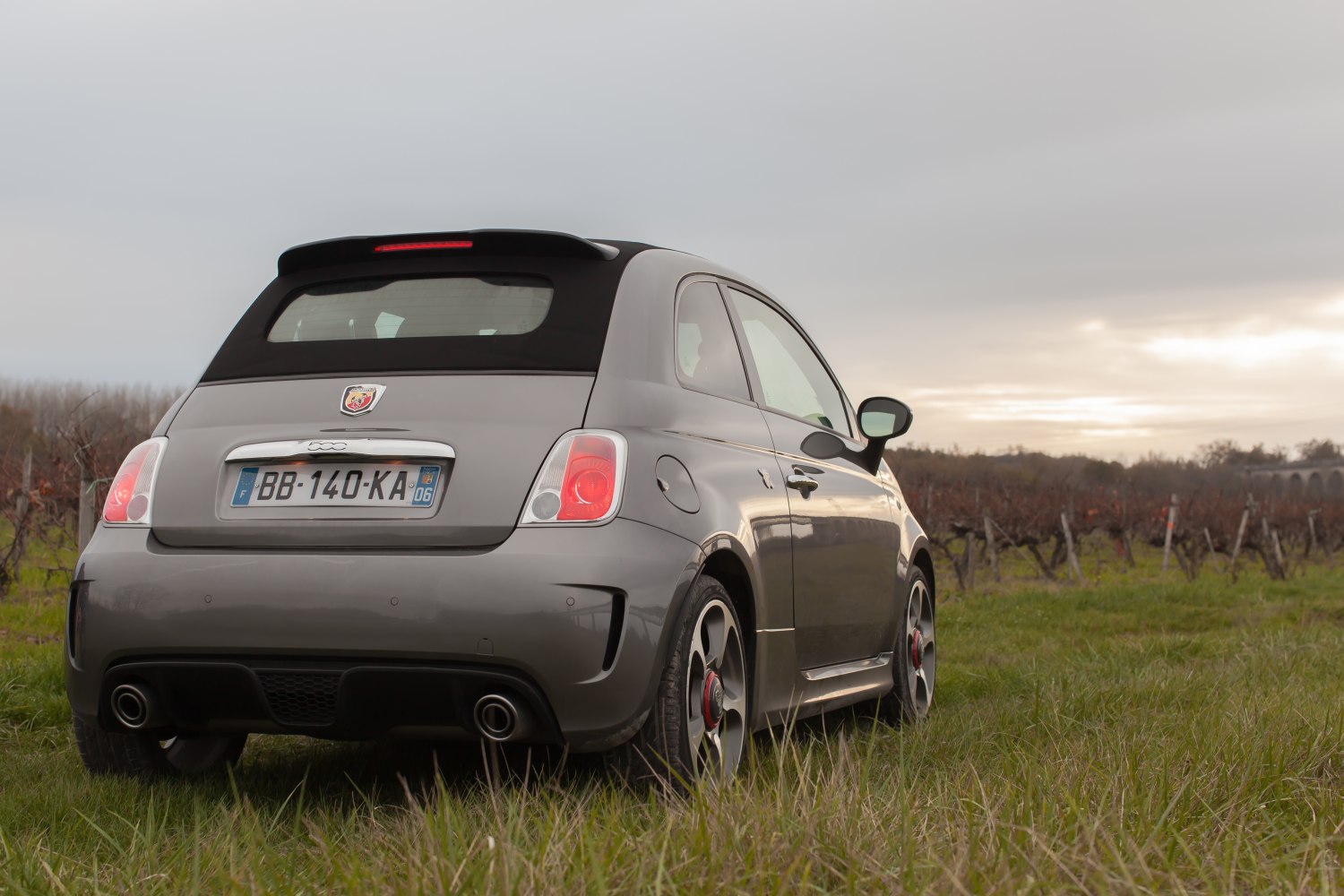

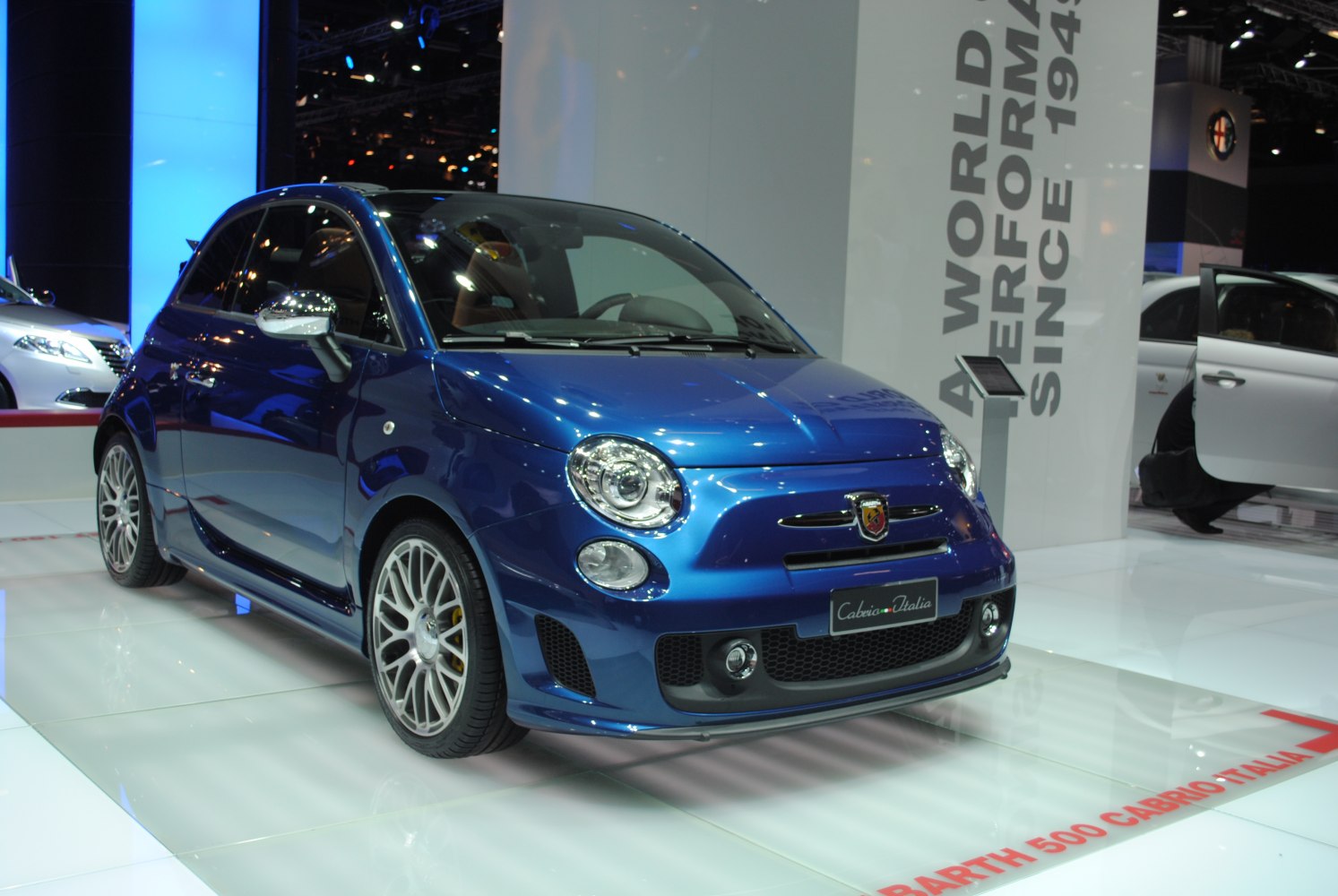

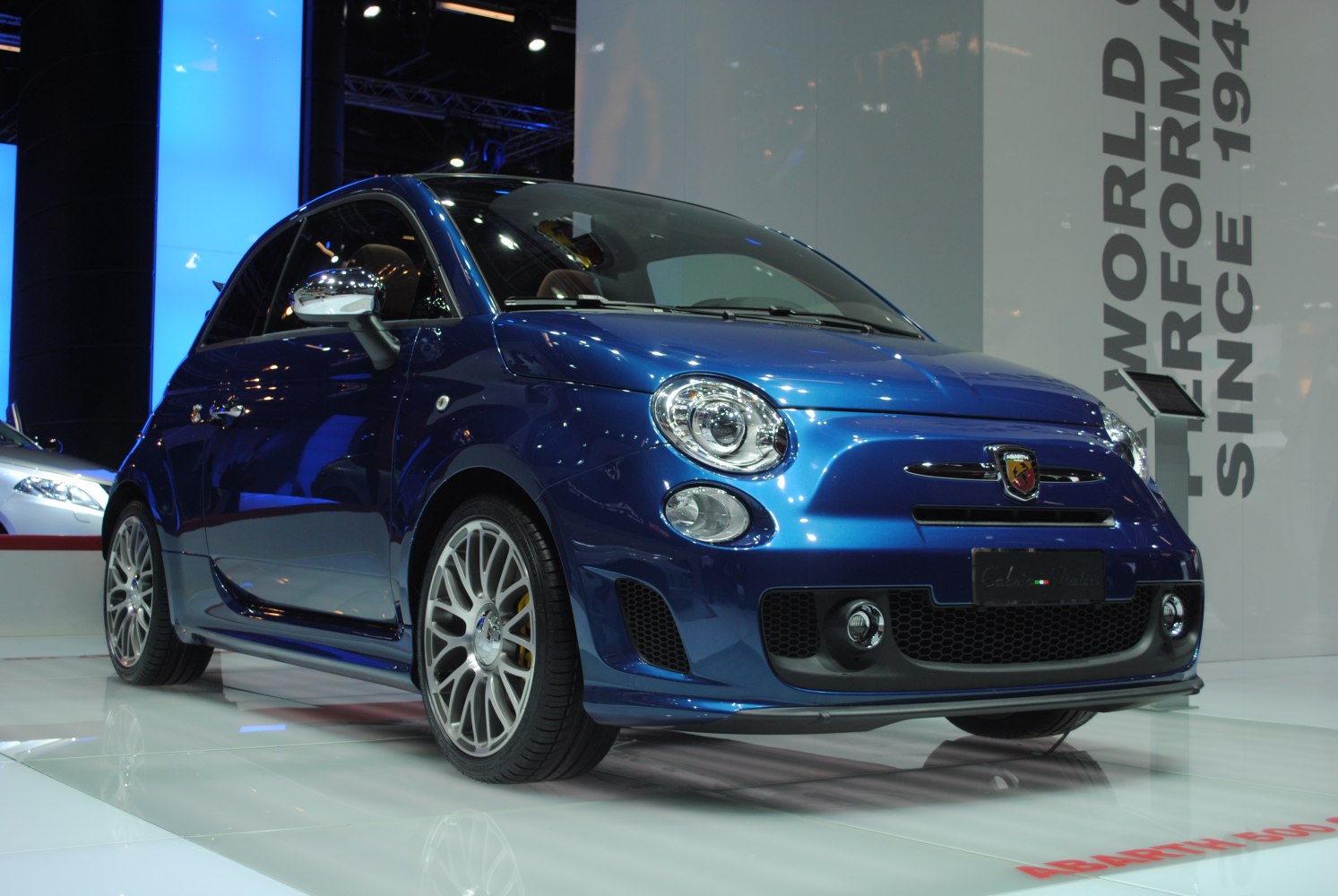

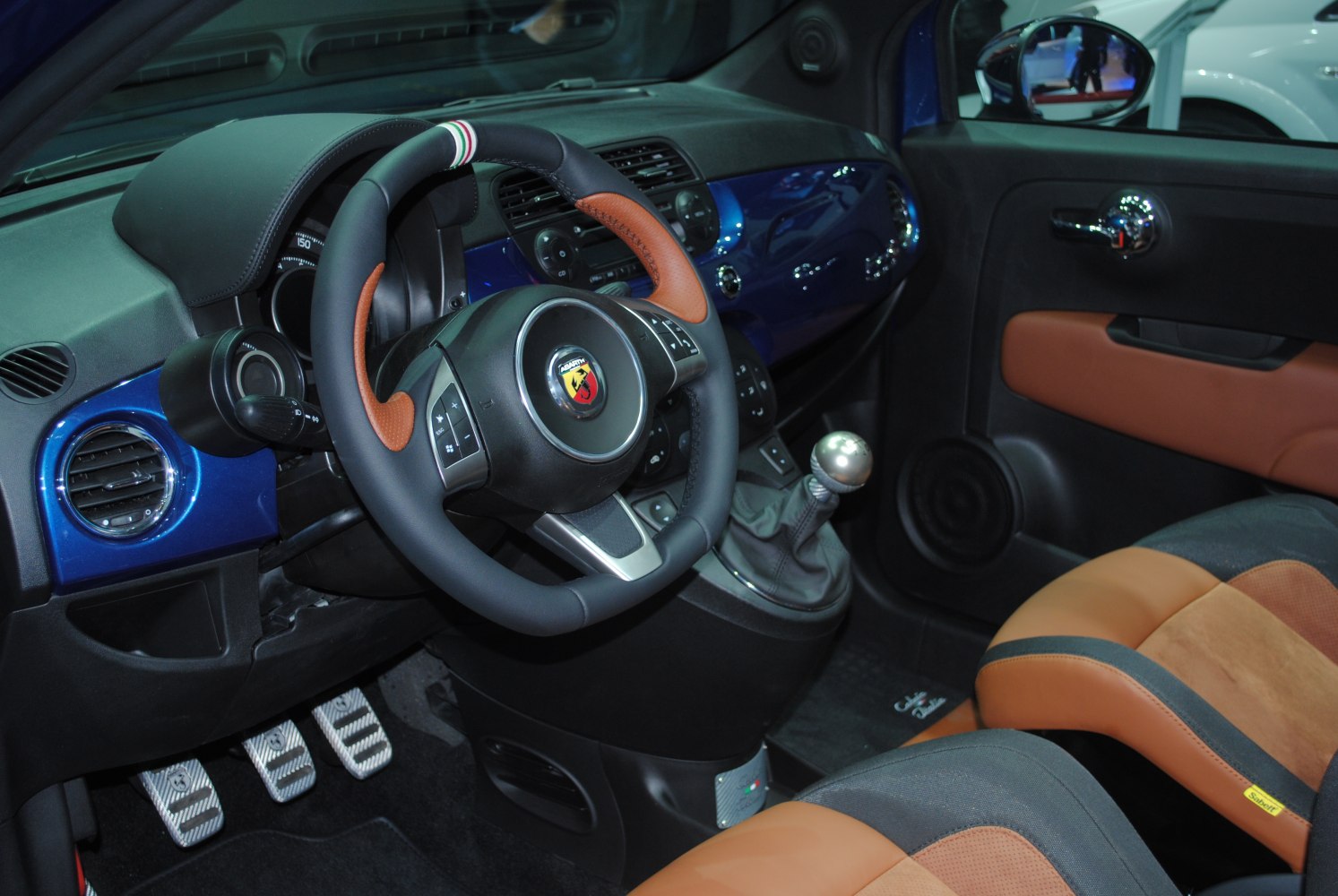

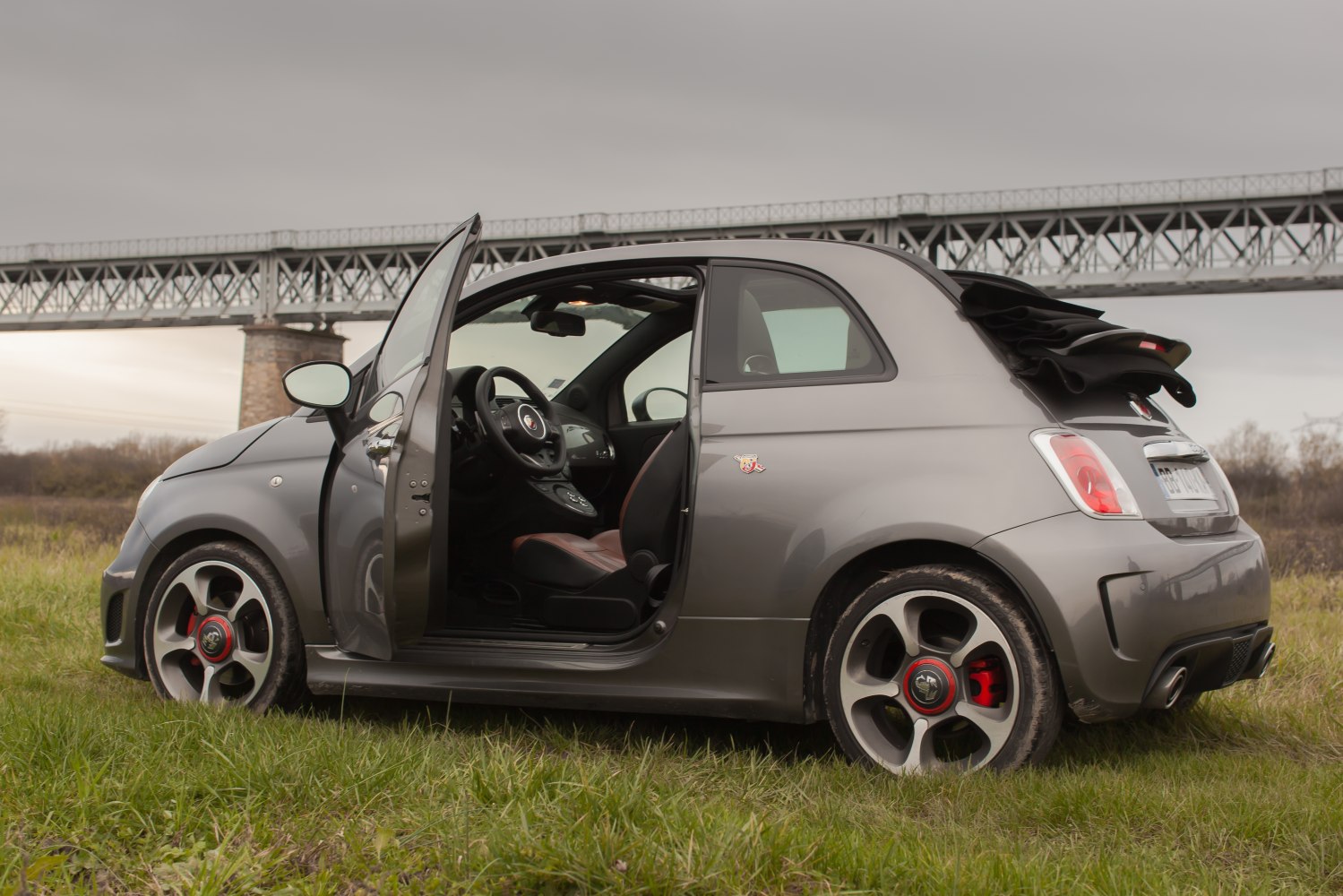

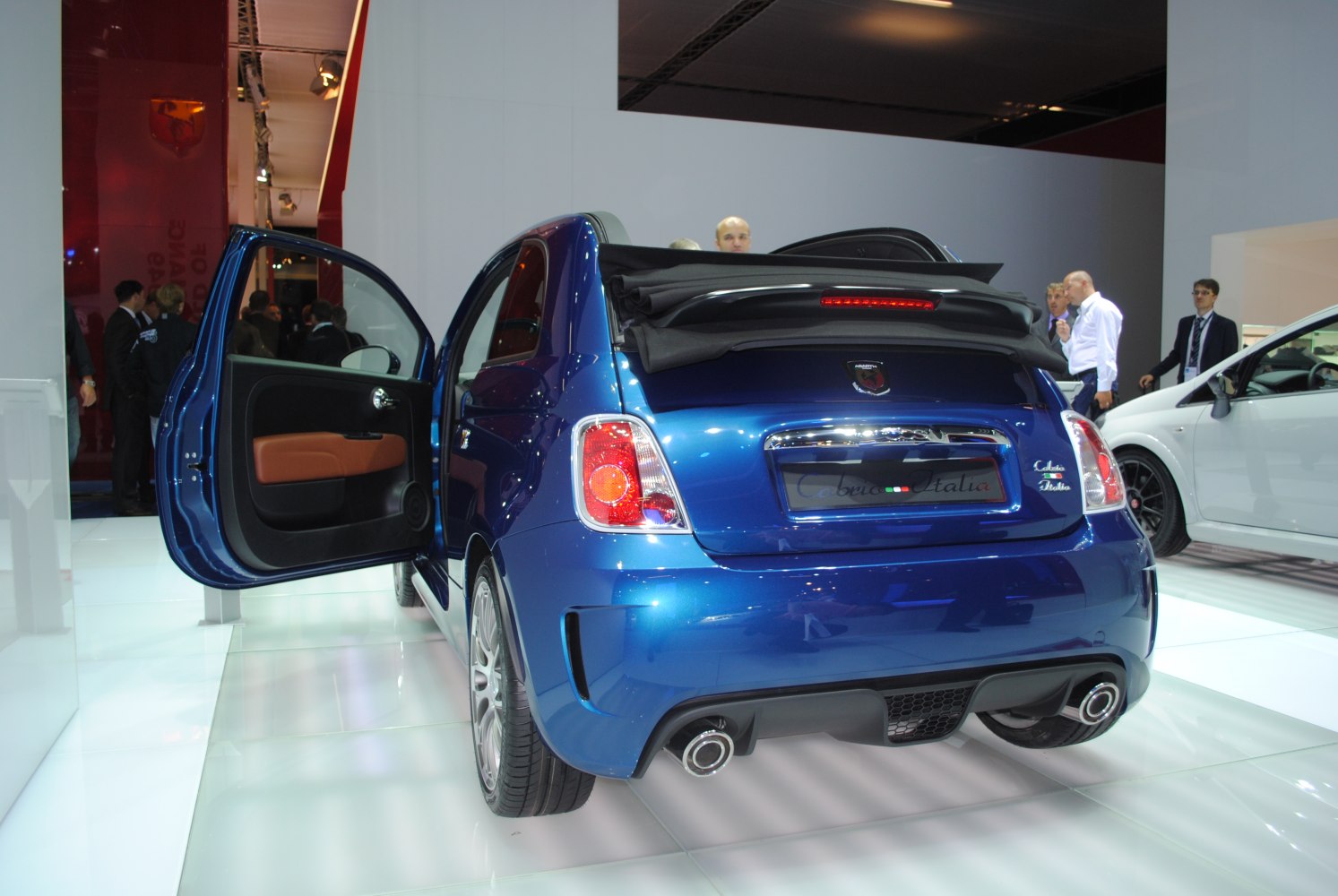

Vehicle photos
1 of 9
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 T-Jet (140 KM) MTA Selected | Gasoline | 140 KM | 2010–2014 |
| 1.4 T-Jet (135 KM) Selected | Gasoline | 135 KM | 2012–2014 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 T-Jet (140 KM) MTA
Gasoline · 2010–2014
- Engine power
- 140 KM
- Torque
- 206 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.1 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Abarth 500 500C- Brand
- Abarth
- Model
- 500
- Version
- 500C
- Engine
- 1.4 T-Jet (140 KM) MTA
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2010
- End of production
- 2014
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 8.1 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.5 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 151 g/km
Engine
- Engine model / code
- 312A3000
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 2.9 l
- Coolant capacity
- 5.2 l
- Power
- 140 KM @ 5500 obr./min
- Torque
- 206 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 35 l
- Minimum trunk capacity
- 182 l
- Maximum trunk capacity
- 520 l
- Curb weight
- 1085 kg
- Gross weight
- 1440 kg
Vehicle dimensions
- Length
- 3657 mm
- Width
- 1627 mm
- Width with unfolded mirrors
- 1893 mm
- Height
- 1488 mm
- Wheelbase
- 2300 mm
- Front track
- 1409 mm
- Rear track
- 1402 mm
- Front overhang
- 776 mm
- Rear overhang
- 581 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Type of automatic gearbox
- MTA
- Front suspension
- Independent McPherson type, Anti-roll bar
- Rear suspension
- Anti-roll bar, Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 284 mm
- Front brake disc thickness
- 22 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 240 mm
- Rear brake disc thickness
- 11 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/45 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
1.4 T-Jet (135 KM)
Gasoline · 2012–2014
- Engine power
- 135 KM
- Torque
- 206 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Abarth 500 500C- Brand
- Abarth
- Model
- 500
- Version
- 500C
- Engine
- 1.4 T-Jet (135 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2012
- End of production
- 2014
- Body type
- Convertible
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 8.5 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.5 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 155 g/km
Engine
- Engine model / code
- 312A1000
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 2.9 l
- Coolant capacity
- 5.2 l
- Power
- 135 KM @ 5500 obr./min
- Torque
- 206 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 35 l
- Minimum trunk capacity
- 182 l
- Maximum trunk capacity
- 520 l
- Curb weight
- 1075 kg
- Gross weight
- 1430 kg
Vehicle dimensions
- Length
- 3657 mm
- Width
- 1627 mm
- Width with unfolded mirrors
- 1893 mm
- Height
- 1488 mm
- Wheelbase
- 2300 mm
- Front track
- 1409 mm
- Rear track
- 1402 mm
- Front overhang
- 776 mm
- Rear overhang
- 581 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type, Anti-roll bar
- Rear suspension
- Anti-roll bar, Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 284 mm
- Front brake disc thickness
- 22 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 240 mm
- Rear brake disc thickness
- 11 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/45 R16
- Rim size
- 6.5J x 16
- ABS
- yes
