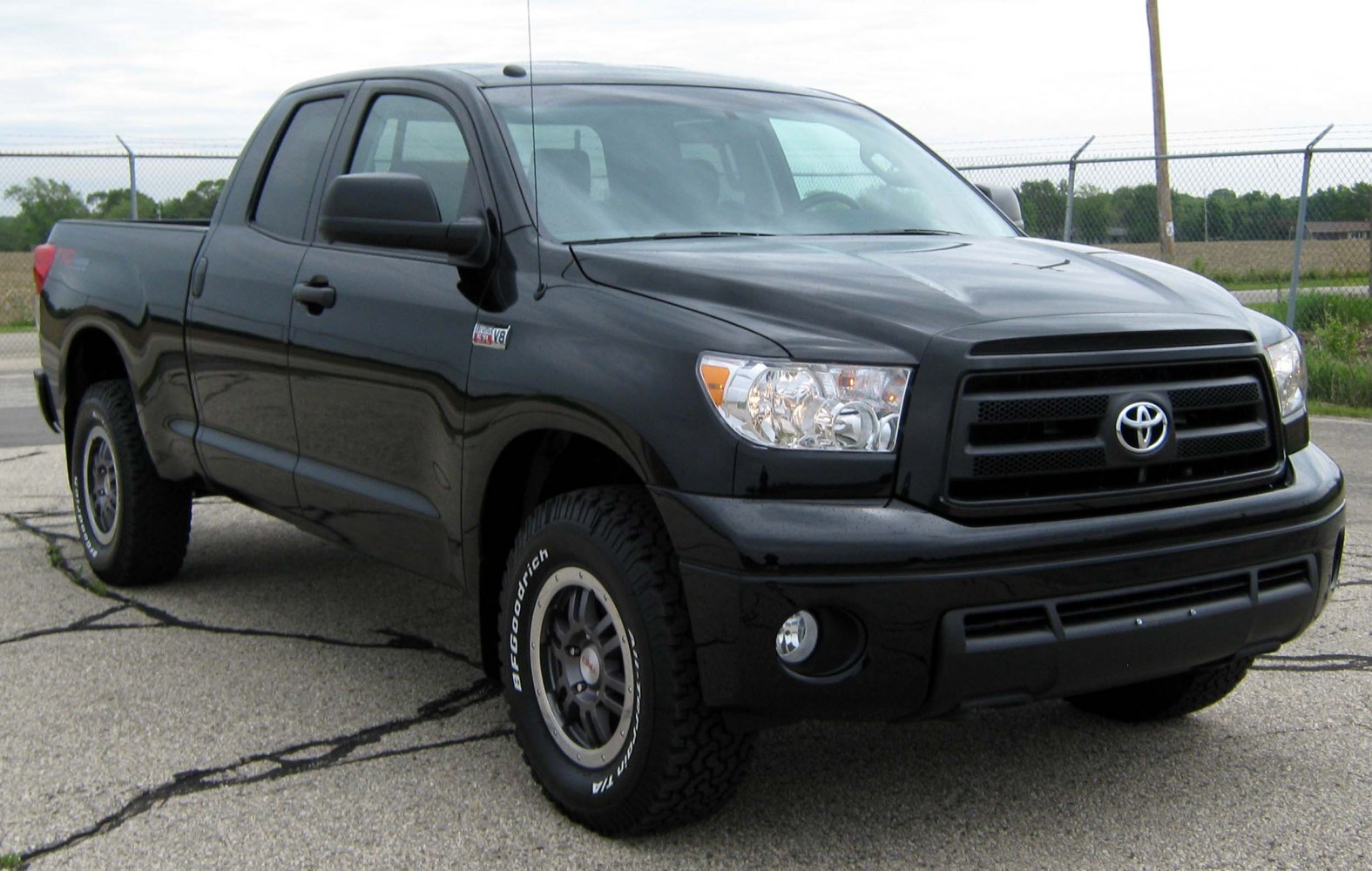

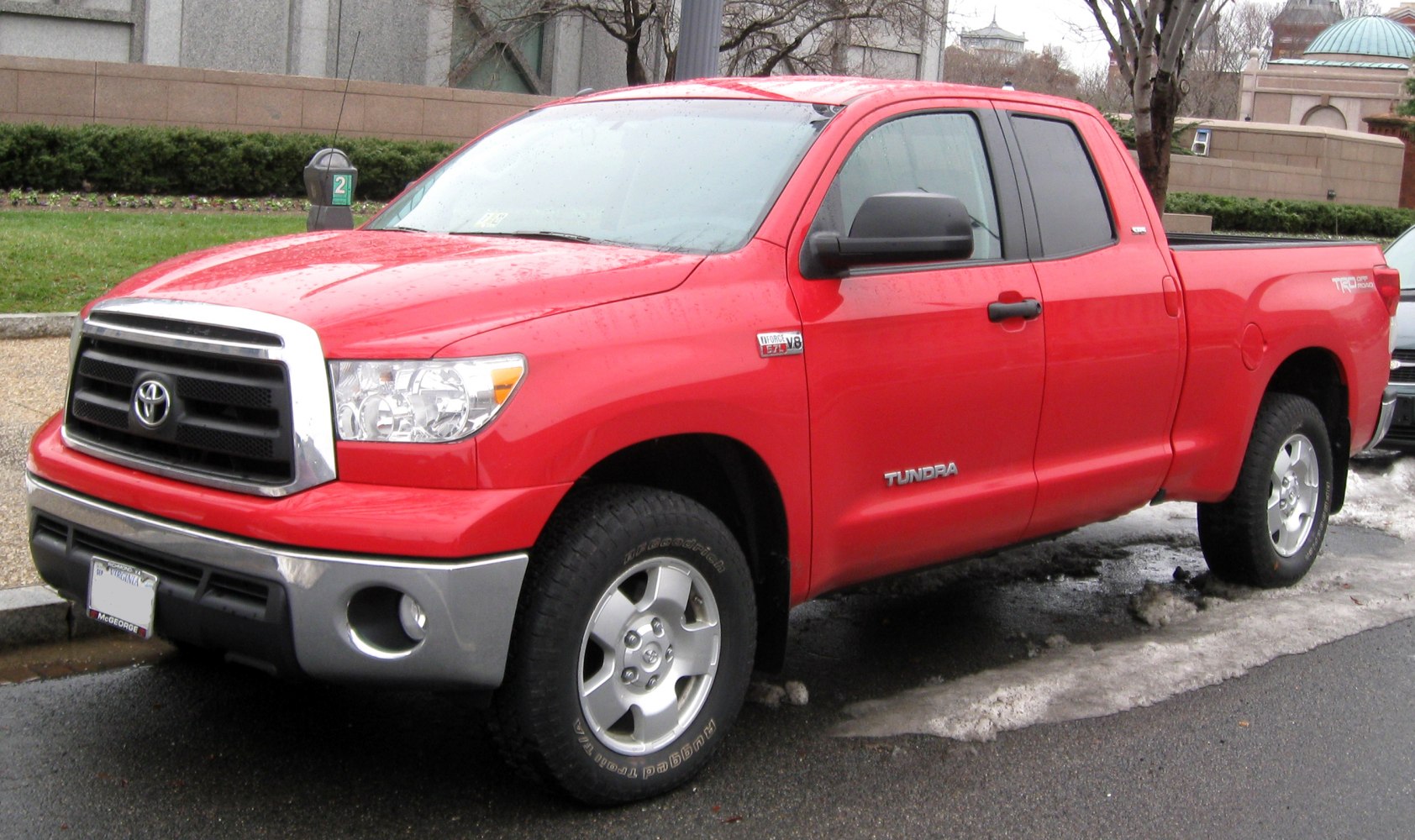

Specifications Toyota Tundra II Double Cab (facelift 2010)
Vehicle photos
Basic information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine power | 236 KM – 381 KM |
| Years of production | 2009 r. – 2013 r. |
| Body type | Pick-up |
| Number of doors | 4 |
| Number of seats | 5-6 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine | 5.7 V8 32V (381 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2013 r. |
| Body type | Pick-up |
| Number of seats | 5-6 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 16.8 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 13 l/100 km |
Engine
| Engine model / code | 3UR-FE |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 5663 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 94 mm |
| Piston stroke | 102 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Curb weight | 2338 kg |
| Gross weight | 3130 kg |
| Braked trailer load (12% slope start) | 3900 kg |
Vehicle dimensions
| Length | 5809 mm |
|---|---|
| Width | 2029 mm |
| Height | 1925 mm |
| Wheelbase | 3700 mm |
| Front track | 1725 mm |
| Rear track | 1725 mm |
| Ground clearance | 259 mm |
| Approach angle | 27 ° |
| Departure angle | 26 ° |
| Turning circle | 13.4 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Leaf springs |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 255/70 R18 |
| Rim size | 8.0J x 18 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine | 4.6 V8 32V (310 KM) 4x4 Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2013 r. |
| Body type | Pick-up |
| Number of seats | 5-6 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 16.8 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 12.3 l/100 km |
Engine
| Engine model / code | 1UR-FE |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4608 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 94 mm |
| Piston stroke | 83 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.5 l |
| Coolant capacity | 12.1 l |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Curb weight | 2442 kg |
| Gross weight | 3130 kg |
| Braked trailer load (12% slope start) | 3130 kg |
Vehicle dimensions
| Length | 5809 mm |
|---|---|
| Width | 2029 mm |
| Height | 1935 mm |
| Wheelbase | 3700 mm |
| Front track | 1725 mm |
| Rear track | 1725 mm |
| Ground clearance | 264 mm |
| Approach angle | 27 ° |
| Departure angle | 26 ° |
| Turning circle | 13.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Leaf springs |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 255/70 R18 |
| Rim size | 8.0J x 18 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine | 5.7 V8 32V (381 KM) 4x4 Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2013 r. |
| Body type | Pick-up |
| Number of seats | 5-6 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 18 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 13.8 l/100 km |
Engine
| Engine model / code | 3UR-FE |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 5663 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 94 mm |
| Piston stroke | 102 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Curb weight | 2477 kg |
| Gross weight | 3221 kg |
| Braked trailer load (12% slope start) | 3765 kg |
Vehicle dimensions
| Length | 5809 mm |
|---|---|
| Width | 2029 mm |
| Height | 1935 mm |
| Wheelbase | 3700 mm |
| Front track | 1725 mm |
| Rear track | 1725 mm |
| Ground clearance | 264 mm |
| Approach angle | 27 ° |
| Departure angle | 26 ° |
| Turning circle | 13.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Leaf springs |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 255/70 R18 |
| Rim size | 8.0J x 18 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine | 4.0 V6 24V (236 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Pick-up |
| Number of seats | 5-6 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 15.6 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 12.3 l/100 km |
Engine
| Engine model / code | 1GR-FE |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 3956 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 94 mm |
| Piston stroke | 95 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.2 l |
| Coolant capacity | 9.6 l |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Curb weight | 2245 kg |
| Gross weight | 2903 kg |
| Braked trailer load (12% slope start) | 2177 kg |
Vehicle dimensions
| Length | 5809 mm |
|---|---|
| Width | 2030 mm |
| Height | 1925 mm |
| Wheelbase | 3700 mm |
| Front track | 1725 mm |
| Rear track | 1725 mm |
| Ground clearance | 259 mm |
| Approach angle | 28 ° |
| Departure angle | 25 ° |
| Turning circle | 13.6 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Leaf springs |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 255/70 R18 |
| Rim size | 8.0J x 18 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Tundra |
| Version | Tundra II Double Cab (facelift 2010) |
| Engine | 4.6 V8 32V (310 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2013 r. |
| Body type | Pick-up |
| Number of seats | 5-6 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 15.6 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 11.7 l/100 km |
Engine
| Engine model / code | 1UR-FE |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4608 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT-i |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 94 mm |
| Piston stroke | 83 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.5 l |
| Coolant capacity | 12.1 l |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Curb weight | 2190 kg |
| Gross weight | 3039 kg |
| Braked trailer load (12% slope start) | 3265 kg |
Vehicle dimensions
| Length | 5809 mm |
|---|---|
| Width | 2029 mm |
| Height | 1925 mm |
| Wheelbase | 3700 mm |
| Front track | 1725 mm |
| Rear track | 1725 mm |
| Ground clearance | 259 mm |
| Approach angle | 27 ° |
| Departure angle | 26 ° |
| Turning circle | 13.4 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Leaf springs |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 255/70 R18 |
| Rim size | 8.0J x 18 |
