Specifications Toyota Tundra I

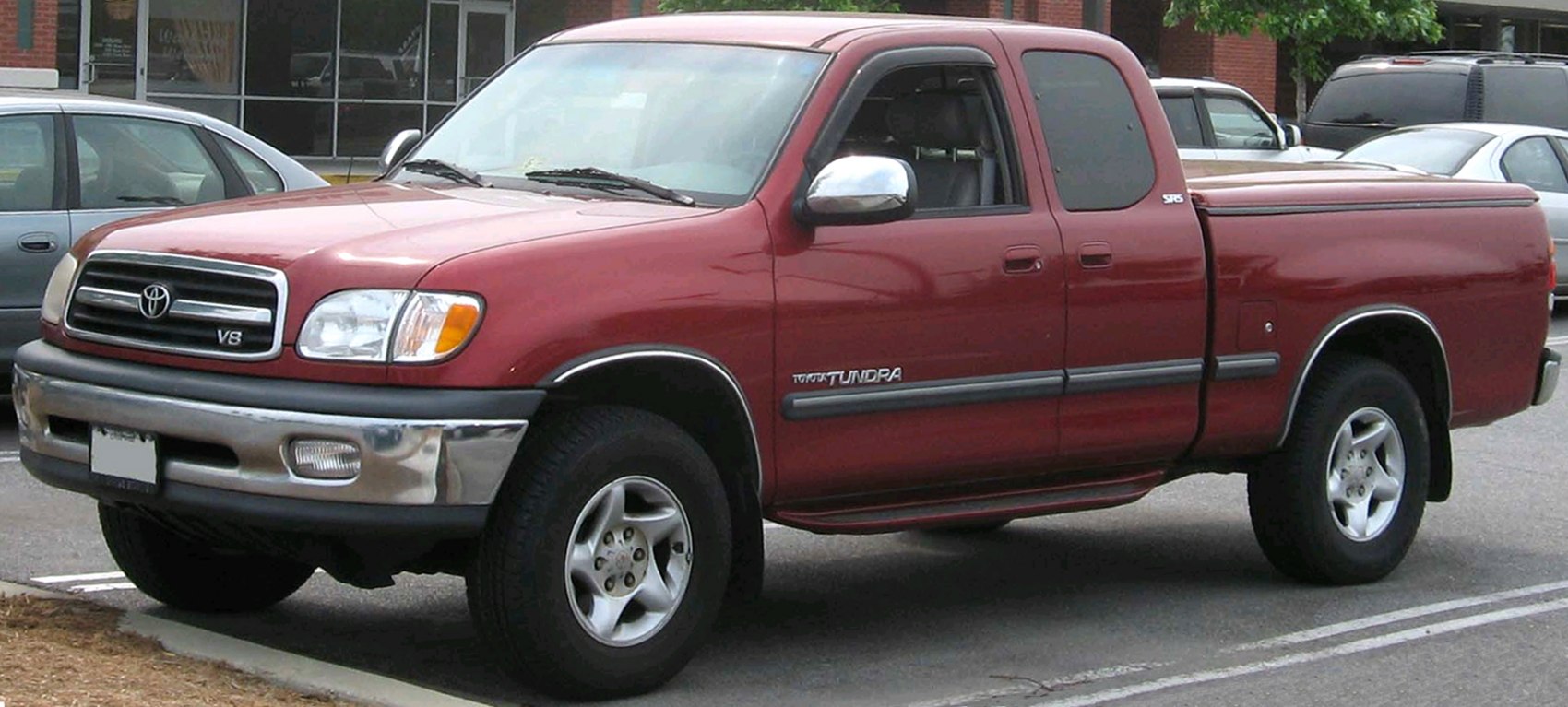

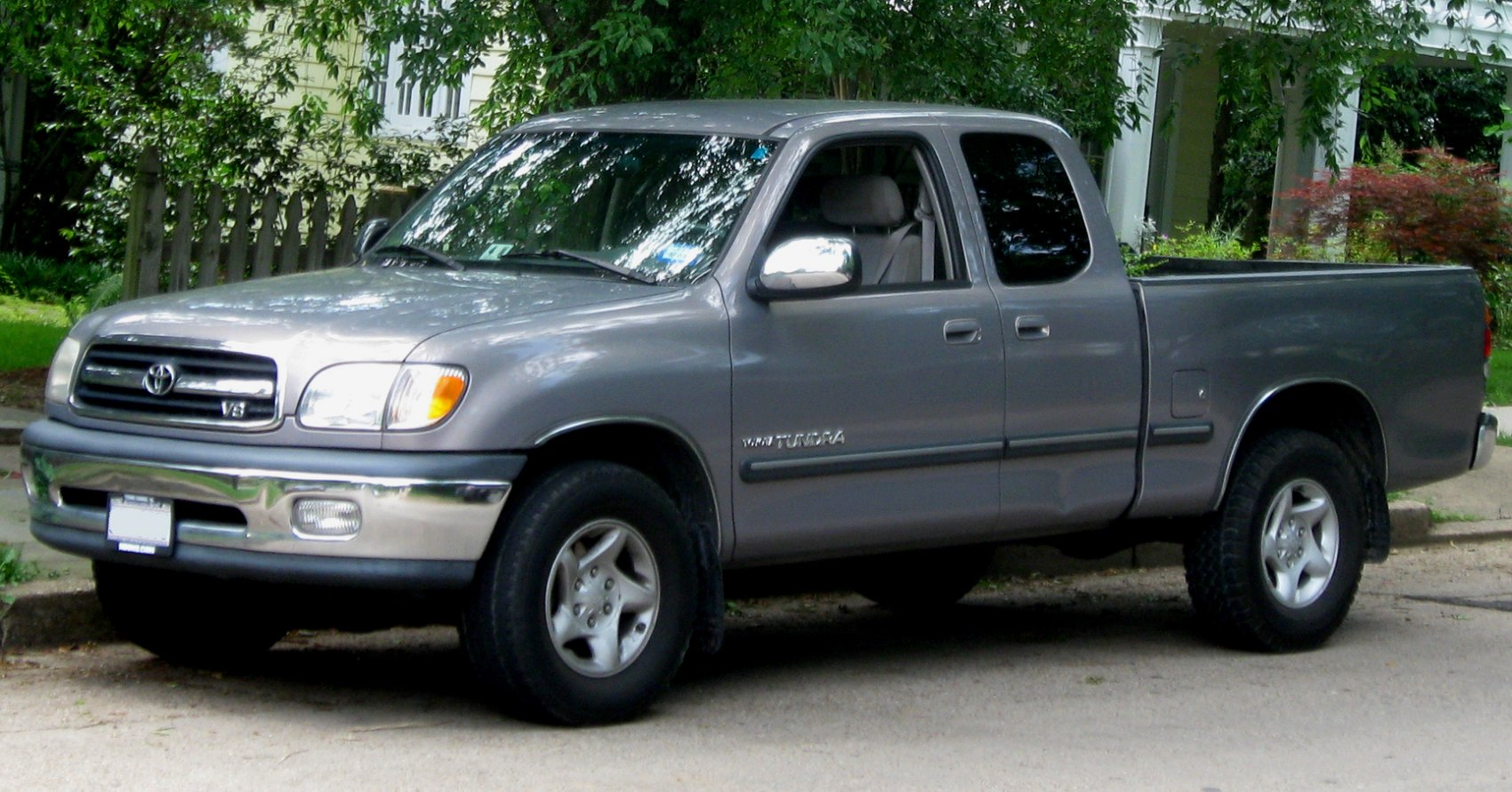

Vehicle photos

Basic information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine power	190 KM – 245 KM
Years of production	1999 r. – 2002 r.
Body type	Pick-up
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	3.4i (190 KM) 4x4
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	170 km/h
Acceleration 0-100 km/h	13.9 s
Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	15.6 l/100 km

Engine

Engine model / code	5VZ-FE
Engine position	Front, Longitudinal
Engine displacement	3378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	93.4 mm
Piston stroke	82 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	9.9 l

Volume and weight

Fuel tank	100 l
Curb weight	1959 kg
Gross weight	2722 kg
Braked trailer load (12% slope start)	2268 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1825-1835 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	290 mm
Approach angle	28 °
Departure angle	23 °

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16
ABS	no

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	4.7i V8 (245 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	16.8 l/100 km

Engine

Engine model / code	2UZ-FE
Engine position	Front, Longitudinal
Engine displacement	4664 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	94 mm
Piston stroke	84 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	6.1 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	100 l
Curb weight	2049 kg
Gross weight	2735 kg
Braked trailer load (12% slope start)	3220 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1825-1835 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	284 mm
Approach angle	28 °
Departure angle	23 °
Turning circle	13.5 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16
ABS	no

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	3.4 V6 (190 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	15.6 l/100 km

Engine

Engine model / code	5VZ-FE
Engine position	Front, Longitudinal
Engine displacement	3378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	93.4 mm
Piston stroke	82 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	9.9 l

Volume and weight

Fuel tank	100 l
Curb weight	1984 kg
Gross weight	2722 kg
Braked trailer load (12% slope start)	2245 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1820-1830 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	290 mm
Approach angle	28 °
Departure angle	23 °
Turning circle	13.5 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	3.4 V6 (190 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	15.6 l/100 km

Engine

Engine model / code	5VZ-FE
Engine position	Front, Longitudinal
Engine displacement	3378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	93.4 mm
Piston stroke	82 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	9.9 l

Volume and weight

Fuel tank	100 l
Curb weight	1874 kg
Gross weight	2585 kg
Braked trailer load (12% slope start)	2222 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1820-1830 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	264 mm
Approach angle	27 °
Departure angle	23 °
Turning circle	13.5 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	4.7i V8 (245 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18 l/100 km
Fuel consumption - Extra-urban cycle	13.8 l/100 km
Fuel consumption - Combined cycle	15.6 l/100 km

Engine

Engine model / code	2UZ-FE
Engine position	Front, Longitudinal
Engine displacement	4664 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	94 mm
Piston stroke	84 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	6.1 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	100 l
Curb weight	1940 kg
Gross weight	2812 kg
Braked trailer load (12% slope start)	3266 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1825-1835 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	264 mm
Approach angle	26 °
Departure angle	23 °
Turning circle	13.5 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16
ABS	no

Basic version information

Brand	Toyota
Model	Tundra
Version	Tundra I
Engine	3.4i (190 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	1999 r.
End of production	2002 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	15.6 l/100 km
Fuel consumption - Extra-urban cycle	13 l/100 km
Fuel consumption - Combined cycle	14.7 l/100 km

Engine

Engine model / code	5VZ-FE
Engine position	Front, Longitudinal
Engine displacement	3378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	93.4 mm
Piston stroke	82 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	9.9 l

Volume and weight

Fuel tank	100 l
Curb weight	1854 kg
Gross weight	2585 kg
Braked trailer load (12% slope start)	2245 kg

Vehicle dimensions

Length	5525 mm
Width	1910 mm
Height	1825-1835 mm
Wheelbase	3260 mm
Front track	1675 mm
Rear track	1648 mm
Ground clearance	264 mm
Approach angle	27 °
Departure angle	23 °
Turning circle	13.5 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Double wishbone
Front brakes	Ventilated disc
Rear brakes	Drum
Tire size	245/70 R16; 265/70 R16
Rim size	7.0J x 16
ABS	no
